11.6 inch 1366X768 IPS EDP Panel screen with Controller board 2 type-C mini HDMI-compatible for PC PS X360 Laptop raspberry DIY
Regular price
$157.49
$157.49
SPECIFICATIONS
Brand Name: OPLY
Certification: RoHS
Compatible Brand: Lenovo
High-concerned chemical: None
Item Type: Other Notebook Parts
Model Number: 11.6 inch panel with board
Origin: Mainland China
Part Number: 244244

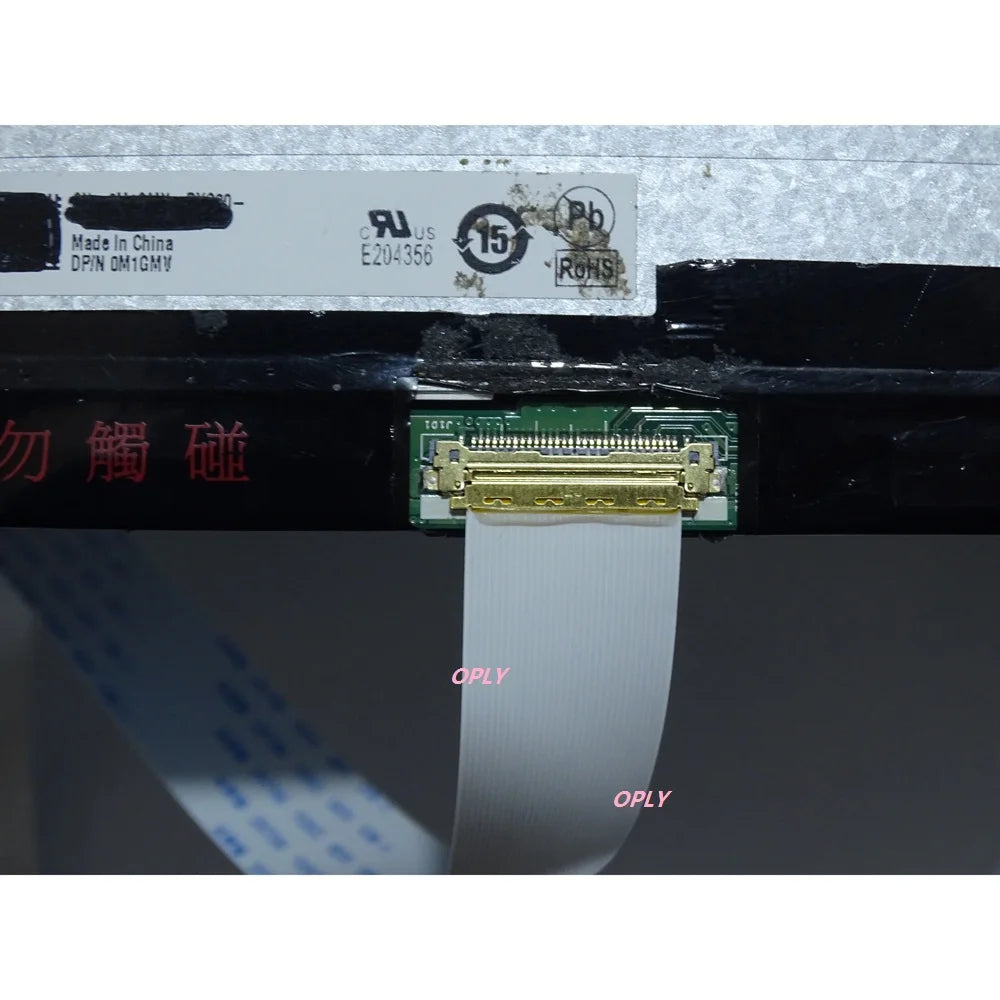

11.6 inch 1366X768 EDP panel:
Resolution :1366(RGB)×768
Frame Rate :60HZ
Interface Type :eDP (1 Lanes) , eDP1.2 ,30 pins Connector
Power Supply:3.3V

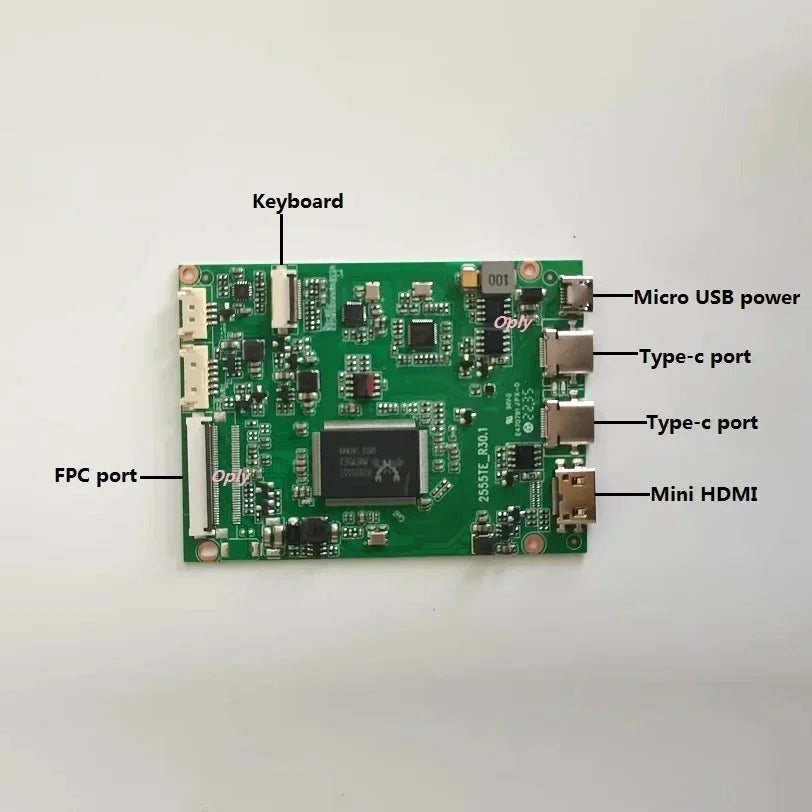

EDP Type C Controller Board :
Mini HDMI TYpe-C EDP Board Work for EDP panel
Input Power Adapter:5V-3A Power by Micro USB or the Type C port

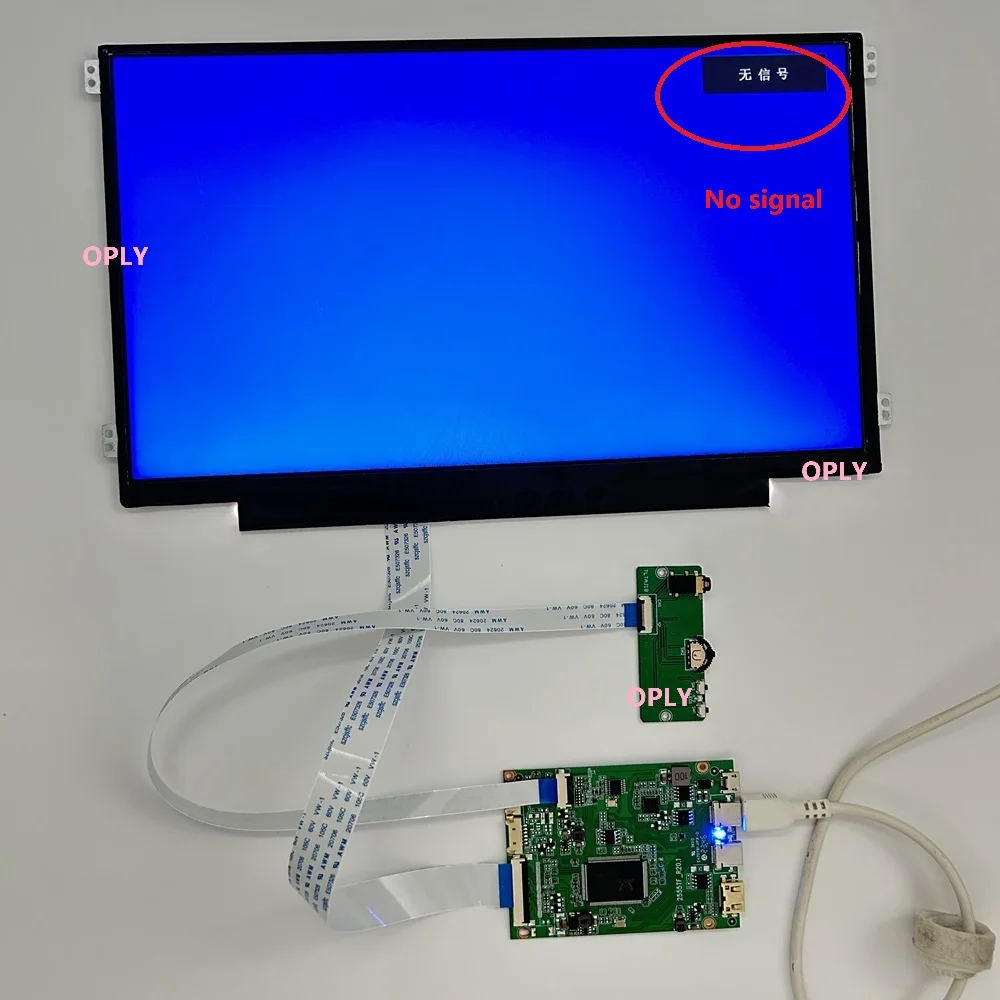

Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: mini HDMI Type-C
Audio Input: mini HDMI TYPE-C
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:82mm x 59mm x 4mm
Type C Support Mobile Phone:
Huawei : Mate10 Mate10Pro Mate20 Mate20Pro Mate20X Mate30 ,P20 P20Pro P20RS P30
Honour Note10 Honour V20
Samsung:S8 S8+ S9 S9+ S10 S10+ Note8 Notes
Nut Phone: NutR1 NutPro2S
OPPO : R17 Pro
Razer: Razer phone Razer phone 2
blackshark:blackshark 2
Ace pro:One Plus7 7Pro 7T
Nokia: Nokia 9 pure View
HTC: U Ultra
Sony: Xperia1(J9110) X peria5
ZTE: AXon 9Pro
Note :If your phone is not above ,Pls make sure the mobile phone with projection
Packing list :

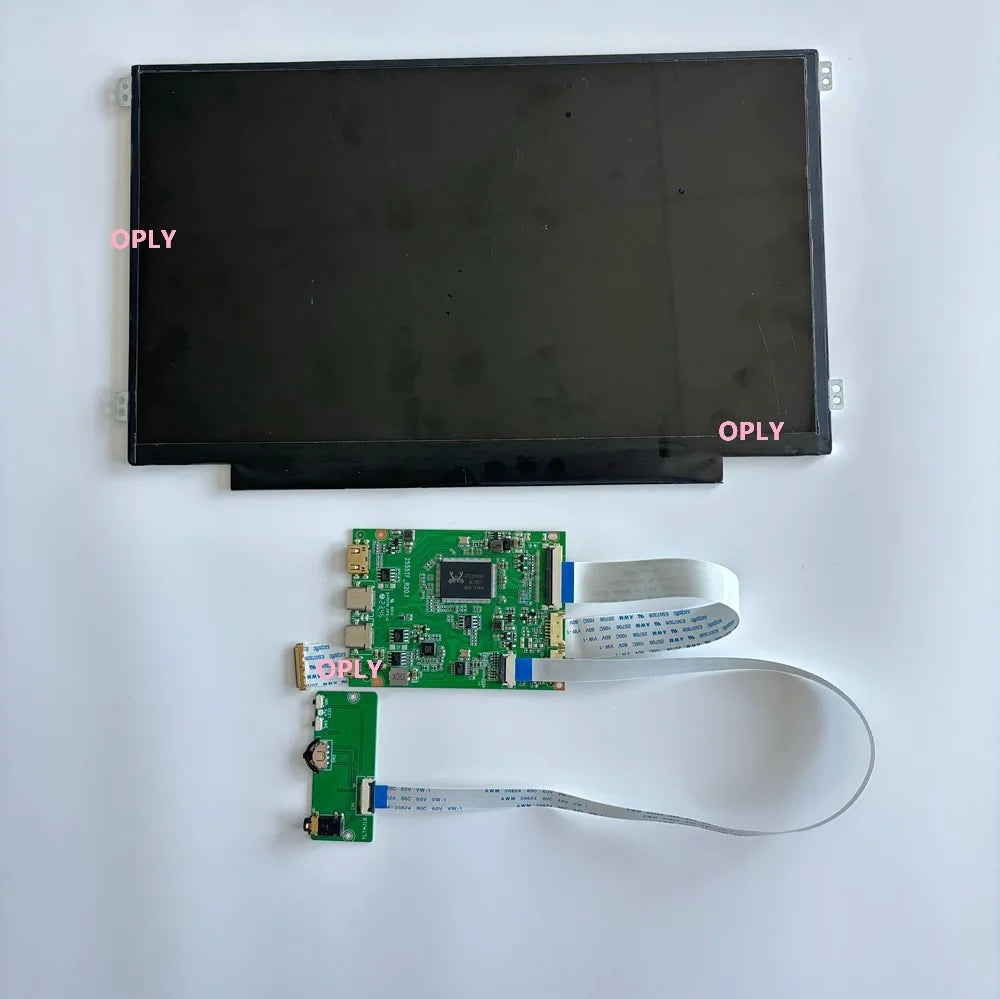

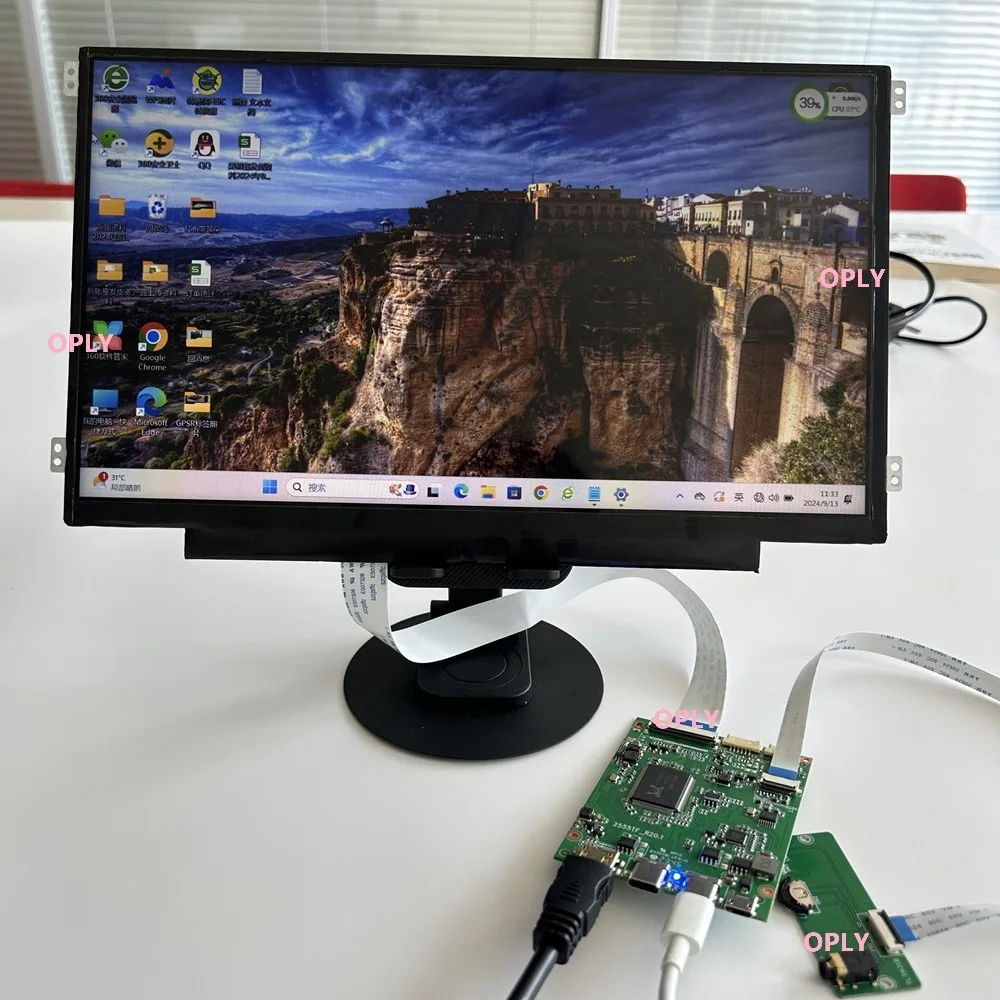

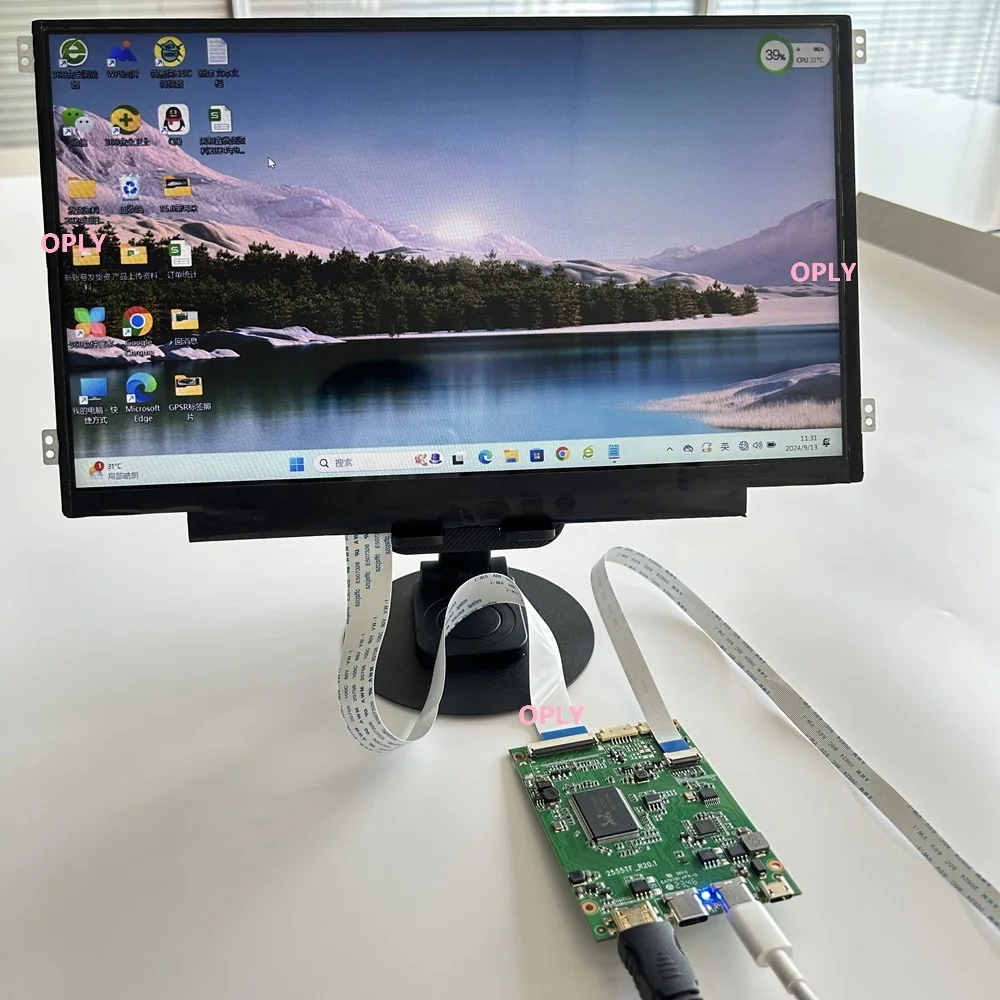

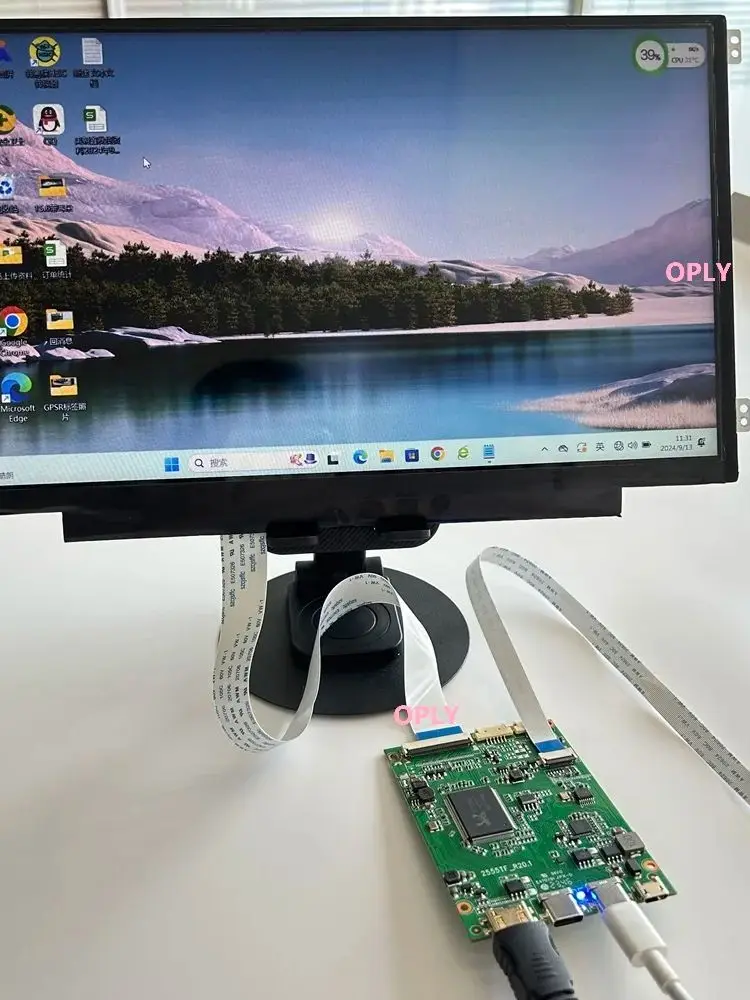

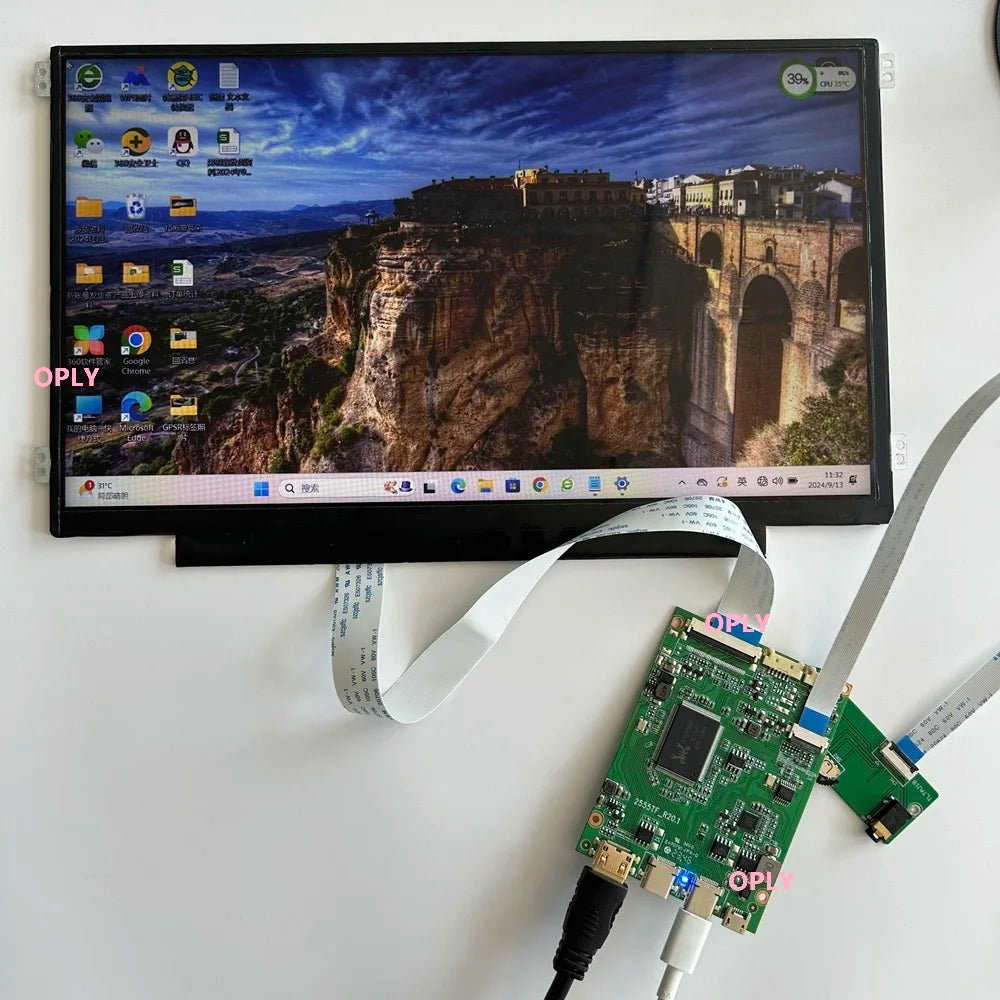

product Shows :
