SPECIFICATIONS
Brand Name: RYTH
Choice: yes
High-concerned chemical: None
Model Number: 6PH1930
Origin: Mainland China
Type: Washing Machine Parts
semi_Choice: yes

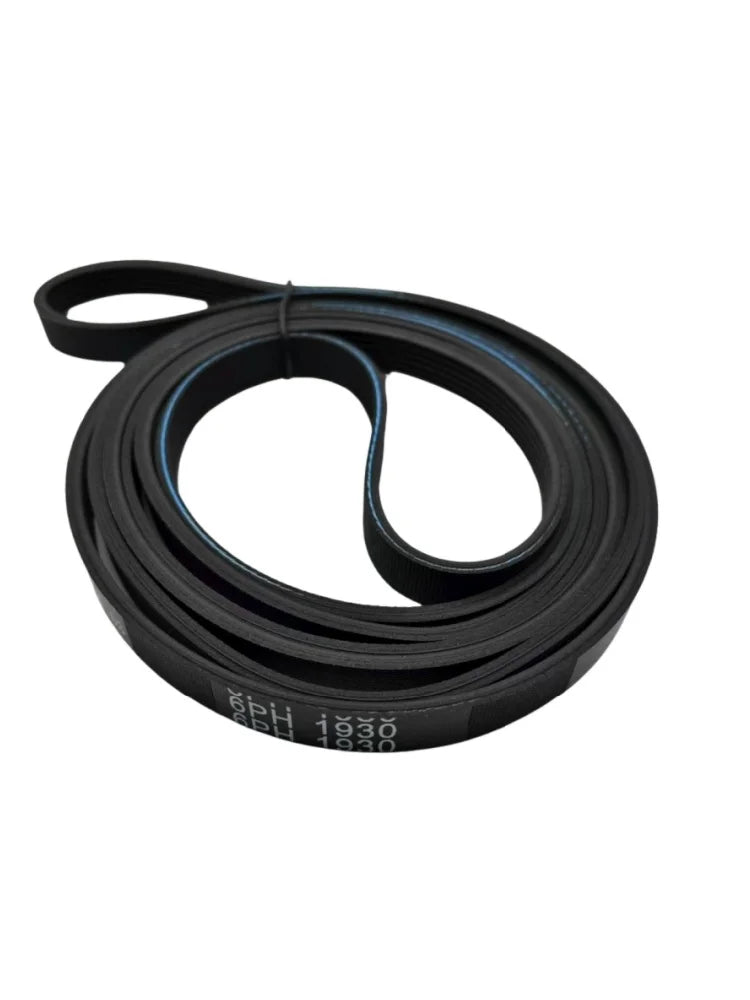

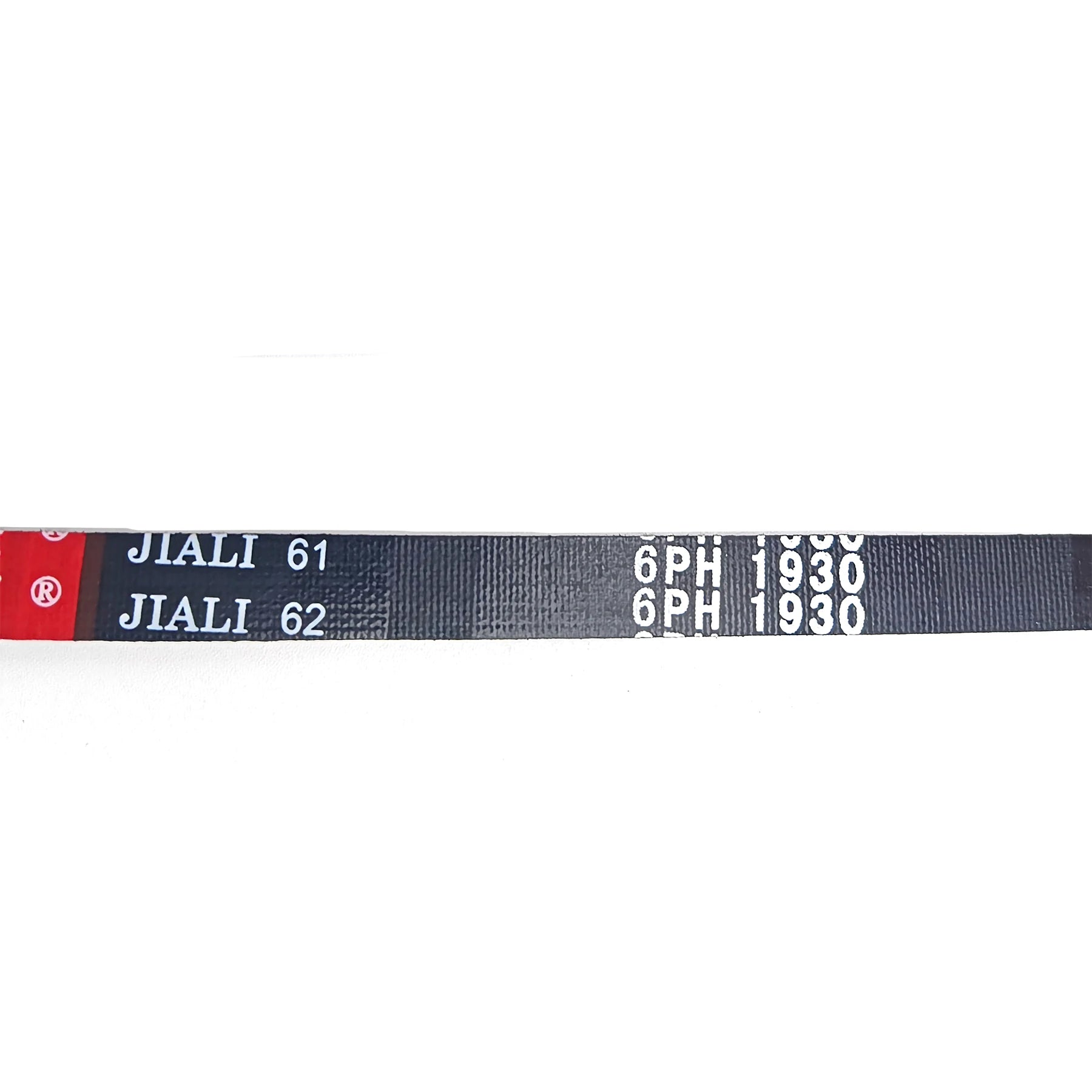

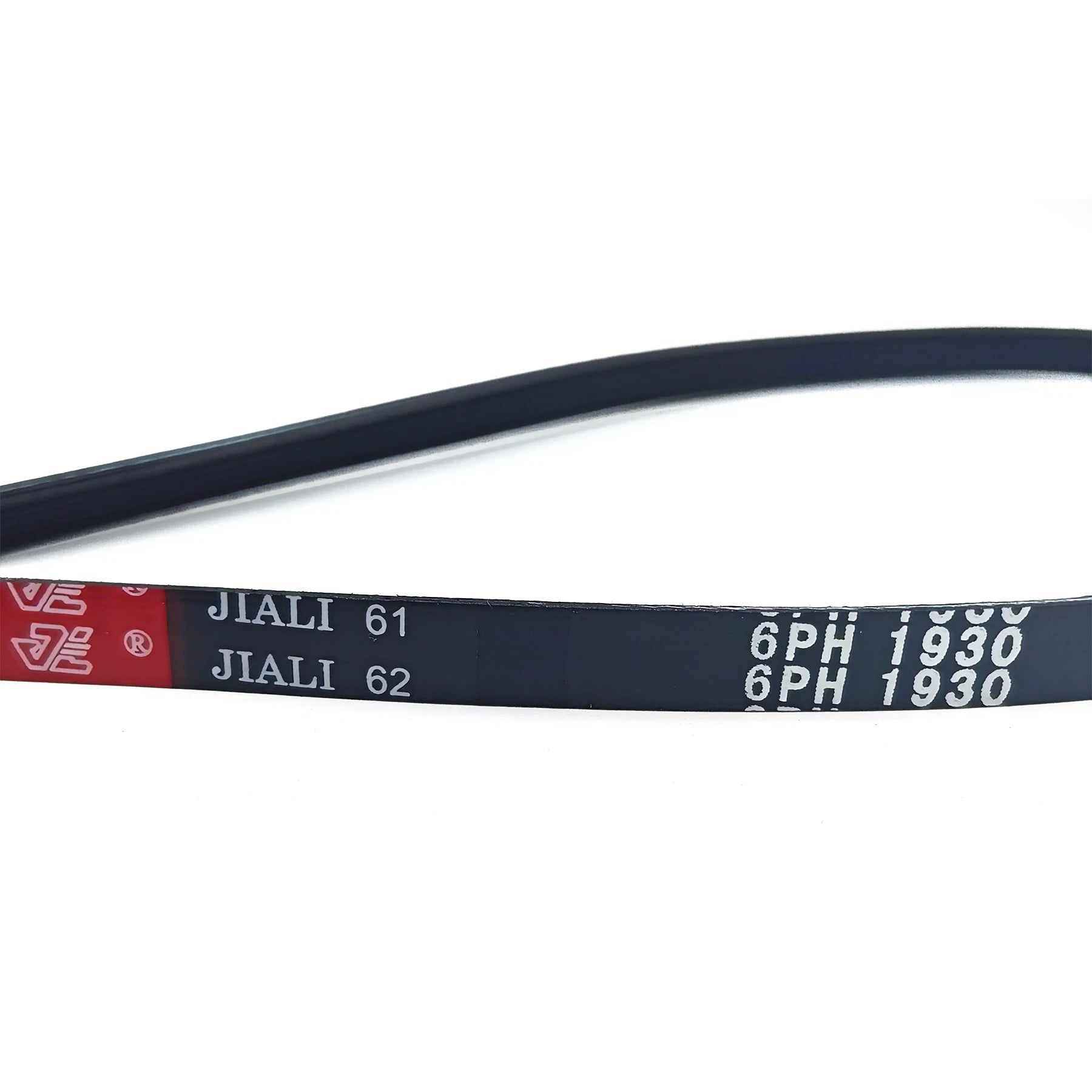

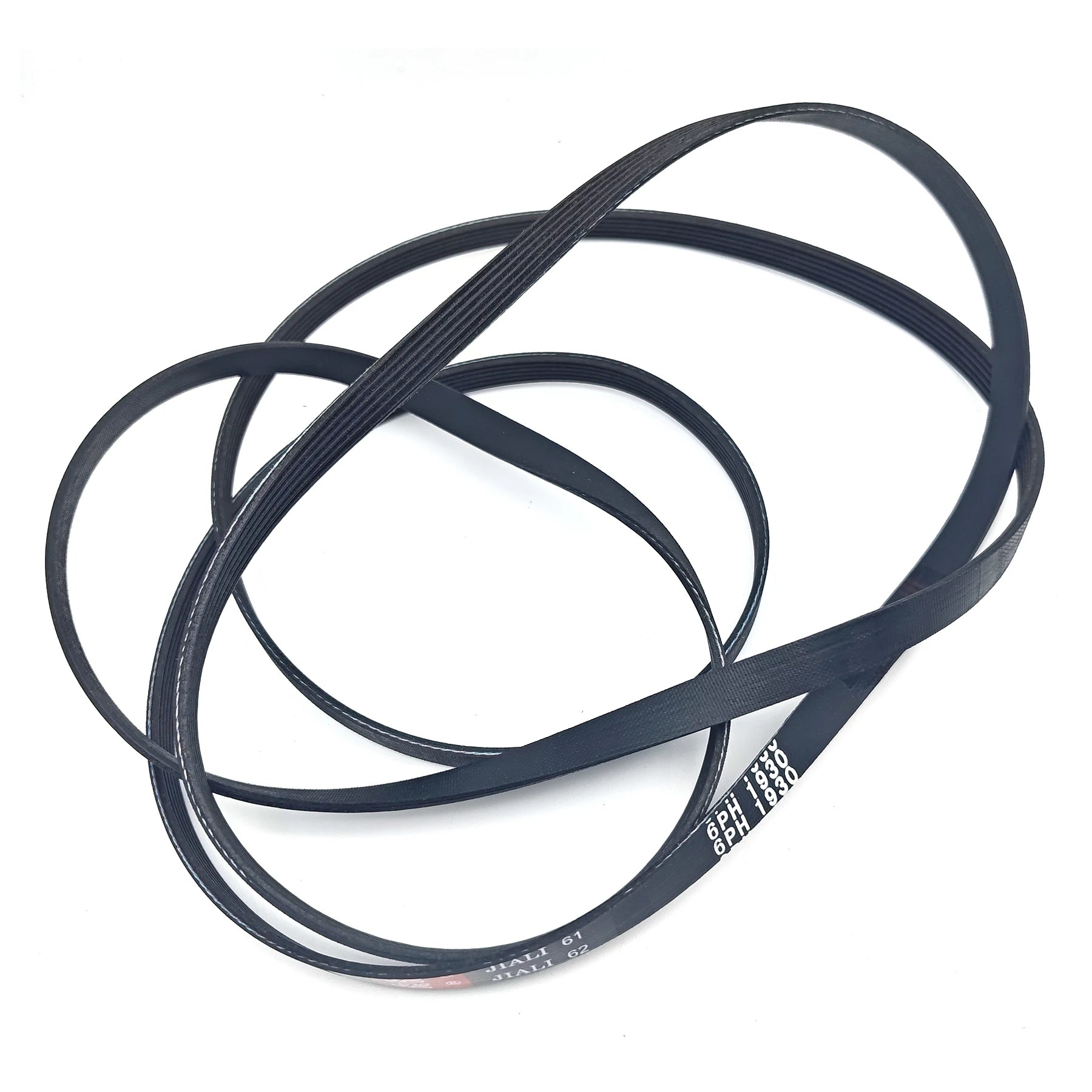

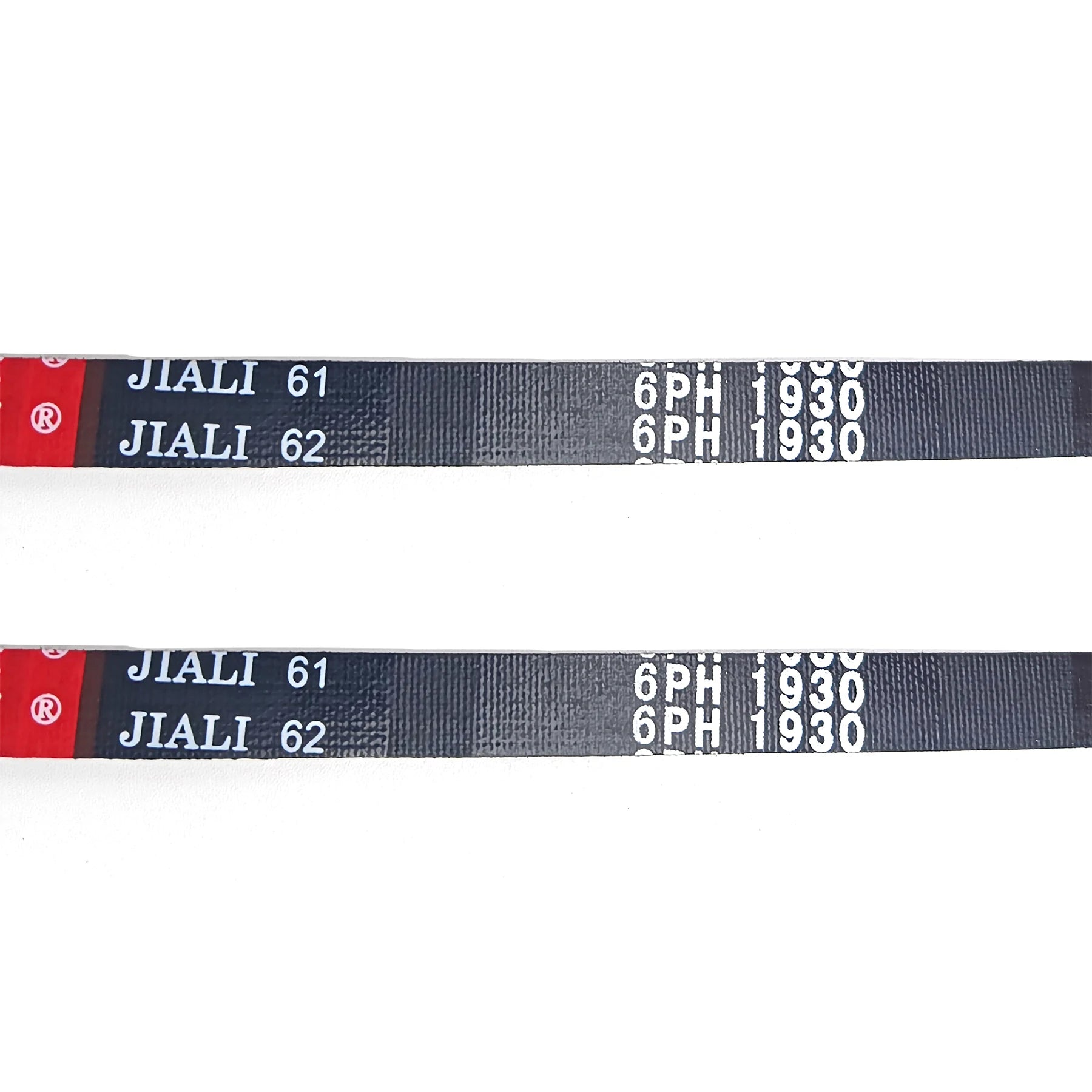

6PH1930 Drive Belt Replacement for Beko Indesit Ariston Hotpoint Tumble Dryers – Compatible with DRVS DRVT DVTC DCU Series and Equivalents
Product Overview
Restore reliable drum rotation and efficient drying performance to your tumble dryer with this high-quality 6PH1930 replacement drive belt. This multi-ribbed (poly-V / 6-rib) belt connects the motor to the drum pulley, transmitting power smoothly. It fixes slipping, no-spin issues, squealing noises, or failure to tumble caused by worn, cracked, stretched, or broken belts from daily use. Easy to install – basic tools required (screwdriver, rear panel removal). Perfect for DIY repairs or professional use, this part ensures quiet operation and long-lasting durability.
Key Features
OEM Equivalent Part Number: 6PH1930 (also known as 2951240100, 0198 300 010, equivalents in some brands)
Color: Black (standard rubber belt color)

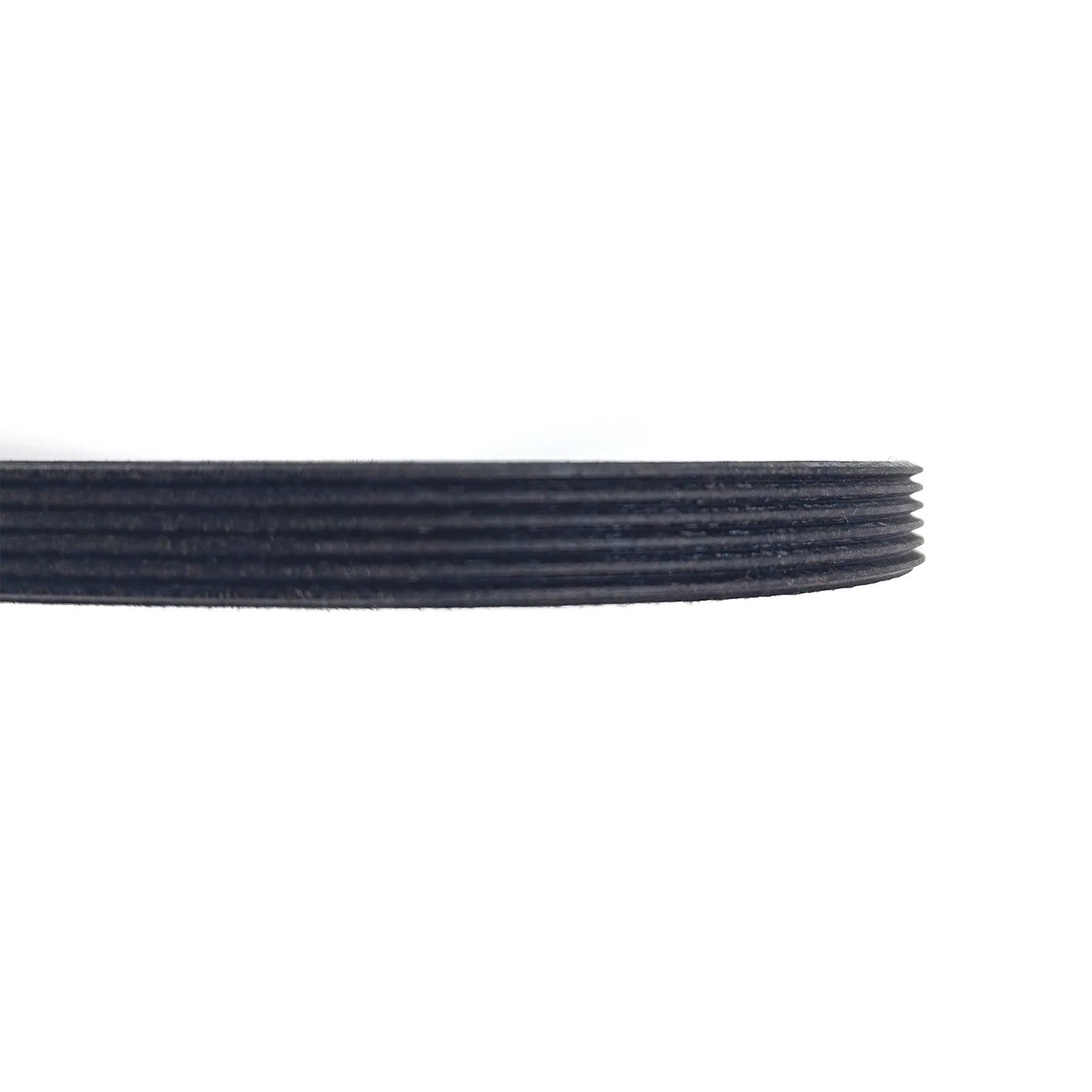

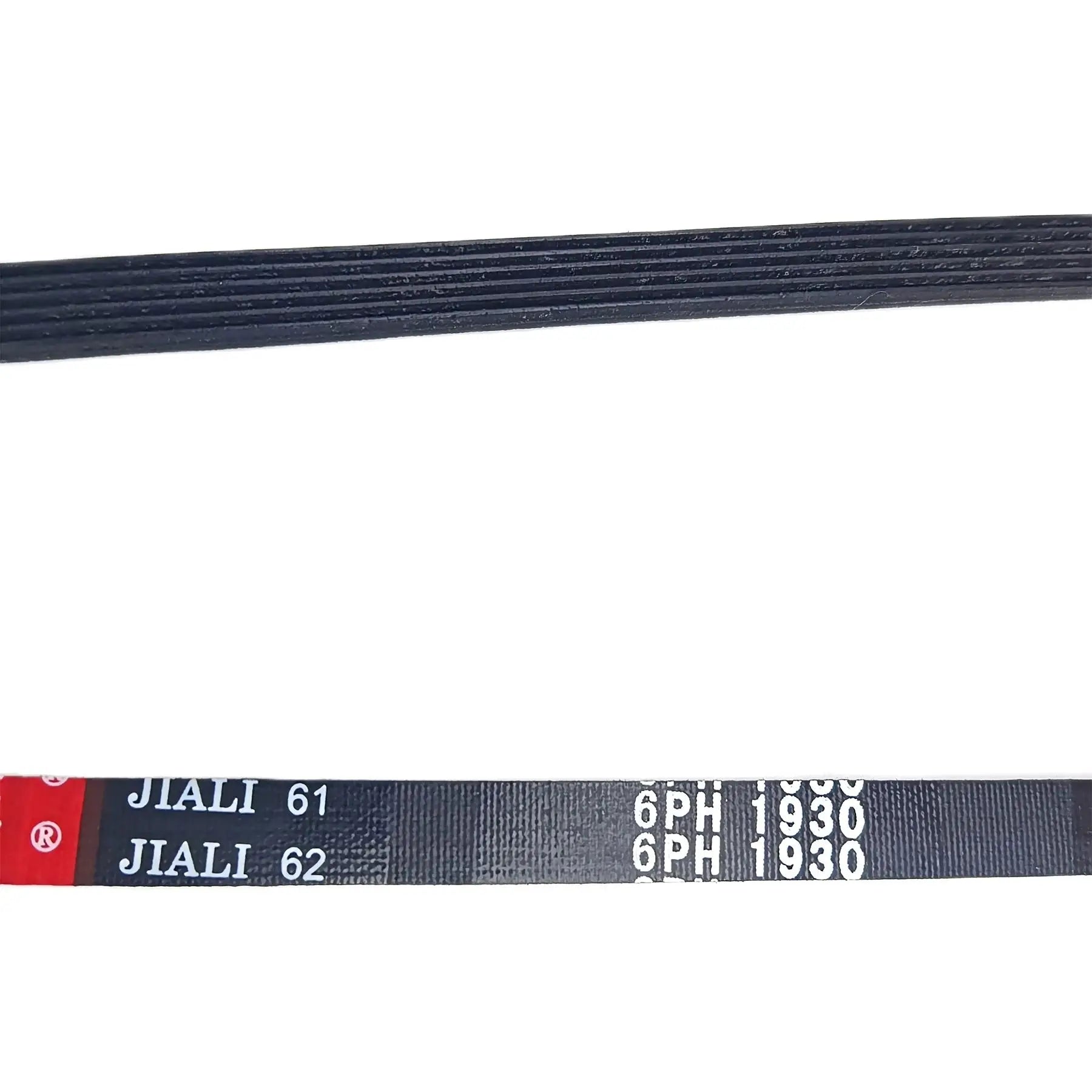

Material: High-strength rubber with 6-rib (poly-V) design – resistant to cracking, stretching, heat, and abrasion
Function: Power transmission from motor to drum + smooth, vibration-reduced rotation
Installation: Direct replacement, takes 20-45 minutes (simple loop-on design after rear access panel removal)
Durability: Built to withstand frequent dryer cycles in household use
Compatibility Guarantee: Fits select Beko, Indesit, Ariston, Hotpoint, Electrolux, and cross-compatible tumble dryers – verify your part number or model before purchase
Installation Instructions
Follow these step-by-step instructions to install the 6PH1930 drive belt on your compatible tumble dryer. Tools needed: Screwdriver set, pliers, flashlight. Always unplug the dryer from power before starting for safety.
Prepare the Dryer: Unplug the tumble dryer from the power source. Move it away from the wall for rear access.
Access the Belt Area: Remove the rear panel (secured by screws) to expose the drum, motor, and pulley system.
Remove the Old Belt: Release tension from the idler/tensioner pulley if present (push aside or loosen). Slip the old belt off the drum and motor pulleys. Note the routing path for correct reinstallation.
Install the New Belt: Route the new 6PH1930 belt around the drum pulley first, then over the motor pulley (ensure ribs seat properly in grooves). Re-apply tension via the idler pulley.
Reassemble and Test: Secure the rear panel. Plug in the dryer and run a short cycle to check smooth drum rotation, no slipping/squealing, and proper tension.
⚠️ Safety Tip: If belt routing is unclear or access is difficult, consult a professional technician or dryer manual. Improper installation may cause belt damage or void warranties.
Compatibility / Fit Models
This drive belt is compatible with the following tumble dryer models (full list grouped by brand/series based on verified compatibility data from parts suppliers, eBay/Amazon listings, and repair sites; always confirm with your dryer's part number or manual):
Beko Series: DRVS62S DRVS62W DRVS73S DRVS73W DRVT61W DRVT71W DVTC60W DCU7230 DV1160 DSV64W (and many Beko condenser/vented models using 2951240100 equivalent)
Indesit / Ariston Series: Various Indesit and Ariston tumble dryers (cross-compatible with C00031321 equivalents)
Hotpoint Series: Select Hotpoint models sharing 6PH1930 spec (often under Indesit group)
Electrolux / Other: Compatible with some Electrolux dryers and cross-brand models (e.g., variants requiring 6PH1930 / 7PH1930 length adjustment)
Additional Compatible: Galanz, Sanyo dryer variants, and other brands using 1930mm 6-rib PH-section belt (verify dimensions: approx. 1930mm circumference, 6 ribs, ~9.6mm width)
⚠️ Important Note: Compatibility depends on production year and exact model. Always cross-check your original part number (6PH1930 or equivalents like 2951240100) or dryer model before ordering to ensure perfect fit. This is a non-OEM replacement but meets or exceeds original specifications. Primarily for tumble dryers; limited confirmed use in washing machines.
Applications
Ideal for replacing worn, slipping, or broken drive belts on Beko/Indesit/Hotpoint tumble dryers
Suitable for home DIY repairs, appliance technicians, service centers, and parts distributors
Restores full tumbling and drying functionality quickly and affordably
