$311.83 $311.83

SPECIFICATIONS

Accessory Type: Sensor

Battery Included: Yes

Brand Name: seeed studio

Compatible With: meshtastic

High-concerned chemical: None

Origin: Mainland China

Typical Application Fields: Internet of Things (IoT)

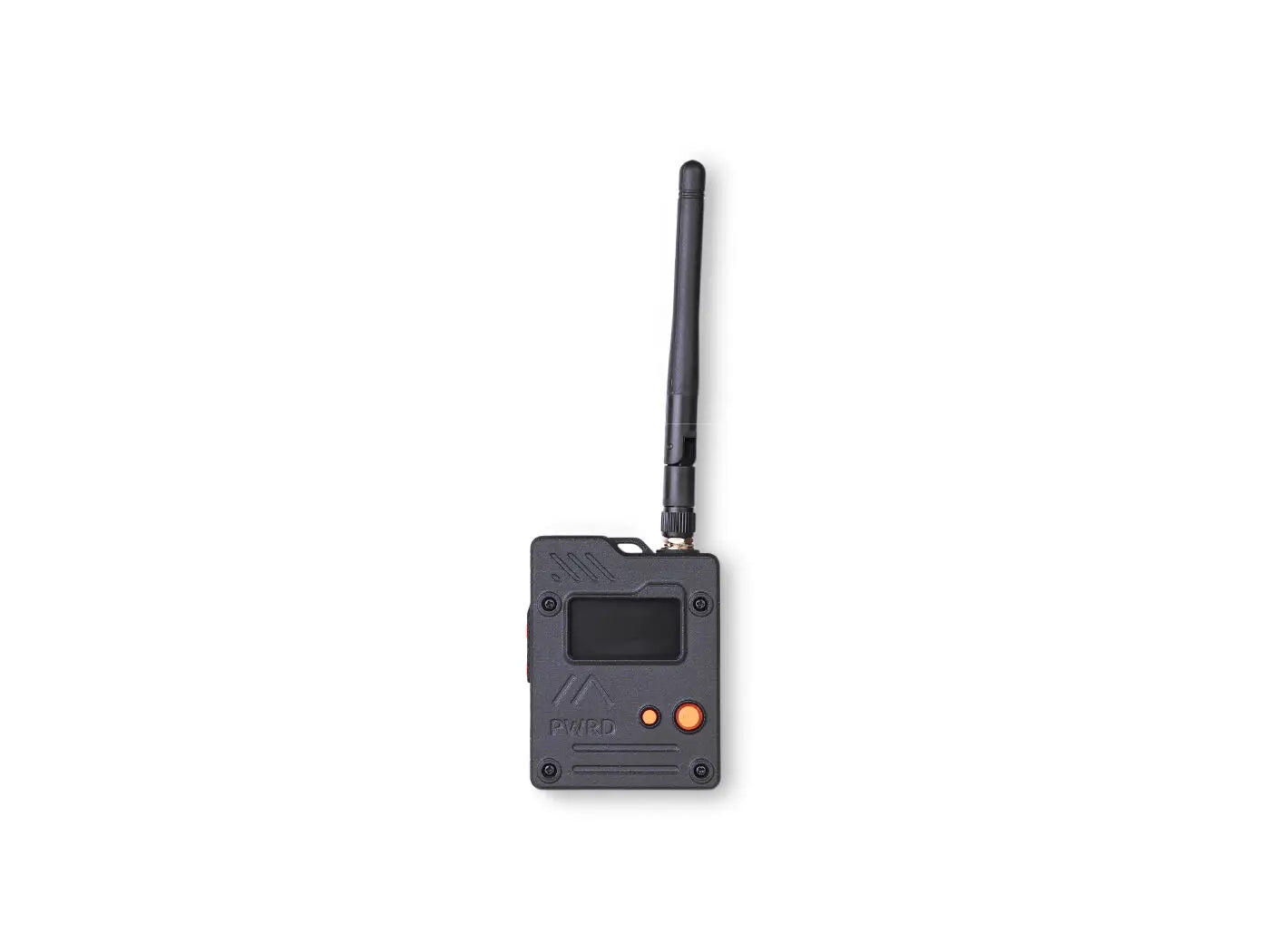

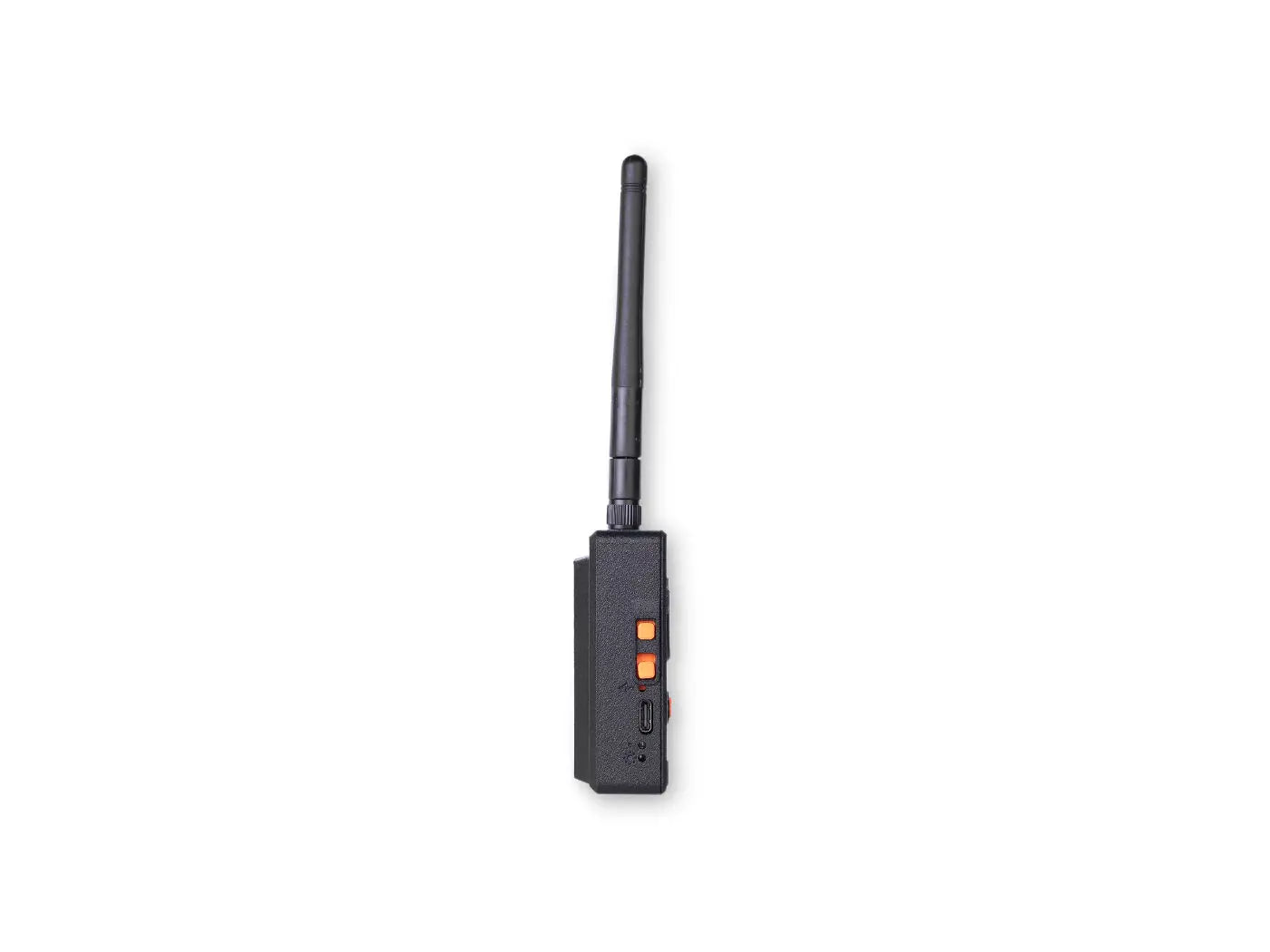

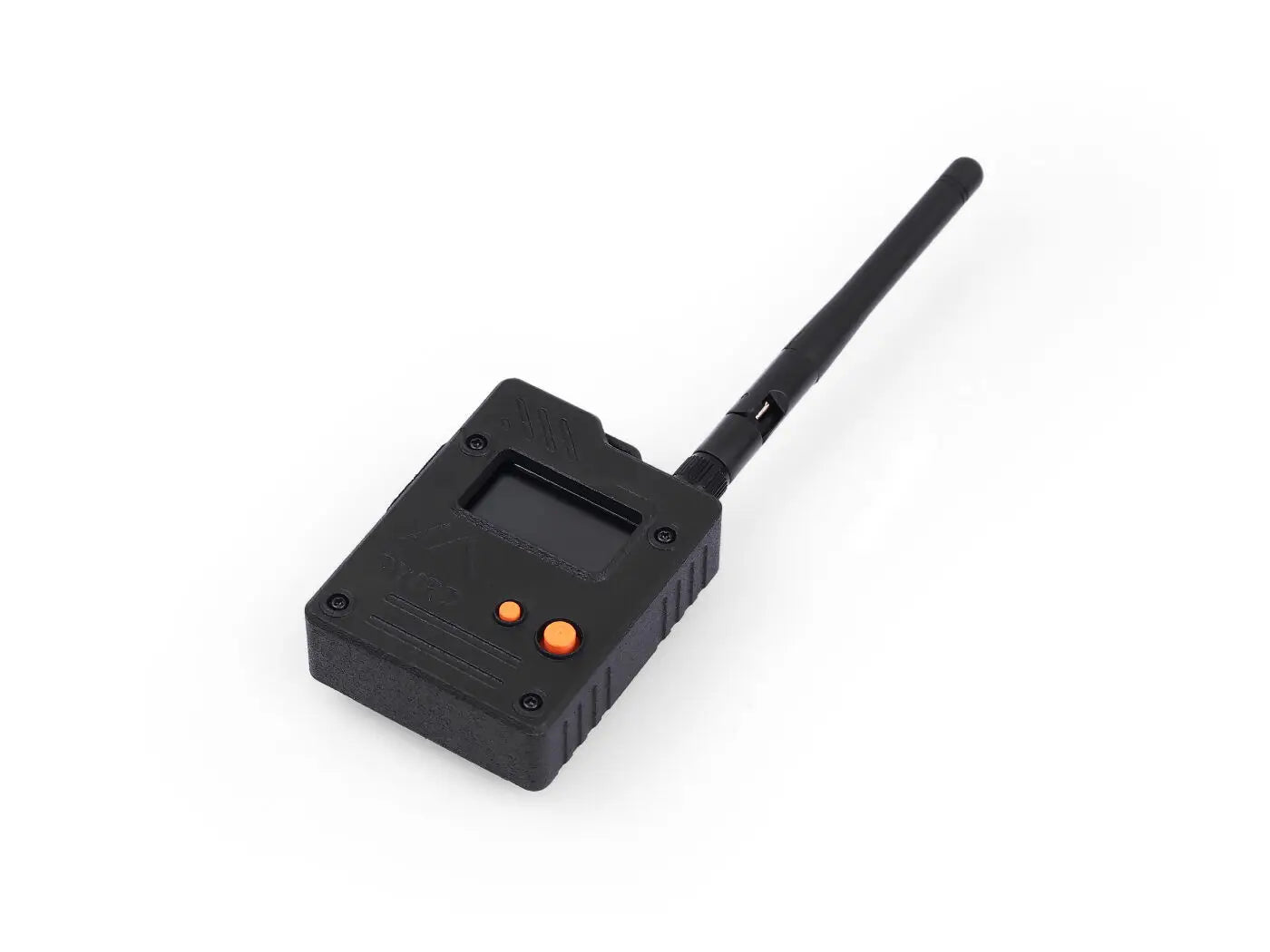

The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking. The L1 Pro version is a fully integrated, ready-to-deploy solution featuring an OLED display, rechargeable battery, and durable 3D-printed enclosure. Built for field use with no assembly required.

Feature

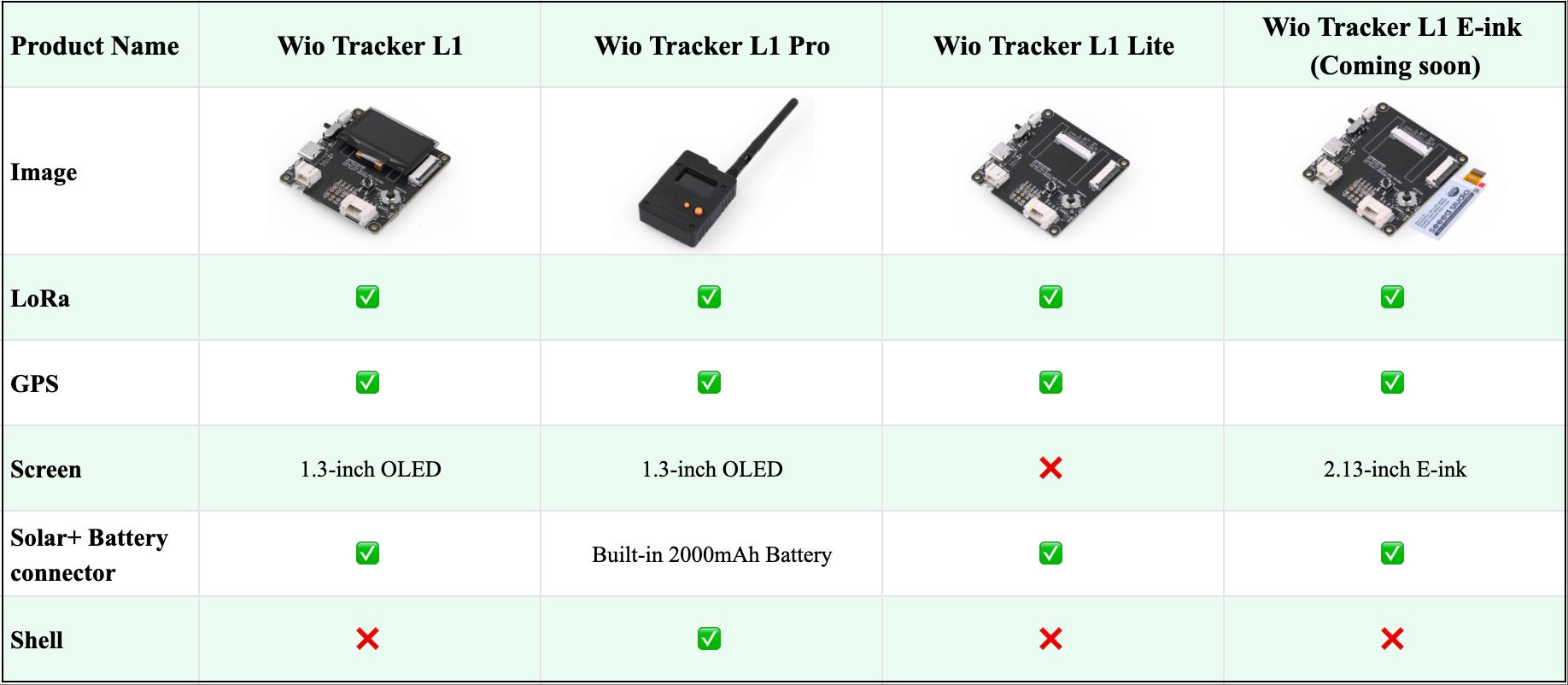

Note: The Wio Tracker L1 Series is available in four versions—choose the one that best fits your needs.

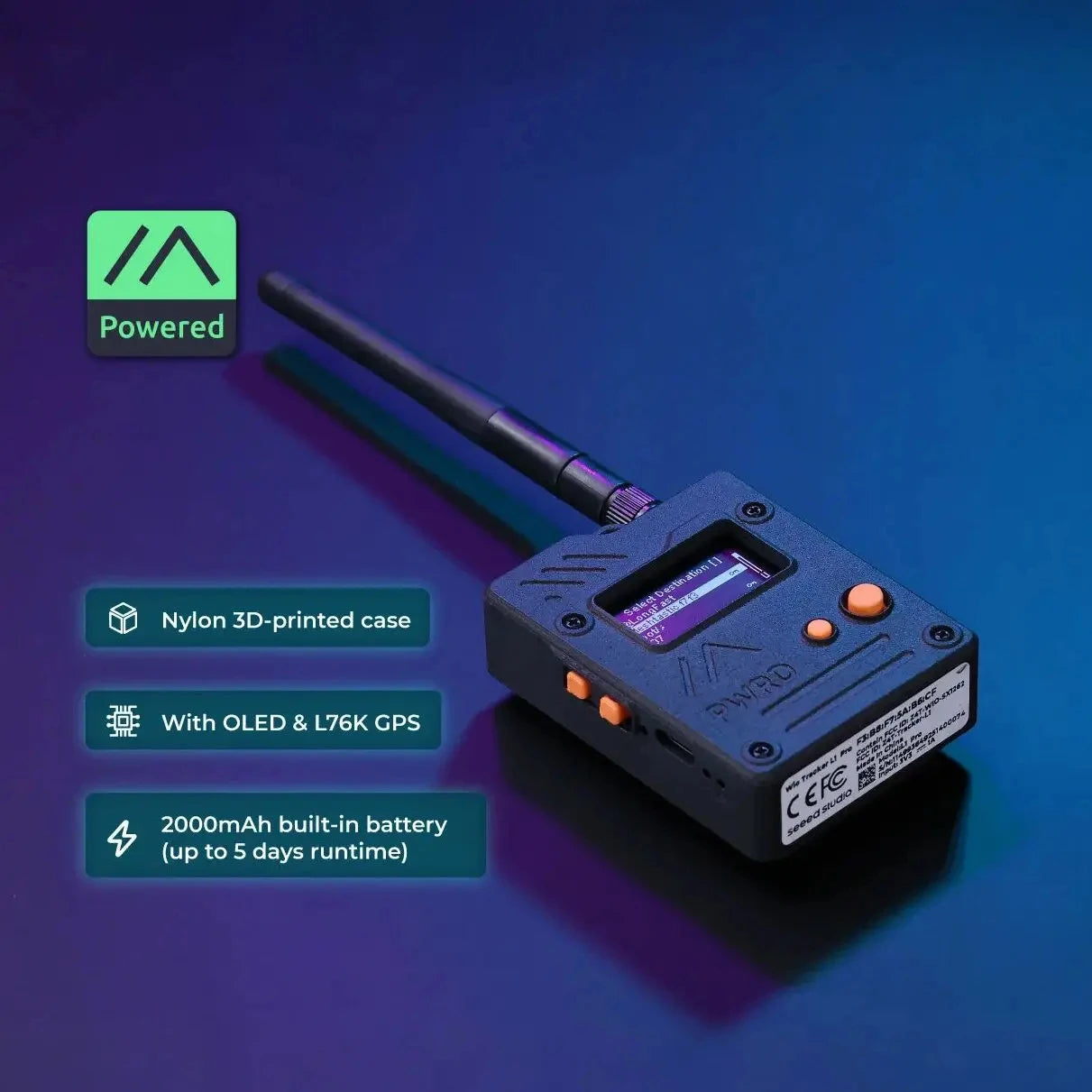

  • Ready-to-Use 3D-Printed Enclosure

The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.

  • Pre-flashed with Meshtastic firmware

Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

  • Triple Power Supply Options

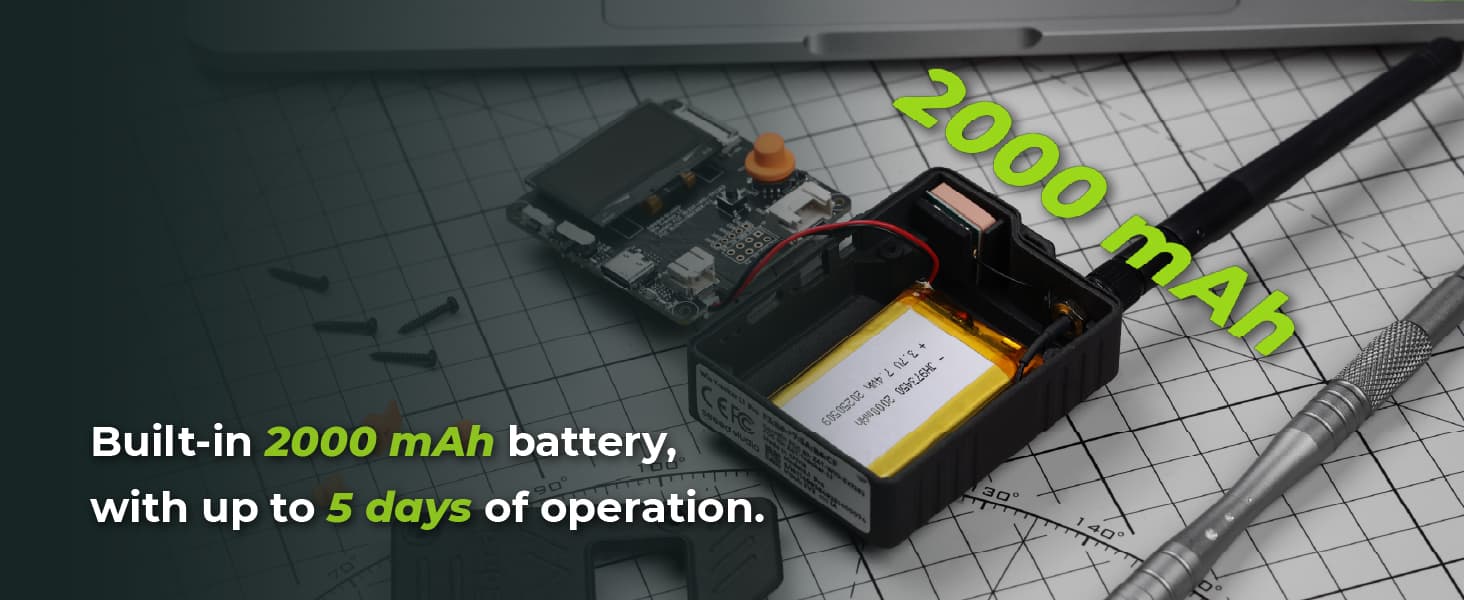

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.

  • High Expandability

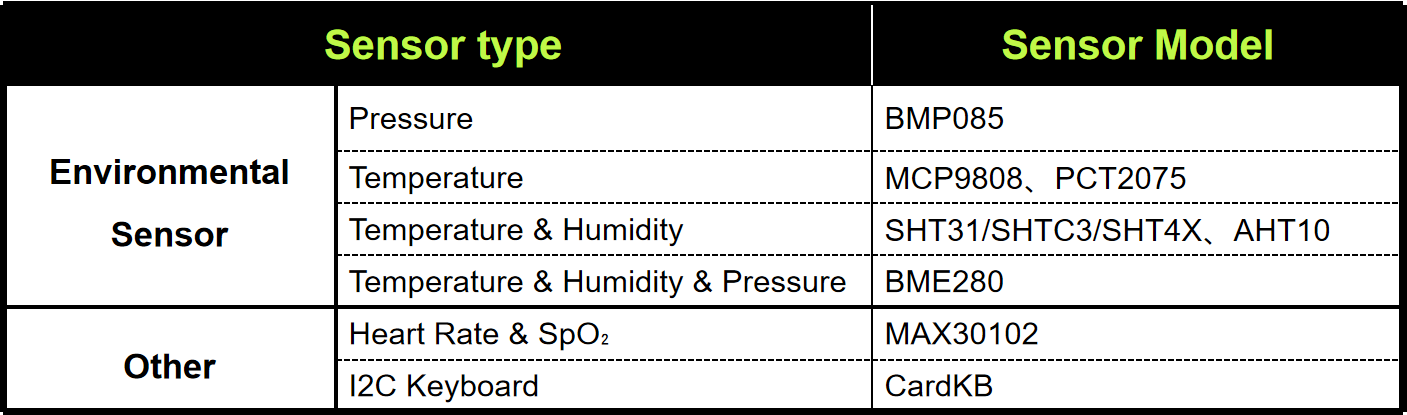

Fully compatible with the Grove Ecosystem (The list of supported sensors is provided below.), and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.

Specification

Processor

Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz

On-chip Memory

1 MB flash and 256 kB RAM

Wireless

LoRa: Based on Wio-SX1262, supports 862-930MHz

Bluetooth 5.0

GPS

L76K(GPS,BeiDou,GLONASS,QZSS)

OLED Display

Size: 1.3 inch

Resolution: 128*64 pixels

Active Area(mm): L34.5*W23.0*H1.47

Power

Type-C: 5v---1A

Solar energy interface: 5v---1A

Battery interface: 3.7v---1A

Certification

FCC, CE, RoHS

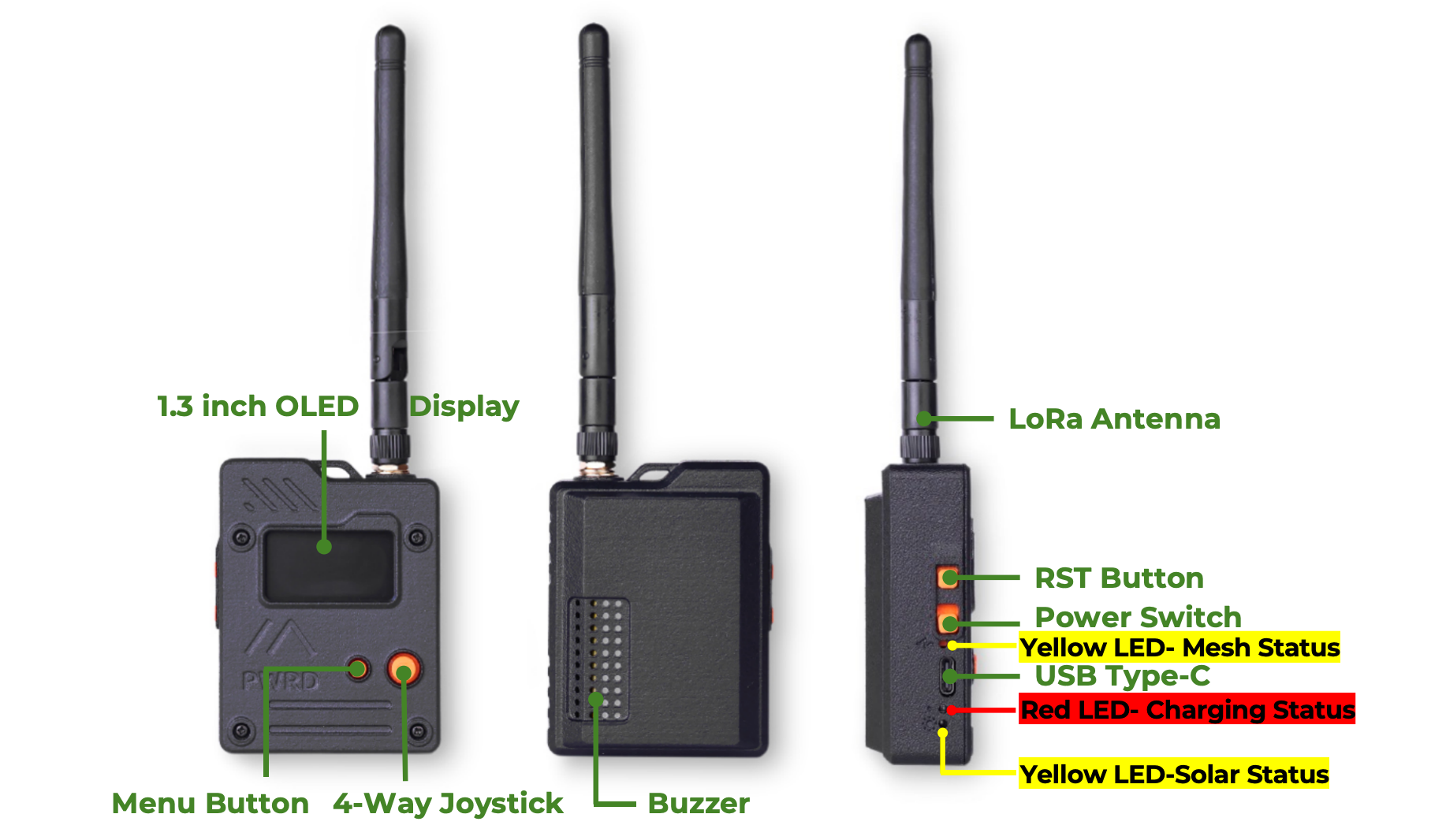

Hardware Overview

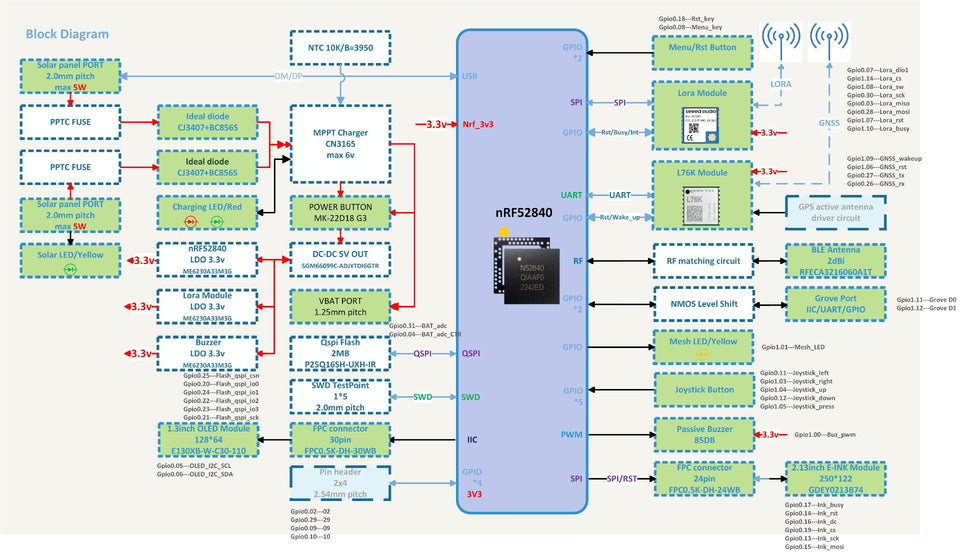

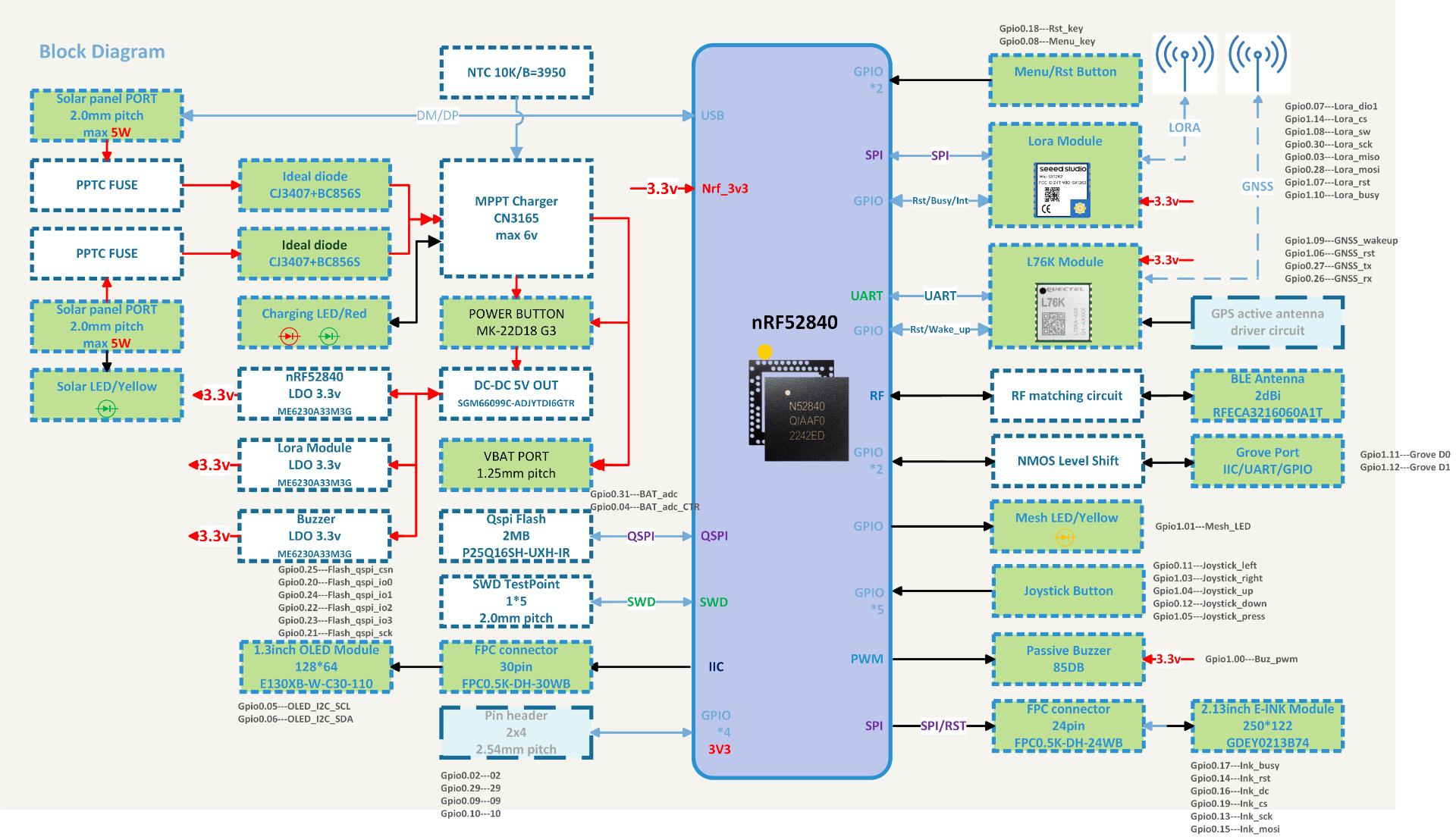

  • Diagram

Application

Documents
Wio Tracker L1 Pro 3D - Shell Reference Document
Wio Tracker L1 CE Certification
Wio Tracker L1 FCC Certification
Seeed Wio Tracker L1 Power Consumption Test and Battery Life Calculation
Certification

HSCODE

8526919090

USHSCODE

8526910040

UPC


EUHSCODE

8517180000

COO

CHINA
Part List

Wio Tracker L1 Board with 1.3 inch OLED Display, 3D-Printed Enclosure and battery

x1

LoRa Antenna

x1
