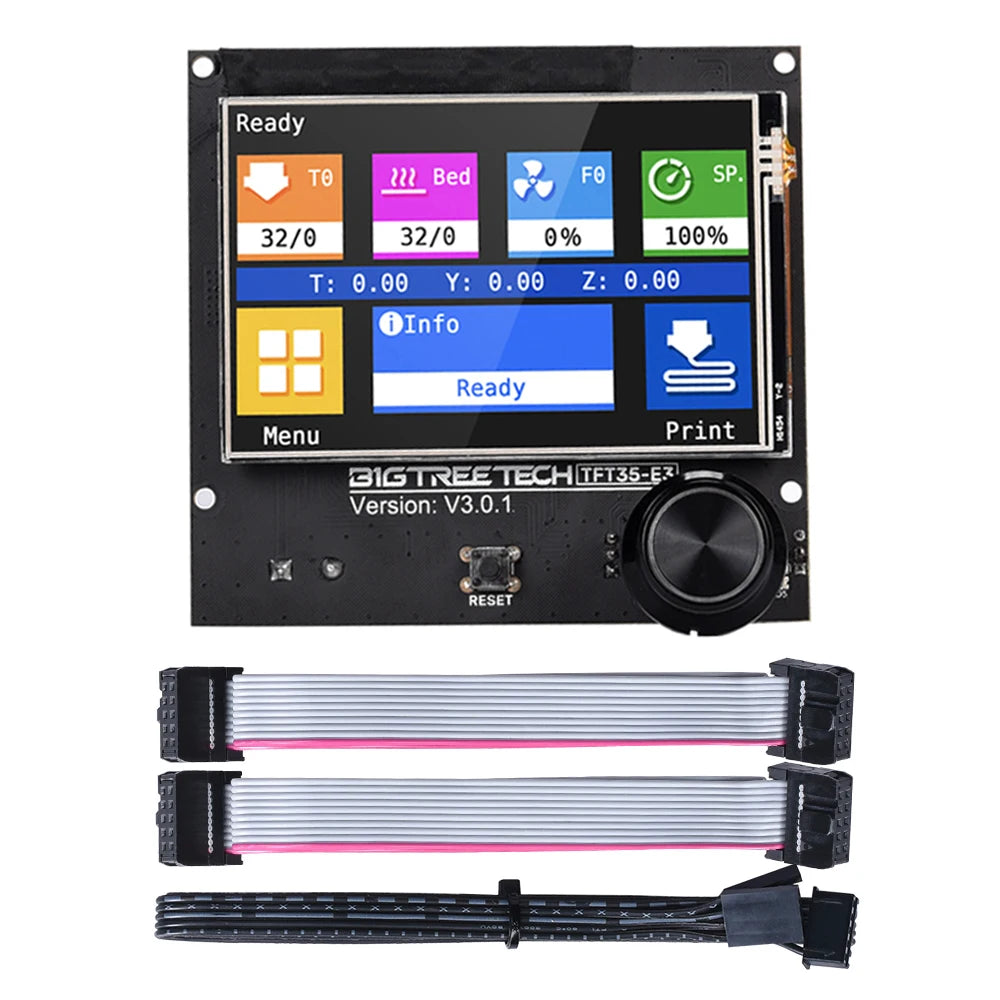

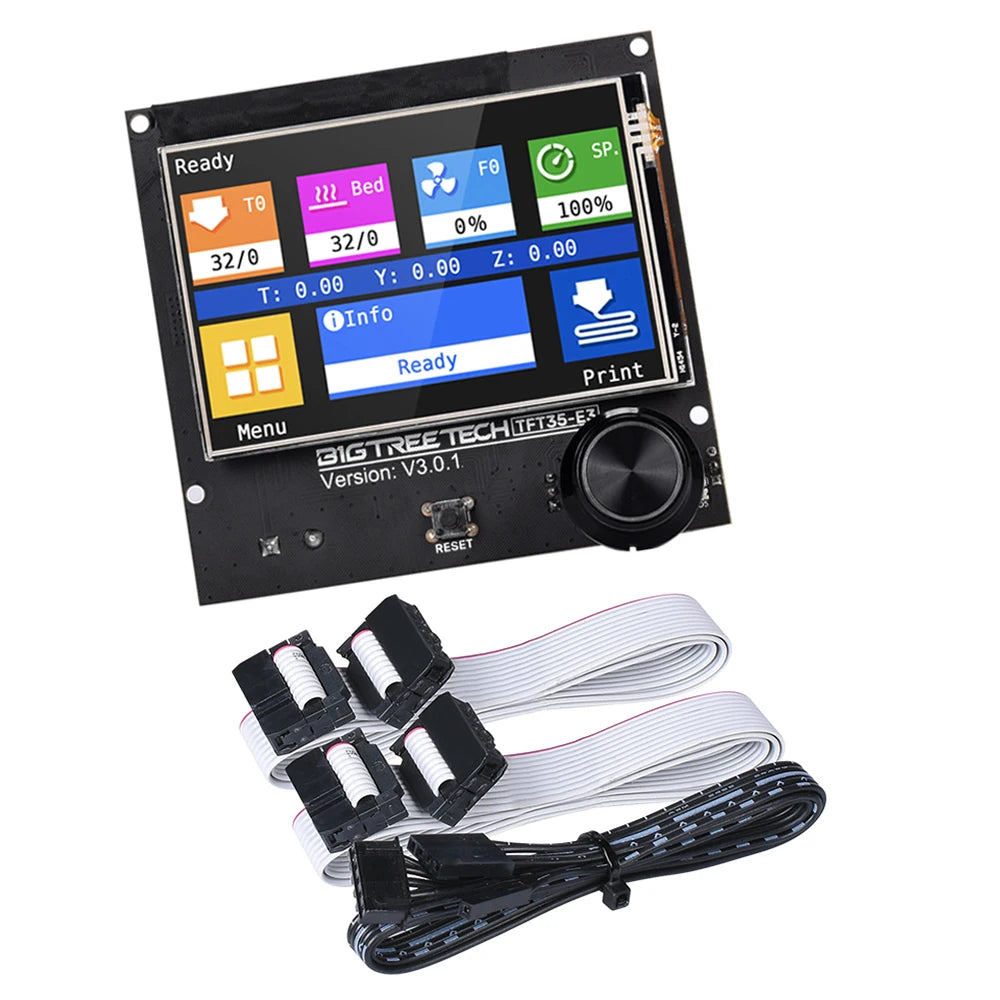

BIGTREETECH TFT35 E3 V3.0 Touch Screen 12864 LCD Display WIFI Module For SKR MINI E3 V3.0 Octopus Pro Ender3 CR10 3D Printer

BIGTREETECH TFT35 E3 V3.0 Touch Screen 12864 LCD Display WIFI Module For SKR MINI E3 V3.0 Octopus Pro Ender3 CR10 3D Printer

Regular price ~~$212.75~~ $212.75

Quantity

Size

Ships From

Quantity

Product Details

SPECIFICATIONS

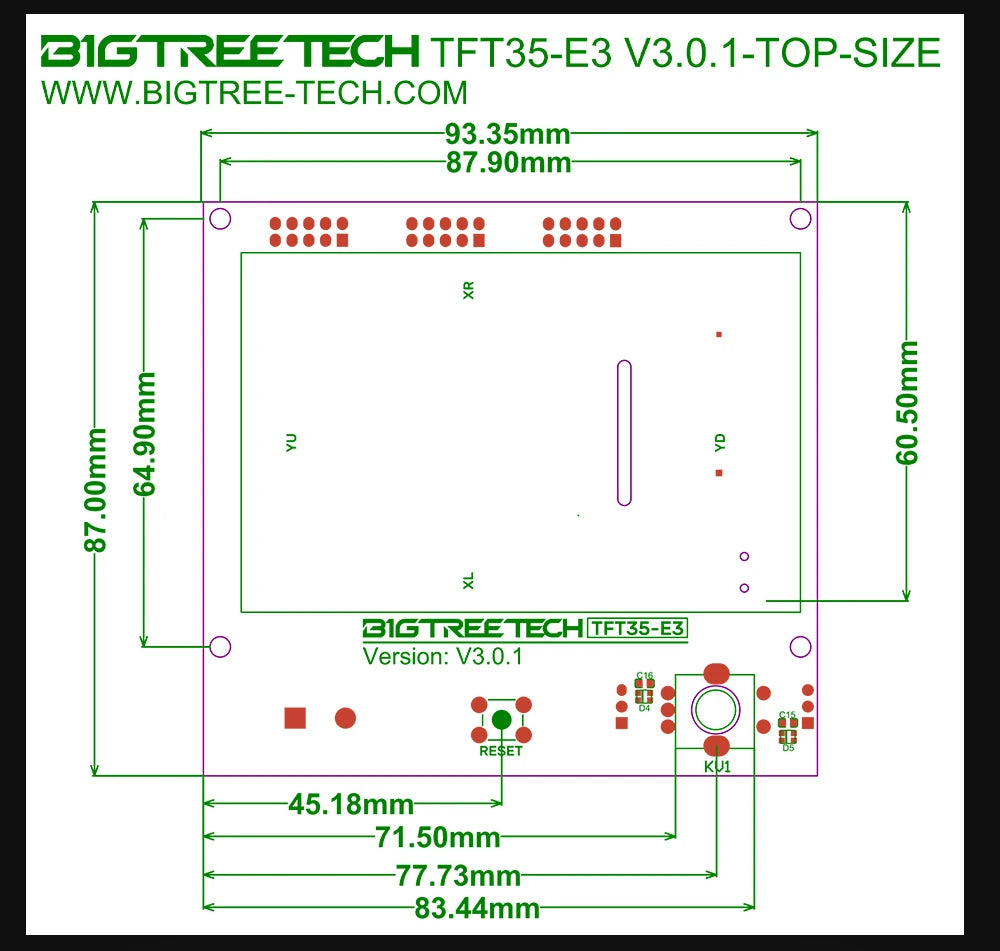

Appearance size: 93*87mm

Brand Name: BIGTREETECH

Expand the port for users to DIY: YES

Exquisite appearance: Better lighting effect after optimization

Hign-concerned Chemical: None

Item Type: Display Screen

Main control chip: ARM Cortex-M3 Series GD32F205VCT6 Master Controller with 32-bit Main Frequency of 120MHz

Microprocessor: GD32F205VCT6

Model Number: TFT35 E3 V3.0.1

Origin: Mainland China

Power Input: DC5V

SD card logic voltage: 3.3V/5V

TWO Pinting methods: Serial port screen mode supports two printing modes: SD card and U disk

WIFl port: YES

Weight: 109g

perfectly replace: perfectly replace the original LCD screen of Ender3 printer

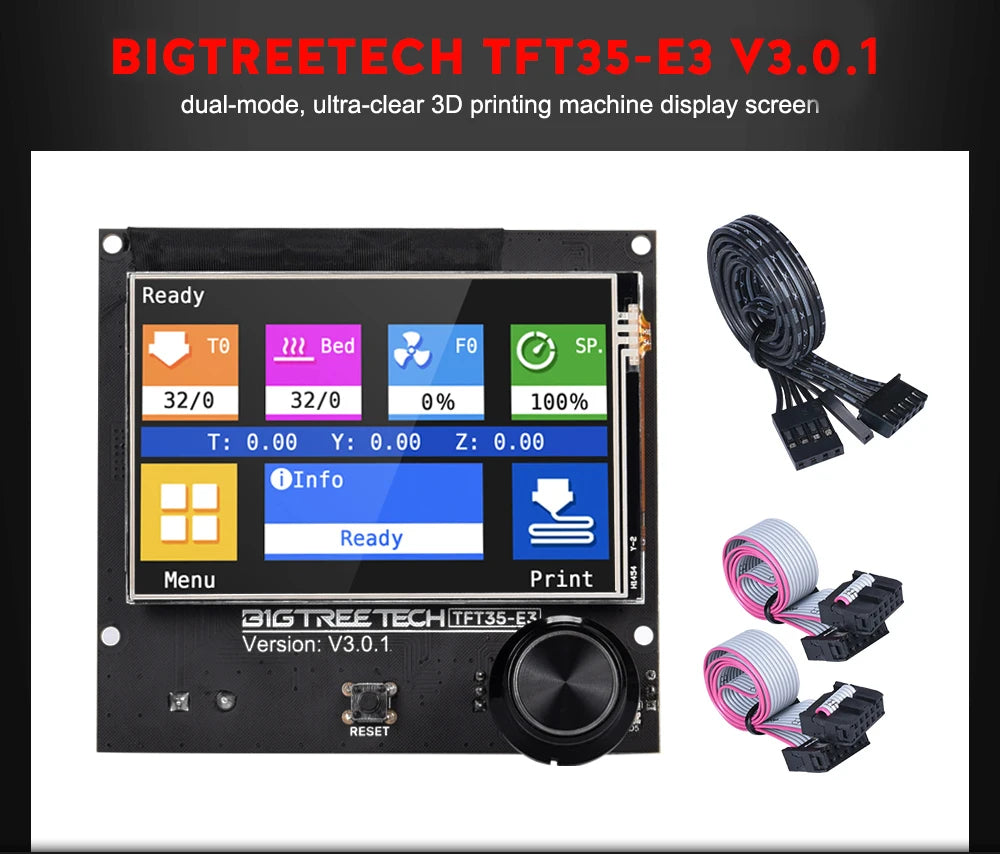

dual-mode，ultra-clear 3D printing machine display screen

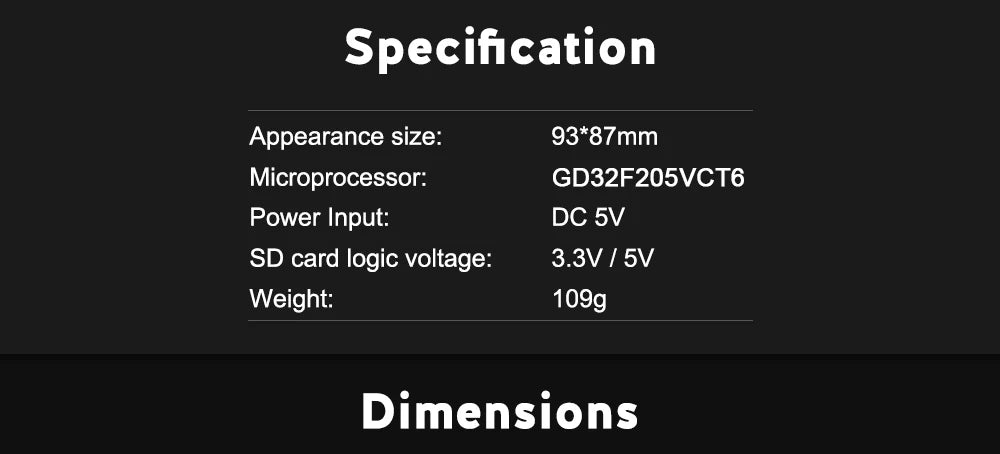

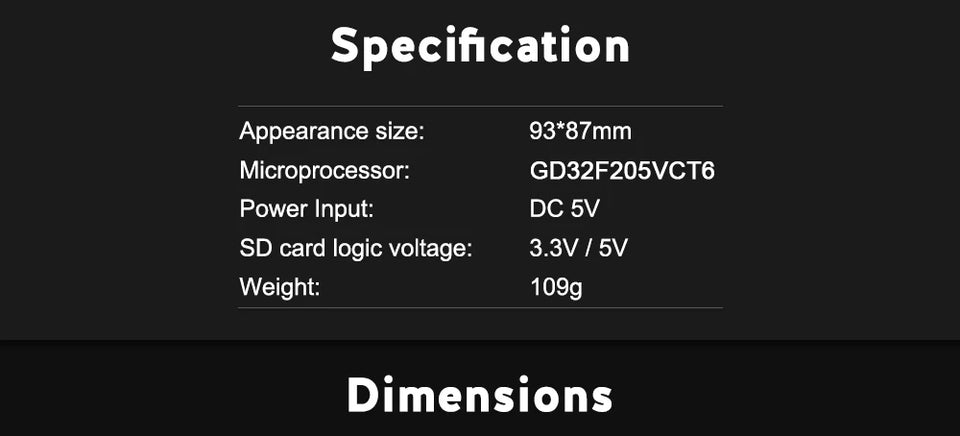

Specification

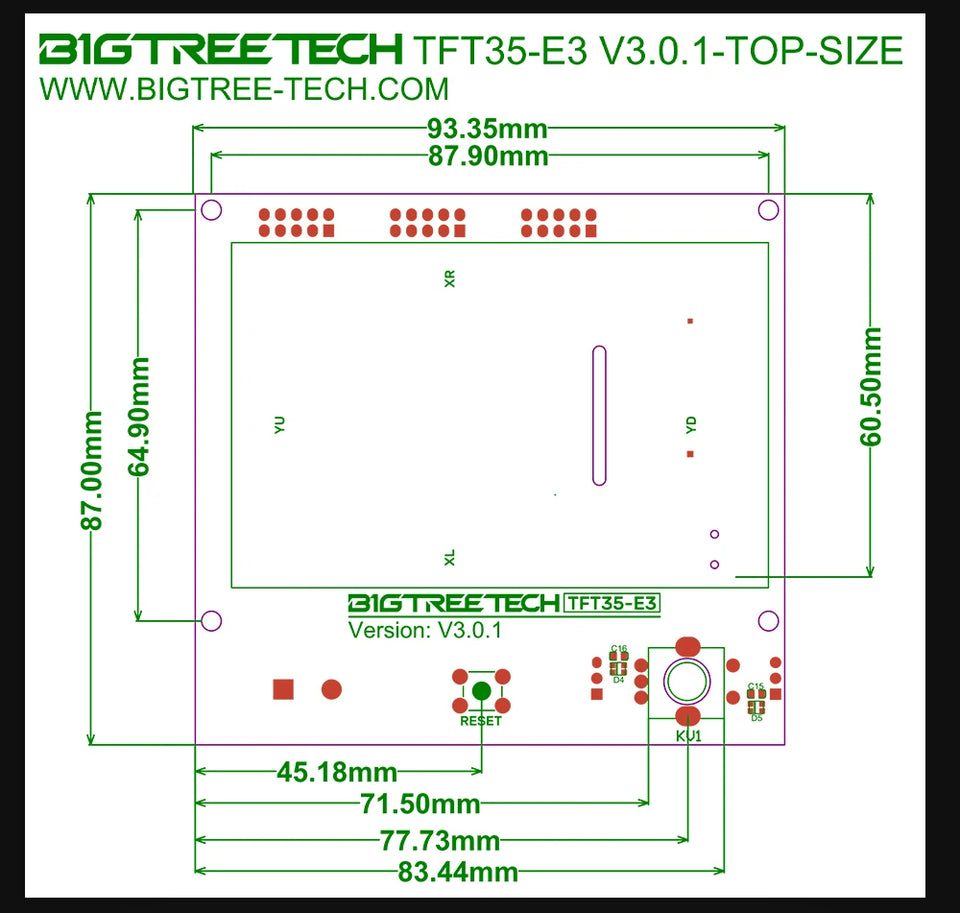

Appearance size:93*87mm

Microprocessor: GD32F205VCT6

Power Input: DC5V

SD card logic voltage:3.3V/5V

Weight: 109g

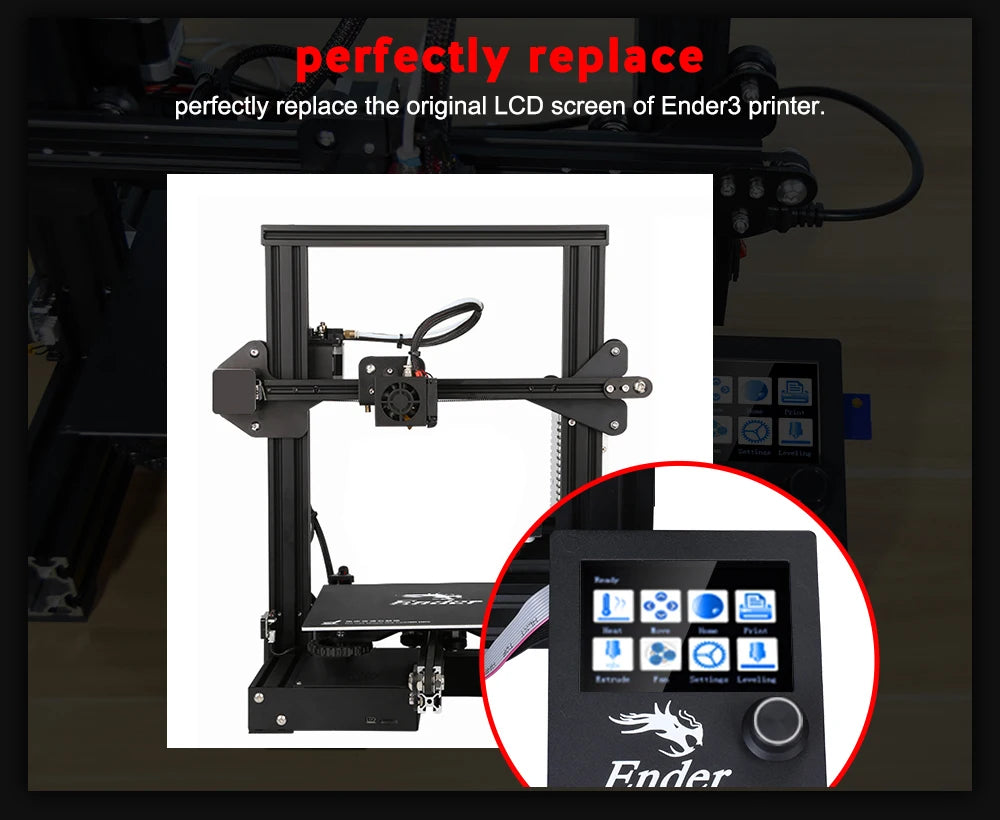

perfectly replace：perfectly replace the original LCD screen of Ender3 printer.

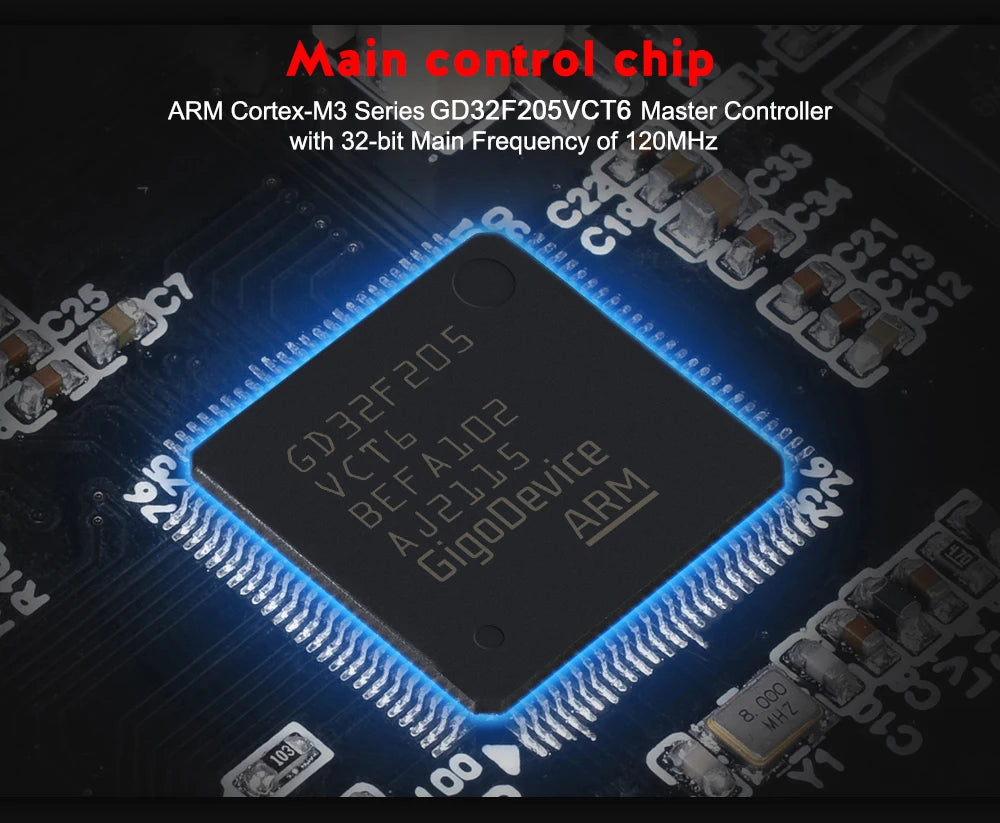

Main control chip：ARM Cortex-M3 Series GD32F205VCT6 Master Controller with 32-bit Main Frequency of 120MHz

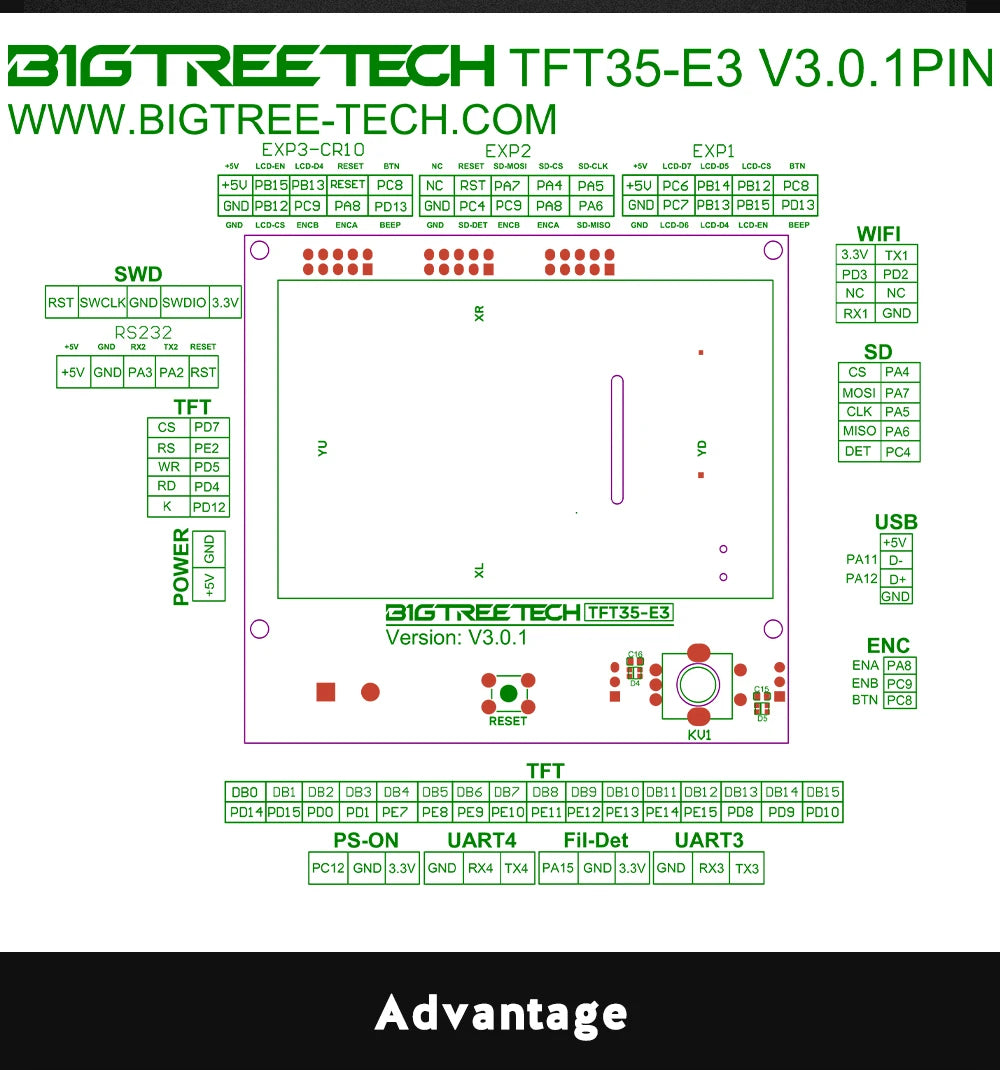

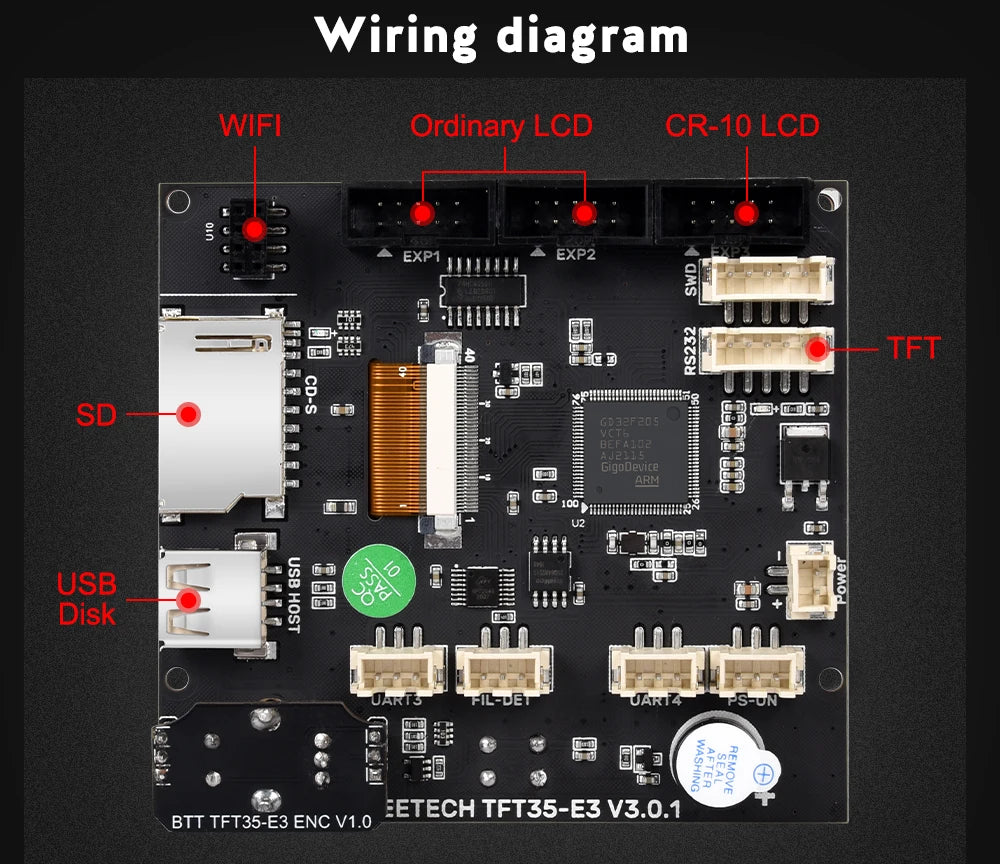

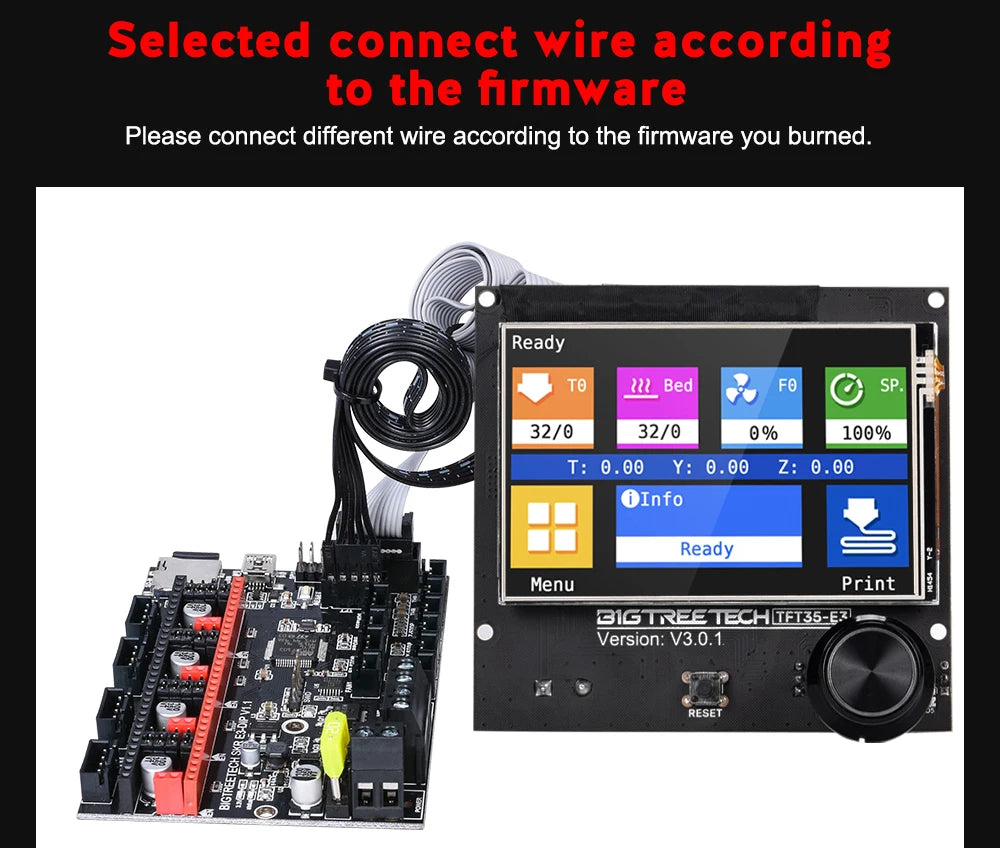

Selected connect wire according to the firmware：Please connect different wire according to the firmware you burned.

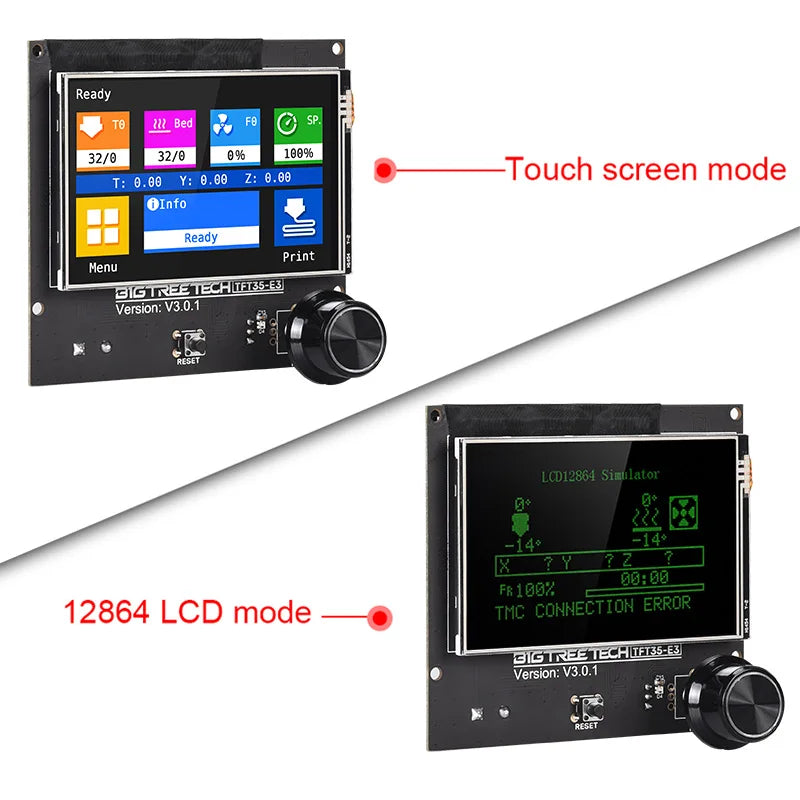

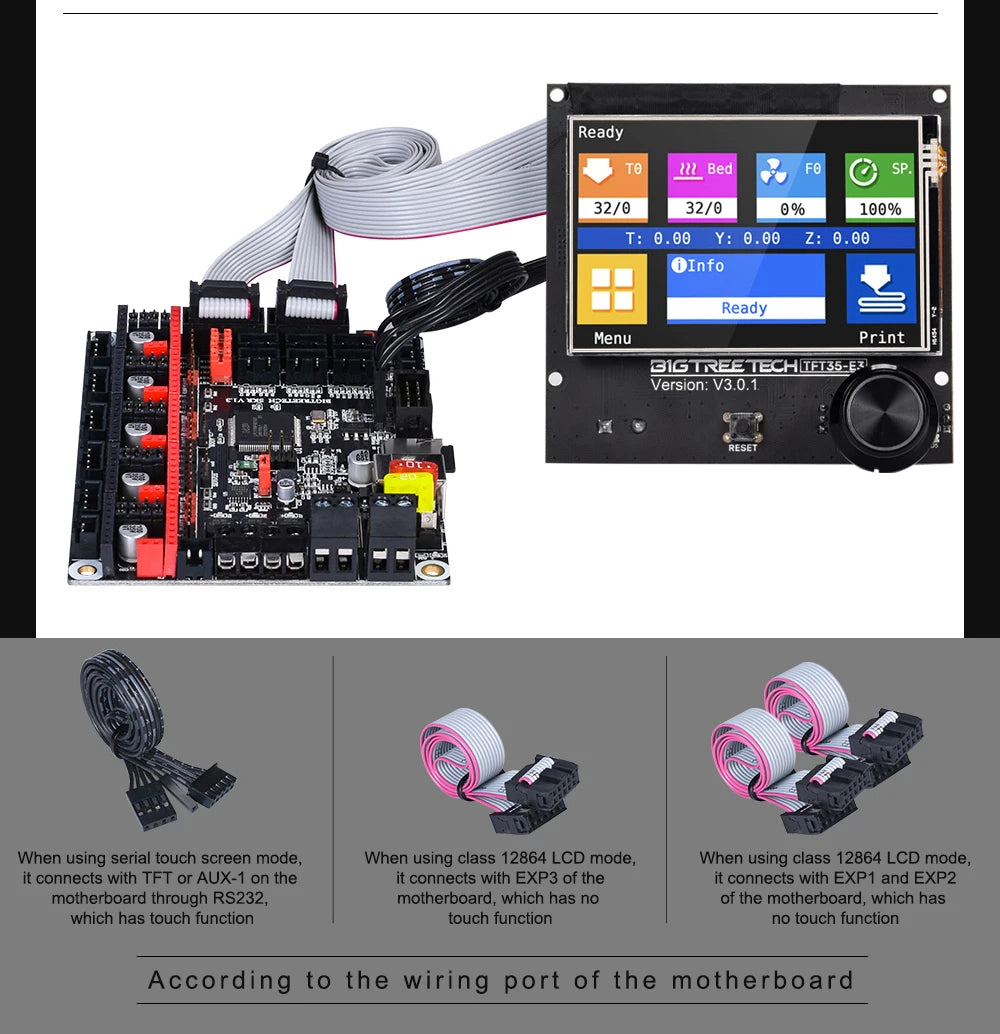

When using serial touch screen mode,it connects with TFT or AUX-1 on the motherboard through RS232，which has touch function
When using class 12864 LCD mode,it connects with EXP3 of the motherboard,which has no touch function
When using class 12864 LCD mode,it connects with EXP1 and EXP2 of the motherboard,which has no touch function

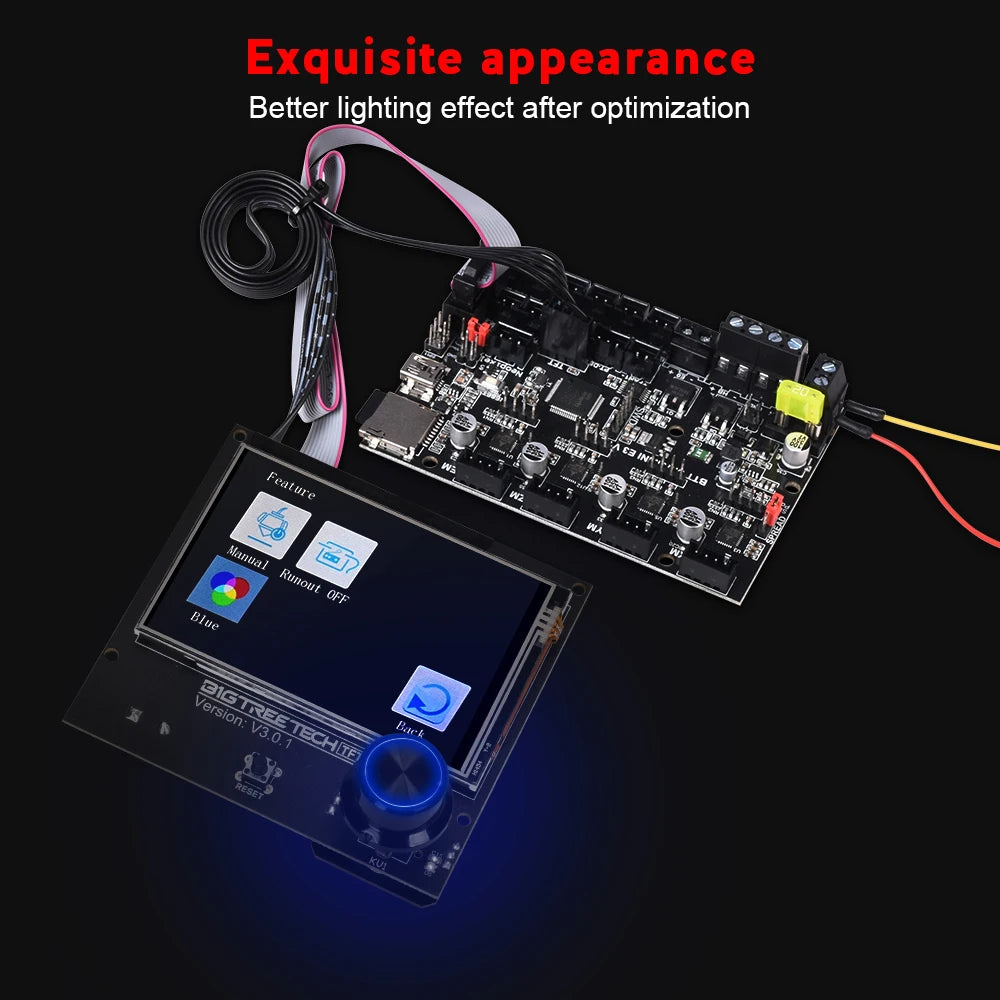

Exquisite appearance：Better lighting effect after optimization

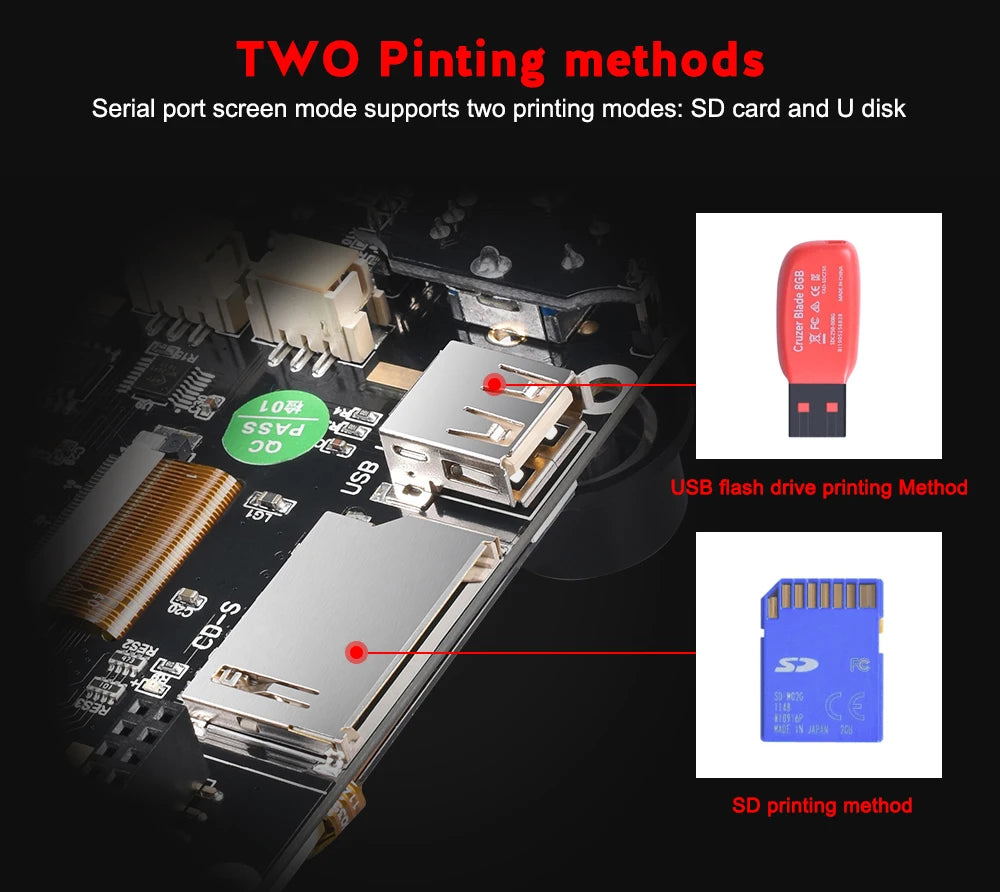

TWO Pinting methods：Serial port screen mode supports two printing modes: SD card and U disk

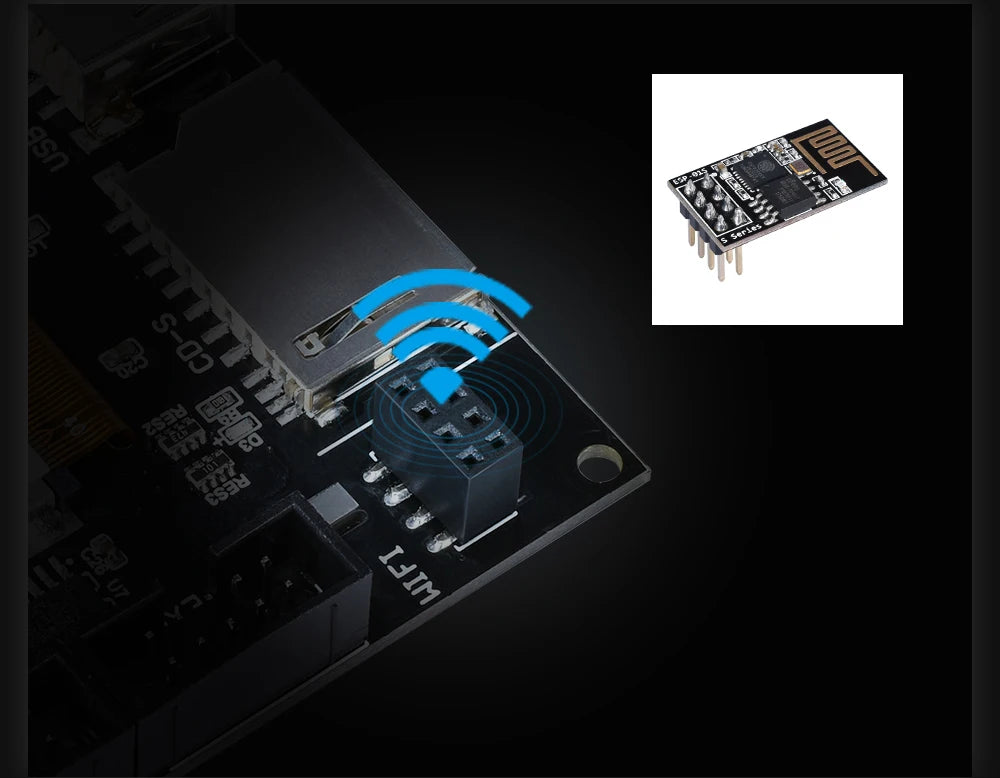

WIFl port：Reserve WIFl port,and WIFl function is realized by external WIFl module

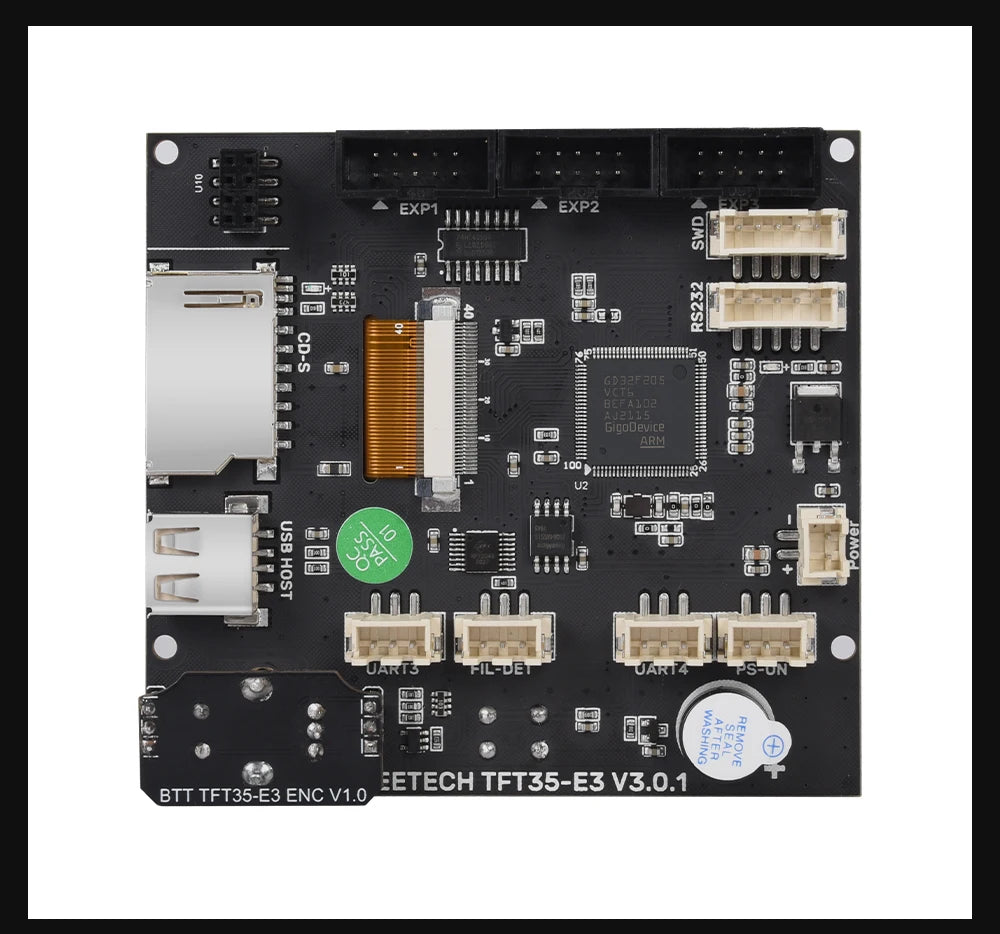

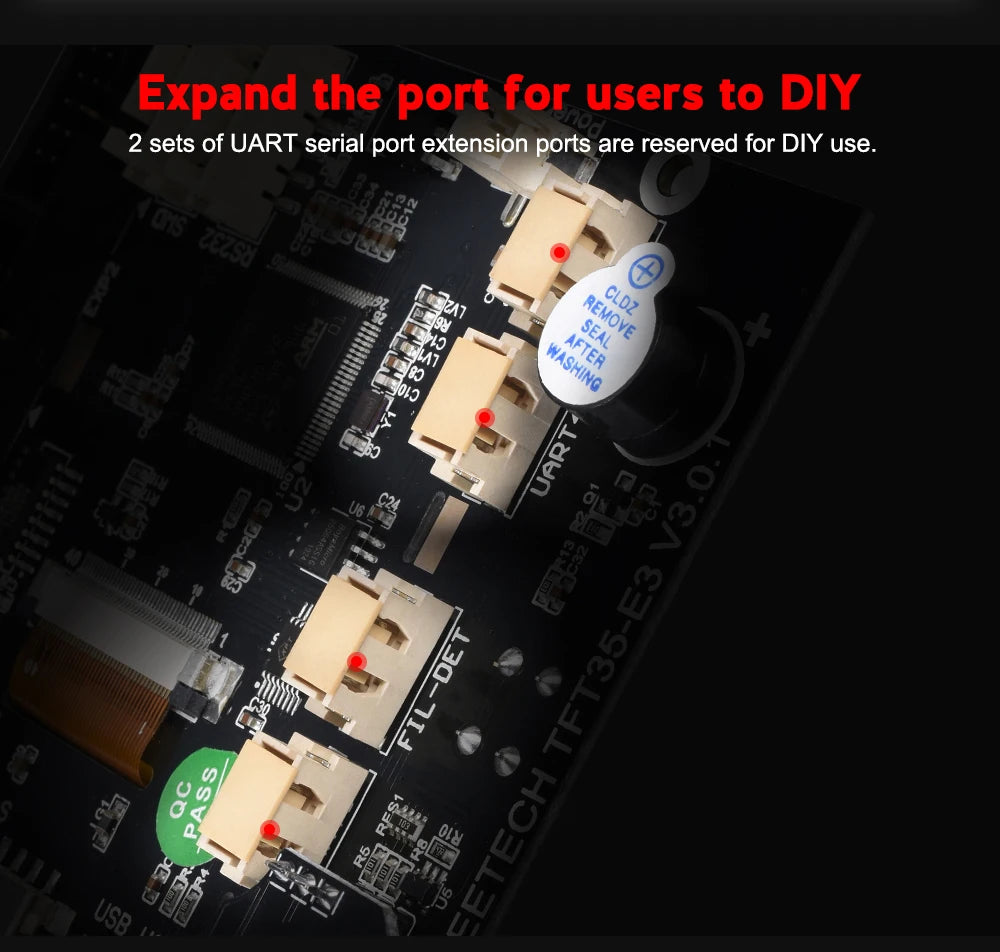

Expand the port for users to DIY：2 sets of UART serial port extension ports are reserved for DIY use.
