SPECIFICATIONS

Brand Name: MOTIVE-RC

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Plastic

Model Number: CORONA DS-929MG

Origin: Mainland China

Plastic Type: PE

Quantity: 1 pcs

RC Parts & Accs: Servos

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: 22.5X11.5X24.6mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Gear

Use: Vehicles & Remote Control Toys

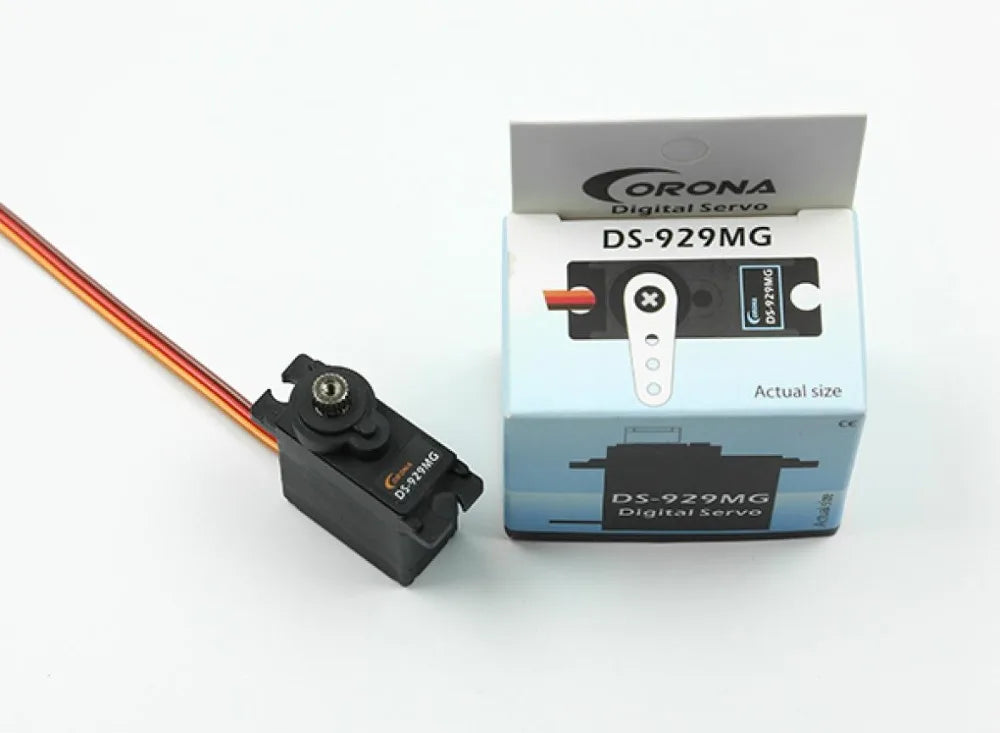

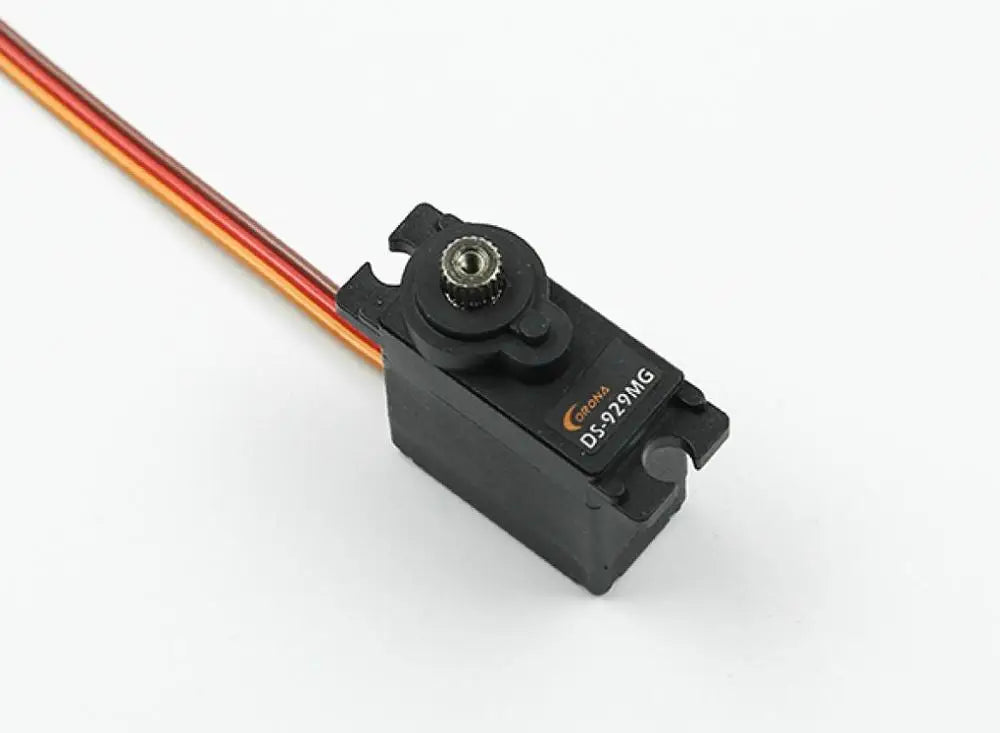

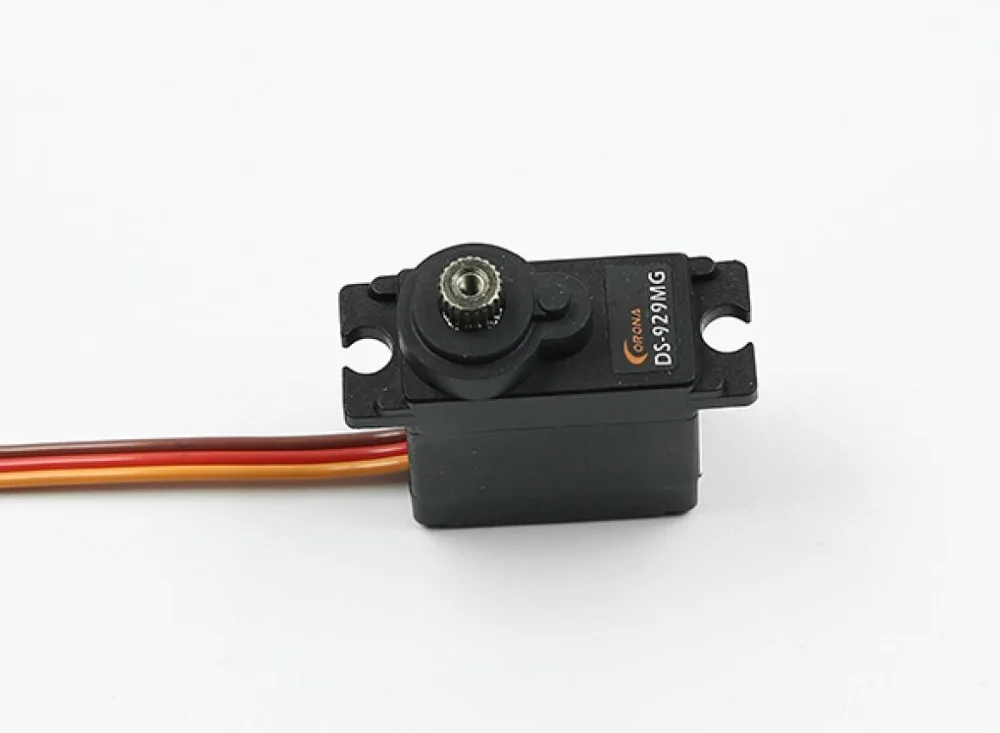

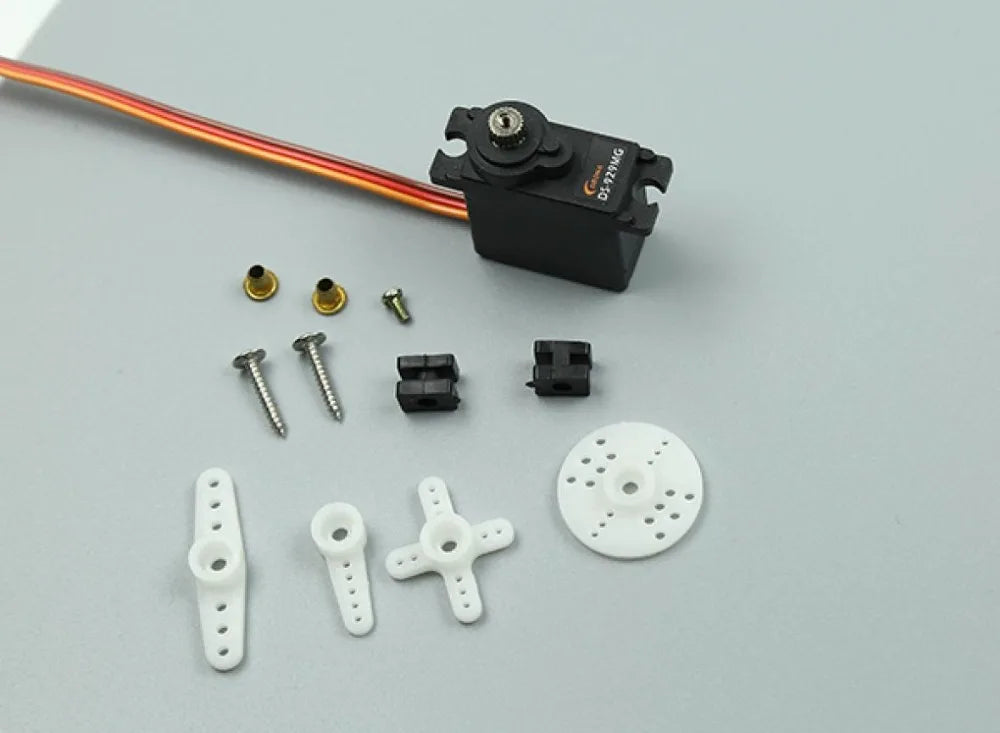

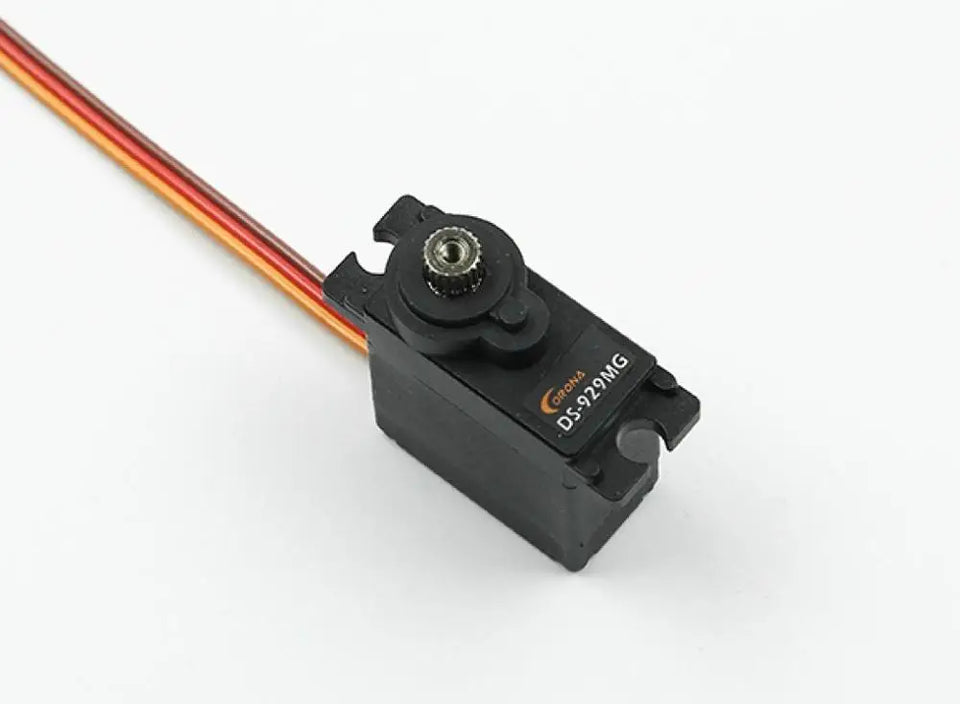

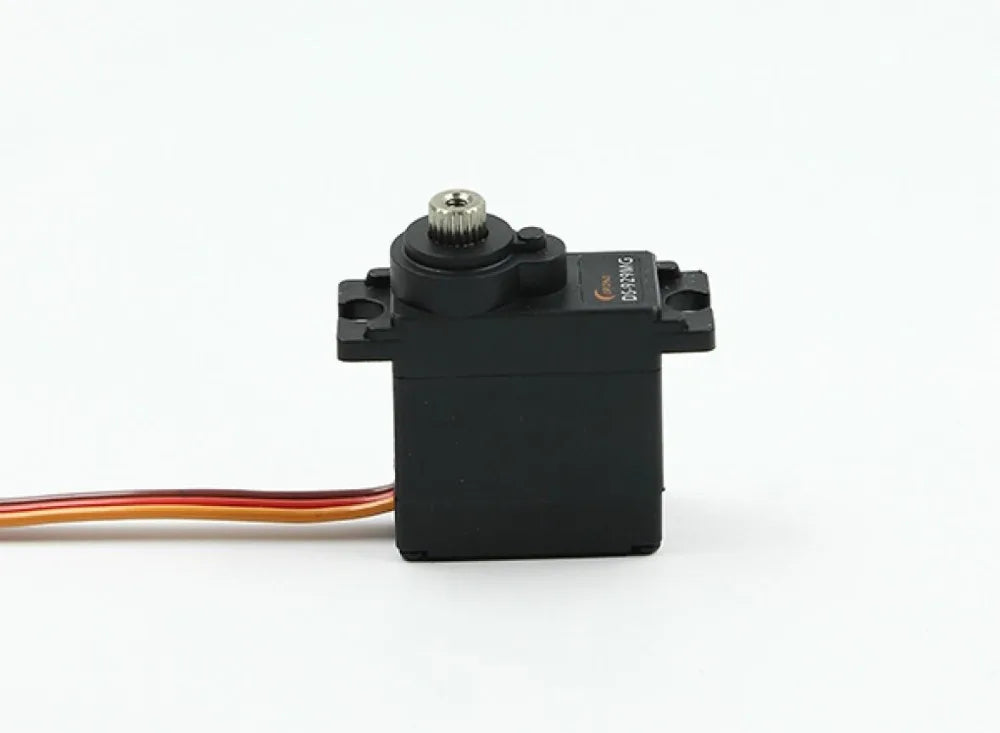

CORONA DS-929MG Metal Gear Digital Servo

Brand Name: Corona

Item NO.: DS-929MG

Item Name: Digital servo

Dimensions: 22.5X11.5X24.6mm(0.88"x0.45"x0.96")

Operating Speed: 0.11sec/60º

Operating Stroke :40°/one side pulse traveling 400us

Operating Voltage: 4.8V / 6.0V

Operating Current: 200mA/60º

Operating Temperature Range: -20℃ ~ +60℃

Static Torque: 1.8kg

Stall Torque: 2.0kg.cm

Weight: 12.5g

Dead Band : ≤ 3uSec

Potentiometer: 2 slider/Direct Drive

Ball bearing: MR85

Gear: Metal
Connection Wire Length: 215mm
