ESP32C6 Seeed Studio XIAO ESP32 C6 Development Board MCU On-board Antenna 2.4GHz Wi-Fi 6 BLE 5 Zigbee Thread

Regular price ~~$125.16~~ $125.16

Quantity

Ships From

Quantity

Product Details

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: No

Brand Name: seeed studio

Compatible With: ESP32C6

High-concerned chemical: None

Origin: Mainland China

Typical Application Fields: Education and Learning

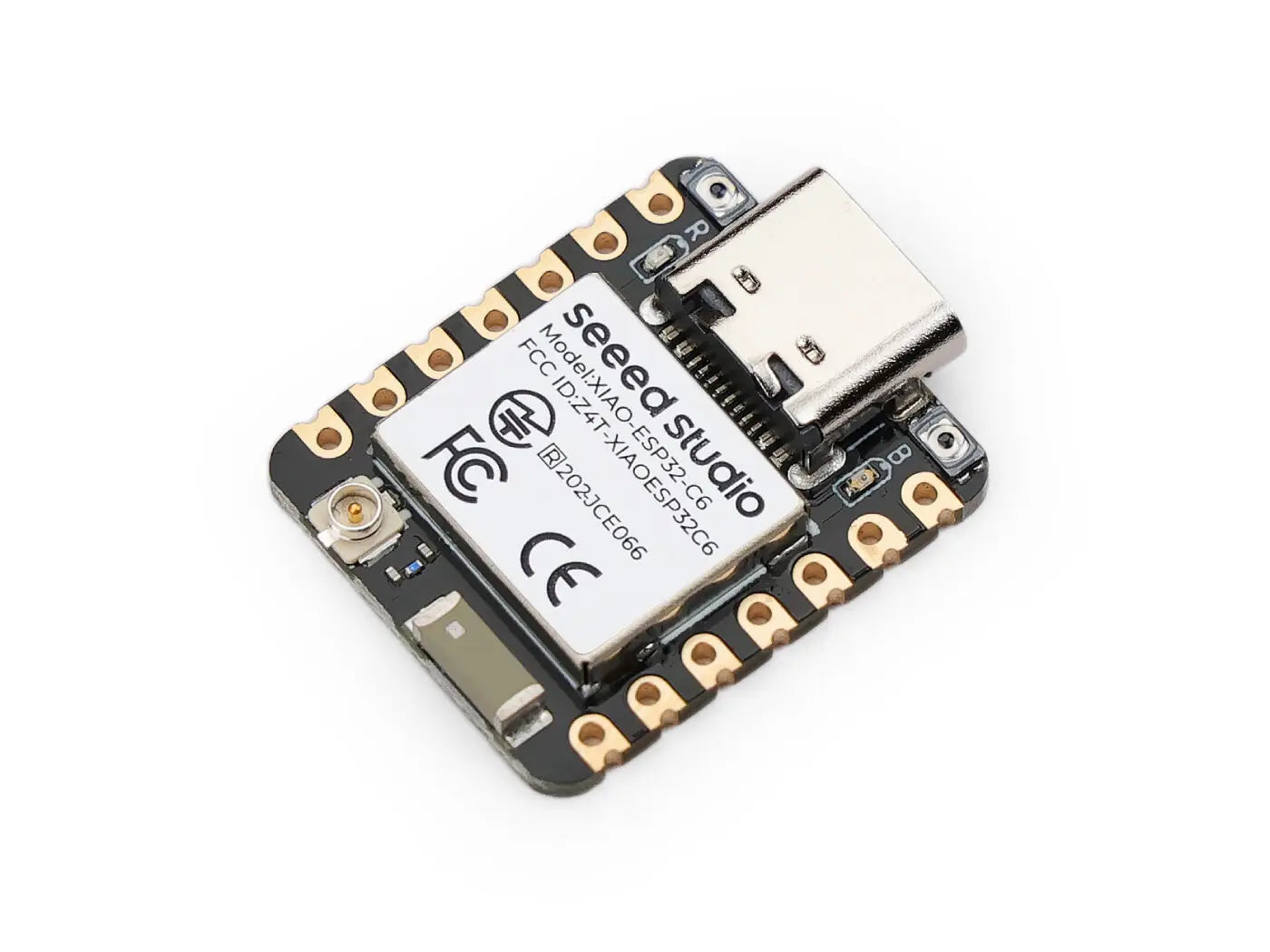

XIAO ESP32C6 is a cost-effective MCU based on Espressif’s ESP32-C6. This compact MCU excels in Matter-compliant smart home applications with its support for various wireless connectivity (2.4GHz Wi-Fi 6, BLE 5, Zigbee, and Thread). Designed with the thumb-size footprint and a single-sided mount of the XIAO Series, it's perfect for space-limited projects. Encrypted on the chip, the XIAO ESP32C6 ensures a desired level of security streamlined development experience, and swift market entry by integrating easily with major IoT Cloud platforms.

Featur

Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols.
Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability
Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE)
Outstanding RF performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFL antenna
Leveraging Power Consumption: Comes with 4 working modes, with the lowest being 15 μA in deep sleep mode, while also supporting lithium battery charge management.
Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20 MHz
Classic XIAO Designs: Remains the classic XIAO designs of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
Seamless integration with mainstream Cloud Platforms: ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud

Specification

Product	XIAO ESP32C6
Processor	Espressif ESP32-C6 SoC
Processor	two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz
Wireless	Complete 2.4GHz Wi-Fi 6 subsystem
	BLE: Bluetooth 5, Bluetooth mesh
	Zigbee,Thread,IEEE 802.15.4
On-chip Memory	512KB SRAM & 4MB Flash
Interface	1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO
Interface	1x Reset button, 1x Boot button
Dimensions	21 x 17.8mm
Power	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V
	Circuit operating Voltage (ready to operate): - USB:5V@9mA - BAT:3.8V@9mA
	Charging battery current: 100mA
Power Consumption Model (Supply Power: 3.8V)	Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~ 15 μA
Working Temperature	-40°C ~ 85°C

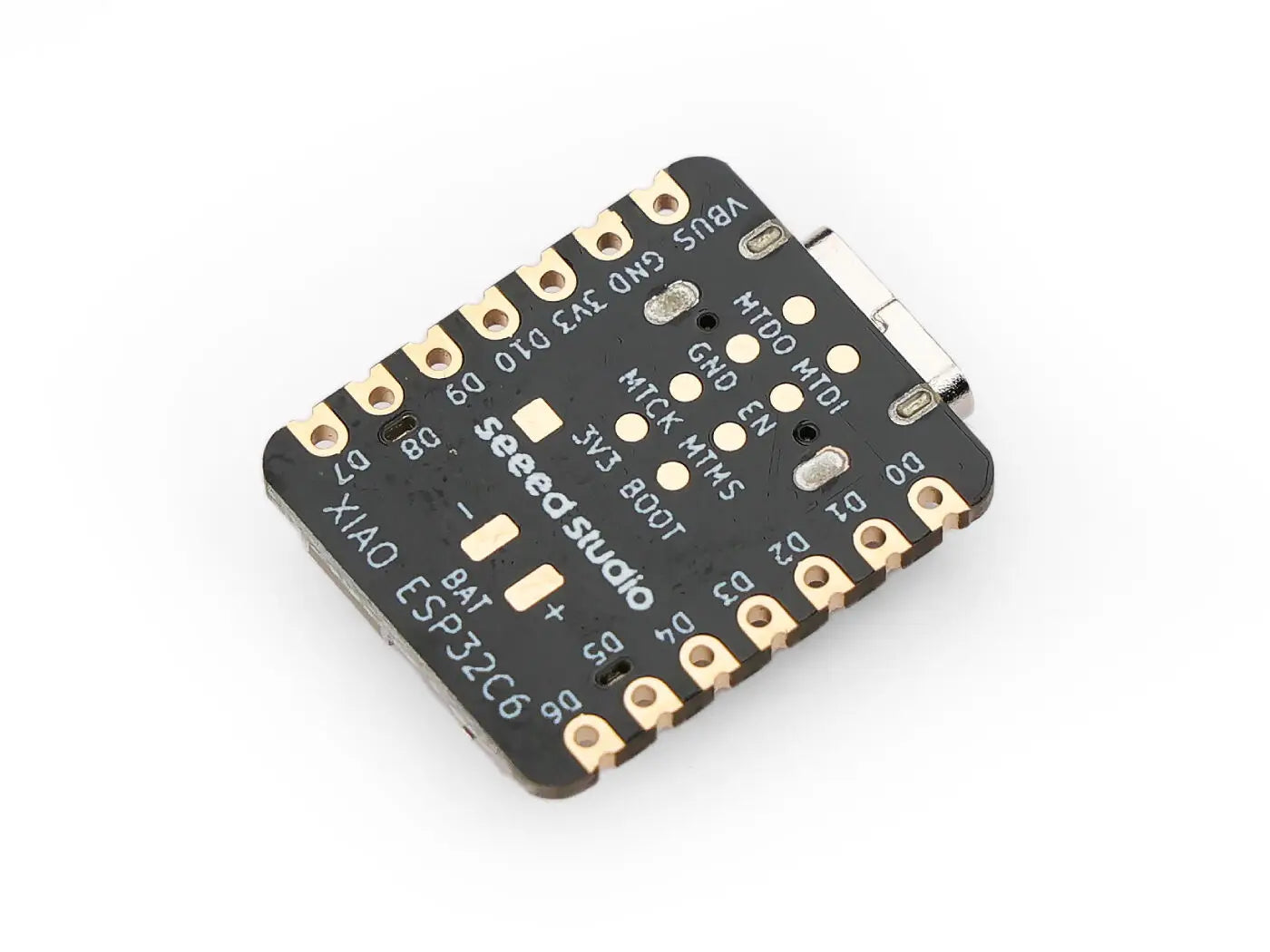

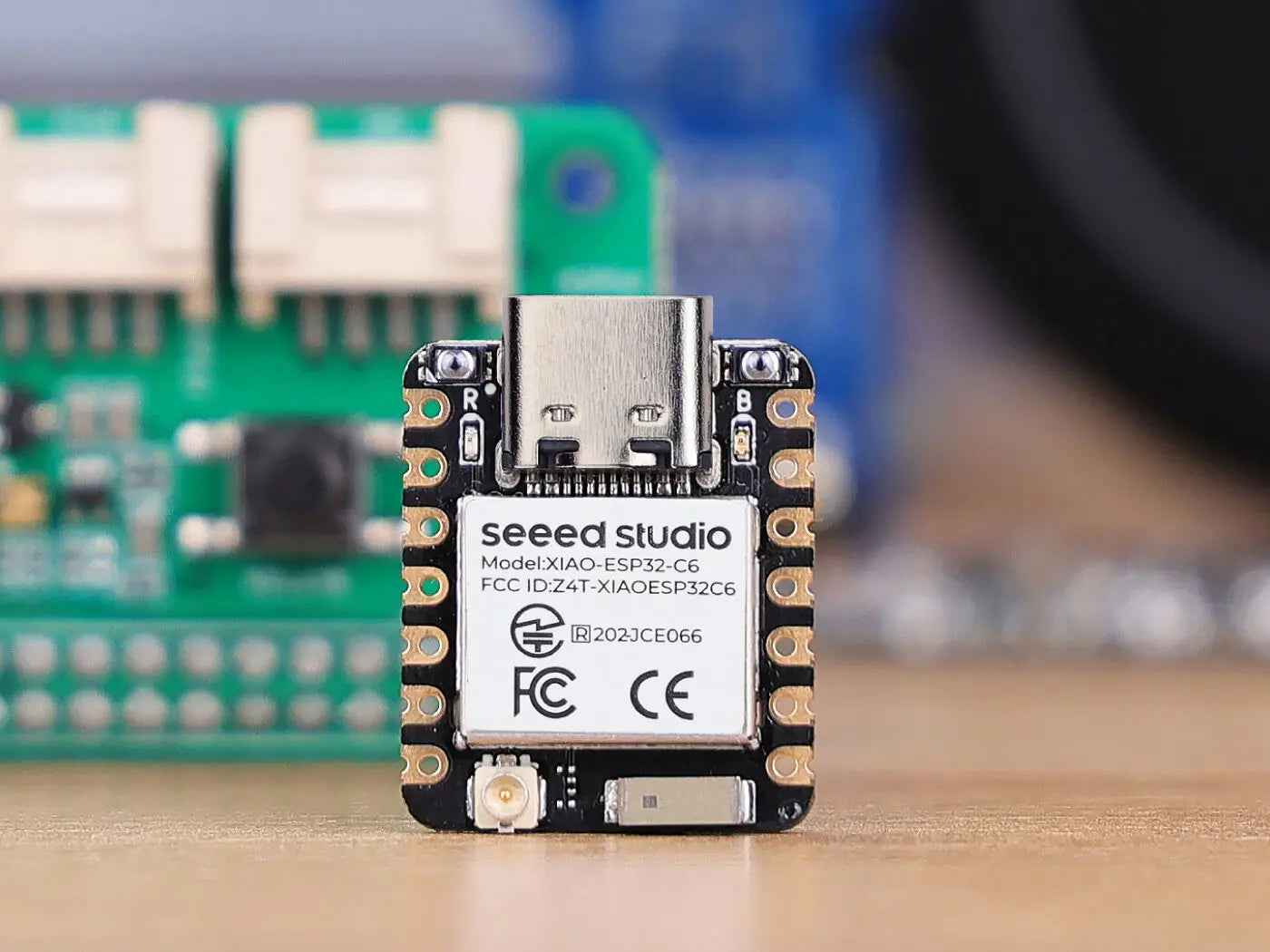

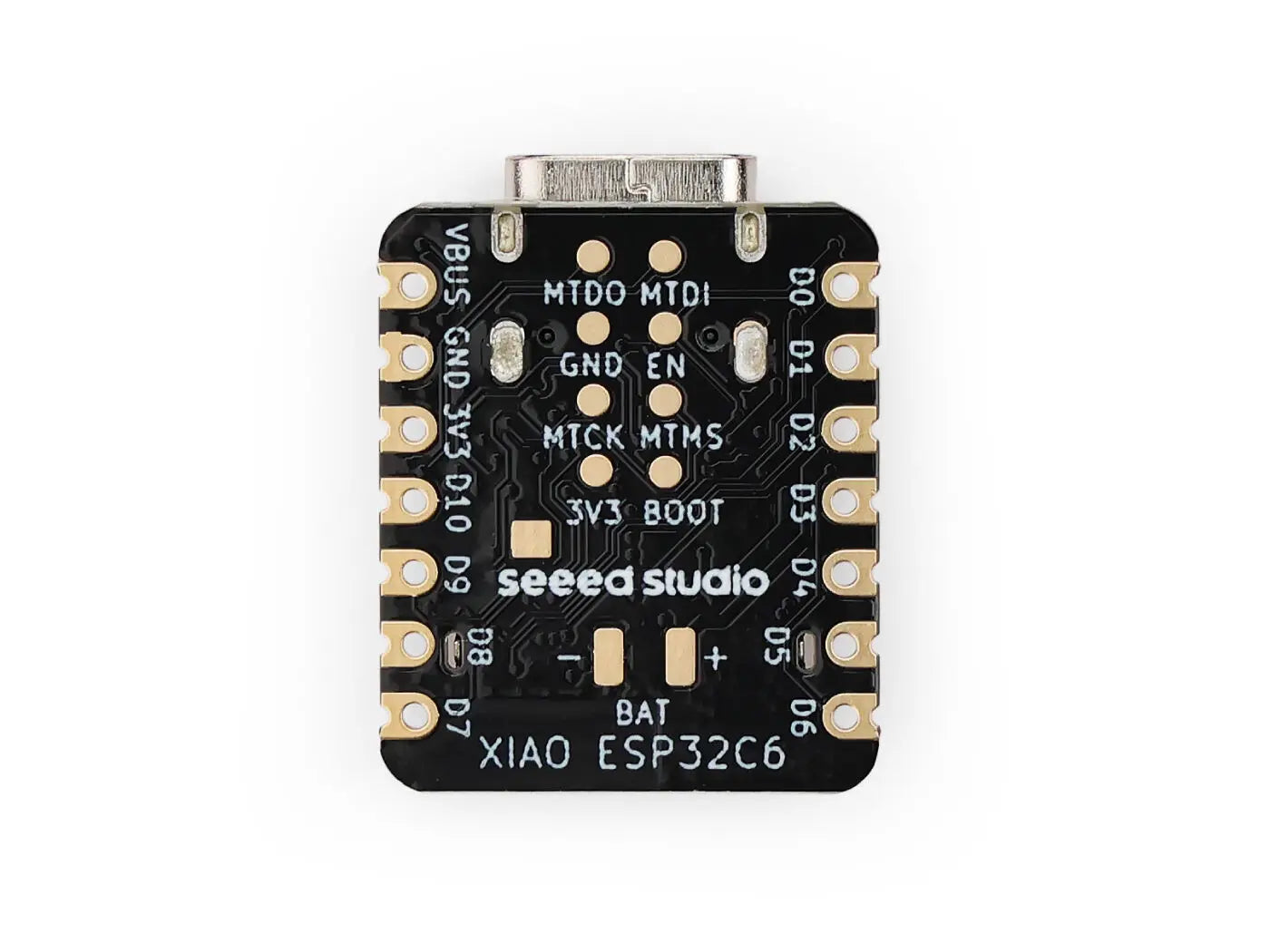

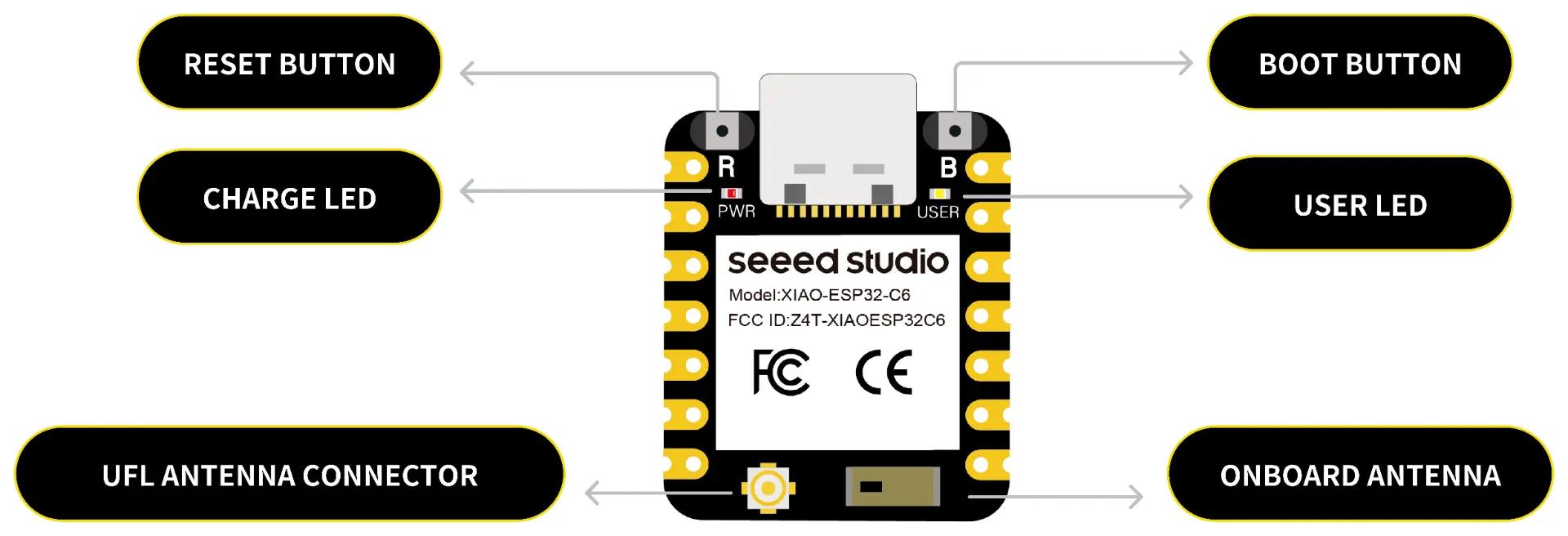

Hardware Overview

Onboard

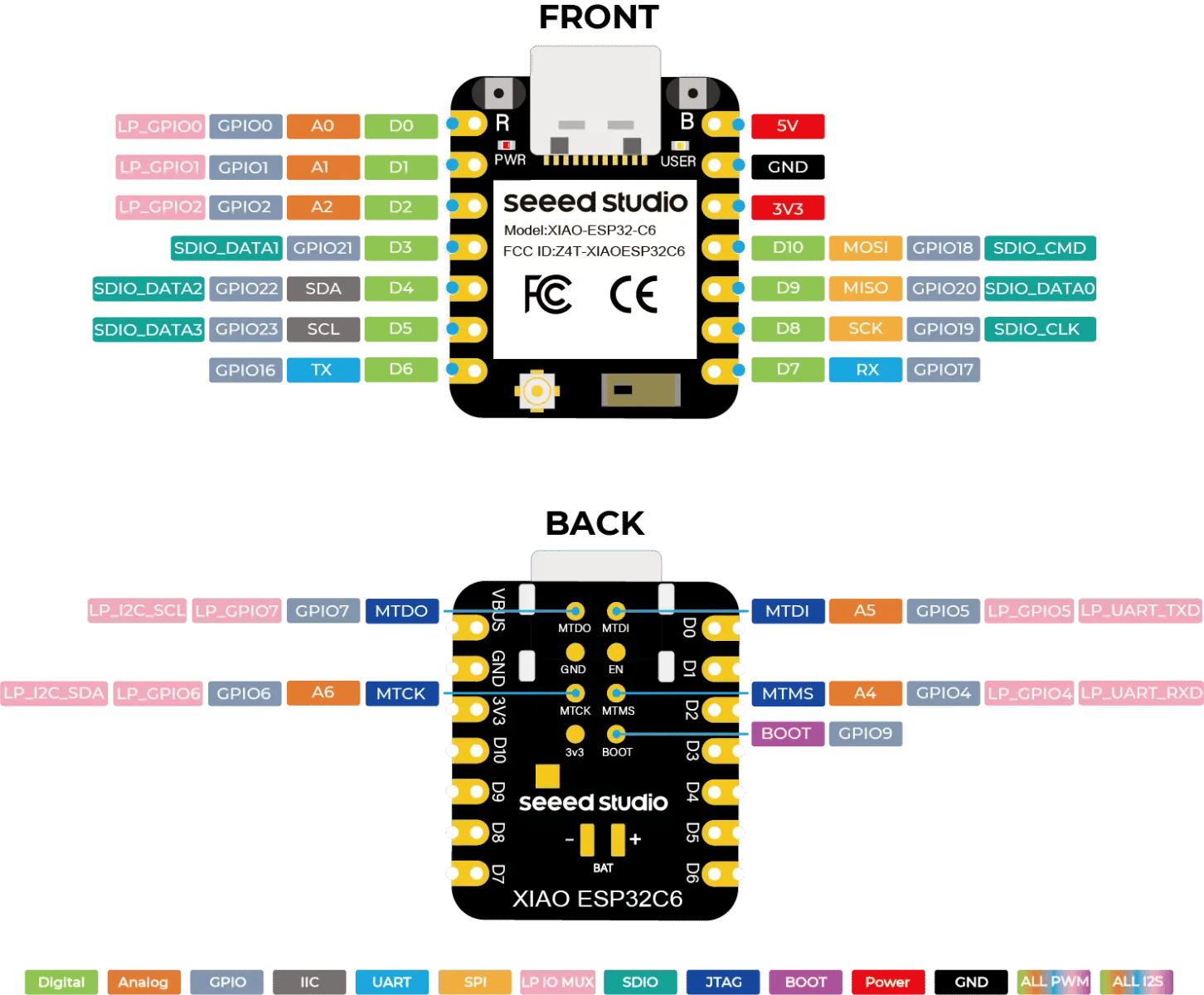

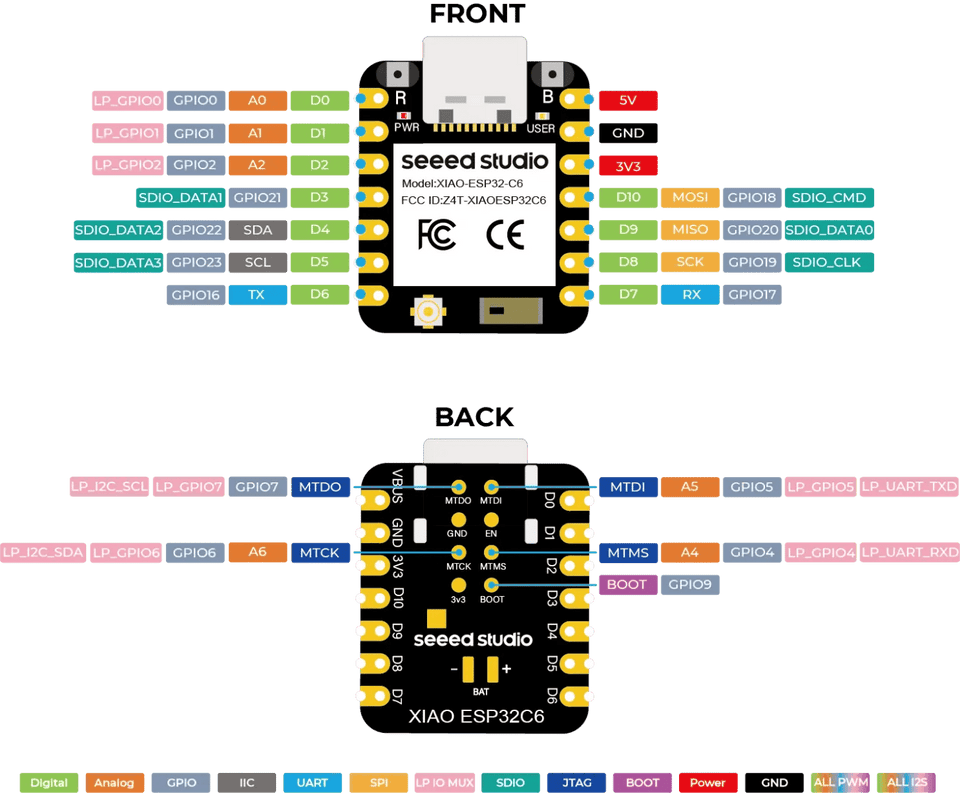

PinOut

Application

Secure and Connected Smart Home, enhancing everyday life through automation, remote control, and more

Space-limited and Battery-Powered Wearables, thanks to their thumb-size and low-power consumption

Wireless IoT Scenarios, enabling rapid, reliable data transmission

Documents

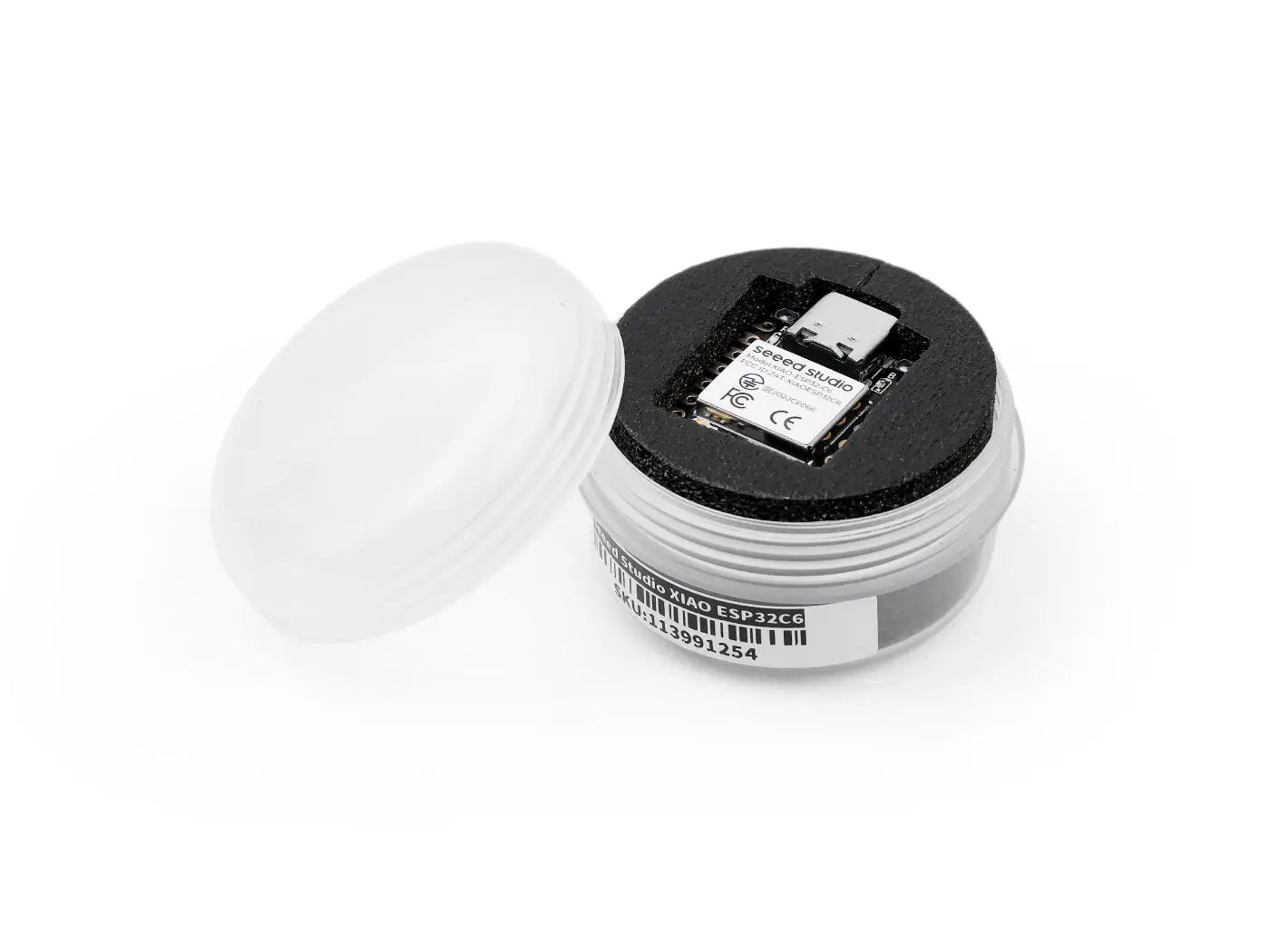

PCN-XIAO Series Packaging Upgrade.pdf

Part List

Seeed Studio XIAO ESP32C6	x1
7 Pin Header	x2
