$256.87 $256.87

SPECIFICATIONS

Application: PS4/3,xbox,others

Brand Name: ICANING

Certification: CE

Dimensions(L*W*H): 230X90X25mm

HDMI-compatible resolution: up to 3840x2160P/60Hz

HDMI-compatible version: HDMI-compatible 2.0

High-concerned chemical: None

Input: HDMI

Input cable distance: 8m AWG26 HDMI-compatible2.0standard cable

Max bandwidth: 600MHz

Max baud rate: 18Gbps

Max working current: 600mA

Name: HDMI-compatible Matrix Switch 4x4

Origin: Mainland China

Output: HDMI

Output cable distance: 8m AWG26 HDMI-compatibleI2.0 standard cable

Power adapter format Input: AC (50Hz, 60Hz) 100V-240V; Output:DC 12V/2A

Support Audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Support Video format: 8/10/12 bits deep color

Type: KVM Switches

Product description
HDMI-compatible Matrix Switch 4x4, 4K HDMI-compatible Matrix Switcher Splitter 4 In 4 Out Box with EDID Extractor and IR Remote Control

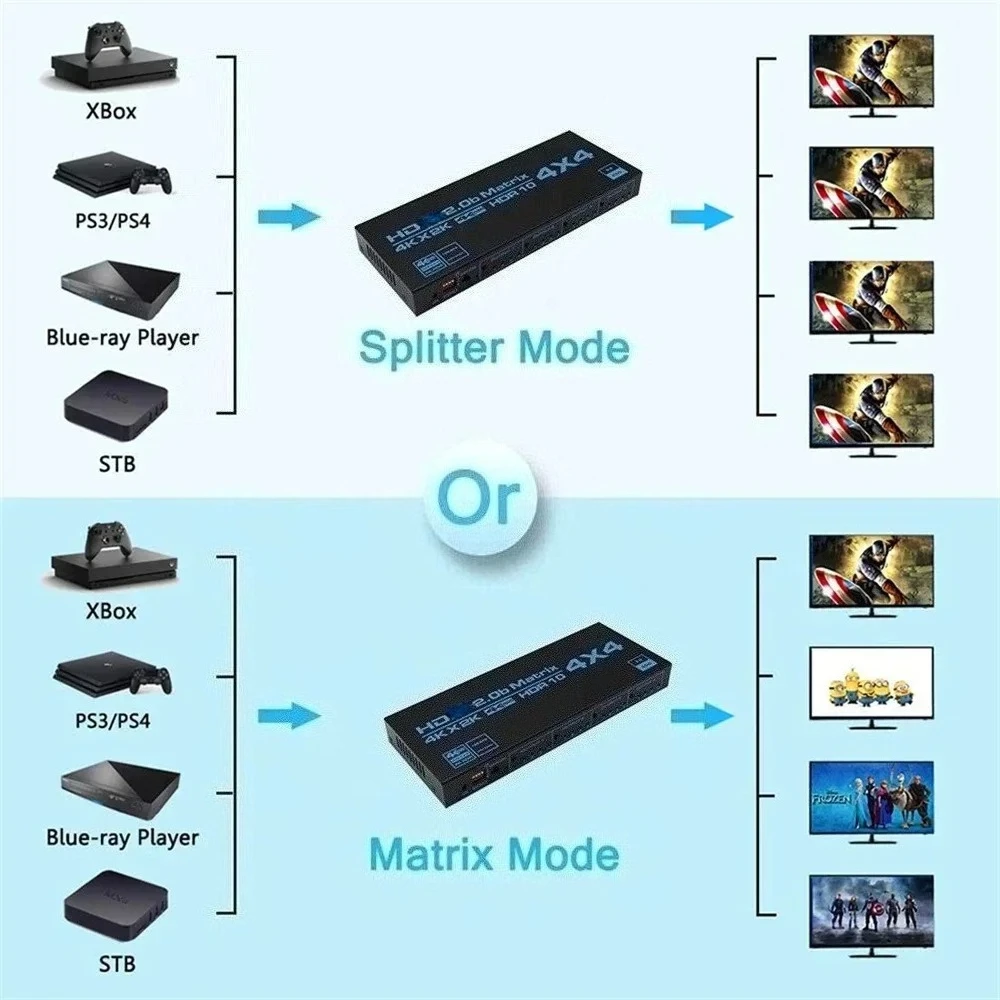

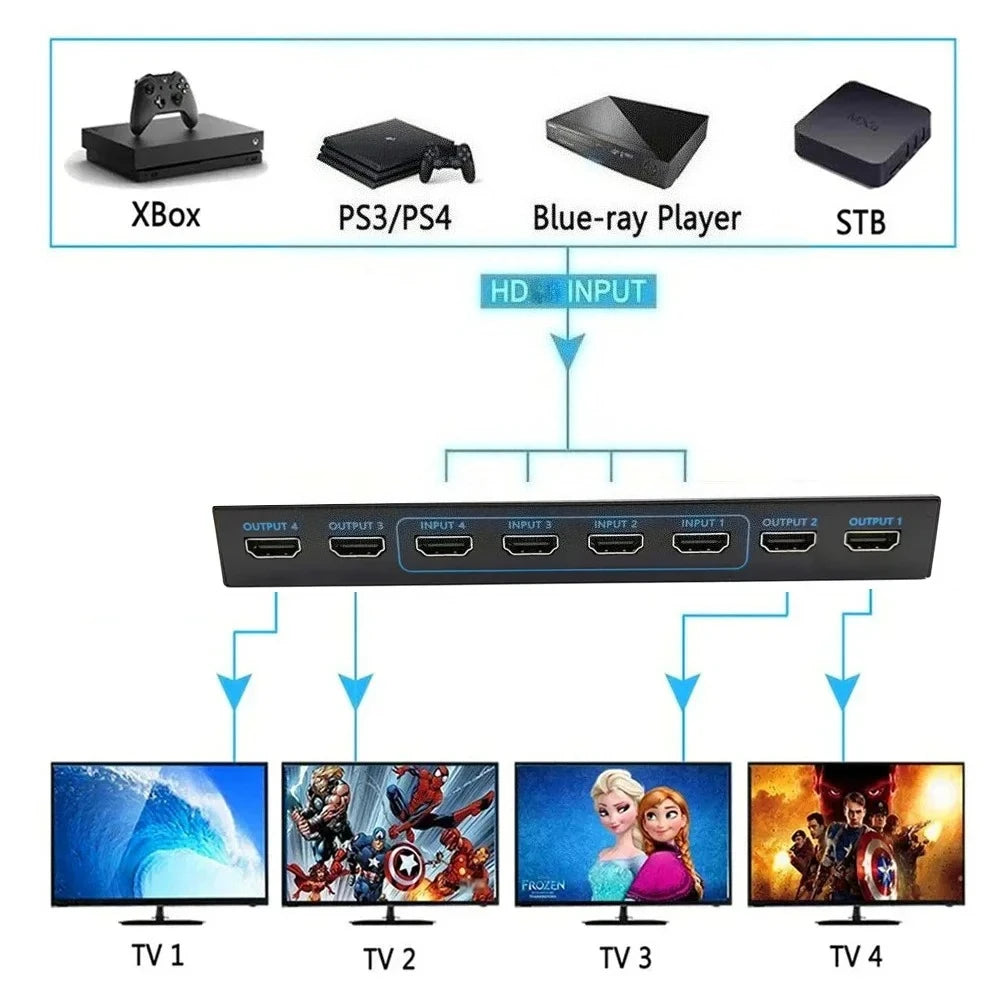

The 4 in 4 Out HDMI-compatible Matrix Switch allows four HDMI-compatible devices to be switched or split easily to four HDMI-compatible monitors or projectors.
It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.

Specifications

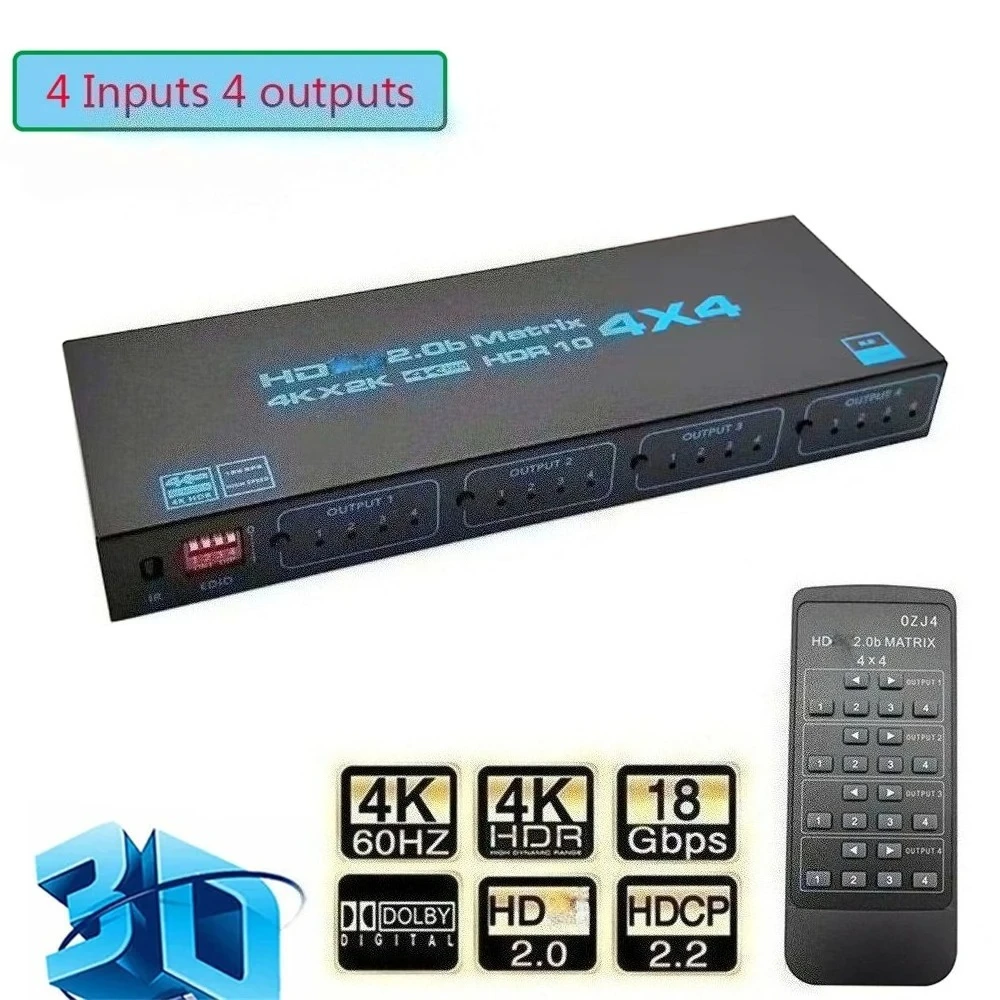

- Product Type: HDMI-compatible Matrix 4x4
- Interface Type: 4 HDMI-compatible in, 4 HDMI-compatibleout
- Color: Black
- Power Supply: DC 12V.


Features
- Support HDMI-compatible 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840*2160/60Hz YUV4:4:4
- Support 18Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24bit
- 4 HDMI-compatible inputs switch and split to 4 HDMI-compatible displays
- Input cable distance: <8m AWG26 HDMI-compatible2.0b standard cable
- Output cable distance: <8m AWG26 HDMI-compatible2.0b standard cable

Package contents
1x HDMI-compatible Matrix 4X4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Note:

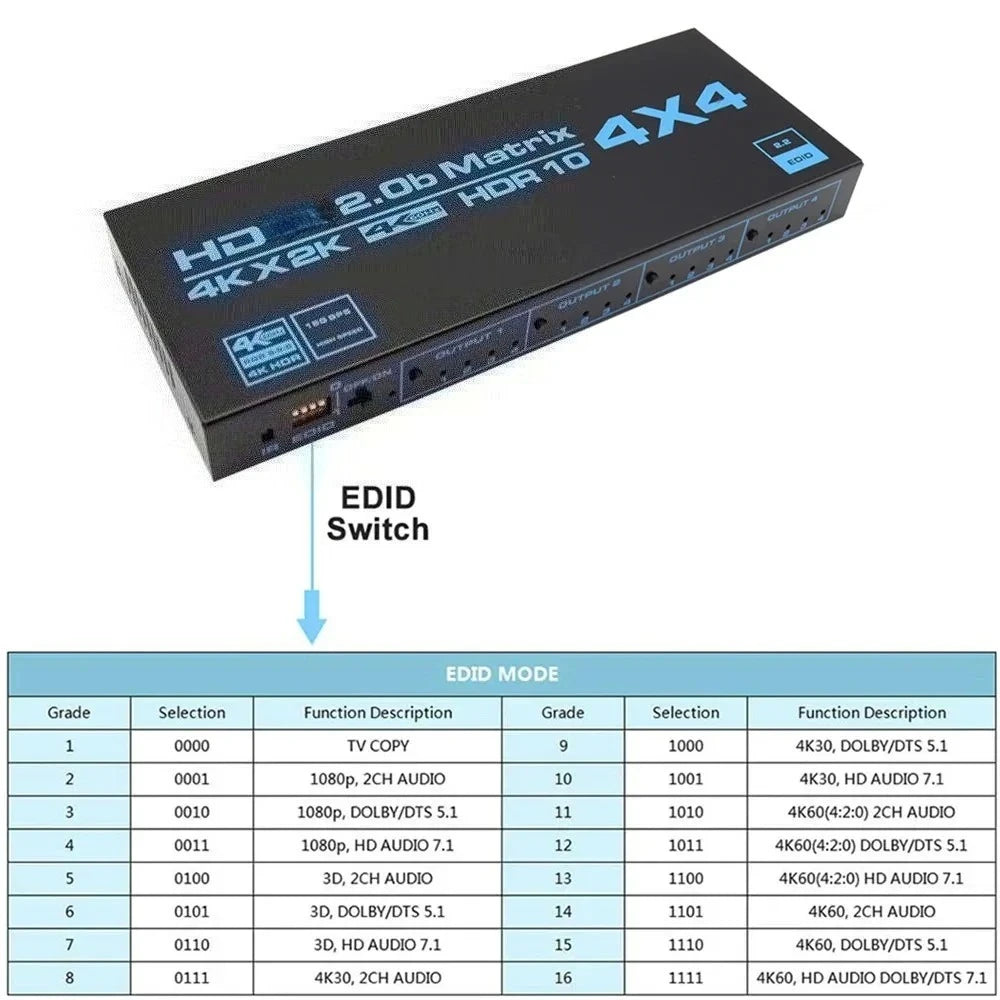

After you had set the EDID, Please restart your HDMI-compatible Matrix Switch.

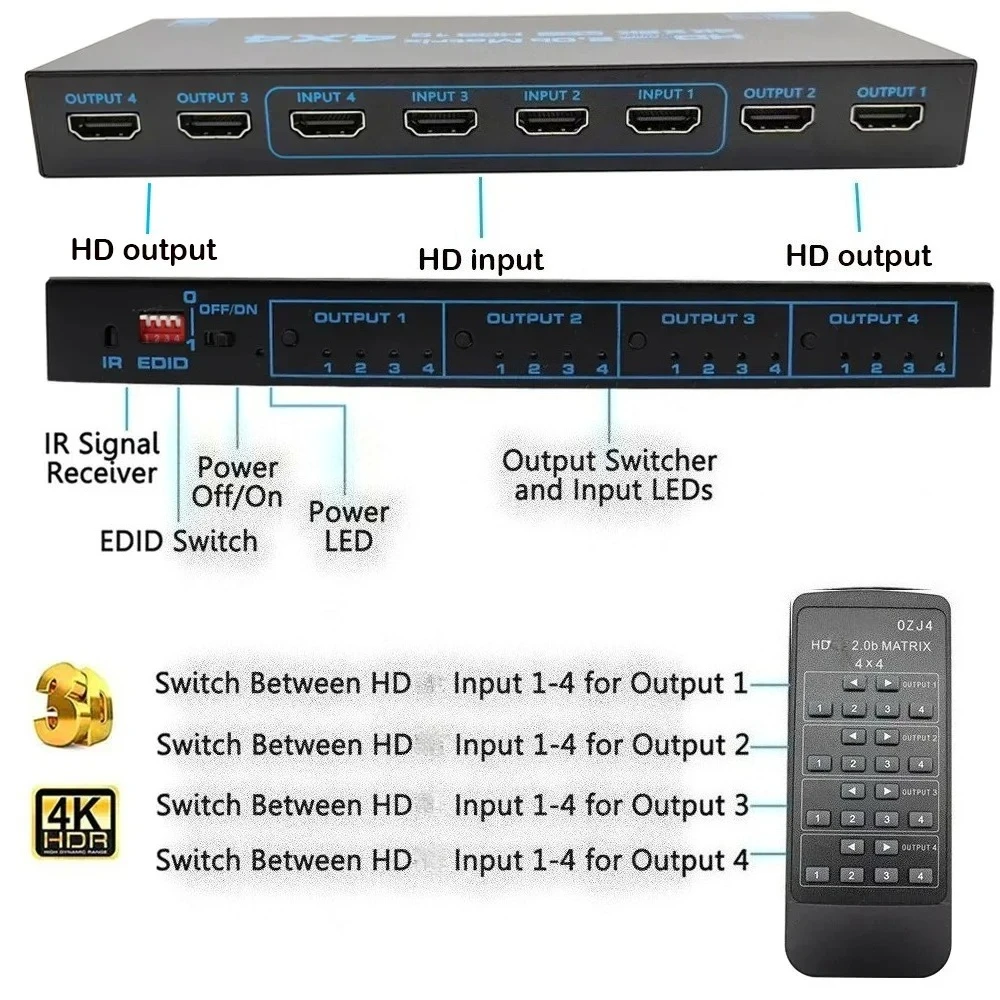

Instruction of Buttons and LED:
1. Instruction of LED: IN1-IN2 IN3-IN4 indicator is the corresponding input sources out from OUT1 or OUT2 or OUT3 or OUT4.
2. Operation of Buttons: OUT1 or OUT2 or OUT3 or OUT4. is used to switched the corresponding input source out from OUT1 or OUT2 or OUT3 or OUT4
