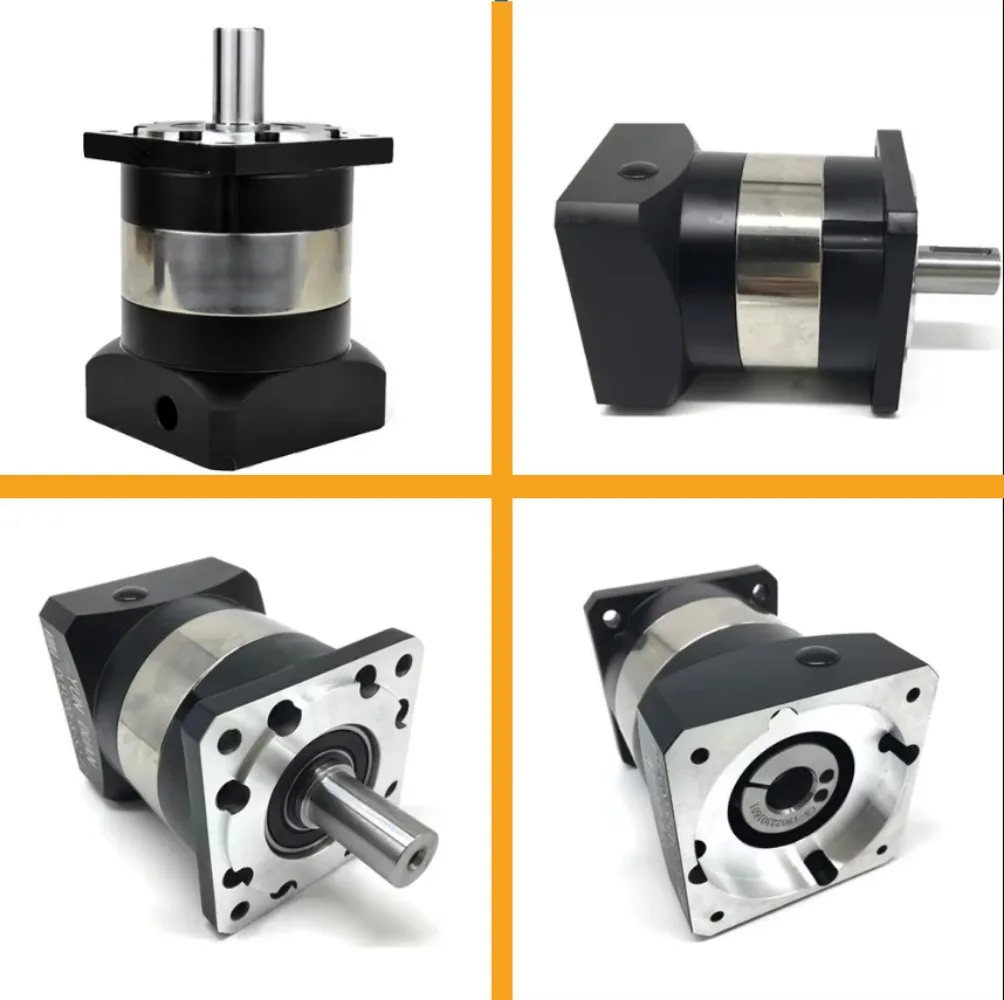

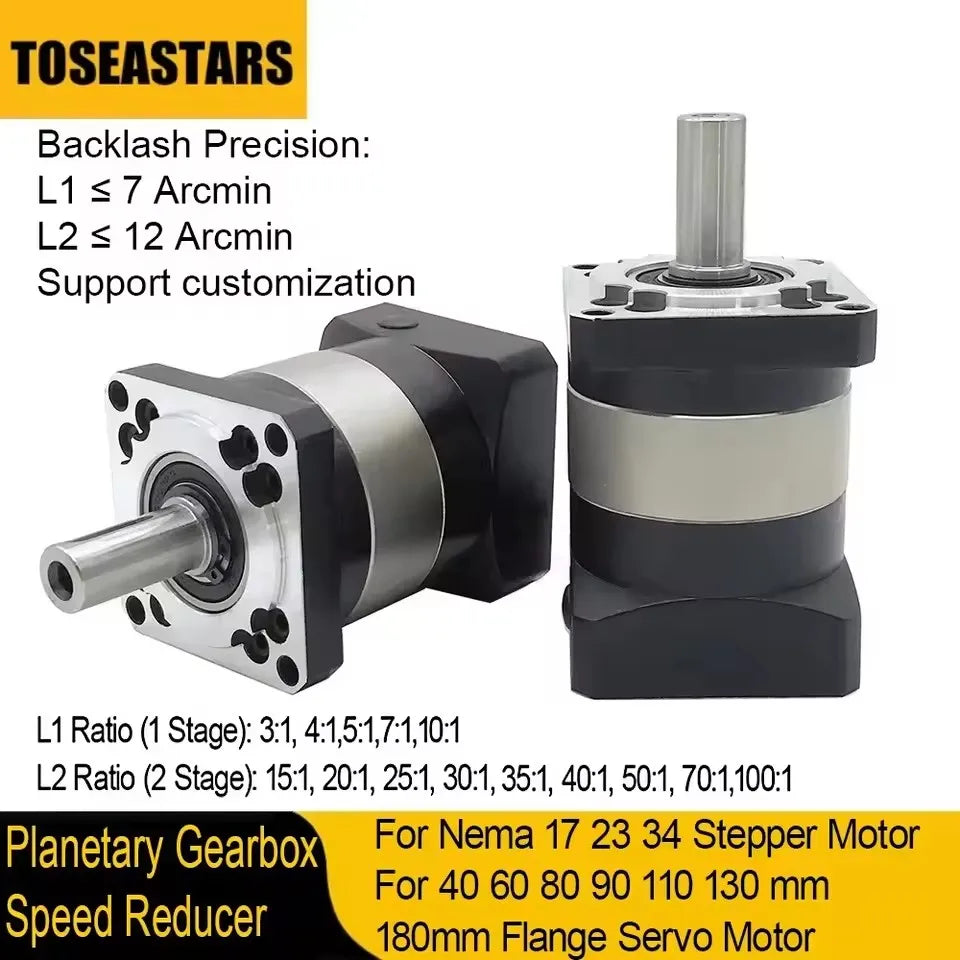

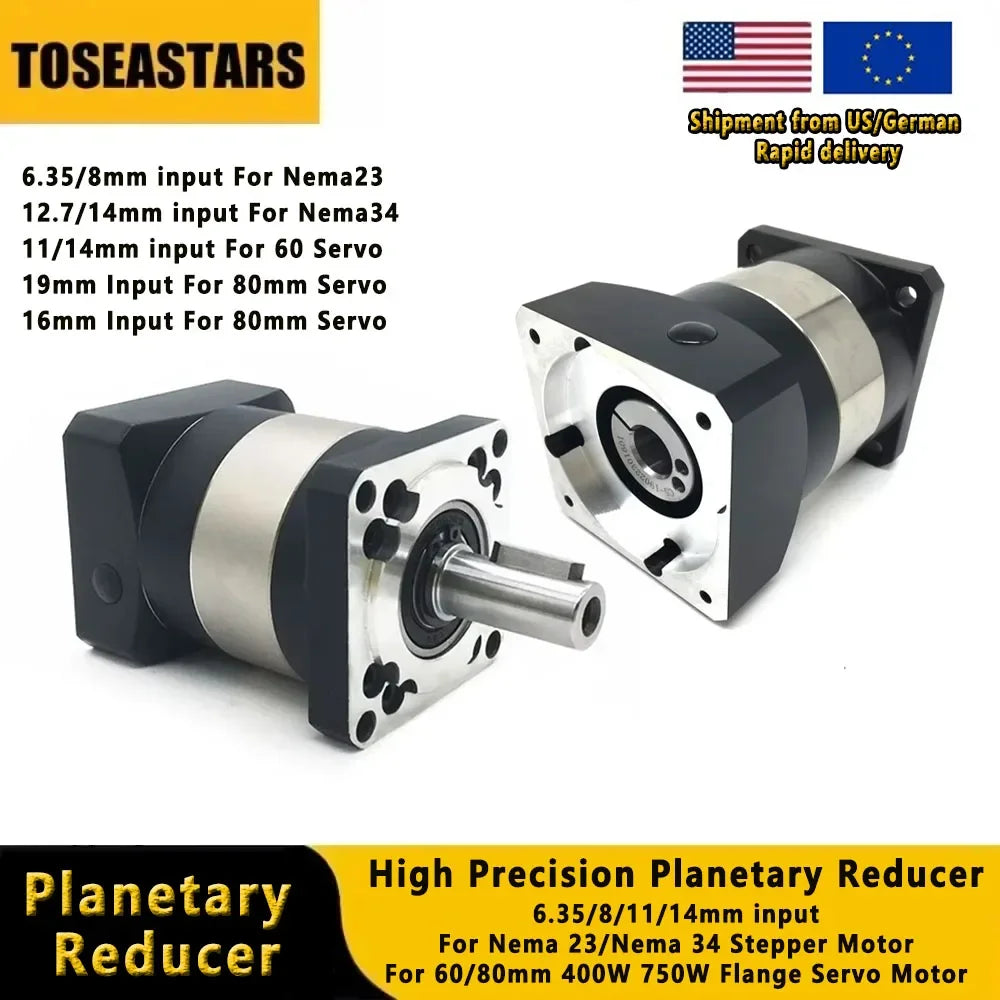

High Precision Planetary Reducer 6.35/8/11/14mm input Ratio 5:1 10:1 for Nema 23 57mm Nema34 86 Stepper 60mm Servo Motor Gearbox
Regular price
$253.22
$253.22
SPECIFICATIONS
Brand Name: TOSEASTARS
Certification: CE
Gearing Arrangement: Planetary
High-concerned chemical: None

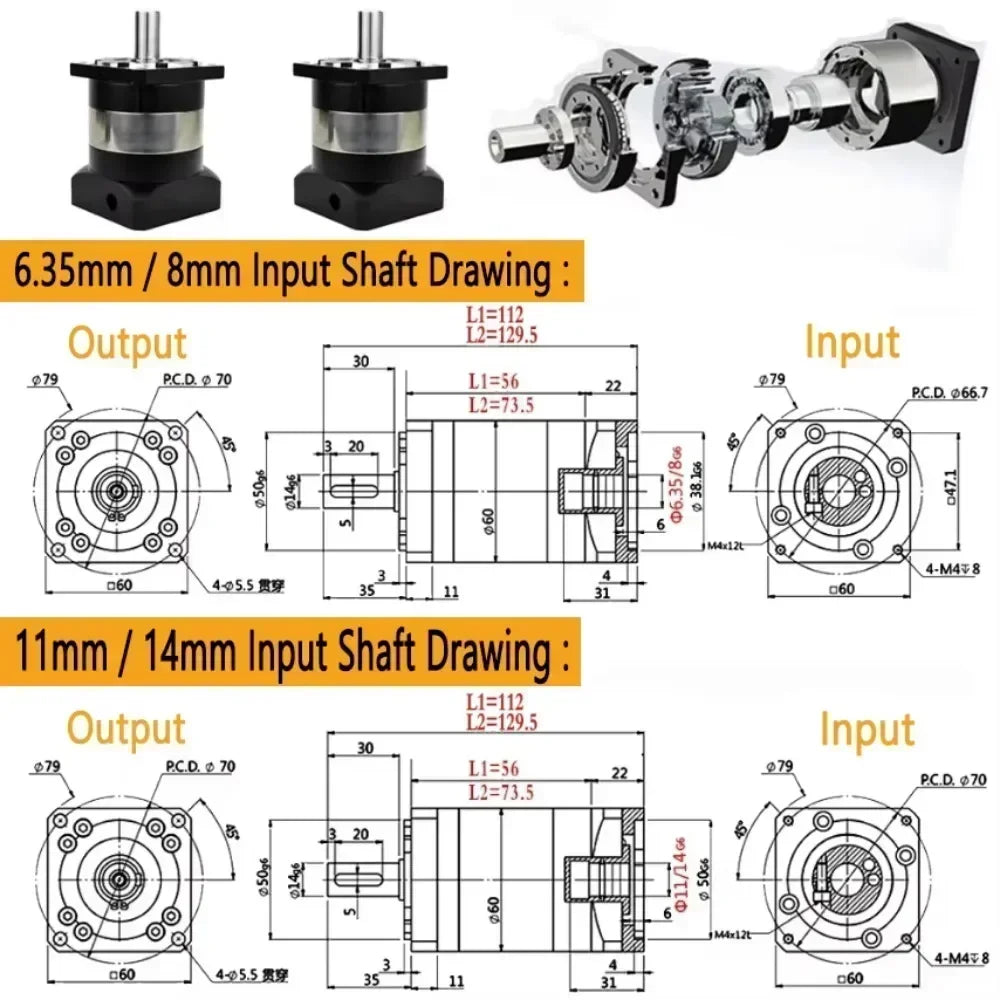

Input Shaft: 6.35mm/8mm/11mm/14mm
Input Speed: 4000rpm
Max input speed: 4000rpm

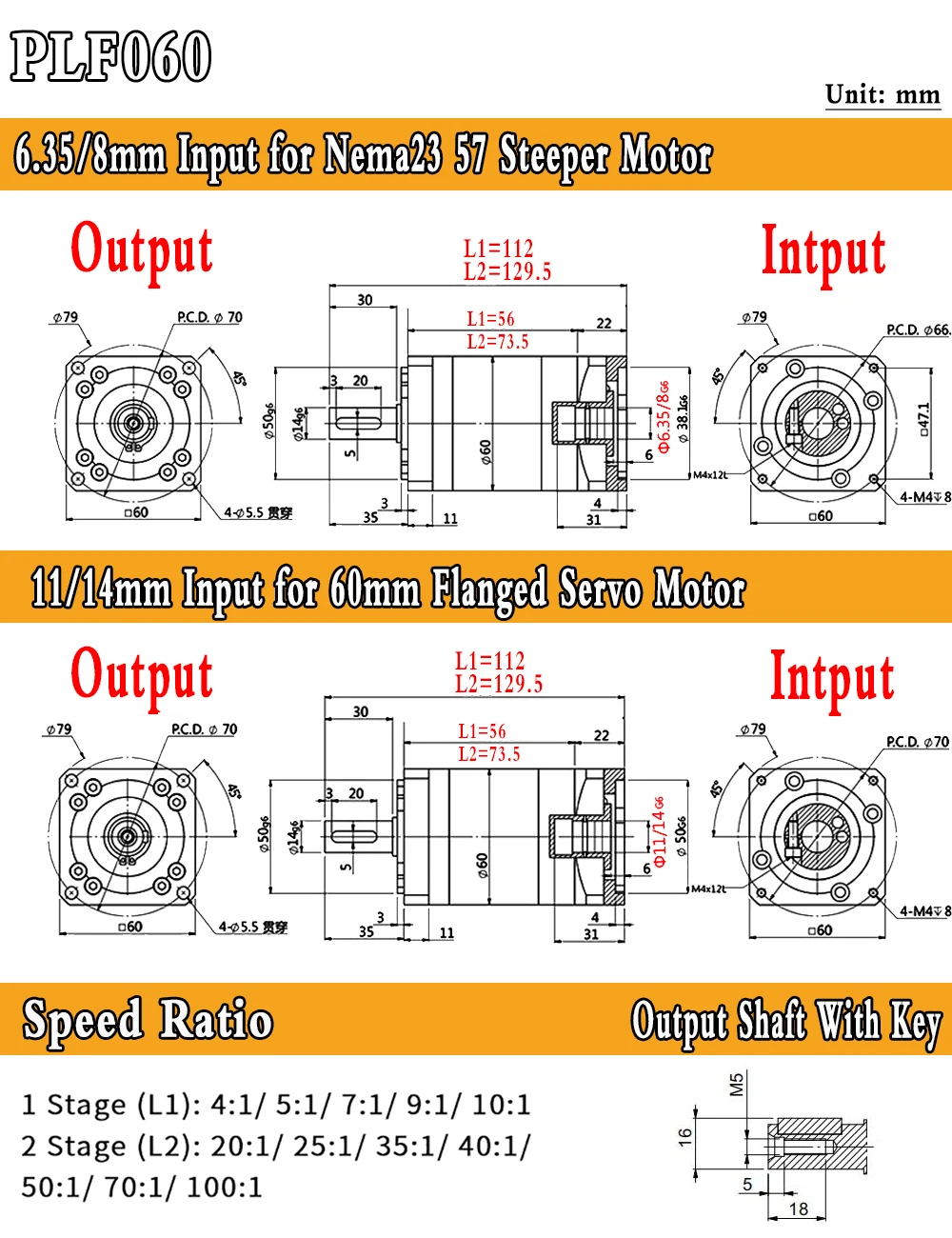

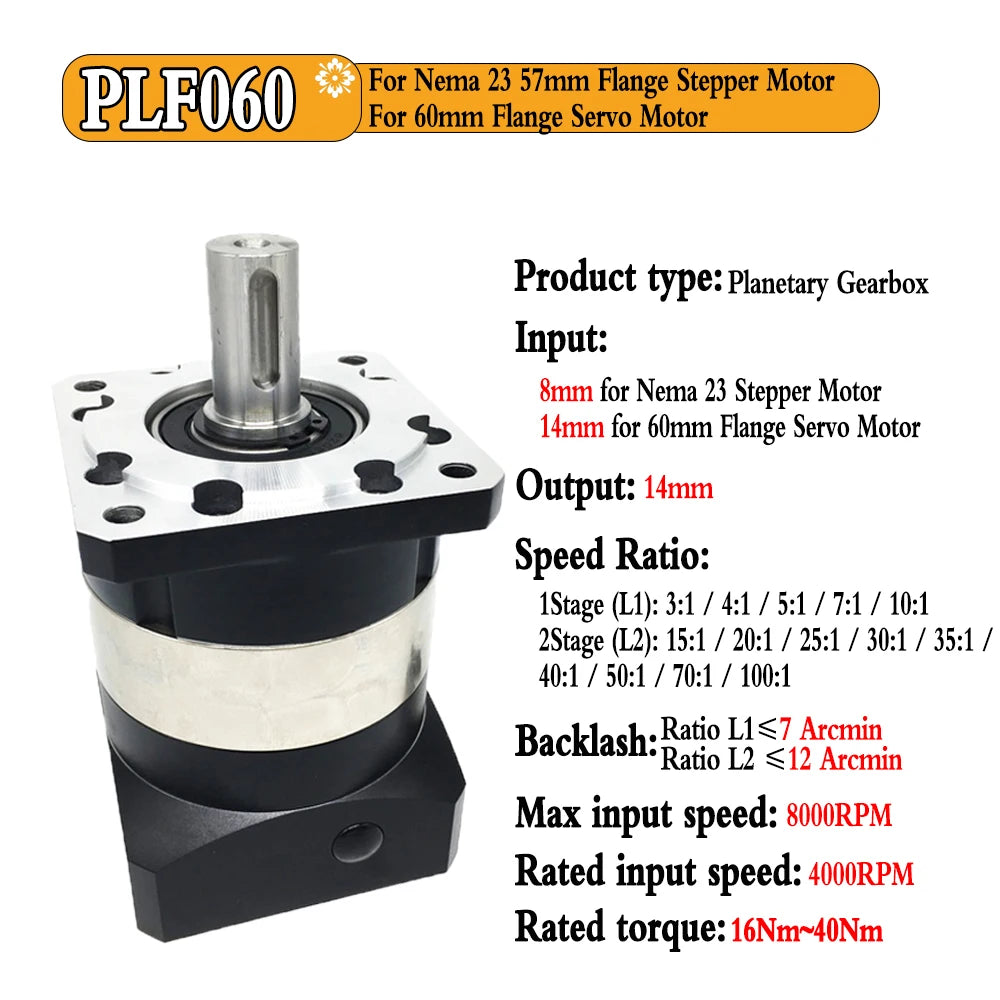

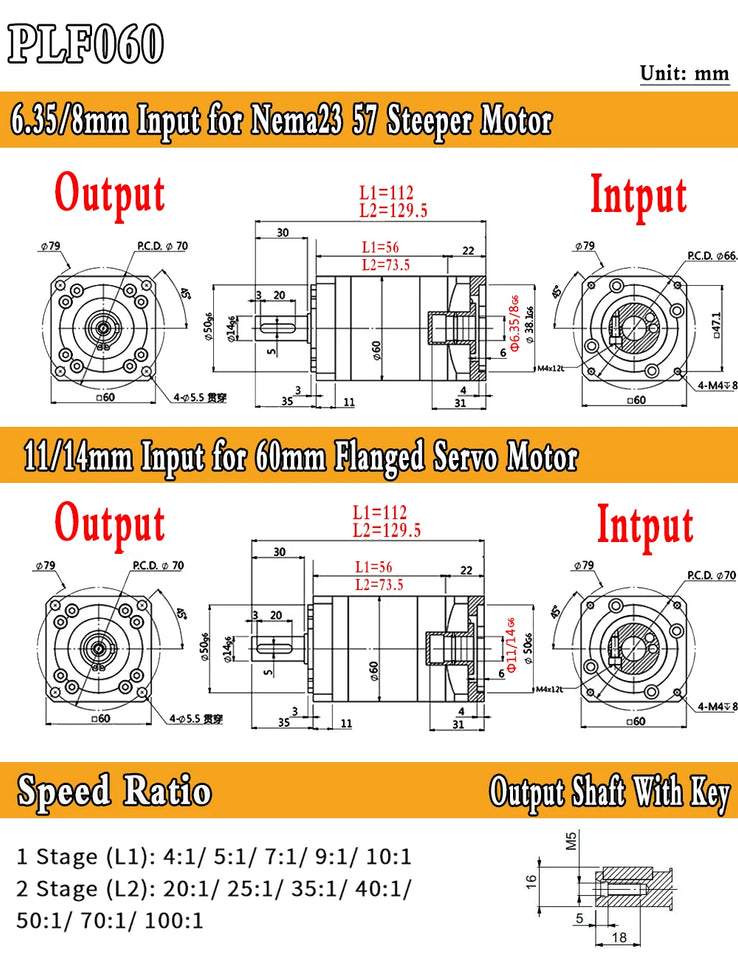

Model Number: PLF060
Origin: Mainland China
Output Shaft: 14mm
Output Torque: 1.5times rated torque
Rated input speed: 3000rpm
Type 1: Nema23 Stepper Motor Reducer
Type 10: planetary gear
Type 11: Motor reducer
Type 12: gear reducer
Type 13: speed reducer
Type 14: Step-down gearbox
Type 15: planetary reducer
Type 16: planetary reducer
Type 17: stepper motor gearbox
Type 18: High Precision reducer
Type 19: High Precision gearbox
Type 2: Nema23 Motor Reducer
Type 20: nema 23 reducer
Type 21: 60mm servo motor gearbox
Type 22: 60mm servo motor reducer
Type 3: Motor Reducer
Type 4: motor gearbox
Type 5: planetary reducer nema 23
Type 6: planetary gearbox
Type 7: Reducer
Type 8: nema 23 gearbox
Type 9: planetary gear

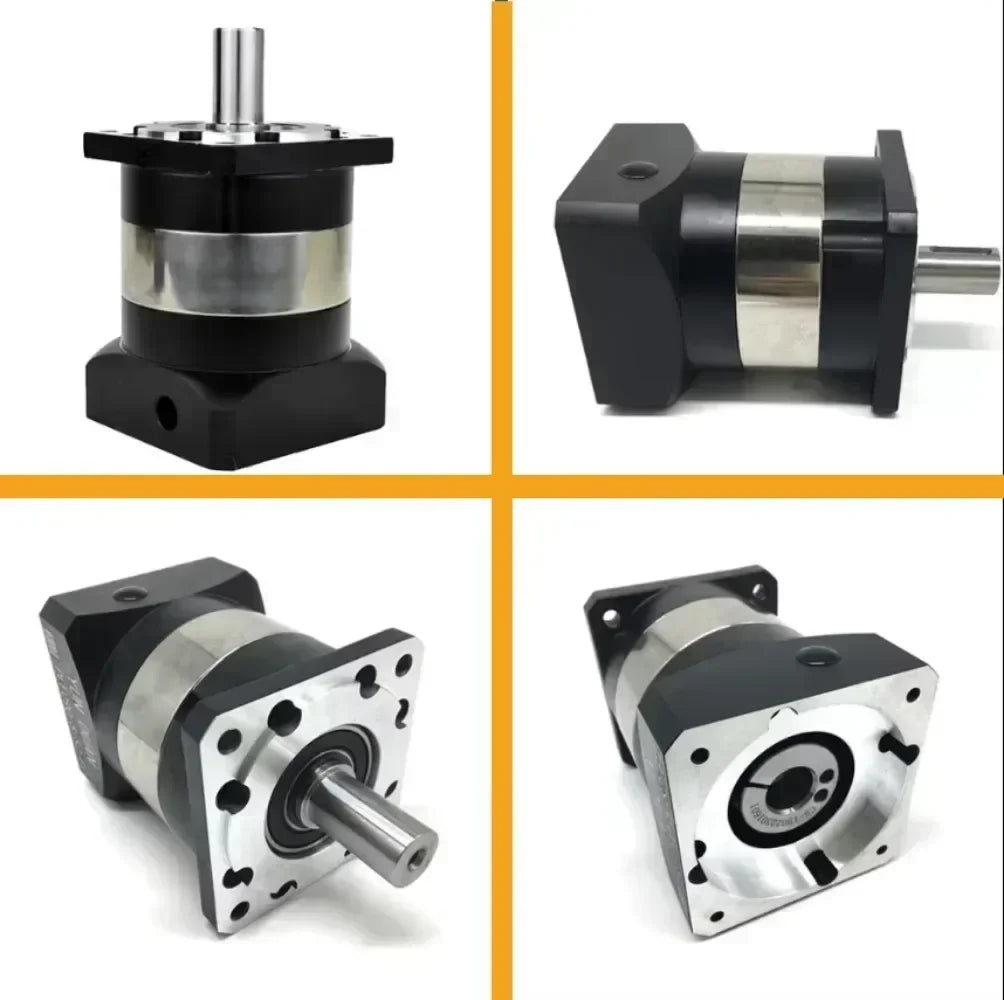

1x Planetary reducer
1x Key
4x Install screws
If you need more speed ratios, you can purchase them through this link
Technical Parameter |
PLF042 |
PLF060 |
PLF080 |

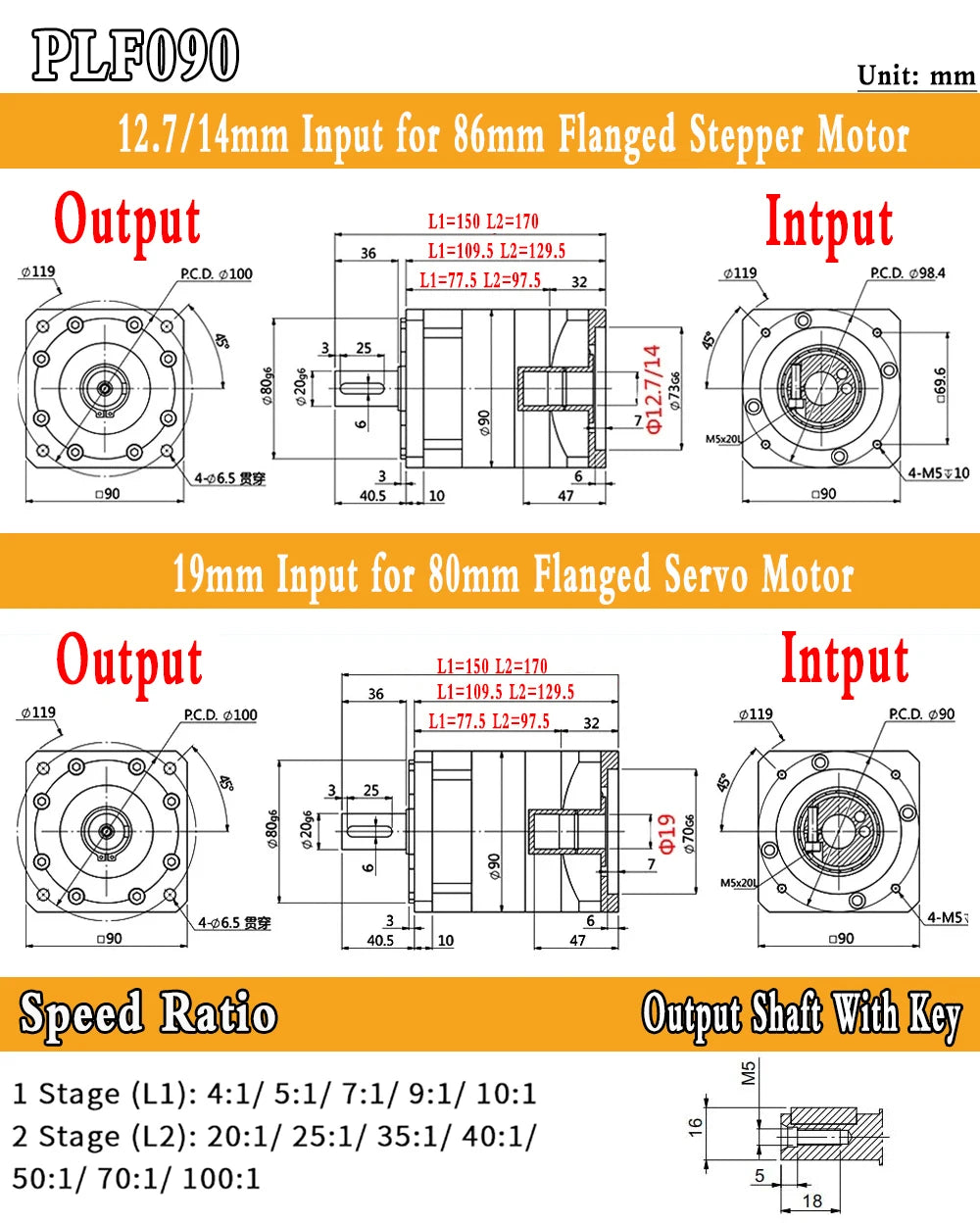

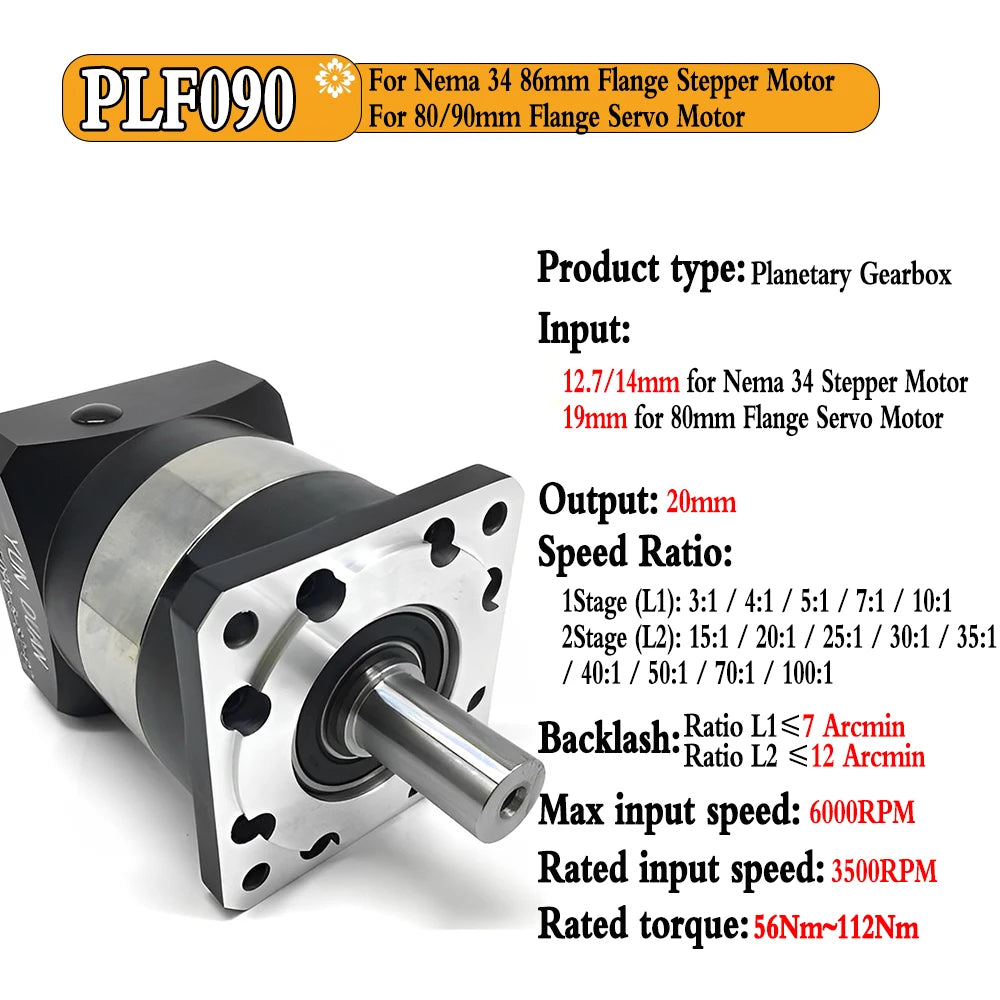

PLF090 |
PLF120 |
PLF160 |
|||
Max. Output Torque |
Nm |
1.5 Times Rated Output Torque |
|||||||
Instant Braking Torque |
Nm |
2 Times Rated Output Torque |
|||||||
Max Radial Torque |
N |
185 |
240 |
400 |
450 |
1240 |
2250 |
||
Max Axis Torque |
N |
150 |
220 |
420 |
430 |
1000 |
1500 |
||
Torsional Stiffness |
Nm/arcmin |
0.7 |
1.8 |
4.7 |
4.85 |
11 |
56 |
||
Max Input Speed |
rpm |
8000 |
8000 |
6000 |
6000 |
6000 |
4000 |
||
Rated Input Speed |
rpm |
4400 |
4000 |
3500 |
3500 |
3500 |
3000 |
||
Noise |
dB |
≤55 |
≤58 |
≤60 |
≤60 |
≤65 |
≤70 |
||
Life time |
h |
20000 |
|||||||
Full Load Efficiency |
% |
L1≥96%, L2≥94% |
|||||||

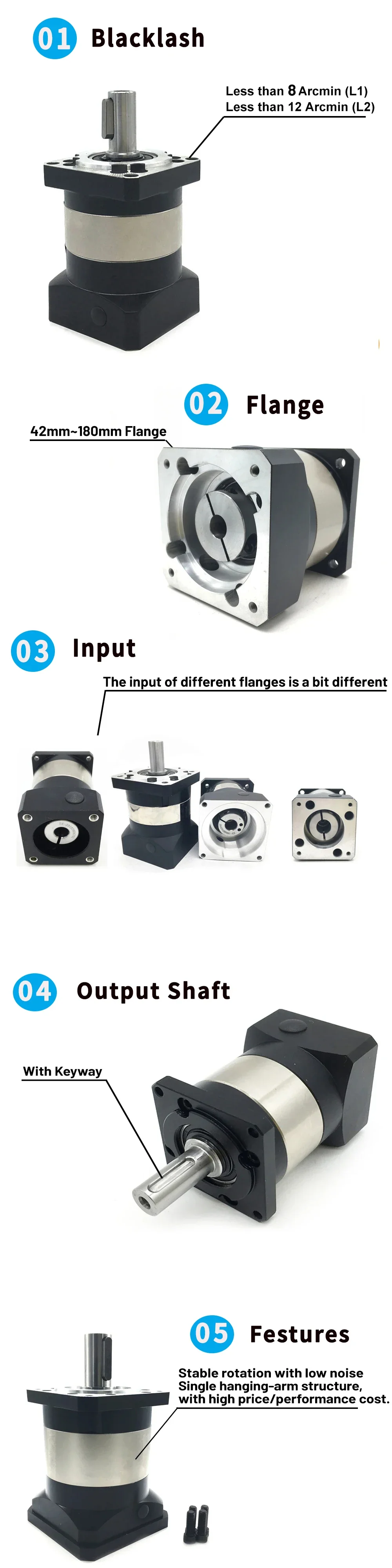

Backlash |
PO |
L1 |
arcmin |
≤7 |
≤7 |
≤7 |
≤7 |
≤7 |
≤7 |
L2 |
arcmin |
≤12 |
≤12 |
≤12 |
≤12 |
≤12 |
≤12 |
||
Moment of Inertia |
L1 |
3:1 |
Kg.cm2 |
0.10 |
0.46 |
0.77 |
1.73 |
12.78 |
36.72 |
4:1 |
Kg.cm2 |
0.10 |
0.46 |
0.77 |
1.73 |
12.78 |
36.72 |
||
5:1 |
Kg.cm2 |
0.10 |
0.46 |
0.77 |
1.73 |
12.78 |
36.72 |
||
7:1 |
Kg.cm2 |
0.06 |
0.41 |
0.65 |
1.42 |
11.38 |
34.02 |
||
10:1 |
Kg.cm2 |
0.06 |
0.41 |
0.65 |
1.42 |
11.38 |
34.02 |
||
L2 |
15:1 |
Kg.cm2 |
0.08 |
0.44 |
0.72 |
1.49 |
12.18 |
34.24 |
|
20:1 |
Kg.cm2 |
0.08 |
0.44 |
0.72 |
1.49 |
12.18 |
34.24 |
||
25:1 |
Kg.cm2 |
0.08 |
0.44 |
0.72 |
1.49 |
12.18 |
34.24 |
||
30:1 |
Kg.cm2 |
0.08 |
0.44 |
0.72 |
1.49 |
12.18 |
34.24 |
||
35:1 |
Kg.cm2 |
0.08 |
0.44 |
0.72 |
1.49 |
12.18 |
34.24 |
||
40:1 |
Kg.cm2 |
0.08 |
0.44 |
0.72 |
1.49 |
12.18 |
34.24 |
||
50:1 |
Kg.cm2 |
0.08 |
0.44 |
0.72 |
1.49 |
12.18 |
34.24 |
||
70:1 |
Kg.cm2 |
0.05 |
0.34 |
0.58 |
1.25 |
11.48 |
34.02 |
||
100:1 |
Kg.cm2 |
0.05 |
0.34 |
0.58 |
1.25 |
11.48 |
34.02 |
||
Parameter |
Stage |
Ratio |
PLF042 |
PLF060 |
PLF080 |
PLF090 |
PLF120 |
PLF160 |
|
Rated Output Torque (Nm) |
L1 |
3:1 |
16 |
27 |
50 |
96 |
161 |
364 |
|
4:1 |
16 |
40 |
90 |
122 |
210 |
423 |
|||
5:1 |
15 |
40 |
90 |
122 |
210 |
423 |
|||
7:1 |
12 |
34 |
48 |
95 |
170 |
358 |
|||
10:1 |
10 |
16 |
22 |
56 |
86 |
210 |
|||
L2 |
15:1 |
16 |
27 |
50 |
96 |
161 |
364 |
||
20:1 |
15 |
40 |
90 |
122 |
210 |
423 |
|||
25:1 |
16 |
40 |
90 |
122 |
210 |
423 |
|||
30:1 |
15 |
27 |
50 |
96 |
161 |
364 |
|||
35:1 |
12 |
40 |
90 |
122 |
210 |
423 |
|||
40:1 |
16 |
40 |
90 |
122 |
210 |
423 |
|||
50:1 |
15 |
40 |
90 |
122 |
210 |
423 |
|||
70:1 |
12 |
34 |
48 |
95 |
170 |
358 |
|||
100:1 |
10 |
16 |
22 |
56 |
86 |
210 |
|||
IP Degree |
IP65 |
||||||||
Operating Temp |
-10℃~~90℃ |
||||||||
