SPECIFICATIONS

Brand Name: zhangqing

Certification: CE,FCC,RoHS

Data Speed: 10/100/1000/2500/5000/10,000 Mbps

High-concerned chemical: None

Input voltage: 48-57 Volts DC

Item Type: poe Injector

Max. Amps Per Port: 1.61 Amps

Mount Type: Wall or DIN rail mounting

Origin: Mainland China

Output Voltage: 48-57 Volts

Plug Type: None

PoE Method: Active

PoE Mode: 802.3bt type 3 / type 4 PoE

PoE Standard: IEEE 802.3af/at/bt

Power Input: 2.1*5.5mm DC / 5.0 mm connector

Power Supply: Not Included

Product Name: 802.3bt Active Mid-span PoE Injector

Size: 88*30*42mm

Warranty: 1 Year

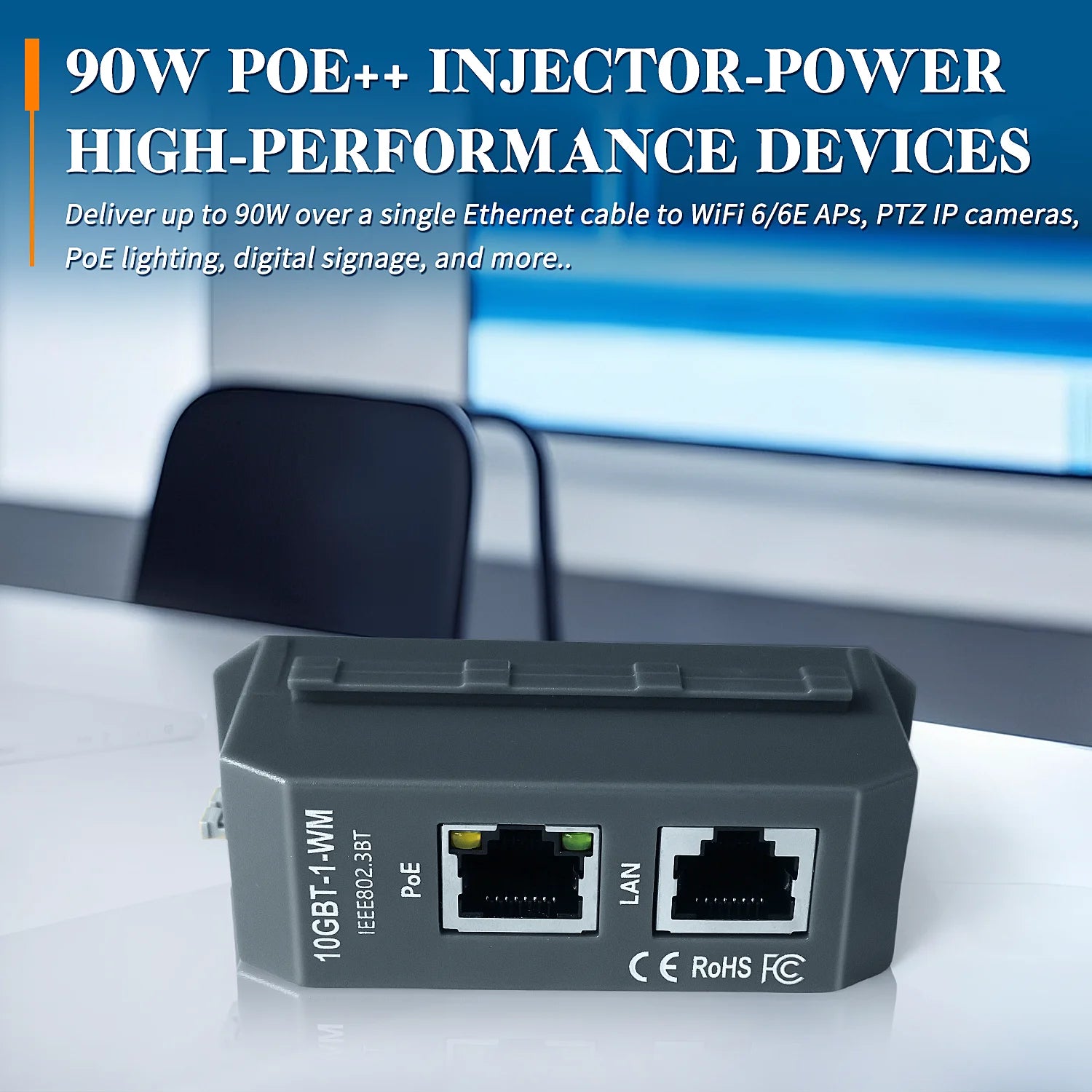

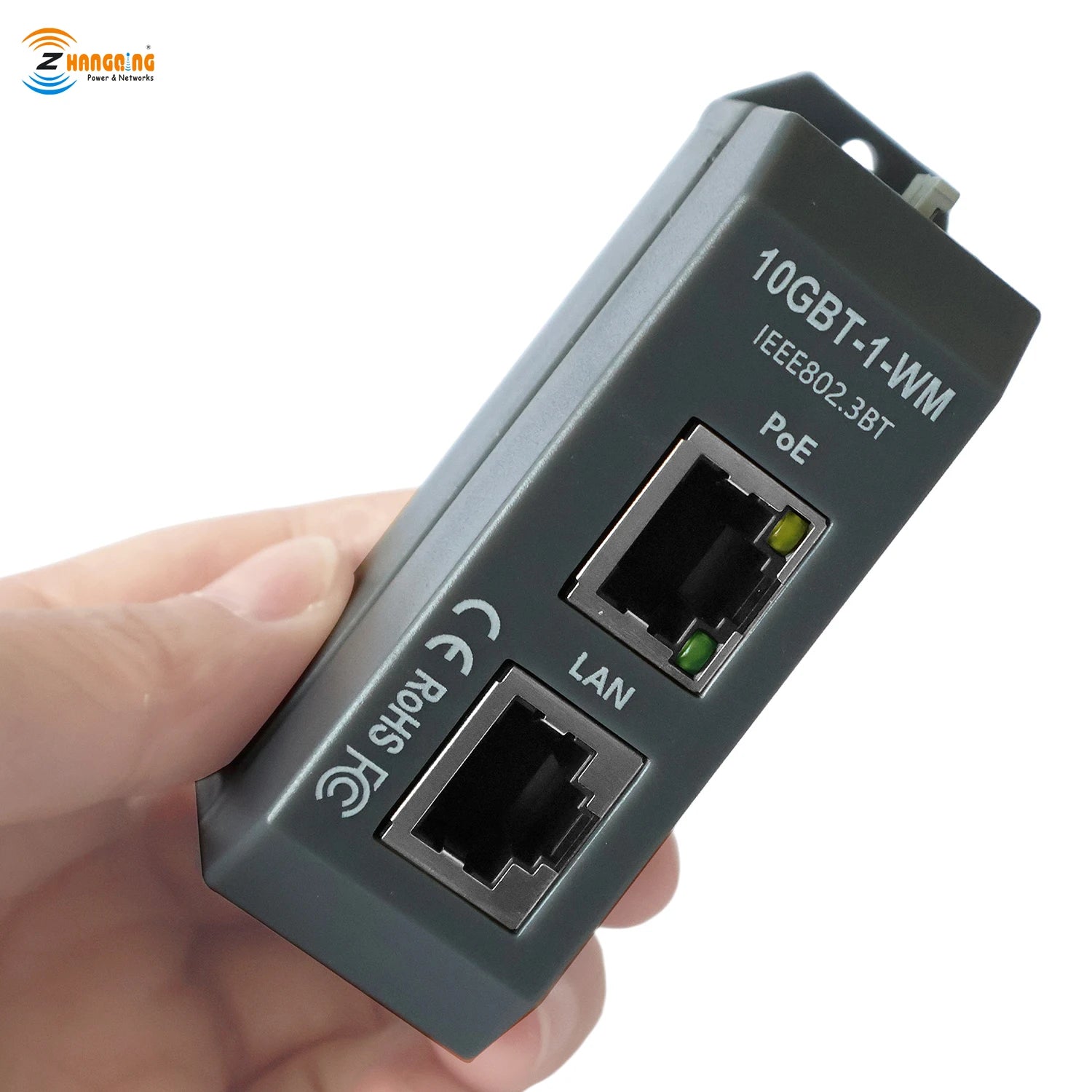

Single Port 10 Gigabit 802.3bt PoE++ Injector | 90W Max Output | IEEE 802.3af/at/bt | Wall & DIN Mount

The 10GBT-1-WM is a high-speed 10 Gigabit Active PoE++ injector that delivers up to 90W of power to your most demanding network devices.

Supporting IEEE 802.3af/at/bt standards, this unit ensures safe and efficient power delivery through intelligent handshake negotiation.

Engineered with a modular and stackable design, the 10GBT-1-WM fits neatly into industrial and commercial network environments.

Its wall and DIN rail mounting options make it easy to deploy in virtually any location, providing seamless integration and high-speed data throughput for applications such as HD IP cameras, high-end wireless APs, LED lighting, and more.

Product Features:

10G High-Speed PoE++ Injector for next-gen network applications

Complies with IEEE 802.3af/at/bt (Type 3 & Type 4)

Active PoE with negotiation ensures device safety

Up to 90W per port, suitable for high-power devices

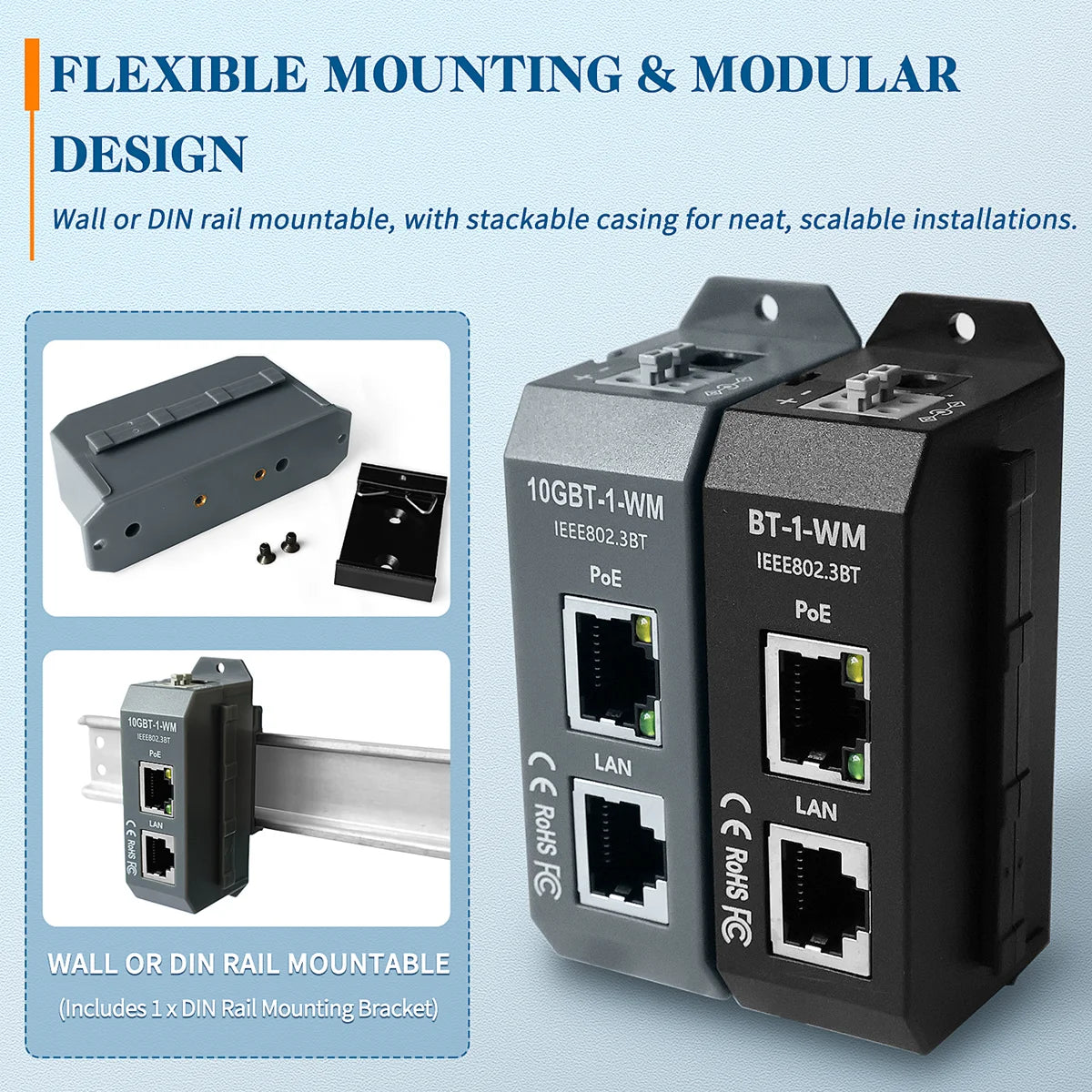

Modular, stackable casing for efficient expansion

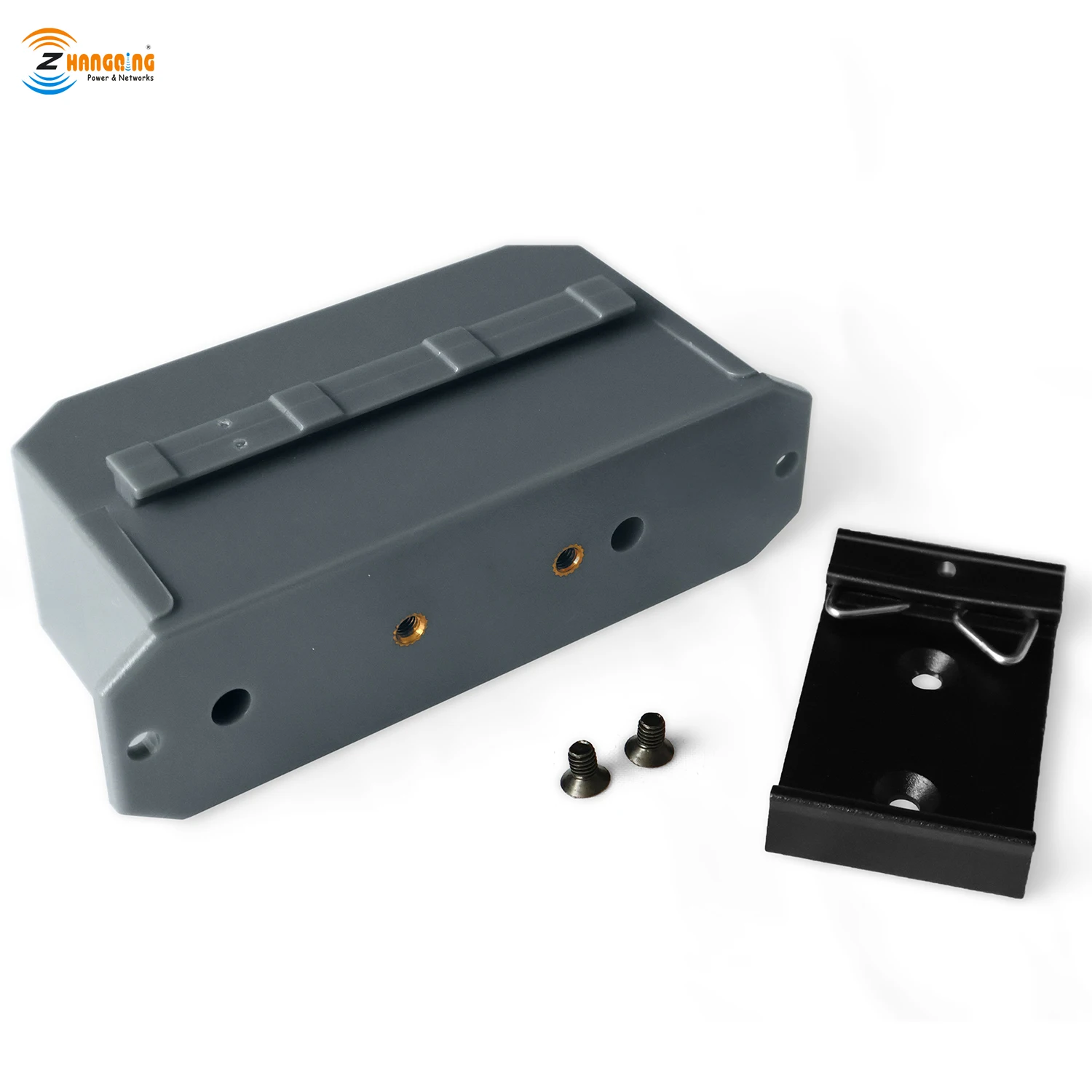

Wall and DIN rail mount options included

Supports 4-pair and 2-pair PoE modes

Ideal for WiFi 6/6E APs, PTZ cameras, digital signage, and more

Product Specifications

Certifications: CE, FCC, RoHS

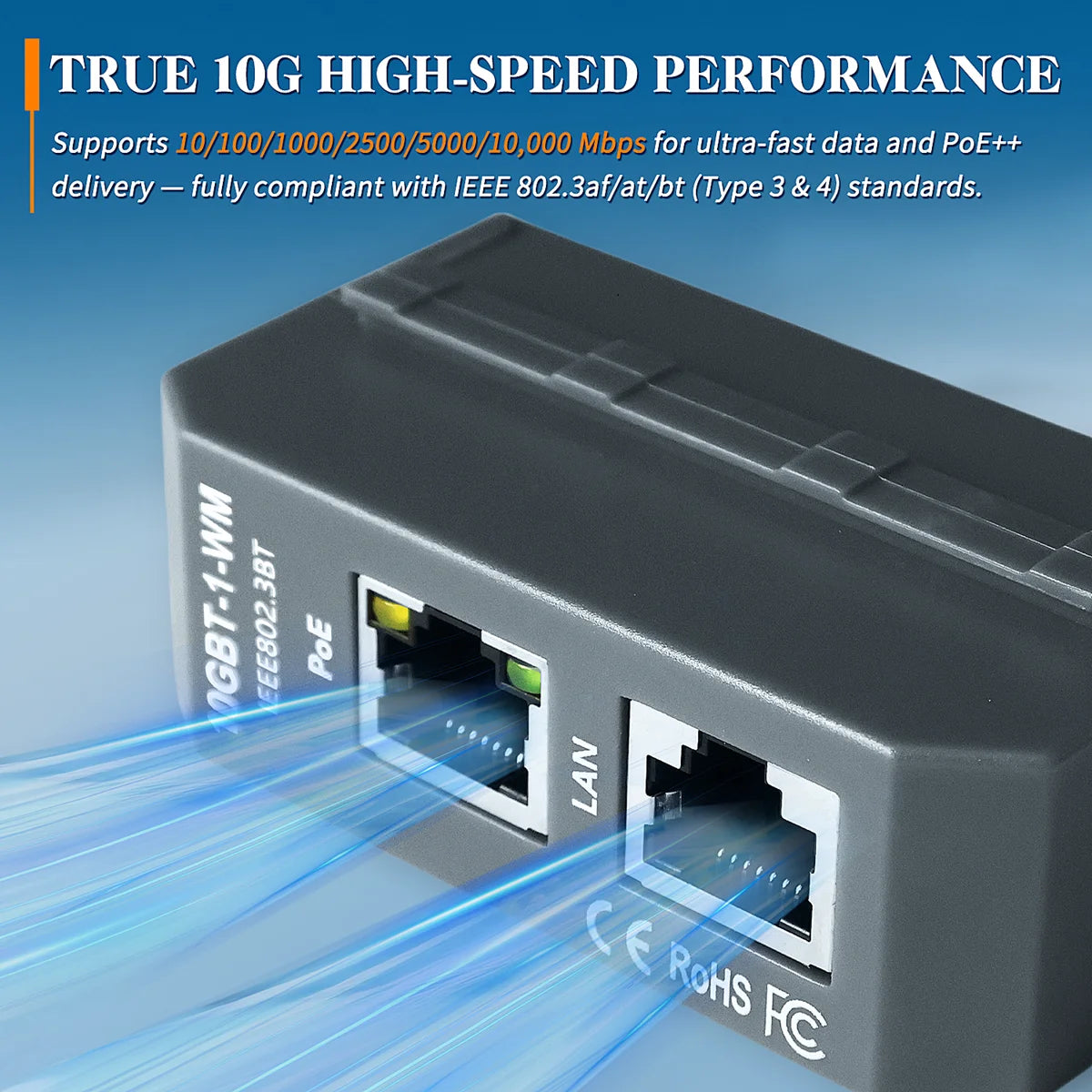

Data Rate: 10/100/1000/2500/5000/10,000 Mbps

Data + PoE Ports: 1 Shielded RJ-45

Data Ports: 1 Shielded RJ-45

Dimensions: 88*30*42mm

Input voltage: 48-57 Volts DC

Max. Amps Per Port: 1.61 Amps

Output Voltage: 48-57 Volts

PoE Method: Active

PoE Standard: IEEE 802.3af/at/bt

PoE Mode: 4 pair PoE operation ( type 4 )

2 pair PoE supported ( type 3 ) and 802.3at/af

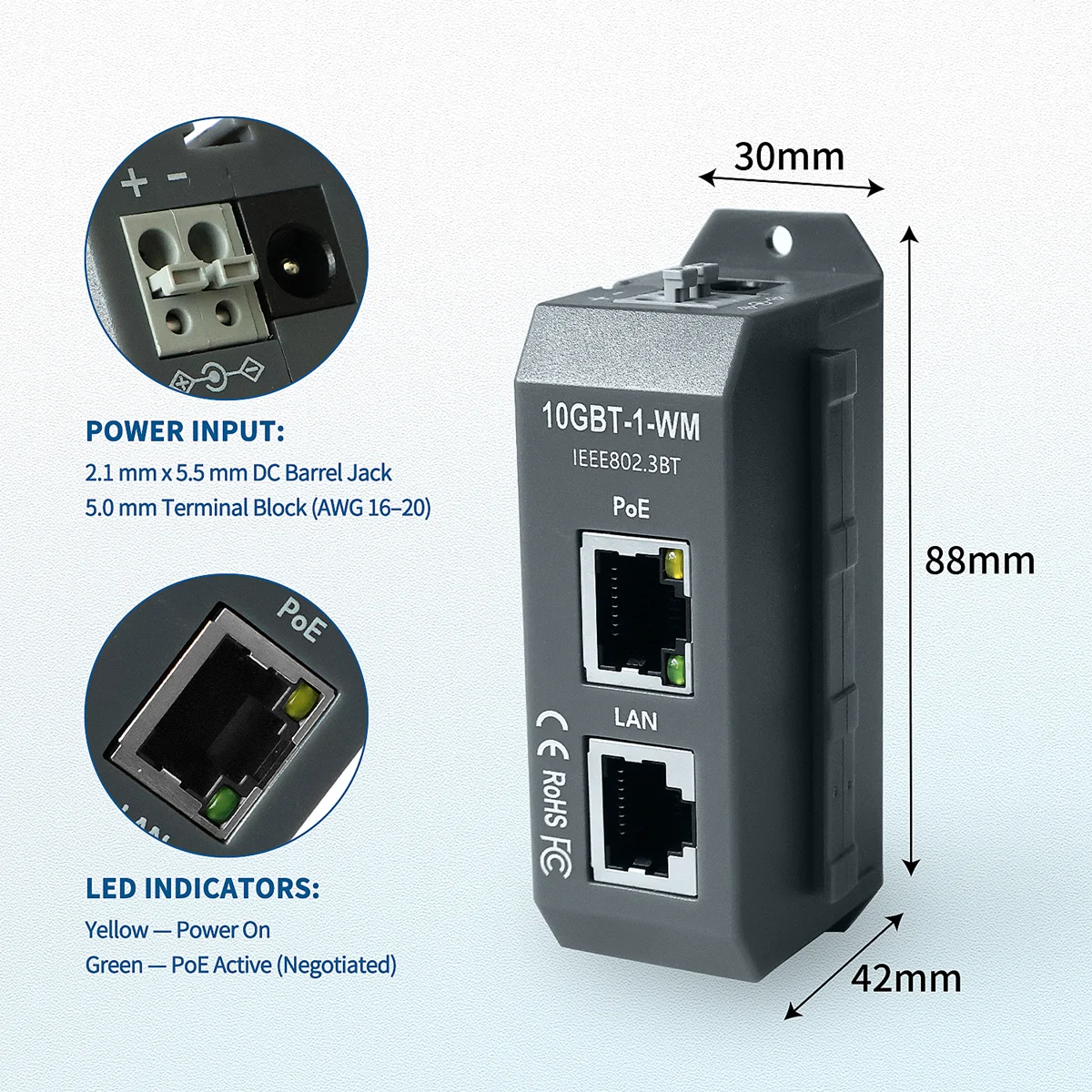

Power Input: Standard power connector - 2.1mm x 5.5mm

5.0 mm connector for awg 16-20 wire

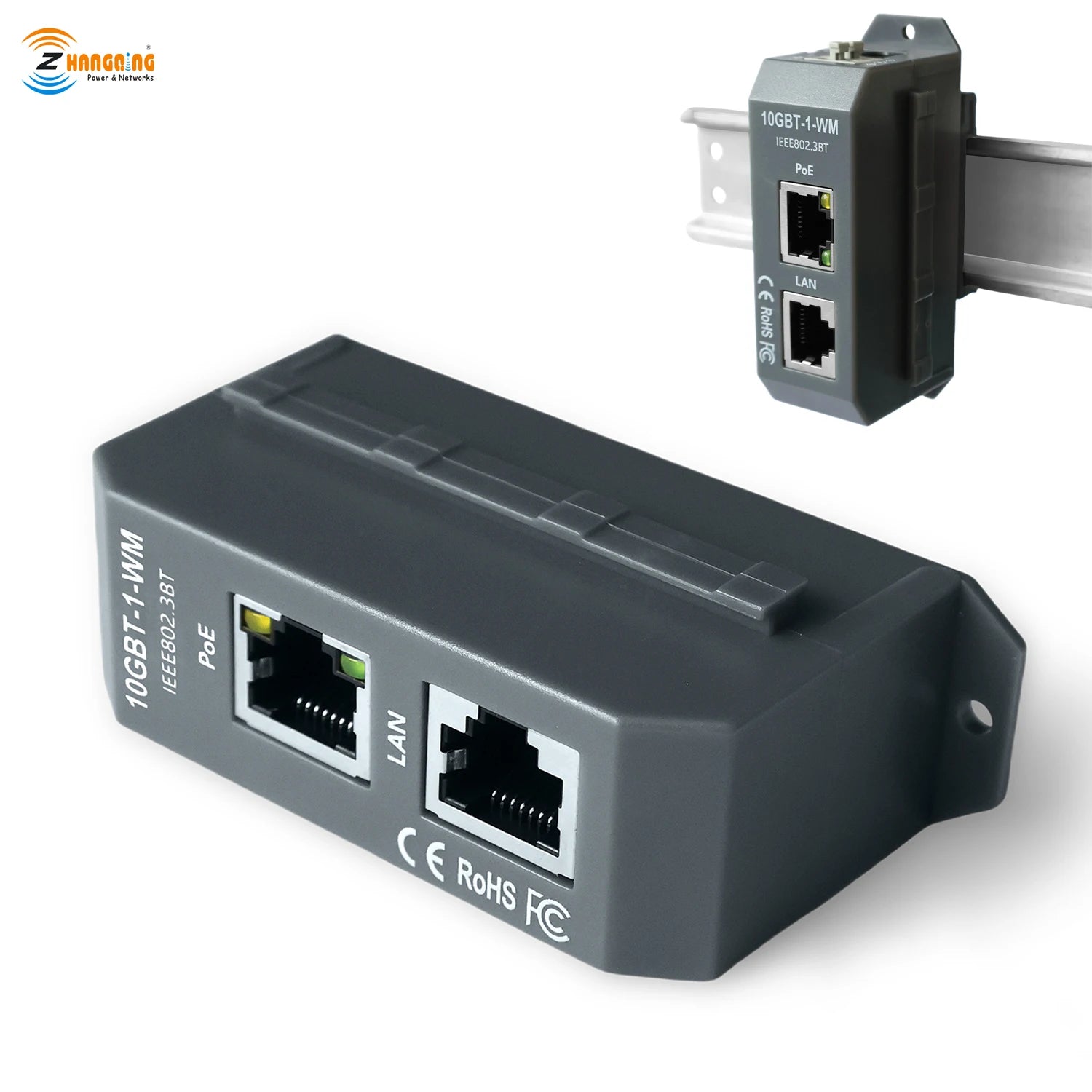

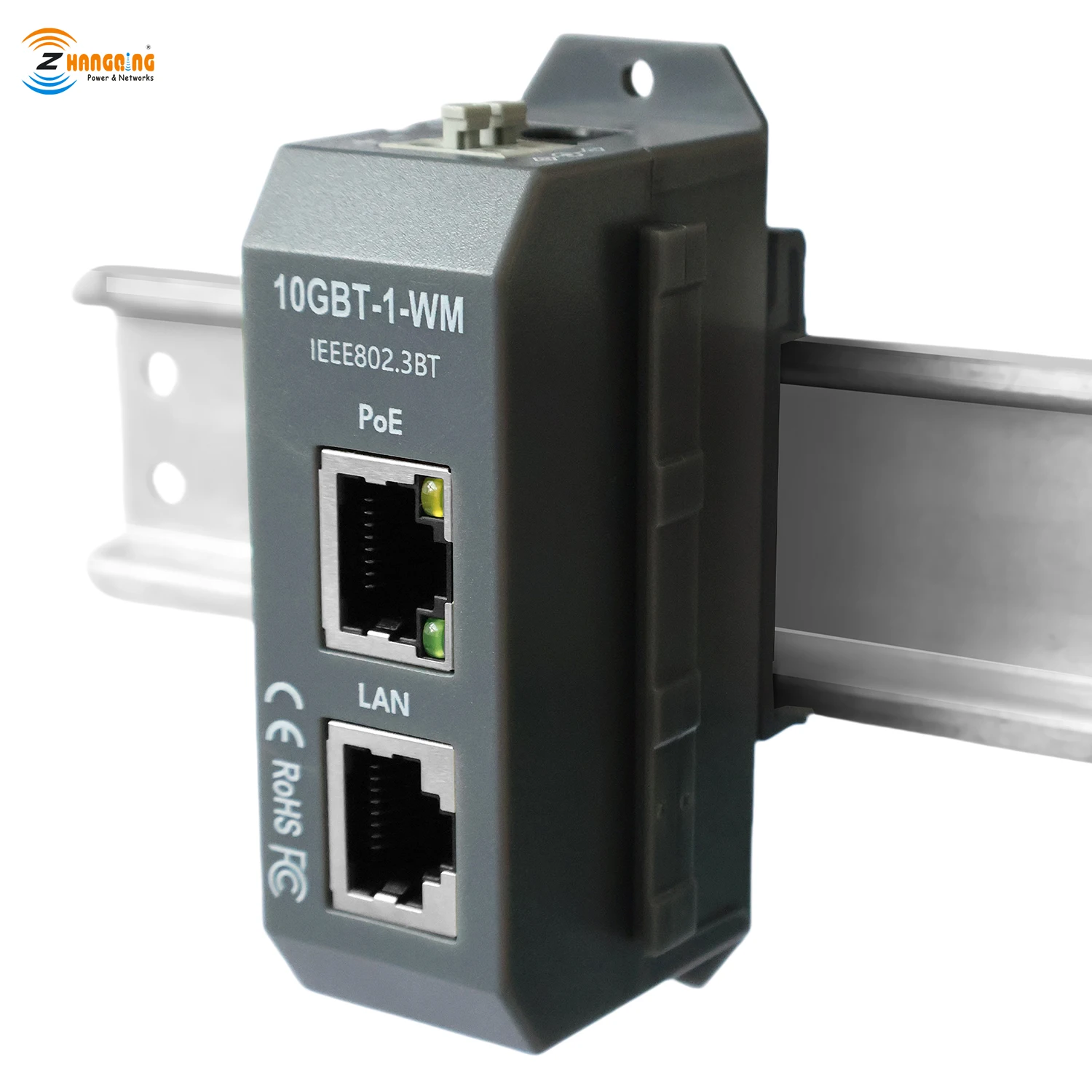

Mount Type: wall or DIN rail mounting

Operating Humidity: 5% to 90%

Operating Temperature Range: 0 - 50 Deg C

Weight:100g

Power Supply: Not included – use with 48–57V DC adapters
