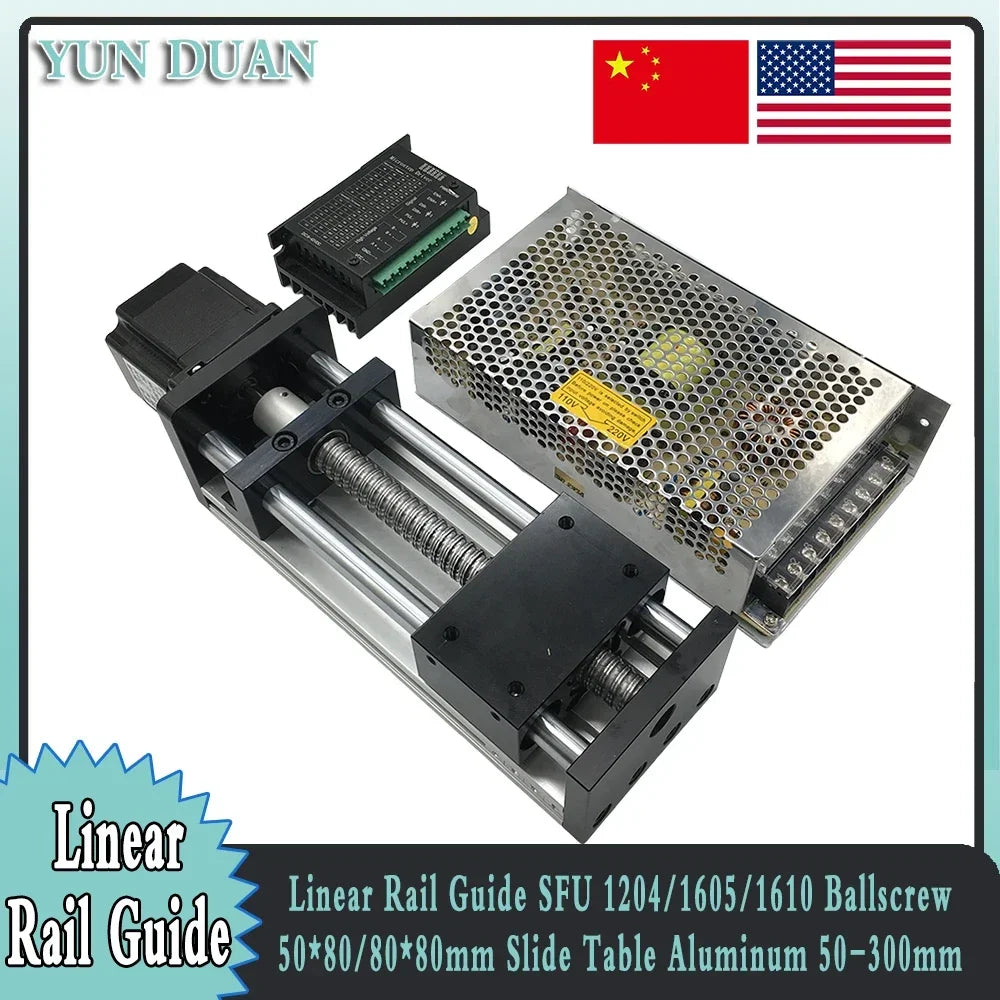

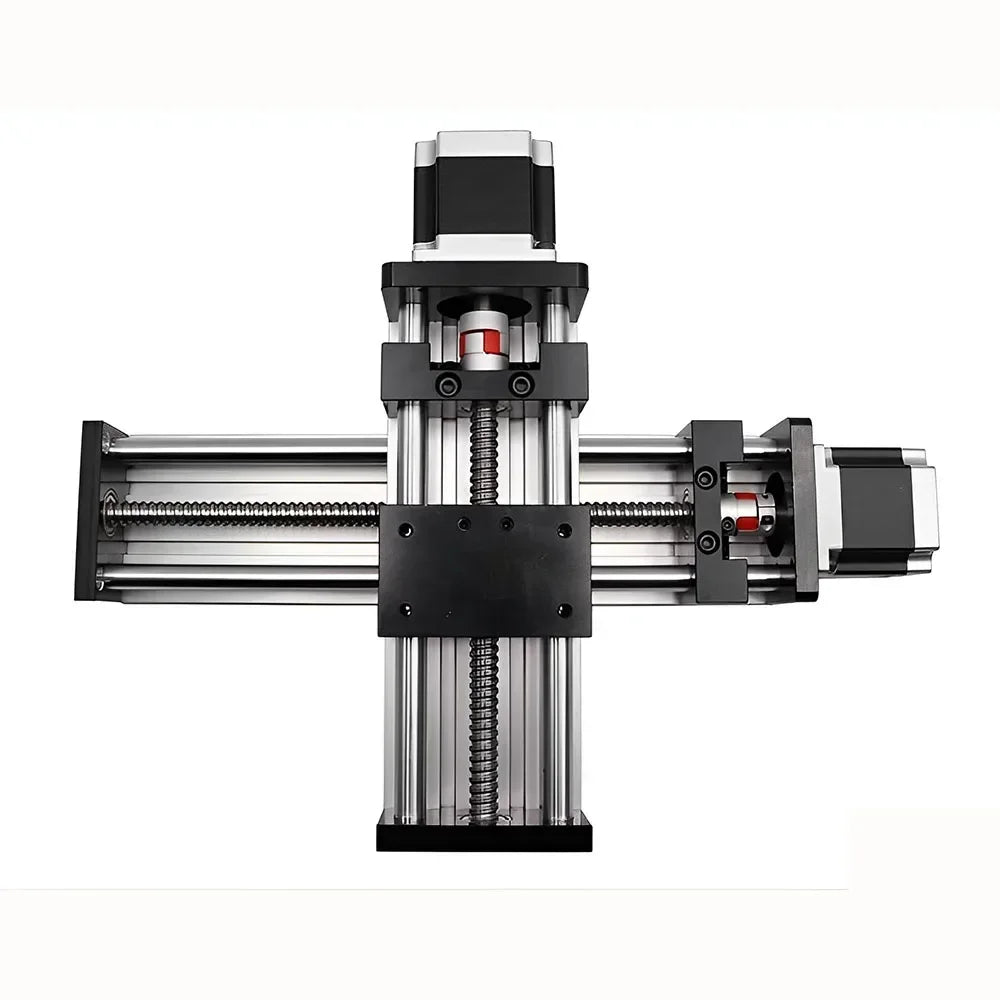

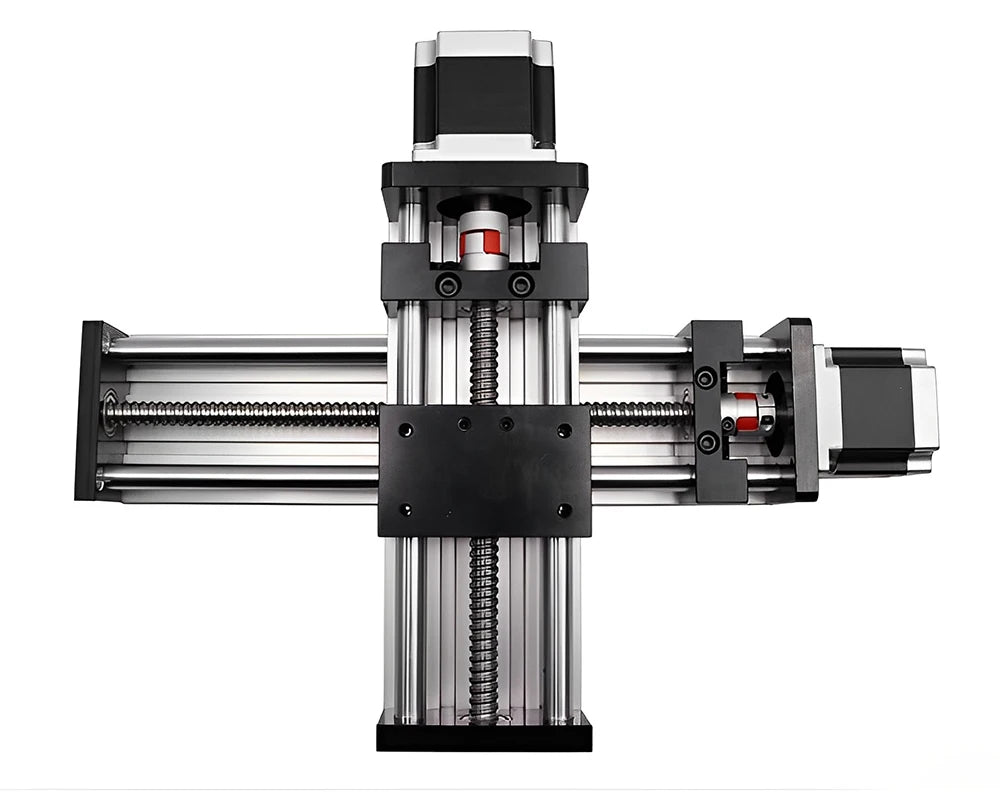

Linear Rail Kit Sliding Table Ball Screw Module Slide Stage 50-300mm Stroke Nema23 Stepper Motor 1.2Nm Power Supply Driver CNC
Regular price
$665.00
$665.00
SPECIFICATIONS
Ballscrew accuracy: C7
Ballscrew type: SFU1204/SFU1605/SFU1610
Brand Name: YUN DUAN
Certification: CE
Effective Stroke: 50mm-300mm Optional
Guide Width or Diameter: 12mm
High-concerned chemical: None
Horizontal load: 40KG (Max)
Model Number: GGP5080/GGP8080
Module material: Industrial Aluminum Profile
Module width: 80mm
Origin: Mainland China
Repeat positioning accuracy: 0.02mm-0.05mm
Total length: Effective Stroke+120mm
Vertical load: 20KG (Max)

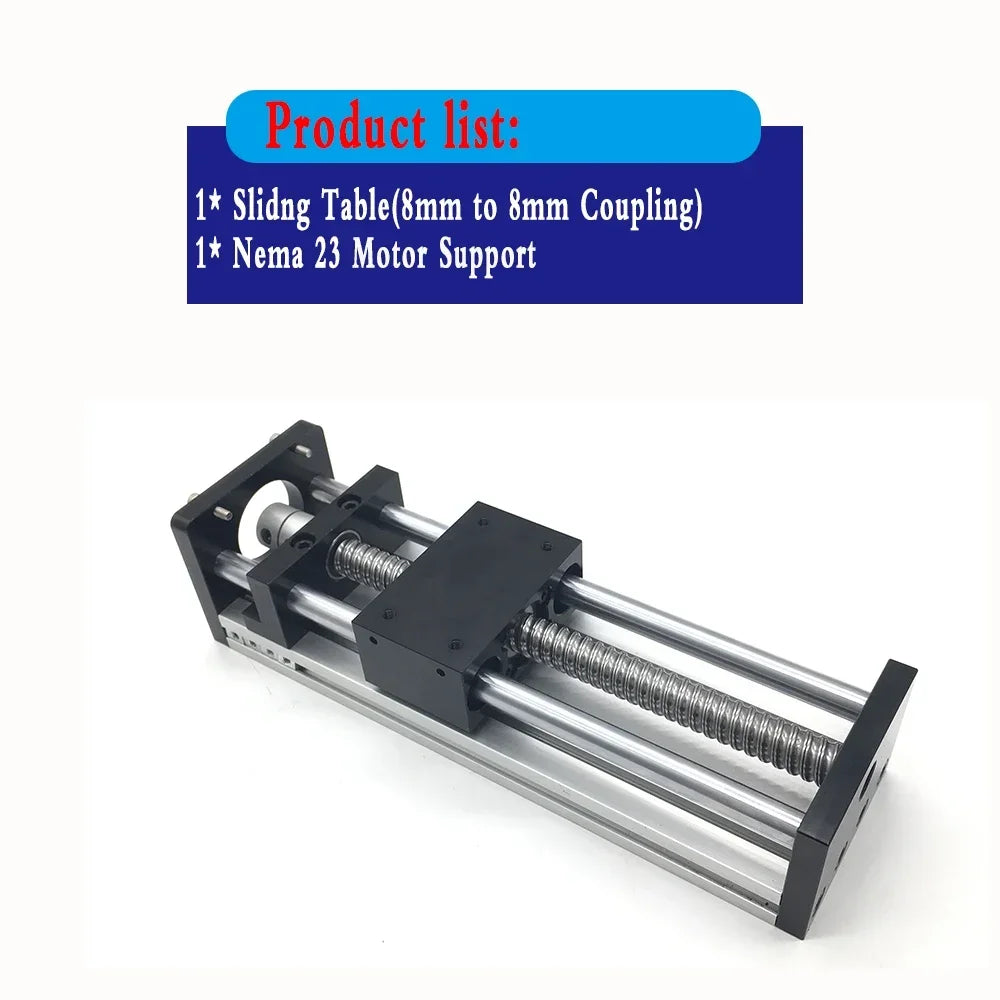

1* Slidng Table
1* 8mm to 8mm Coupling

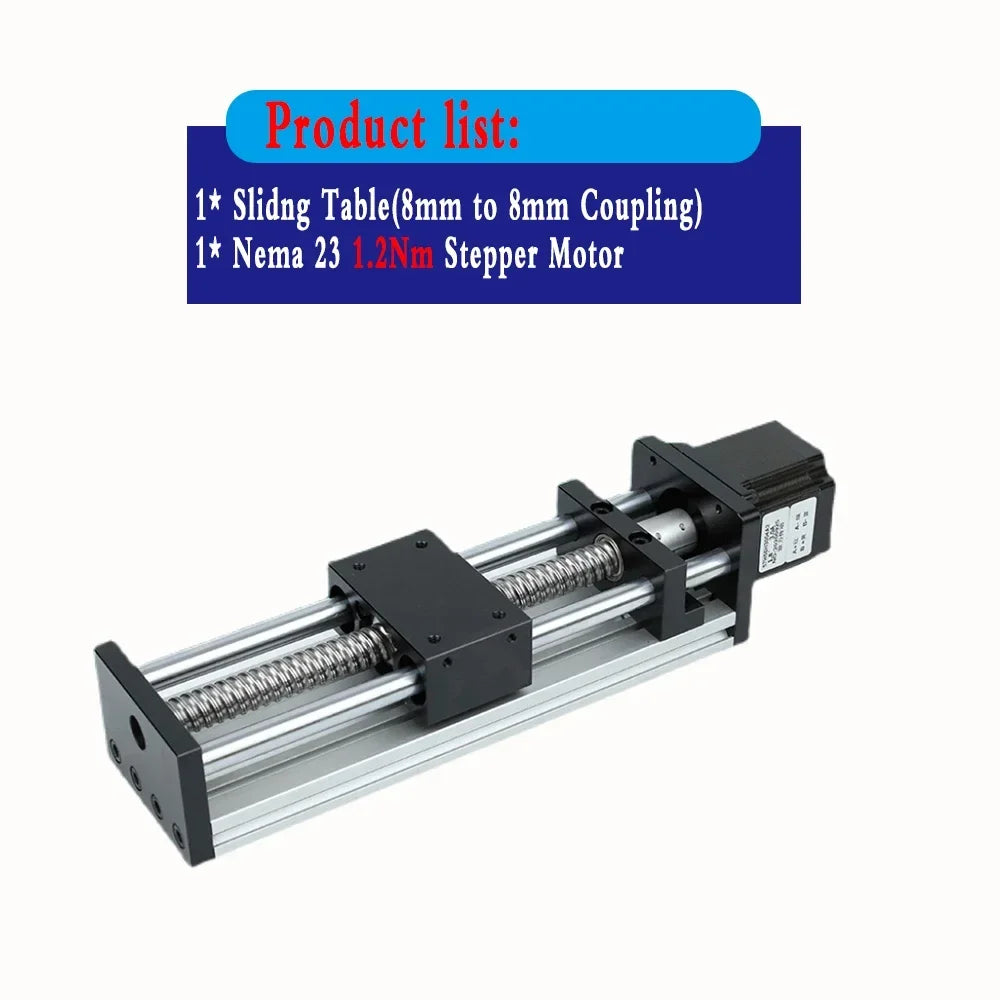

Sliding Table-Motor Kit:
1* Slidng Table

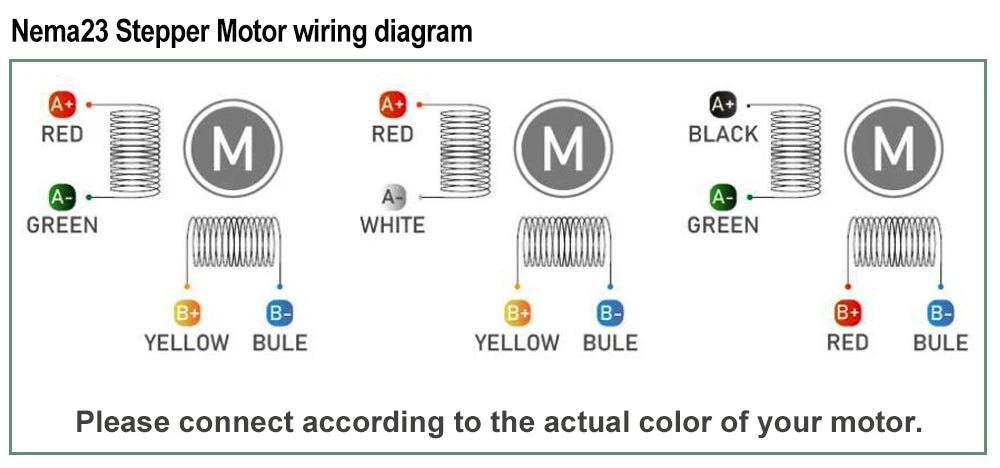

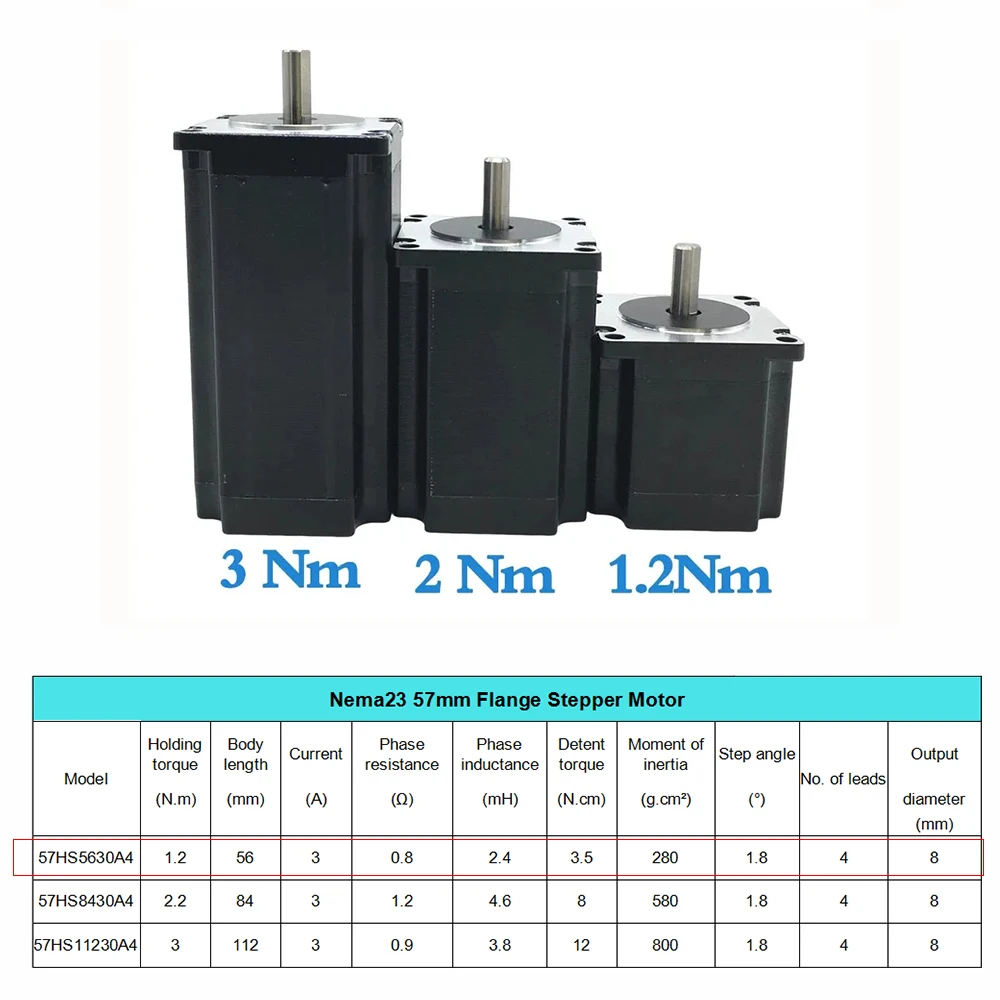

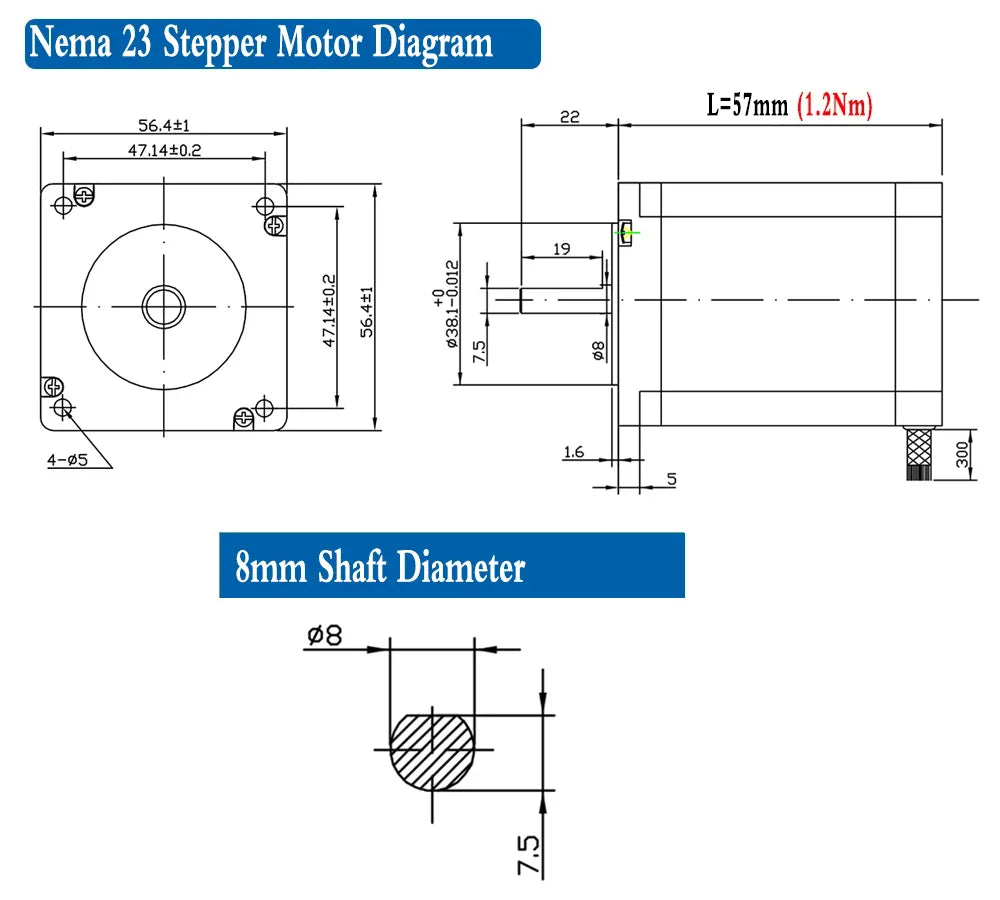

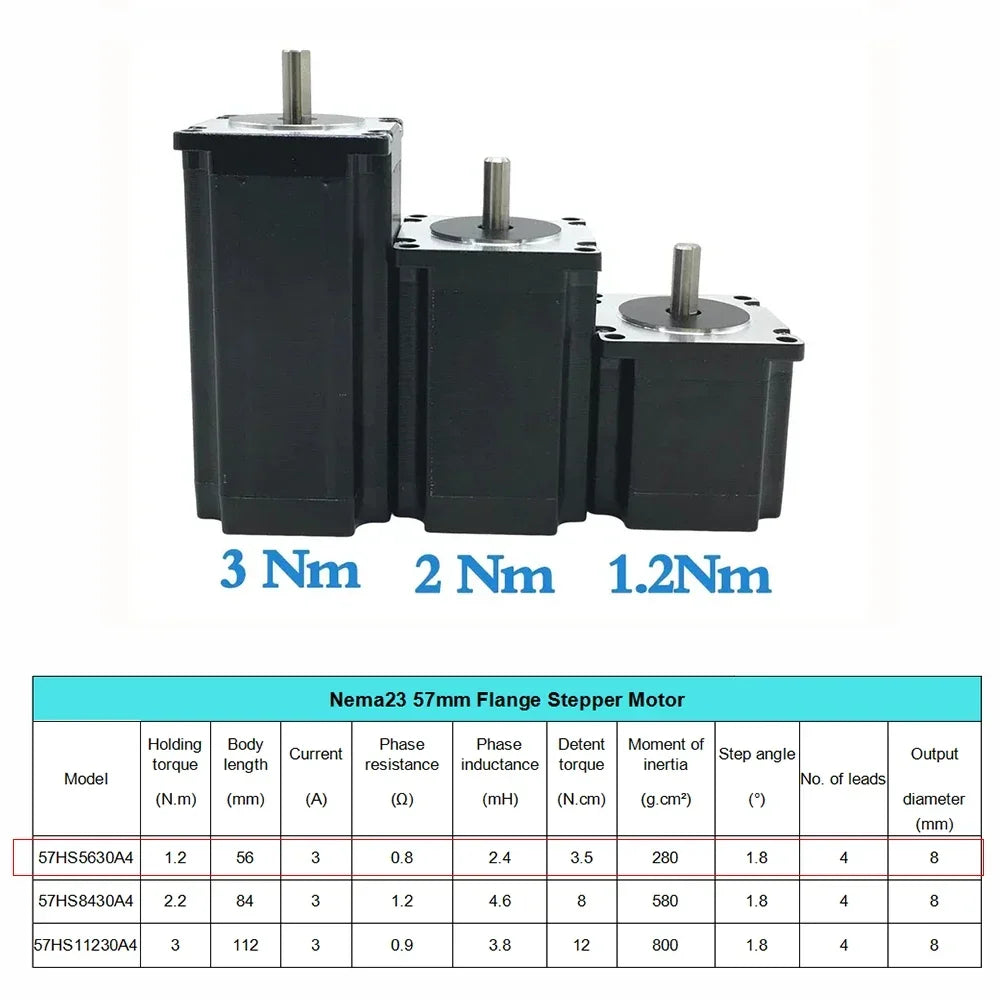

1* Nema 23 Stepper Motor(1.2Nm)
1* 8mm to 8mm Coupling

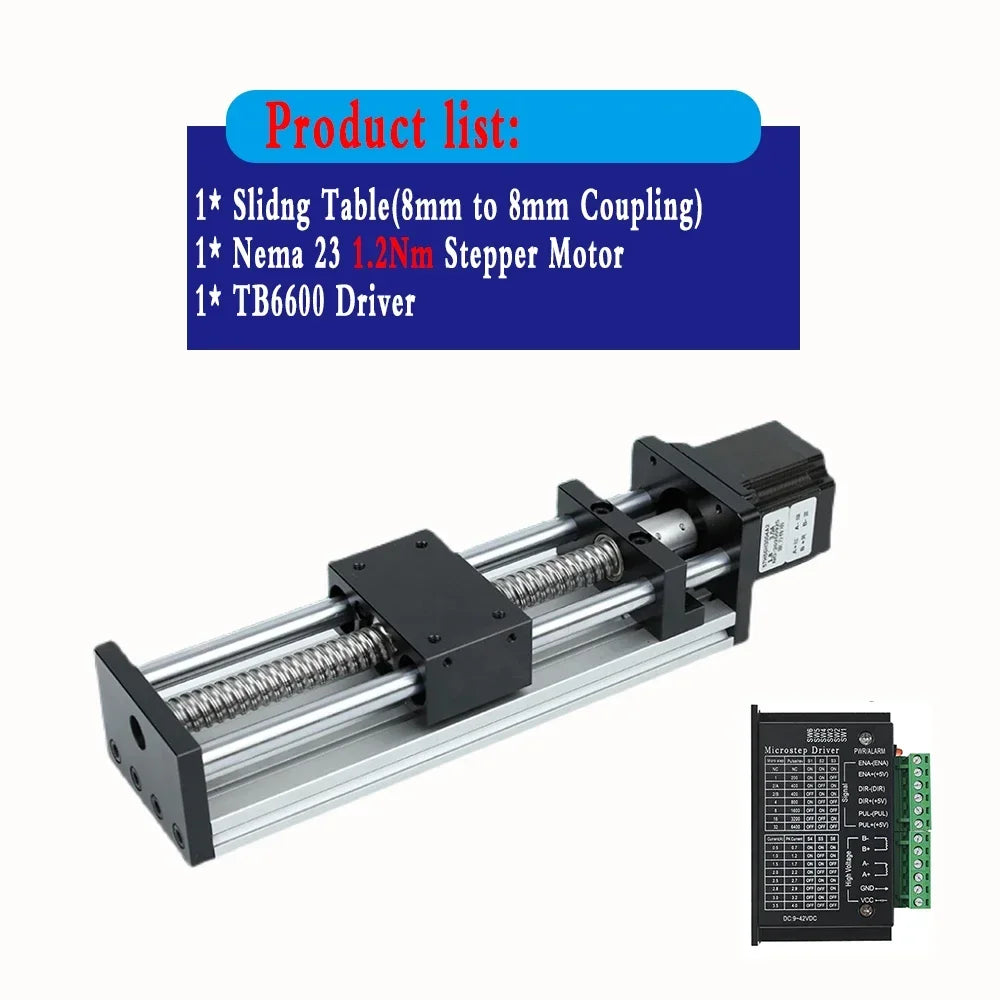

Motor Drive Kit:
1* Slidng Table
1* Nema 23 Stepper Motor
1* TB6600 Driver
1* 8mm to 8mm Coupling

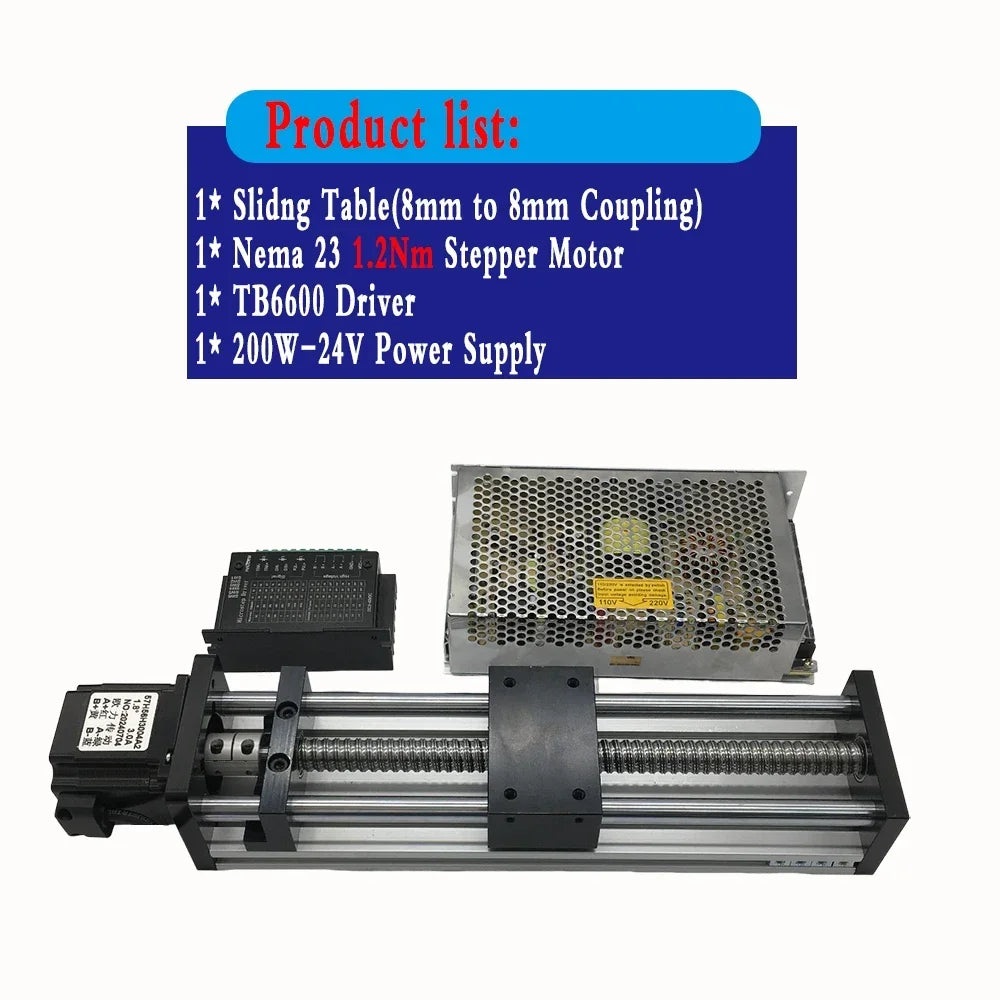

Power Supply Kit:
1* Slidng Table
1* Nema 23 Stepper Motor
1* TB6600 Driver
1* 8mm to 8mm Coupling
1* 200W-24V Power Supply

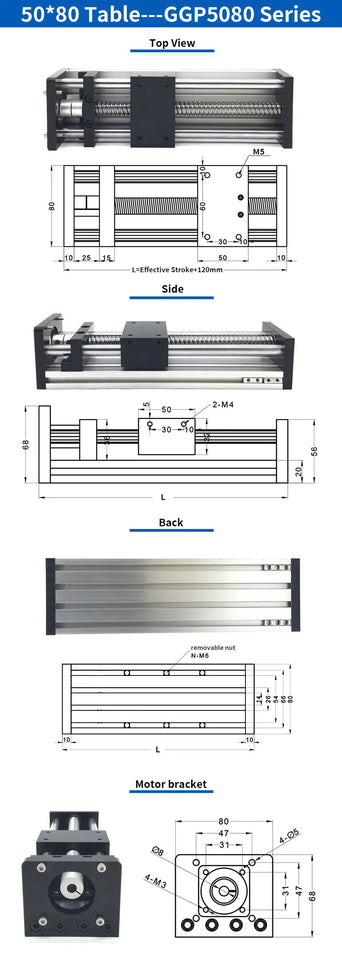

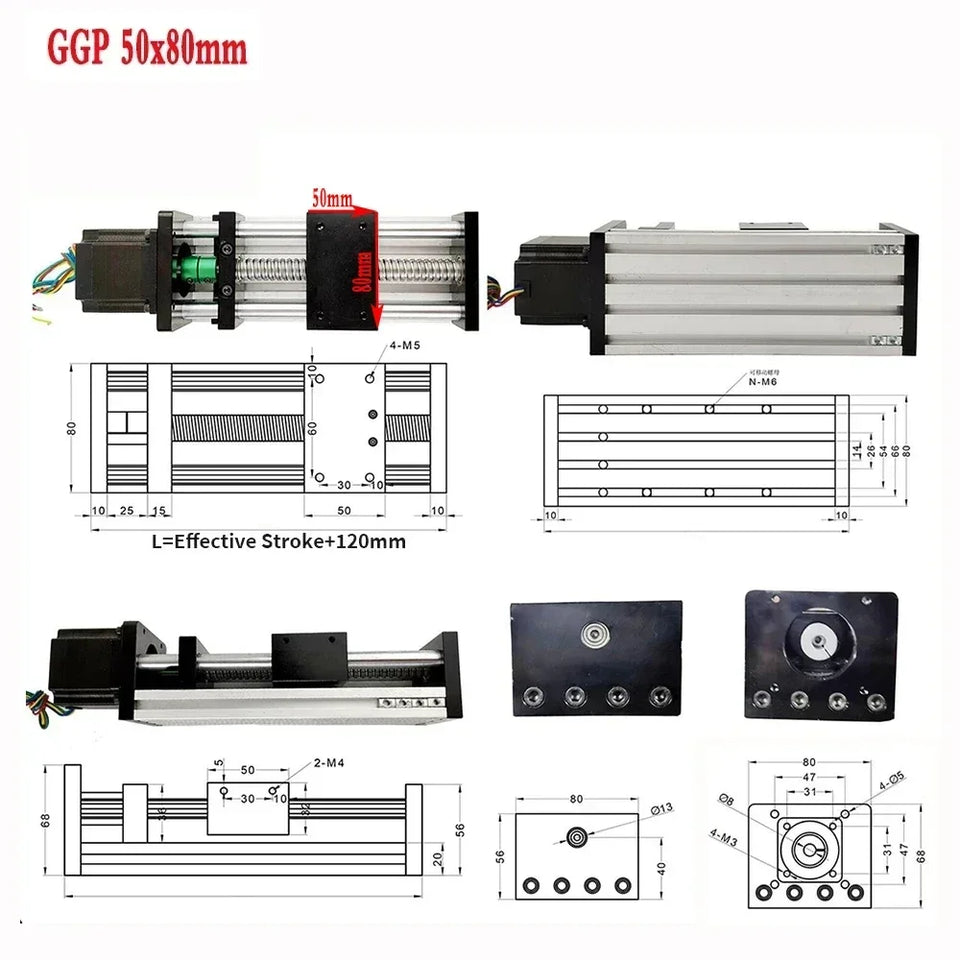

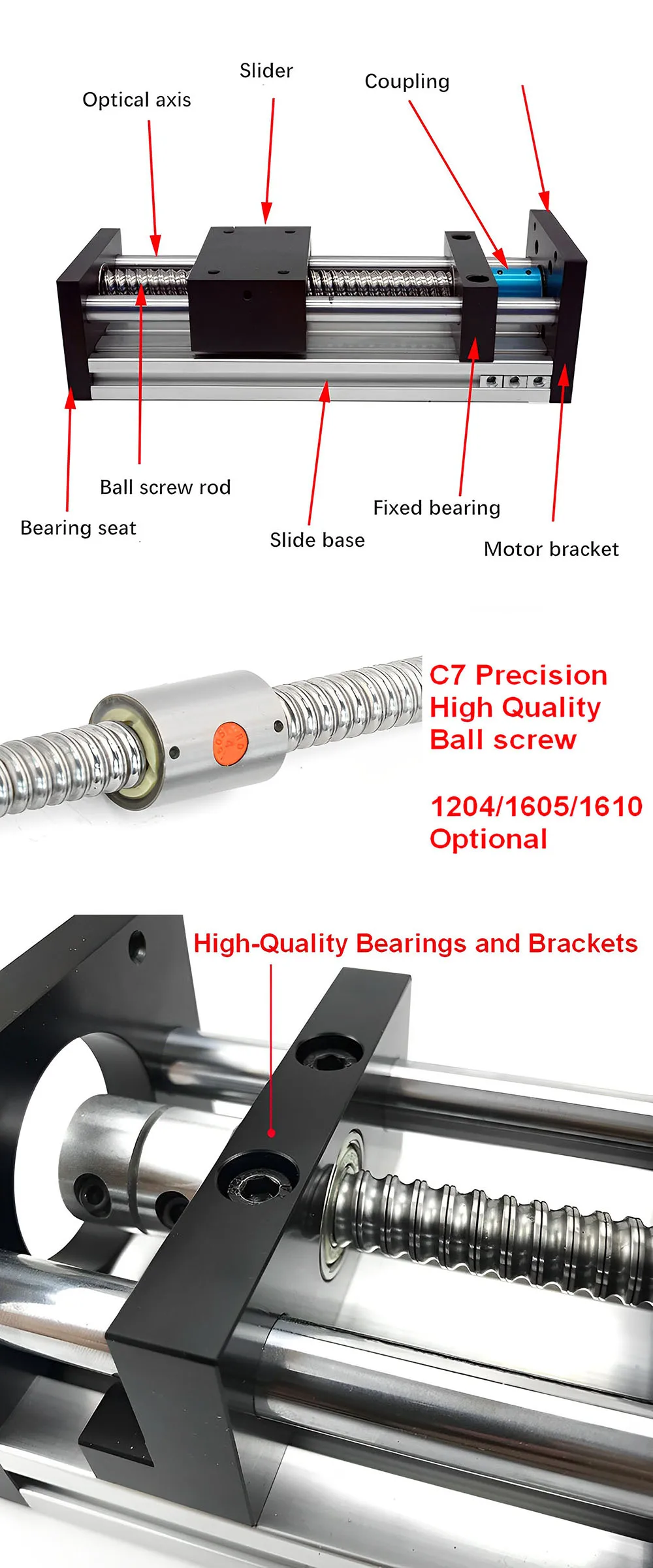

Sliding Table Parameter:

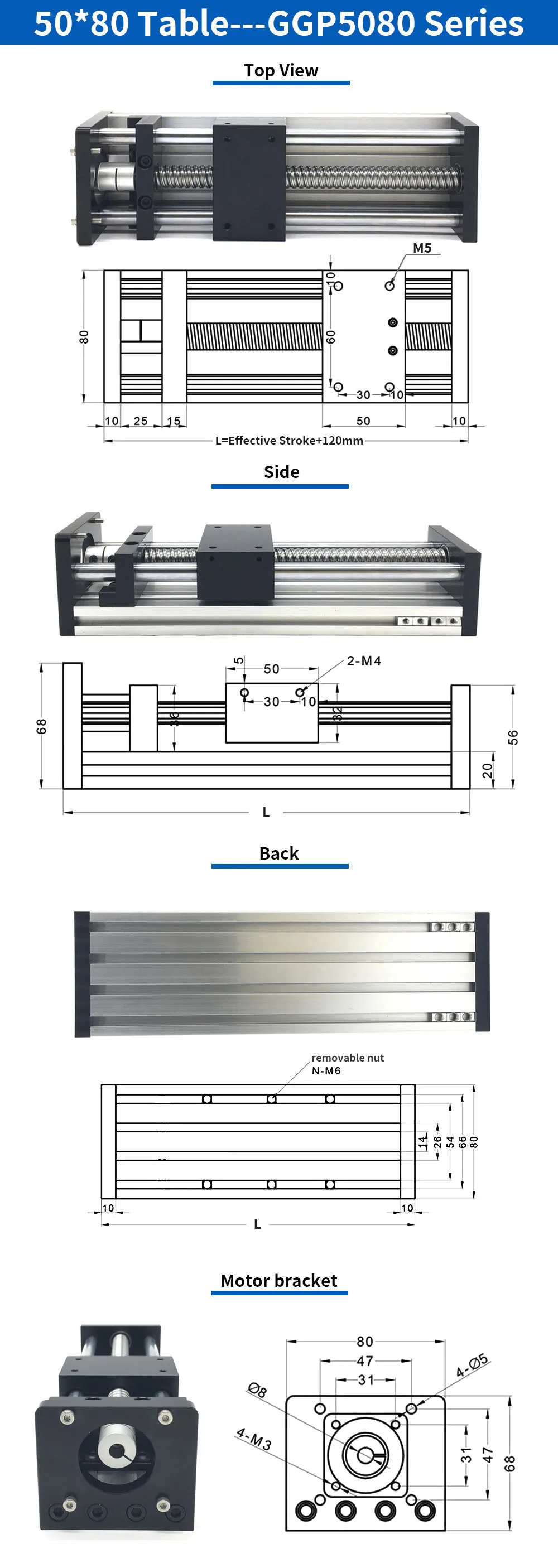

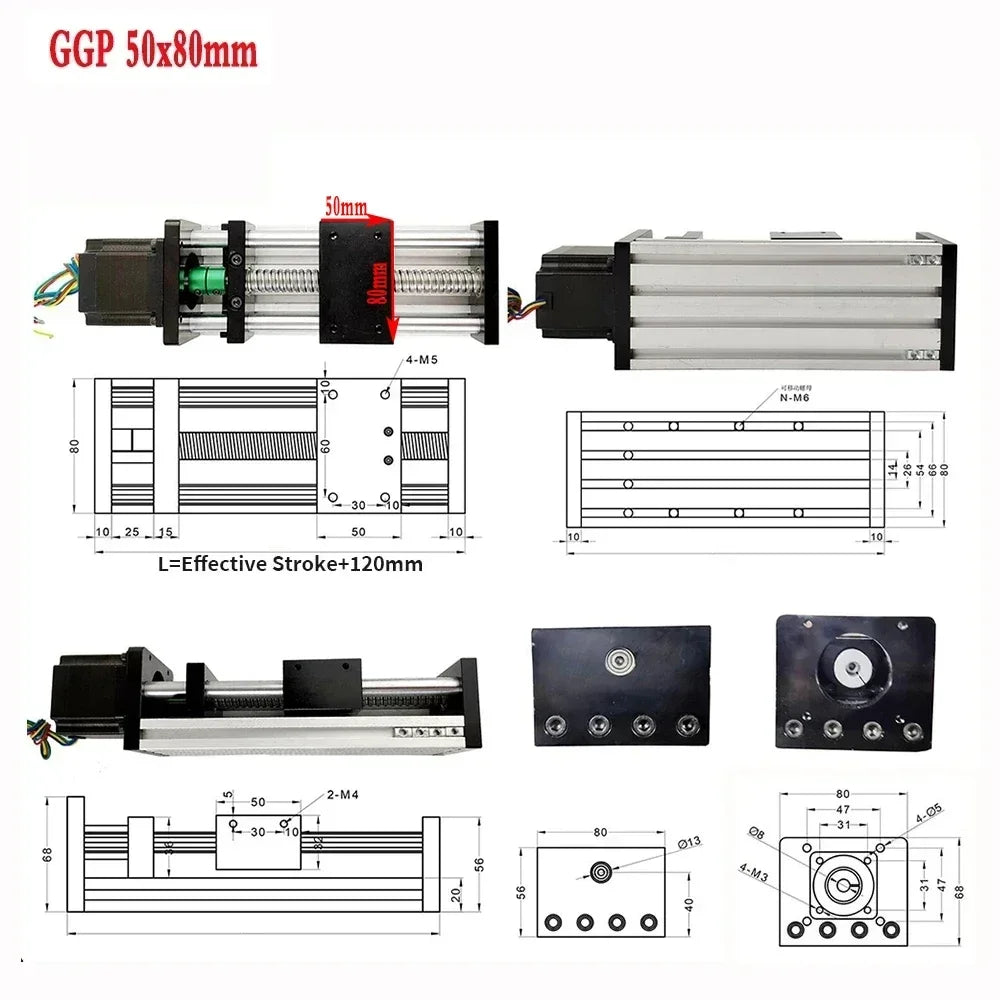

Model: GGP5080 Series
Ballscrew type: SFU1204 (Screw Diameter 12mm, Pitch 4mm,the screw rod rotates once and the panel moves 4mm) / SFU1605 / SFU1610
Ballscrew accuracy: C7 level

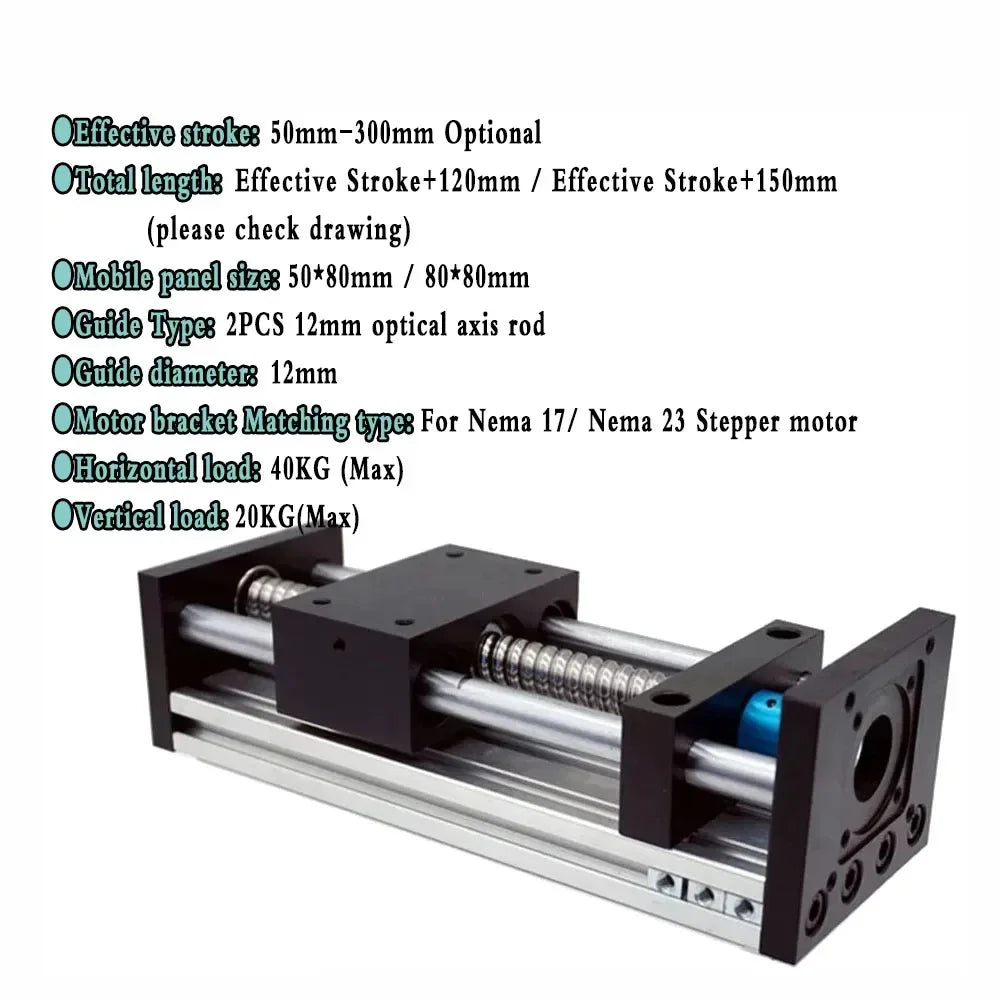

Effective stroke: 50mm-300mm Optional
Total length: Effective Stroke+120mm
Mobile panel size: 50*80mm
Guide Type: 2PCS 12mm optical axis rod
Horizontal load: 40KG (Max)
Vertical load: 20KG(Max)
Maximum speed: 100mm/s
Ballscrew Repeat positioning accuracy: 0.02-0.05mm
Material: Industrial Aluminum Profile

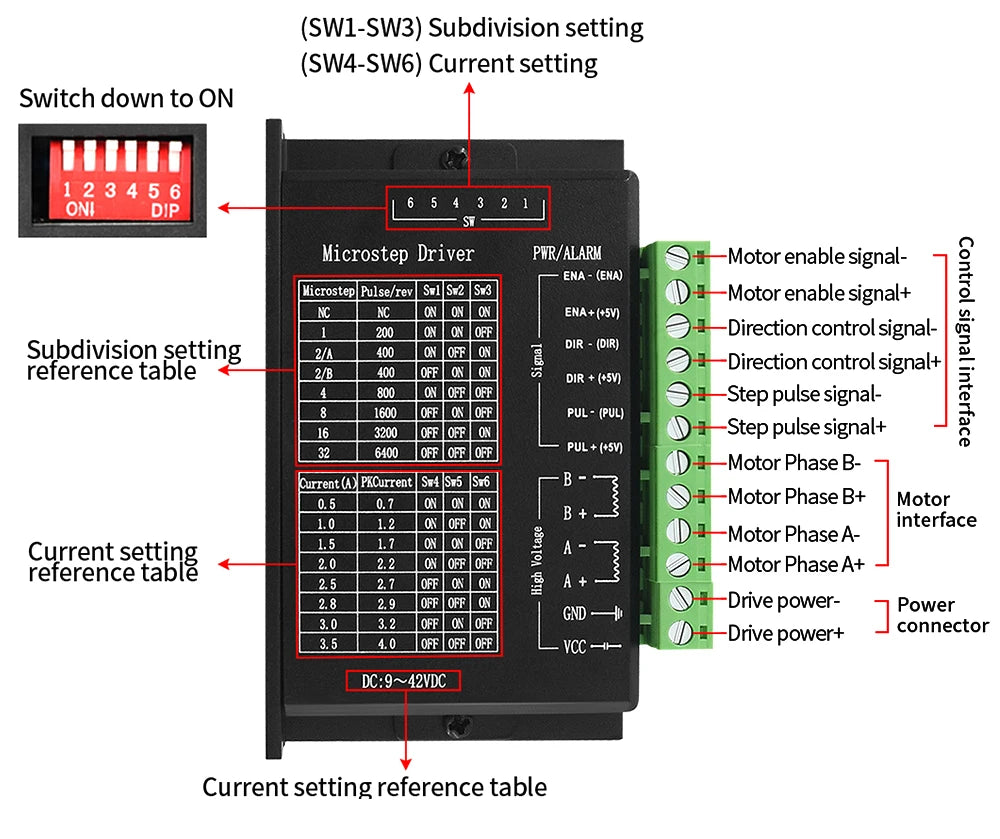

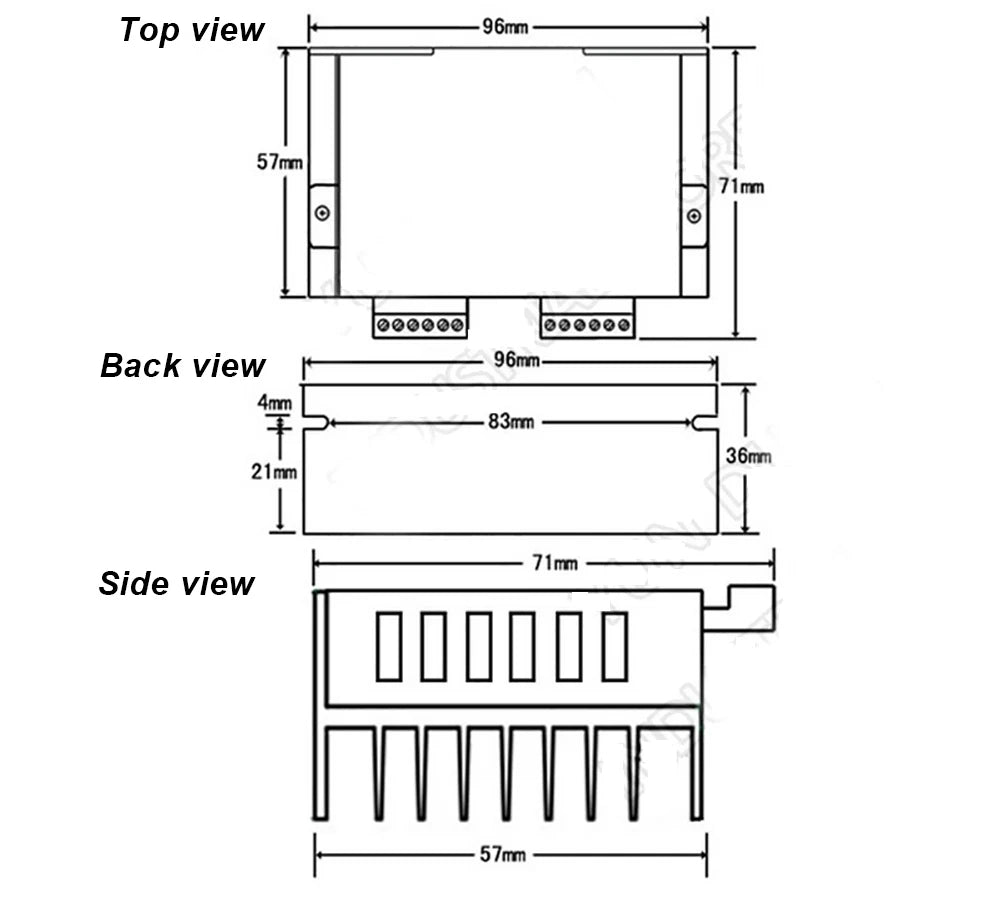

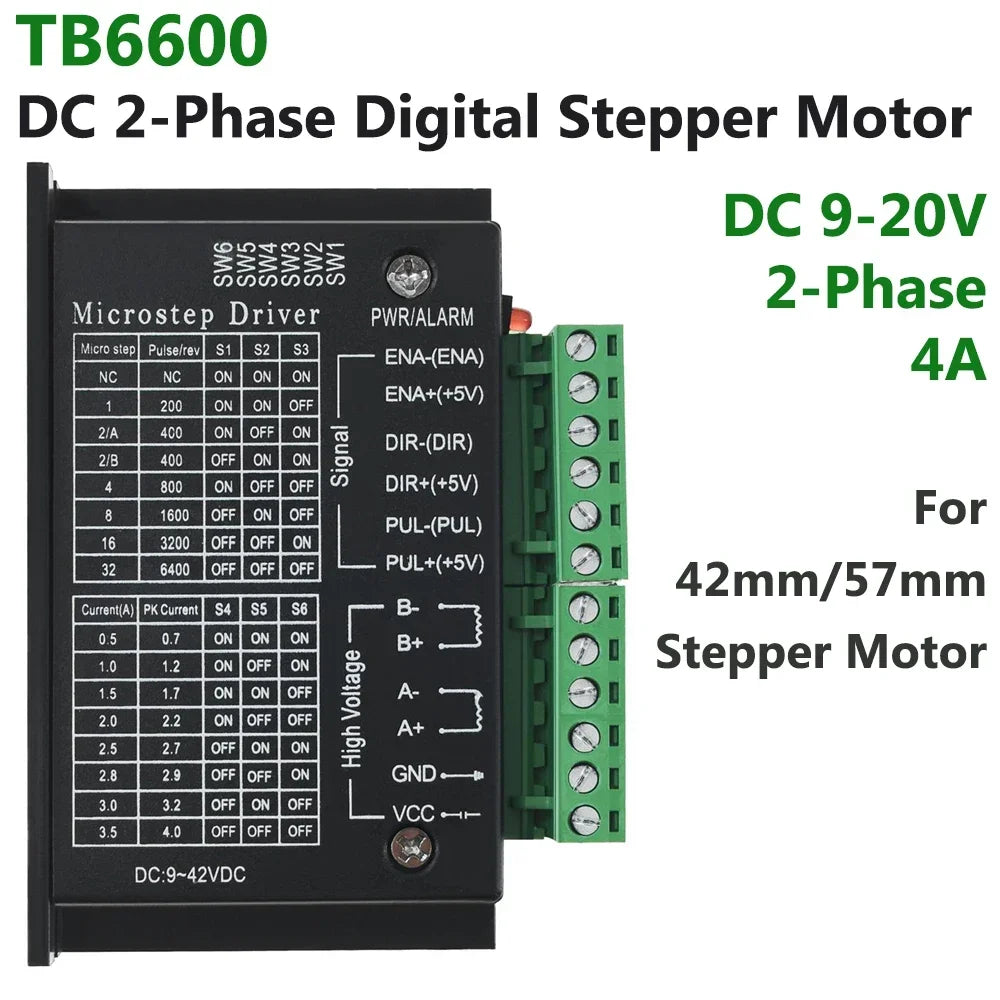

Drive Parameter:
Model: TB6600
Input voltage: DC 9-42V
Input/ Output current: 0.5-3.5A
Maximum power: 150W
Subdivision: 1,2,4,8,16,32

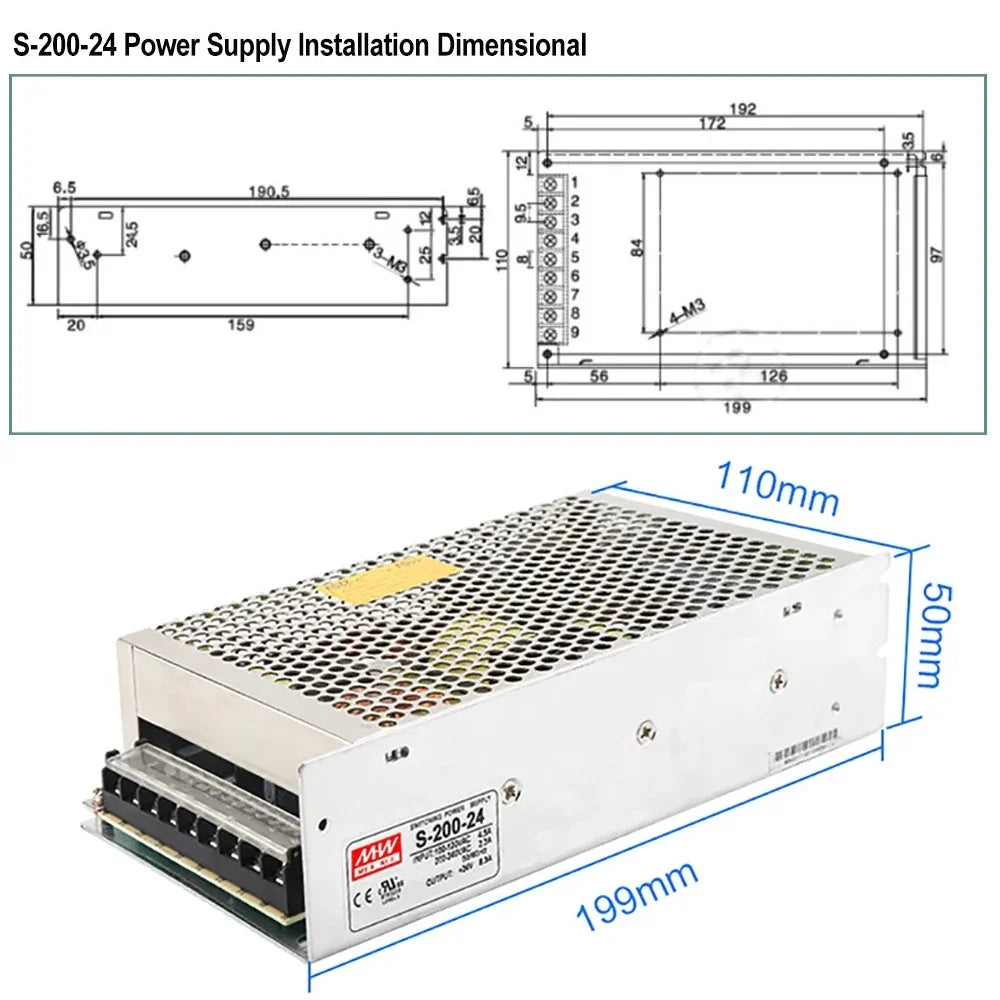

Power Supply Parameter:
Model: S-200-24
Rated Load:200W
Input Voltage:AC100-120V/200-245VAC 50/60Hz
Output Voltage:DC5V/ 24V (Constant Voltage)
Output Current:40A /8.5A
Conversion Efficiency:more than 80%
Working temperature:-30~+50
IP code:IP20
Cooling type:Fan Cooling (Fan Work With a little noise)
Certificate:CE, ROHS
