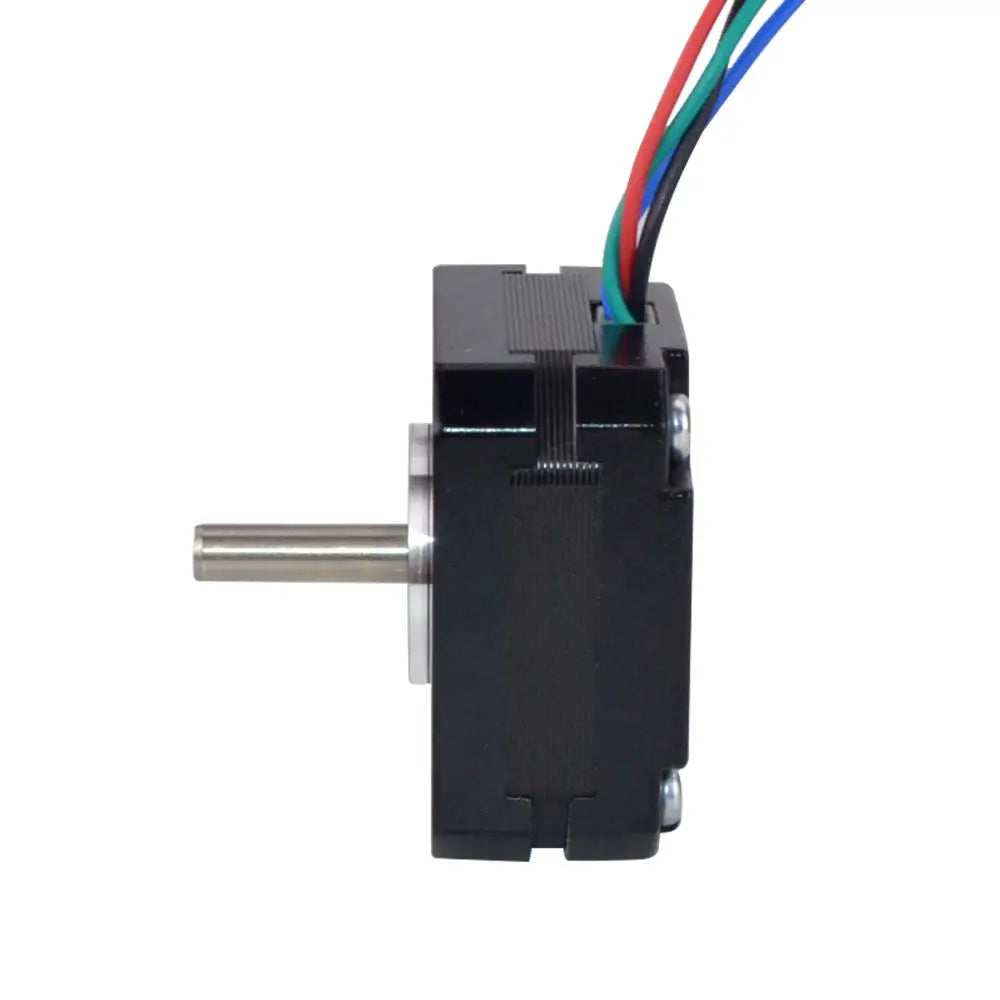

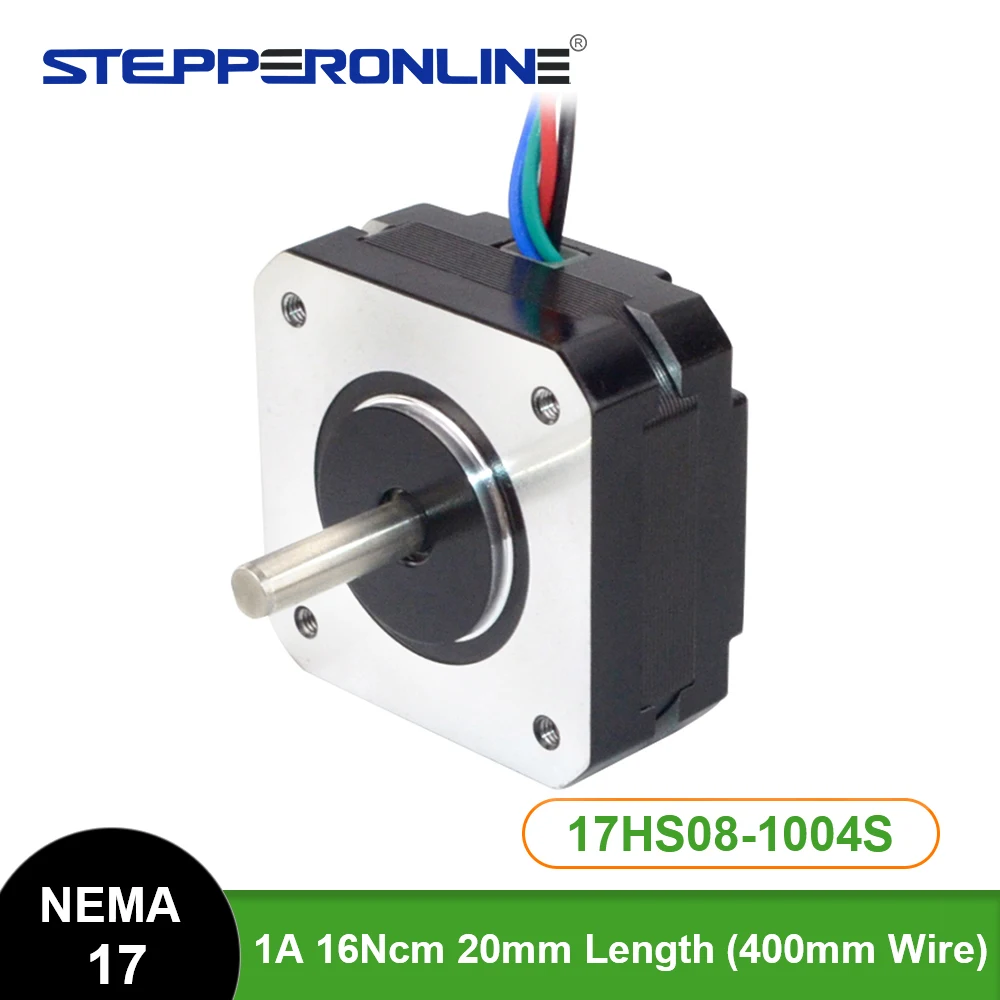

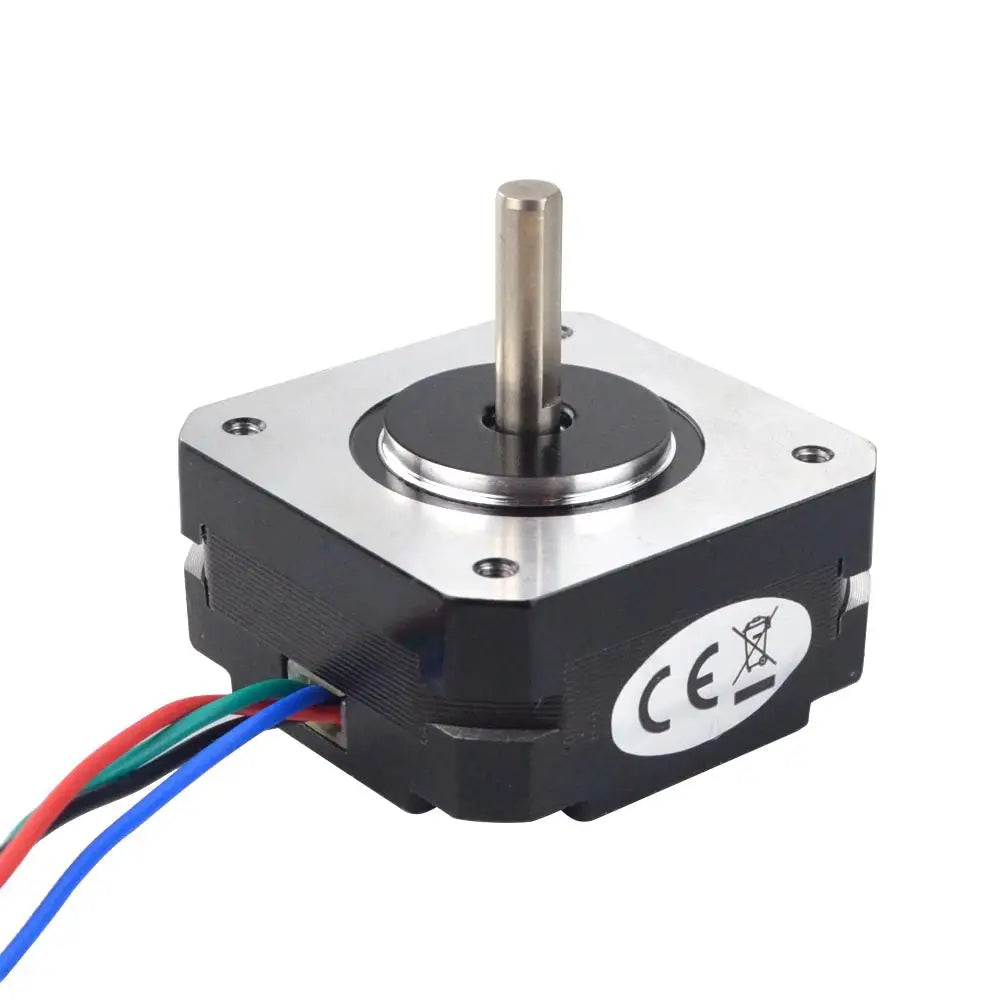

Nema 17 Stepper Motor 17HS08-1004S 20.5mm 1A 16Ncm(22oz.in) 42 Motor Nema17 Stepper 4-lead for DIY 3D Printer CNC XYZ
Regular price
$101.76
$101.76
SPECIFICATIONS
Application: 3D printers, Reprap project, CNC machine
Brand Name: STEPPERONLINE

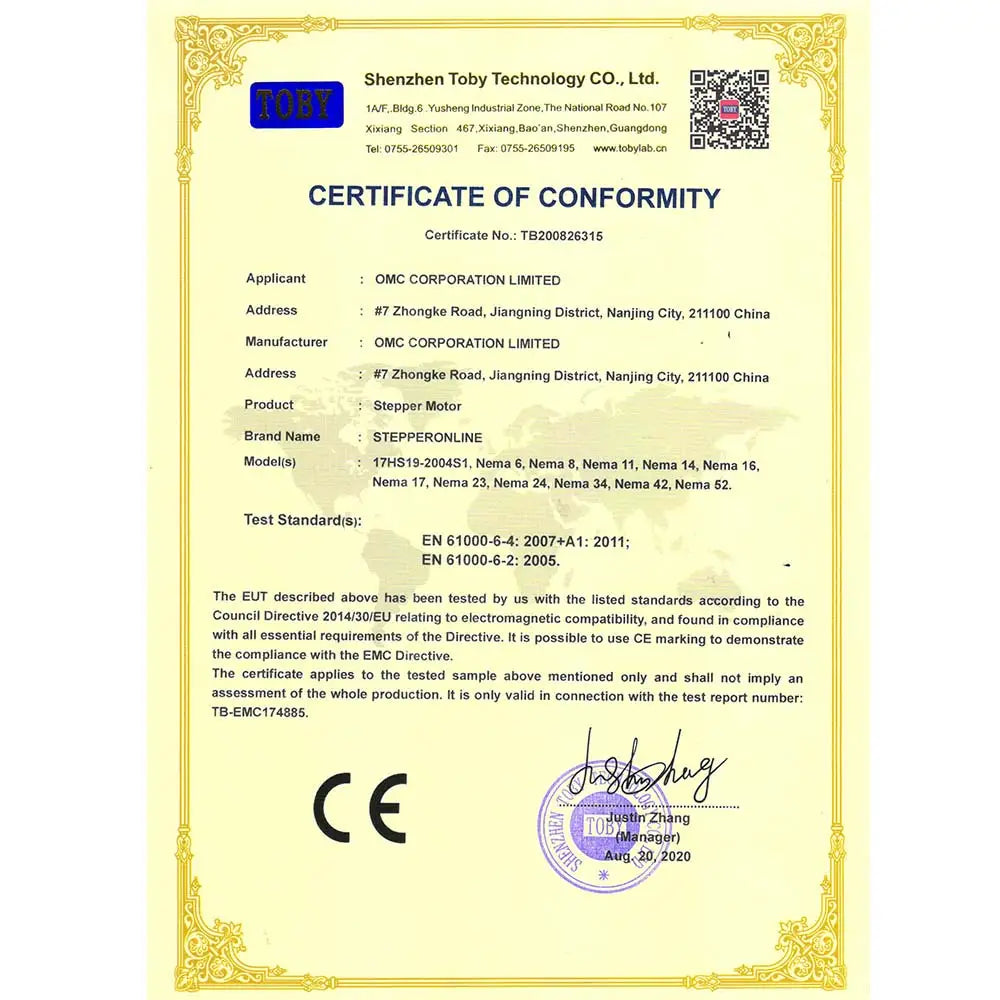

Certification: ce,ROHS
Current / Phase: 1.0A
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: None
Holding Torque: 16Ncm(22oz.in)
Inductance: 4.5mH ± 20%(1KHz)
Lead Length: 400mm
Model Number: 17HS08-1004S
Origin: Mainland China
Phase: 2
Phase Resistance: 3.7ohms
Rotor Inertia: 15g-cm2
Shaft Diameter: 5mm
Shaft Shape: D-cut
Size: 42*42*20.5mm
Step Angle(degrees): 1.8degree
Type: HYBRID
Warranty: 1 Year
is_customized: Yes
NEMA17 STEPPER MOTOR PARAMETERS | ||||||||||
Model |
Step Angle |
Motor Length |
Rated |
Phase |
Phase |
Holding Torque |
Rotor |
Lead wire |
Weight |
Shop now |
(deg) |
(mm) |
(A) |
(Ohm) |
(mH) |
(N.m) |
(g.cm²) |
(No) |
(g) |
||
17HS13-0404S1 |
1.8 |
34 |
0.4 |
30 |
37mH±20% |
0.26 |
38 |
4 |
230 |
Link |
17HS08-1004S |
1.8 |
20.5±1 |
1 |
3.5 |
4.5mH±20% |
0.16 |
15 |
4 |
140 |
Link |
17HS10-0704S |
1.8 |
25 |
0.7 |
4.2 |
5.5mH±20% |
0.13 |
20 |
4 |
180 |
Link |
17HS15-1504S-X1 |
1.8 |
39 |
1.5 |
2.3 |
4.4mH±20% |
0.45 |
54 |
4 |
280 |
Link |
17HS16-2004S1 |
1.8 |
40 |
2 |
1.1 |
2.6mH±20% |
0.45 |
54 |
4 |
310 |
Link |
17HS19-2004S1 |
1.8 |
48 |
2 |
1.4 |
3.0mH±20% |
0.59 |
82 |
4 |
390 |
Link |
17HS24-2104S |
1.8 |
60 |
2.1 |
1.6 |
3.0mH±20% |
0.65 |
82 |
4 |
500 |
Link |
1.Stepper Motor Driver
2.Switching Power Supply
3.Mounting Bracket
Manufacturer Part Number |
17HS08-1004S |
Motor Type |
Bipolar Stepper |
Step Angle |
1.8° |
Holding Torque |
16Ncm(22oz.in) |
Rated Current/phase |
1.0A |
Phase Resistance |
3.5ohms |
Voltage |
3.5V |
Inductance |
4.5mH±20%(1KHz) |

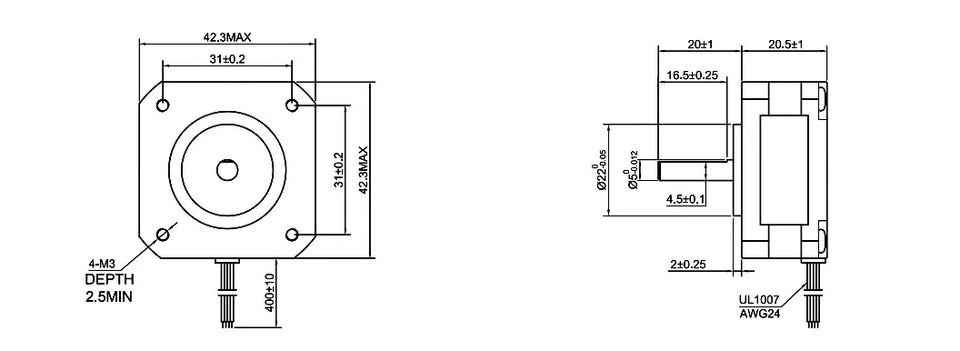

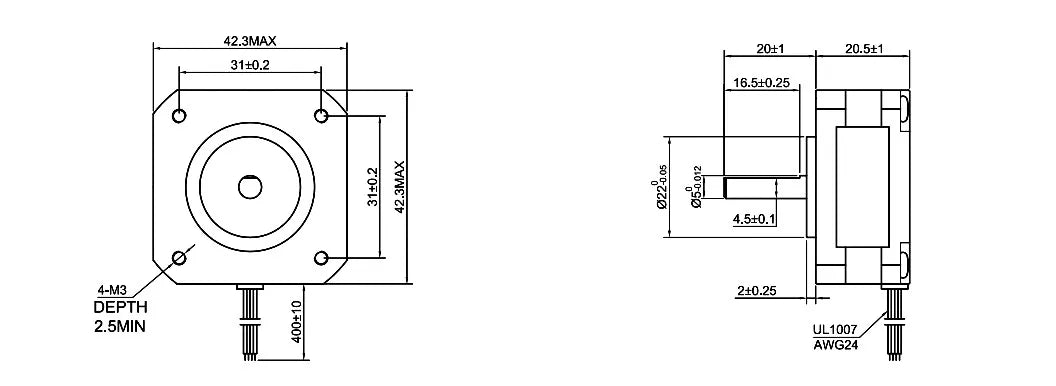

Frame Size: 42 x 42mm
Body Length: 20.5 ± 1mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 16.5mm

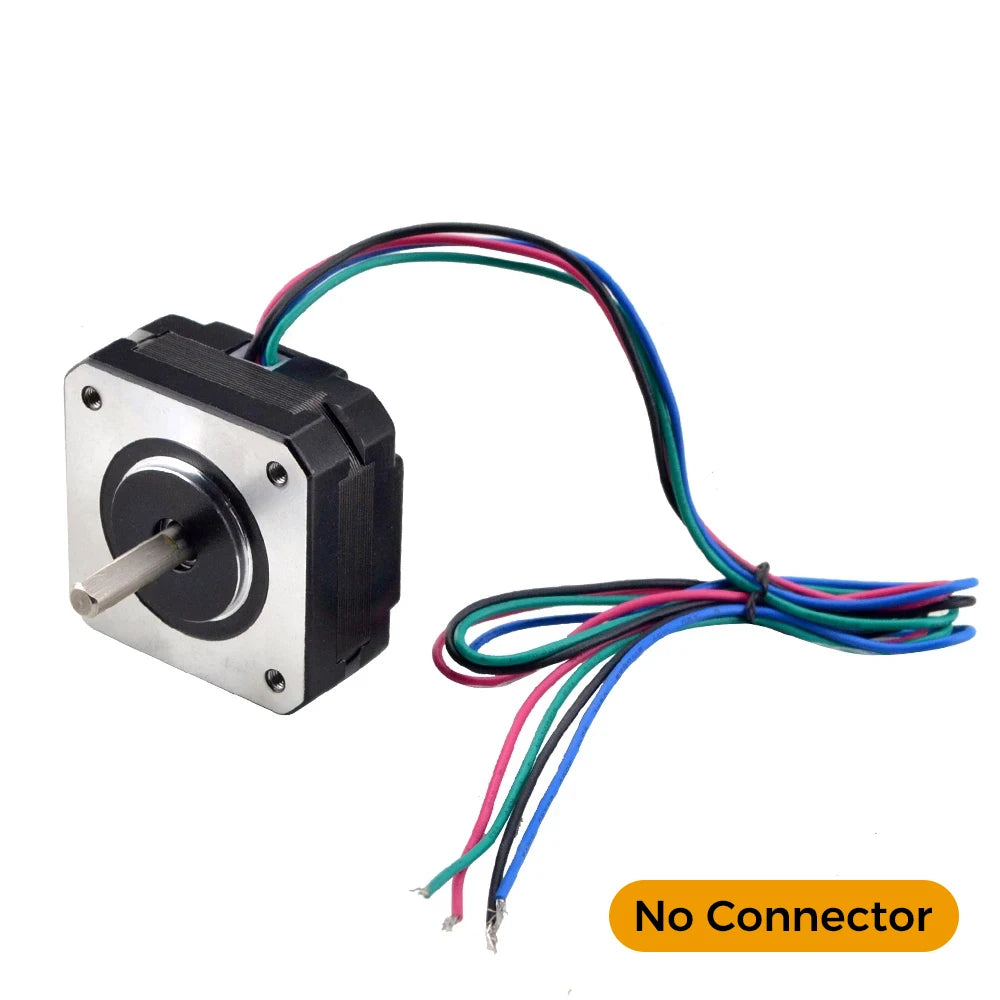

Number of Leads: 4
Lead Length: 400mm
Weight: 140g
