$156.55 $156.55

SPECIFICATIONS

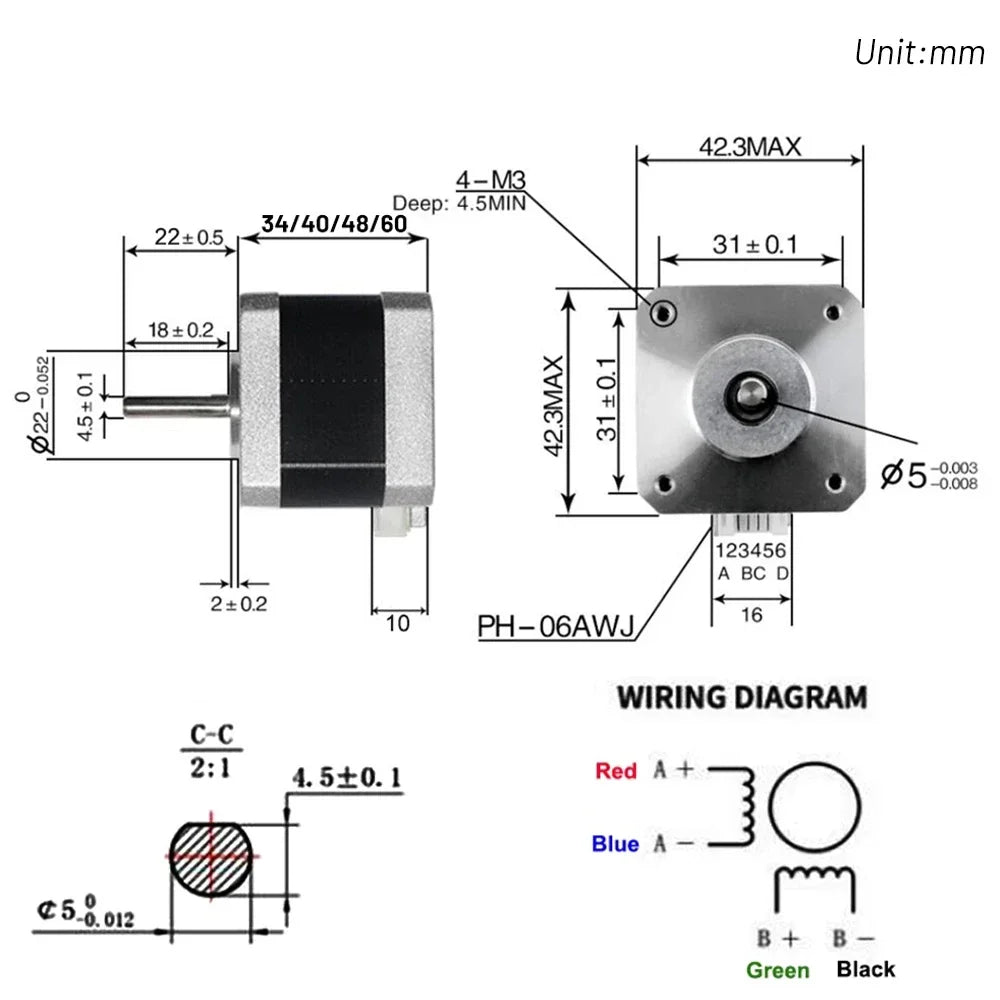

Body Length: 34/40/48/60mm

Brand Name: YUN DUAN

Cable Length: 1m

Certification: ce,ROHS,CE

Current / Phase: 1.23/1.51/1.71A

Flange: 42mm

High-concerned chemical: None

Holding Torque: 0.28/0.42/0.56/7Nm

Lead Wires No: 4-Lead

Model Number: 42HS

Motor Type: Hybrid Stepper Motor

Origin: Mainland China

Output shaft diameter: 5mm

Output shaft type: D type / Milling shaft

Phase: 2

Step Angle(degrees): 1.8 degree

Type: HYBRID

product keyword 1: Nema 17 motor

product keyword 2: 42 motor

product keyword 3: 42 stepper motor

product keyword 4: Nema 17 stepper motor

product keyword 5: 3D Printer motor



Please choose the quantity according to your needs :-)

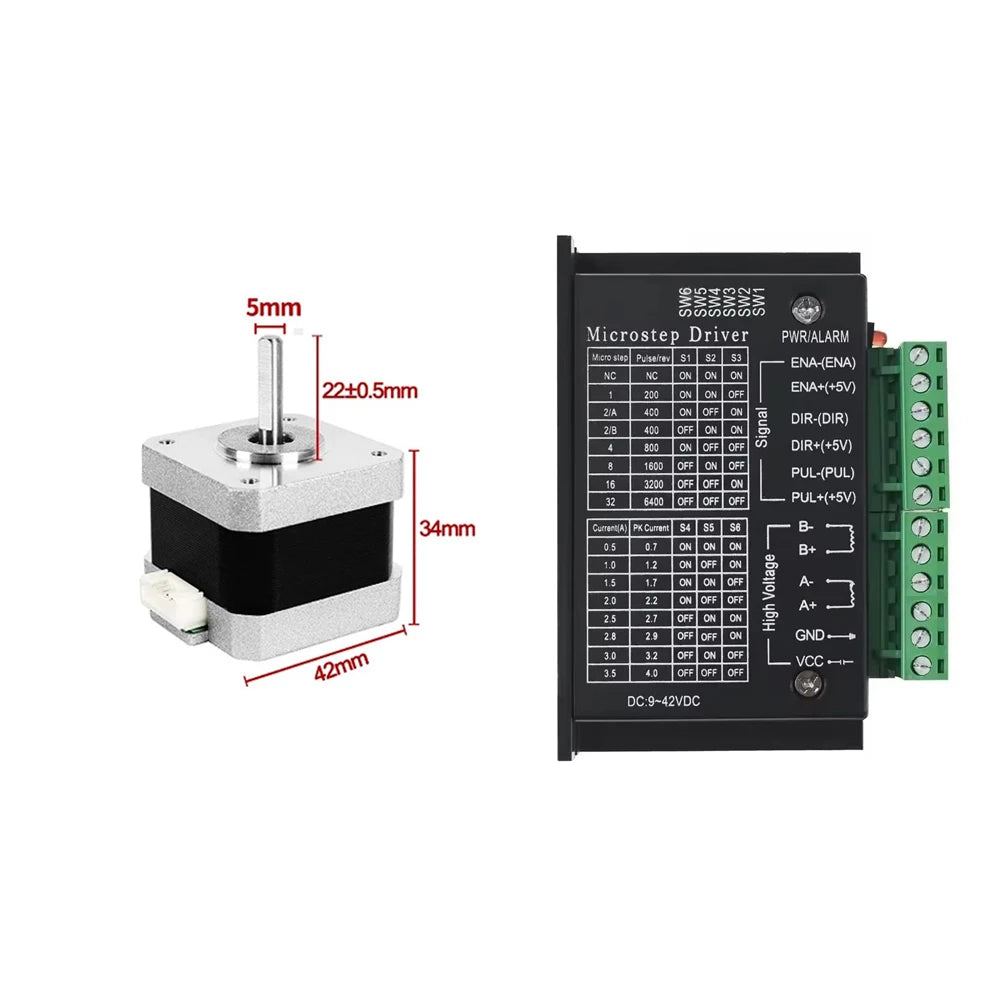

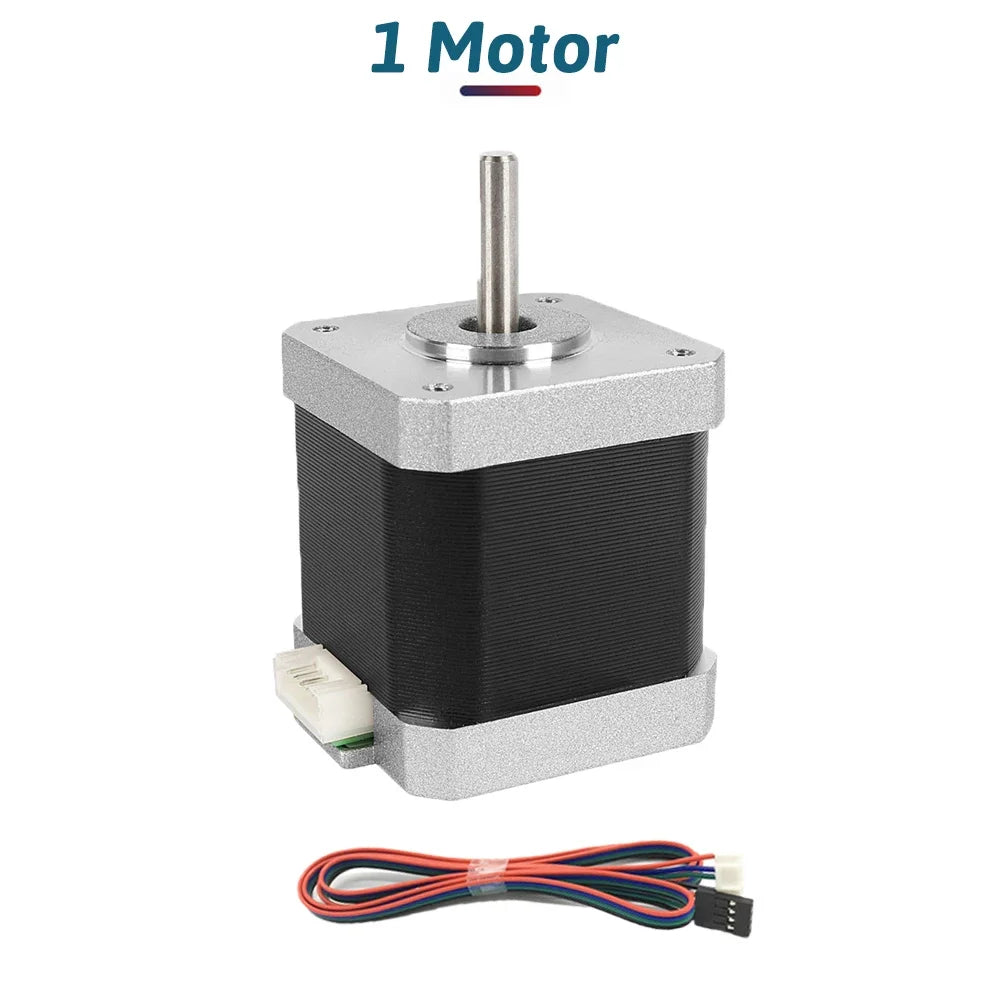

1* 42mm open-loop stepper motor

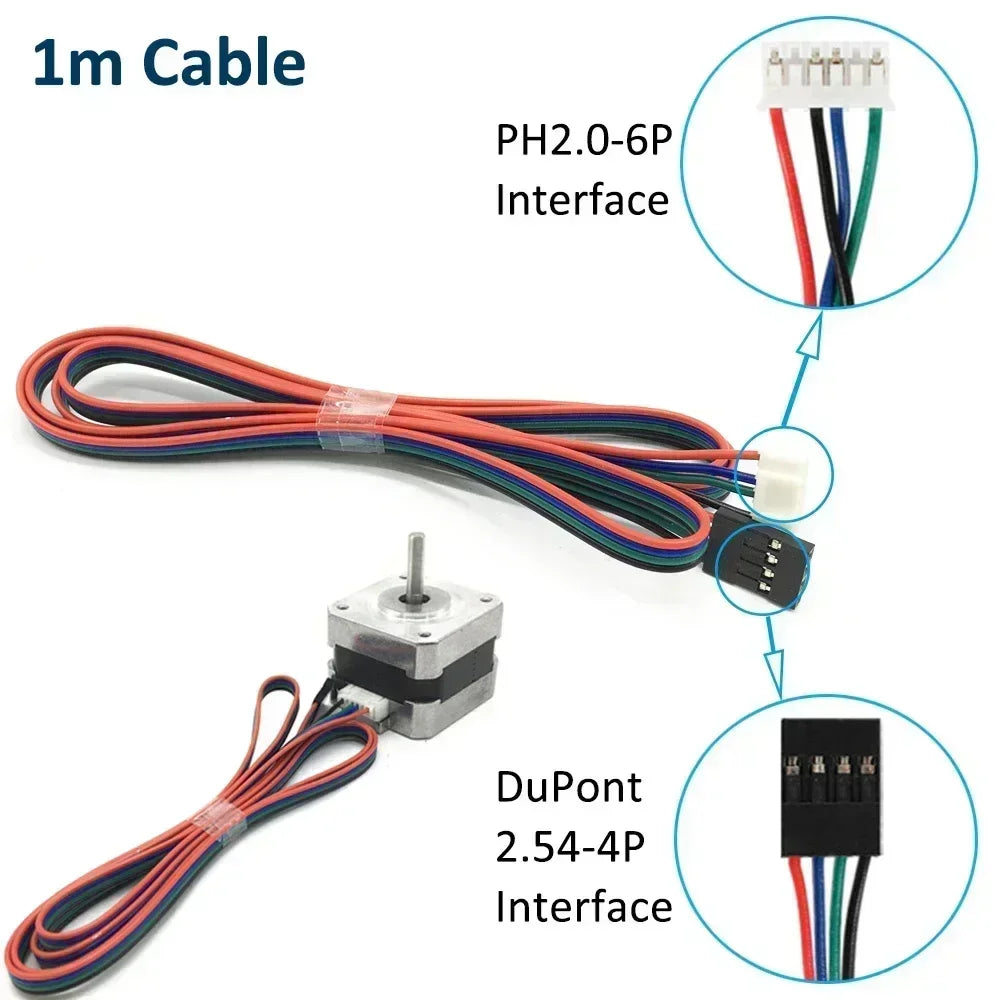

1* 1m cable
or

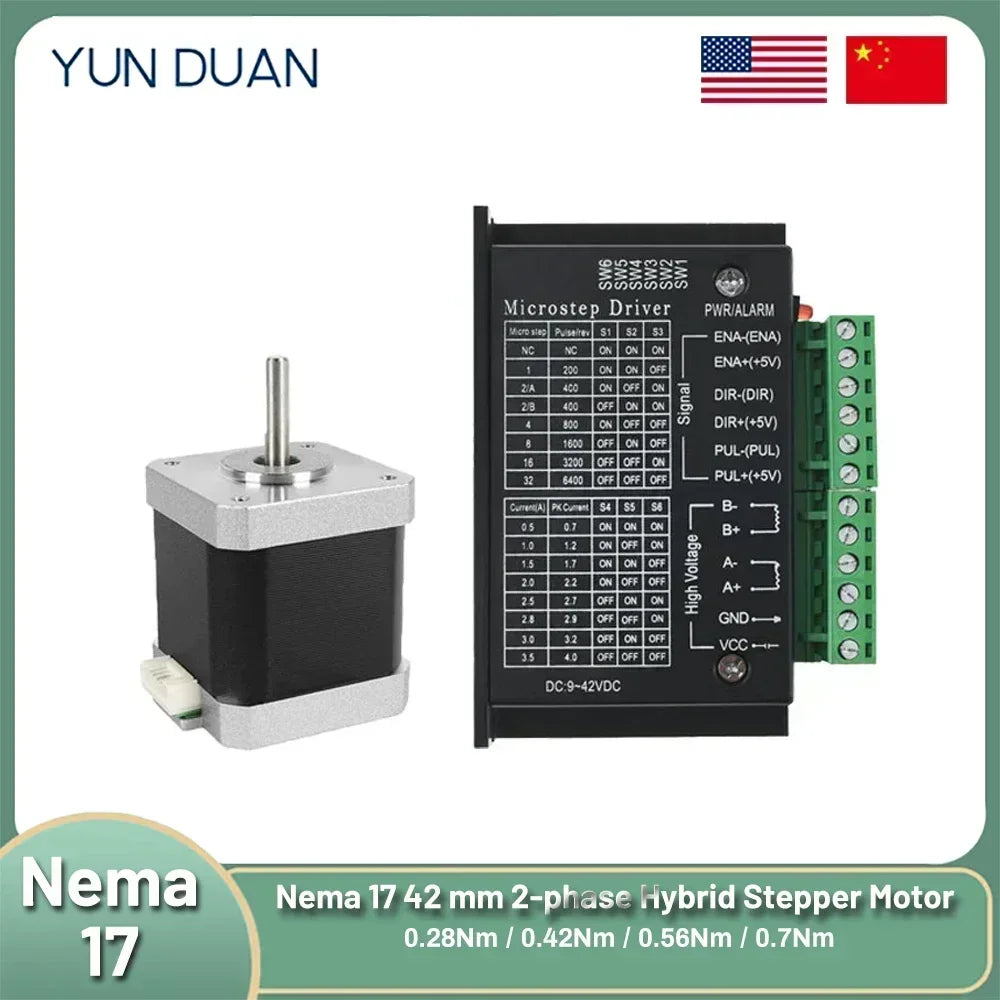

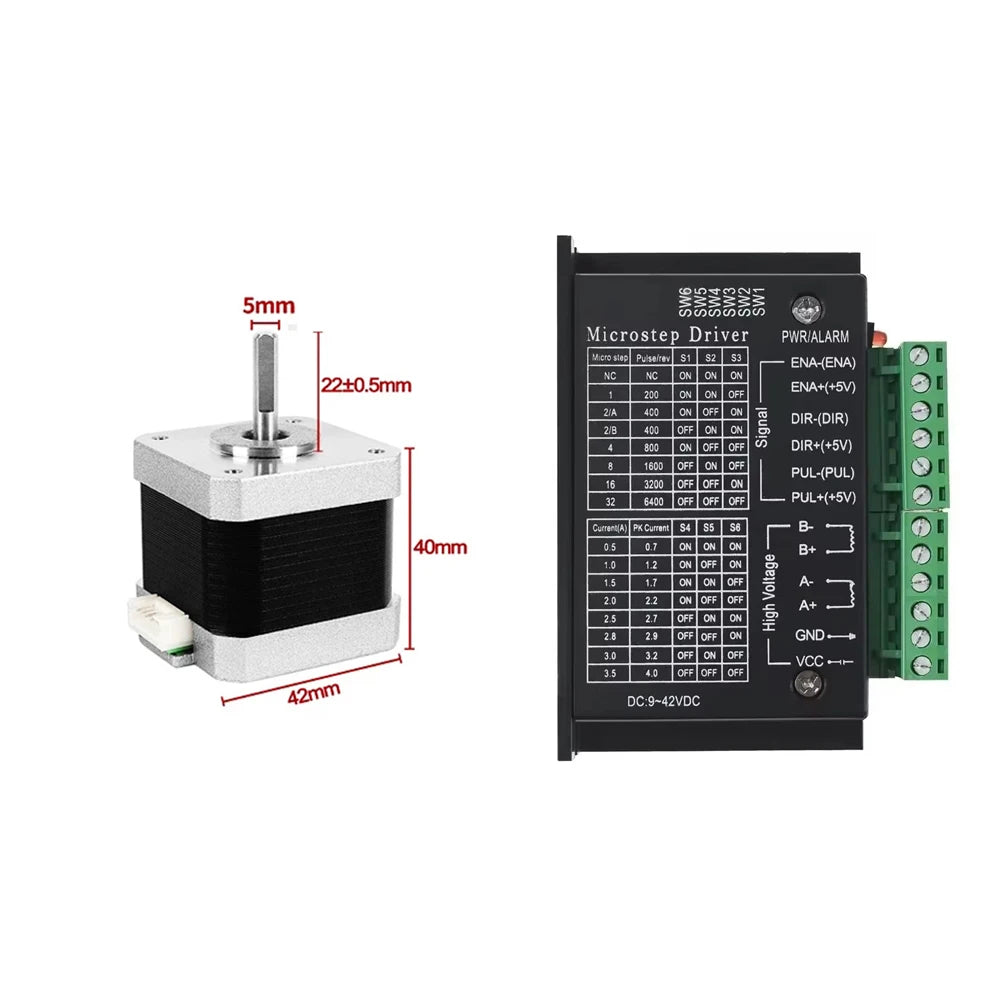

1* 42mm open-loop stepper motor
1* 1m cable
1* TB6600 Driver

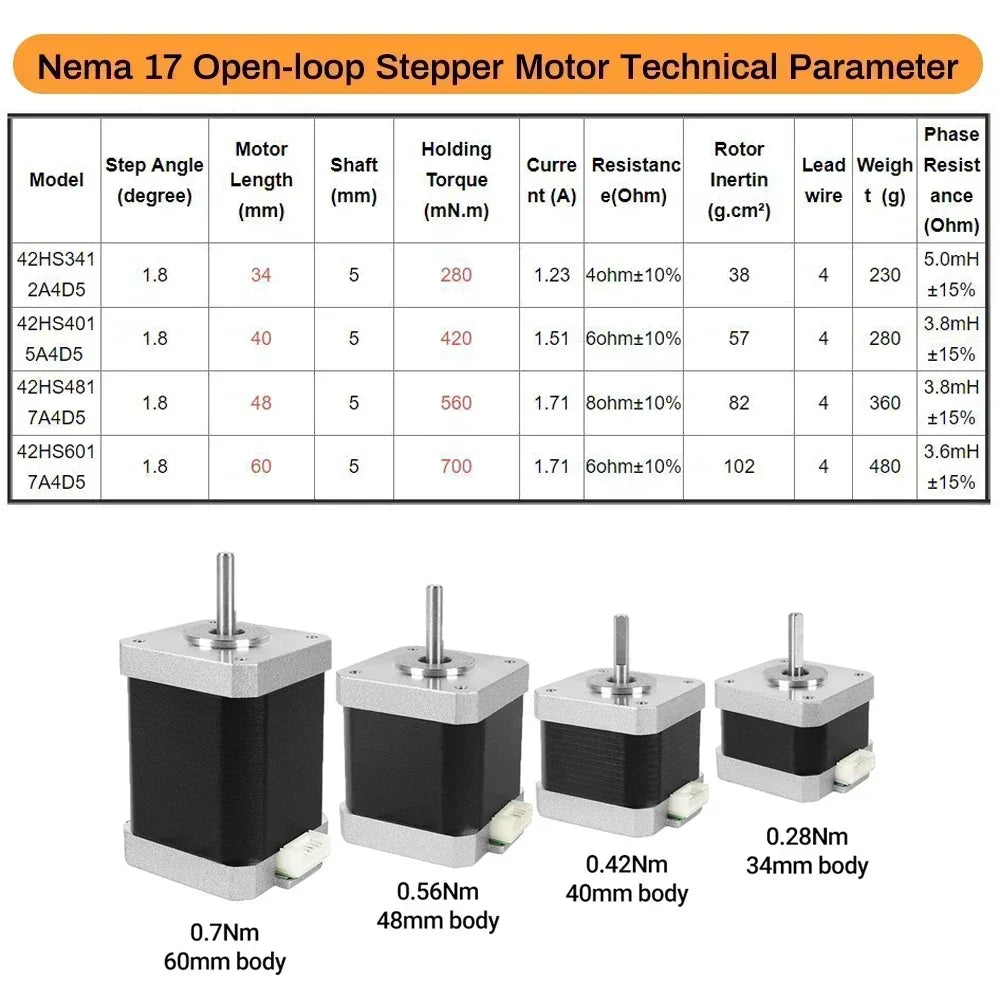

Nema 17 Open-loop Stepper Motor Technical Parameter:

Model

Step Angle (°)

Motor Length (mm)

 Shaft (mm)

Holding Torque
(mN.m)

Current
(A)

 Resistance
(Ohm)

Rotor Inertin (g.cm²)

Lead wire

Weight  (g)

Phase
Resistance
(Ohm)

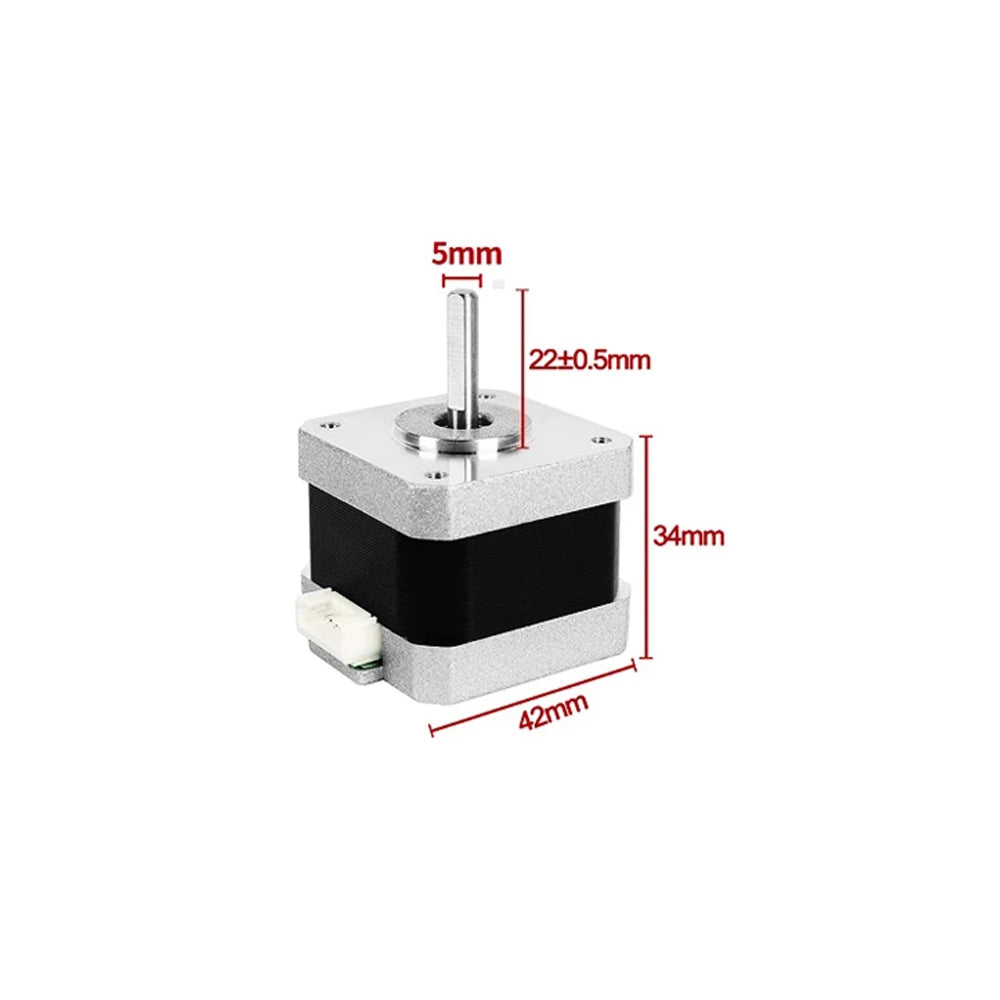

42HS3412A4D5

1.8

34

 5

280

1.23

4ohm±10%

38

4

230

5.0mH±15%

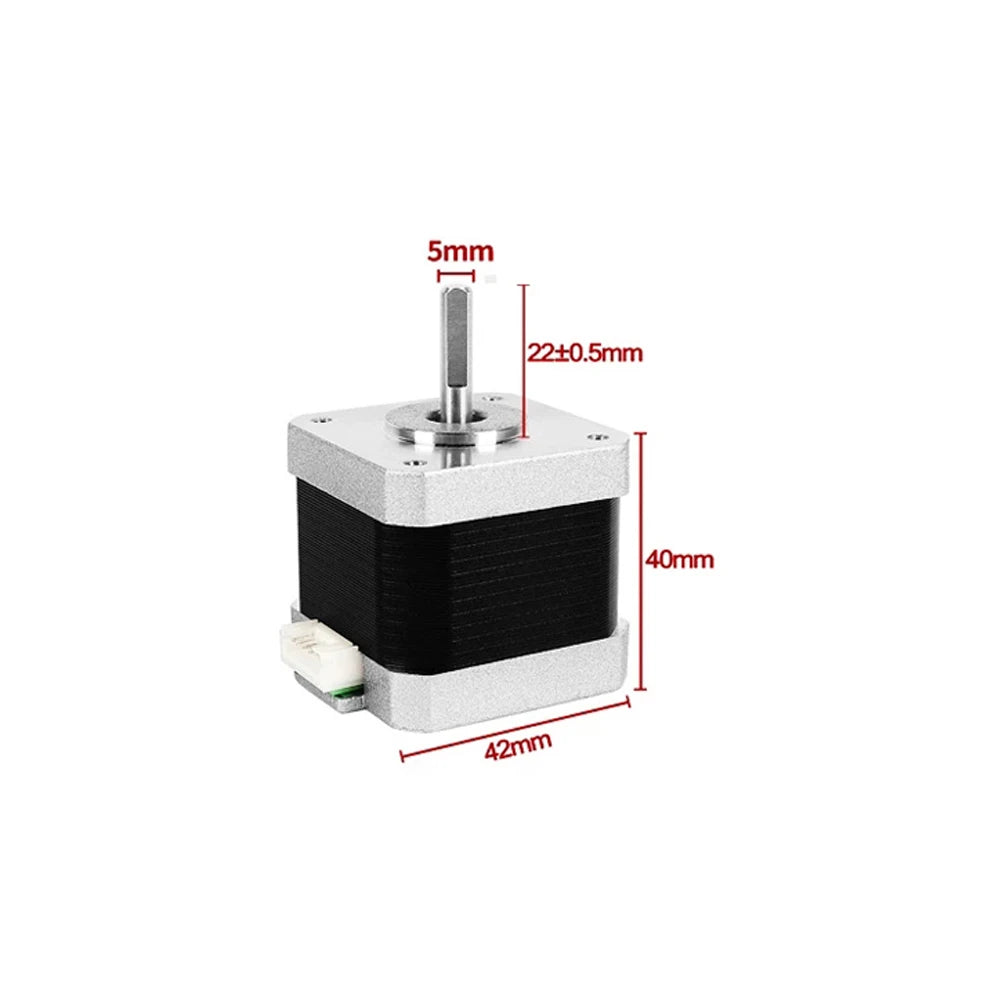

42HS4015A4D5

1.8

40

 5

420

1.51

6ohm±10%

57

4

280

3.8mH±15%

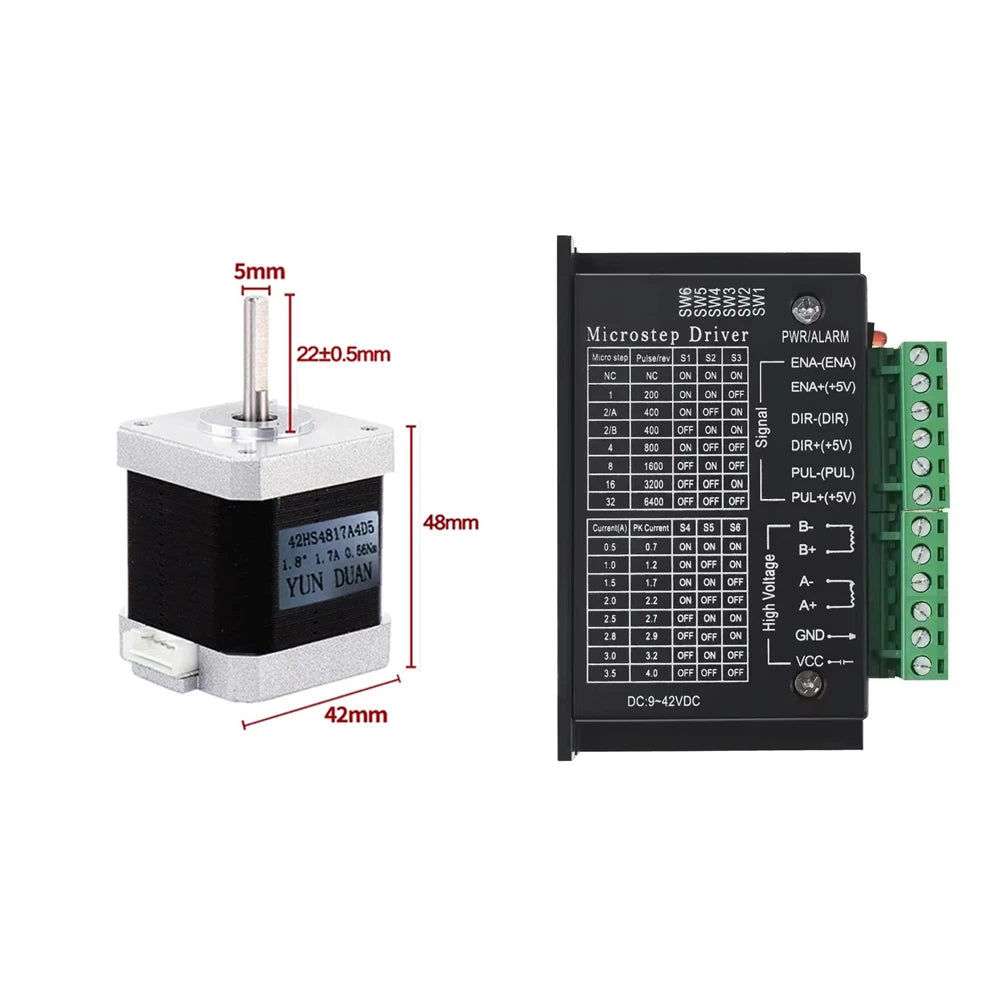

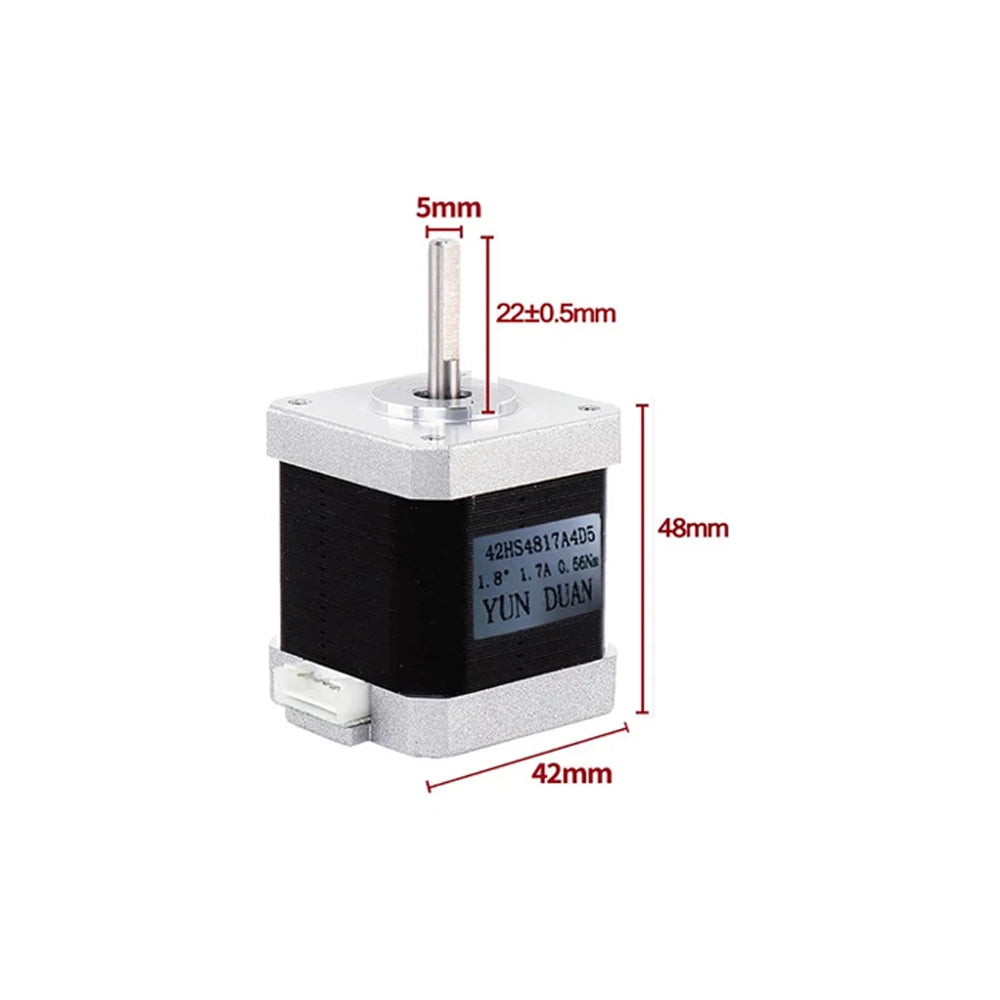

42HS4817A4D5

1.8

48

 5

560

1.71

8ohm±10%

82

4

360

3.8mH±15%

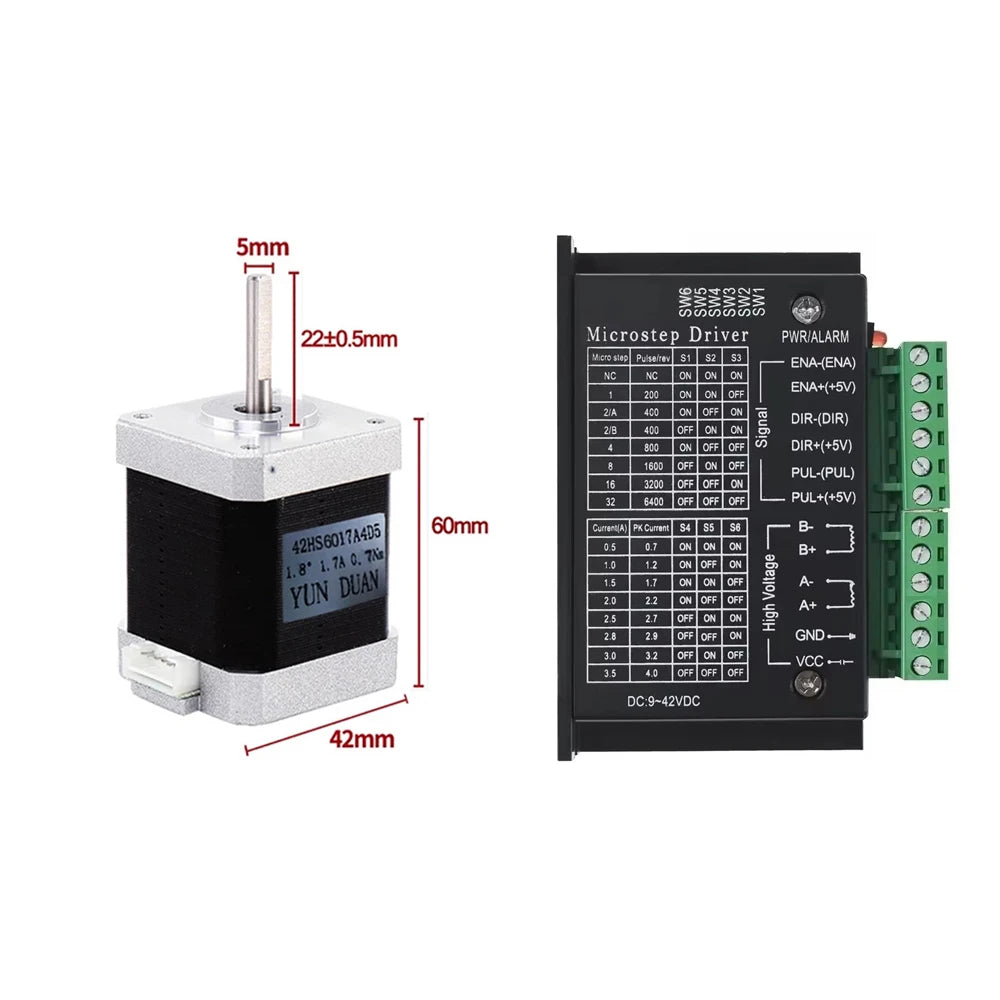

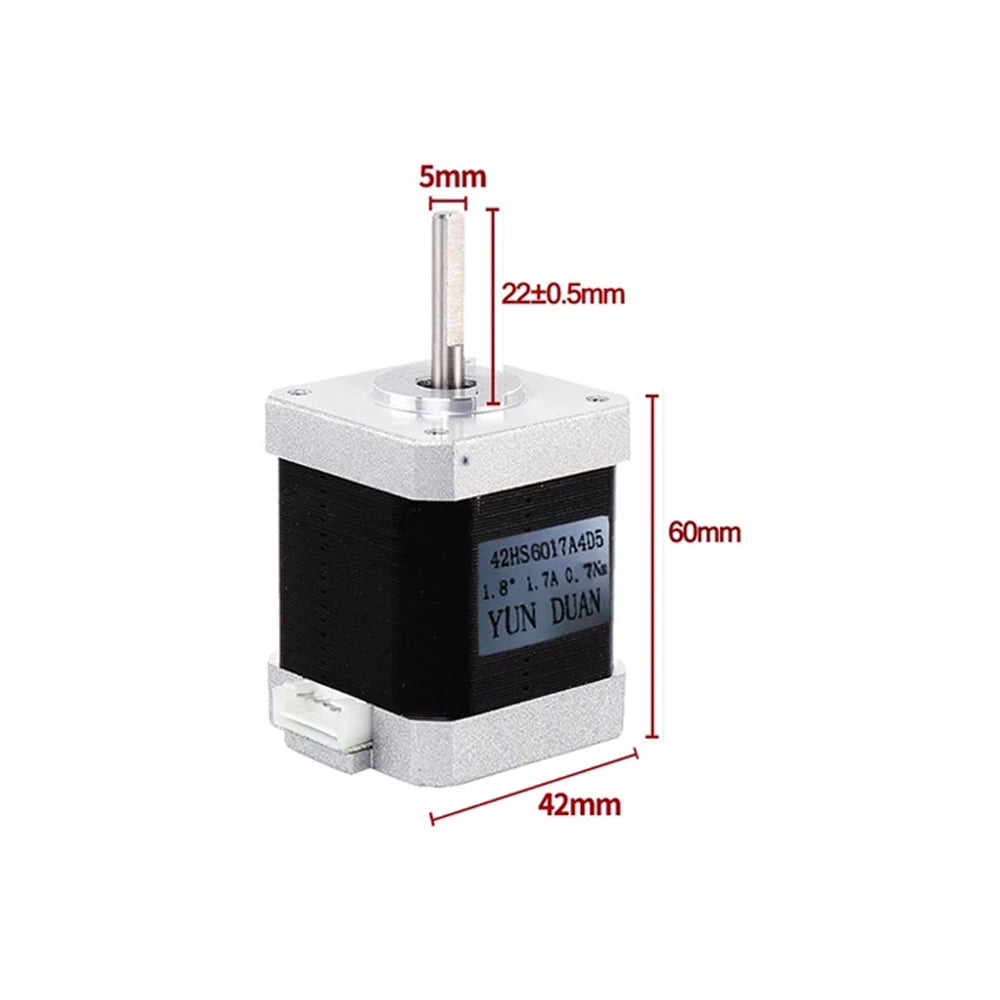

42HS6017A4D5

1.8

60

 5

700

1.71

6ohm±10%

102

4

480

3.6mH±15%

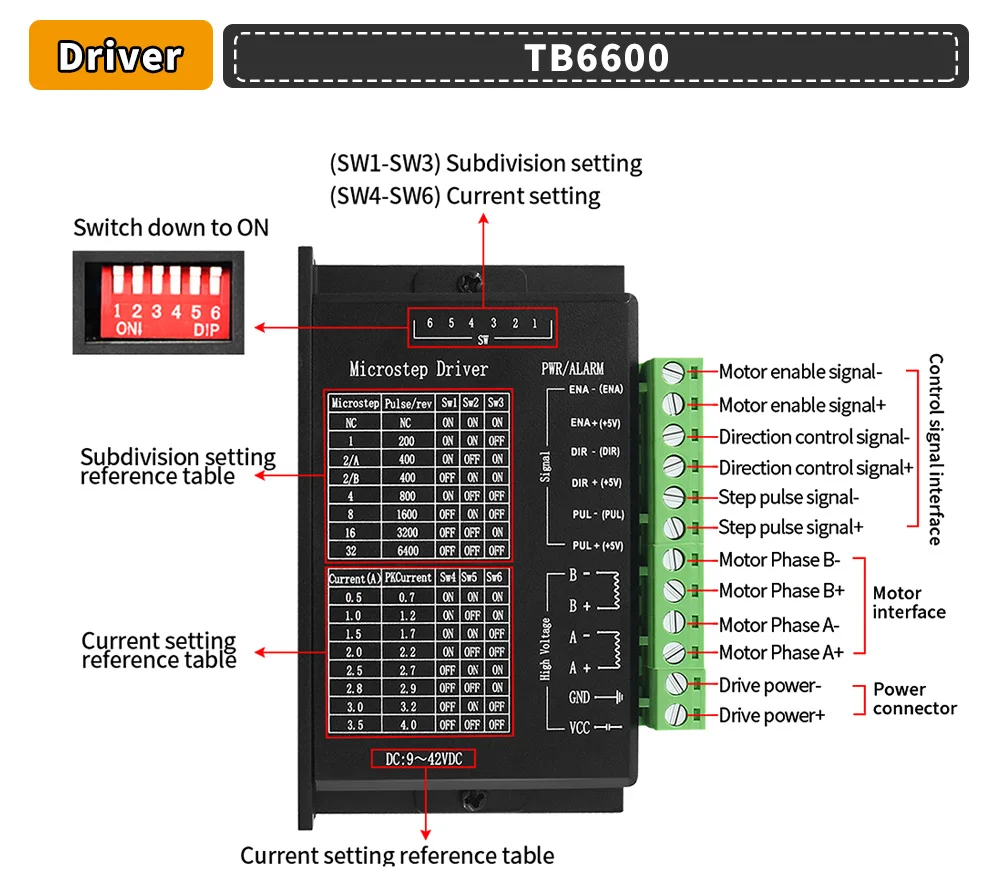

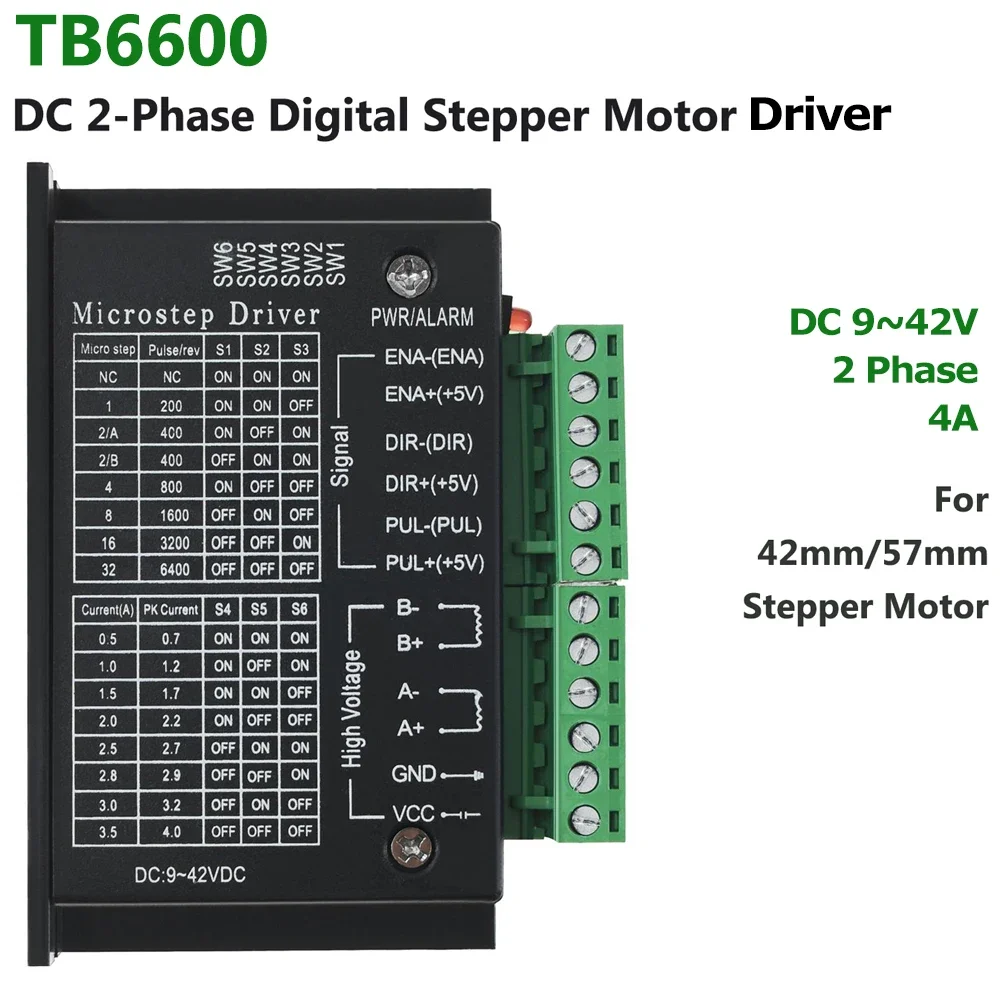

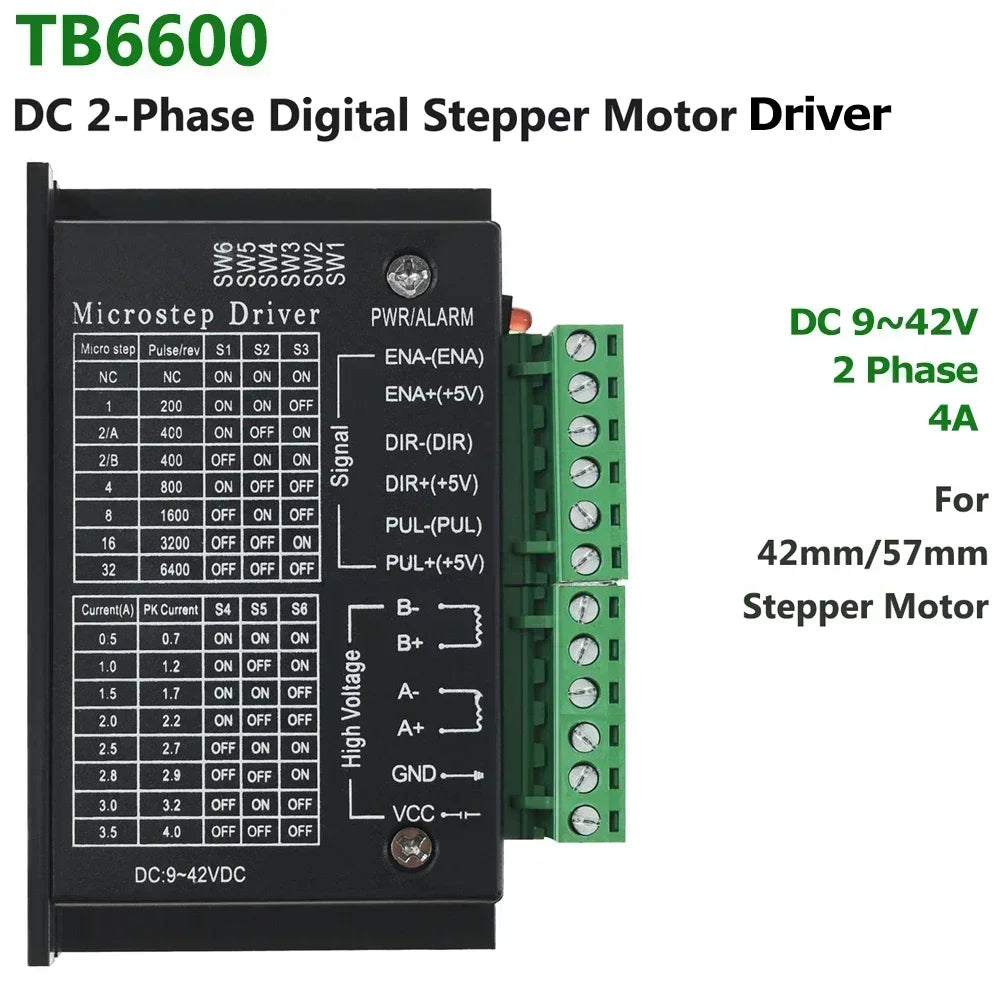

Driver Parameter:
Model: TB6600
Input voltage: DC 9-42V
Output current: 0.5-3.5A
Maximum power: 150W
Subdivision: 1,2,4,8,16,32
