$345.26 $345.26

SPECIFICATIONS

Brand Name: NONE

Cable length: 3m

Certification: ce,CE

High-concerned chemical: None

Holding Torque: 1.2/2/3N.m

Model Number: 57HB250-80B+HB808C

Motor Holding Torque: 1.2Nm-3Nm

Nema23 Motor Current: 3A

Origin: Mainland China

Phase: 2

Step Angle: 1.8 degrees

Step Angle(degrees): 1.8

Type: HYBRID

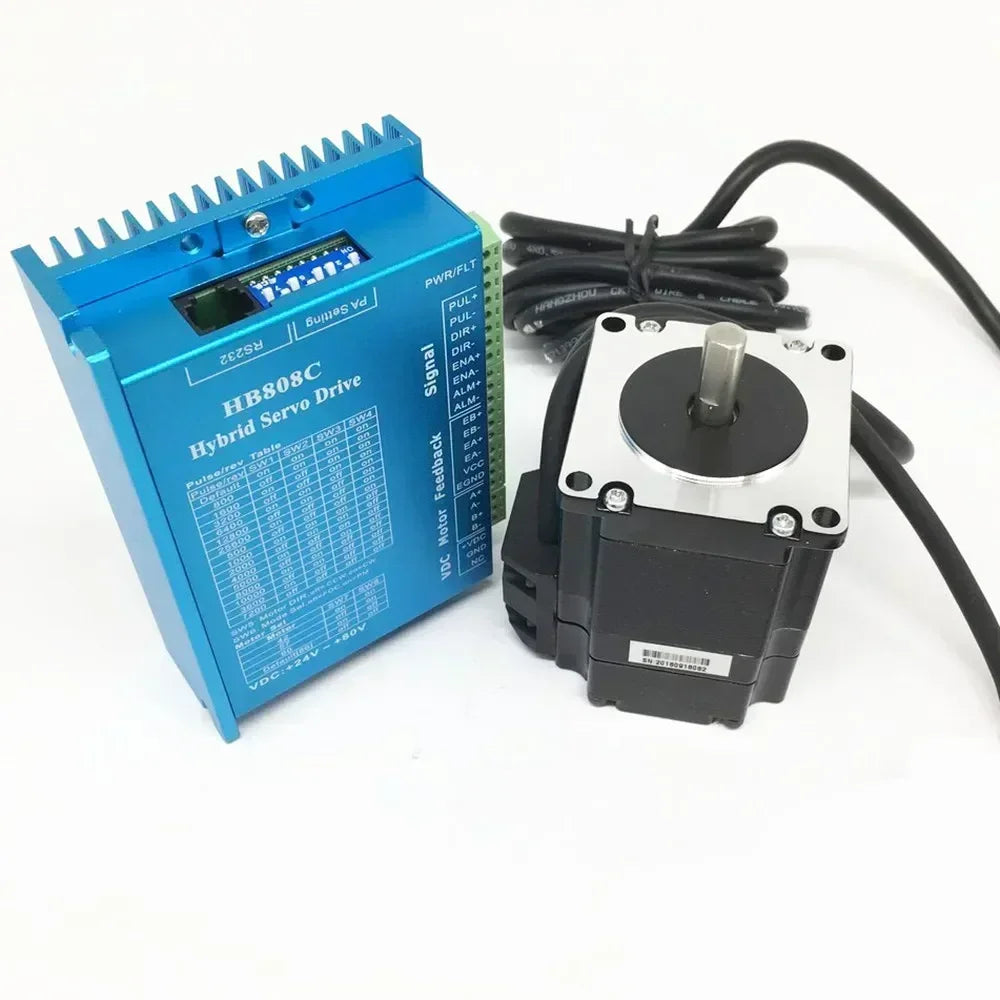

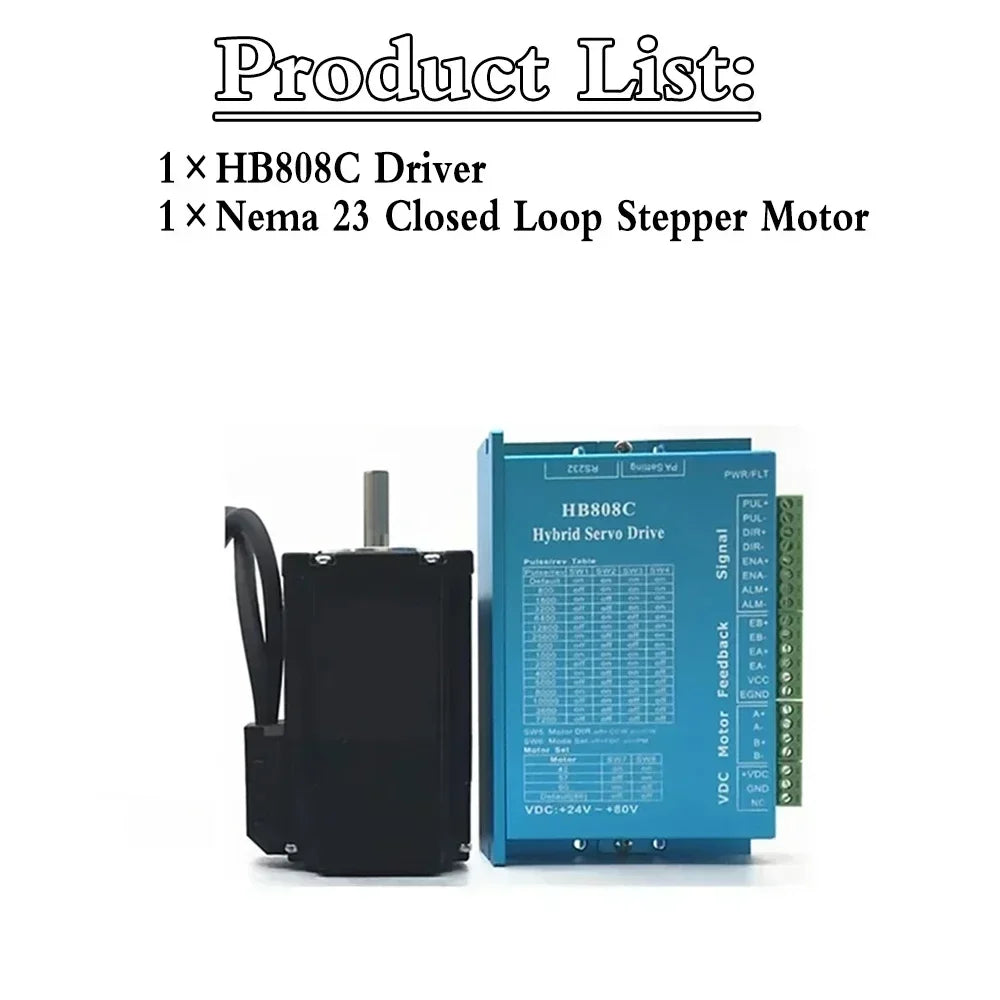

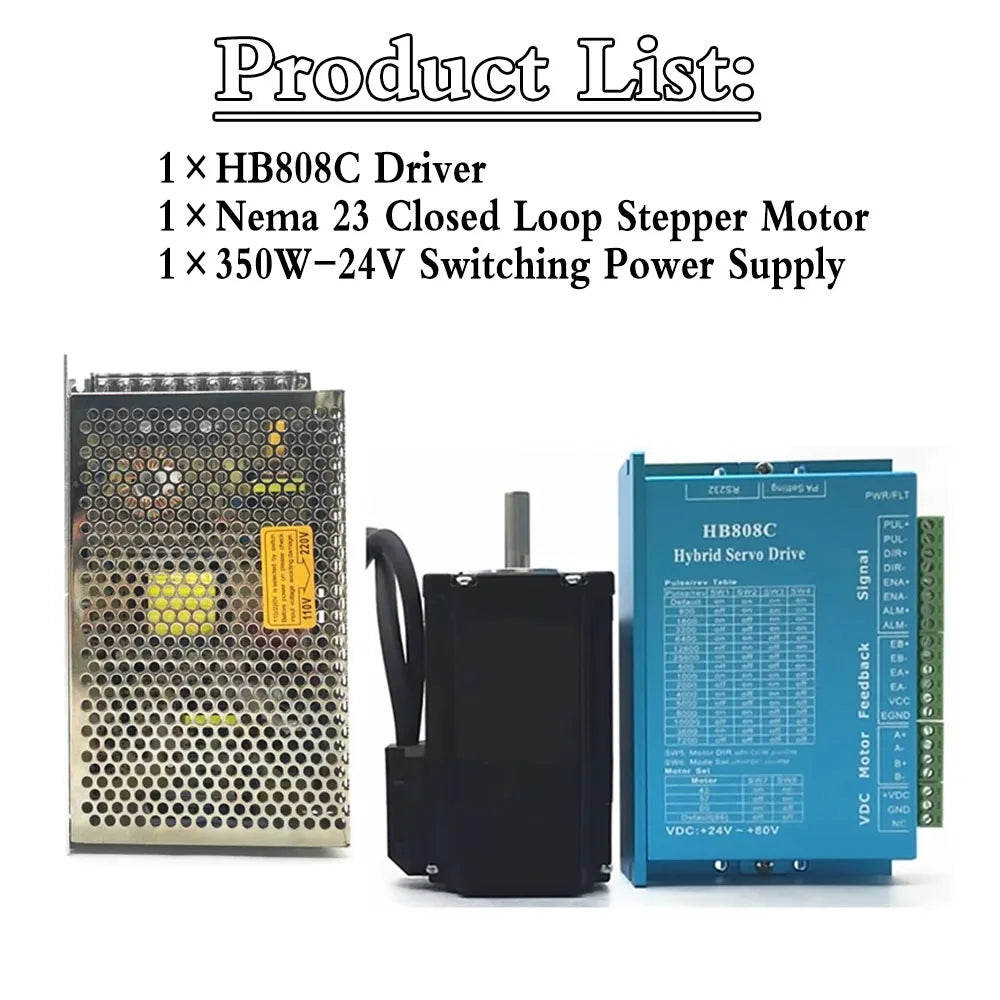

Motor drive Kit:
1 x HB808C Driver
1 x Nema 23 Motor

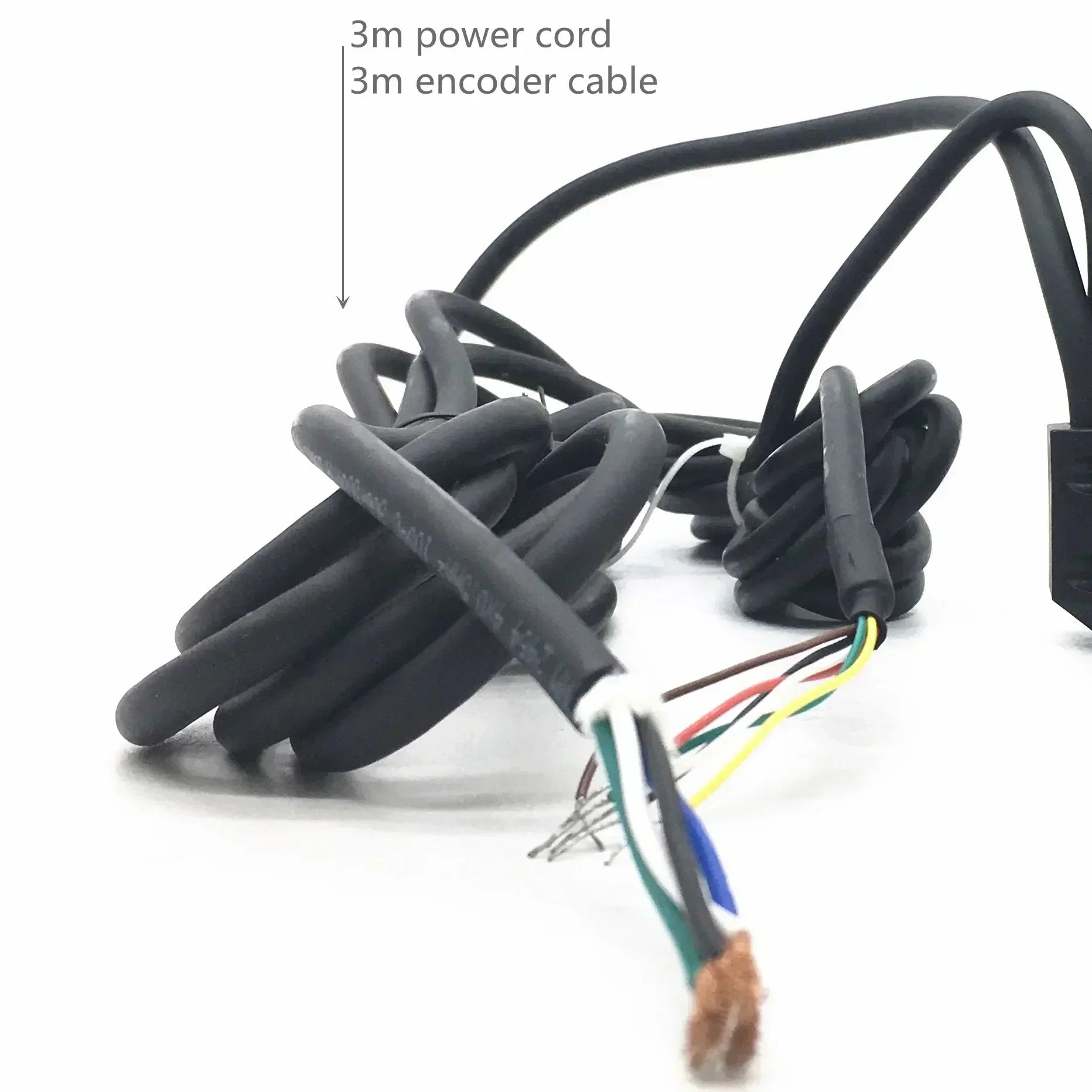

1 x 3m Encoder  Cable (built-in)
1 x 3m Power  Cable (built-in)

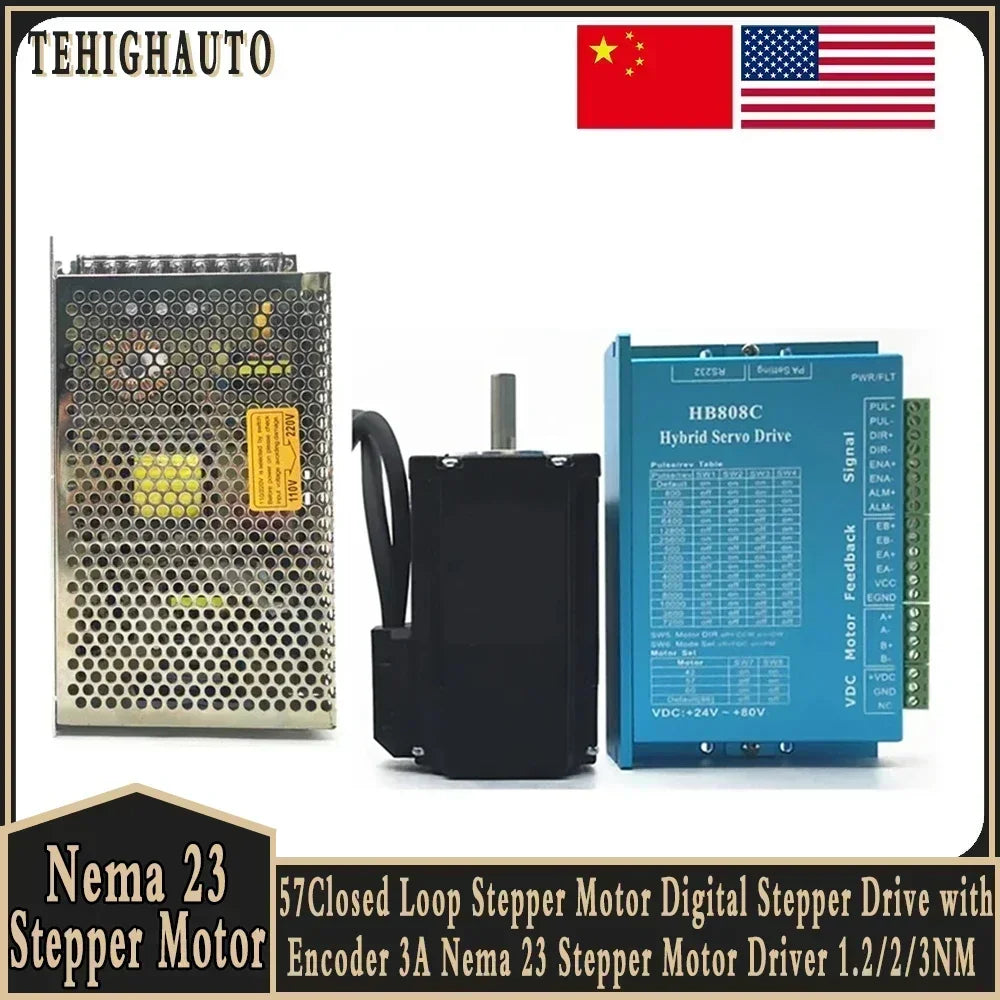

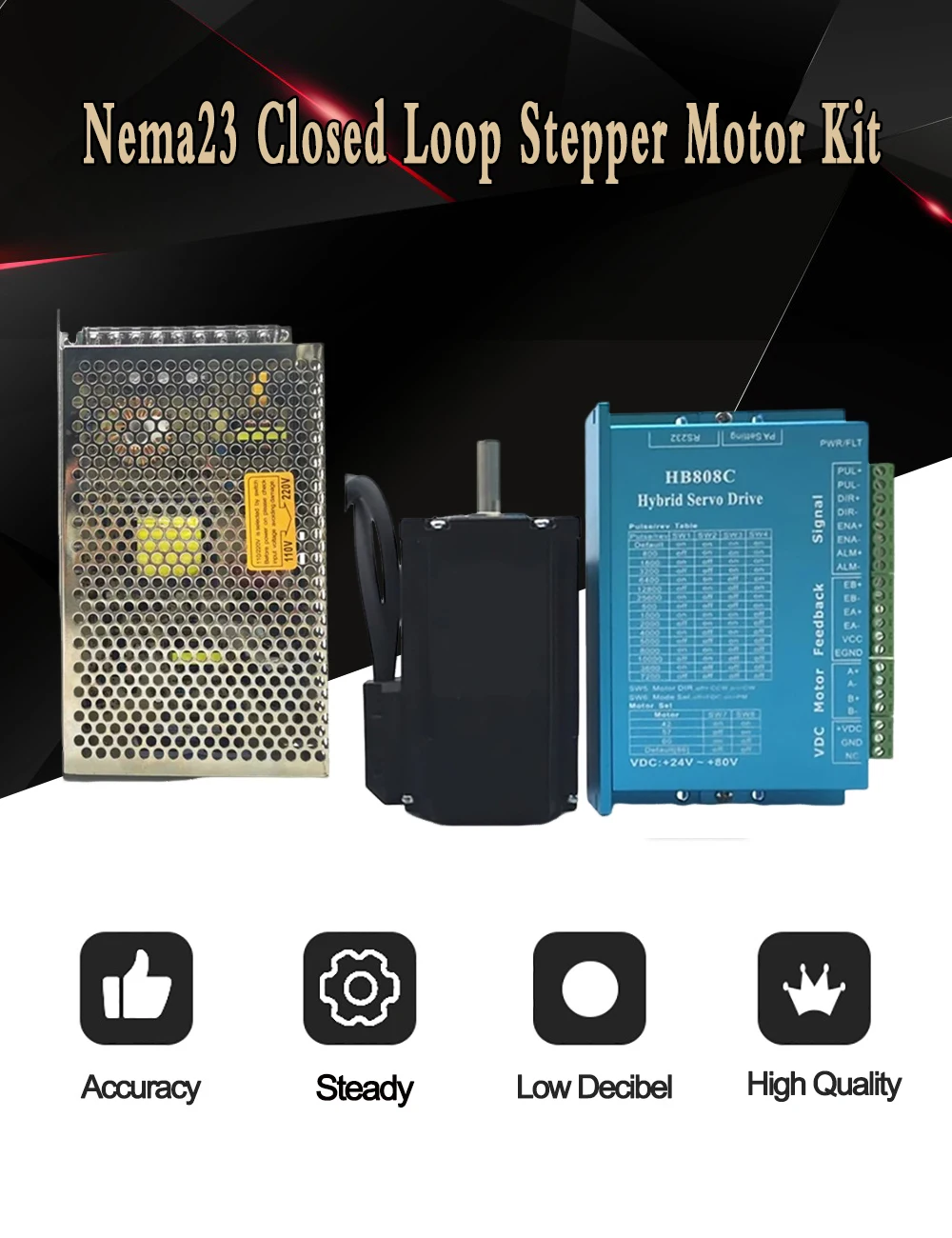

Power Kit:
1 x HB808C Driver
1 x 200W-24V Power Supply
1 x Nema 23 Motor
1 x 3m Encoder  Cable (built-in)
1 x 3m Power  Cable (built-in)

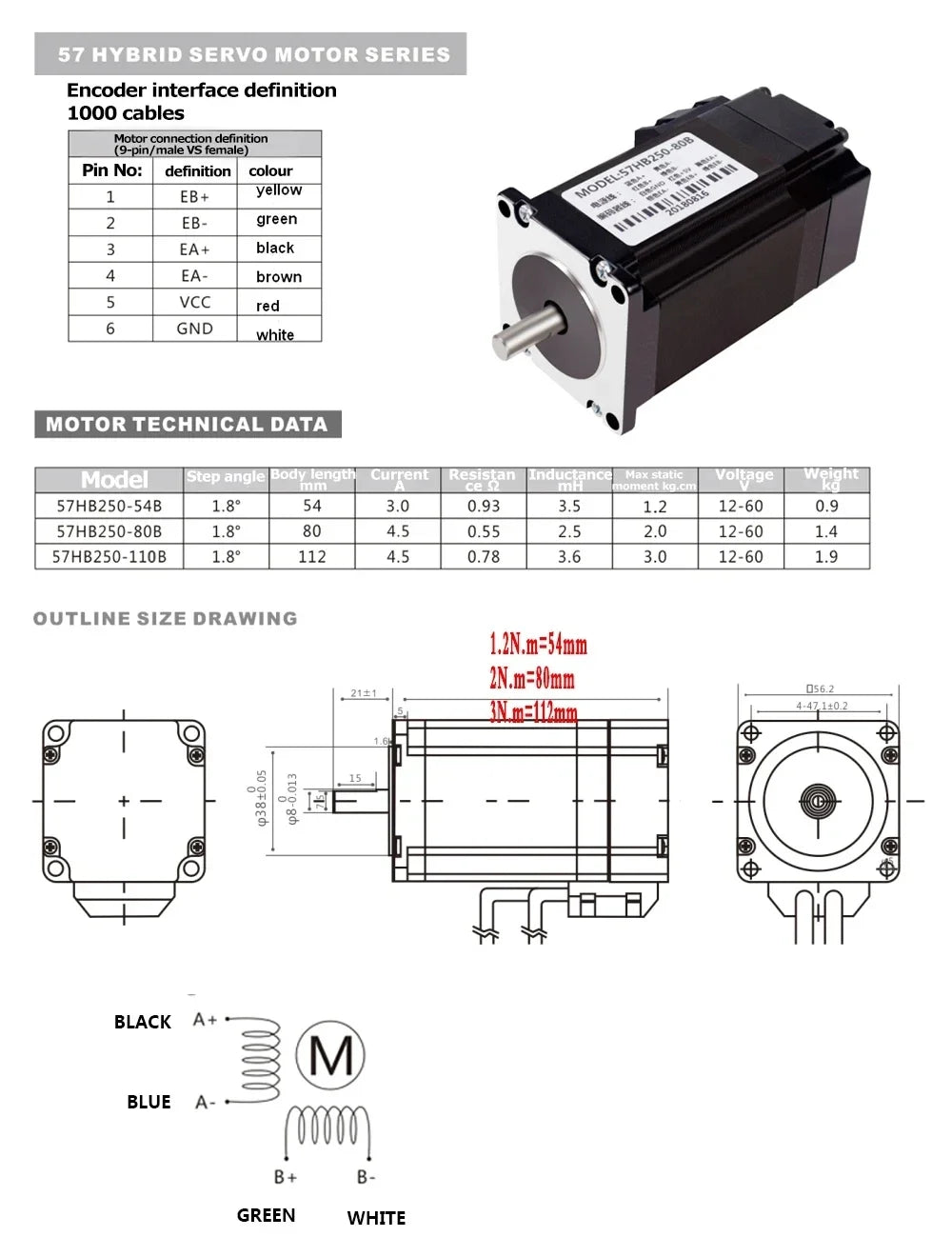

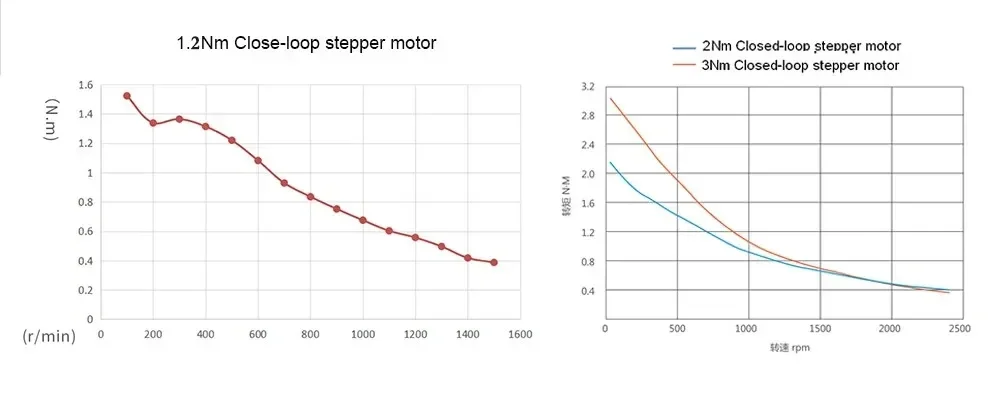

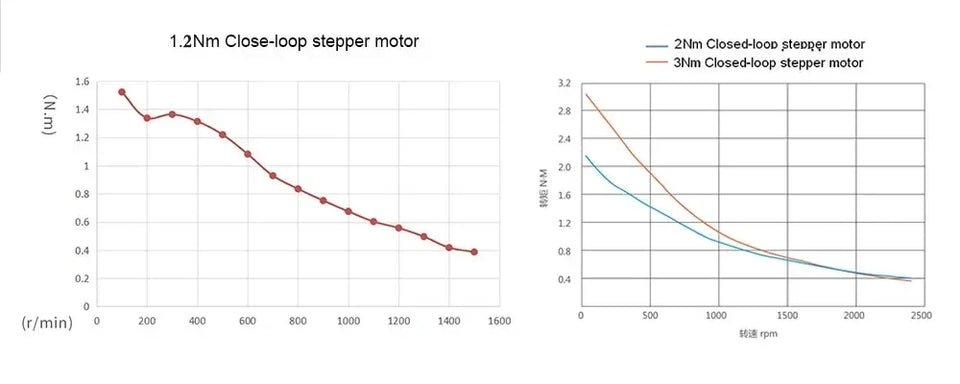

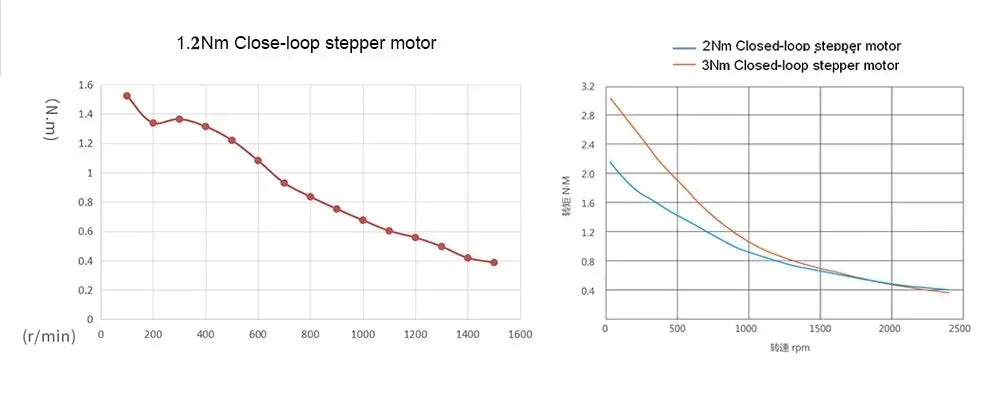

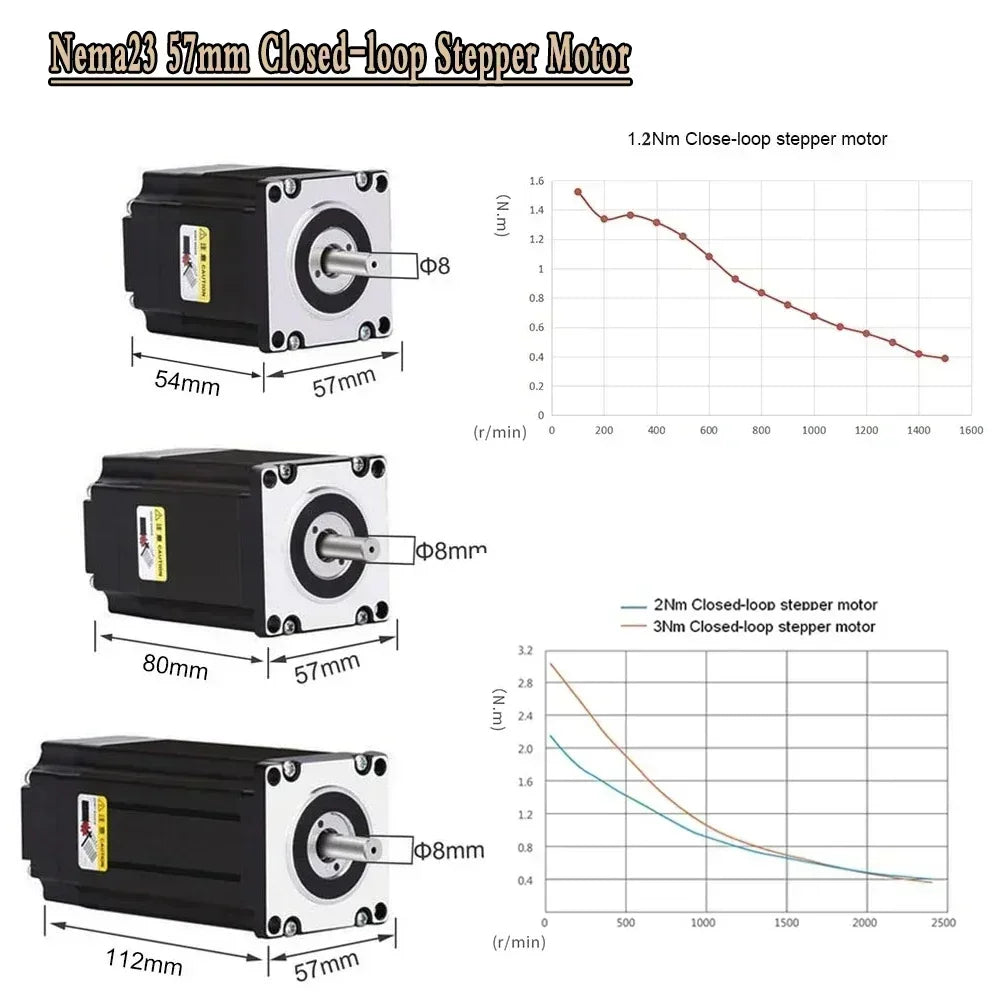

Nema 23 Closed Loop Stepper Parameter:
1.Flange:  NEMA23 57MM
2.Step angle:  1.8 degree
3.Phase: 2PH
4.Hold torque:  1.2/2/3N.M
5.Motor Length: 56/80/112MM
6.Rated Speed: 1000RPM
7.Encoder:  1000line
8.Resistance:  0.4/0.7/0.8(ohm)
9.Inductance:  1.2/2/3.5mH

10.Class of insulation: B

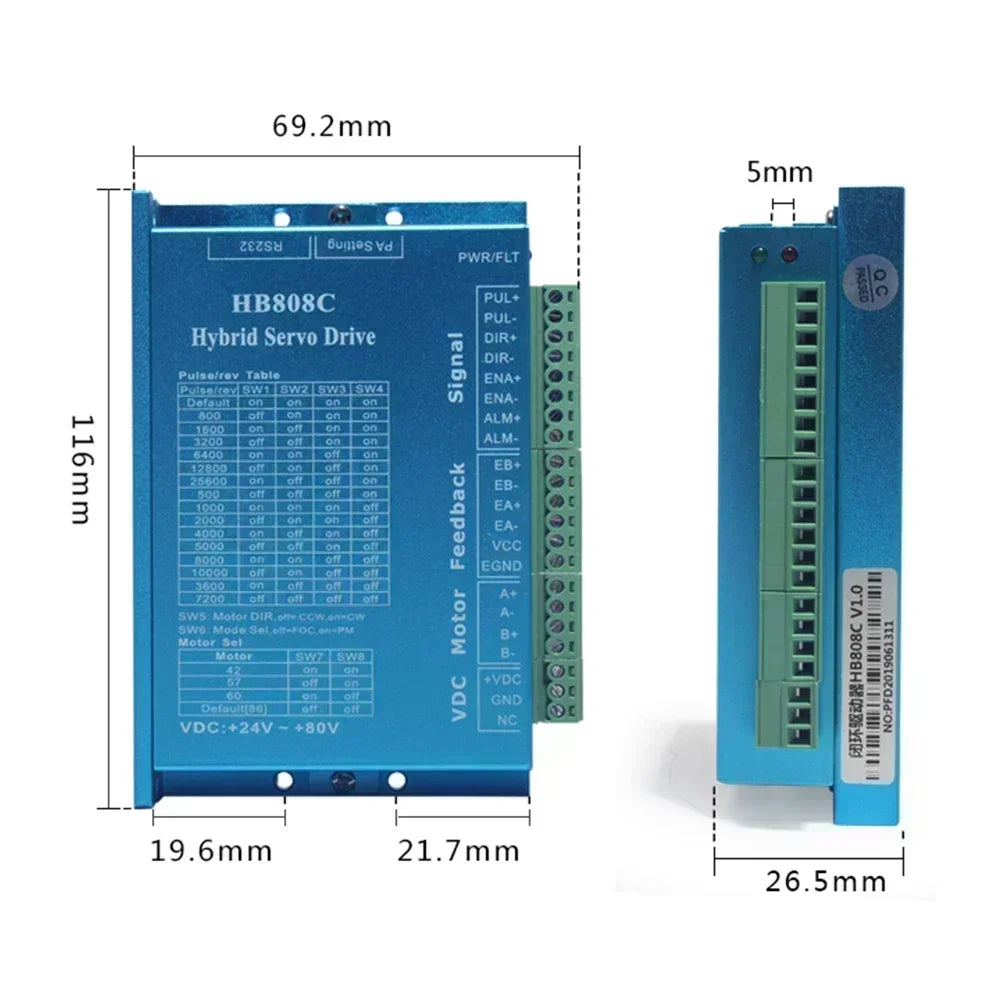

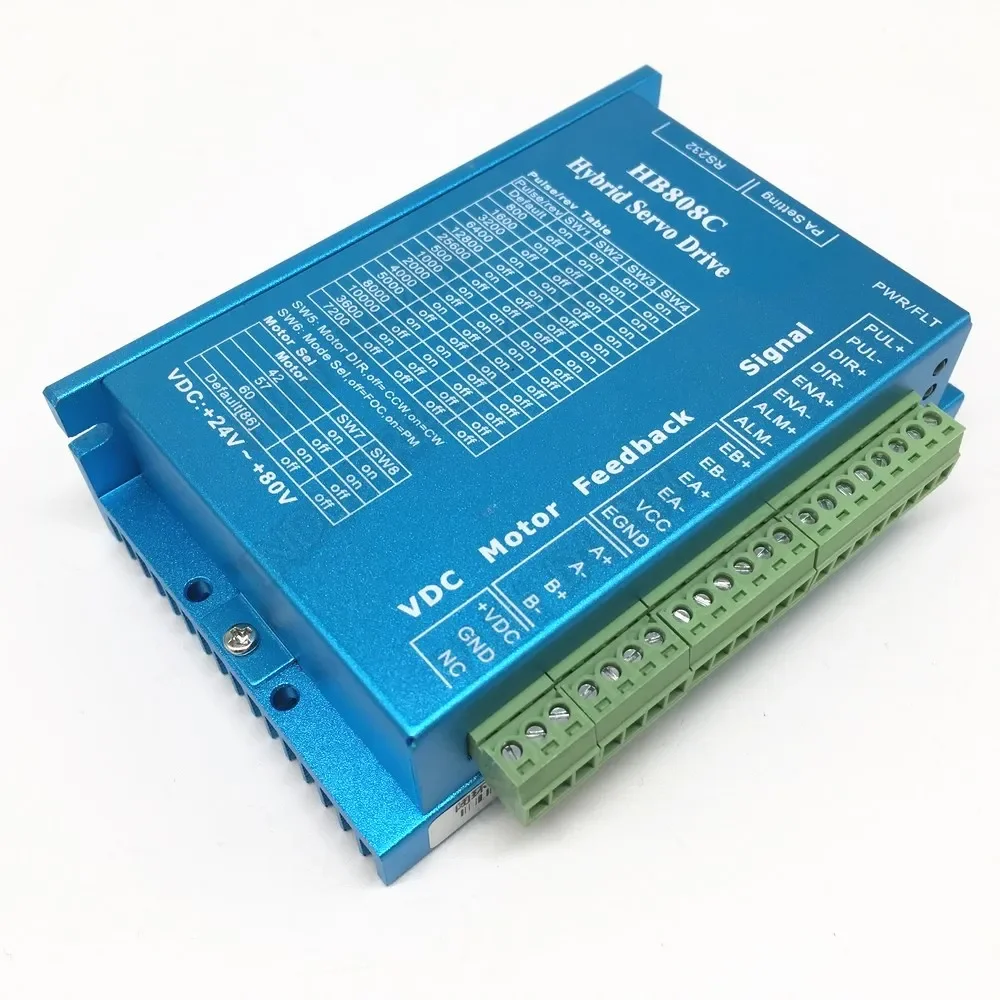

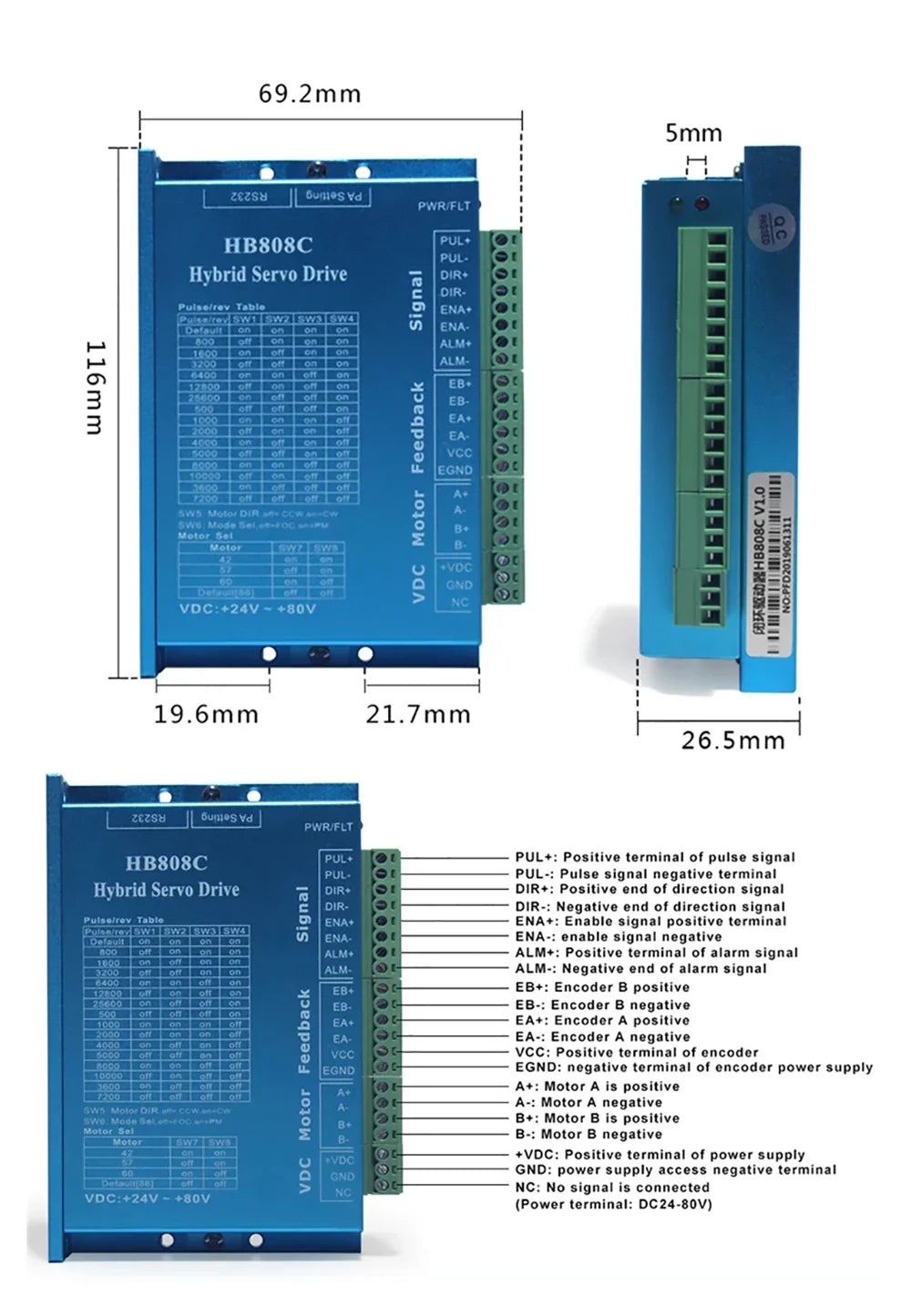

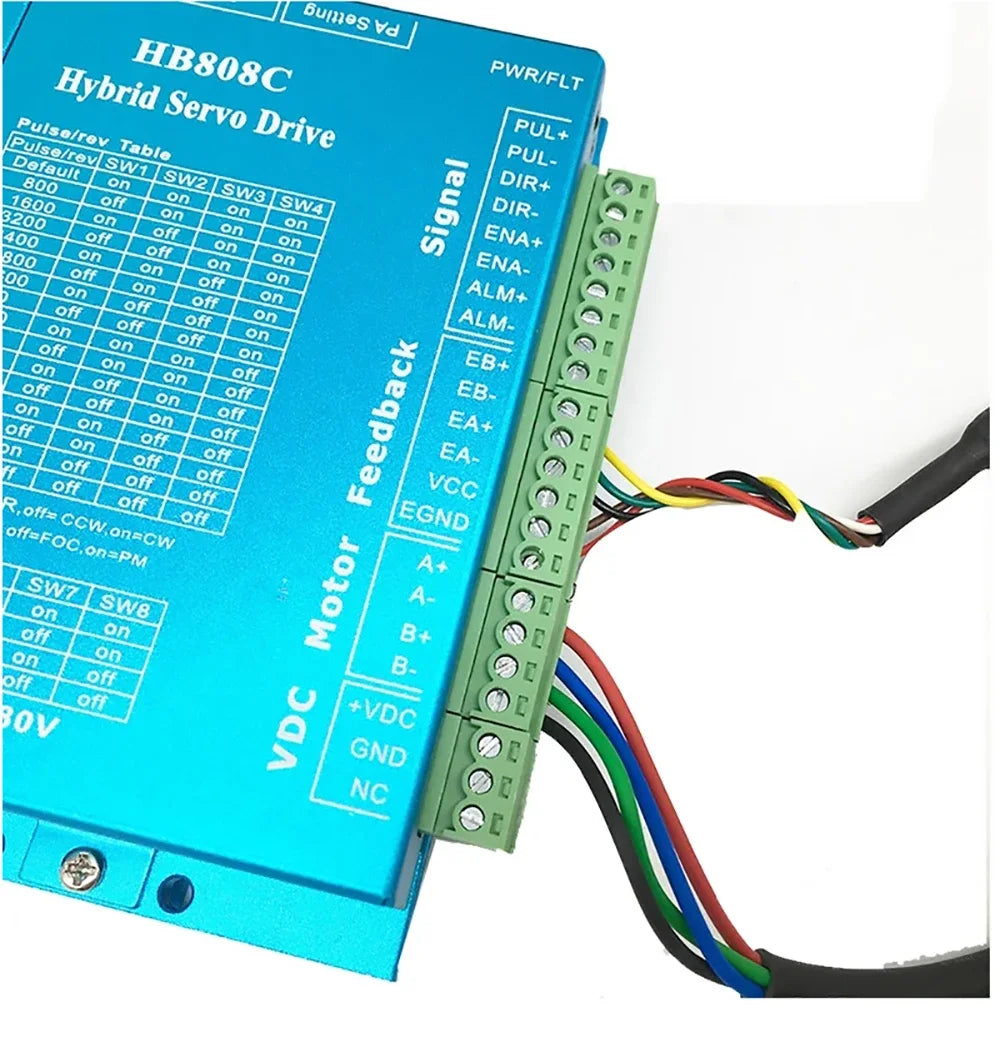

Drive Parameter:
1.Model:  HB808C
2.Type:  DSP Closed loop stepper drive
3.Maximum peak current: 13A
4.Impulse response frequency: 200KHz
5.Micro-stepping driver:   200~25600ppr
6.Input Voltage:   24-80VDC
7.Protective function: Over voltage, over current, tracking error, over proof
8.Signal input: Support PUL/DIR and CW/CCW modes (difference)
9.Compatible :  4.5~28V signal

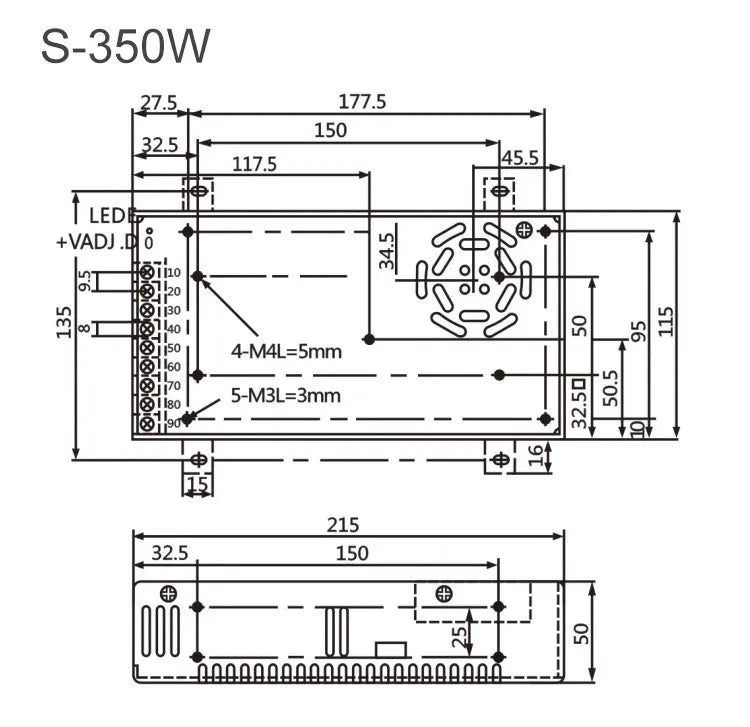

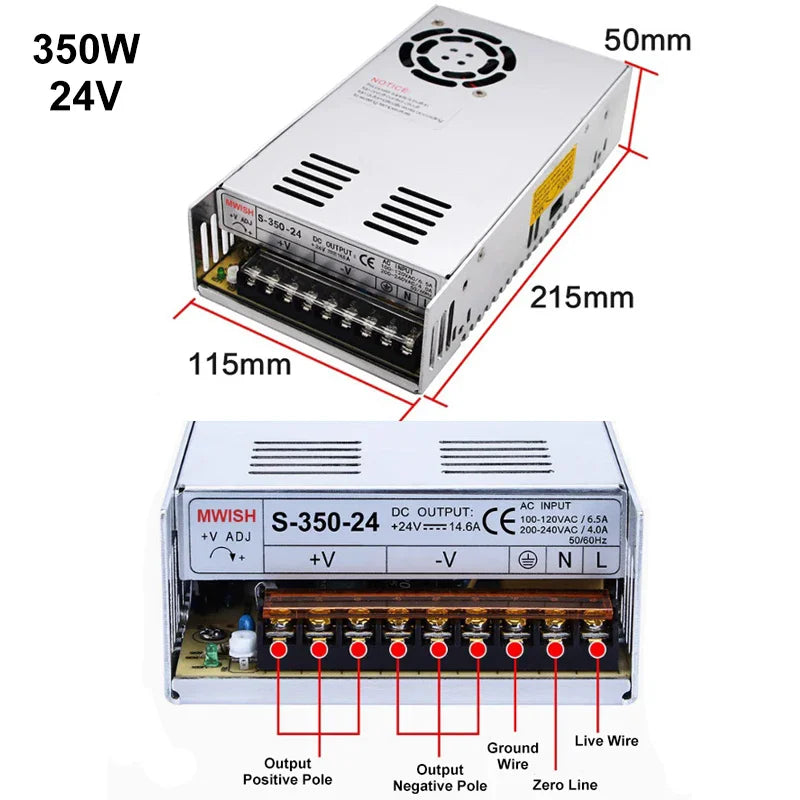

Power Supply Technical Parameters:
Model: S-350-24
Rated Load: 350W (Max Load)
Input Voltage: 85-132 VAC / 170-264 VAC 47-63 Hz
Output Voltage:DC5V/ 24V (Constant Voltage)
Output Current:6.5A/115V 4A/230V
Conversion Efficiency: More than 84%
Working temperature: -30~+50
IP code:IP20
Cooling type: Fan Cooling (Fan Work With a little noise)
Certificate: CE, ROHS
