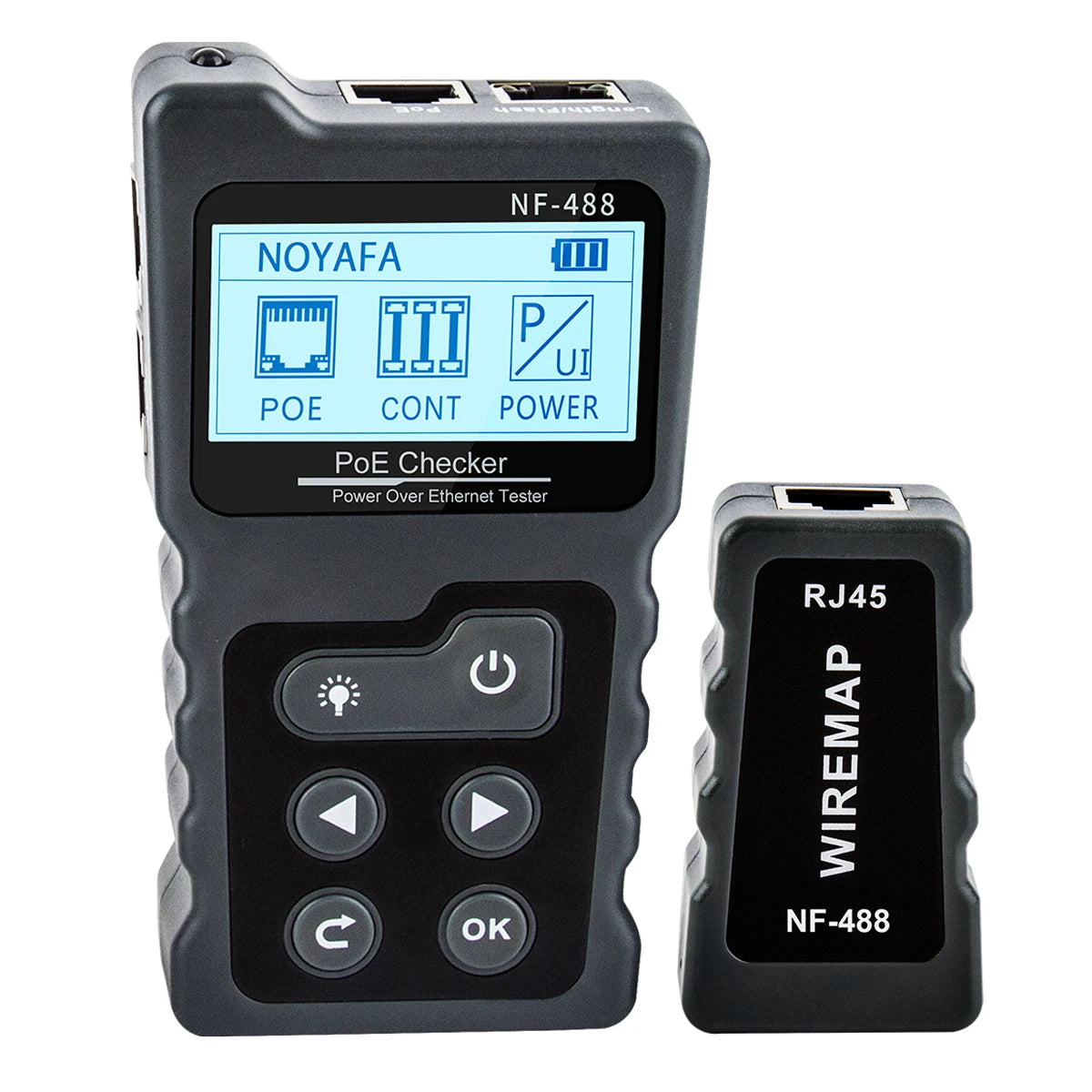

NOYAFA NF-488 Network Cable Tester PoE Switch Online Test PoE Voltage Polarity Cable Tracker Loop Test Tool with LCD Display
Regular price
$222.81
$222.81

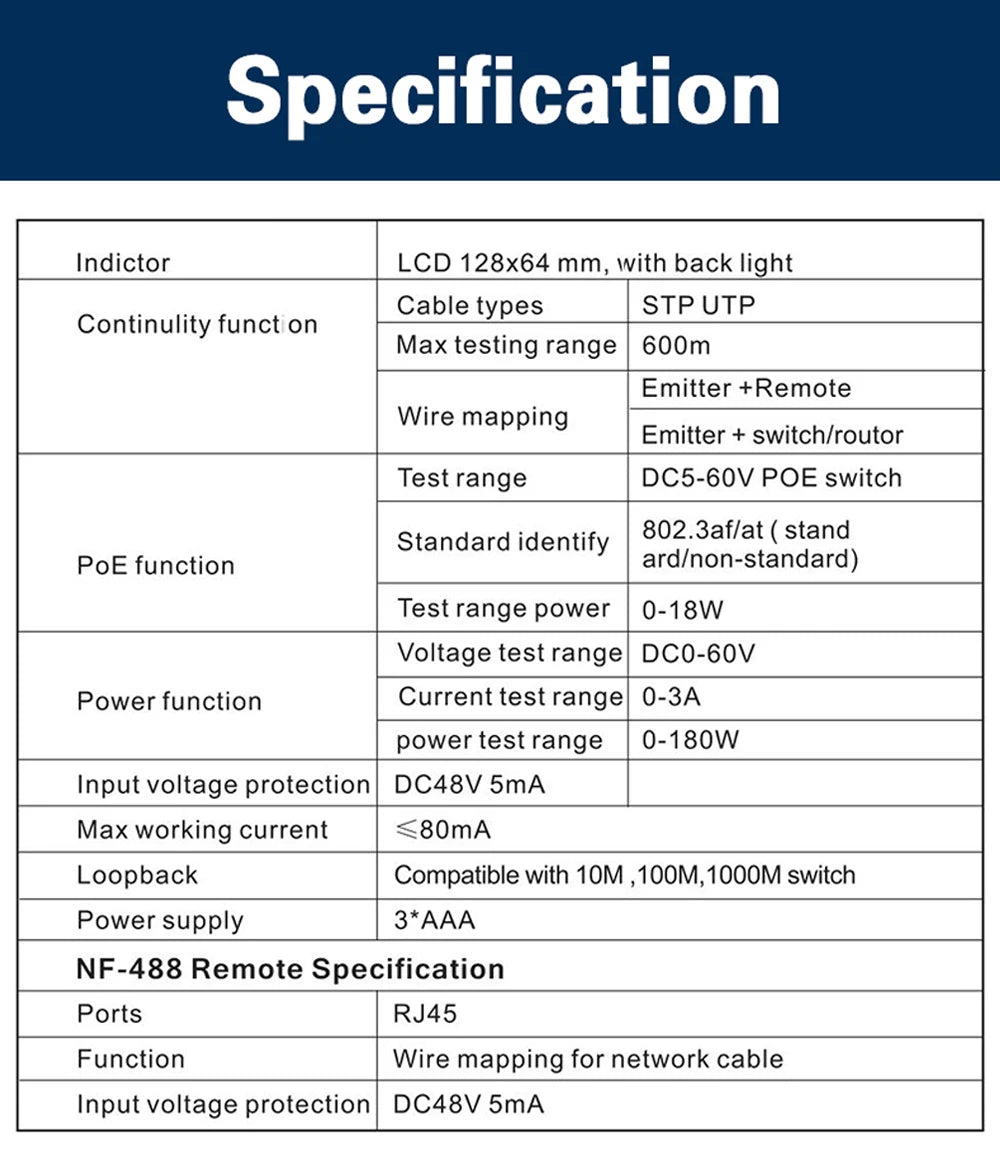

SPECIFICATIONS
Applicable cables: CAT5, CAT6
Automatic shutdown function: 15min, 30min, 60min
Battery Included: Yes
Brand Name: NOYAFA
Certification: CE
Current Test Range: 0-3A
Display: 128x64 dot matrix, with backlight
High-concerned chemical: None

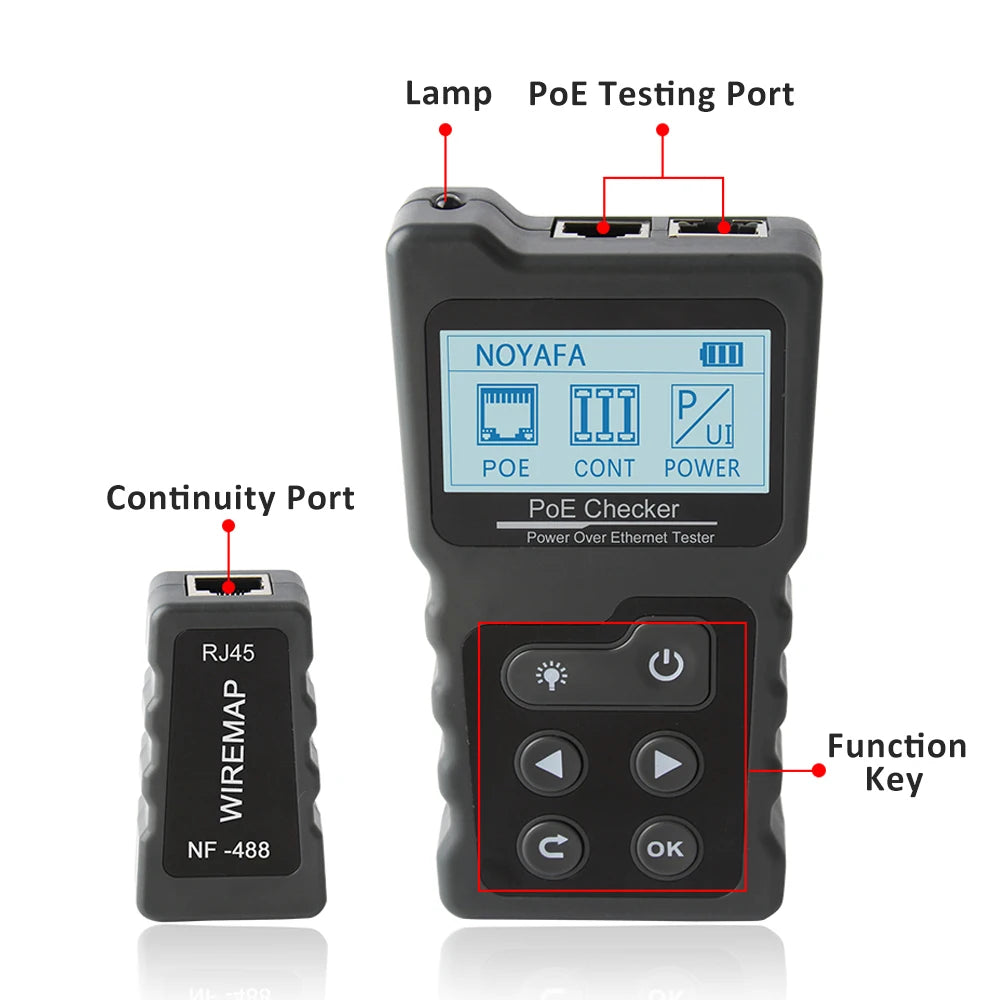

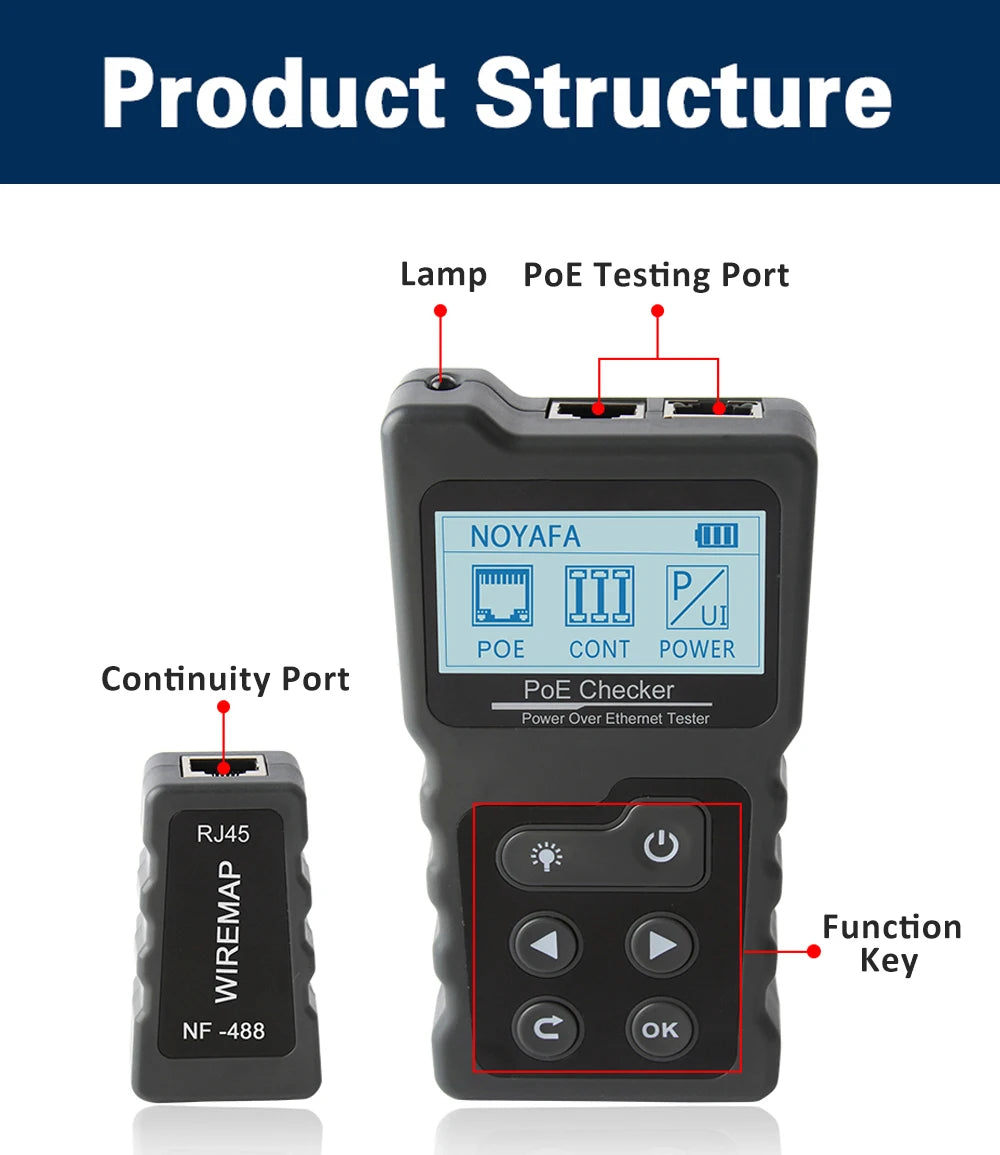

Interface description: 4 RJ45, 2 DC interfaces
Language display: Simplified Chinese or English
Low battery indicator: Yes, 2.7V
Max Testing Range: 600m
Model Number: NF-488
Origin: Mainland China
Package: Yes
Power: AAA Battery
Power Test Range: 0-180W(Power test)
Test Range Power: 0-18W(PoE Test)
Type: Cable Tester
Voltage Test Range: DC0-60V

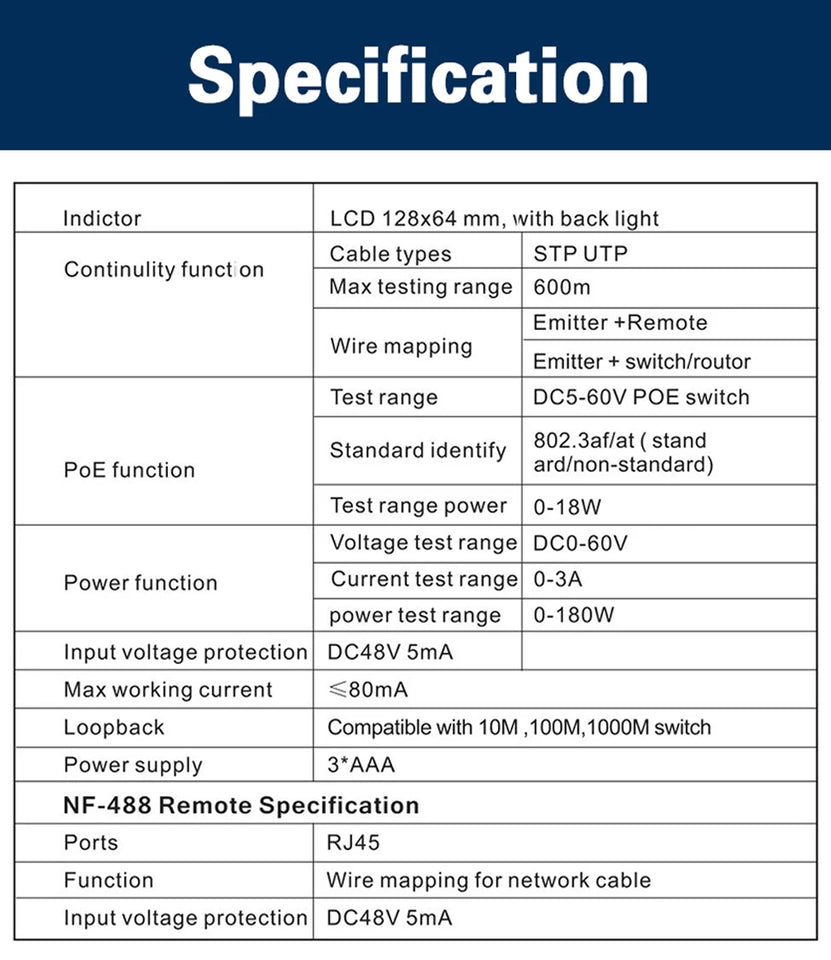

NF-488 Product parameters
Product Description:
Brand: NOYAFA
Product Name: Network Cable Tester
Type: NF-488
Display: 128x64 dot matrix, with backlight
Language display: Simplified Chinese or English
Interface description: 4 RJ45, 2 DC interfaces
Applicable cables: CAT5, CAT6
Max Testing Range: 600m
Voltage Test Range: DC0-60V
Current Test Range: 0-3A
Test Range Power: 0-18W(PoE Test)
Power Test Range: 0-180W(Power test)
Low battery indicator: Yes, 2.7V
Automatic shutdown function: 15min, 30min, 60min
Power: AAA Battery
Product Features:

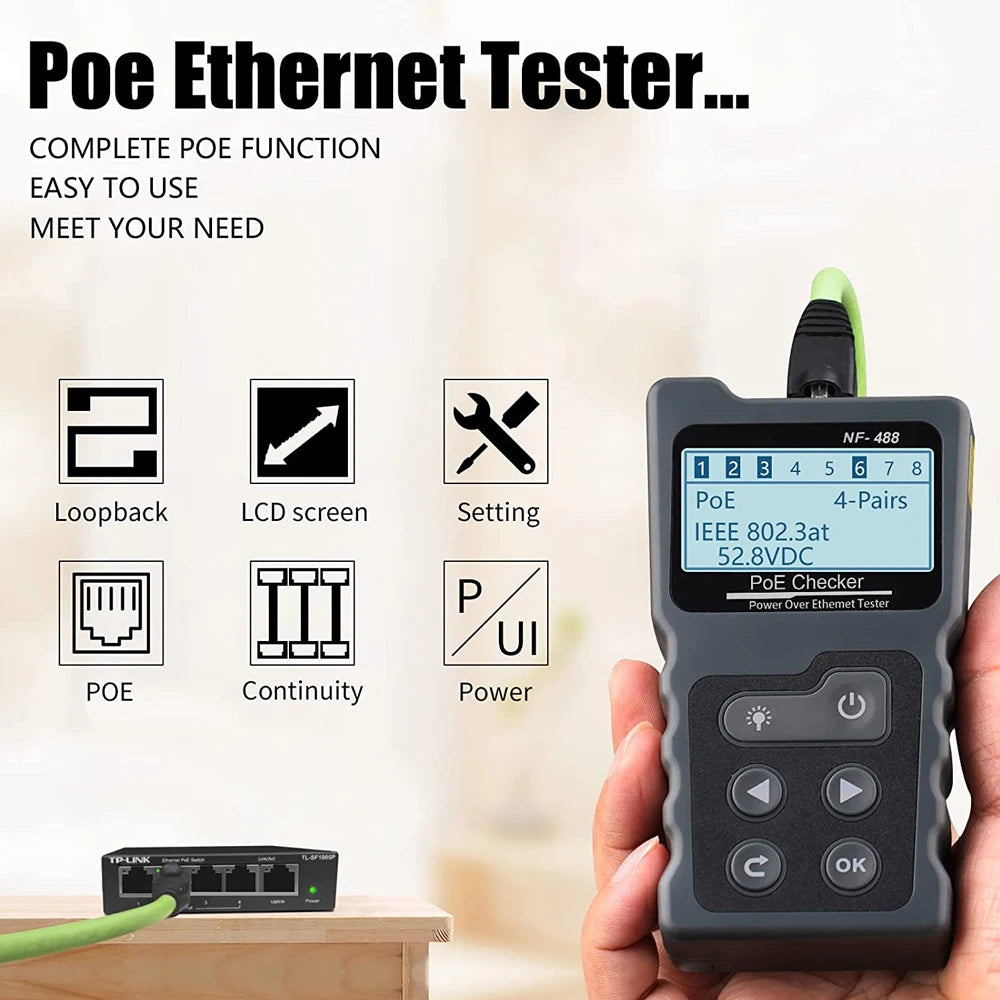

1. Test the information ofstandard/non-standard PoE device such as voltage, polarity, midspan or endspan.

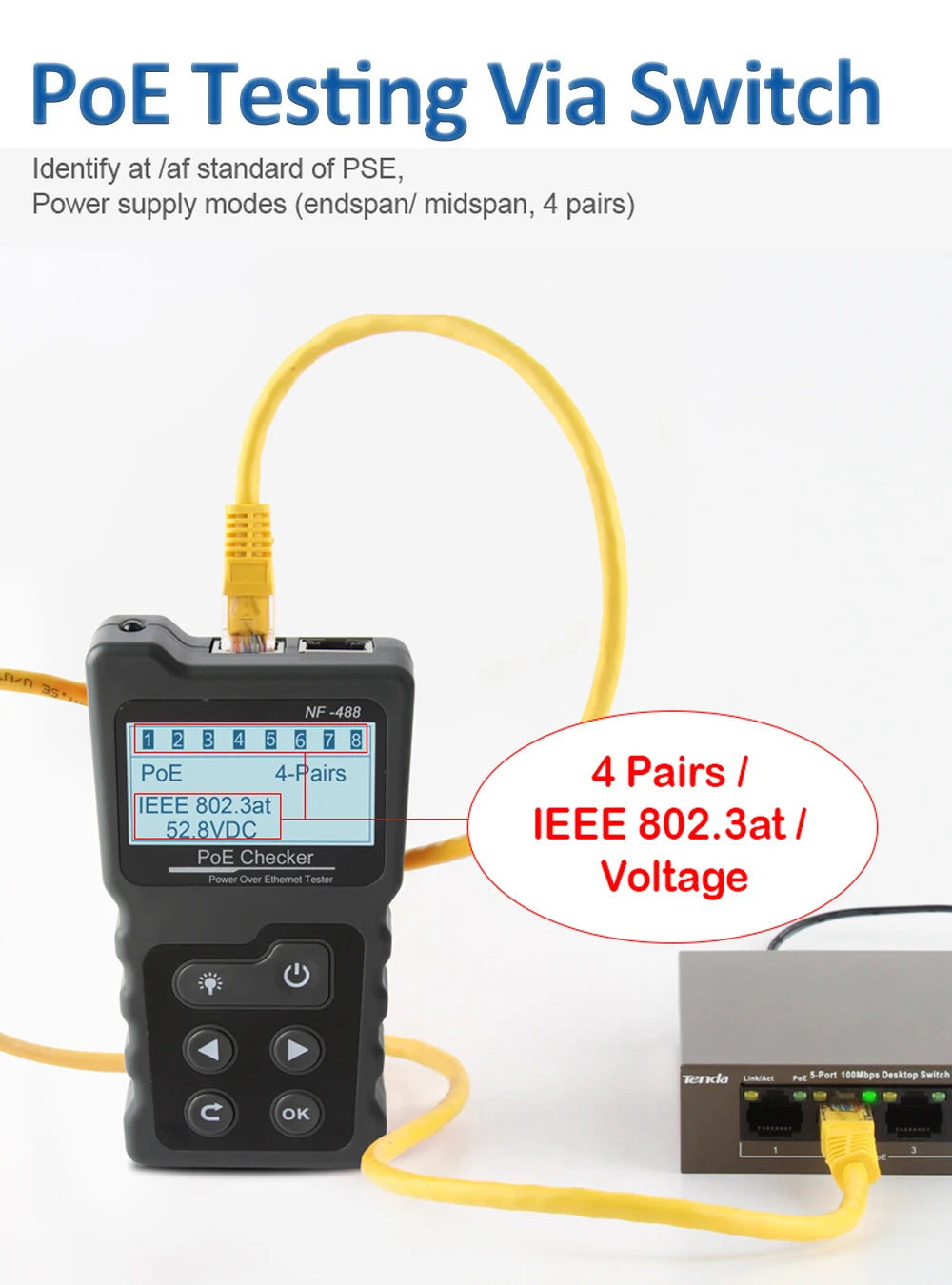

2. Identify the type of PSE,it is af or at standard.

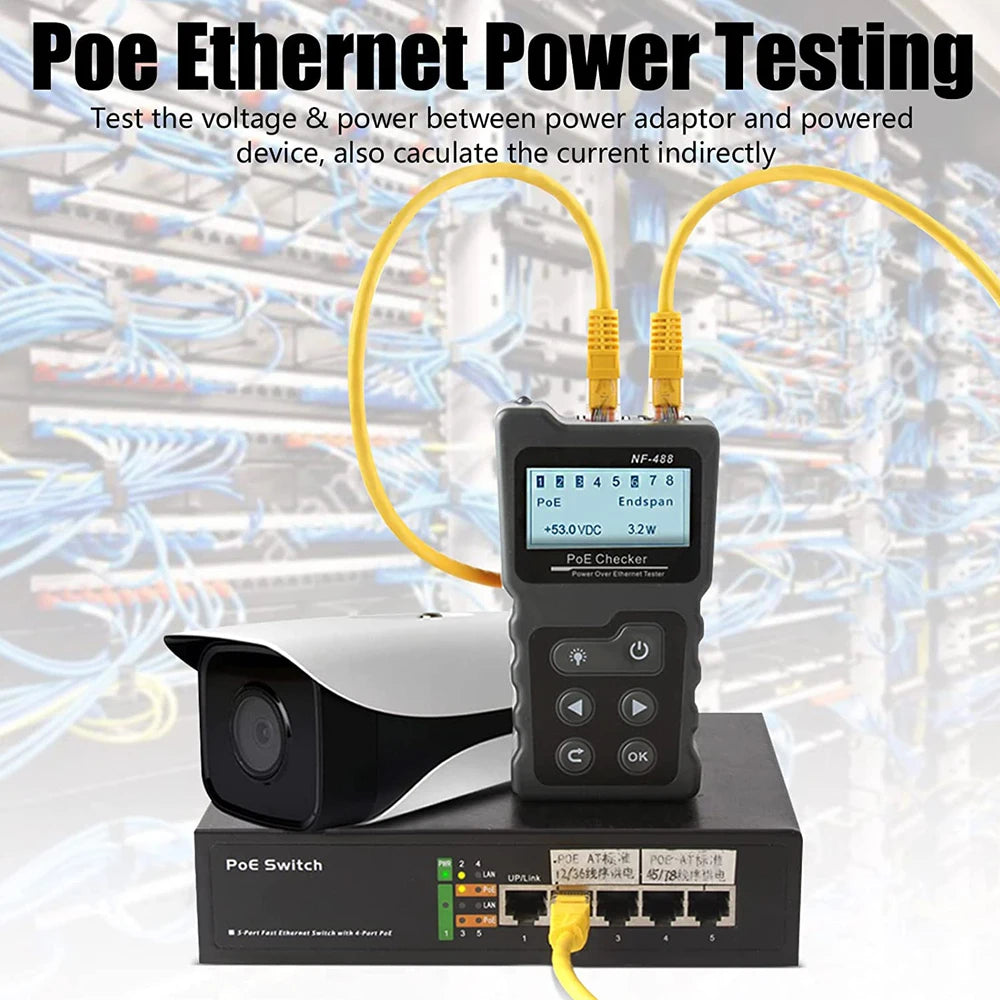

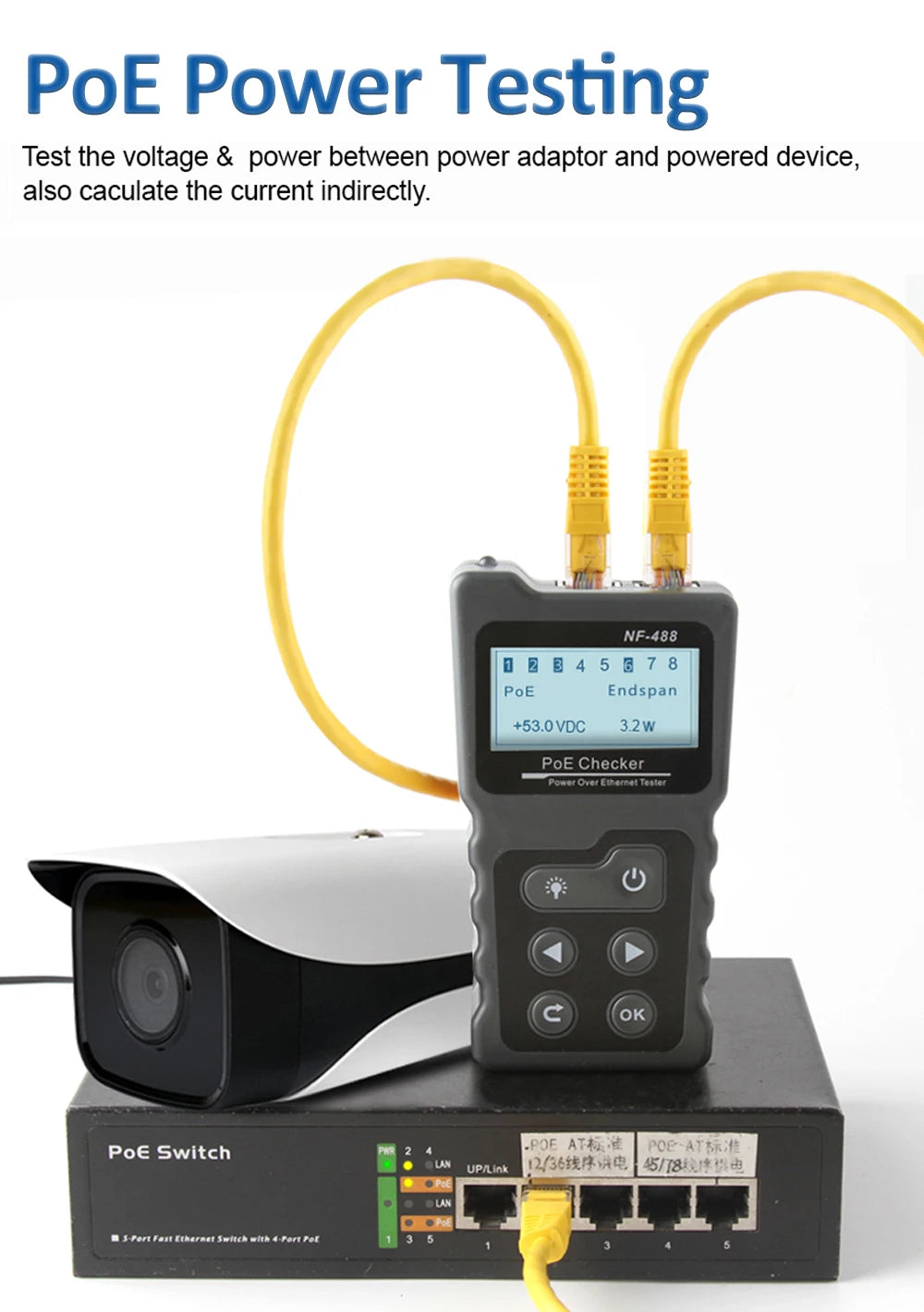

3. Online test of real-time power consumed by PD devicesin PoE power supply systems.

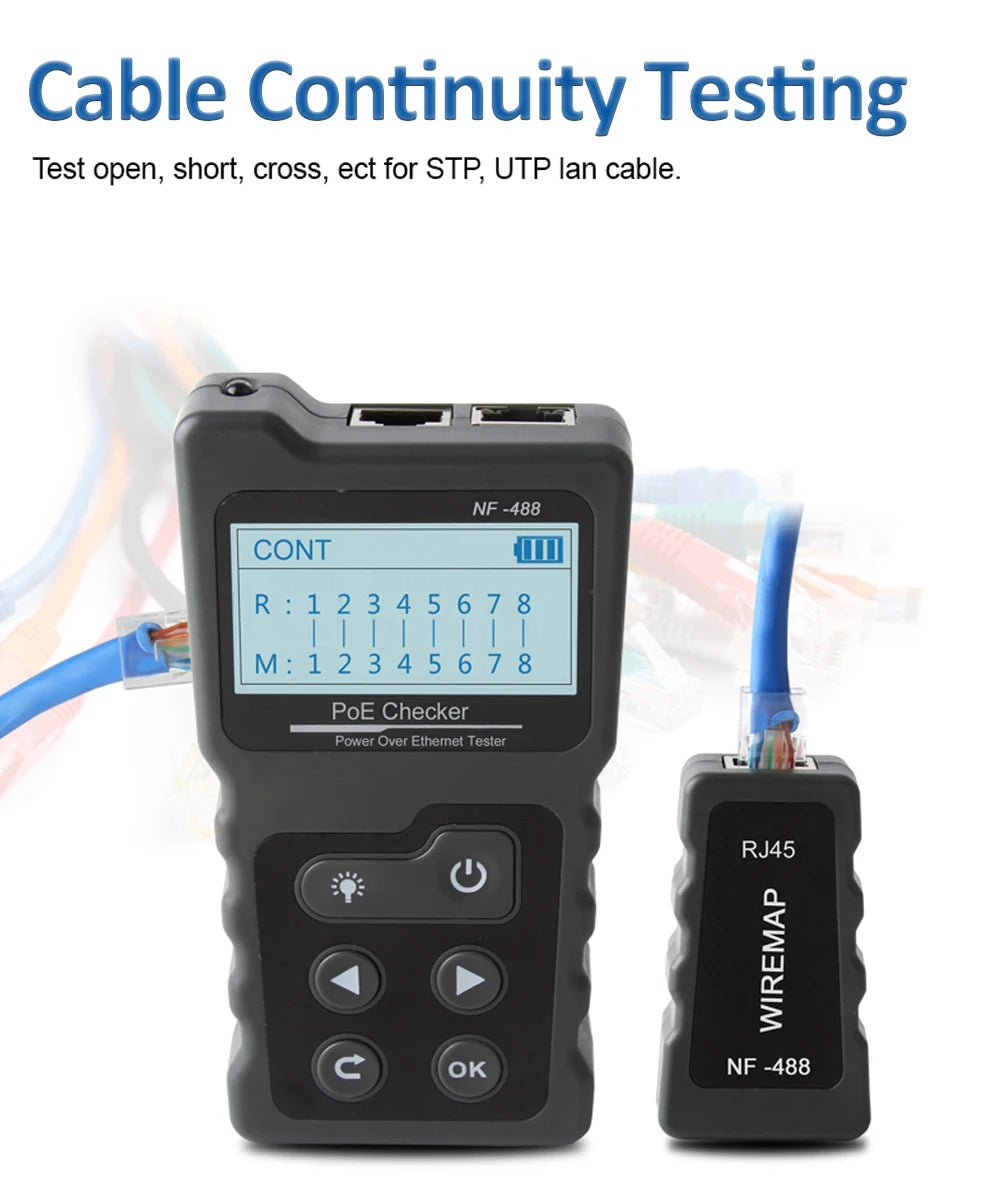

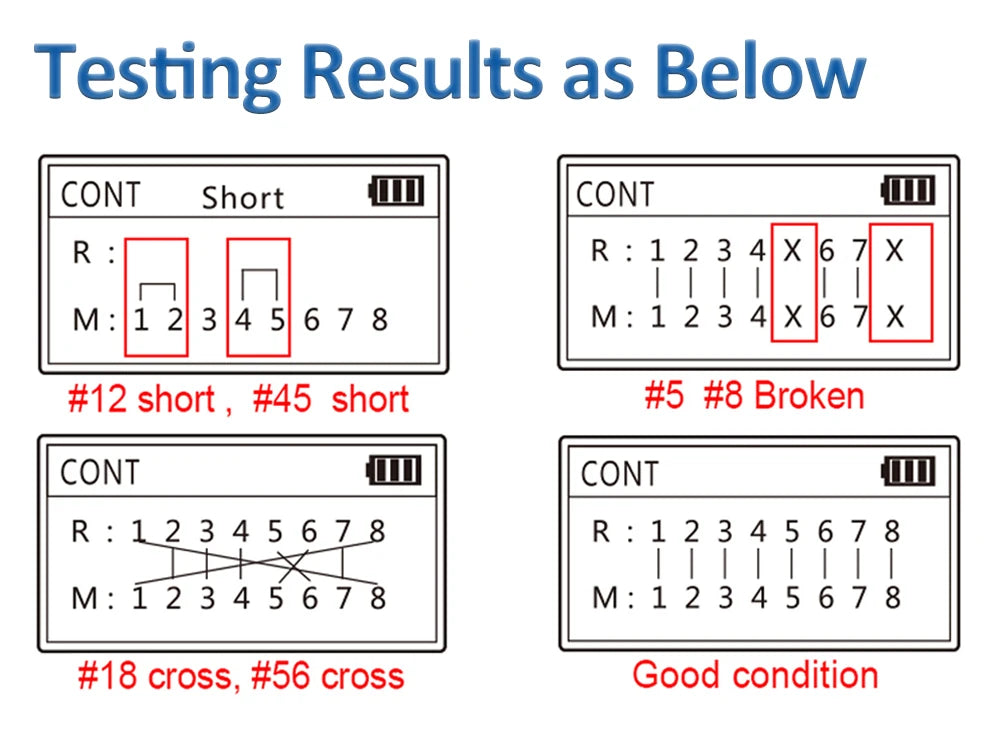

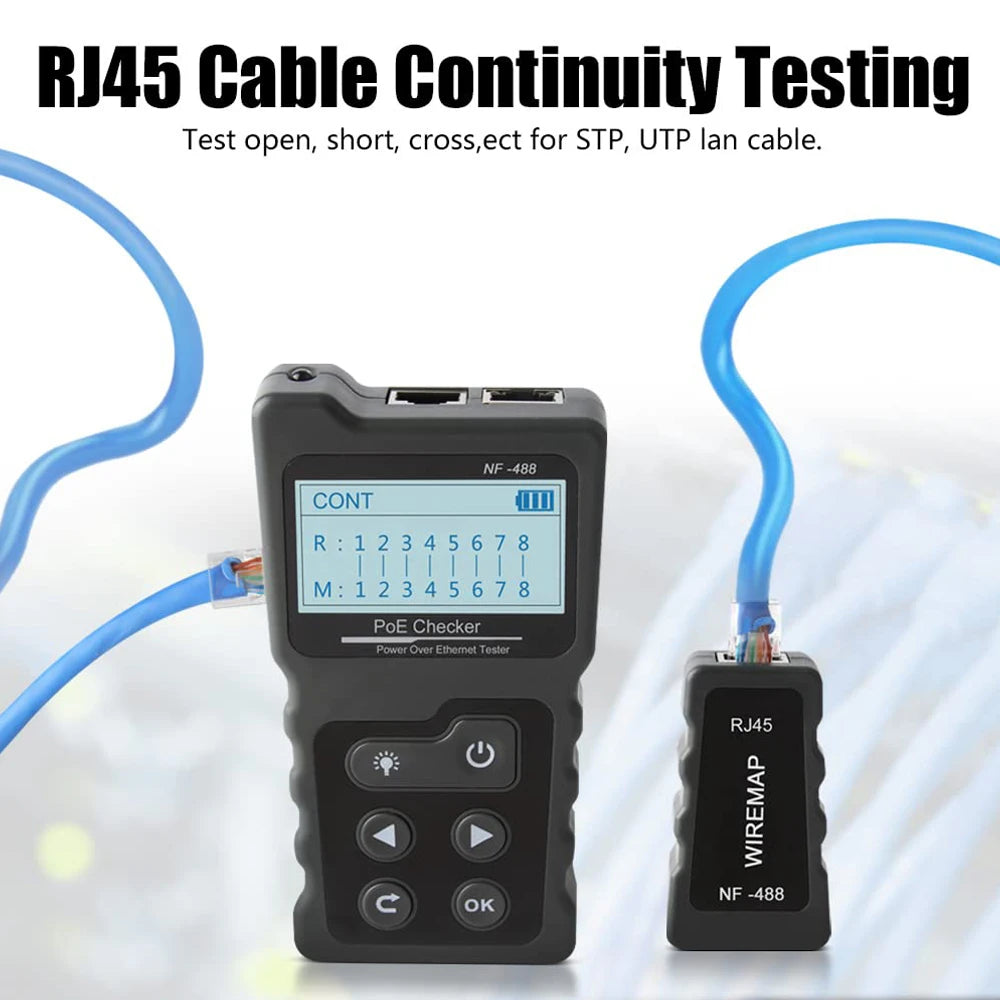

4. Test the open, shortcross, cross status in the network cable.

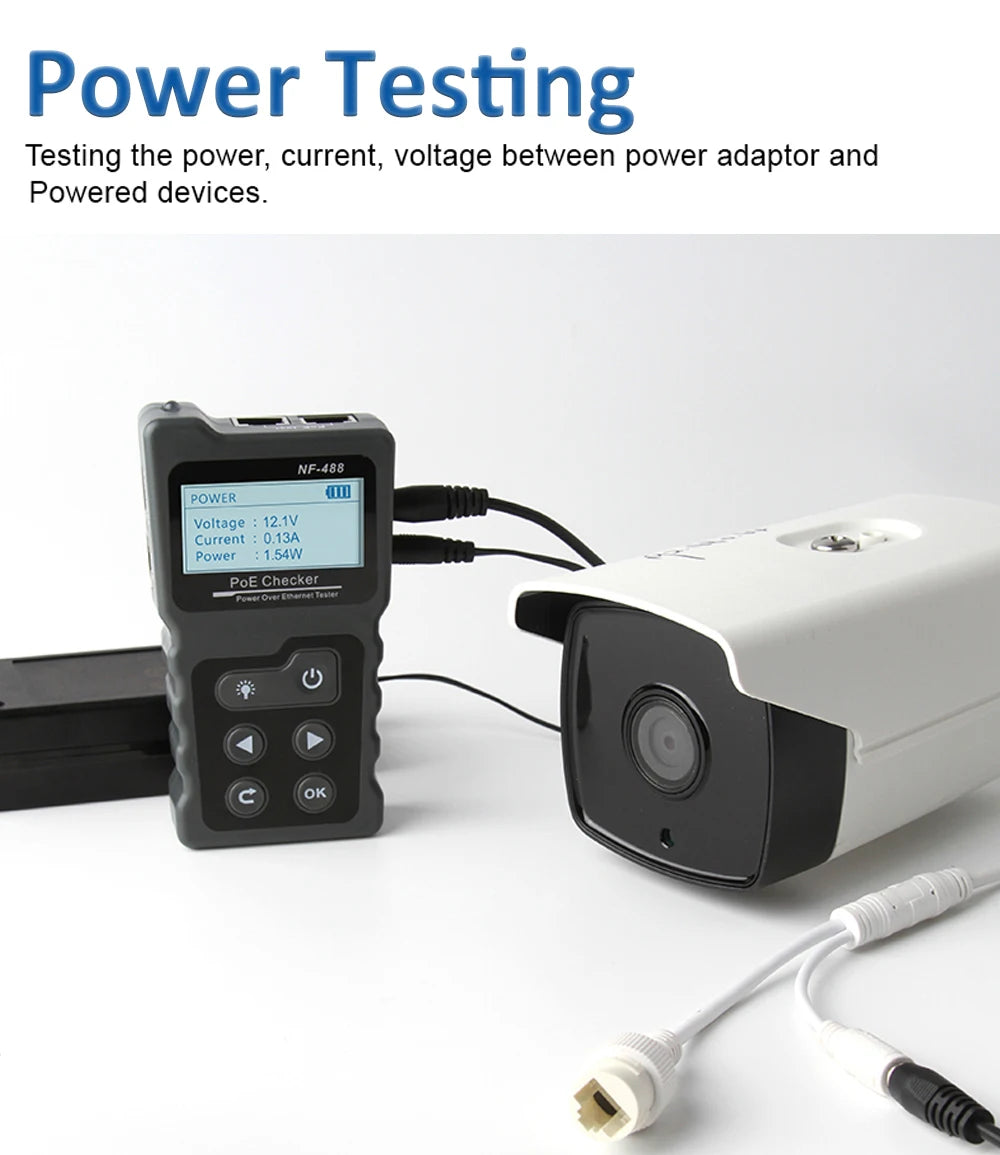

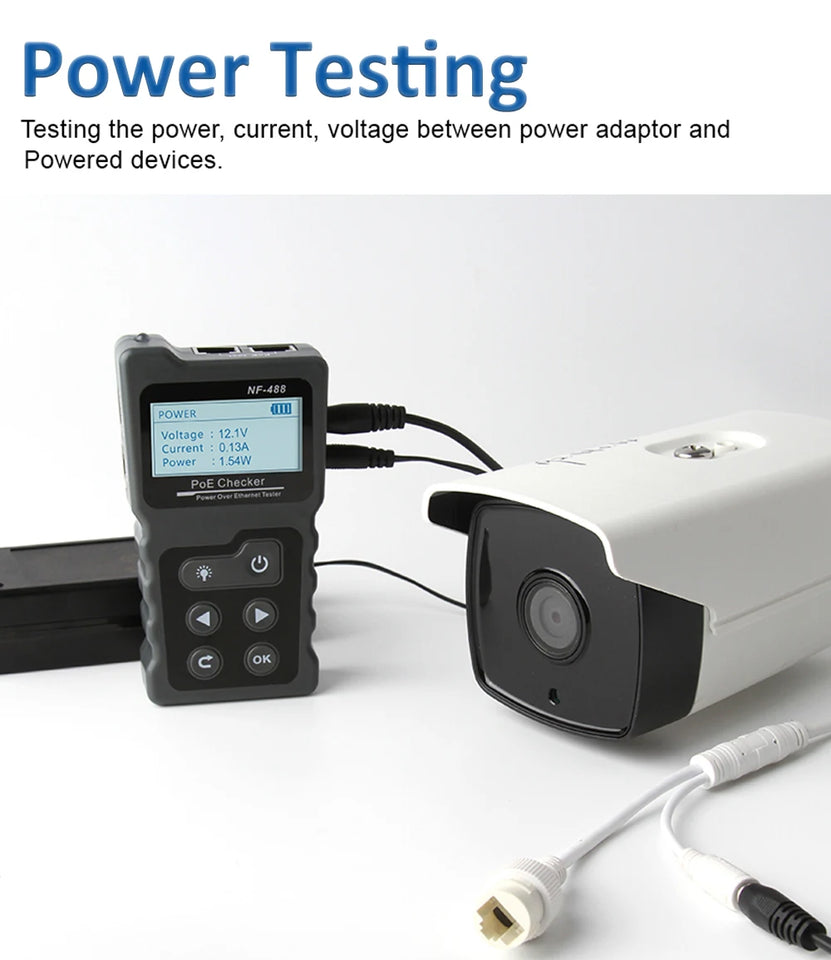

5. Test the power consumed by DC appliances.

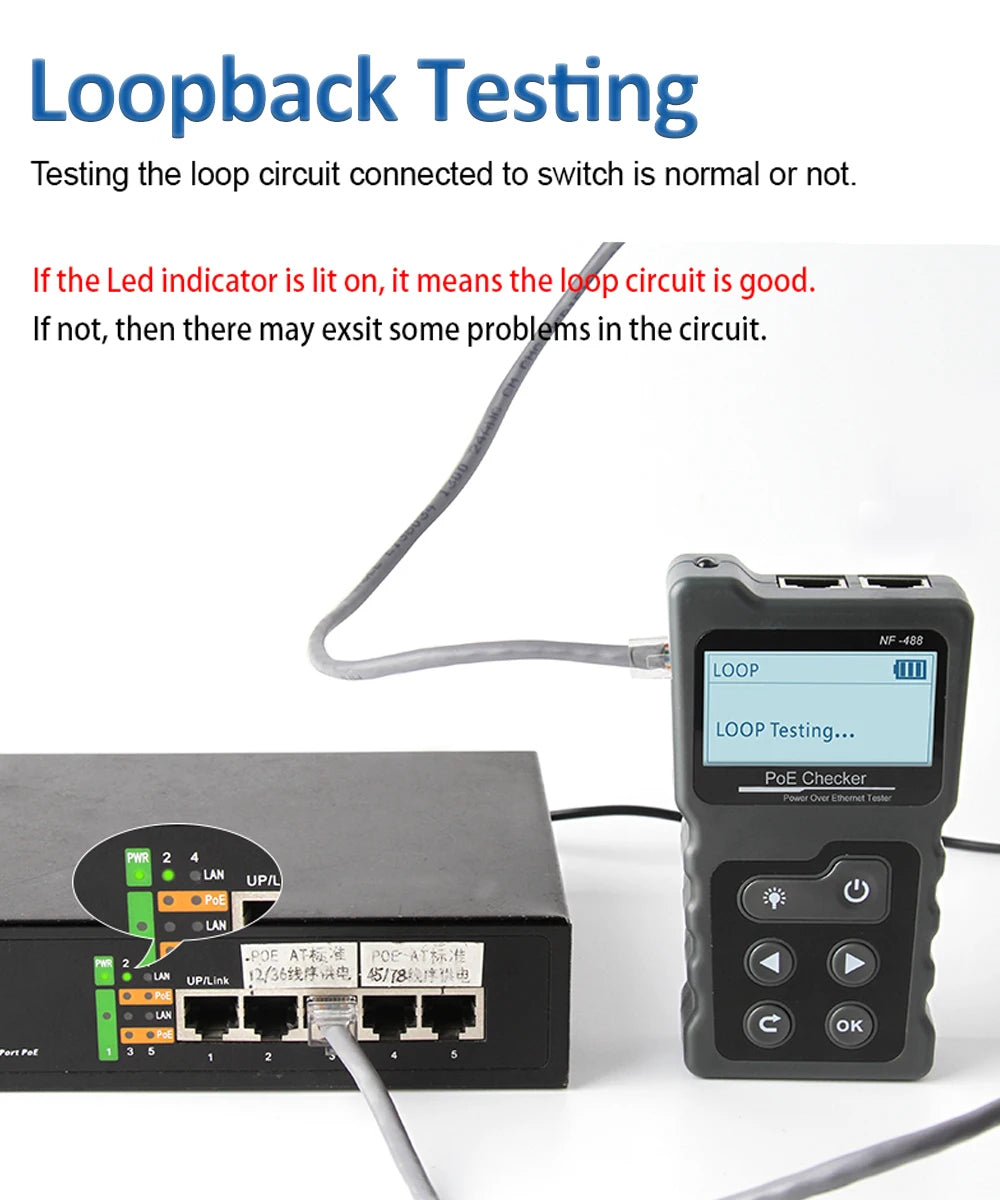

6. The loop test function of the switch.

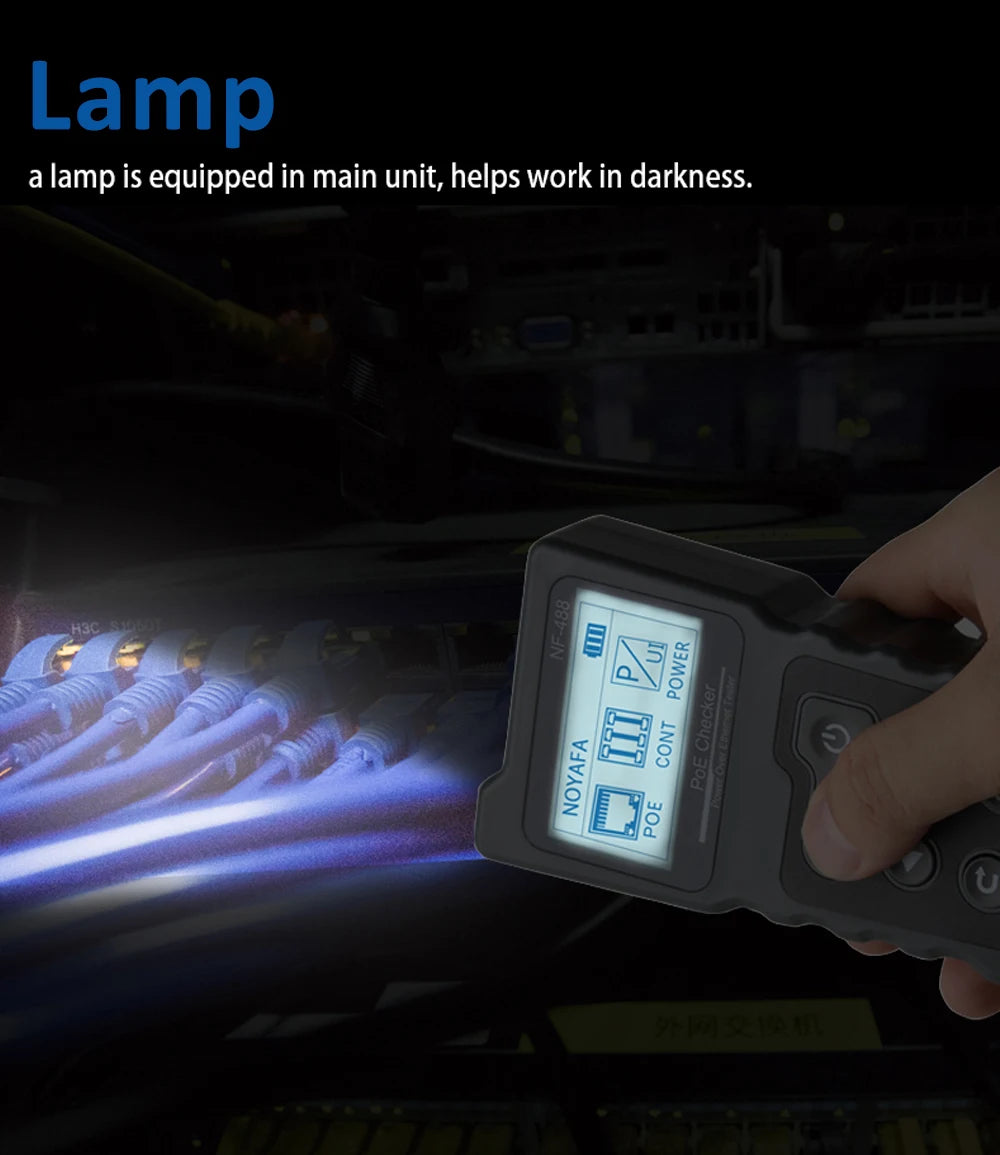

7. Lighting Function, convenient to work in dark environment.

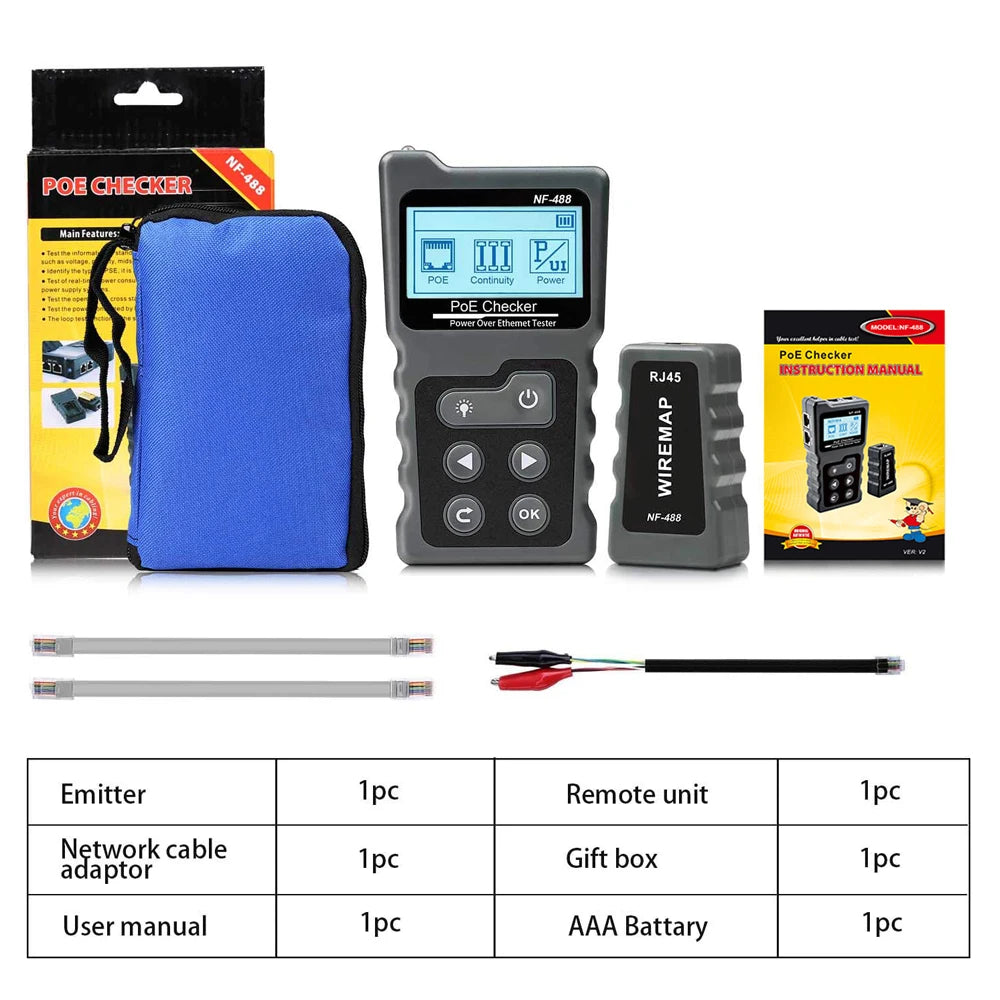

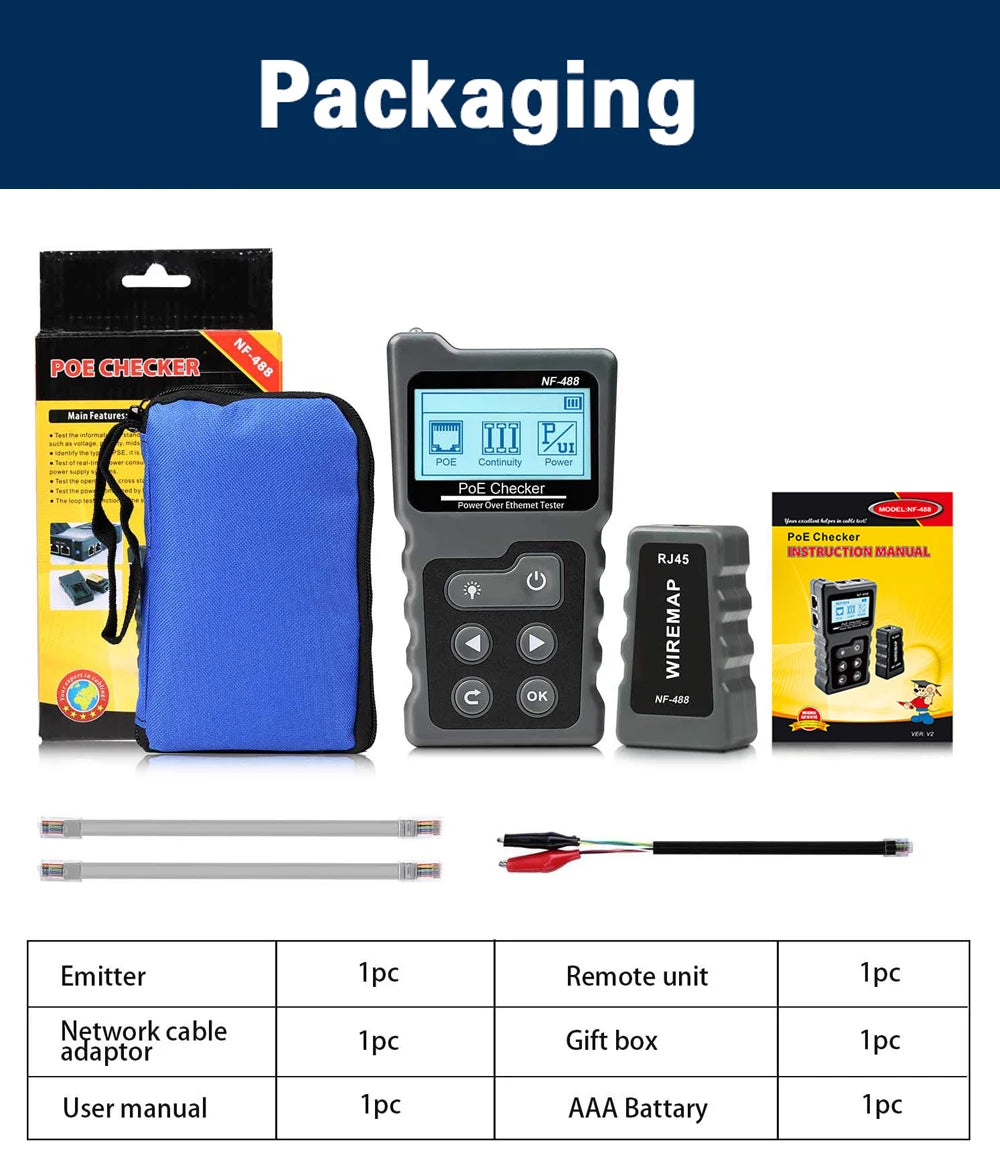

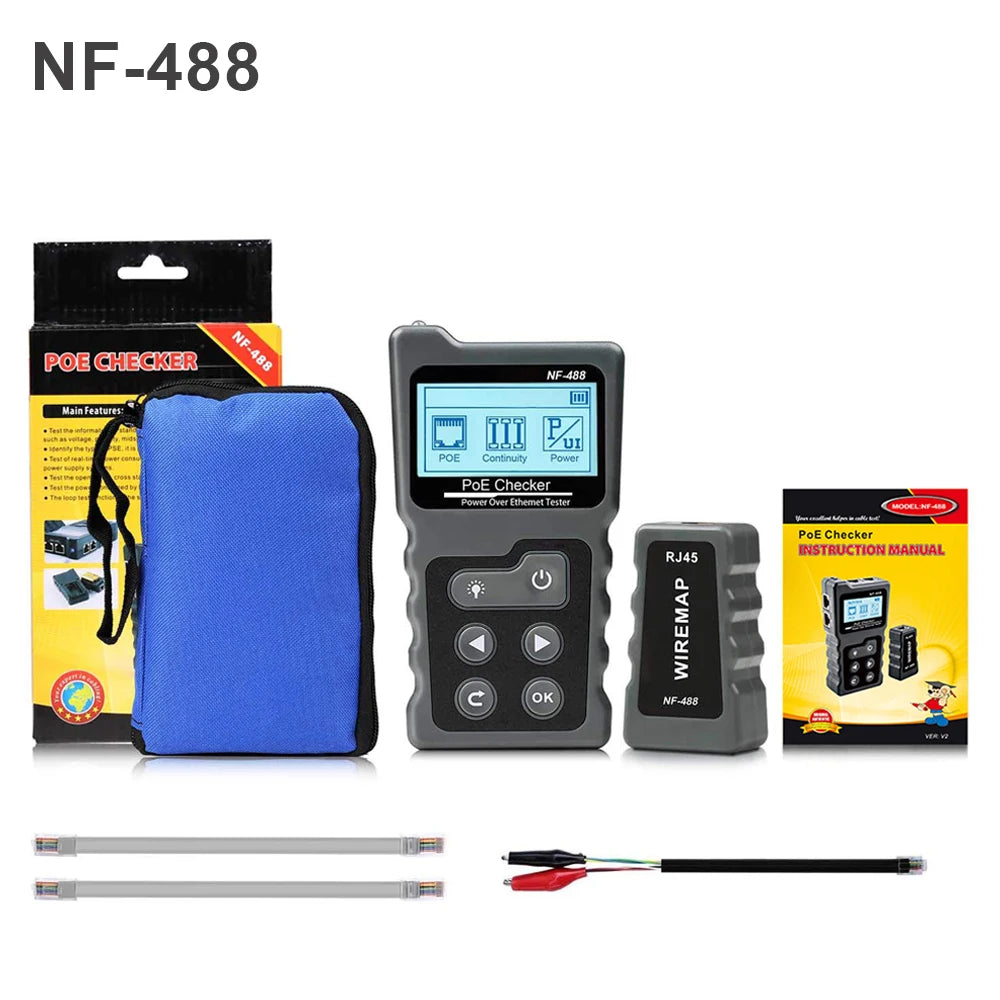

Package Include:
1Set x NF-488 Network Cable Tester
Please Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3mm differences due to manual measurement. If you have any questions, please contact us in time.
