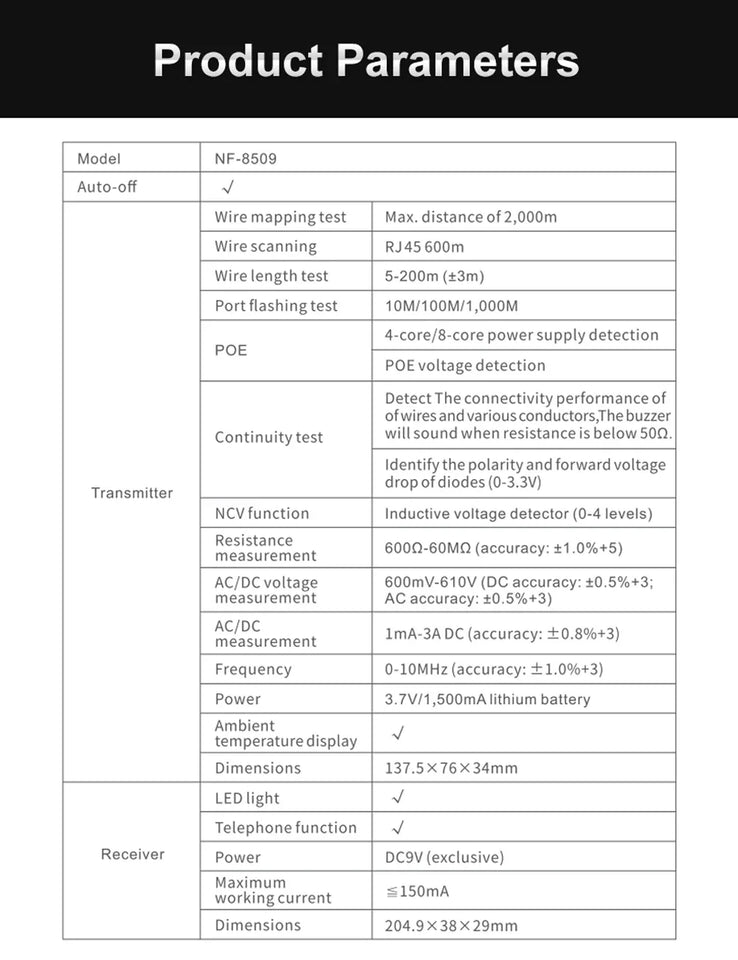

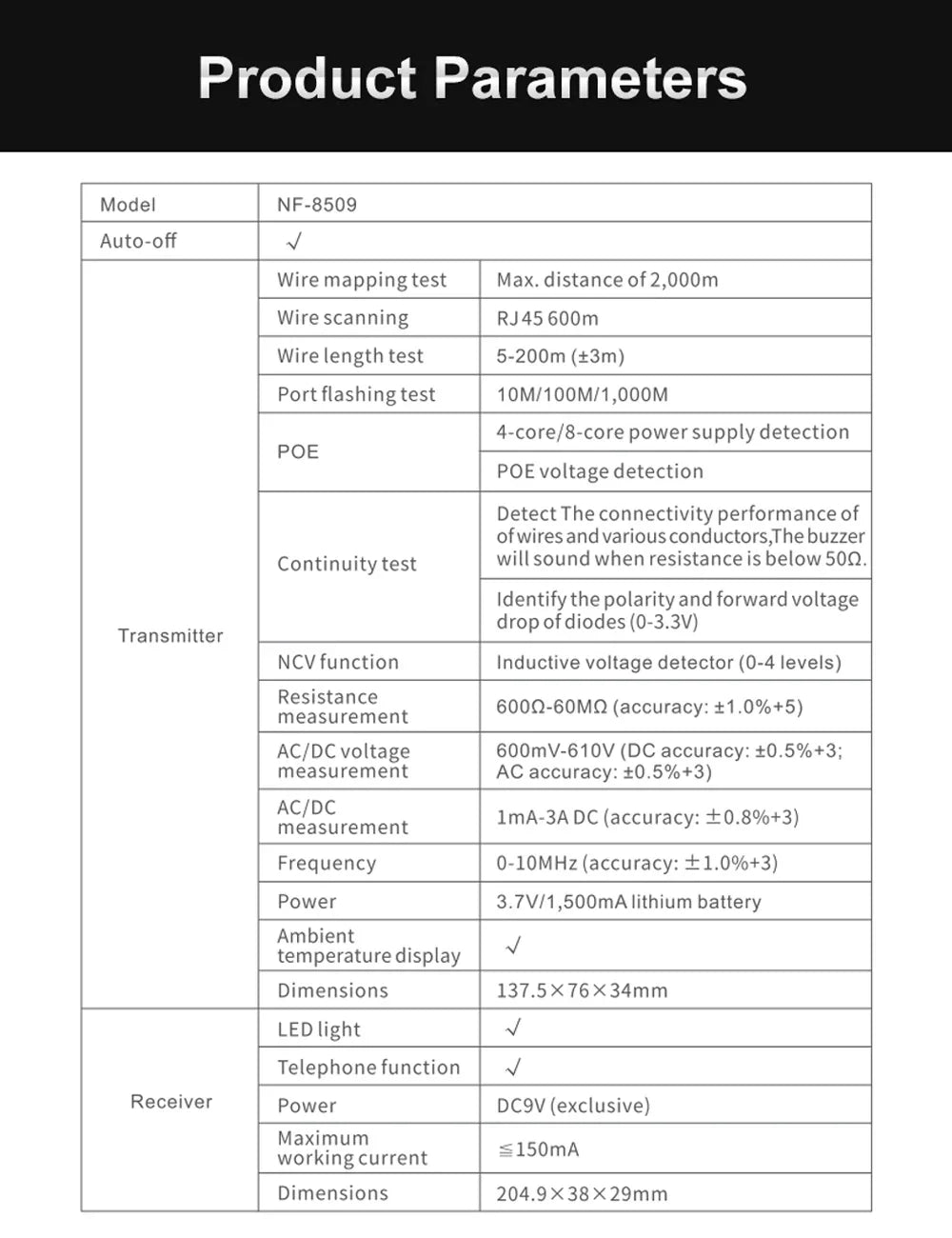

Product Description:

Brand: NOYAFA

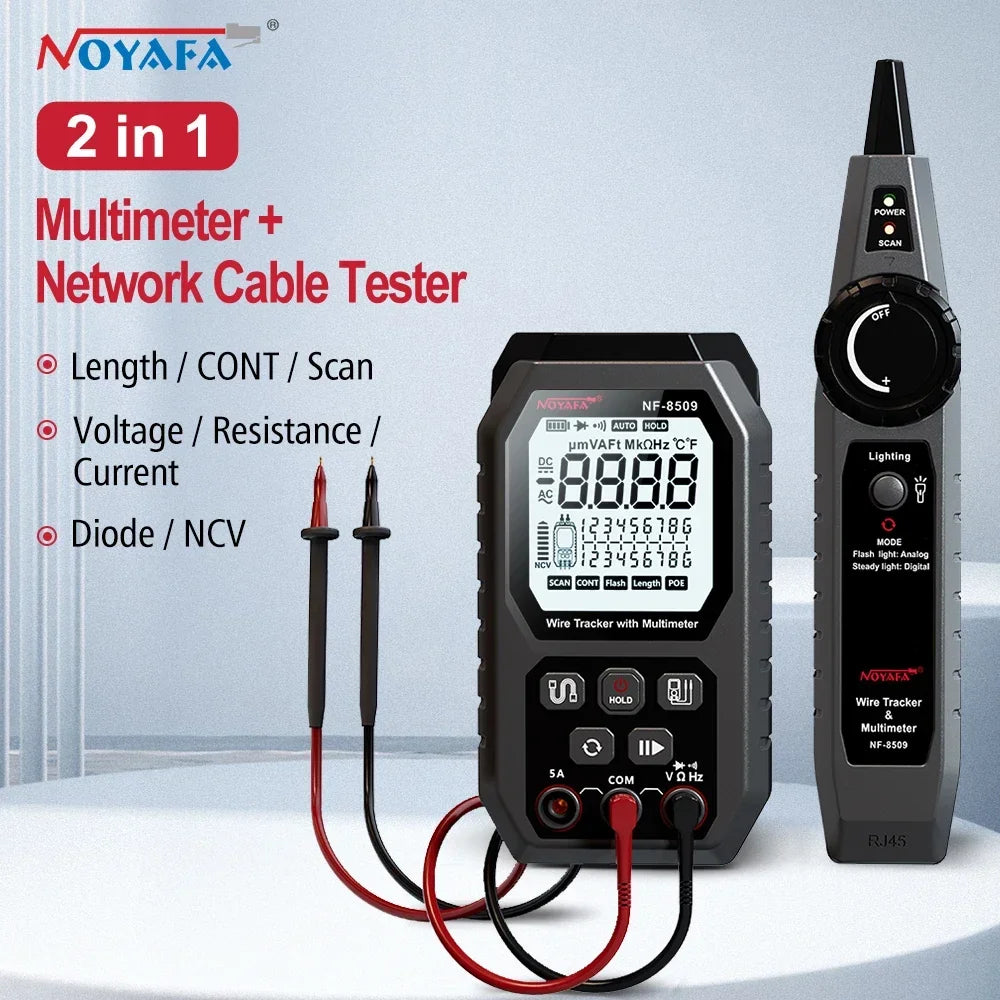

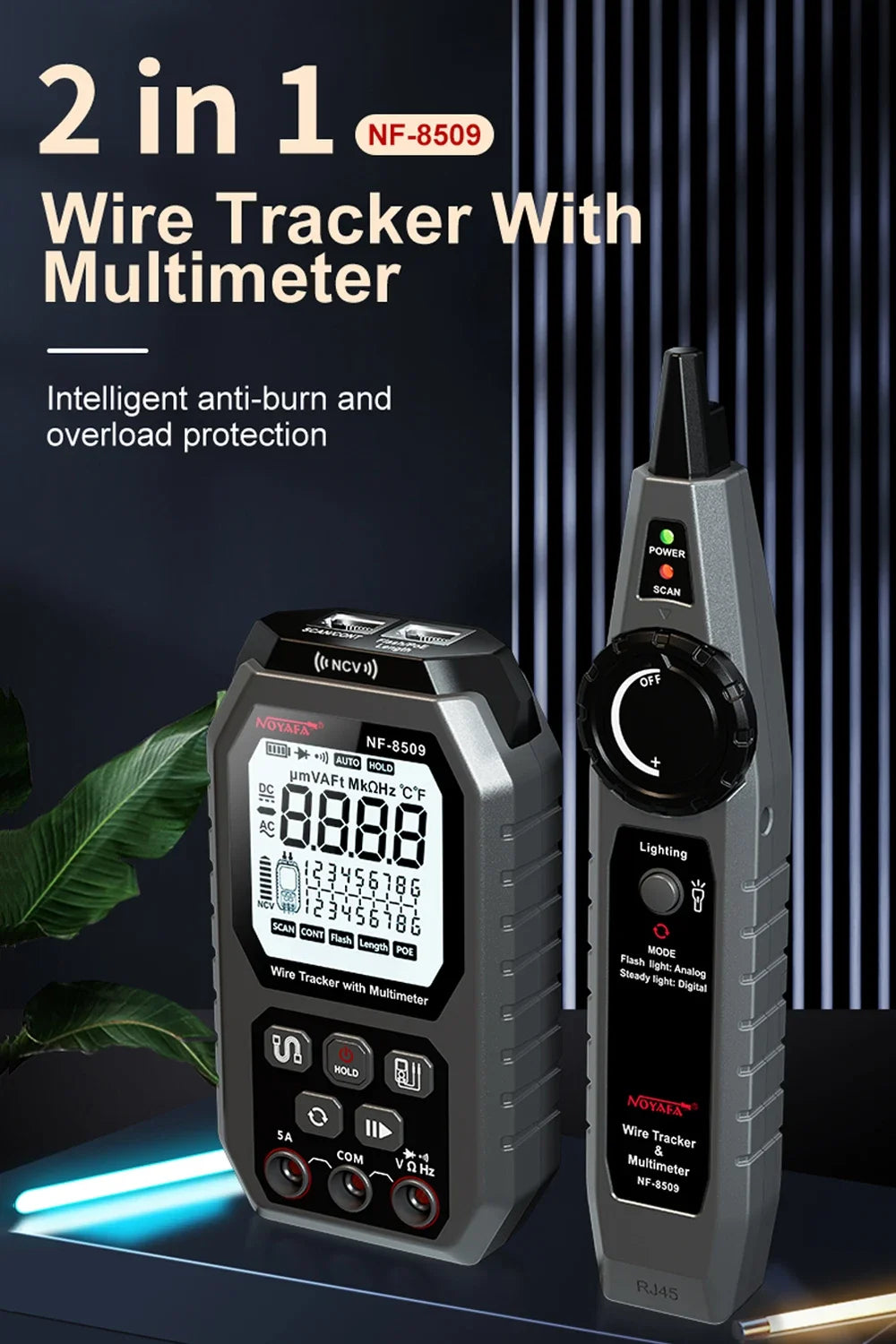

Product Name: Network Cable Tester + Multimeter

Type: NF-8509

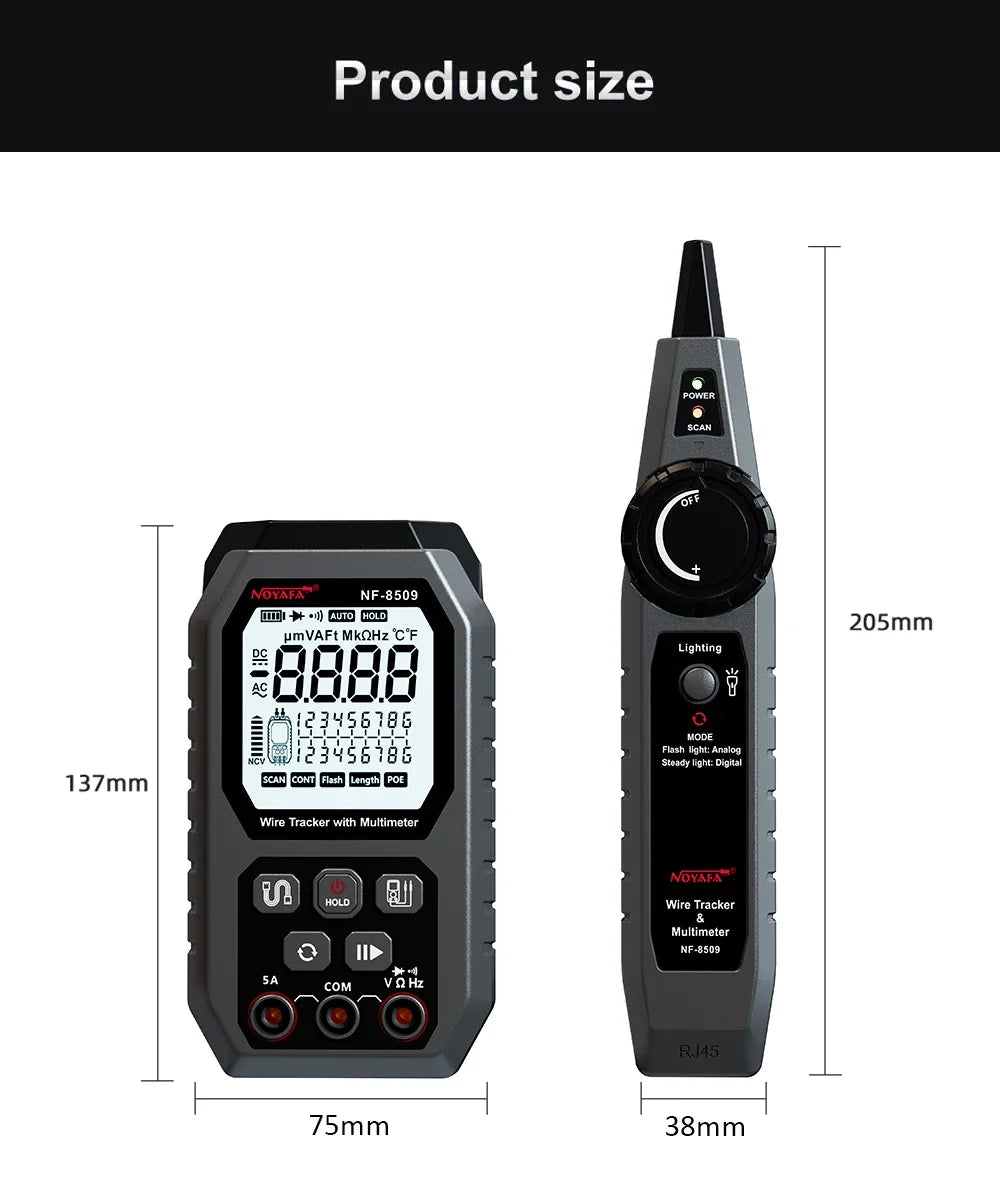

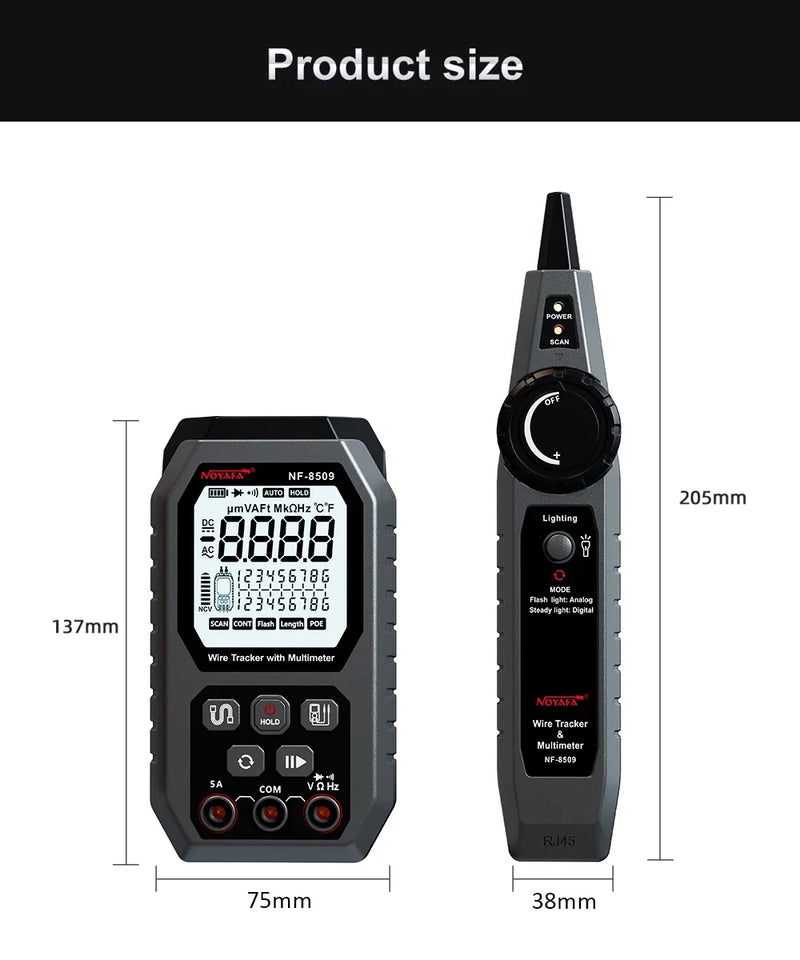

Dimension(LxWxD): 205x38x29mm, 138x76x34mm

Applicable Network Cable: CAT5, CAT6

Length Measurement Range: 5~200m(±3m)

Low Battery Reminder: Yes

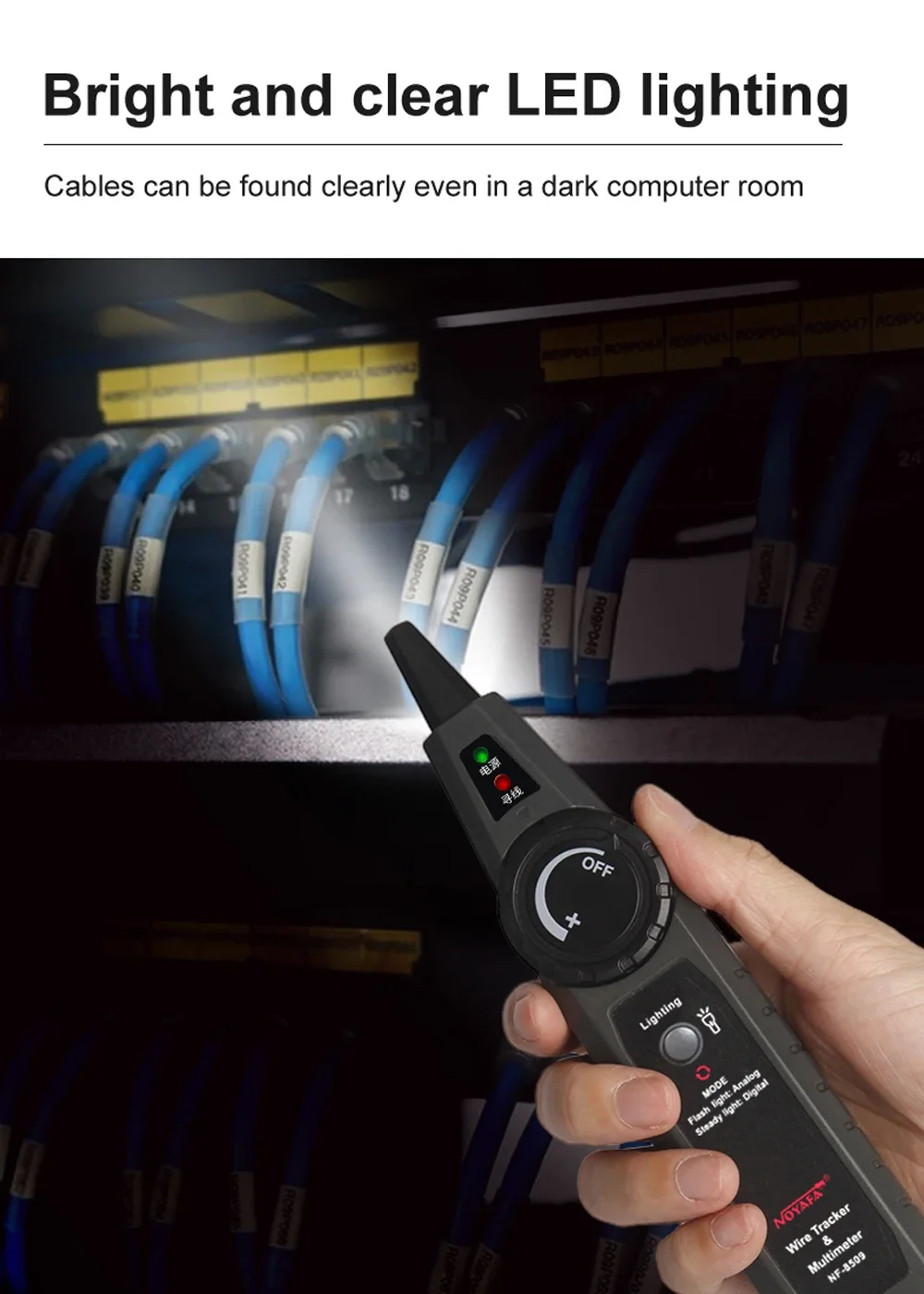

Lighting Function: Yes

Battery Type: 3.7V/1500mAh Lithium Battery(Transmitter)

Network Cable TesterFunction:

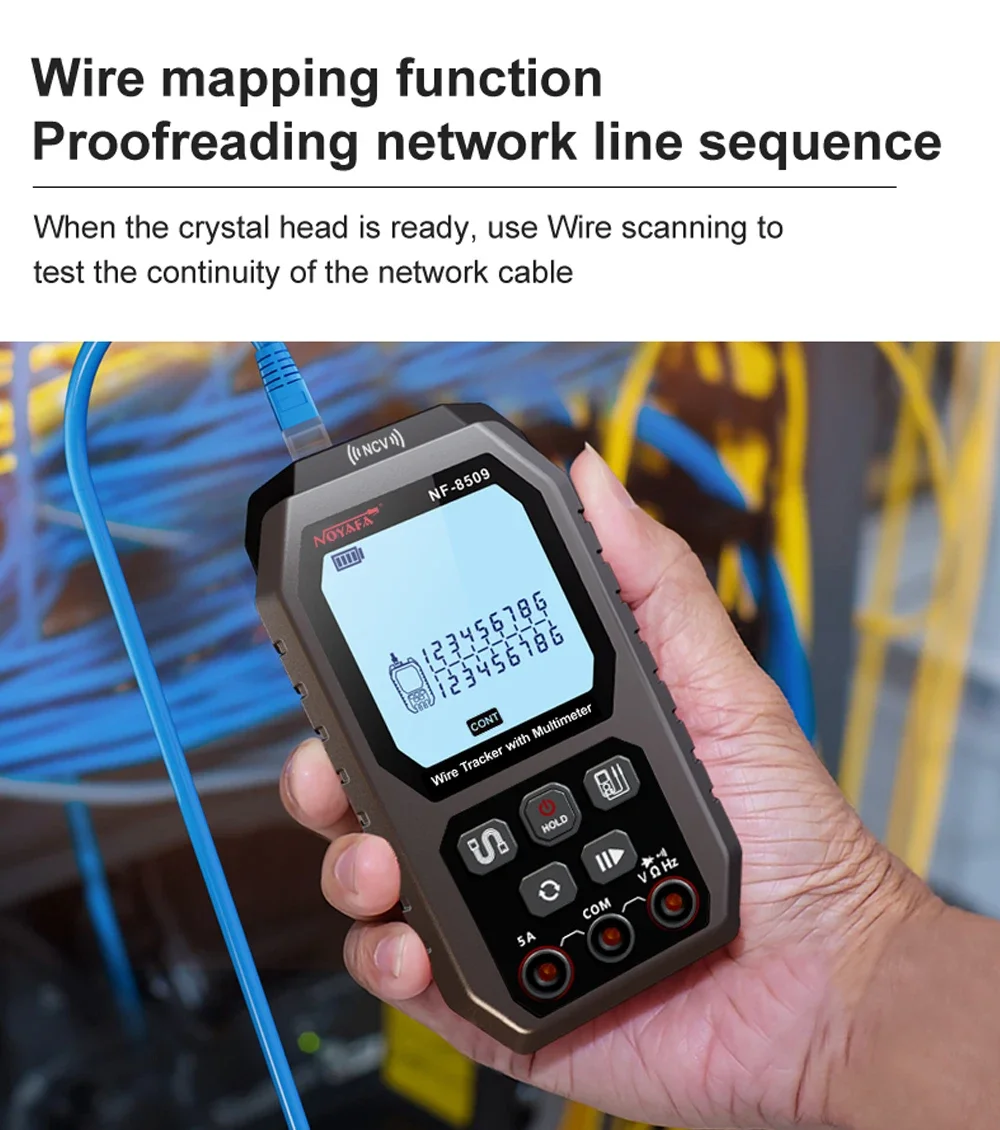

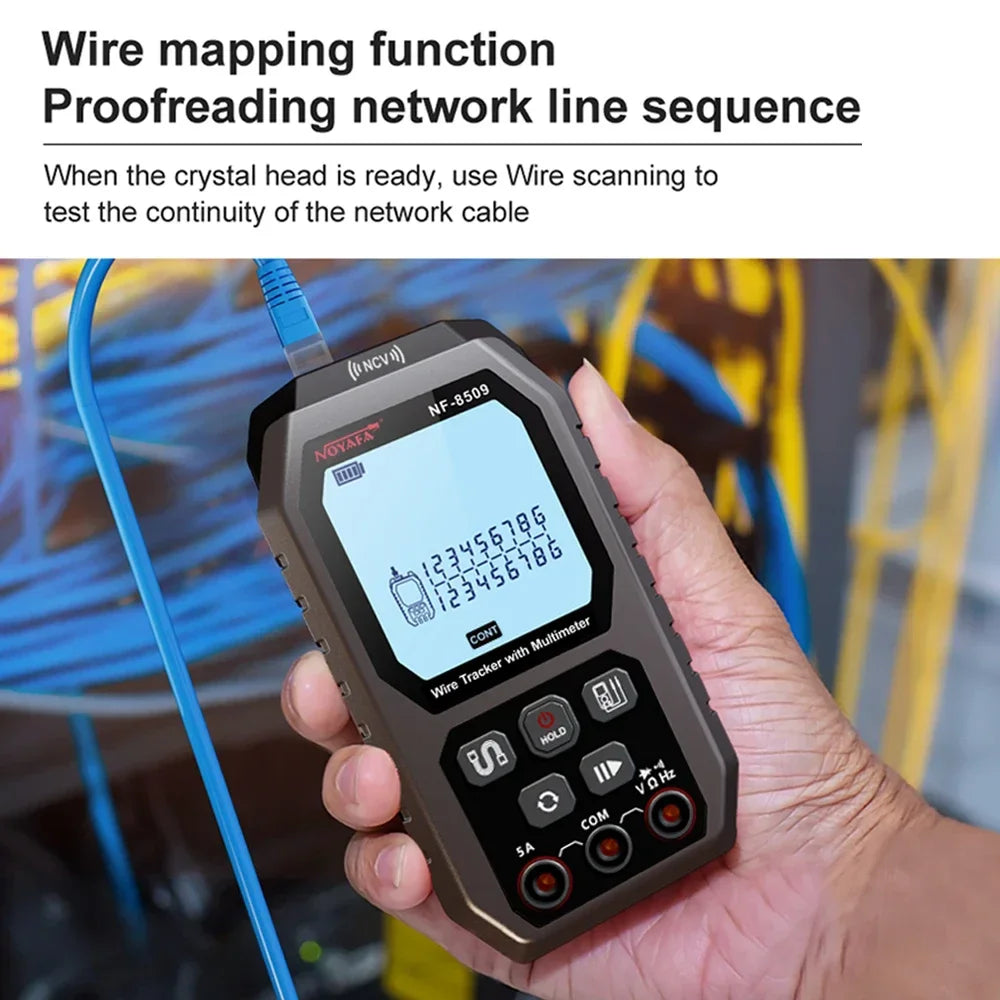

1. Line-to-line Test: Test the short circuit, open circuit, crossover, normal, etc. of the network cable. (≤2000m)

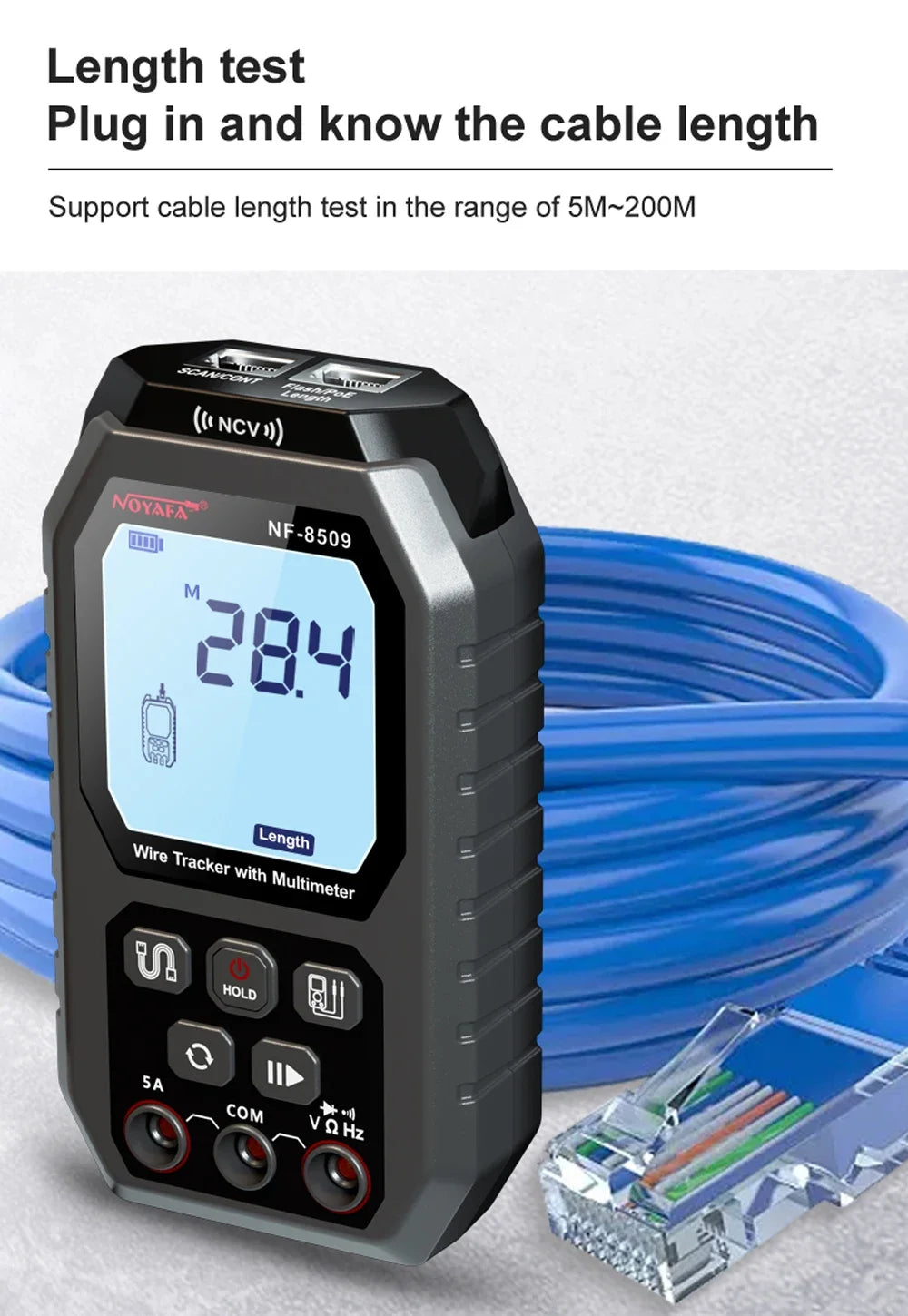

2. Length Test: Network cable length breakpoint test, no calibration required. (Note: The network cable cannot be powered on during length measurement, and cannot be connected to equipment and instruments. The length must be between 5 meters and 200 meters, otherwise the measurement data will be inaccurate)

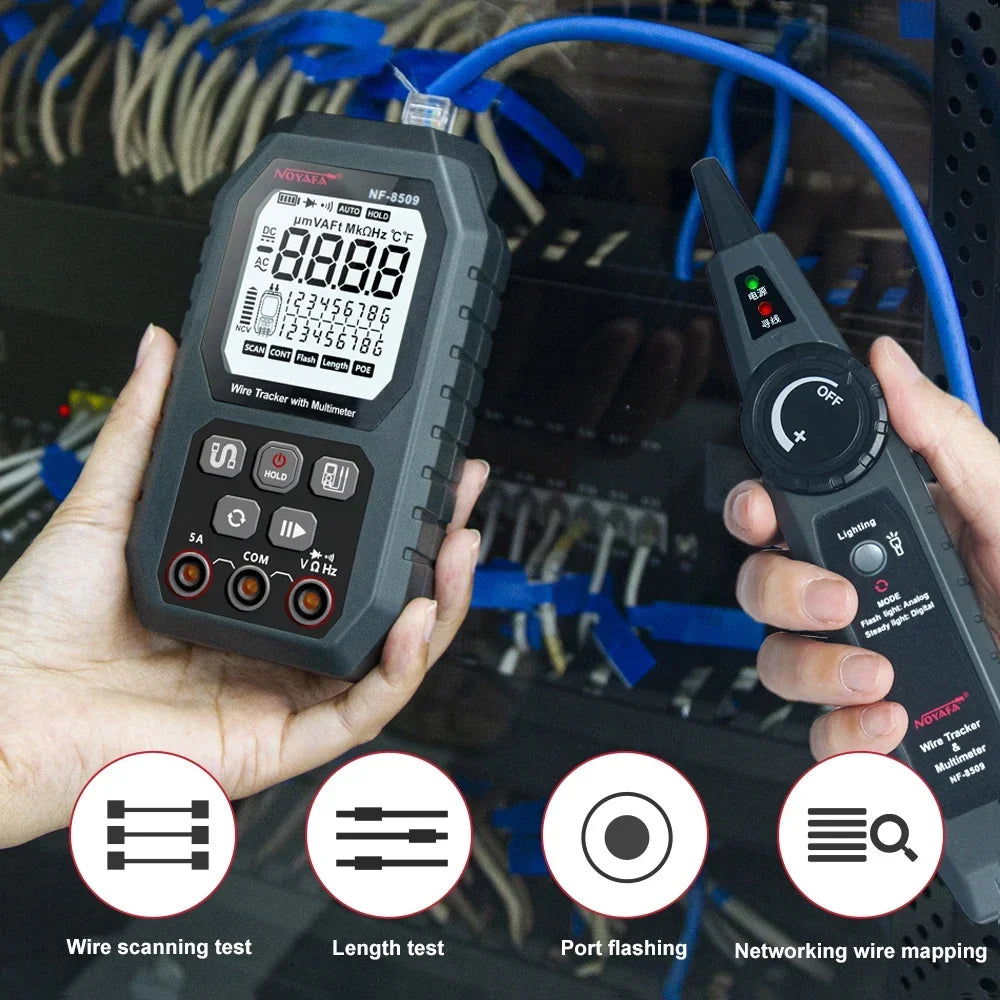

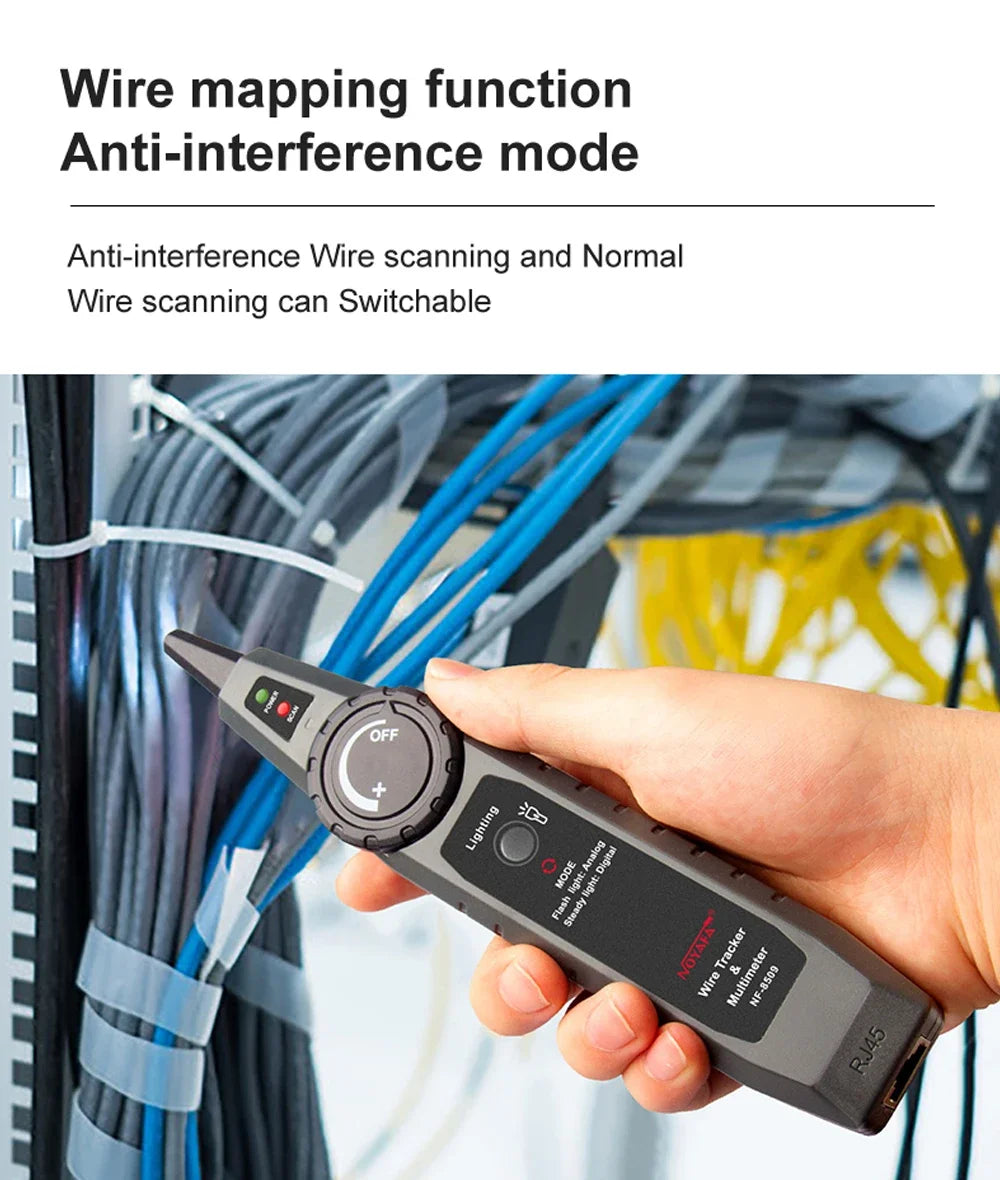

3. Line Hunting mode: Normal mode/Anti-jamming mode.

(1)The closer the receiver probe is to the target line, the stronger the signal and the louder the sound. The adjuster on the receiver is used to adjust the sensitivity when line hunting.

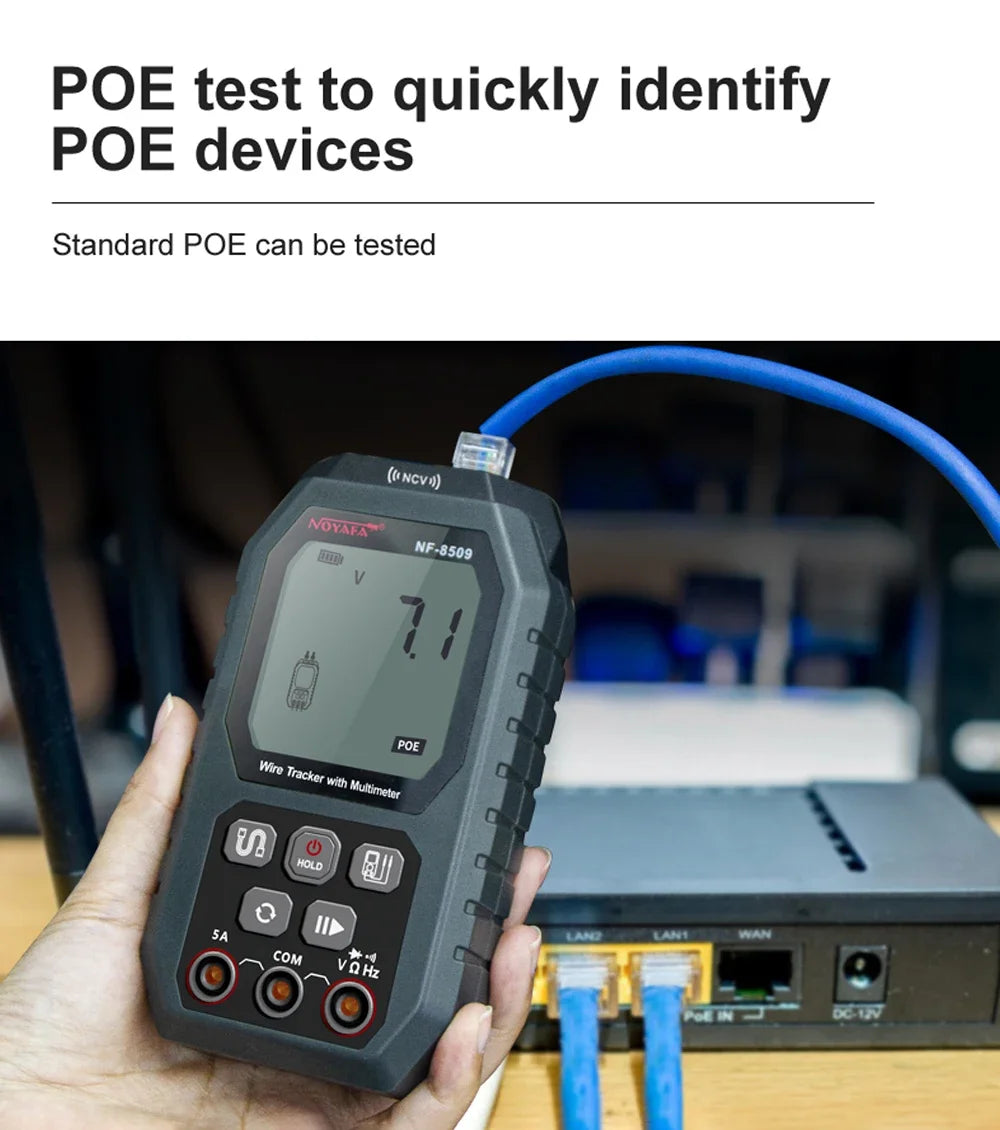

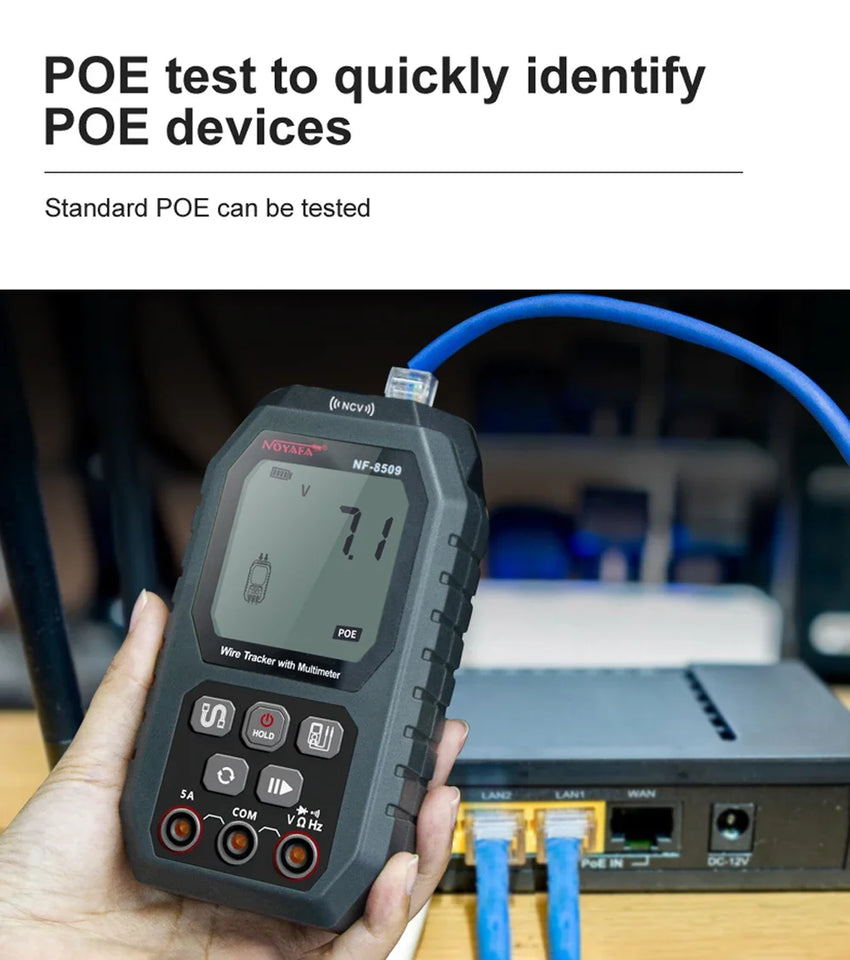

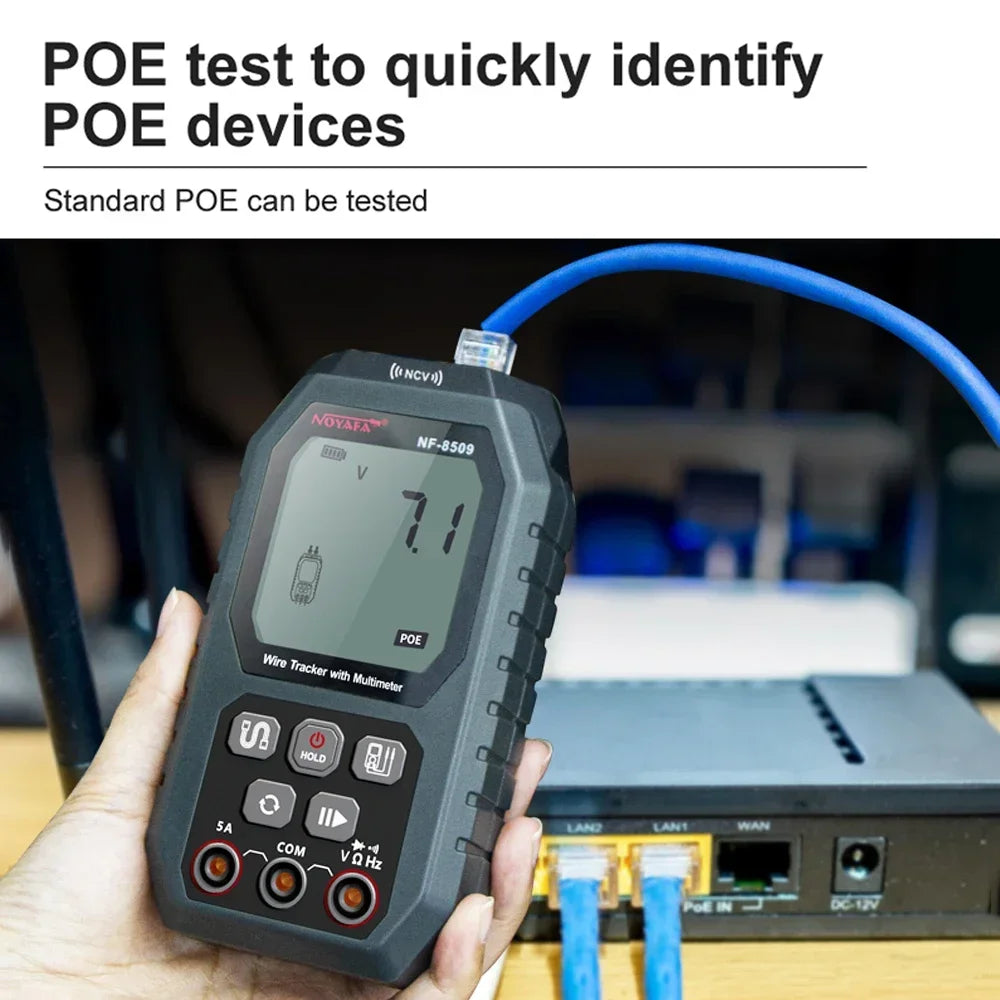

4. POE Test: Power supply wire core and power supply voltage detection, both standard and non-standard PoE can be tested.

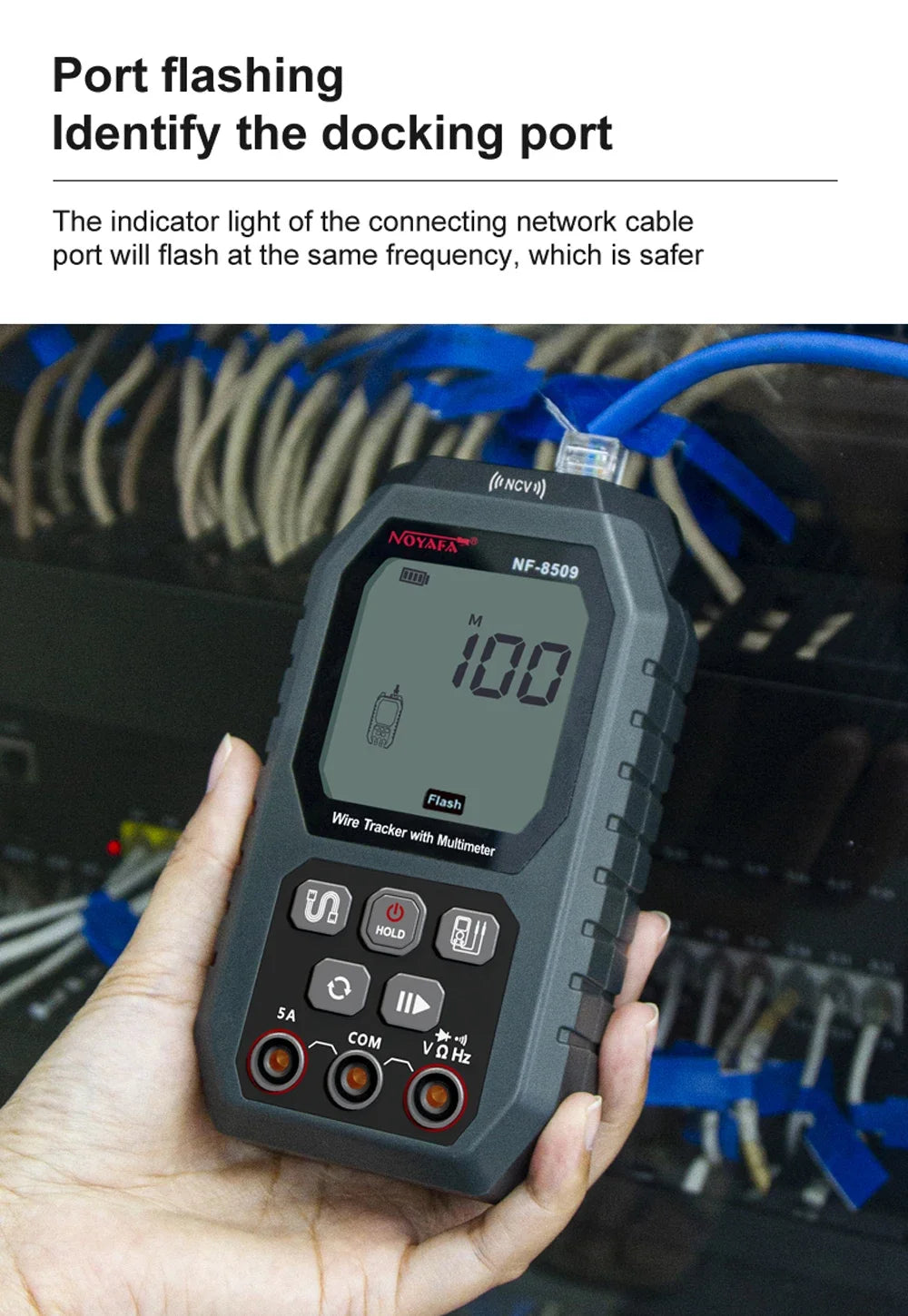

5. Port Flashing Function: Quickly find the network cable on the switch/router. (10/100/1000 trillion recognition)

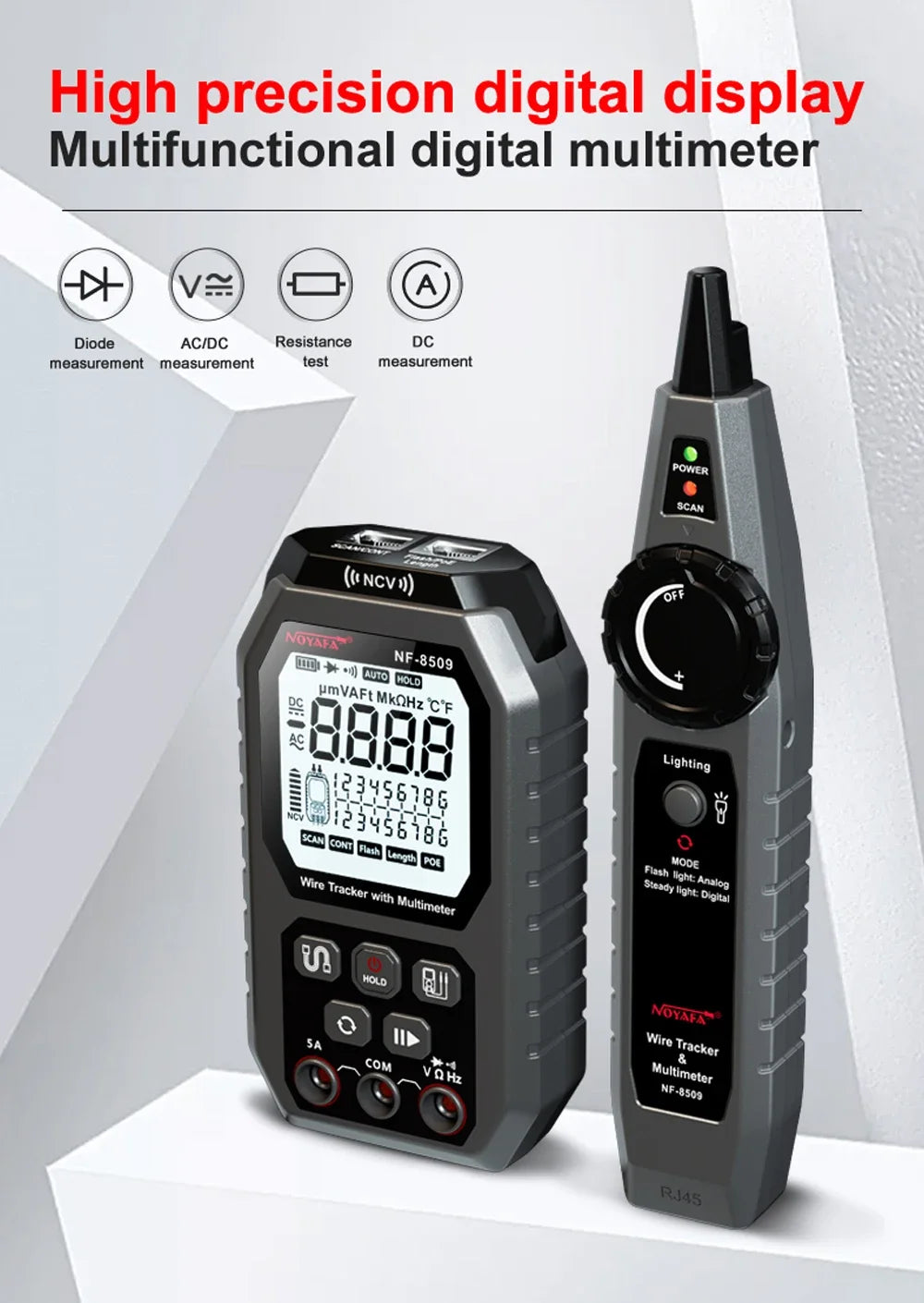

Multimeter(DMM) Function:

1. Frequency Measurement,

2. Diode/Interrupt Measurement,

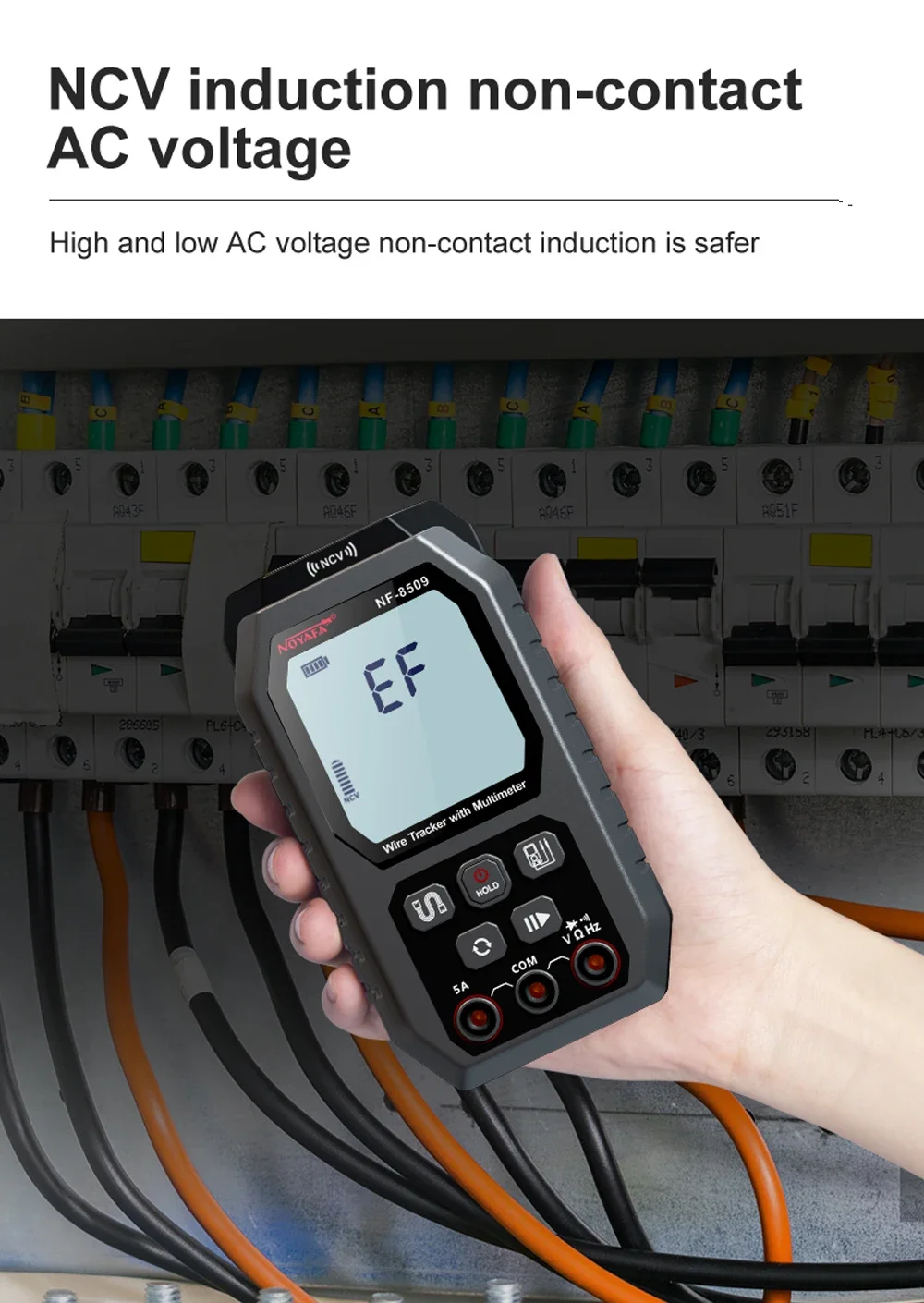

3. NCV Measurement: Induction-type electric pen (level 0-4)

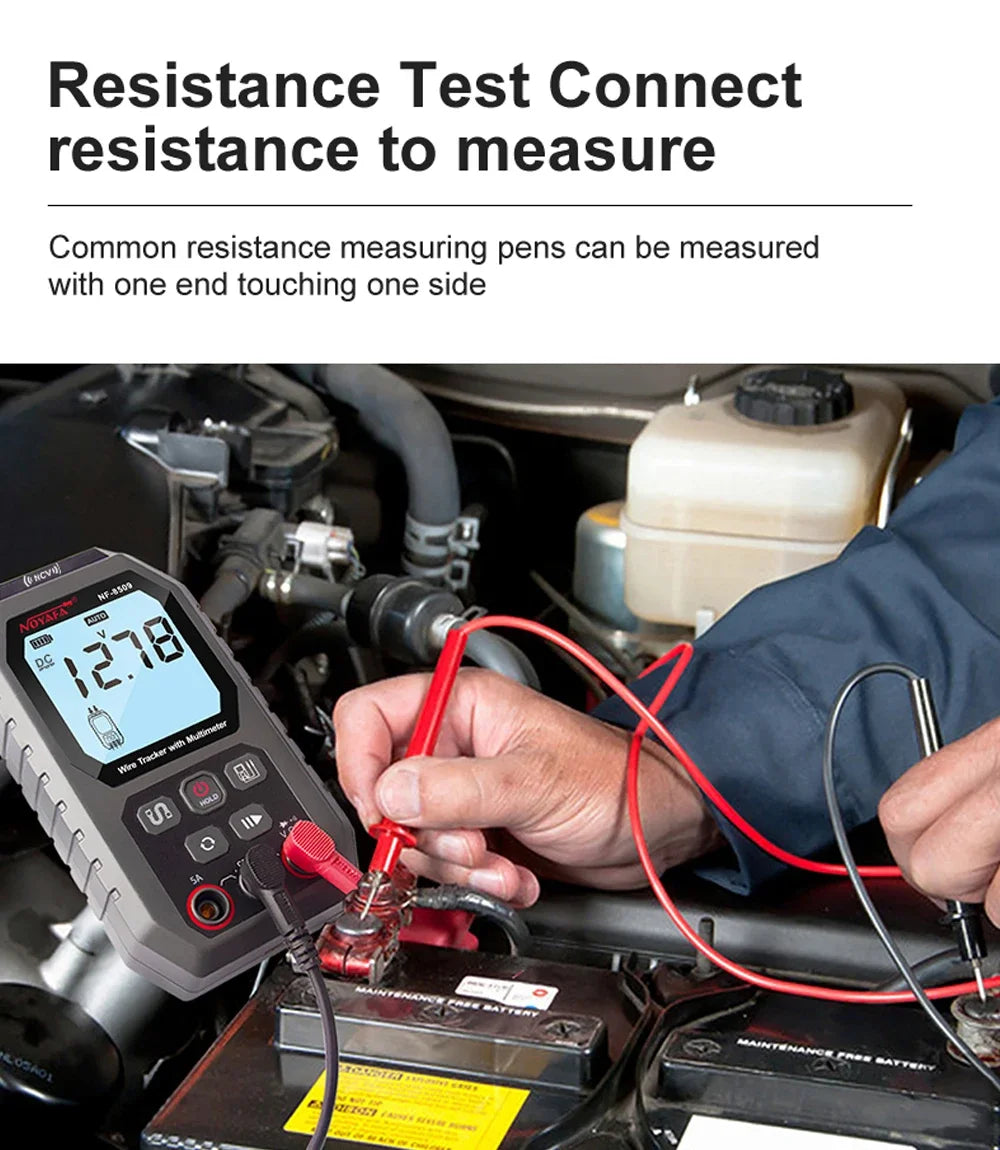

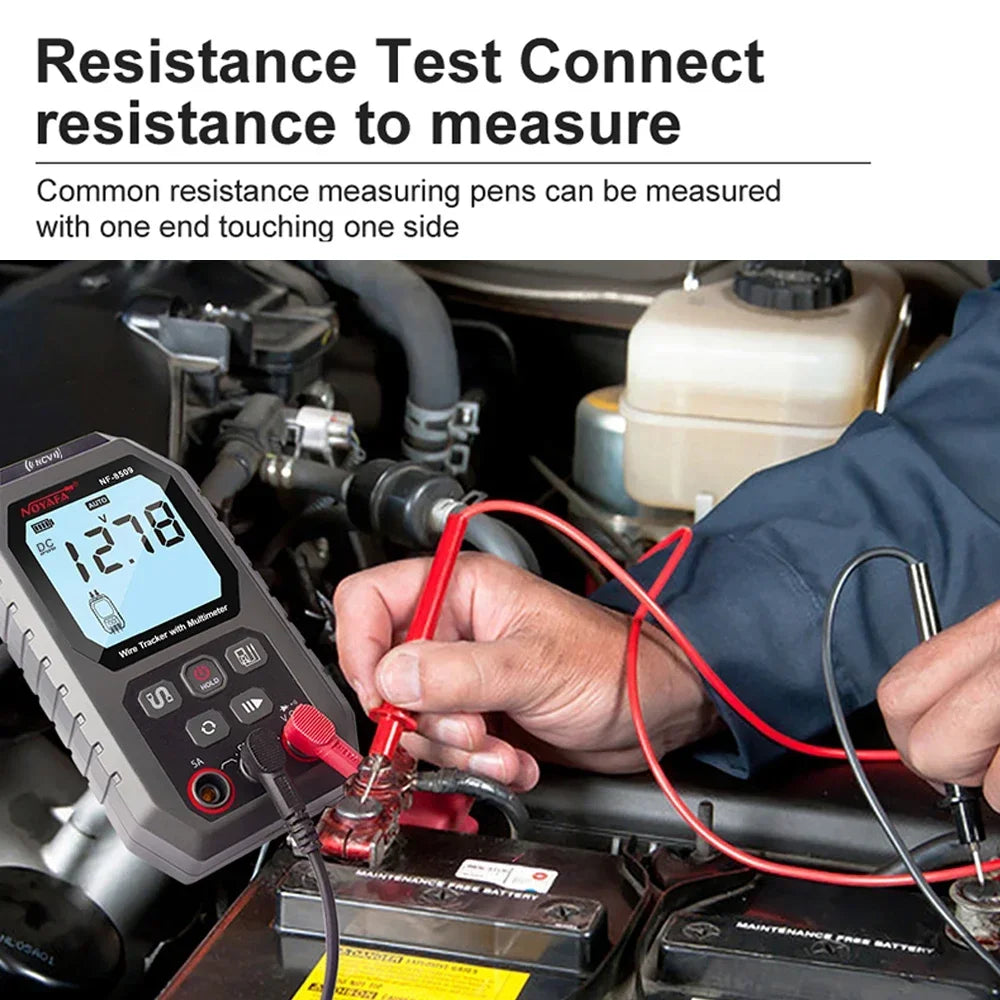

4. Resistance Measurement: 600Ω~60MΩ

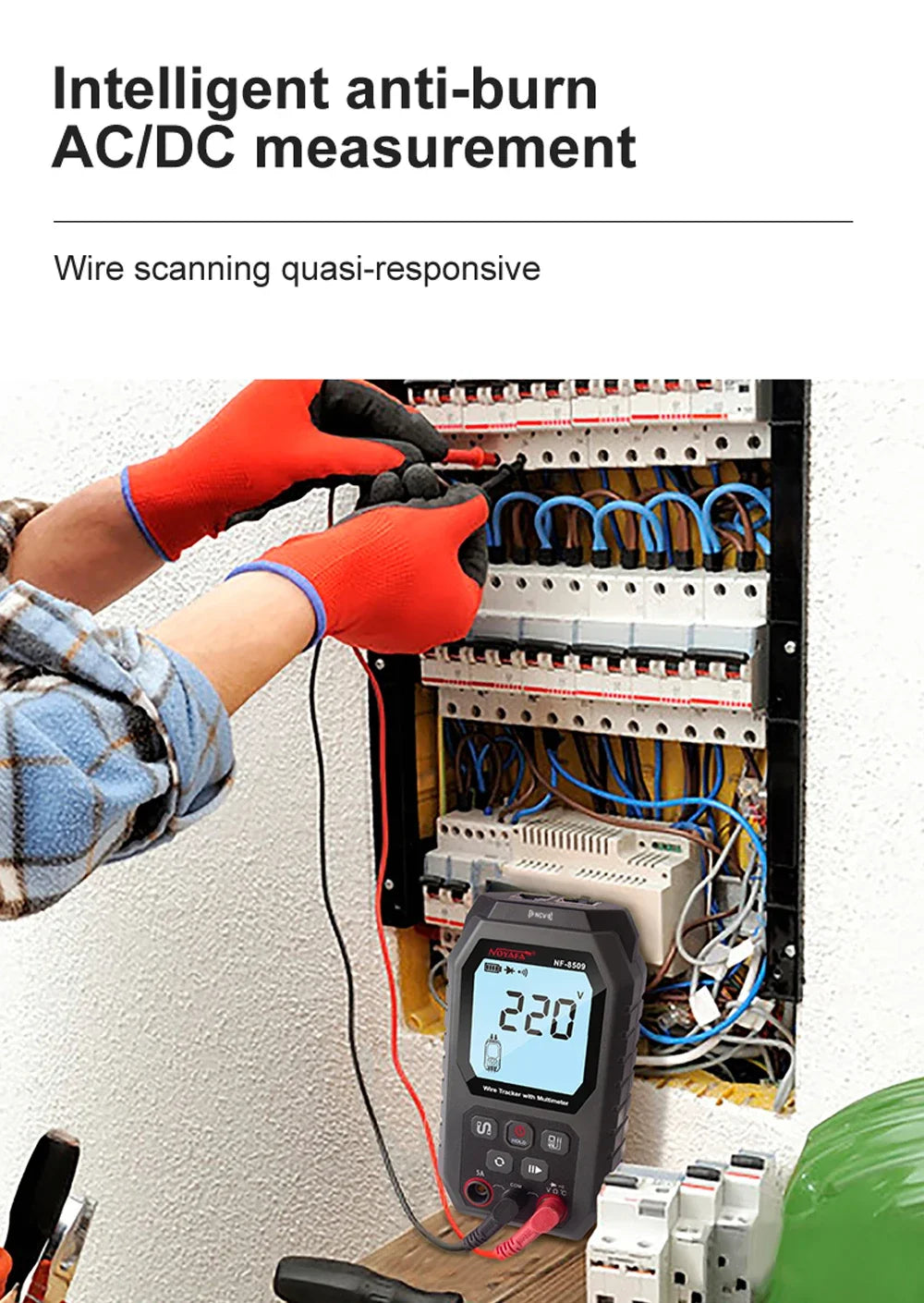

5. DC/AC Voltage Measurement: 600mV~610V

6. DC/AC Current Measurement: 1mA~3A

7. Ambient Temperature Test

Package Include:

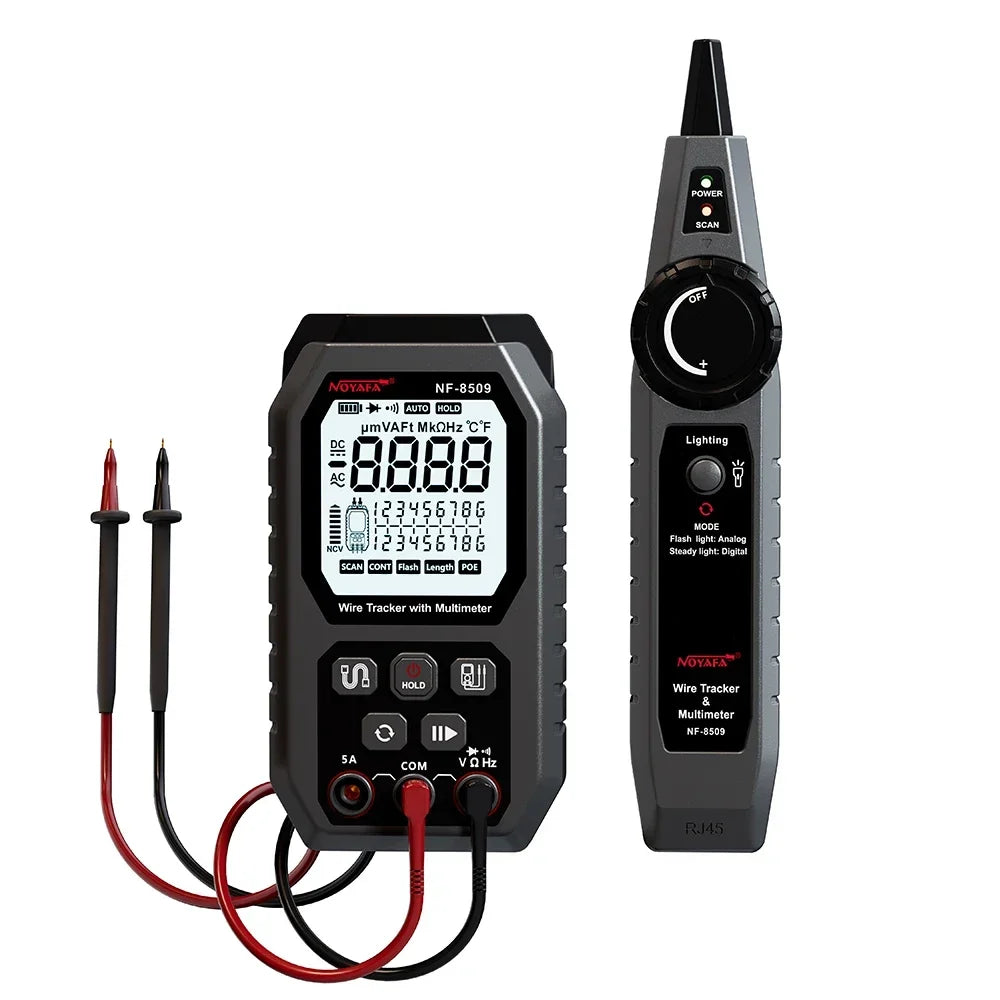

1Pcs x NF-8509 Cable Tester

1Pcs x RJ45 Adaptation Line

1Pcs x Test Pen

1Pcs x Earphone & Type-C Data Cable

1Pcs x Product Manual

1Pcs x Toolkit & Packing Box

Please Note:

1.DC/AC Current Measurement (Not prevent burning, because there will be a current choice of current during current measurement, 8509 has no gear selection, but there will be a choice of jack position. If you insert the wrong position, the instrument will be burn out.)
