SPECIFICATIONS

Brand Name: SENSKY

Certification: RoHS,CE,ce,ROHS

Choice: yes

Current: 5A

Detection Distance: 6-9m (<27℃)

Detection Range: ≤150°

Features: PIR Motion Sensor

Incandescent/Halogen: 1100W / 220VAC Min.3W

Is Smart Device: No

Item Type: SWITCHES

LED lighting: 300W/220VAC Min.3w

Light sensor: Default 25Lux(±10Lux), 15Lux, 35Lux, optional

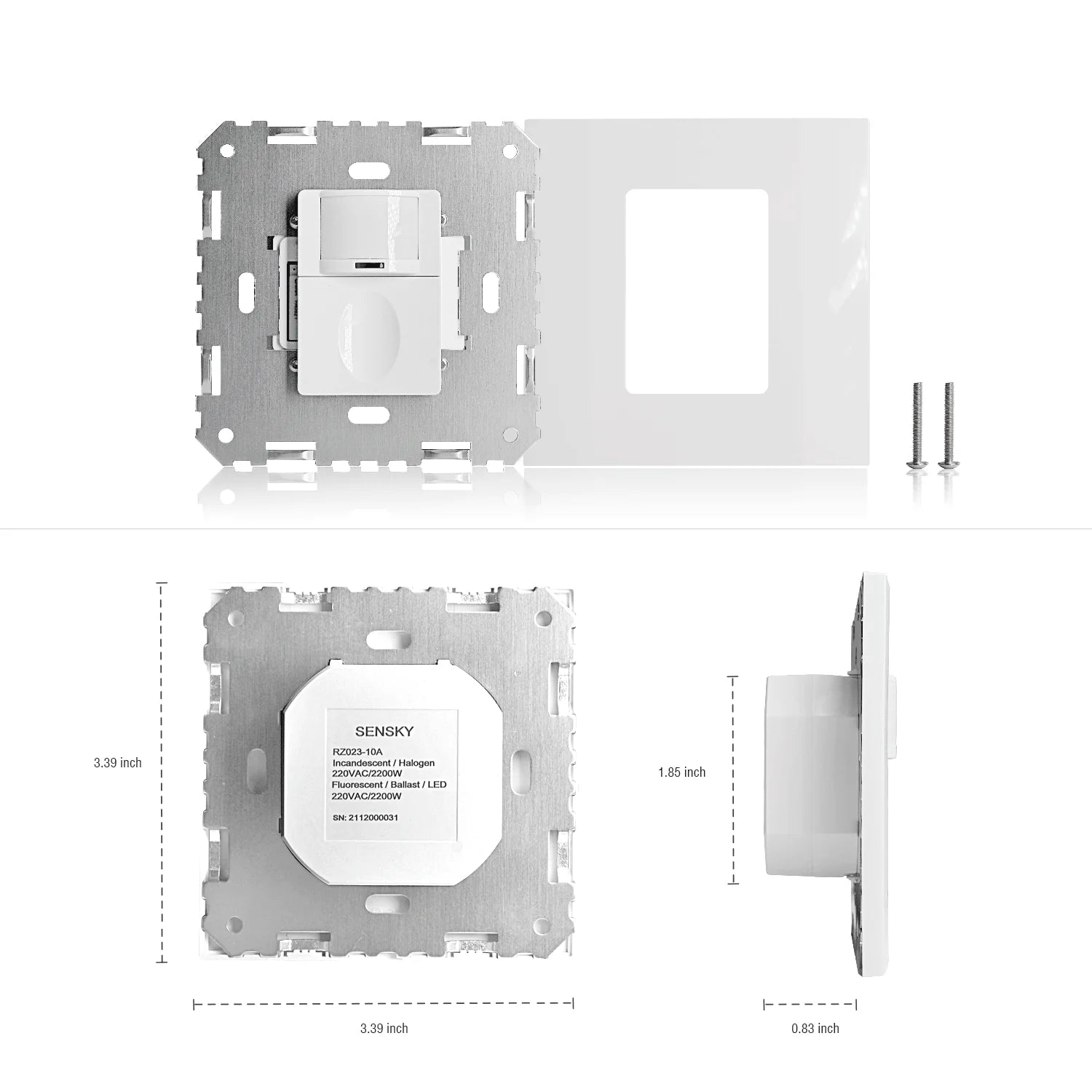

Material: Aluminium alloy

Model: No Neutral & No Ground, 5A,Neutral Wire Required, 5A

Model Number: RZ023

Origin: Mainland China

Power Frequency: 50/60Hz

Power Source: 100VAC~265VAC

Switch Type: Sensor Switch

Time-Delay: Default 1min(15secs,1min,3mins,5mins,15mins,30mins adjustable)

Warranty: 3 month

Product Instruction

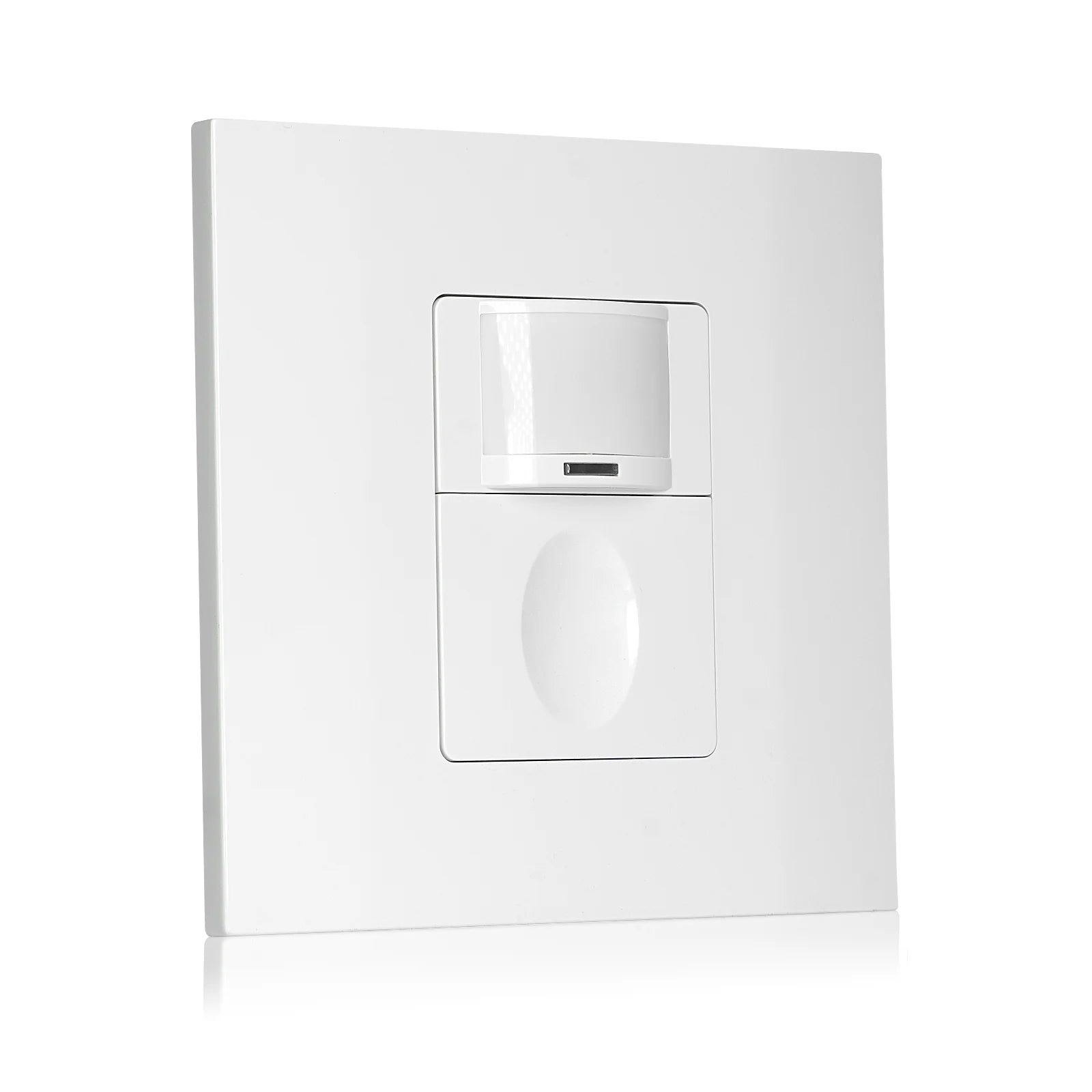

Motion sensor switch (No Neutral & No Ground, 5A). it is a 2-wire switch and No neutral or Ground wire is required for functioning. This switch is perfect for old houses with only Live and Load wires in the wall box UK standard.

It uses advanced passive infrared sensors(PIR)and MCU control technology to detect motion, automatically turning lights on and off. The switch offers easy and accurate adjustment of the Time Delay Detection Range,Light Sensor value and Operating Mode Occupancy/Vacancy/On-Off), making it simple to customize for any setting.

With improved stability compared to traditional motion sensors the RZ023-5A-S provides a reliable energy-efficient and cost-effective lighting solution for homes offices and commercial spaces.

SPECIFICATION

• Model: No Neutral & No Ground, 5A  and  Neutral Wire Required, 5A

• Power Source:100VAC~265VAC

• Power Frequency:50/60Hz

• Detection Range:≤150°

• Detection Distance: 6-9m (<27℃)

• Light sensor : Default 25Lux(±10Lux), 15Lux, 35Lux, optional.

• Time-Delay: Default 1min(15secs,1min,3mins,5mins,15mins,30mins adjustable)

• Incandescent/Halogen: 1100W / 220VAC Min.3W

• LED lighting: 300W/220VAC Min.3w

• Working Humidity:< 93%RH

• Installation Height: 1.2m~1.6m

• Motion Detection Speed: 0.6~1.5m/s

• Working Temperature: -20~+40℃

Features & Benefits

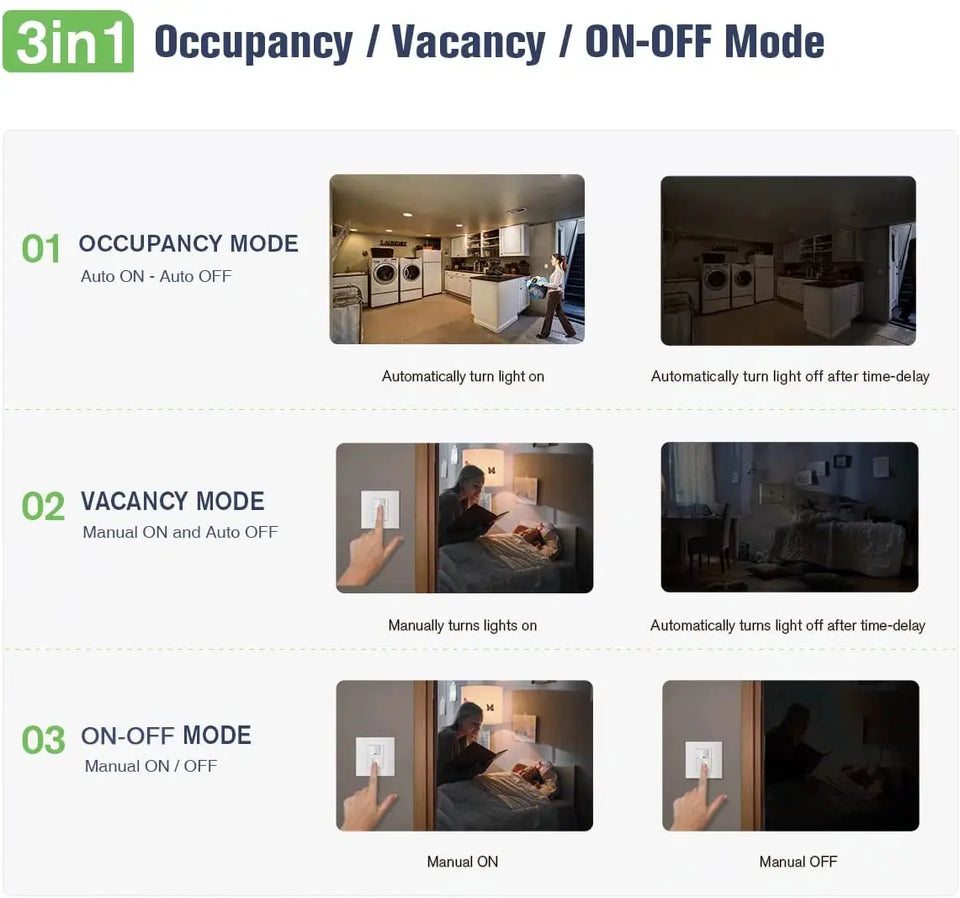

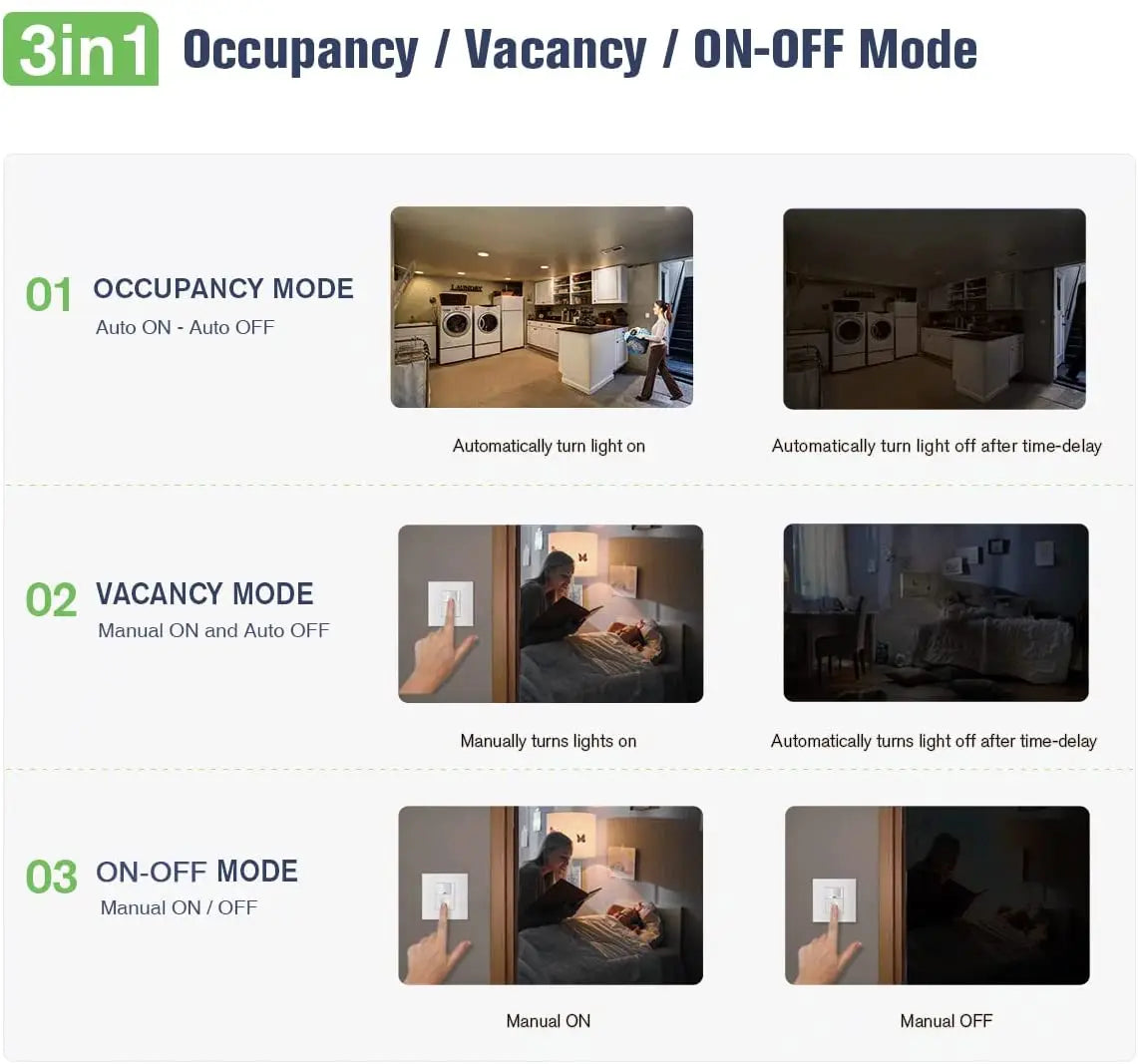

• Occupancy, Vacancy, Manual ON/OFF mode 3 in 1

• Exclusive ON/OFF mode allows the sensor switch to work the same as a standard light switch

• Time delay options: 15s, 1 min, 3 mins, 5 mins, 15 mins, 30 mins

• Enable ambient light sensor to keep lights off when there is ample natural light

• Low and high sensitivity adjustable

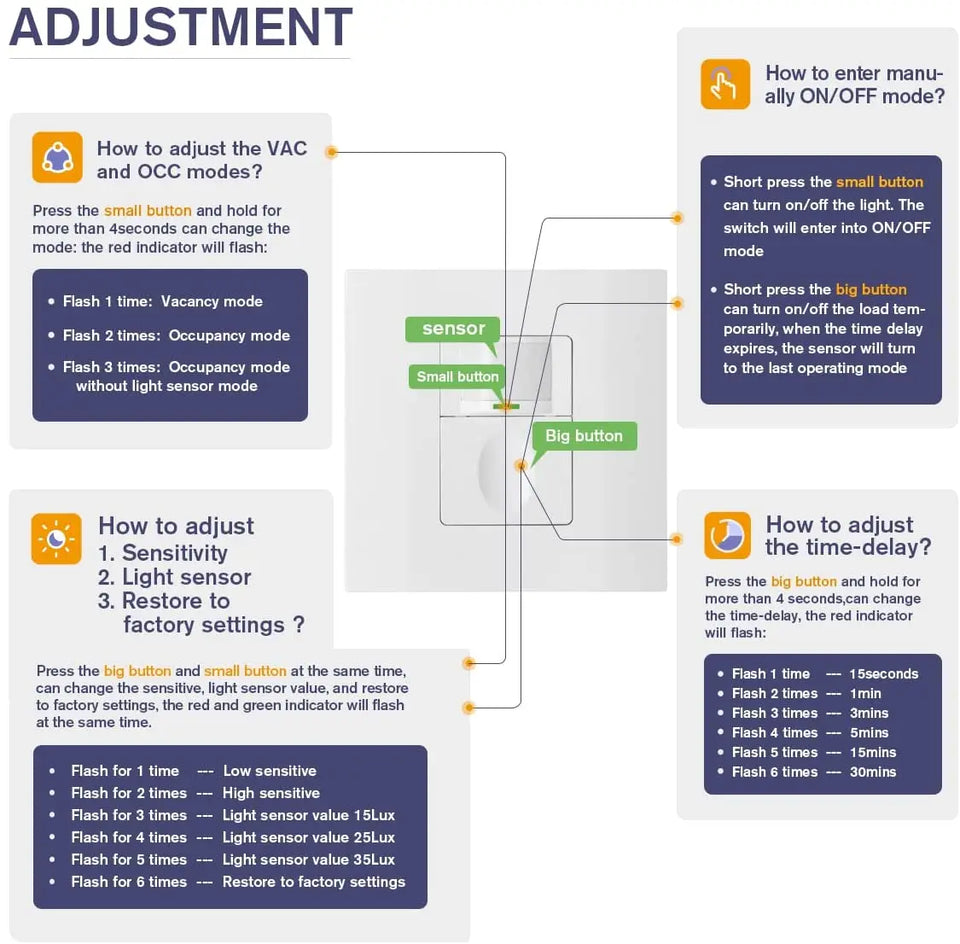

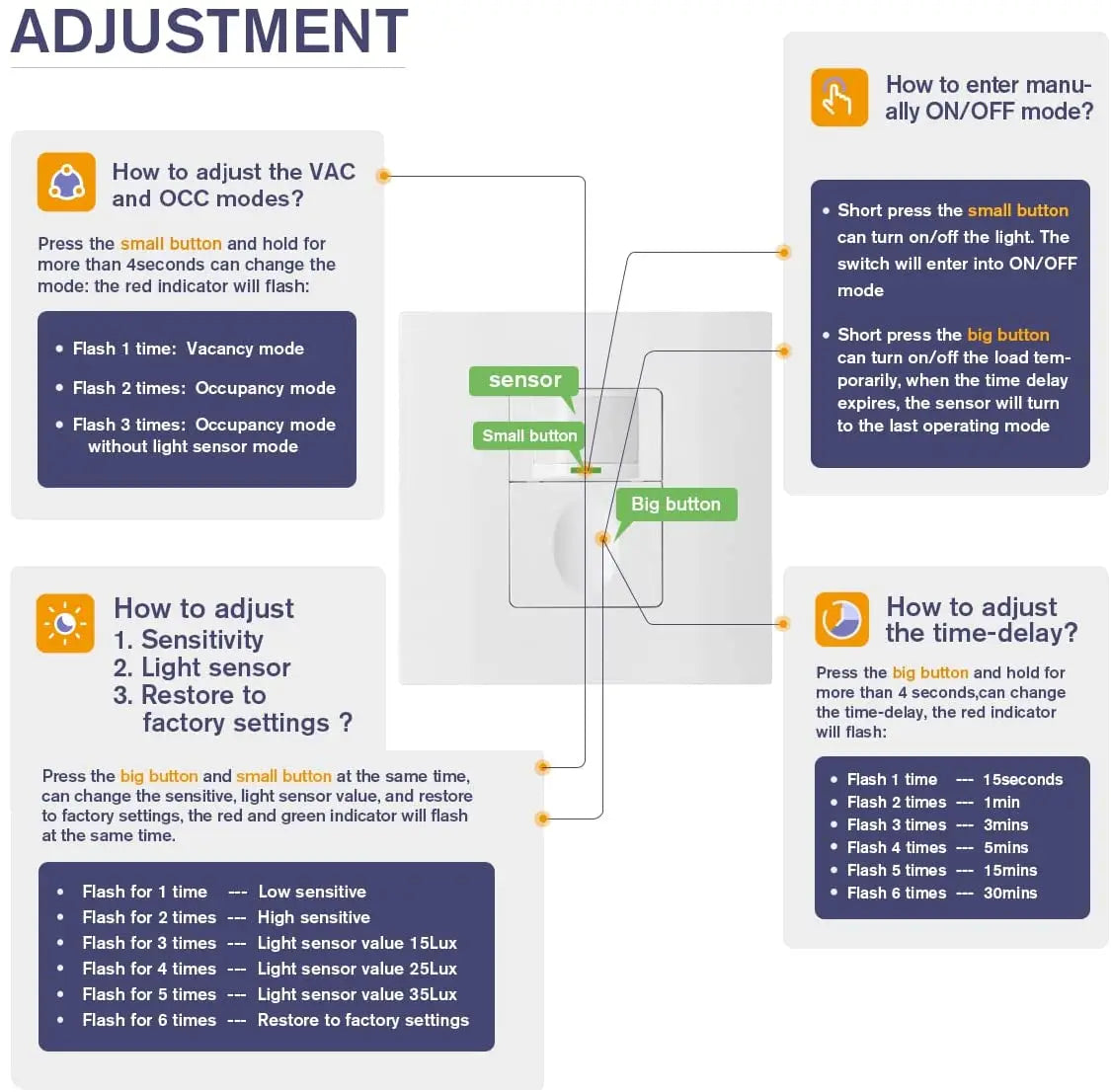

• Adjust settings by tapping buttons without removing the switch plate

• Magnetic latching relay provides better performance

• Made of fire-resistant materials for your safety

Note

• Please read all User's Manual before proceeding and retain for future use.

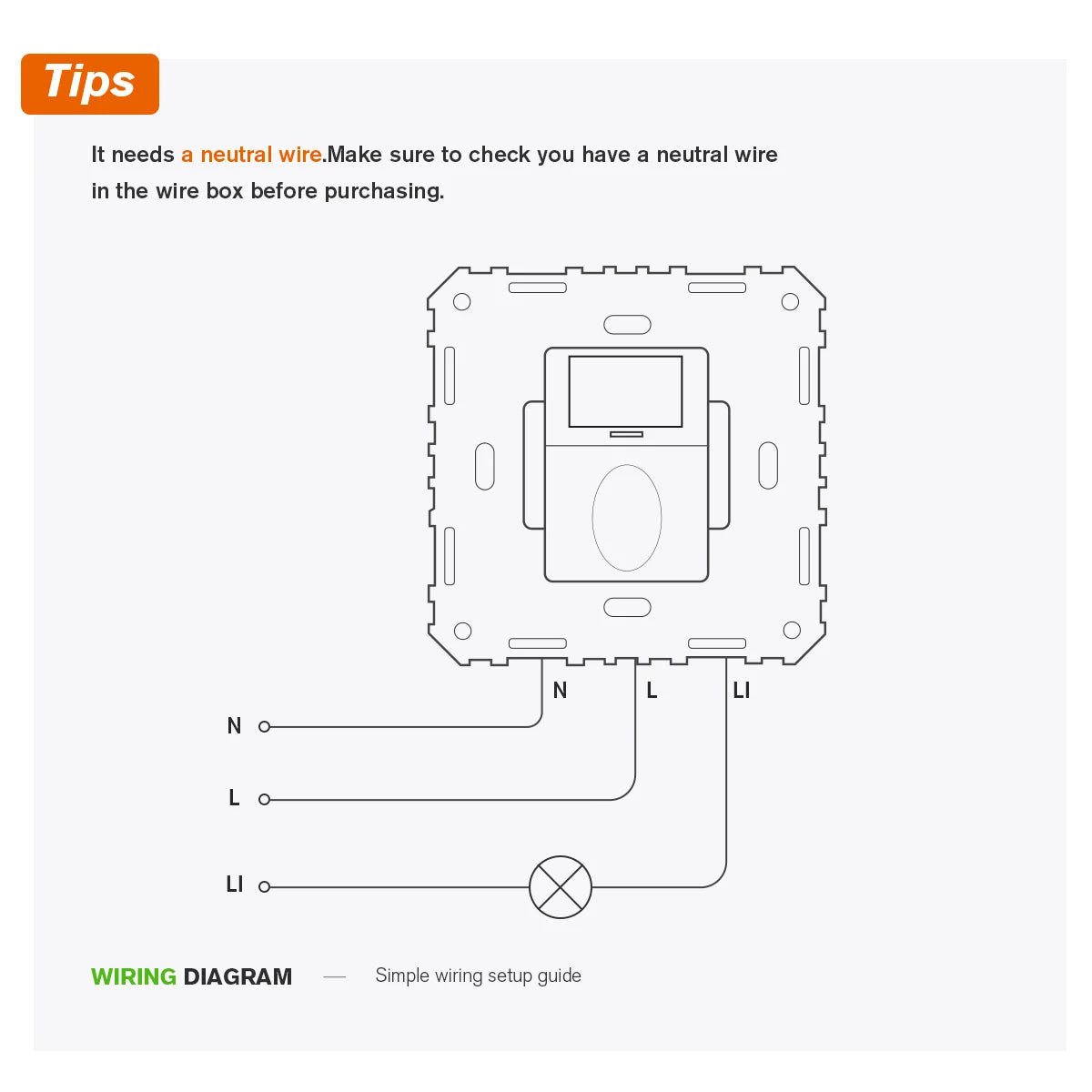

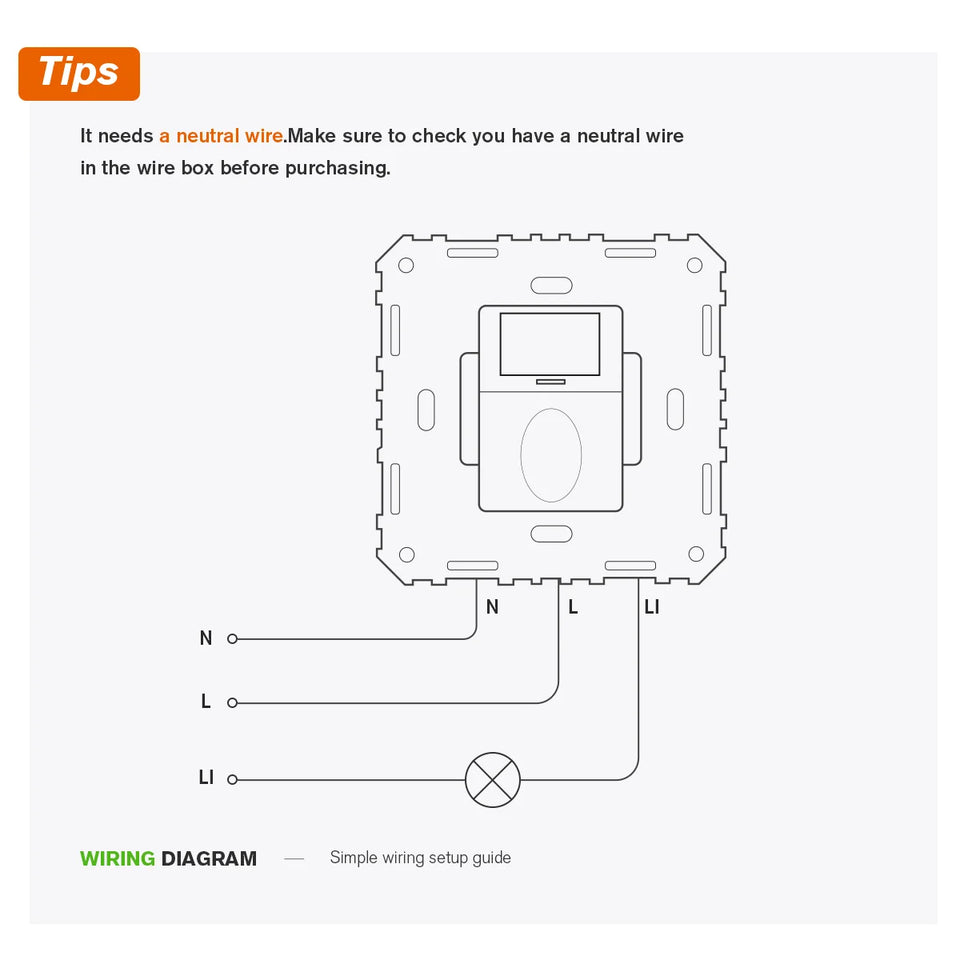

• Since the Occupancy sensor switch is sensitive to temperature changes,they tend to set off false alarms. Choosing the right place for installation.you can avoid any problem. Strictly follow the wiring diagram when you install the switch.

• Please make sure that the light is at least 3W or higher, otherwise it will flash.This sensor is only compatible with incandescent, halogen, and LED lighting.

• We do not recommend using it for Fluorescent ,Ballast or Fans or other types of loads.
