SPECIFICATIONS

Application: MOBILE PHONE

Brand Name: UICPAL

Choice: yes

Condition: New

Dissipation Power: Standard

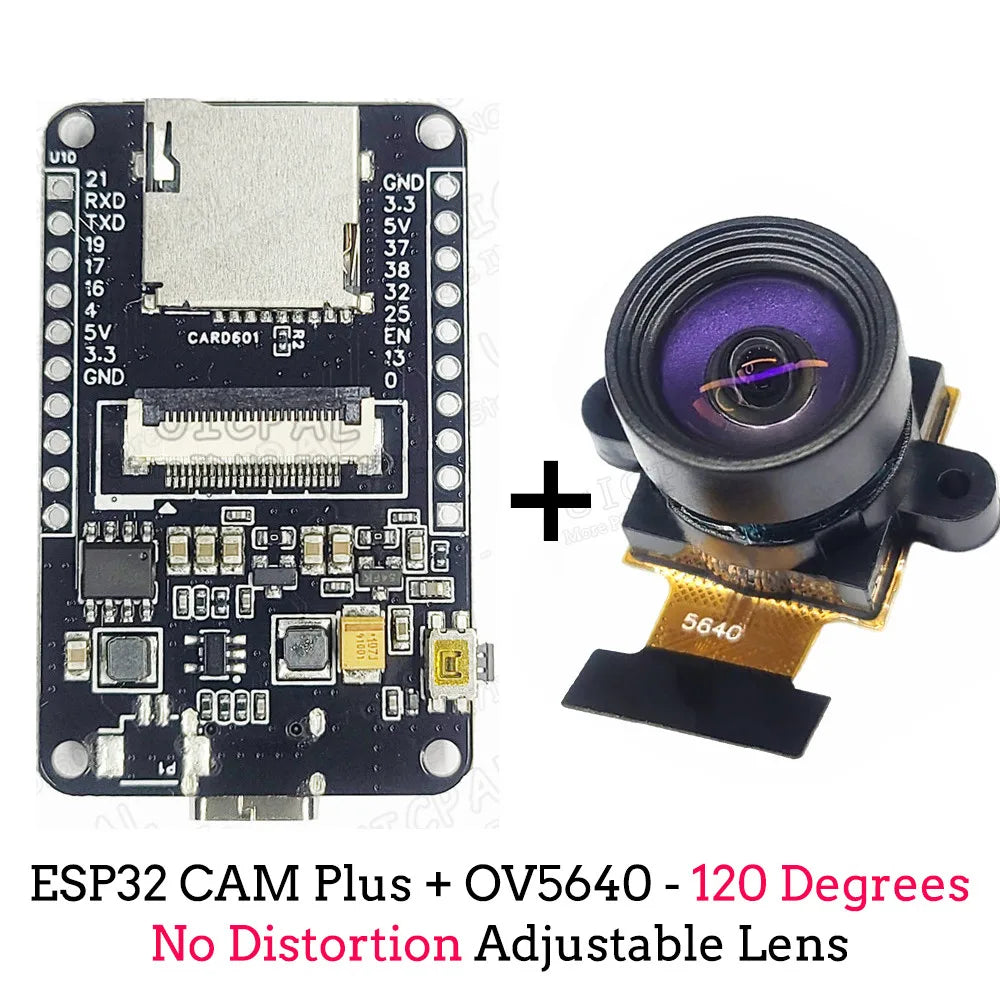

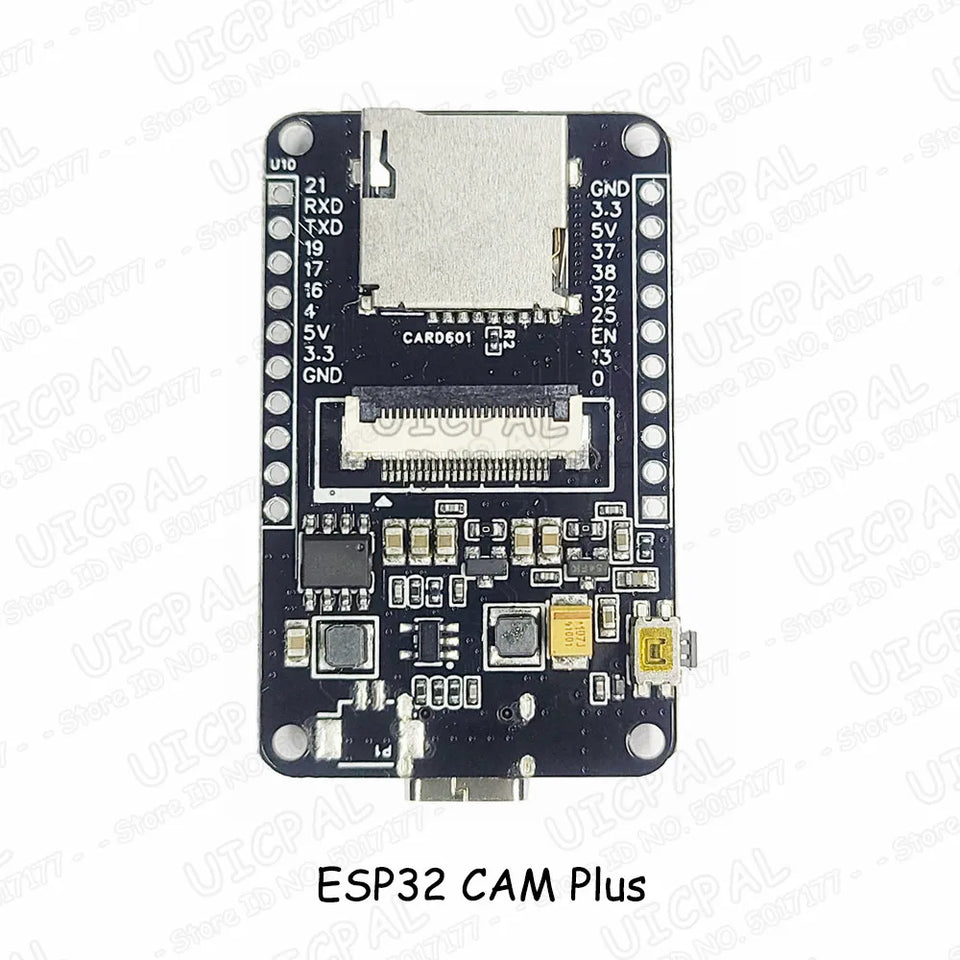

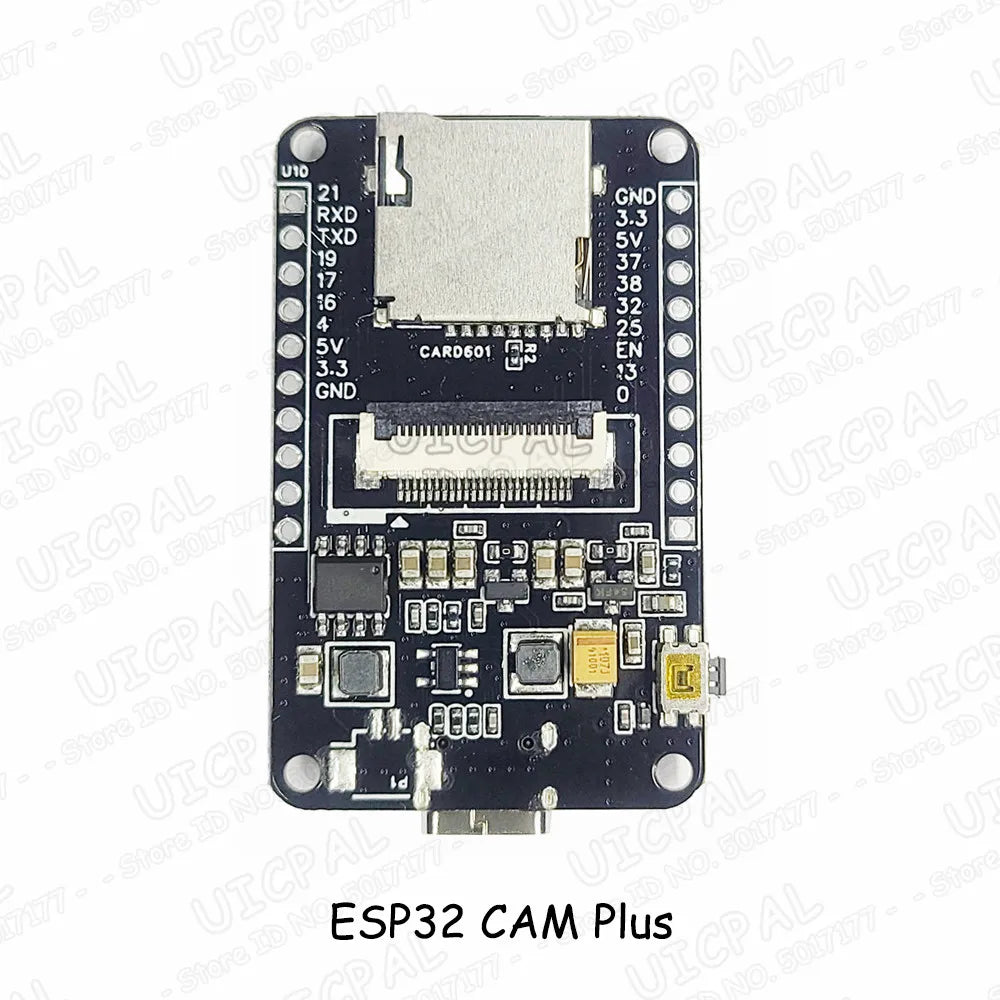

ESP32 CAM Plus: Supports 16G TF Card

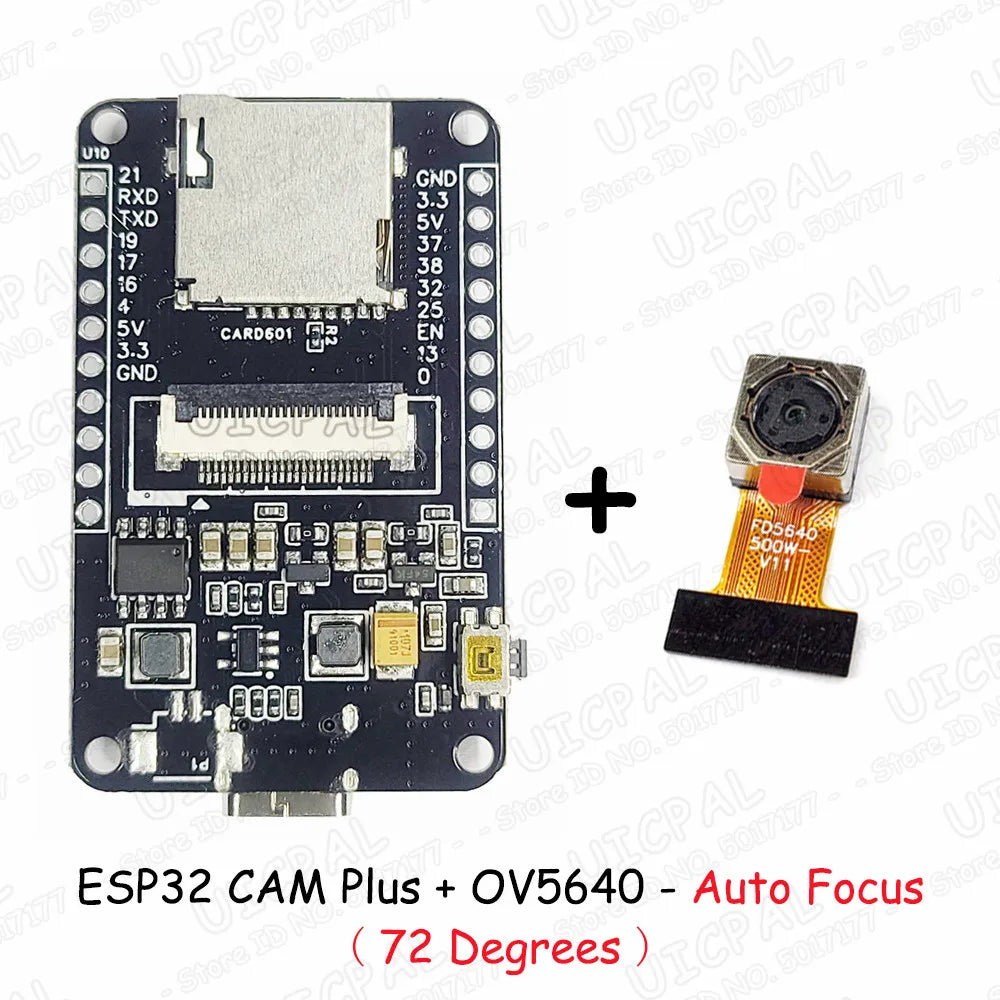

Features: Support OV5640 Auto Focus

Interface: Type C USB

Model Number: OV5640 ESP32 CAM

Operating Temperature: Standard

Origin: Mainland China

Package: SMD

Supply Voltage: 5V 2A

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

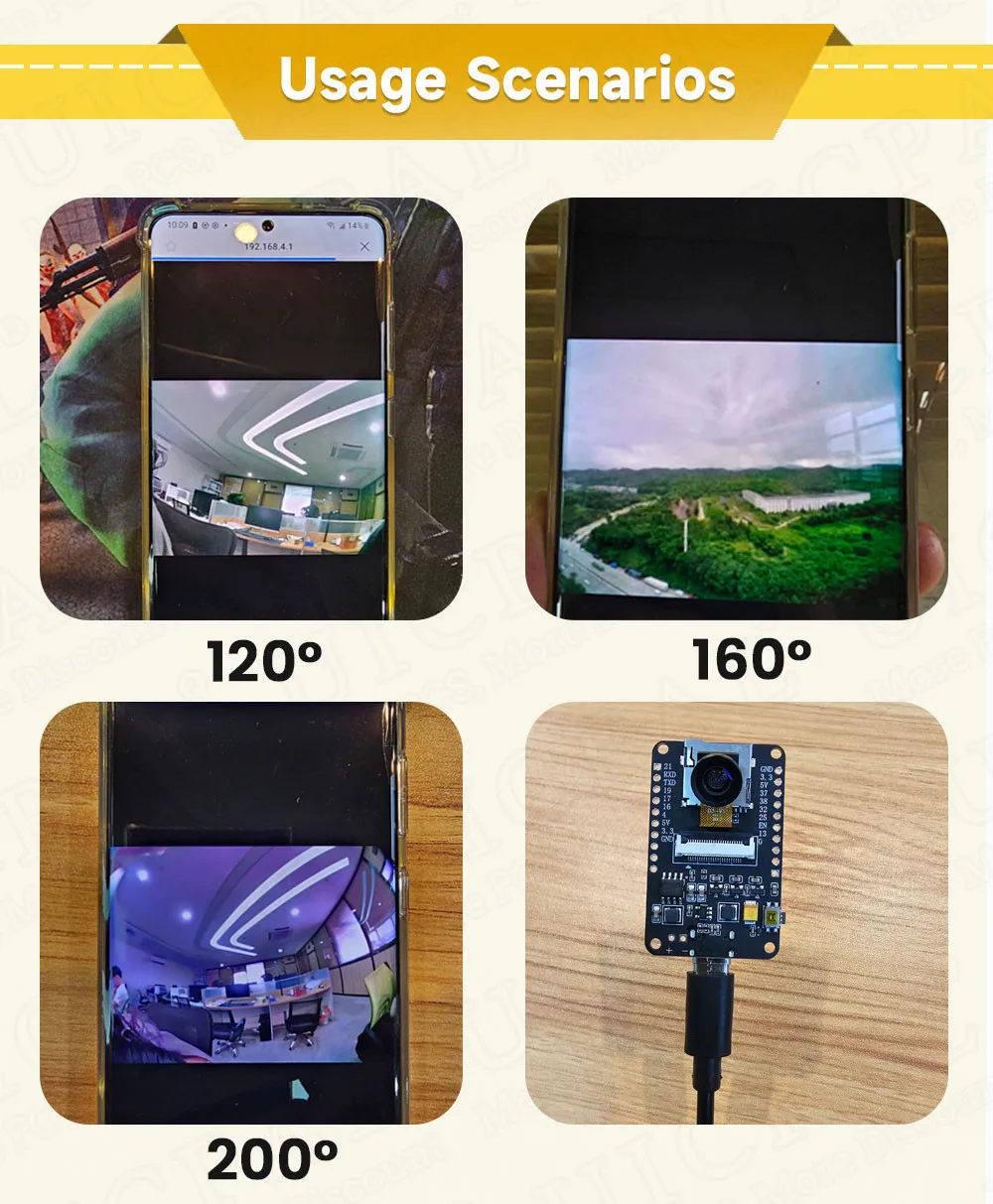

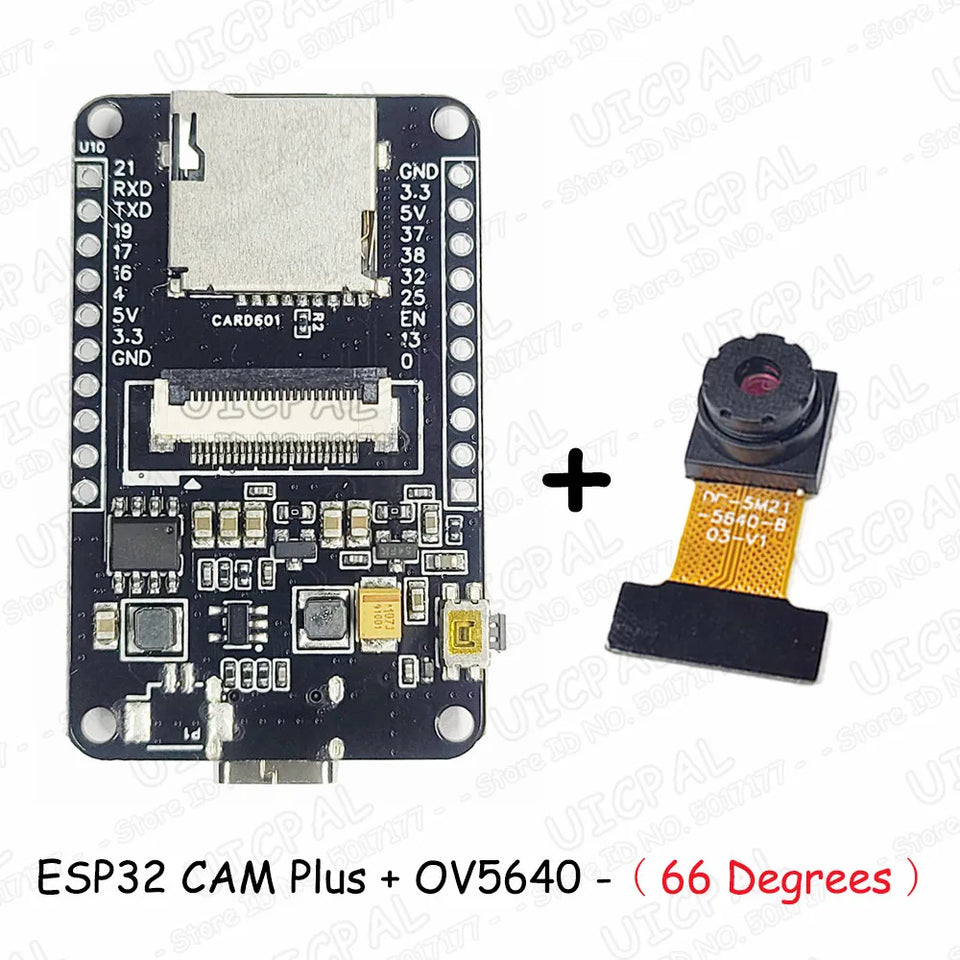

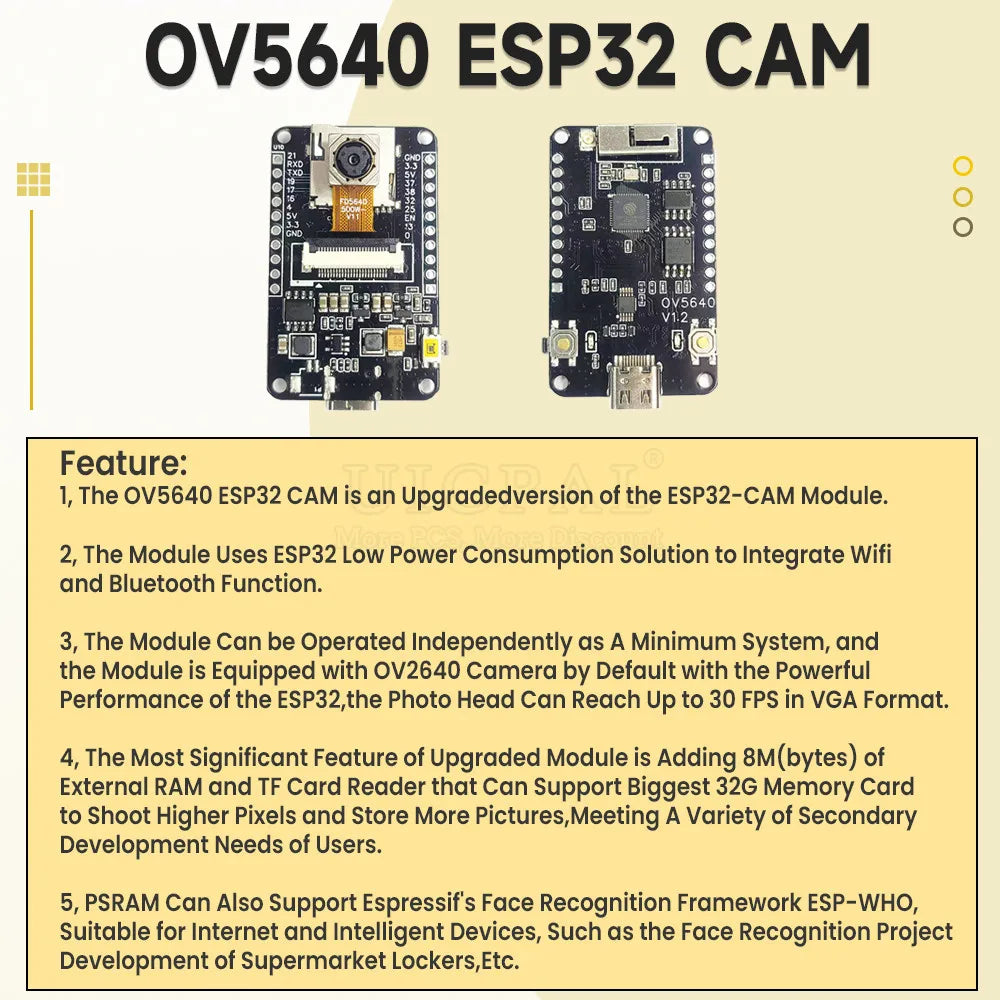

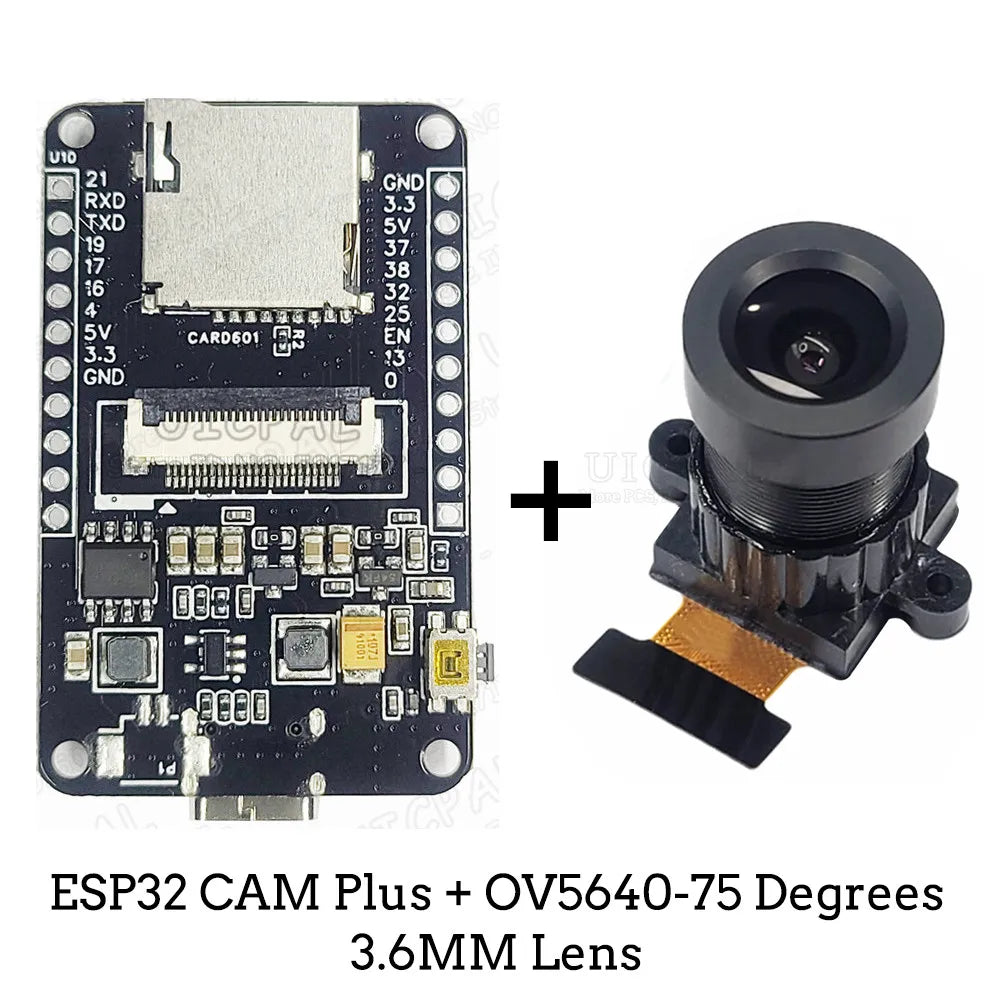

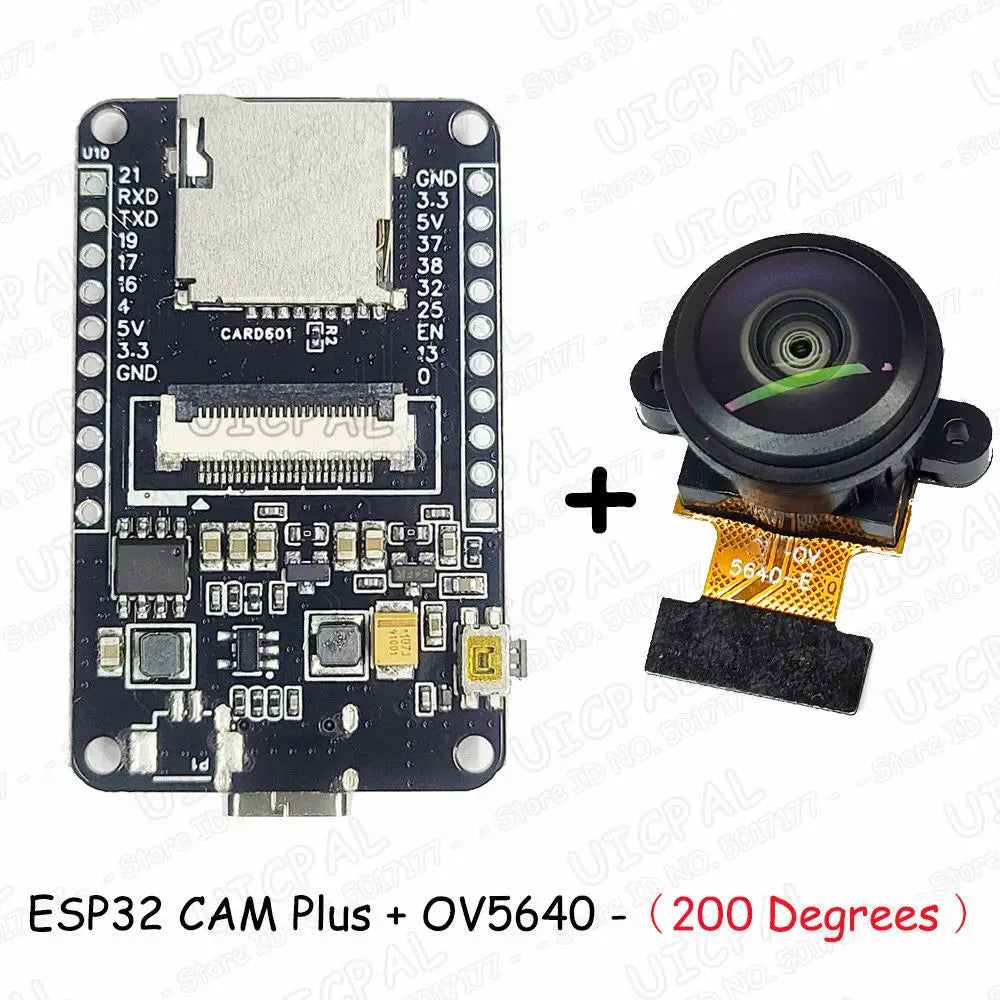

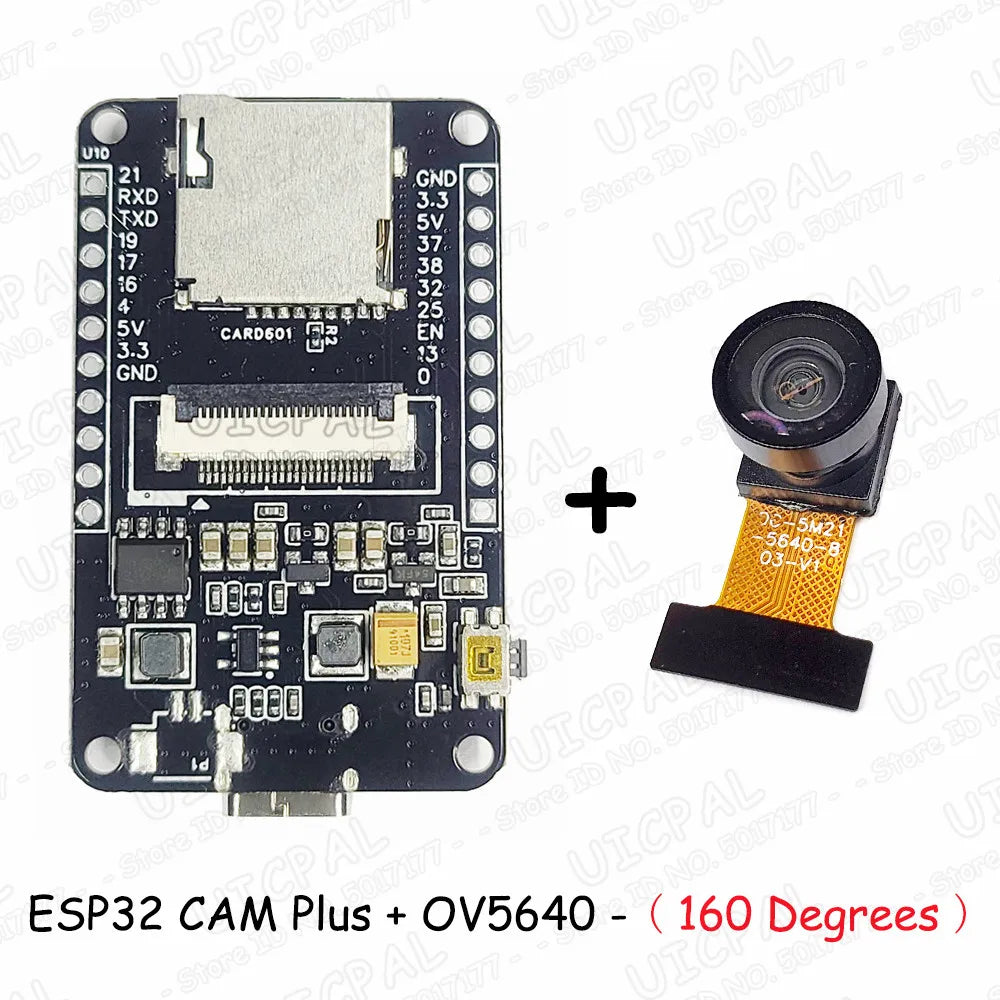

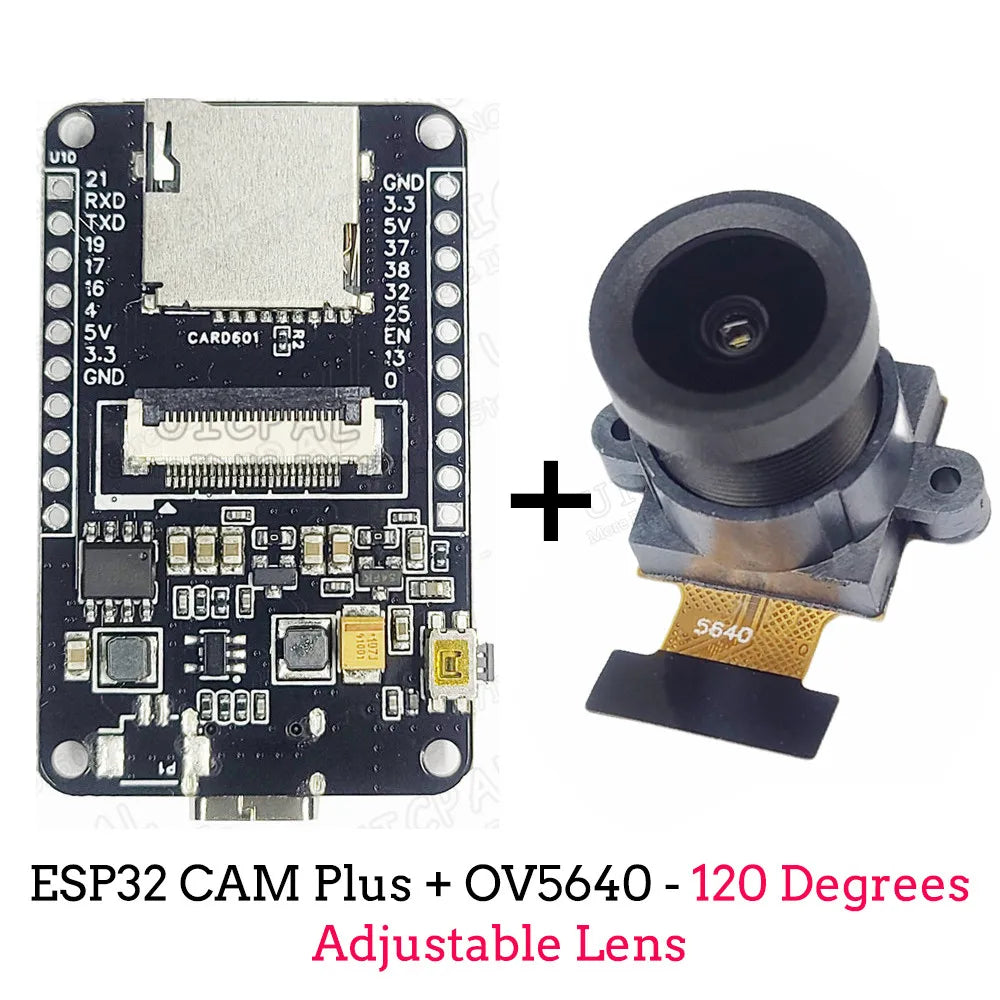

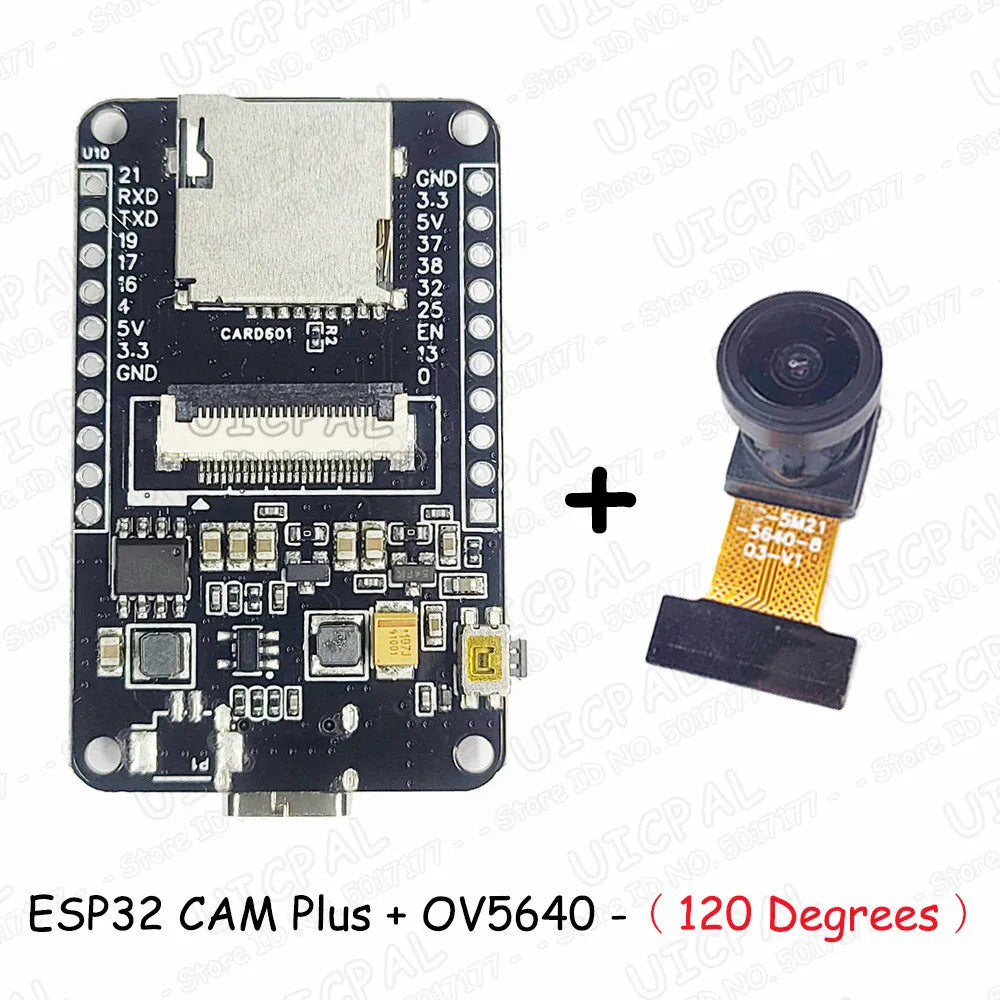

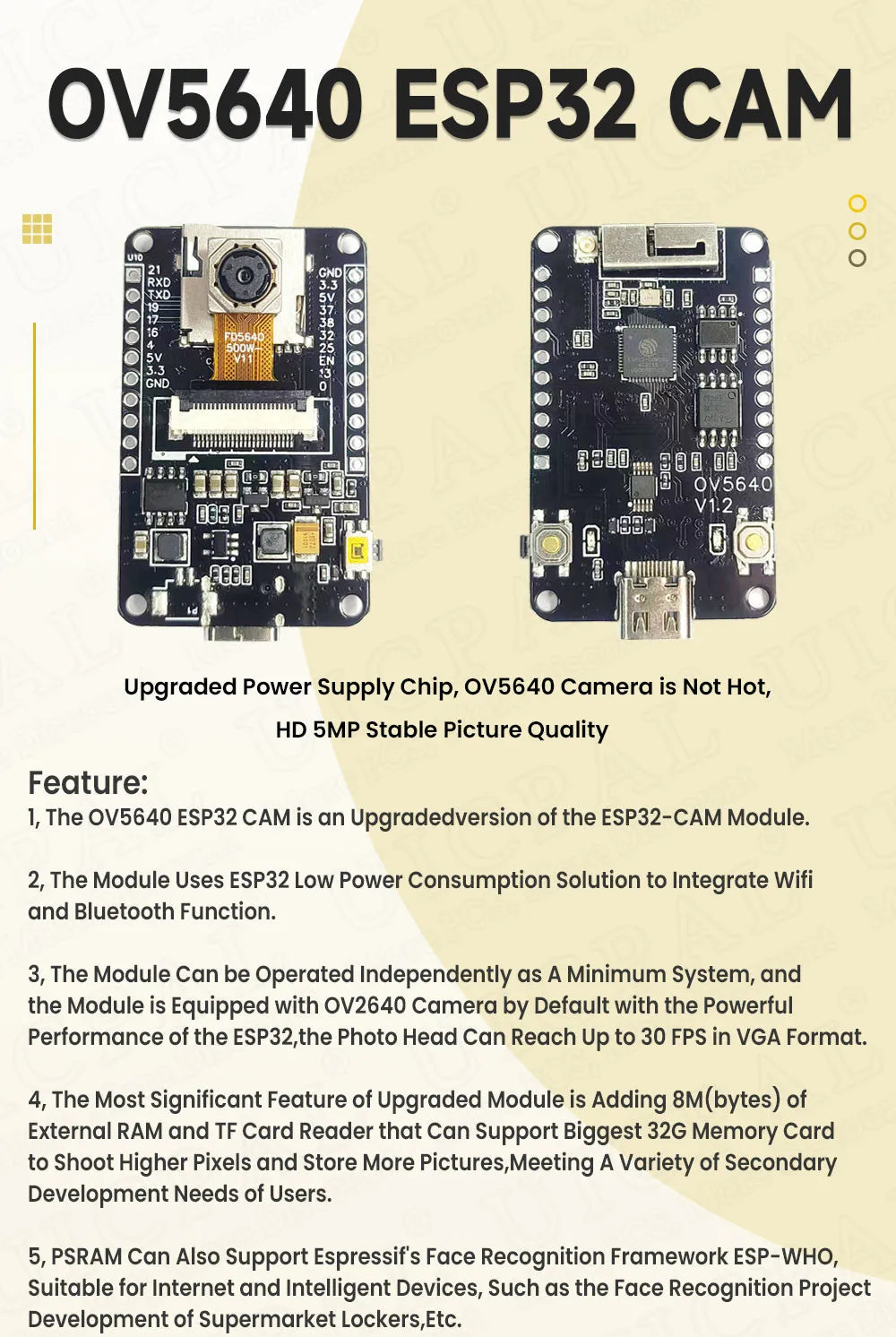

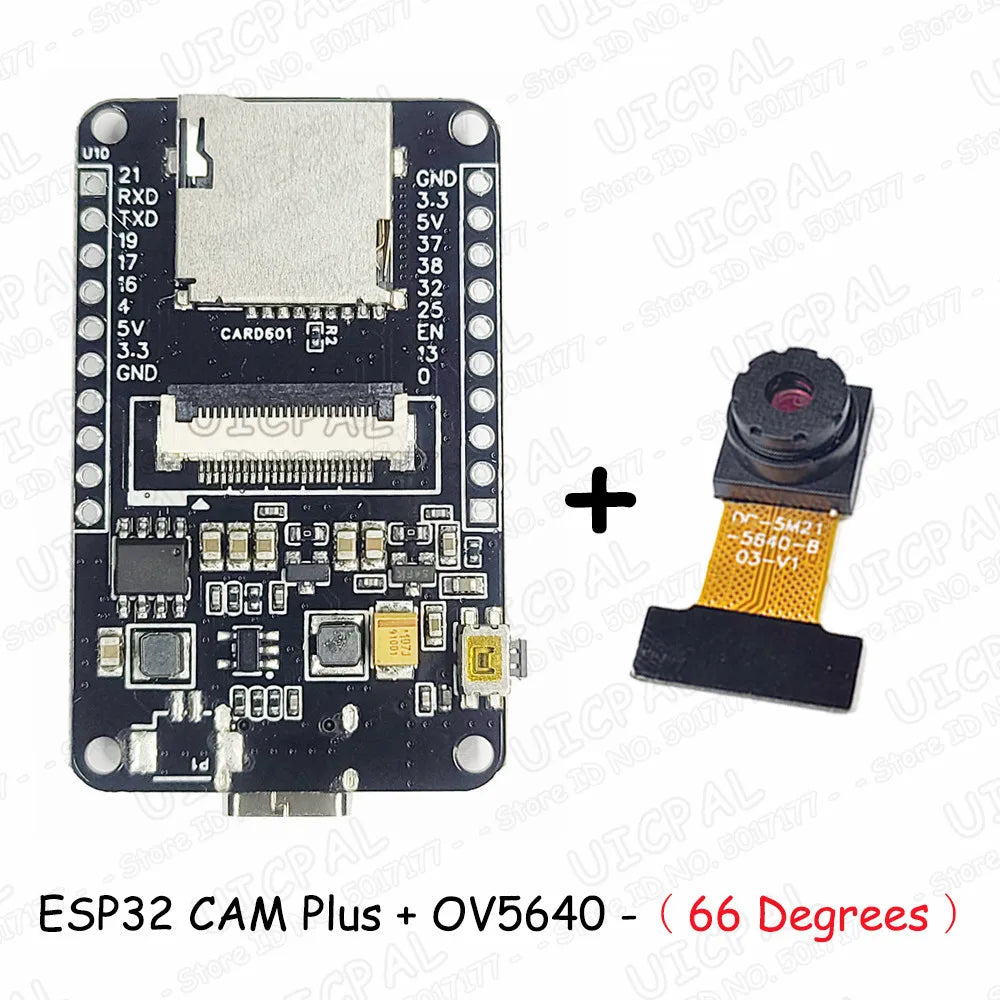

OV5640 ESP32 CAM Camera Module Kit 2.4 GHz WiFi and Bluetooth Develop Board Type C 8MB PSRAM HD 5MP Auto Focus 66 120 160 Degree

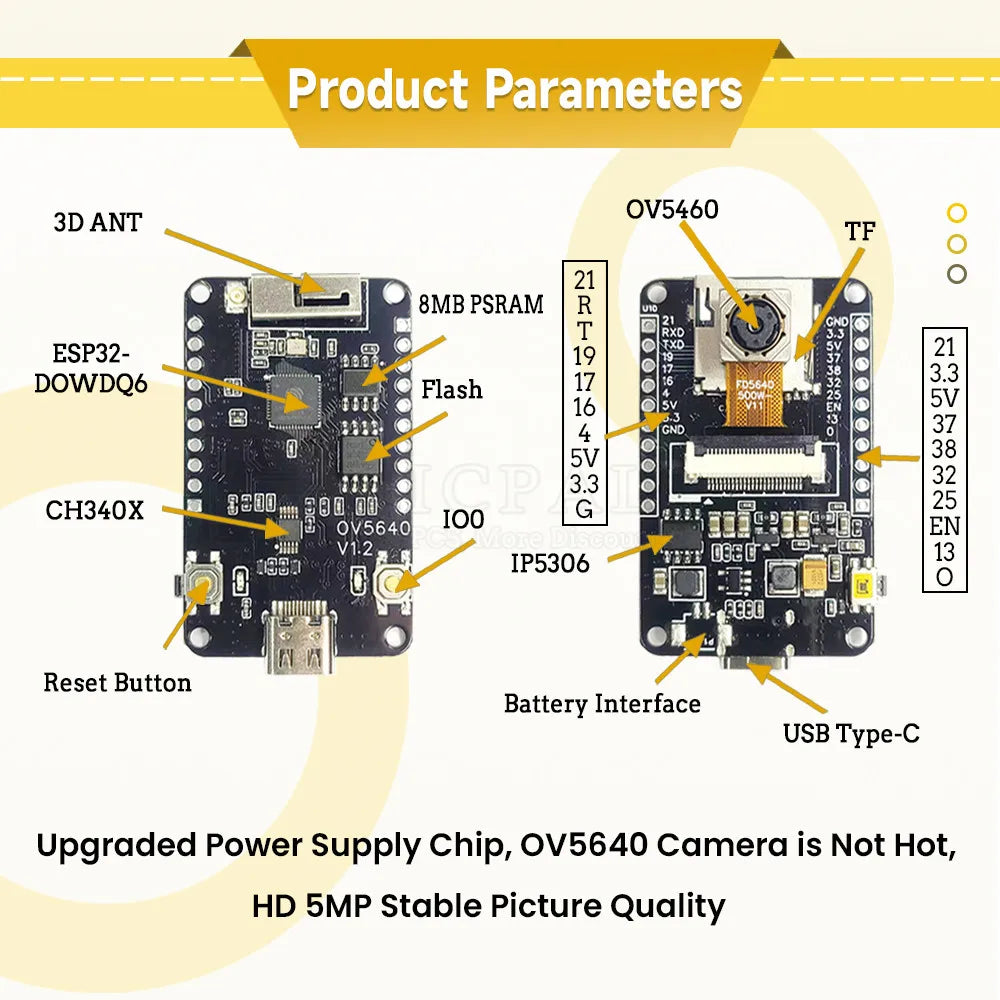

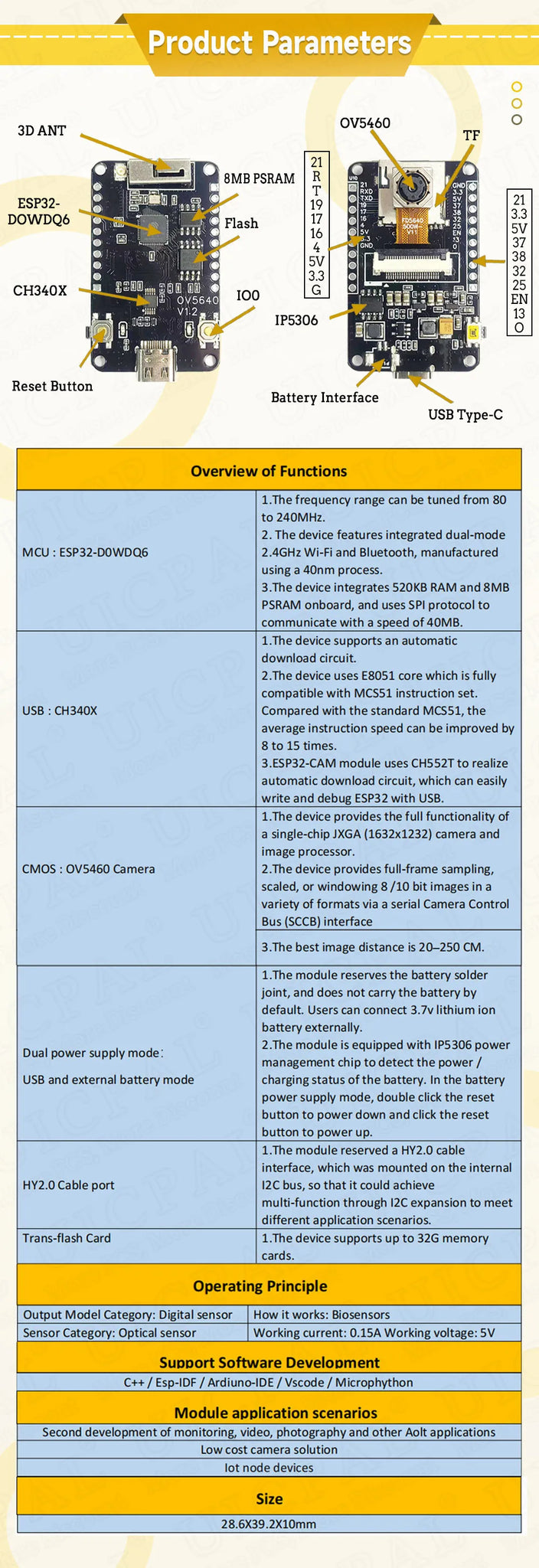

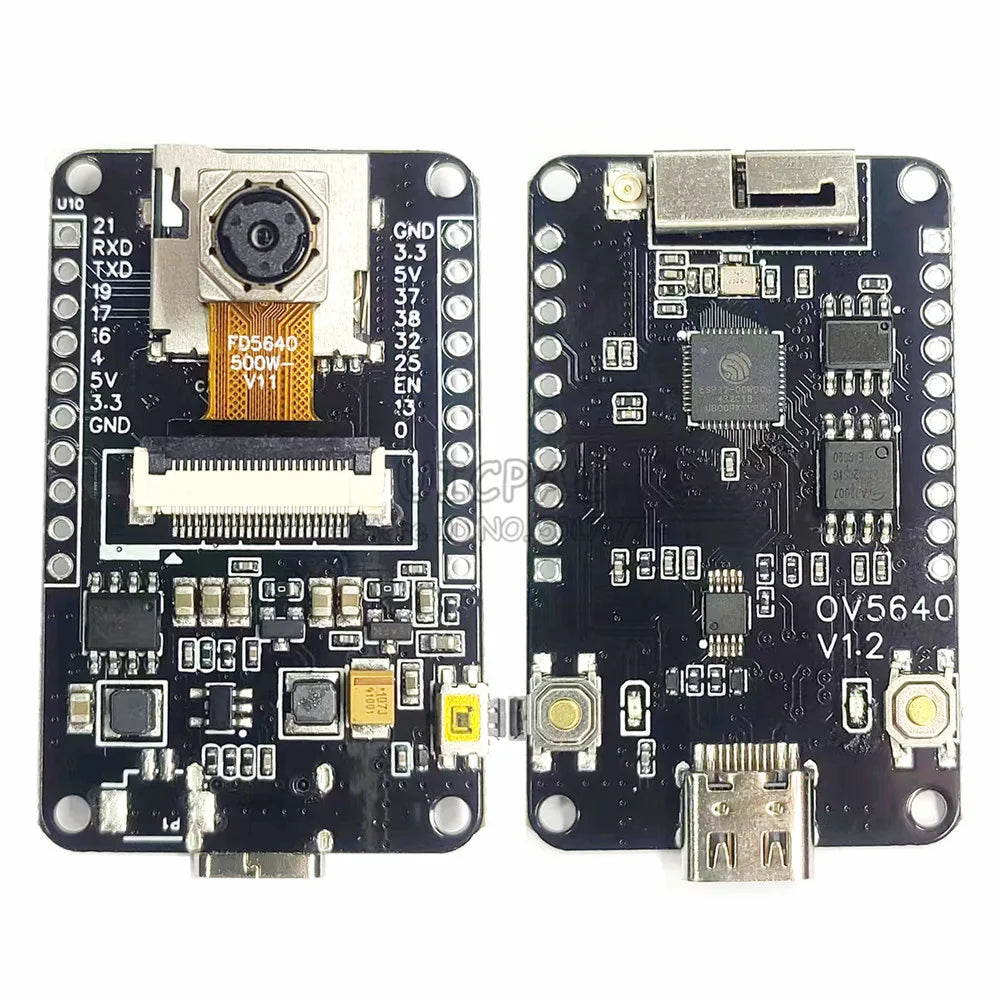

MCU : ESP32-D0WDQ6

The frequency can be adjusted between 80-240MHz, integrated 2.4 GHz Wi-Fi and Bluetooth dual-mode, 40 nanometer technology, internal integrated 520KB RAM and onboard 8MB PSRAM, using SPI protocol communication, speed up to 40M.

USB : CH552

Automatic download circuit, with E8051 core compatible with MCS51 instruction set, the average instruction speed is 8-15 times faster than standard MCS51, ESP32-CAM module uses CH552T to realize automatic download circuit, and it can be easily programmed and debugged on ESP32 with USB.

Note: If you need product instruction or code, please contact us.

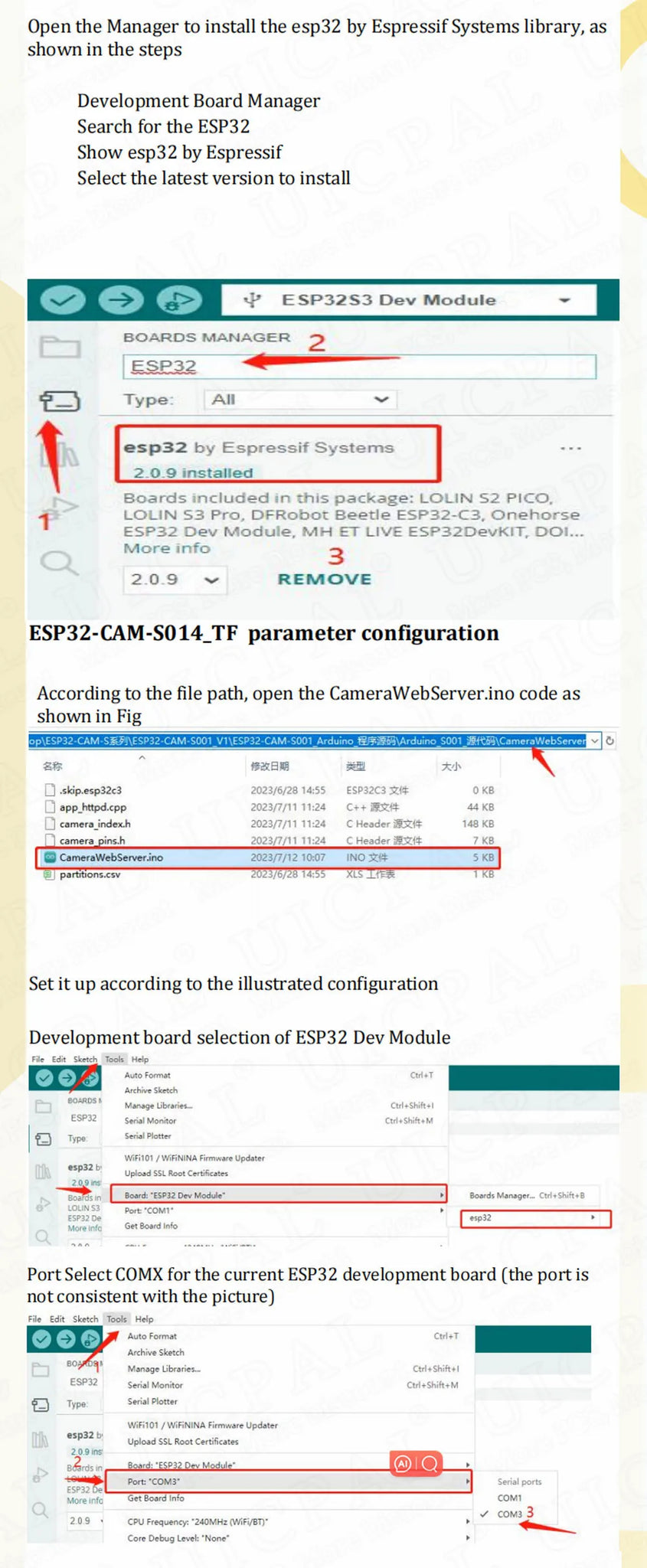

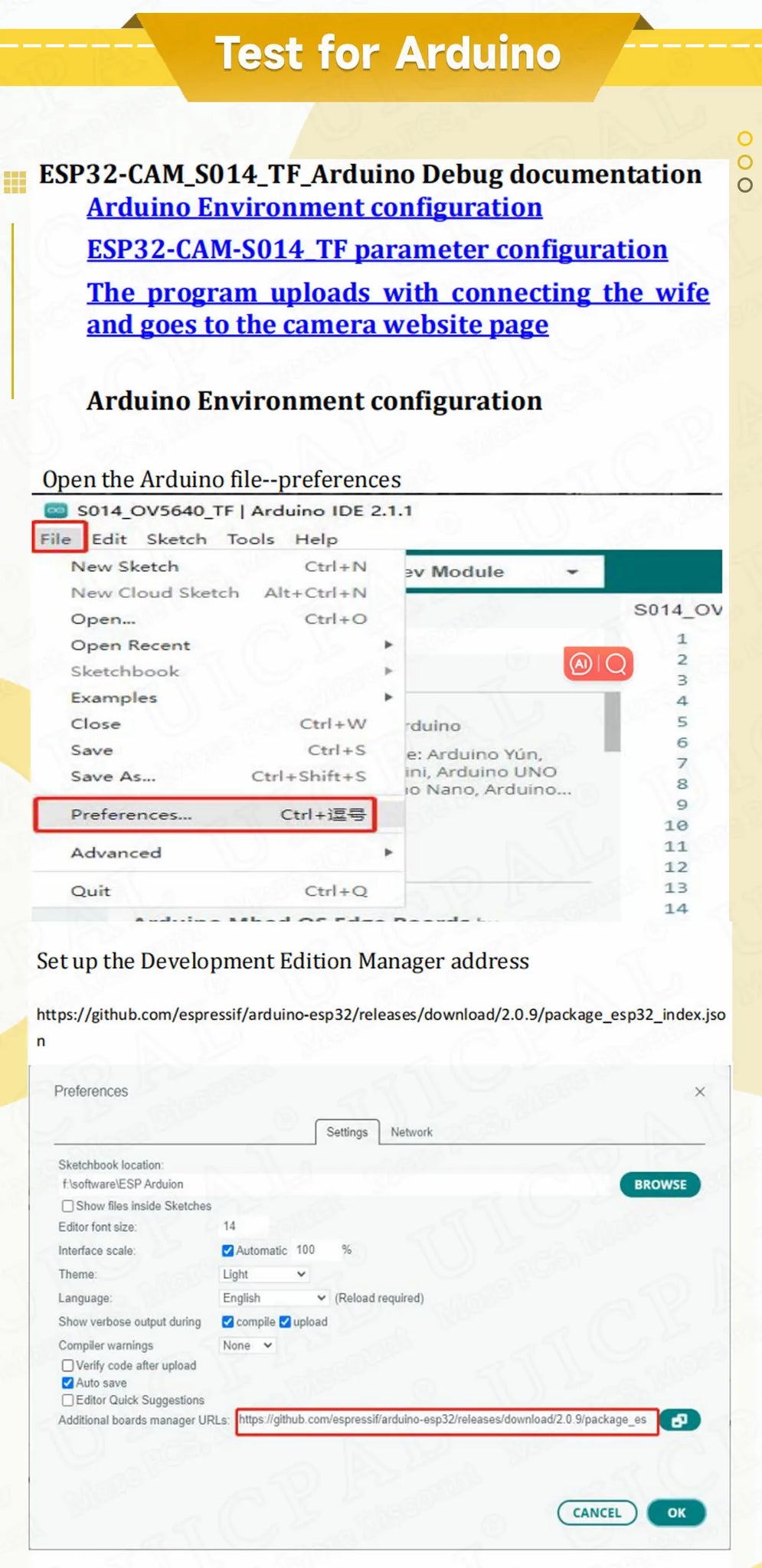

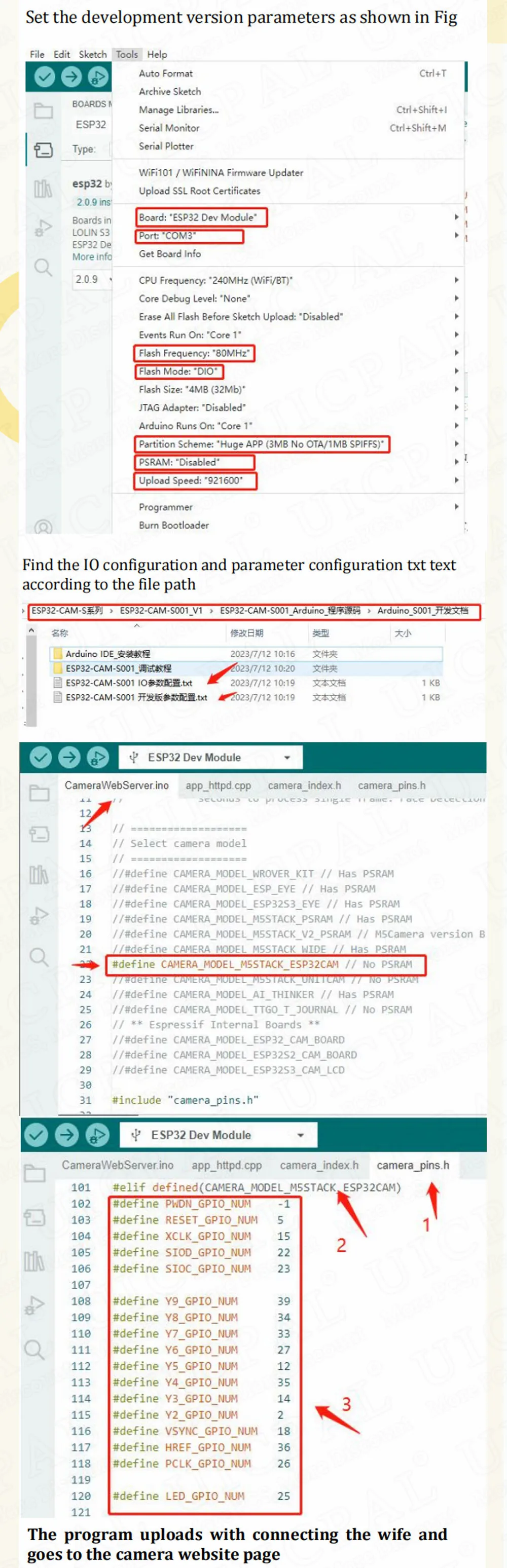

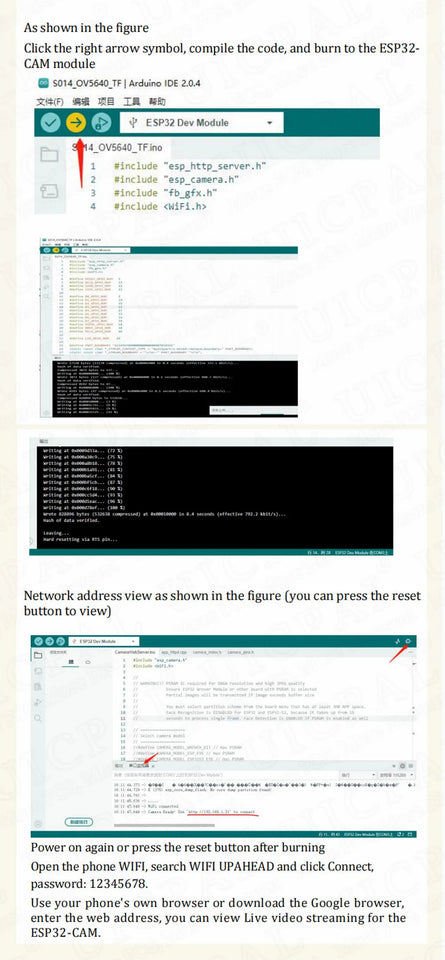

Parameter Configuration:

CPU Frequency:"240MHz(WiFi/BT)"

Core Debug Level:"None"

Erase All Flash Before Sketch Upload:"Disabled

Events Run On:"Core1"

Flash Frequency:"80MHz"

Flash Mode:"DIO"

Flash Size:"4MB(32Mb)"

JTAG Adapter:"Disabled"

Arduino Runs On:"Core 0"

Partition Scheme:"Huge APP(3MB No OTA/1MB SPIFFS)

PSRAM:"Enabled"

Upload Speed:"921600"

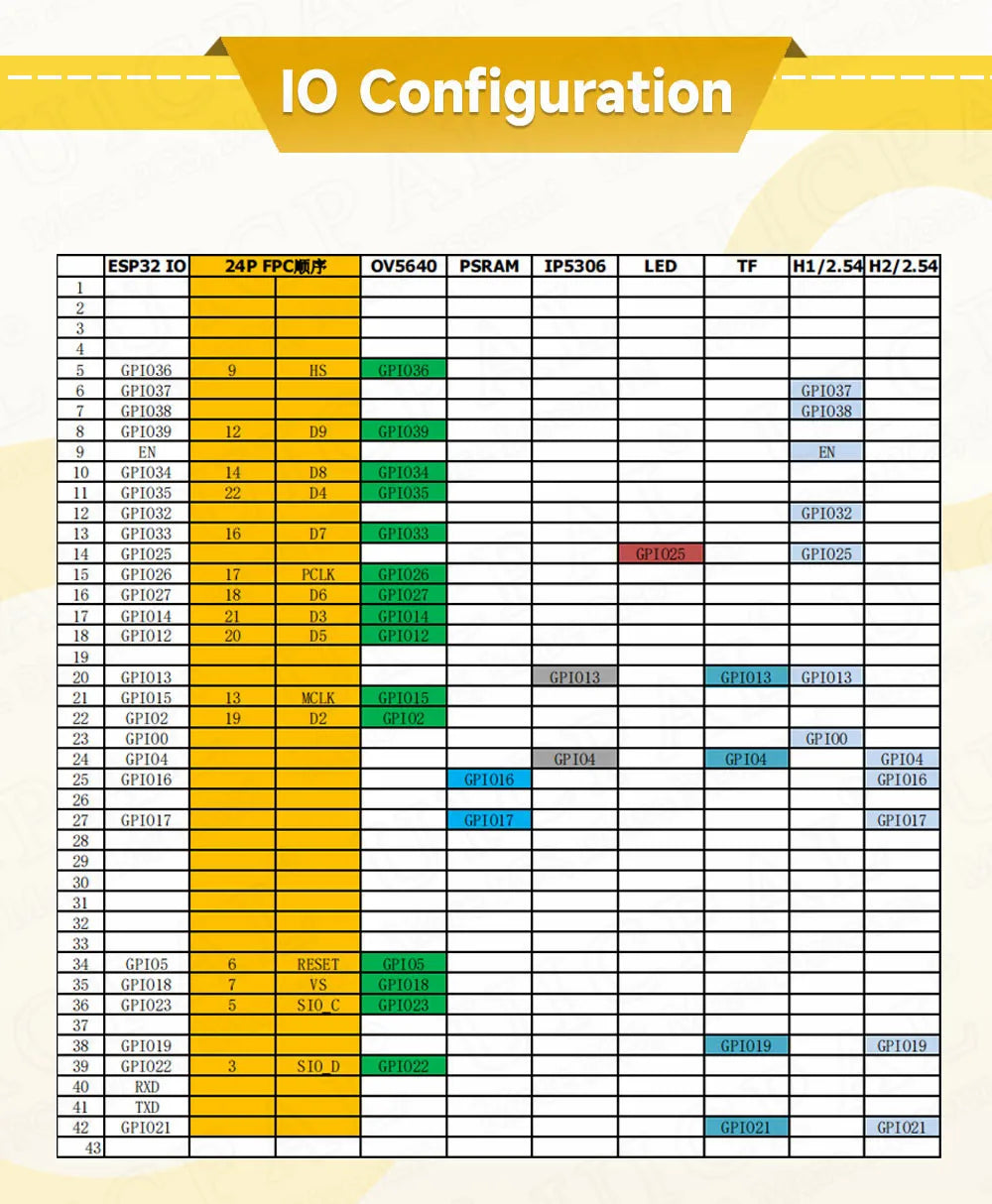

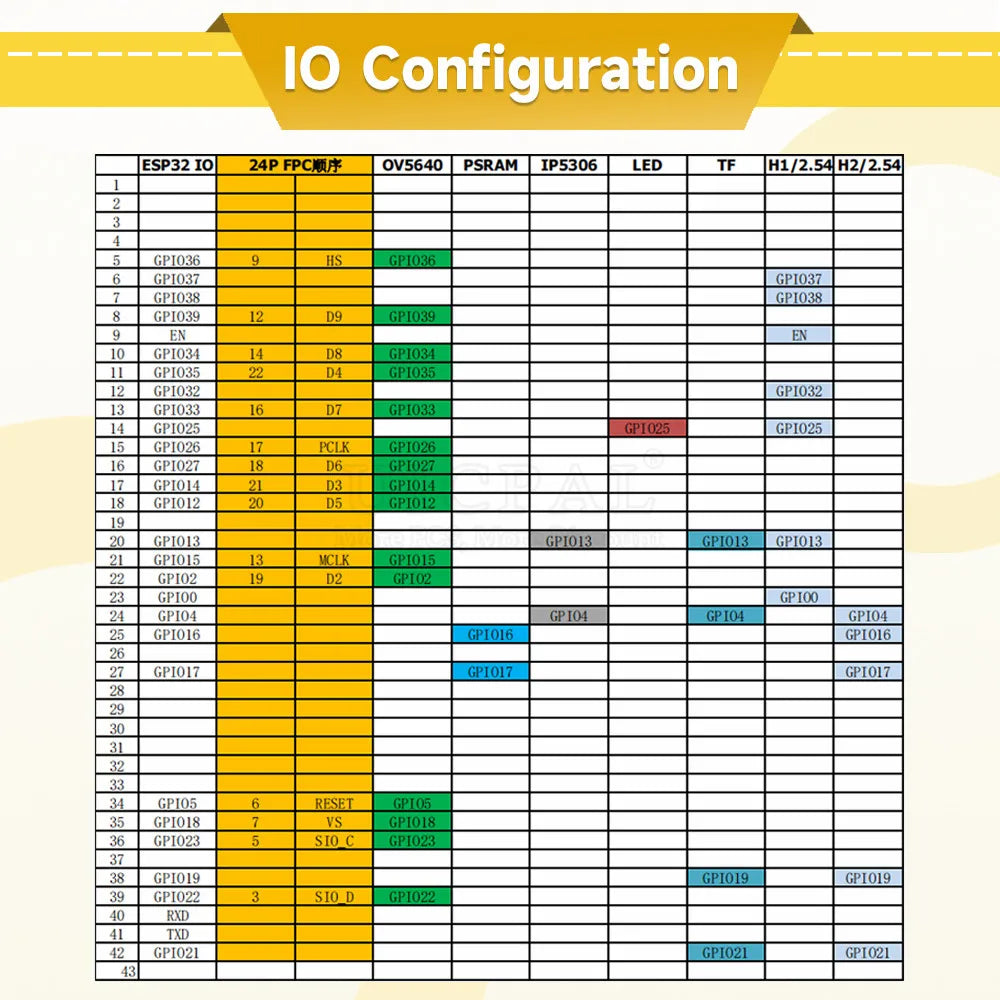

IO Parameter Configuration:

#define RESET_GPIO_NUM 5

#define XCLK_GPIO_NUM 15

#define SIOD_GPIO_NUM 22

#define SIOC_GPIO_NUM 23

#define D0_GPIO_NUM 2

#define D1_GPIO_NUM 14

#define D2_GPIO_NUM 35

#define D3_GPIO_NUM 12

#define D4_GPIO_NUM 27

#define D5_GPIO_NUM 33

#define D6_GPIO_NUM 34

#define D7_GPIO_NUM 39

#define VSYNC_GPIO_NUM 18

#define HREF_GPIO_NUM 36

#define PCLK_GPIO_NUM 26

#define LED_GPIO_NUM 25
