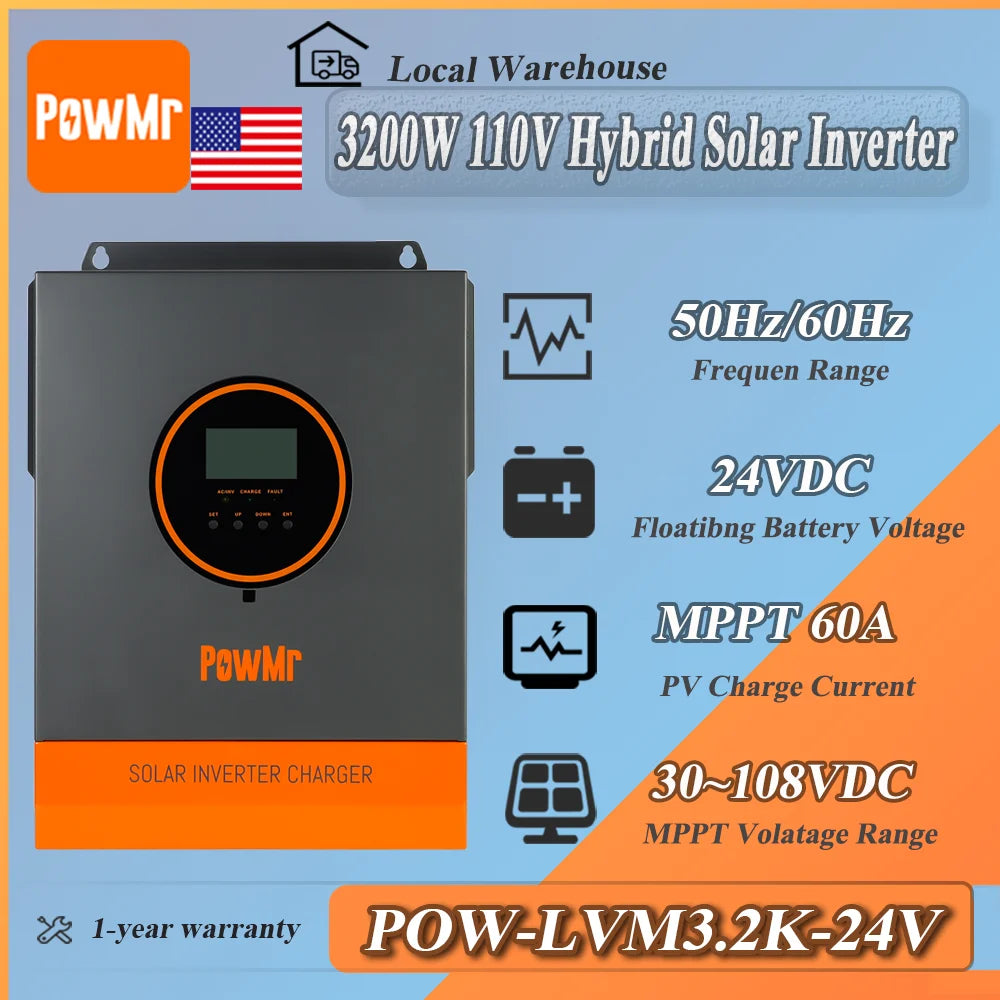

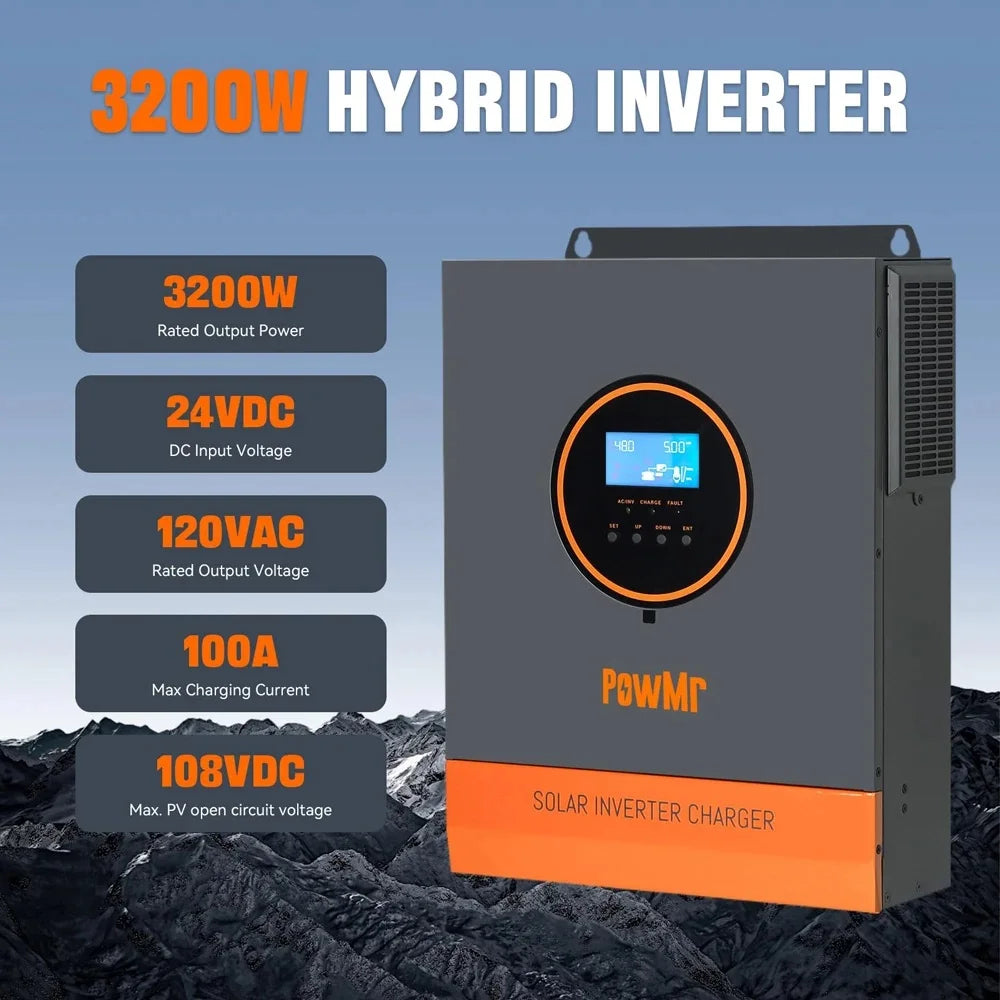

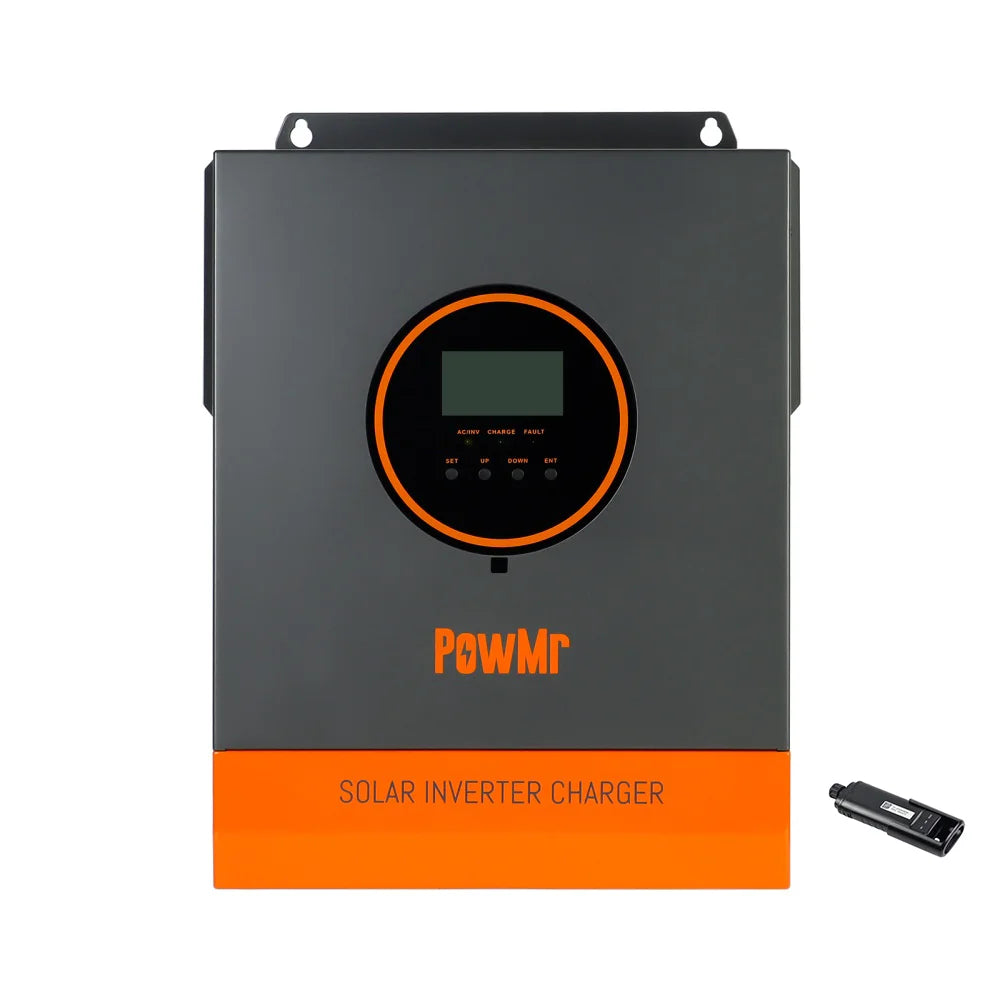

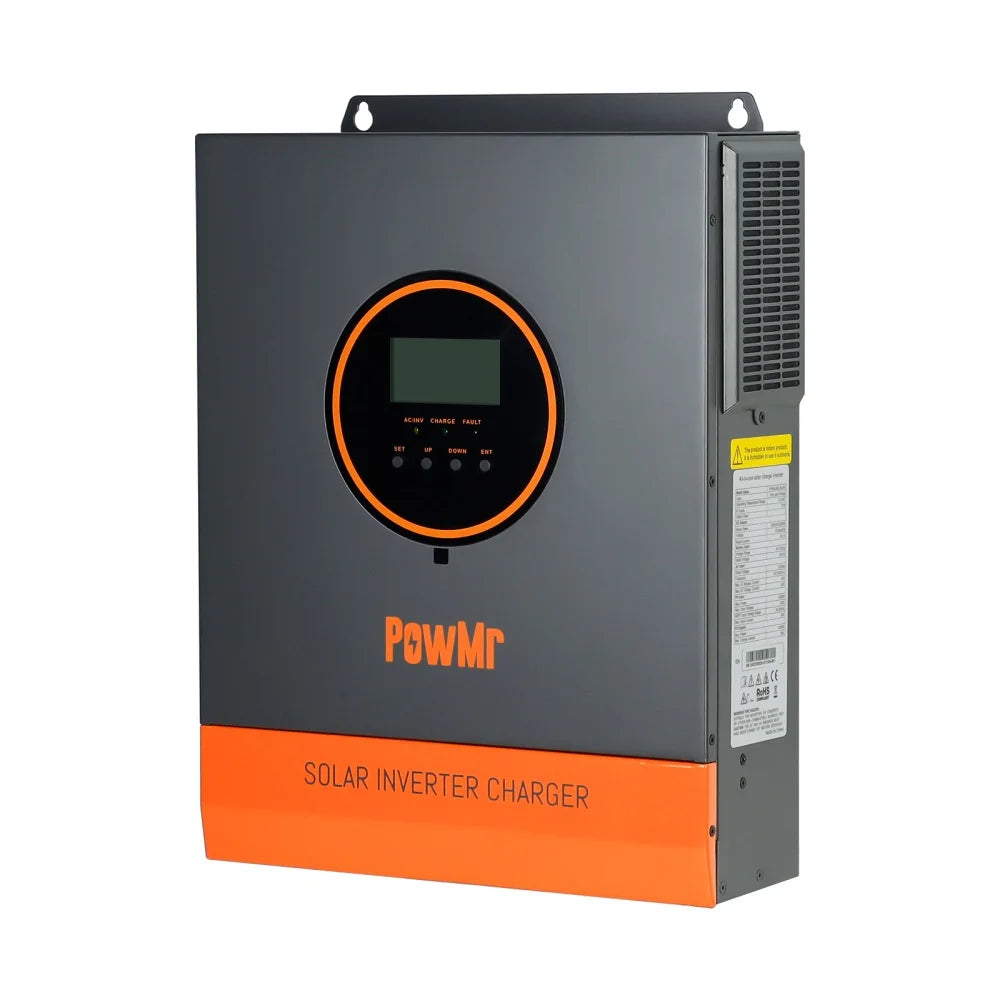

PowMr 24V 3200W 110V Hybrid Solar Inverter MPPT 60A Charger Controller Max PV Solar 108Vdc inversores híbridos solares for home
Regular price
$1,017.46
$1,017.46
SPECIFICATIONS
Brand Name: PowMr
Certification: CE
High-concerned chemical: None
Is Smart Device: Yes
Model Number: POW-LVM3.2K-24V
Origin: Mainland China
Output Current: MPPT 60A
Output Frequency: 50Hz/60Hz
Output Type: SINGLE
Size: 45x36.5x18.5
Weight: 8.3KG
is_customized: Yes
PowMr 24V 110V 3200W Hybrid Solar Inverter MPPT 60A Charger Controller Max PV Solar 108Vdc inversores híbridos solares for home
Introduction:
1. Integrates solar energy storage, mains charging storage, and AC sine wave output functionality.
2. Employs DSP control with advanced control algorithms, delivering rapid response times and high reliability in compliance with stringent industrial standards.
3. Supports four charging modes: pure solar charging, mains priority, solar priority, and hybrid mains-solar charging.
4. Supports two output modes: mains bypass output and inverter output, enabling uninterrupted power supply.
5. Utilises optimised MPPT technology with 99.9% efficiency, enabling real-time tracking of the maximum power point of the photovoltaic array.
6. AC/DC charging modules employ fully digital dual-loop voltage and current control, delivering high precision and compact dimensions.
7. Features a wide AC input voltage range with comprehensive input/output protection functions.
8. Supports energy-saving mode to reduce no-load losses.

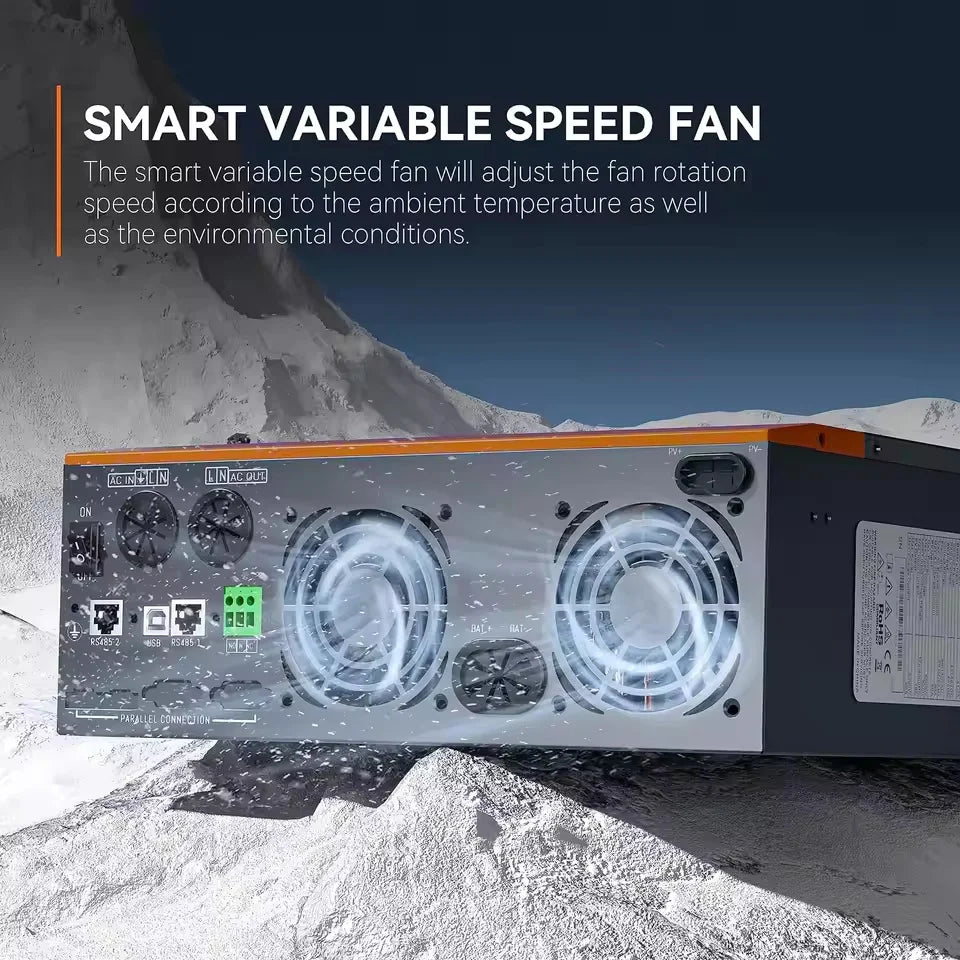

9. Equipped with an intelligent variable-speed fan for efficient heat dissipation, extending system lifespan.
10. Supports lithium battery activation via either photovoltaic or mains power, compatible with both lead-acid and lithium batteries.
11. Features comprehensive 360° protection, including safeguards against short circuits, overvoltage, undervoltage, overload, and reverse connection.

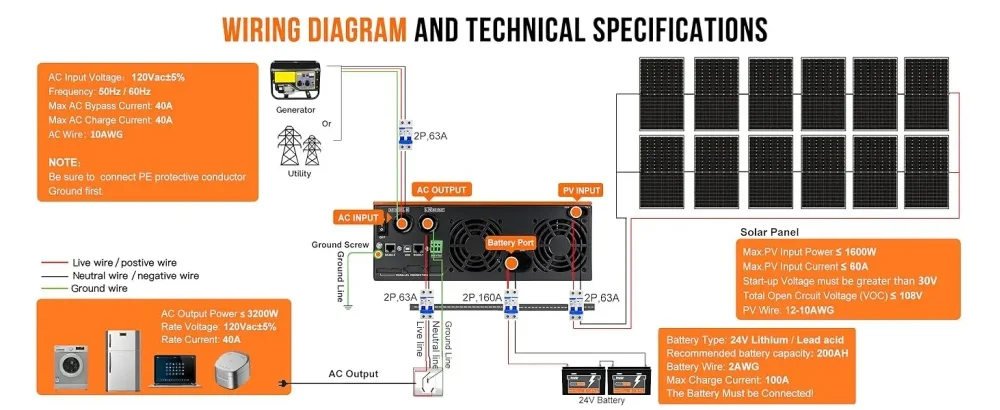

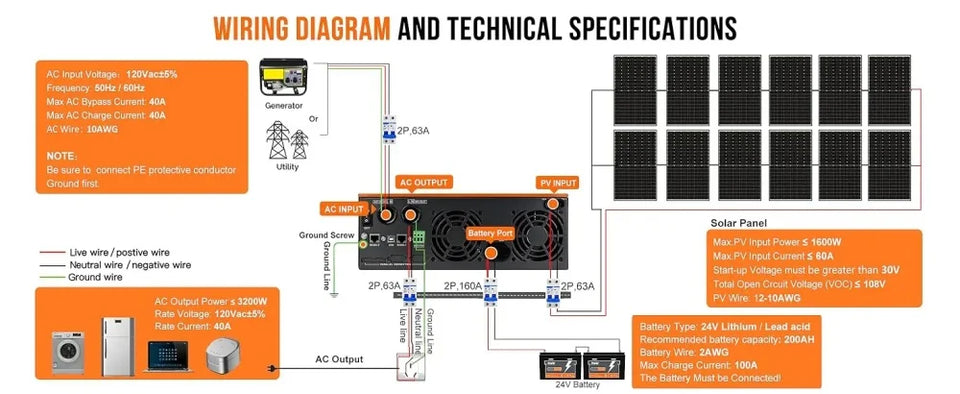

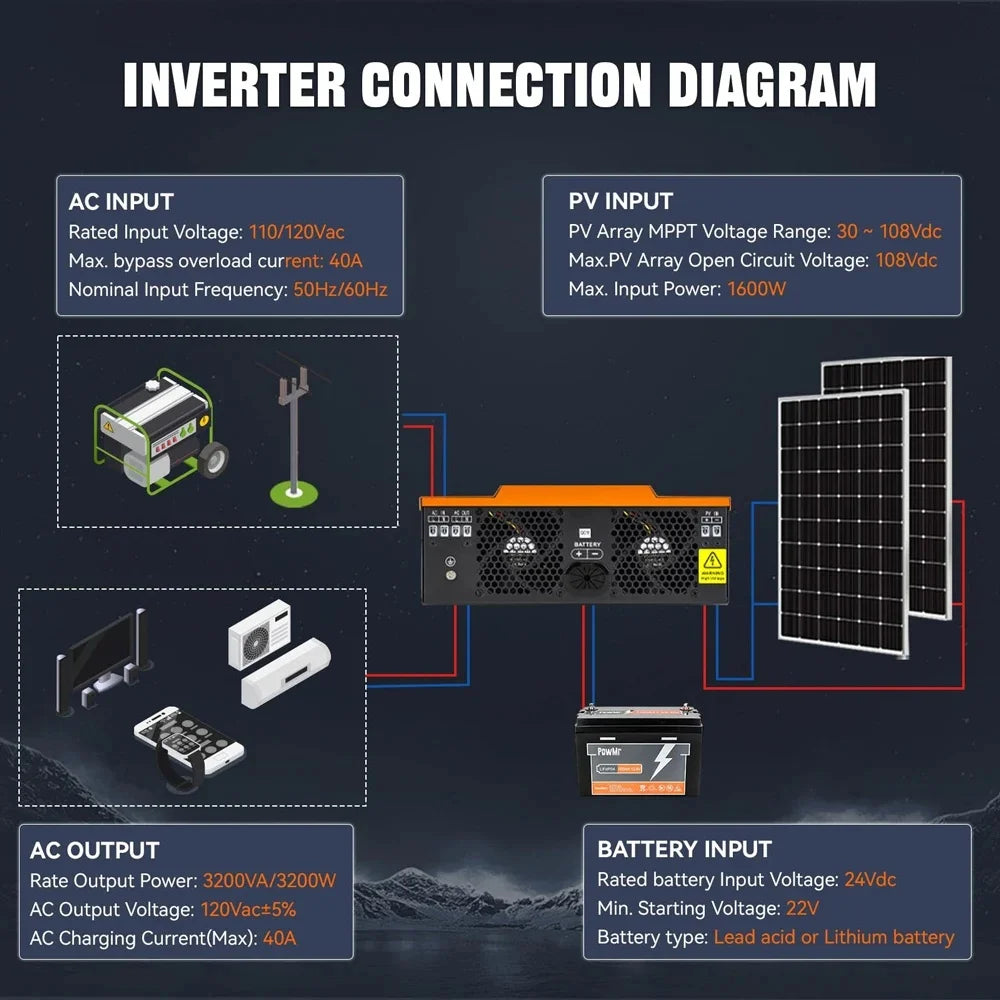

Model |
POW-LVM3.2K-24V |
AC mode | |
Rated input voltage |
110/120Vac |
Input voltage range |
(90Vac~140Vac) ±2% |
Frequency |
50Hz/ 60Hz (Auto detection) |
Overload/short-circuit protection |
Circuit breaker |
Max. efficiency |
>92% |
Maximum bypass overload current |
40A |
Inverter mode | |
Output voltage waveform |
Pure sine wave |
Rated output power (VA) |
3200 |
Rated output power (W) |
3200 |
Rated output voltage (Vac) |
120Vac |
Max. efficiency |
6000VA |
Rated battery input voltage |
24V (Minimum starting voltage 22V) |
Power saving mode |
Load ≤50W |
AC charging | |
Battery type |
Lead acid or lithium battery |
Max. charging current(can be set) |
0-40A |
Charge voltage range |
20 ~ 33Vdc |
Overcharge protection |
Alarm and stop charging after 1 minute |
PV charging | |
Max. PV open-circuit voltage |
108Vdc |
PV operating voltage range |
30 ~ 108Vdc |
MPPT voltage range |
30 ~ 90Vdc |
Battery voltage range |
20 ~ 33Vdc |
Maximum input power |
1600W |
PV charging current range (can be set) |
0-60A |
Max. hybrid charging current (AC charging + PV charging) | |
Max. charging current (can be set) |
0-100A |
Certified specifications | |
Certification |
CE(IEC 62109-1)/
CETL(UL 1741/ CSA C22.2 NO.107.1)
|
EMC certification level |
EN61000, C2 |
Operating temperature range |
-10°C to 55°C |
Storage temperature range |
-25°C ~ 60°C |
Heat dissipation |
Forced air cooling, variable speed of fan |

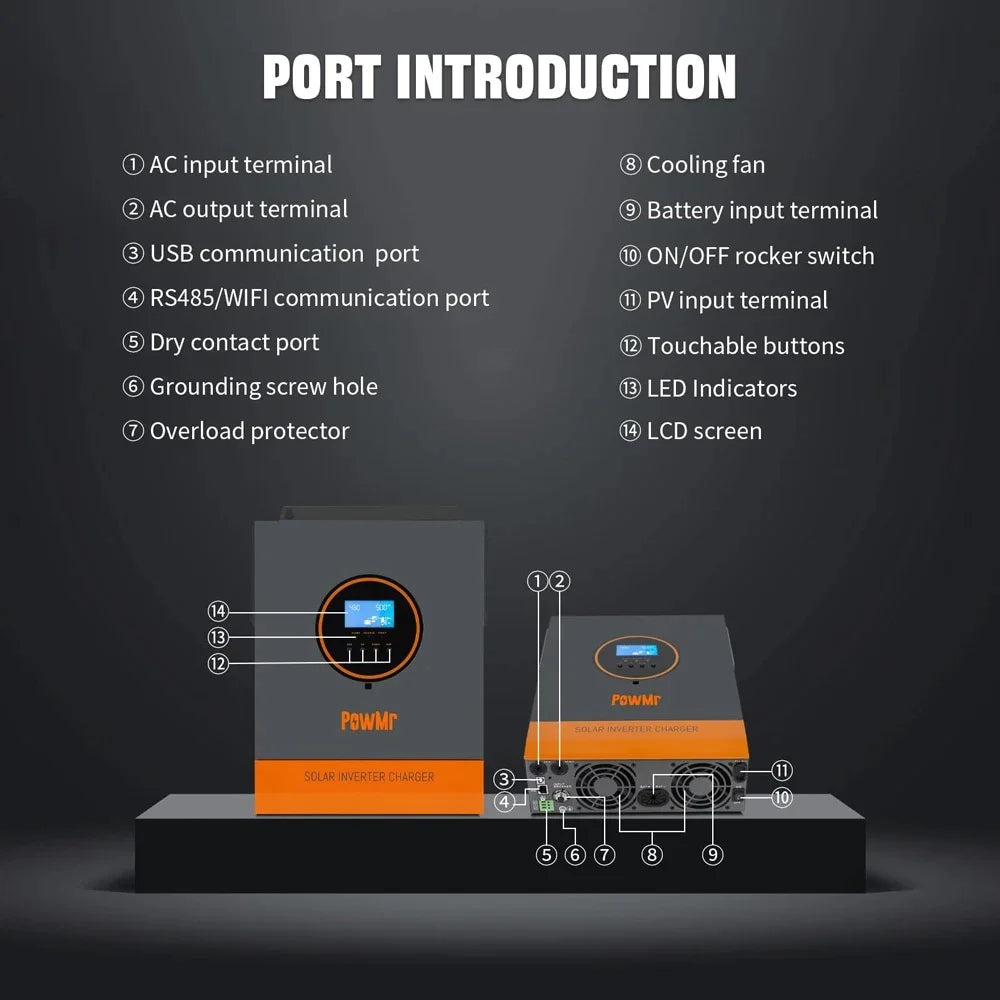

Communication interface |
USB / CAN / RS485(WiFi/GPRS) / Dry contact |

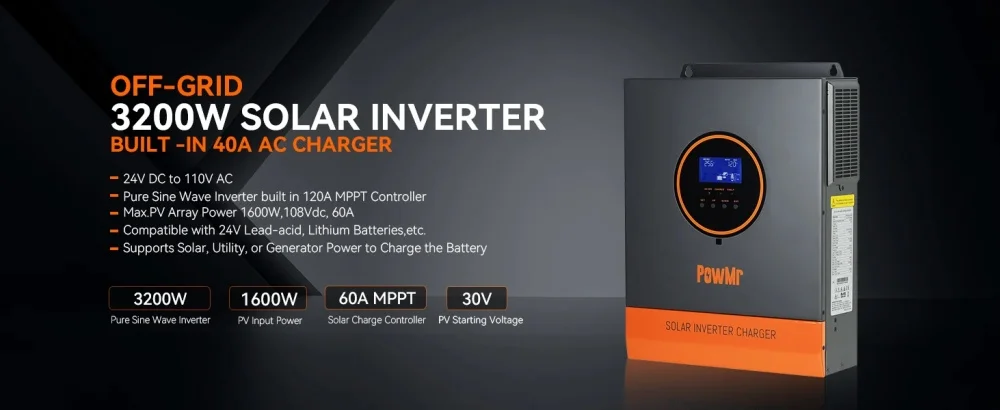

This 3200W pure sine wave invereter charger offers a seamless integration of solar energy storage and means charging energy storage, along with AC sine wave output. With advanced DSP control and control algorithm, it offers high response speed, reliability, and industrial standard.
With the latest optimized MPPT technology, the built-in solar charge controller can quickly track the maximum power point of the PV array in real-time with the efficiency up to 92%. The system has a max PV charging current of 60A and a max AC charging current of 40A, as well as a max hybrid charging current of 100A, making it a highly efficient and reliable option for solar energy storage and charging.

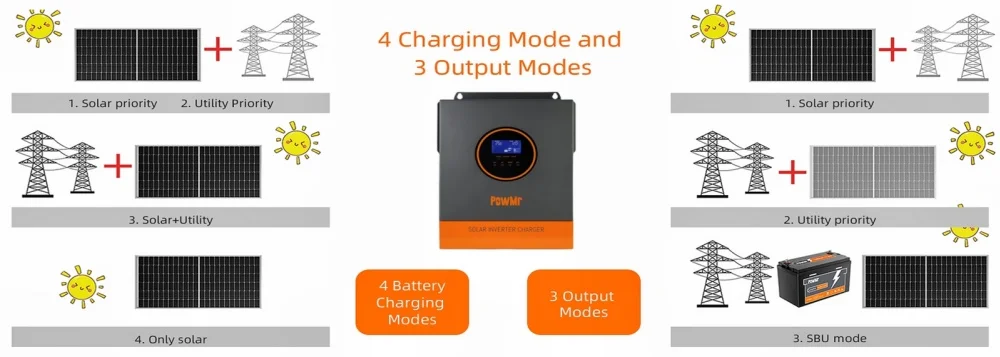

POW-LVM3.2K-24V is a versatile hybrid solar inverter charger that offers 4 charging modes (Only Solar, Mains/Solar Priority, and hybrid charging) and 3 output modes (PV priority/ Mains priority/Inverter priority) to Maximize the use of energy.

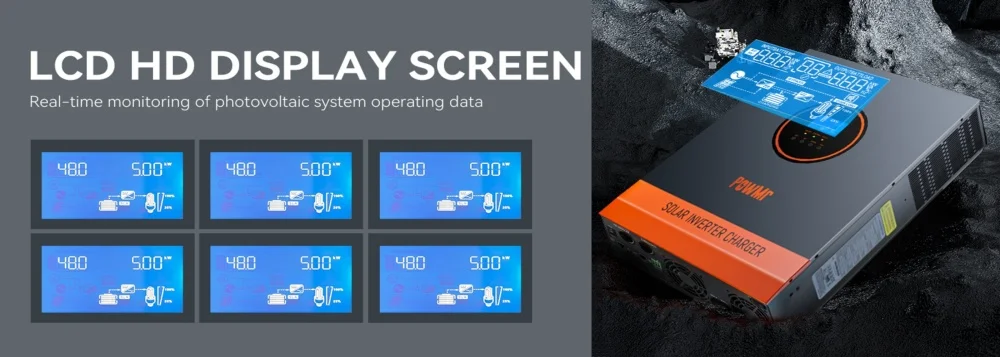

WIFI provides real-time monitoring of your inverter's operational status.

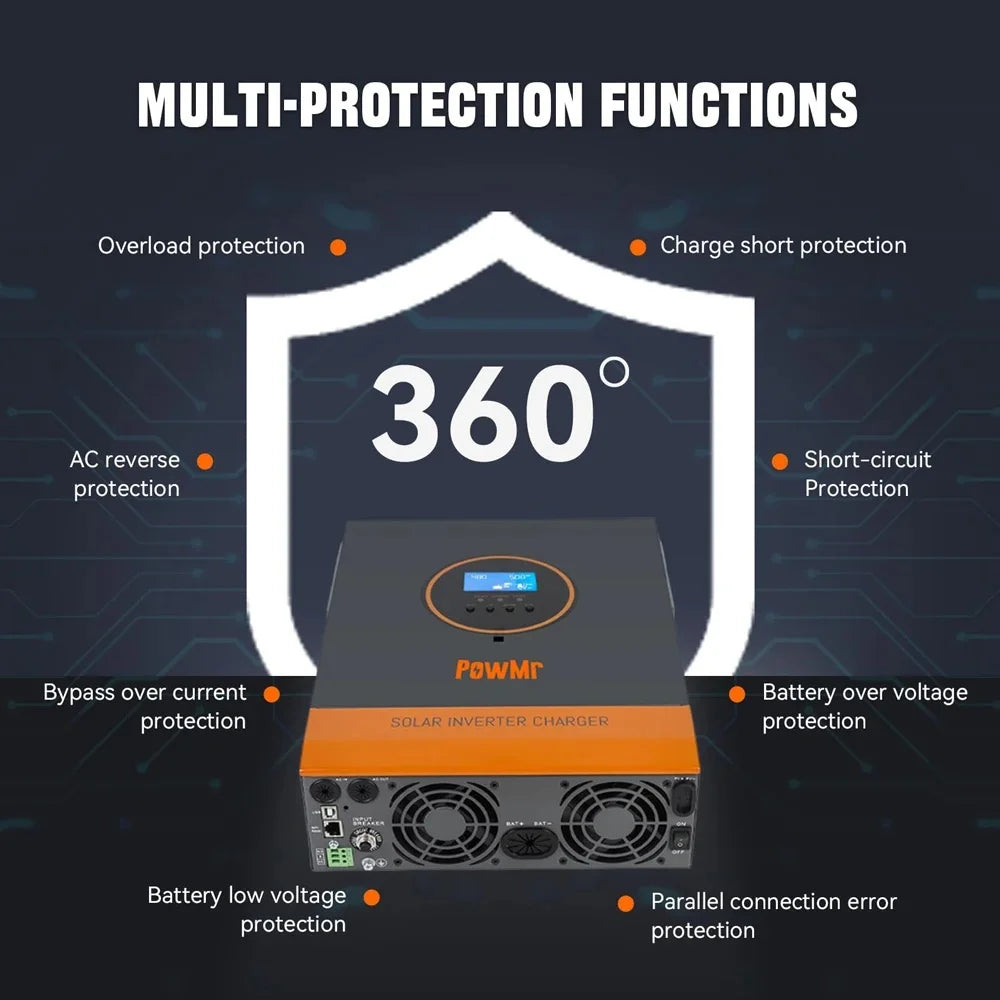

The system is kept safe and stable by comprehensive electronic protections, including overload, short-circuit, over/under-voltage protection. The wide AC voltage input range and complete input/output protections ensure stable and reliable energy supply.
