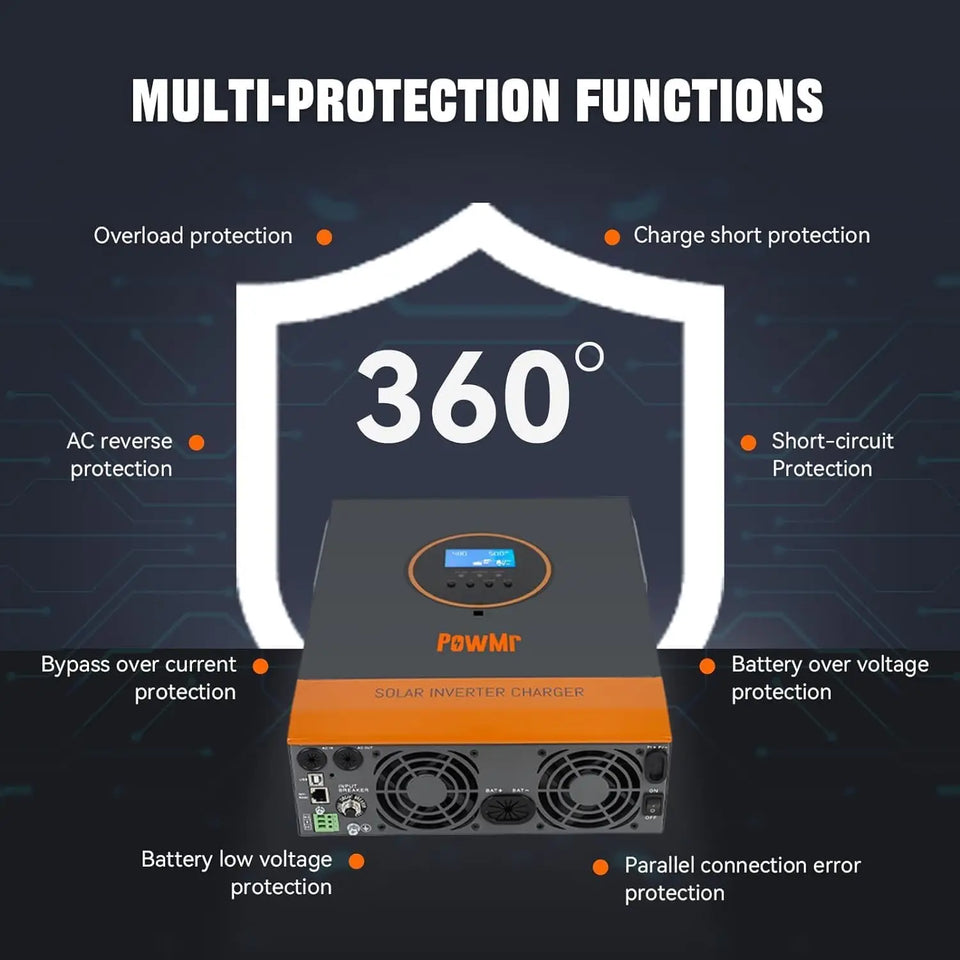

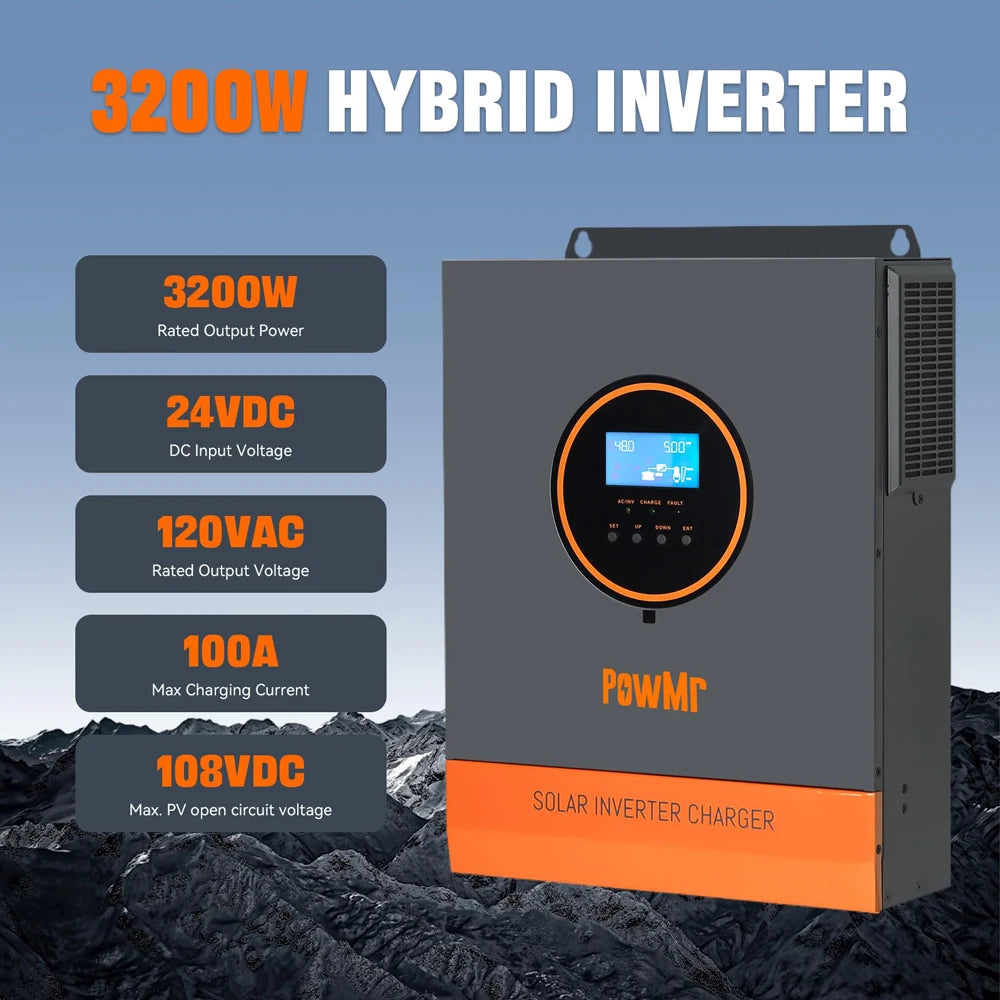

PowMr 3.2KW Hybrid Solar Inverter 24V 110V Off Grid Pure Sine Wave Inverter Single Phase with MPPT 60A Solar Battery Charger
Regular price
$996.08
$996.08
SPECIFICATIONS
Brand Name: PowMr
Certification: CE
High-concerned chemical: None
Is Smart Device: Yes
Model Number: POW-LVM3.2K-24V
Origin: Mainland China
Output Current: MPPT 60A
Output Frequency: 50/60HZ
Output Type: SINGLE
Size: POW-LVM3.2K-24V
Weight: 8KG
is_customized: Yes
PowMr 3.2KW Hybrid Solar Inverter 24V 110V Off Grid Pure Sine Wave Inverter Single Phase with MPPT 60A Solar Battery Charger
Features:
* Pure Sine Wave inverter, 110/120Vac output.
* Higher output power up to 3200W, supports single-phase devices.
* Fast switching time of 10ms.

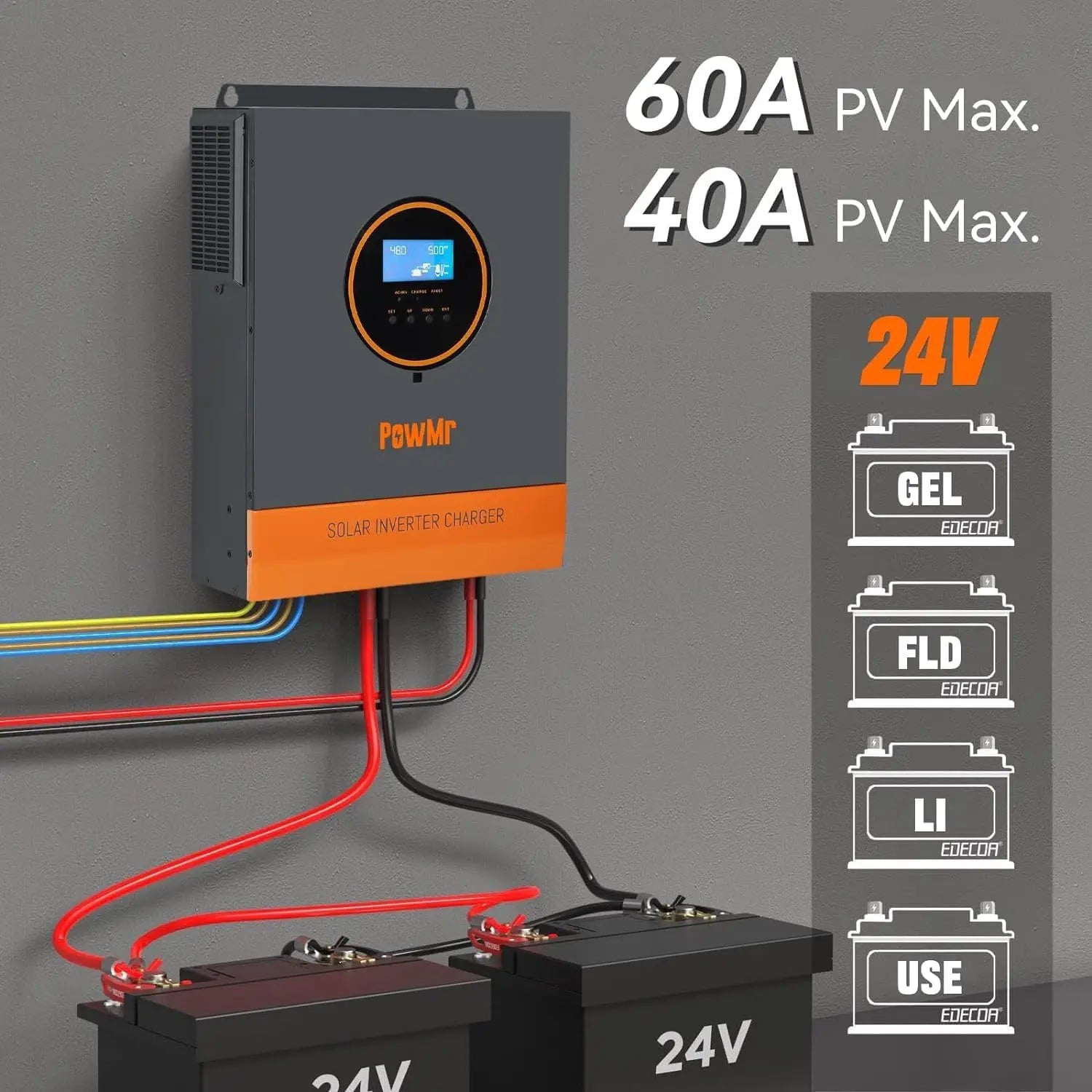

* Compatible with 24V lithium-ion and lead-acid battery, support user-define.
* Max. PV charging current up to 60A.
* Max. AC charging current up to 40A.

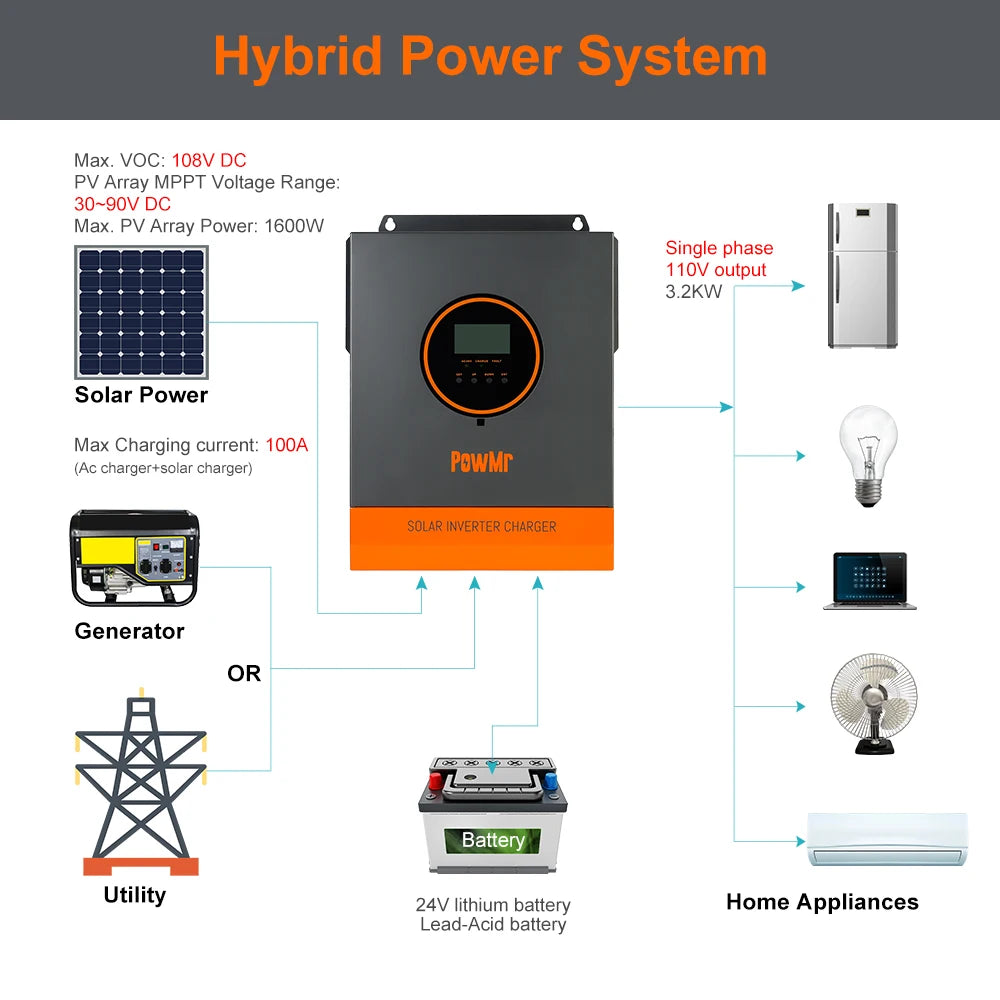

* Max. hybrid charging current up to 100A.
* 90~140Vac input voltage range.
* 30~108Vdc wide voltage range for PV access.
* 1 MPPT racker, with 92% efficiency.

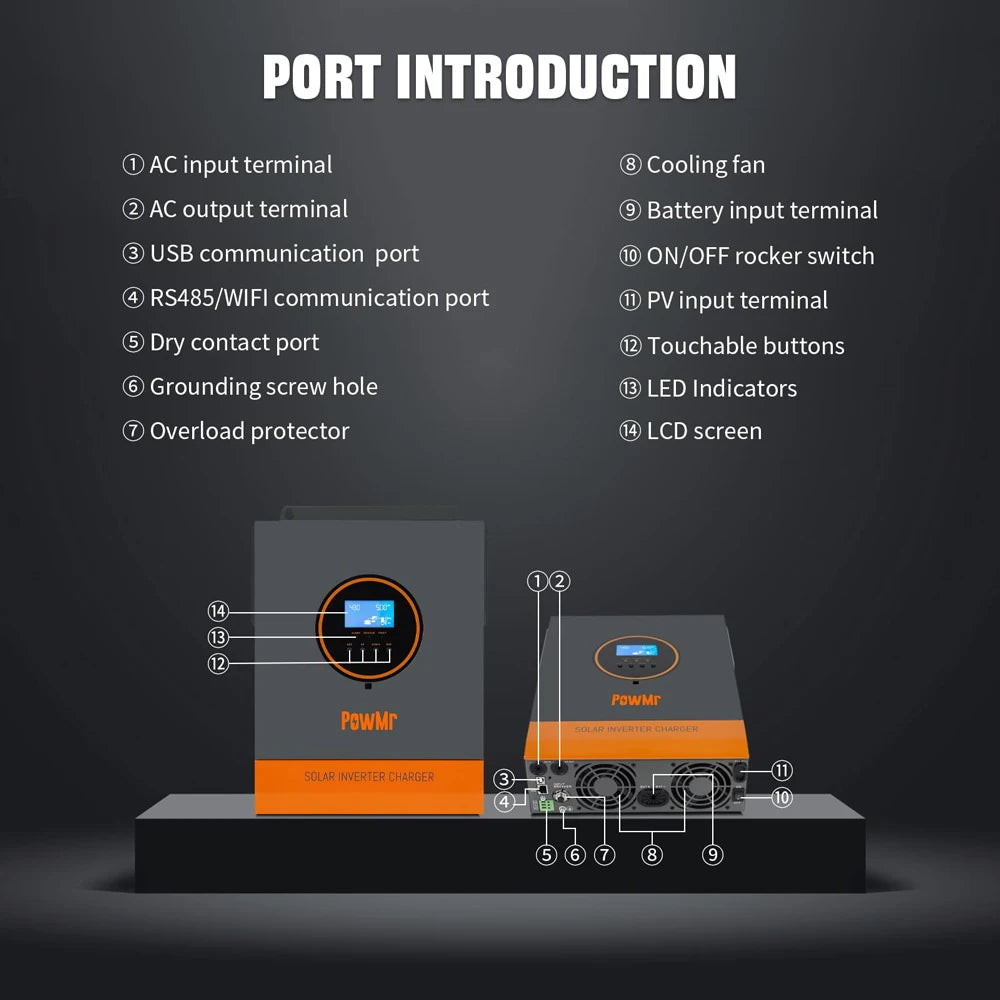

* Configure multiple communication interfaces (USB/CAN/RS485(WiFi/GPRS)/Dry ontact).
* Durable finish with high anti-corrosion.

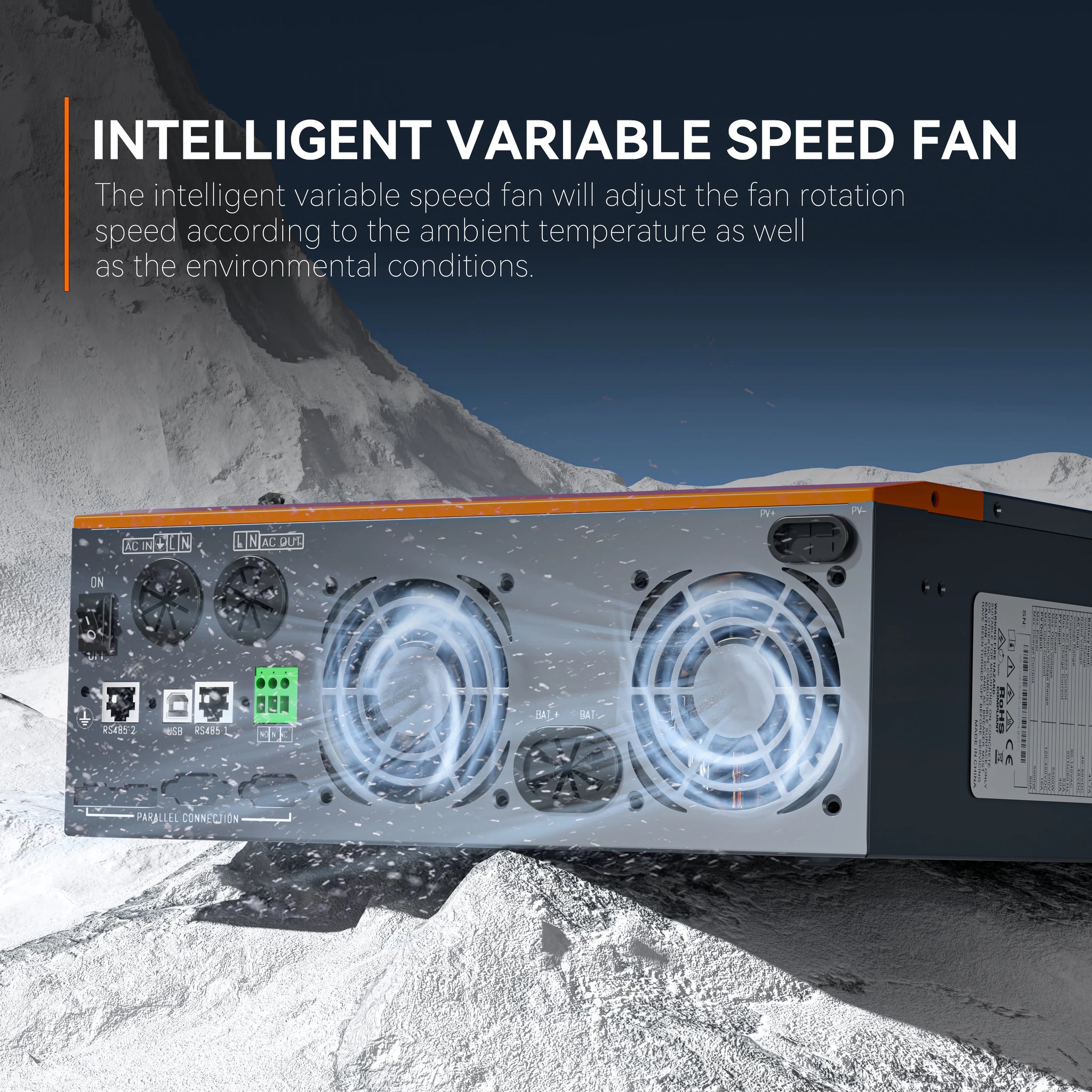

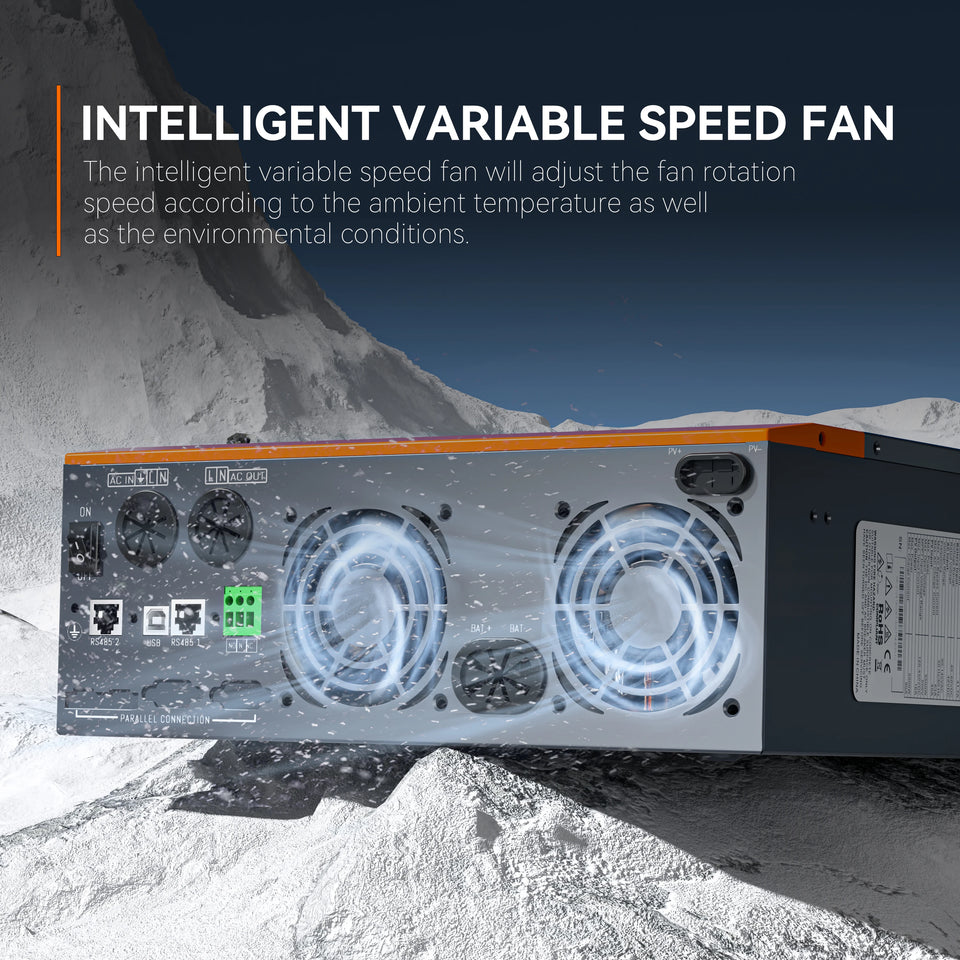

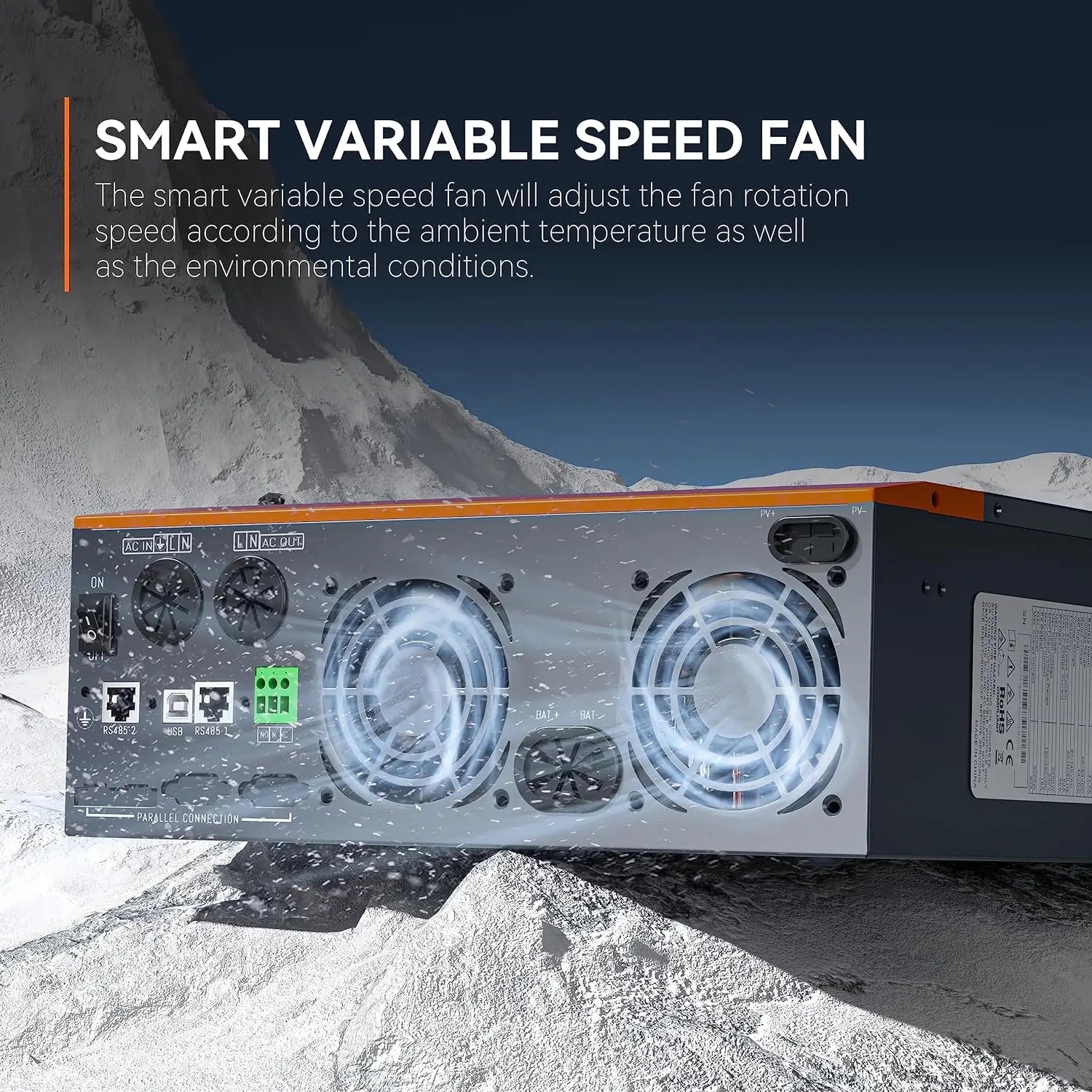

* Effective forced air cooling to ensure that the equipment runs stably.
Model |
POW-LVM3.2K-24V |
AC Mode | |
Rated input voltage |
110/120Vac |
Input voltage range |
(90Vac~140Vac) ±2% |
Frequency |
50Hz/ 60Hz (auto-sensing) |
Overload/short-circuit protection |
Circuit breaker |
Max. efficiency |
>92% |
Maximum bypass overload current |
40A |
Inverter Mode | |
Output voltage waveform |
Pure sine wave |
Rated output power (VA) |
3200 |
Rated output power (W) |
3200 |
Rated output voltage (Vac) |
120Vac |
Maximum Efficiency |
>92% |
Peak power |
6000VA |
Loaded motor capability |
4HP |
Rated battery input voltage |
24V (minimum start voltage 22V) |
Power saving mode |
Load ≤50W |
AC Charging | |
Battery type |
Lead acid or lithium battery |
Maximum charge current(can be set) |
0-40A |
Charge voltage range |
20 ~ 33Vdc |
Circuit breaker specification |
40A |
Solar Charging | |
Maximum PV open-circuit voltage |
108Vdc |
PV operating voltage range |
30-108Vdc |
Battery voltage range |
30 ~ 90Vdc |
Maximum input power |
1600W |
Charge current range of solar energy (settable) |
0-60A |
Authentication Specification | |
EMC authentication grade |
EN61000, C2 |
Noise |
≤60dB |
Communication interface |
USB / CAN / RS485(WiFi/GPRS) / Dry contact |
Dimension (mm) |
378*280*103 |
Weight (kg) |
6.8 |
