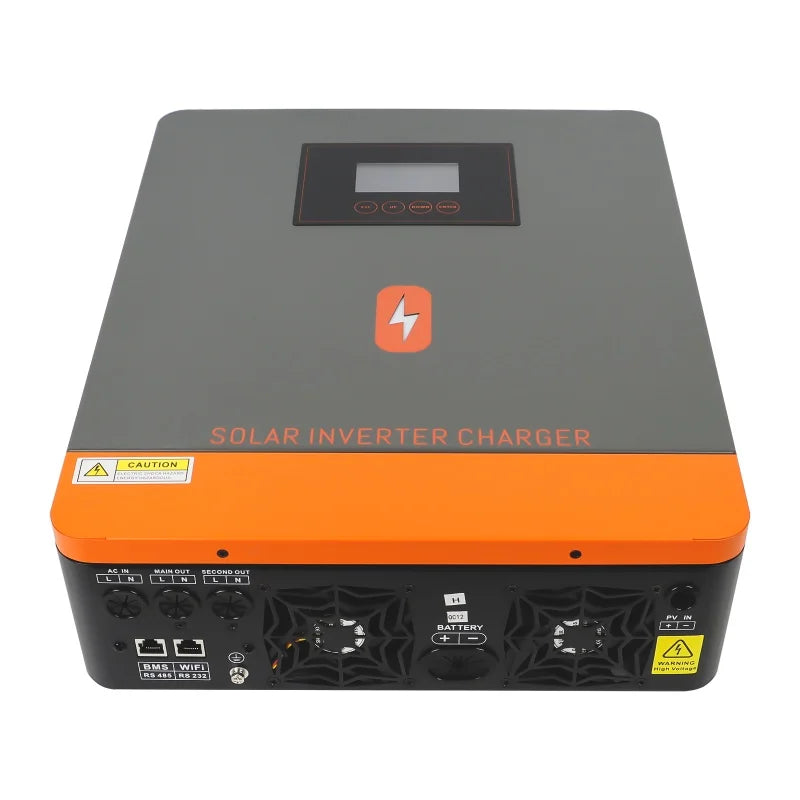

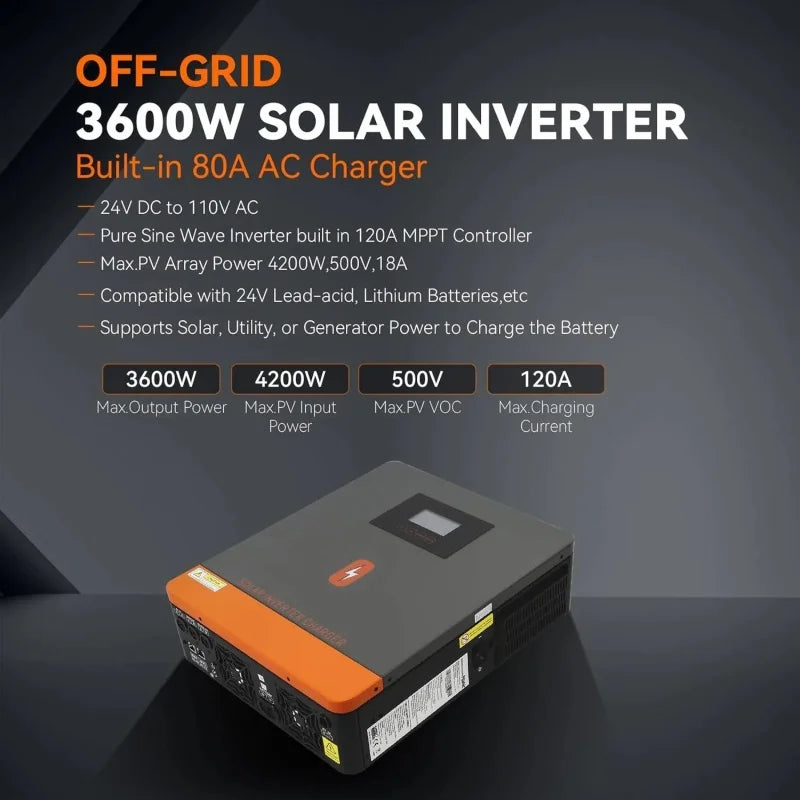

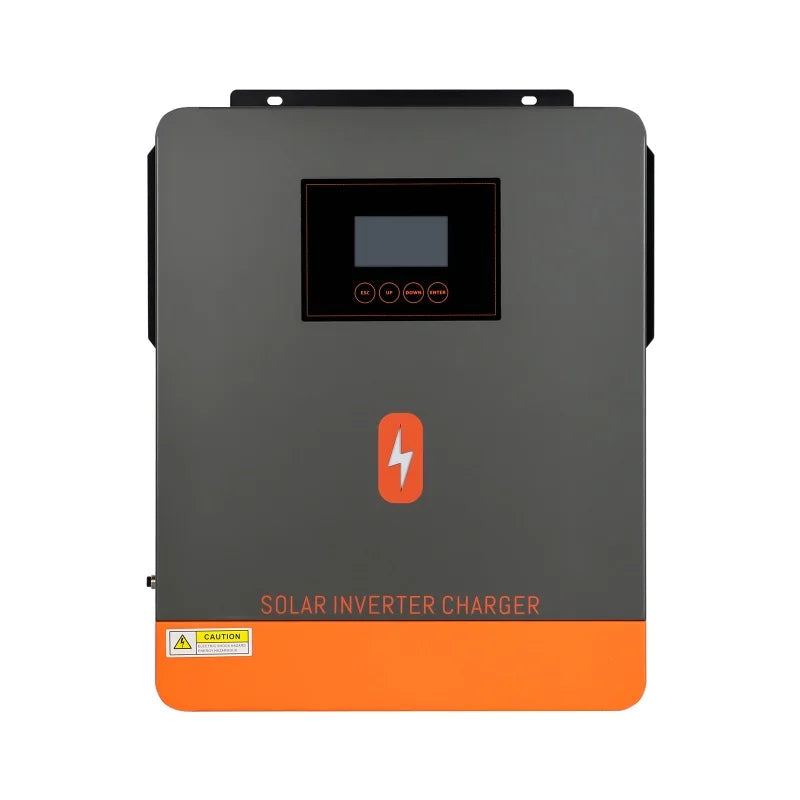

PowMr 3.6KW Solar Hybrid Inverter 120A MPPT Solar Charge 24V DC to 110VAC Pure Sine Wave Inverter Support Lifepo4 for Solar Home
Regular price
$180.83
$180.83
SPECIFICATIONS
AC Charger plus Solar Charger: MPPT 120A
AC output voltage: 110VAC 50Hz/60Hz
Battery voltage: 24VDC
Brand Name: NONE,PowMr
Certification: CE

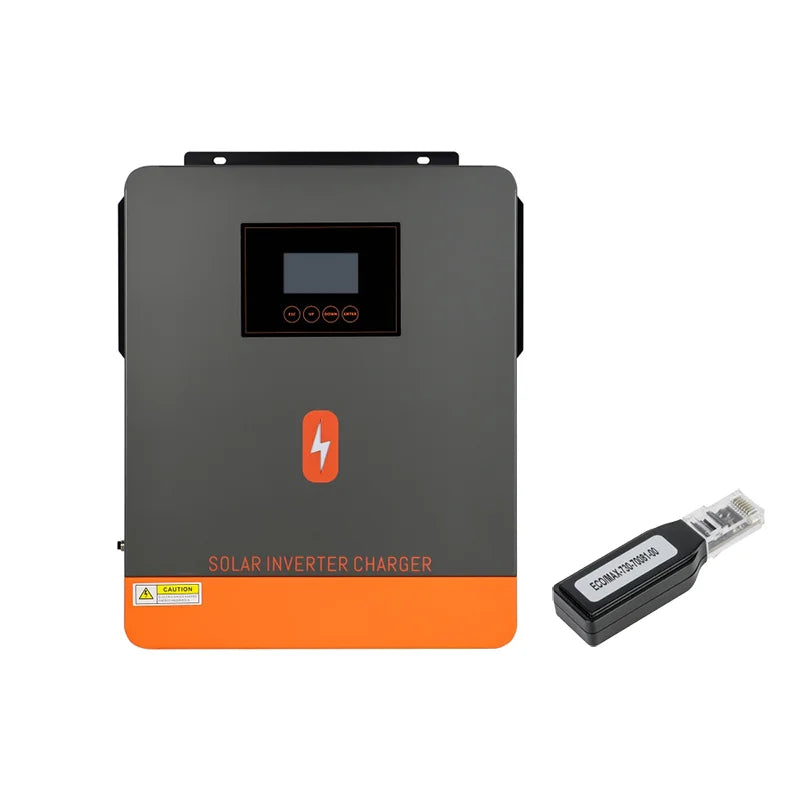

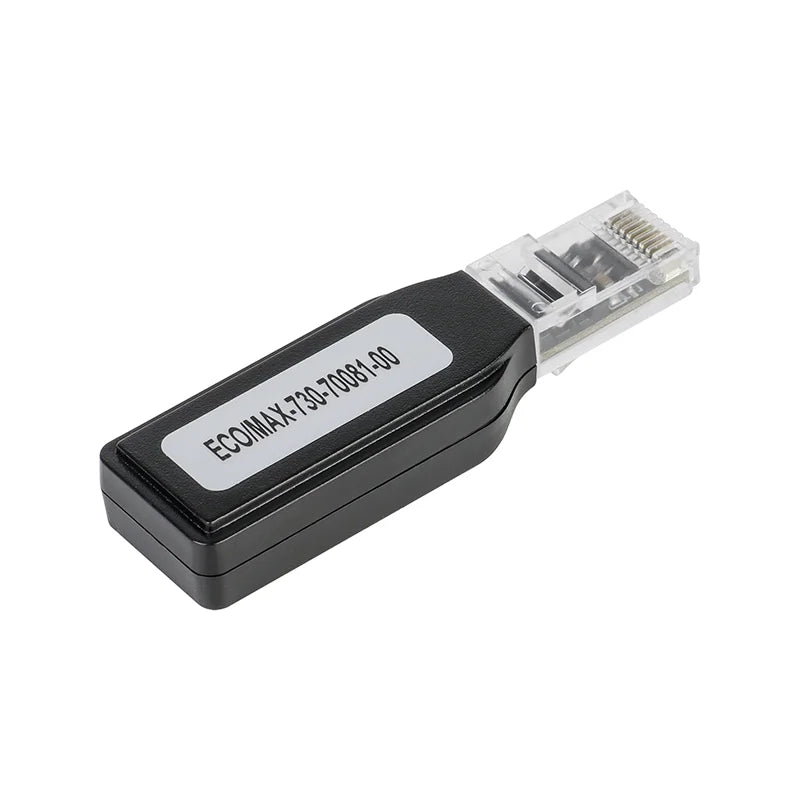

Communication Interface: RS232
Continous Power: 3.6KW
Feature: Hybrid inverter
Feature 1: Pure sine wave inverter
Feature 2: MPPT
High-concerned chemical: None
Is Smart Device: Yes
Max charge current for solar: MPPT 80A
Model Number: POW-LVM3.6M-24V
Nominal PV: 240VDC 4200W
Origin: Mainland China
Output Current: 120A
Output Frequency: 50/60HZ
Output Type: DUAL,Dual

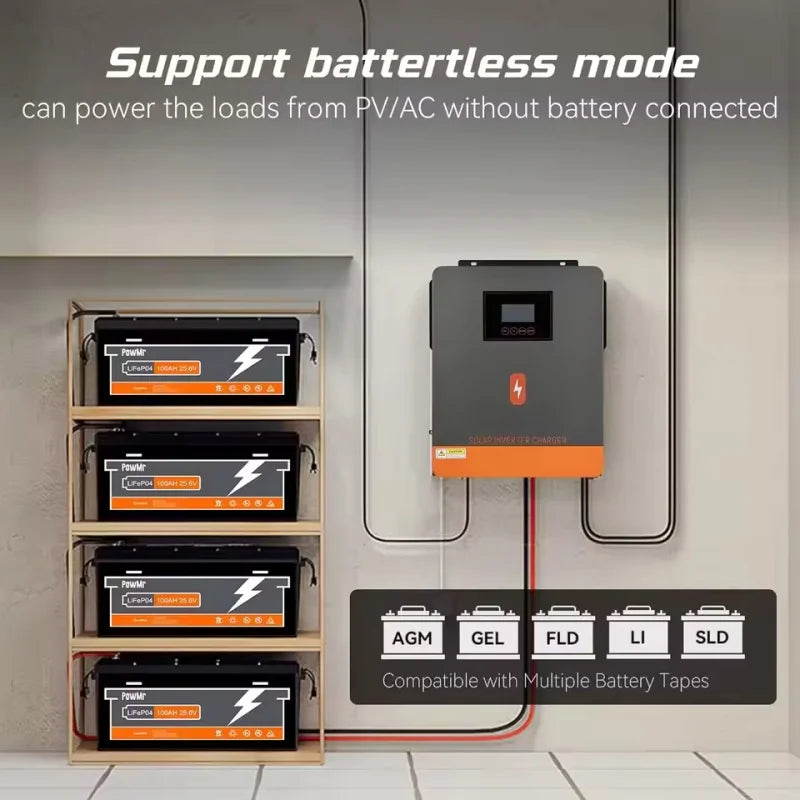

Support Battery type: lithium battery,LiFePo4
Wave form: Pure Sine Wave
Weight: 9.8
is_customized: Yes
PowMr 3.6KW Solar Hybrid Inverter 120A MPPT Solar Charge 24V DC to 110VAC Pure Sine Wave Inverter Support Lifepo4 for Solar Home
Introduction:
INVERTER MODEL |
3.6KW 24V |
6.2KW 48V |
Input Voltage Waveform |
Sinusoidal (utility or generator) |
|
Nominal Input Voltage |
100Vac |
|
Max AC Input Voltage |
150Vac |
|
Nominal Input Frequency |
50Hz / 60Hz (Auto detection) |
|
Output Short Circuit Protection |
Circuit Breaker |
|
Rated Output Power |
3.6KW |
6.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
100/105/110/115/120Vac |
|
Output Frequency |
50Hz / 60Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
No Load Power Consumption |
45W |
50W |
Two Load Output Power | ||
Full Load |
3600W |
6200W |
Maximum Main Load |
3600W |
6200W |
Maximum Second Load(battery model) |
1200W |
2066W |
Main Load Cut Off Voltage |
26VDC |
52VDC |
Main Load Return Voltage |
27VDC |
54VDC |

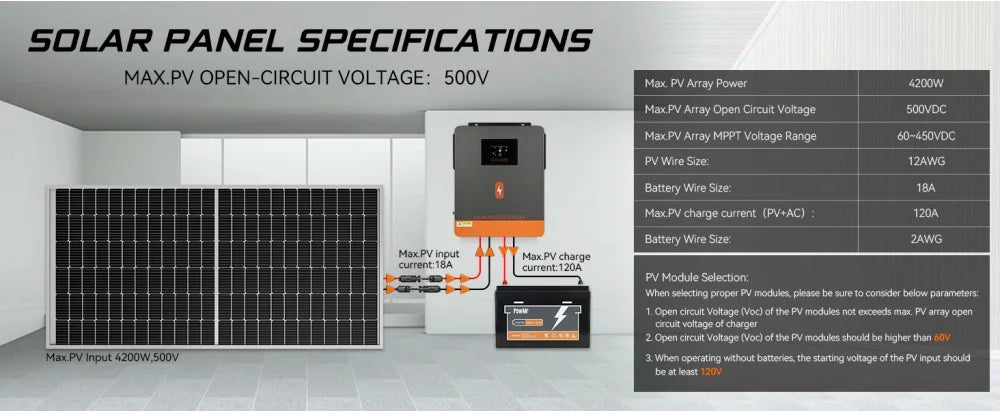

MPPT Solar Charging Mode | ||
Max. PV Array Power |
4200W |
6500W |
Nominal PV Voltage |
240Vdc |
360Vdc |
PV Array MPPT Voltage Range |
60Vdc~500Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|

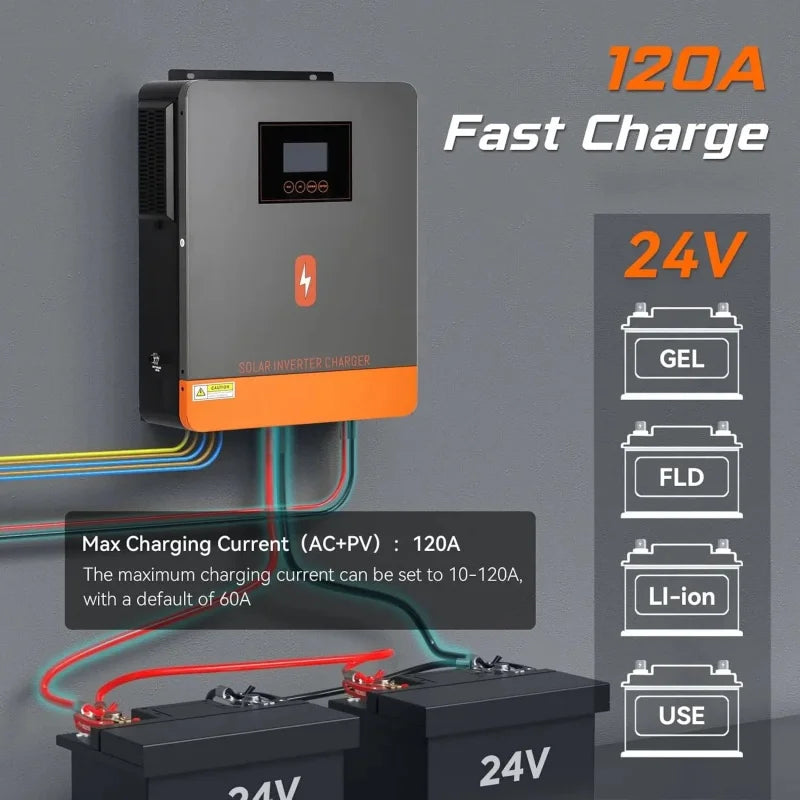

Max Charging Current |
120Amp |
120Amp |
Grid-Tie Operation | ||
Nominal Output Voltage |
100/105/110/115/120VAC |
|
Feed-in Grid Voltage Range |
90~150VAC |
|
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency(DC/AC) |
97% |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10°C to 50°C |
|
Storage temperature |
-15°C~ 60°C |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
