2. Onboard 1.47-inch LCD screen, resolution 172×320, excellent display effect.

3. Equipped with Type-C interface, supports USB1.1 host/device function and drag-and-drop programming.

4. Built-in 520KB SRAM, 16MB Flash, to meet a variety of storage needs.

5. Onboard RGB lights and temperature sensors provide rich interactive experience.

Product Introduction:

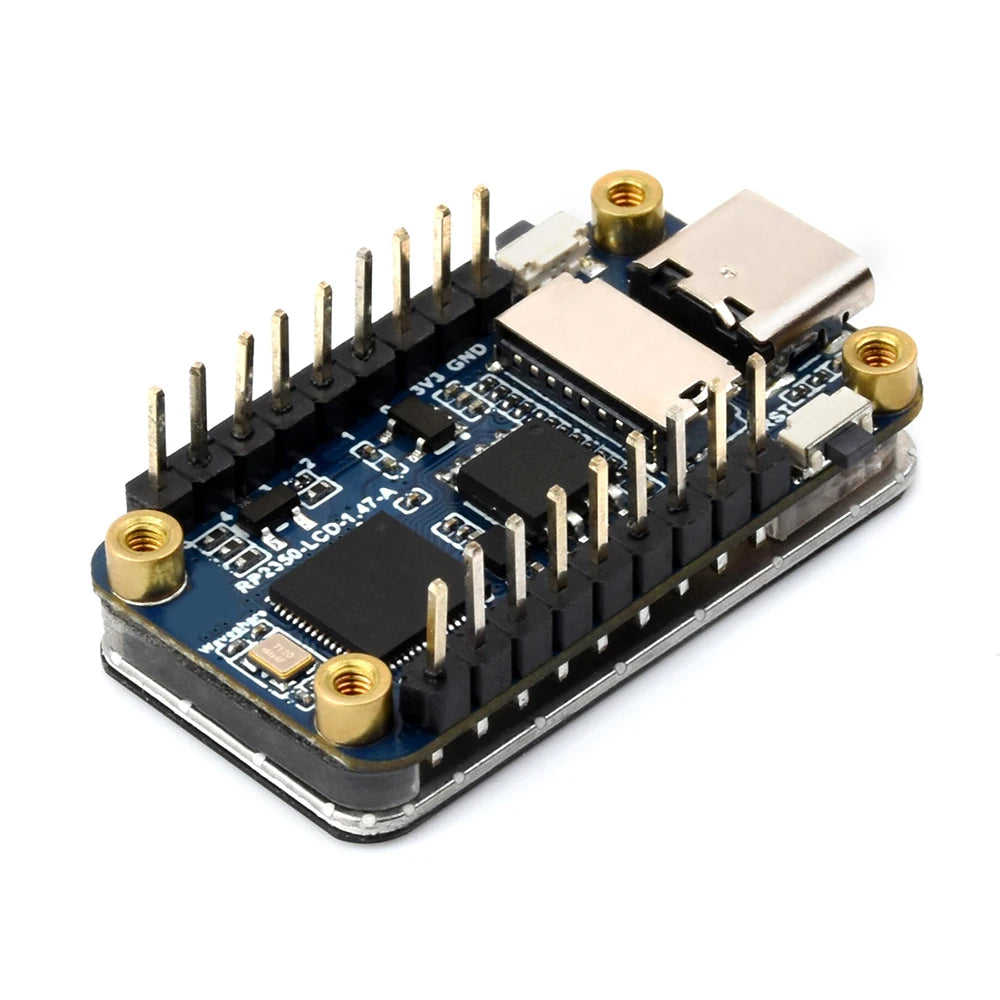

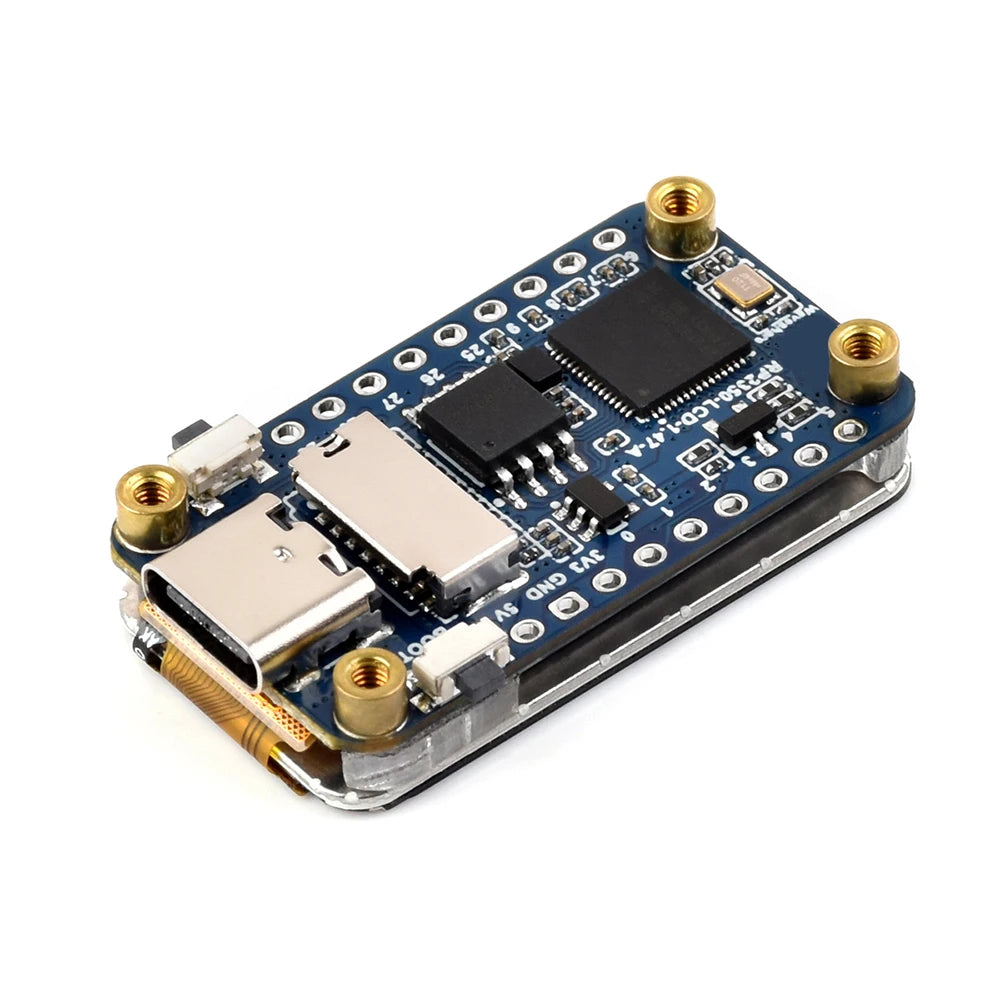

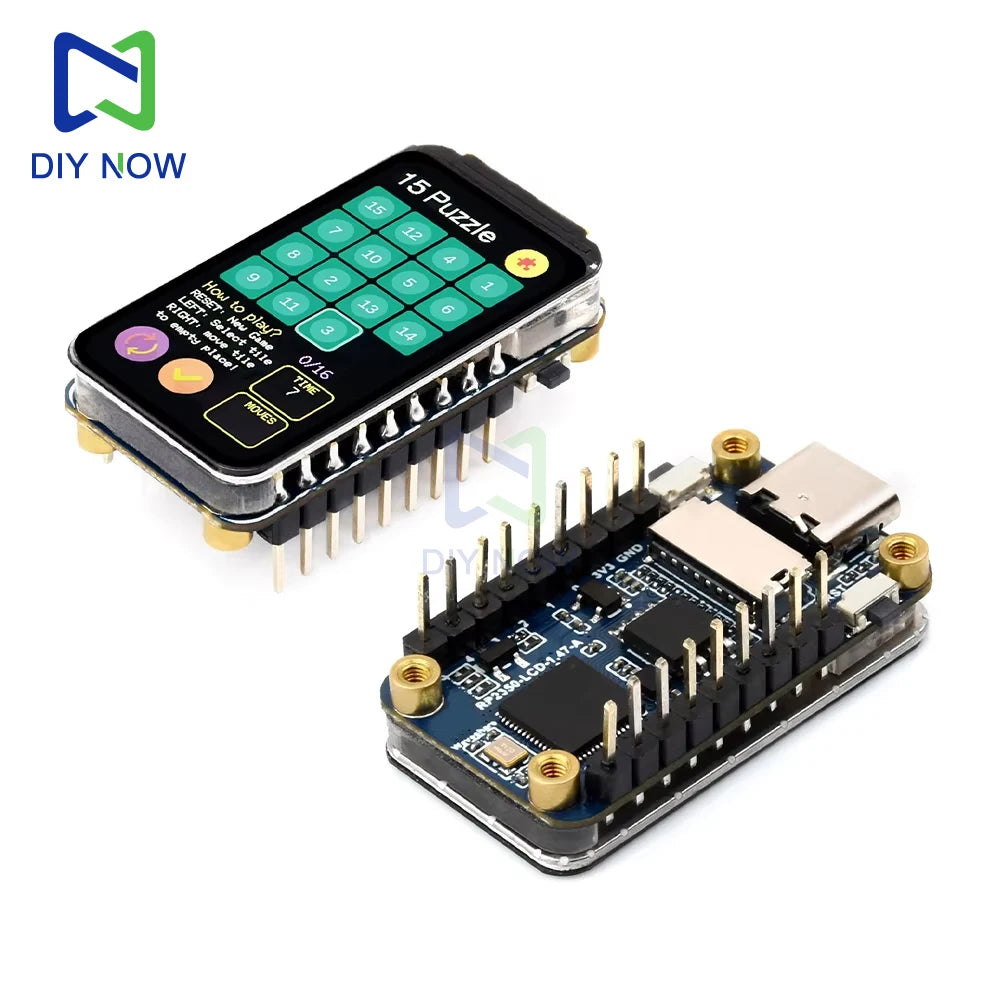

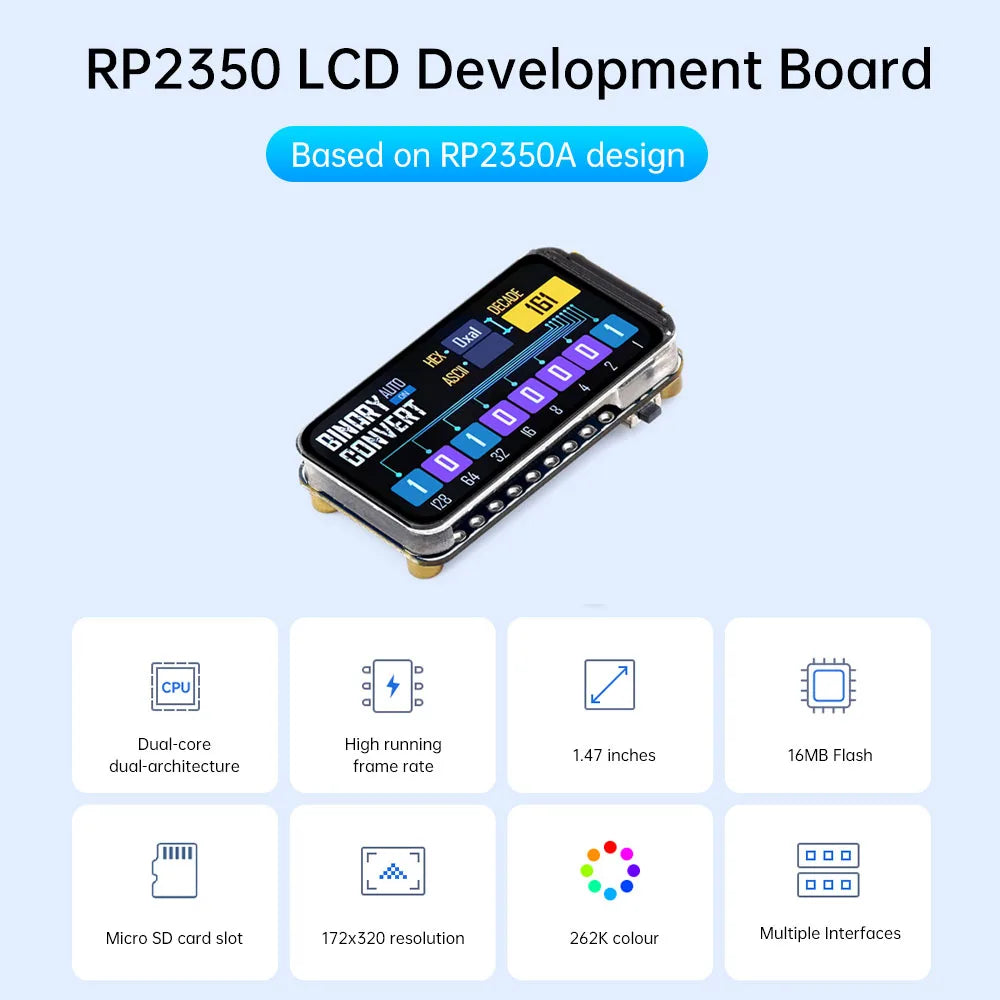

This product is a low-cost, high-performance microcontroller development board. In a smaller board, it has onboard peripherals such as a 1.47-inch LCD screen, Micro SD card slot and RGB lights, which is easy to develop and integrate into products.

The unique dual-core, dual-architecture RP2350A allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, enabling developers to experiment with the RISC-V architecture in a stable, well-supported environment.

Features include:

Type-C interface

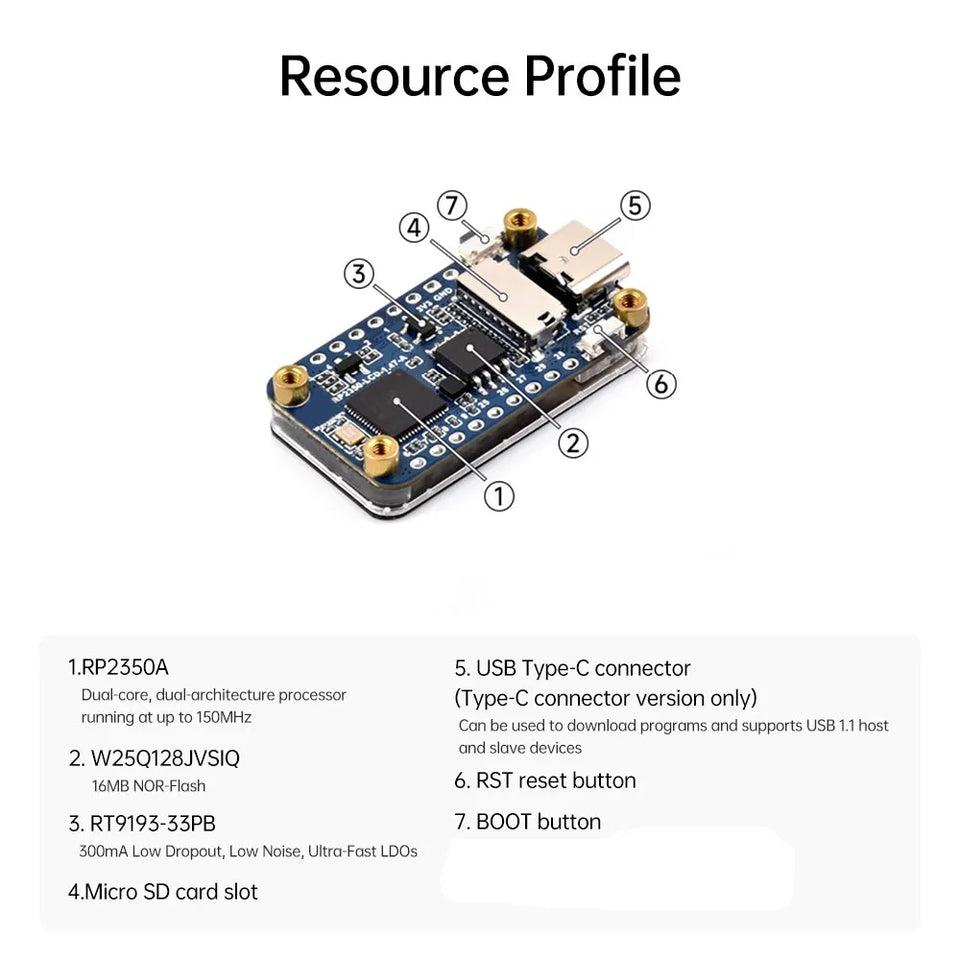

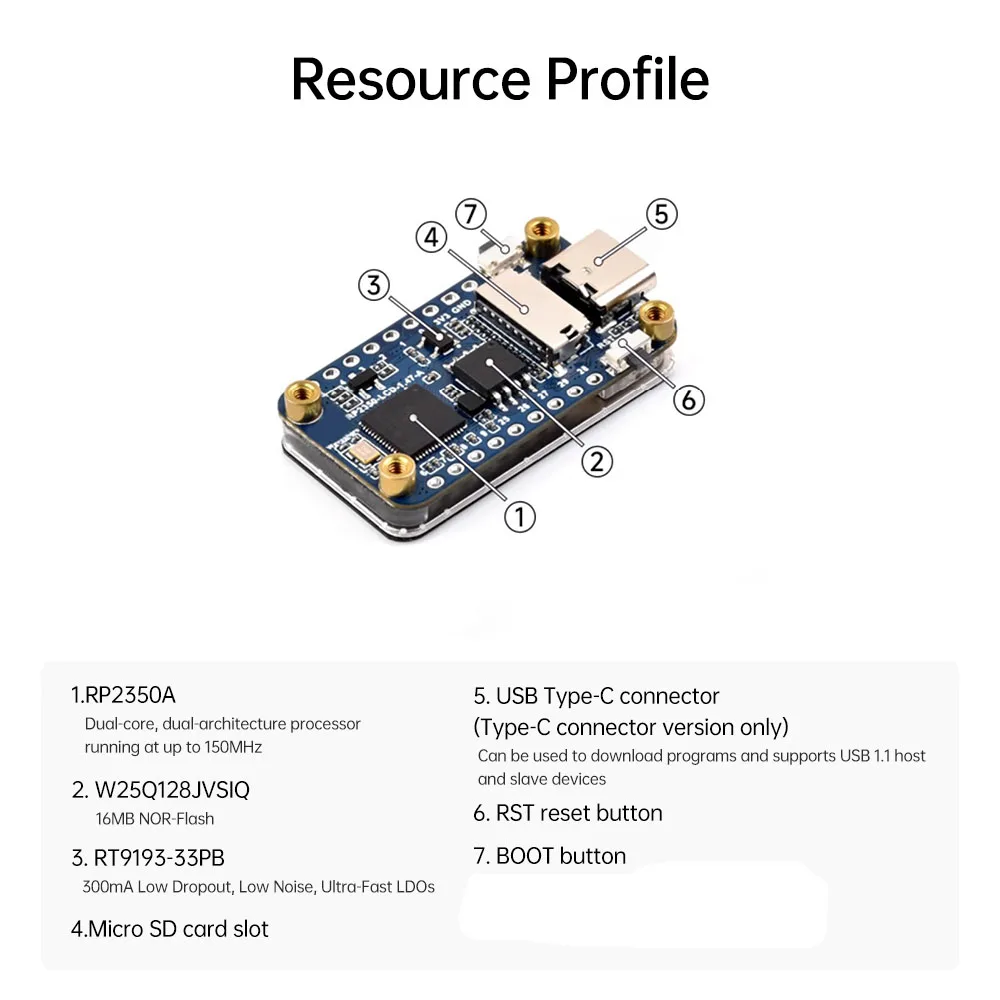

Using the original RP2350A microcontroller chip

Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both with a clock frequency of up to 150MHz

Built-in 520KB SRAM and 16MB on-chip Flash

Using the Type-C interface, no need to worry about whether to insert it forward or reverse

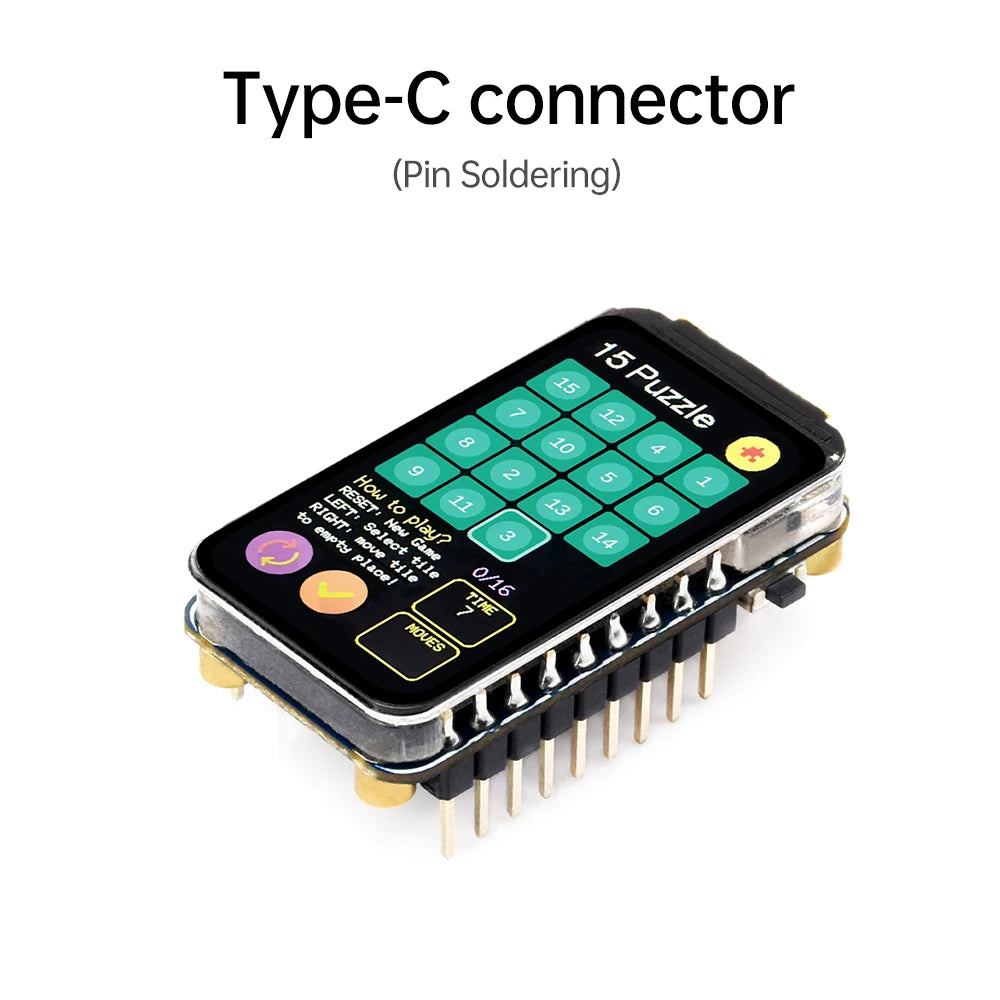

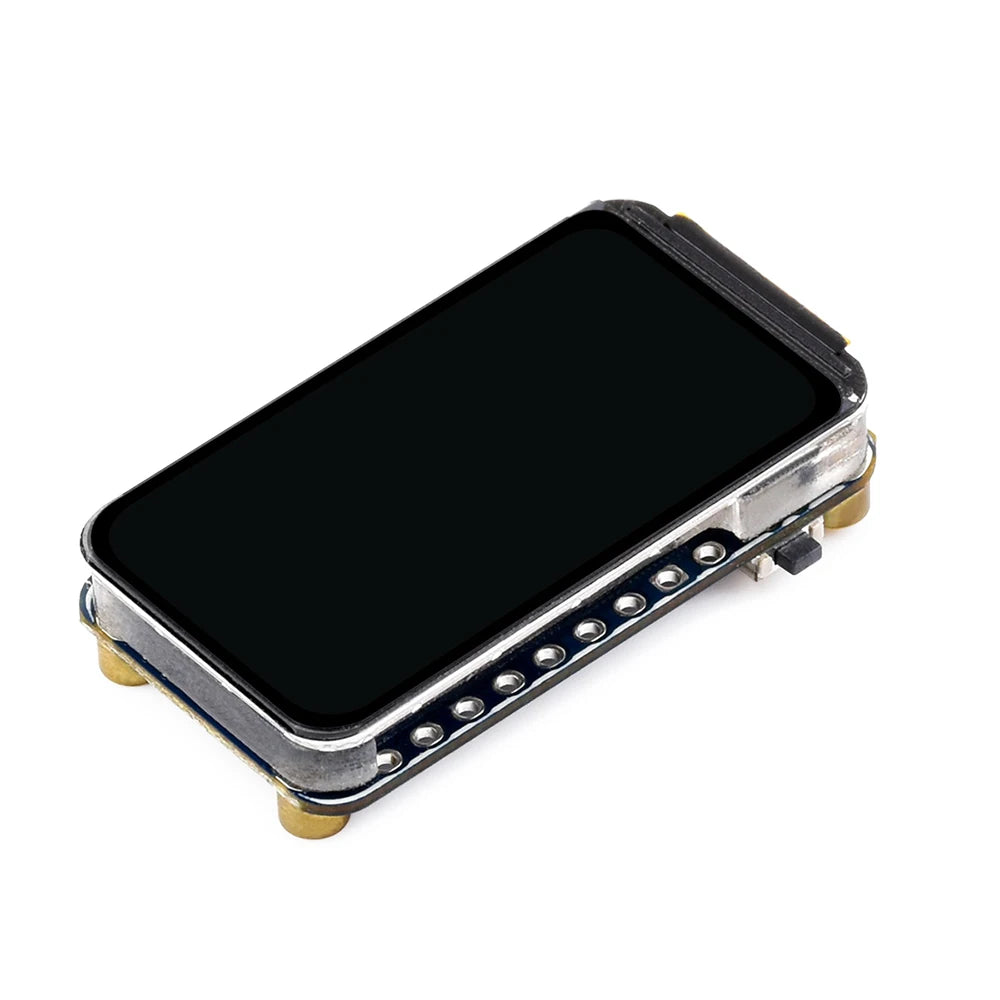

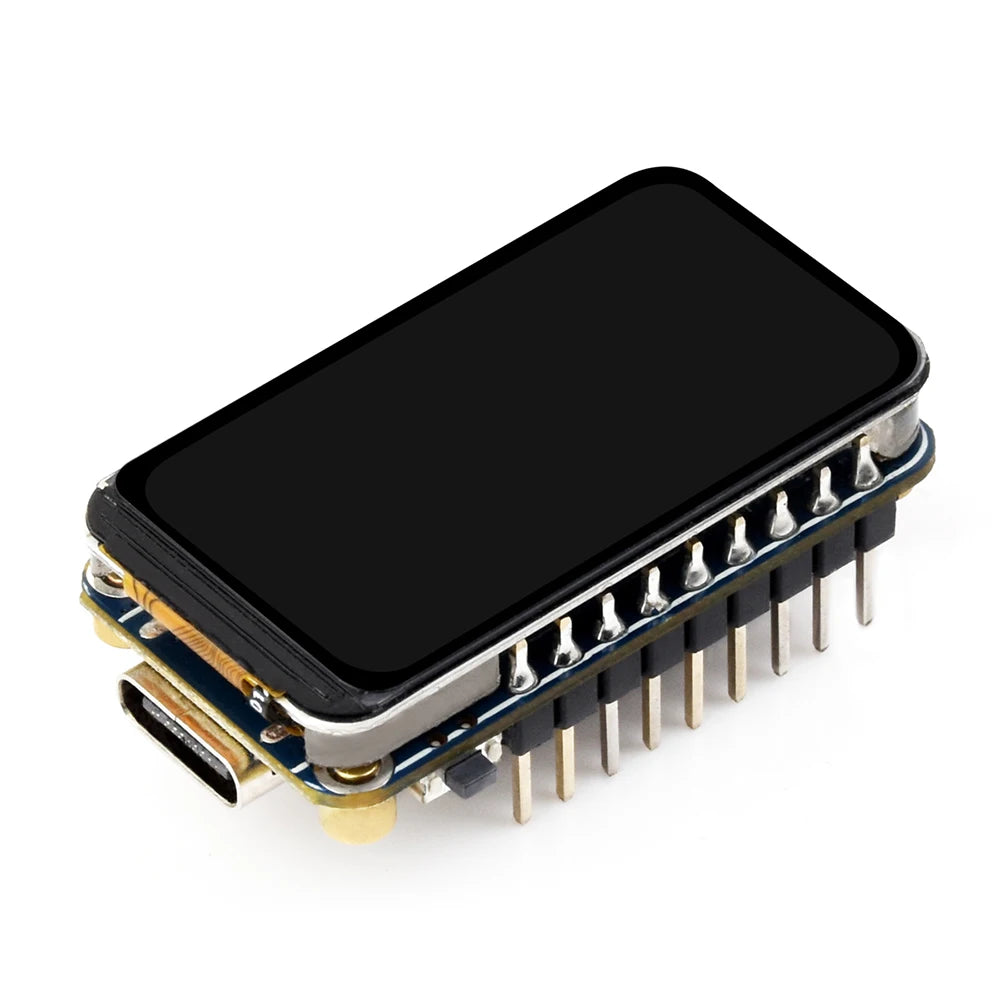

Onboard 1.47-inch LCD screen, 172 × 320 resolution, 262K color

USB1.1 host and device support

Support low-power sleep and hibernation modes

Can be identified as a large-capacity storage device through USB for drag-and-drop download of programs

Accurate on-chip clock and timer

Onboard temperature sensor

Onboard RGB colored lamp beads, with a transparent acrylic interlayer, can achieve cool lighting effects

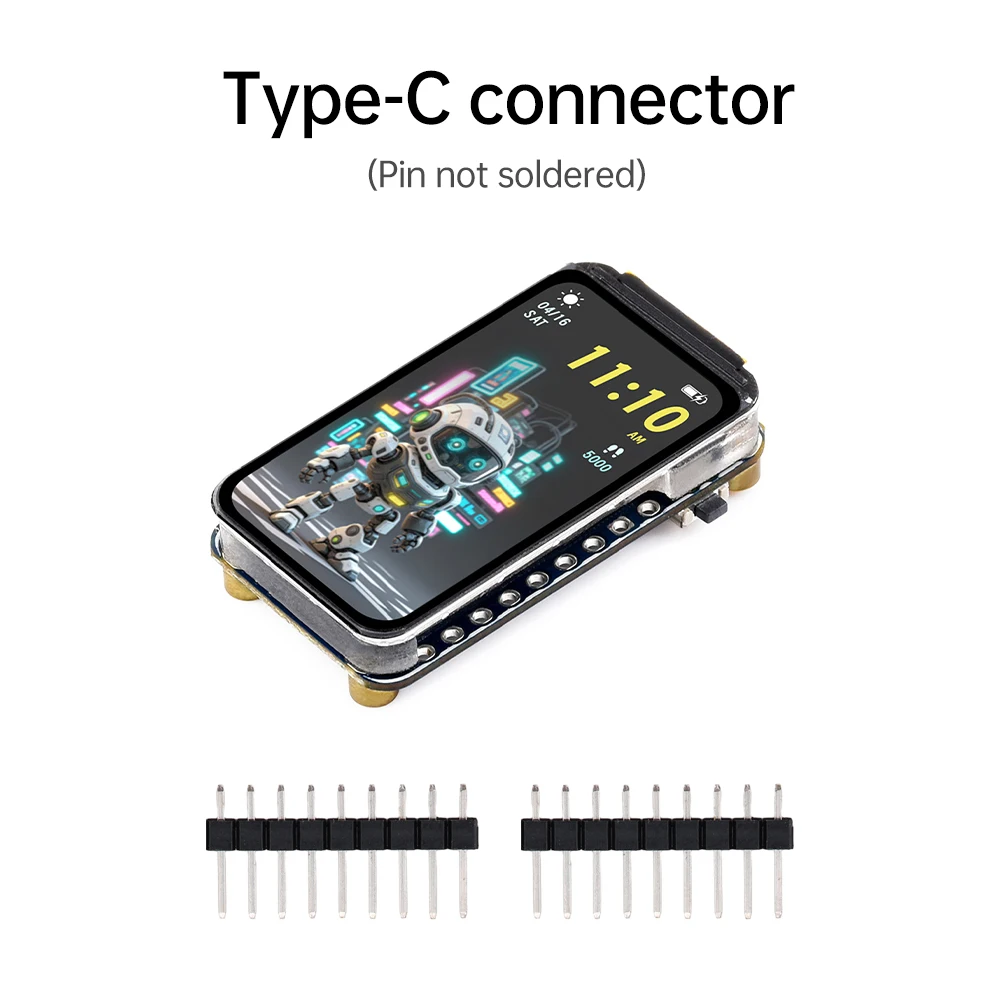

Product list:

1X development board

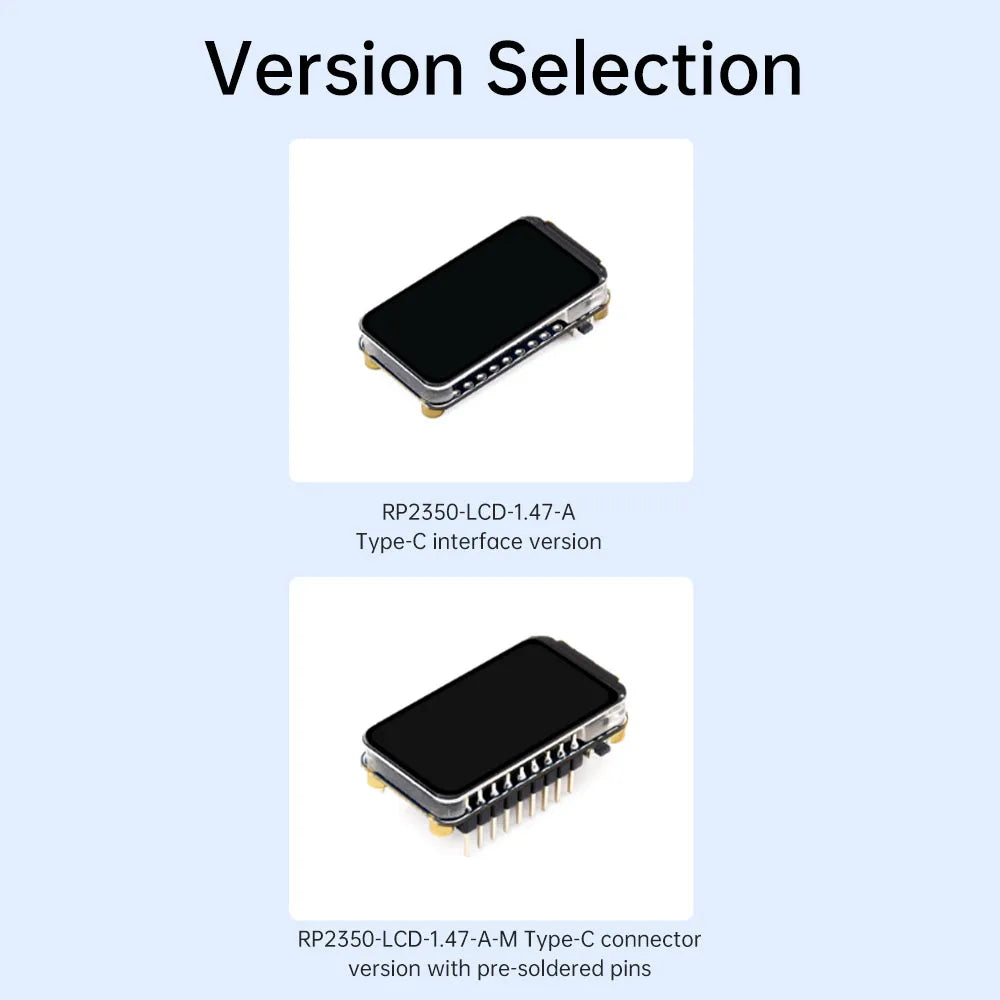

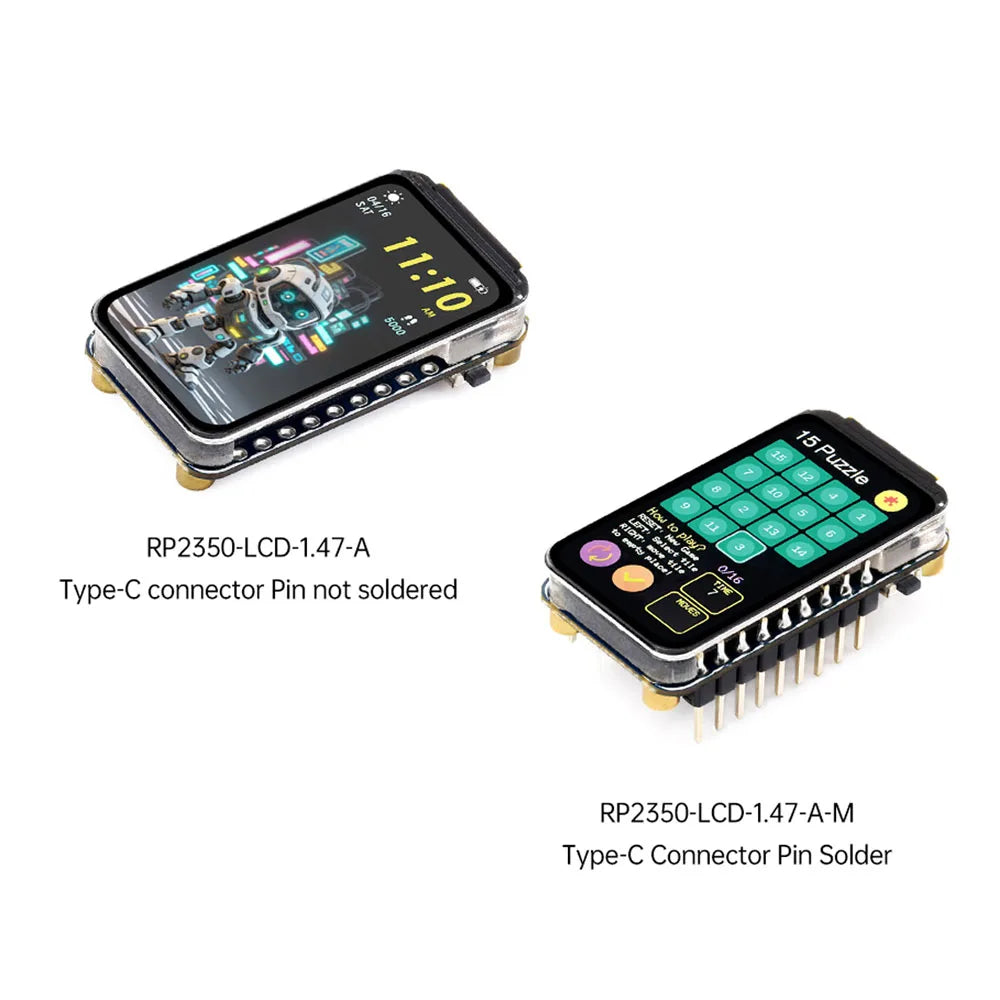

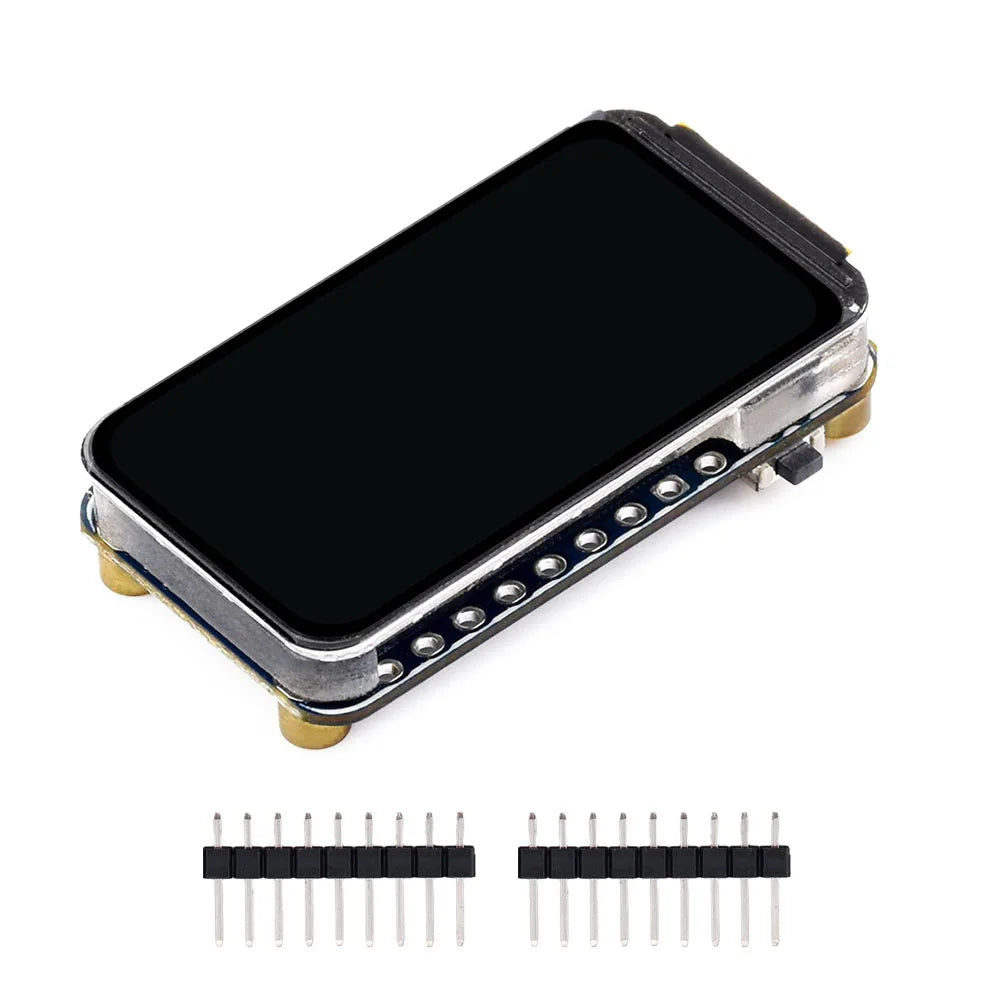

2X pin headers (unsoldered pin headers/soldered pin headers are optional)
