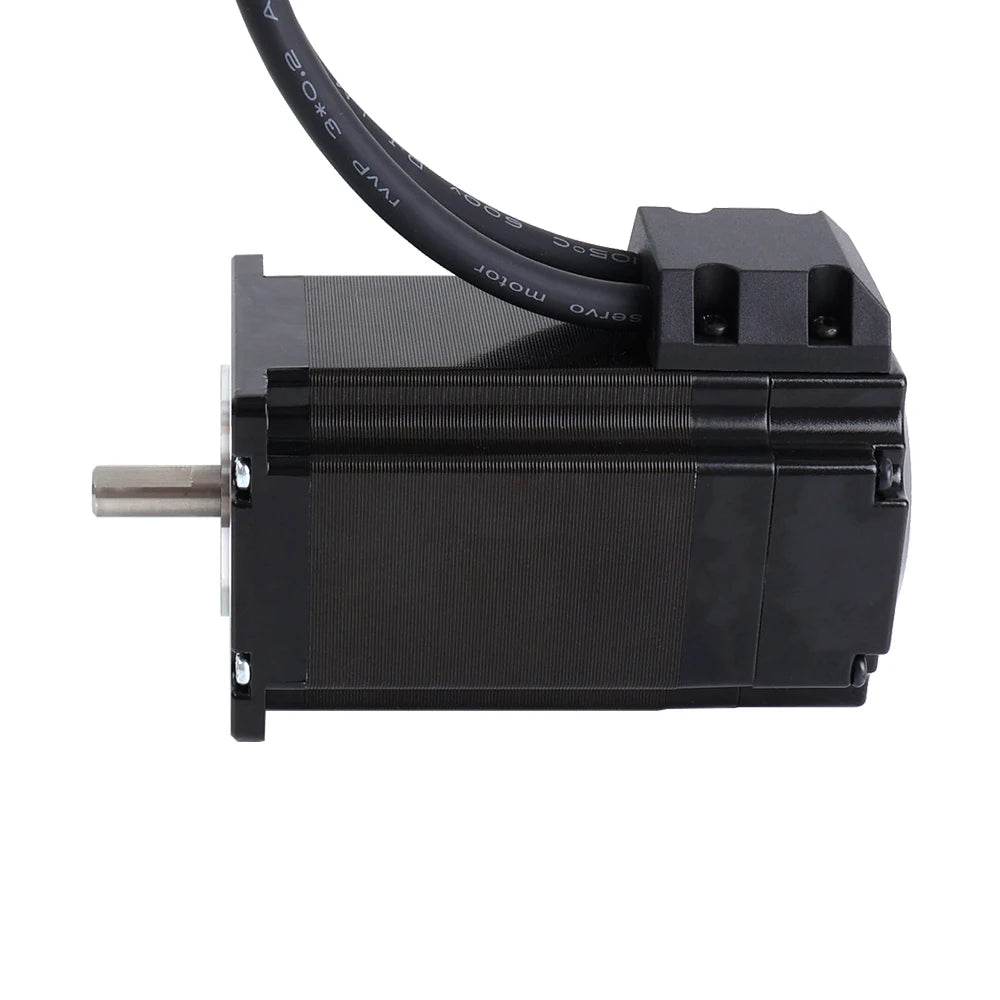

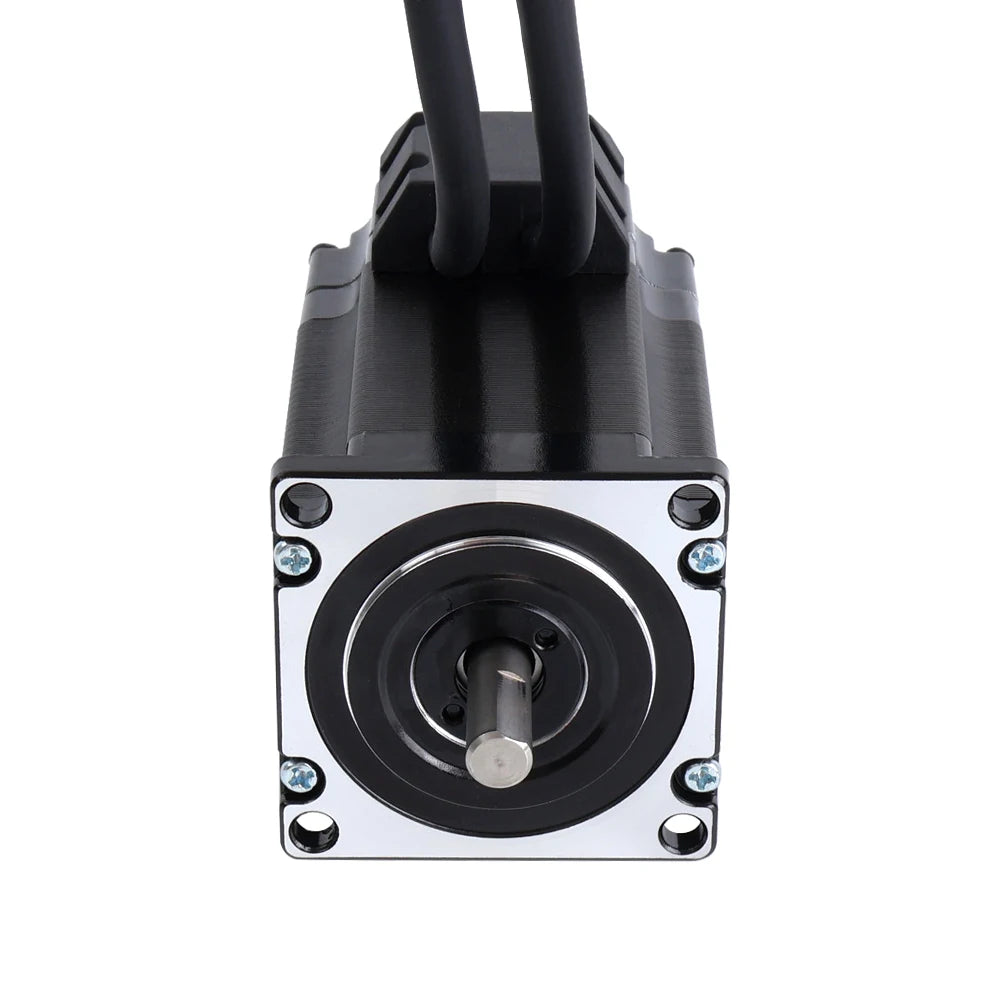

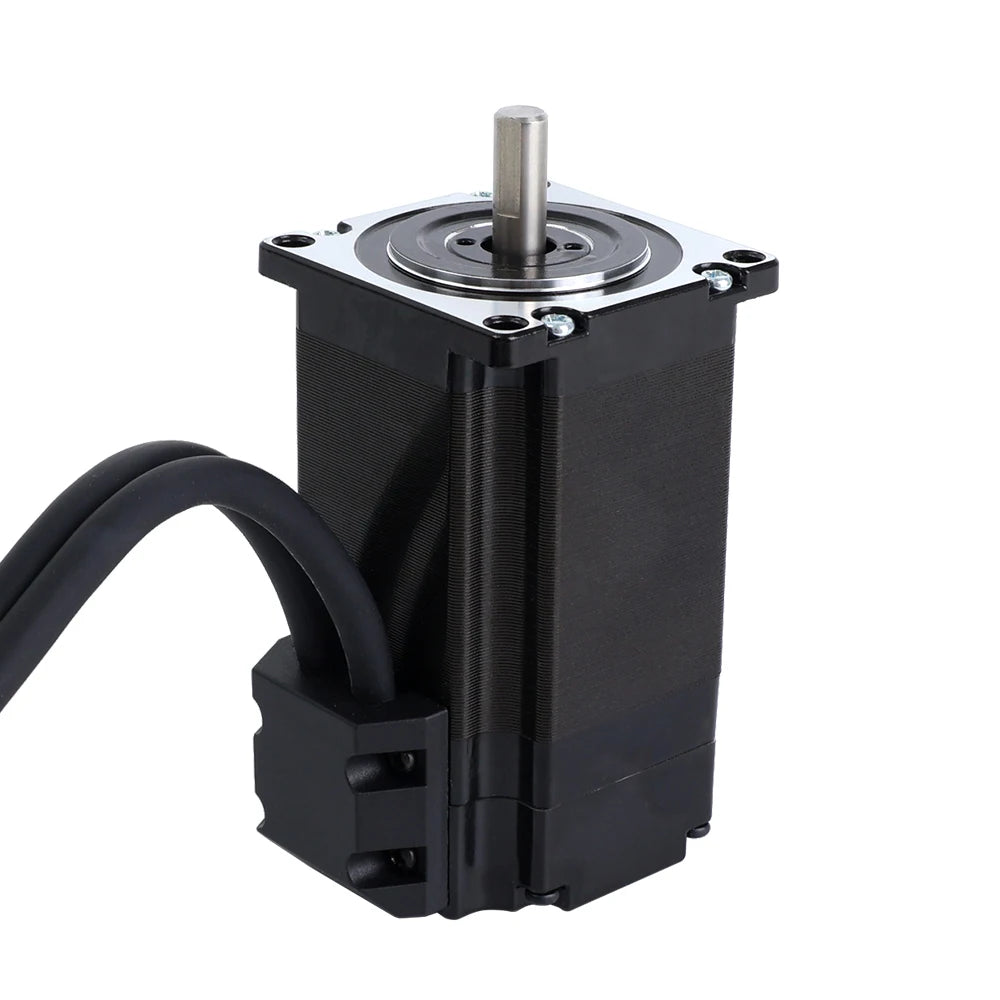

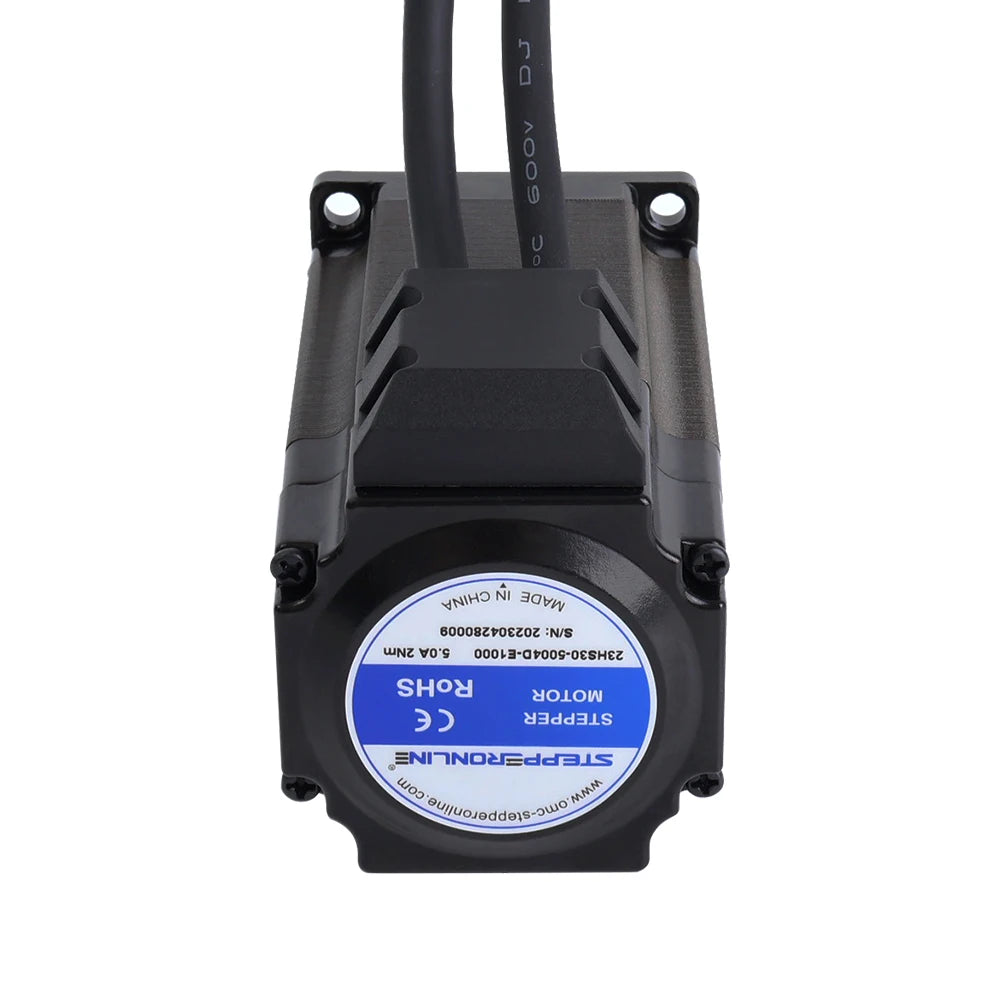

SPECIFICATIONS

Brand Name: STEPPERONLINE

Certification: ce,ROHS

Current / Phase: 5.0A

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Encoder Resolution: 1000PPR

Encoder Type: Optical Incremental

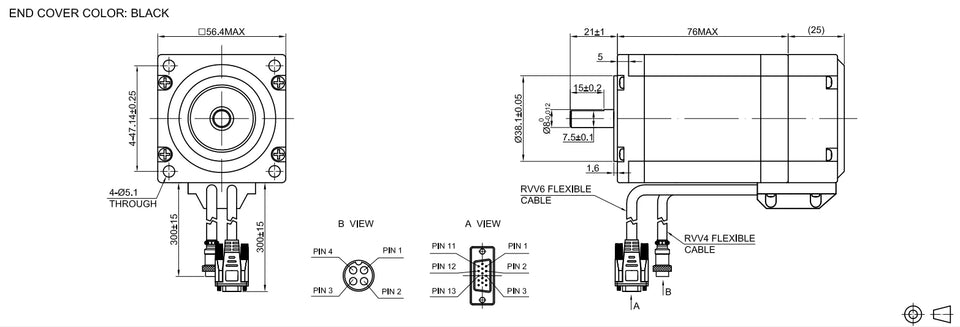

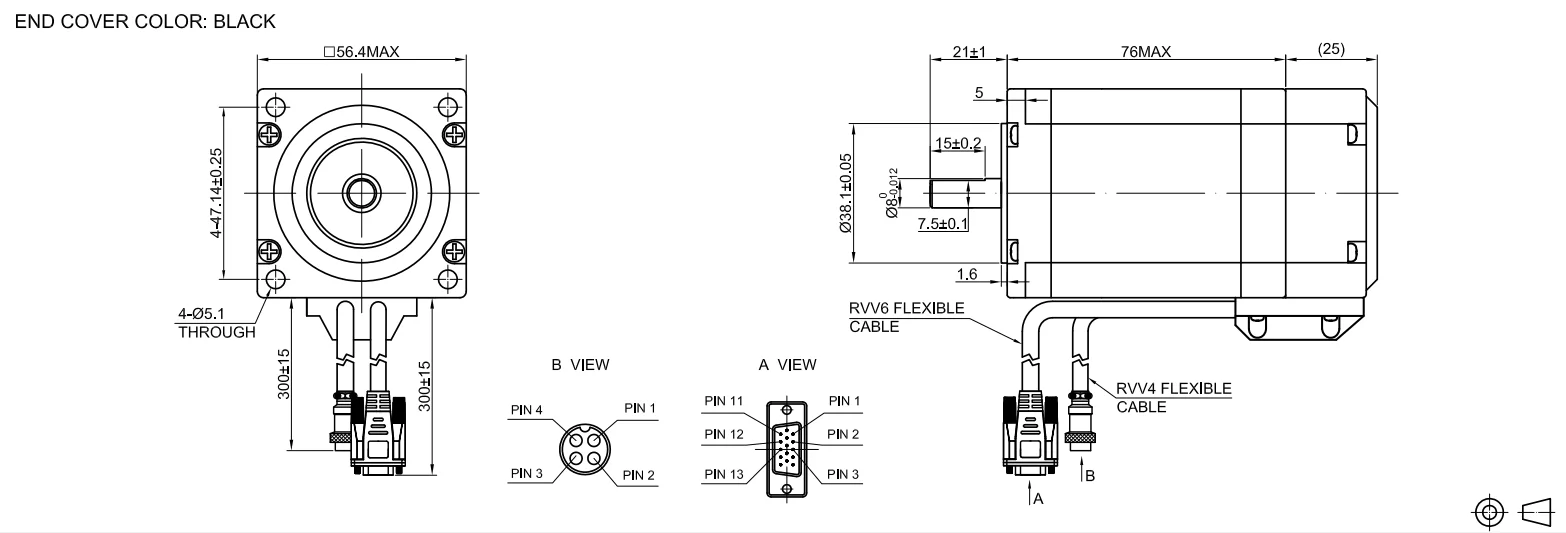

Frame Size: 57 x 57 x 101mm

High-concerned chemical: None

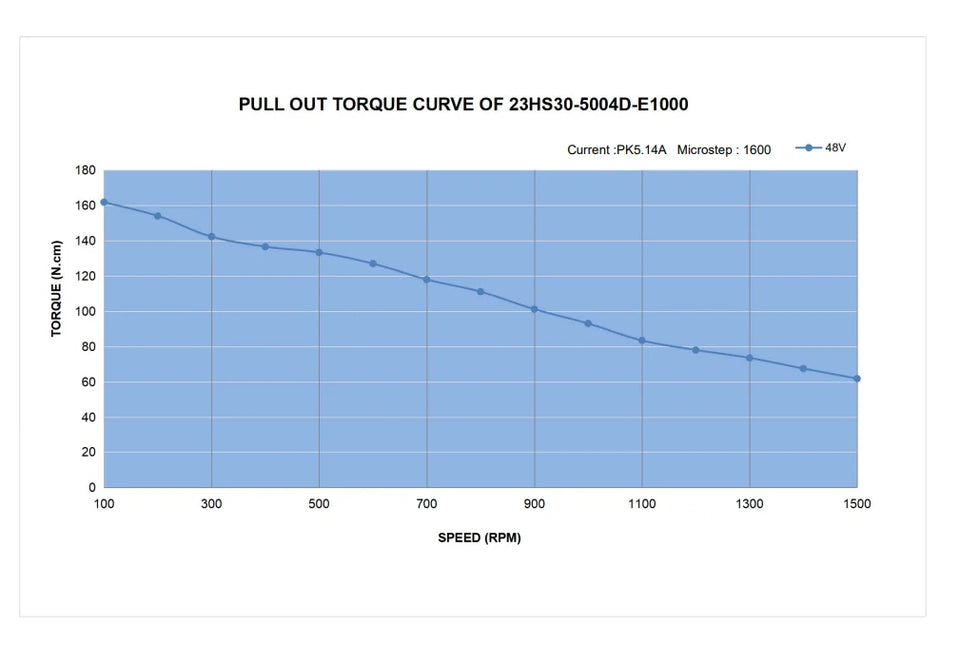

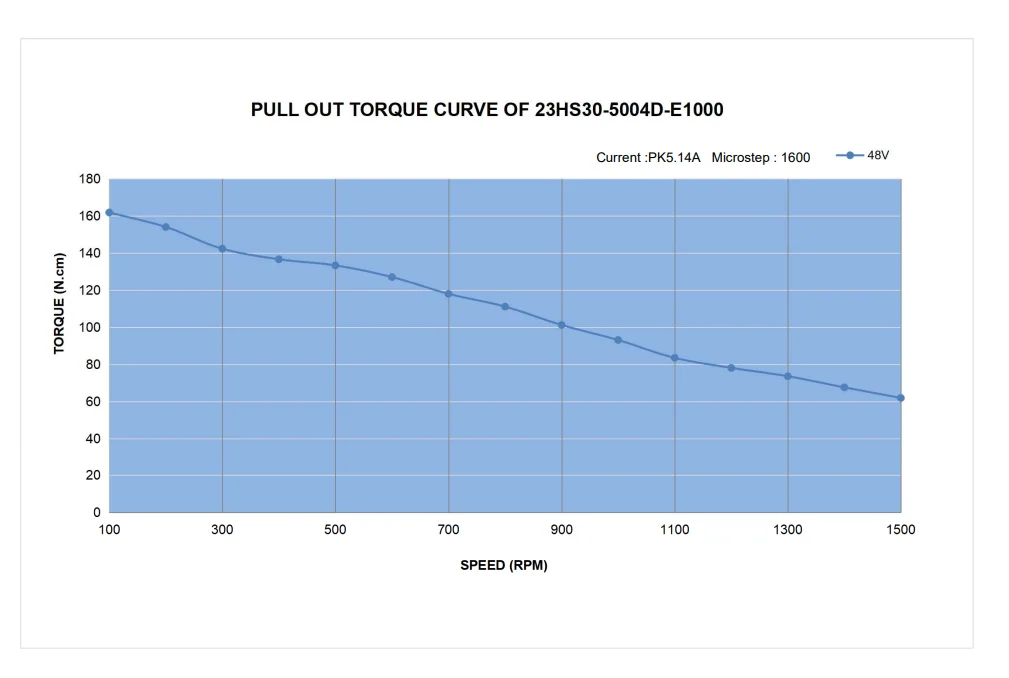

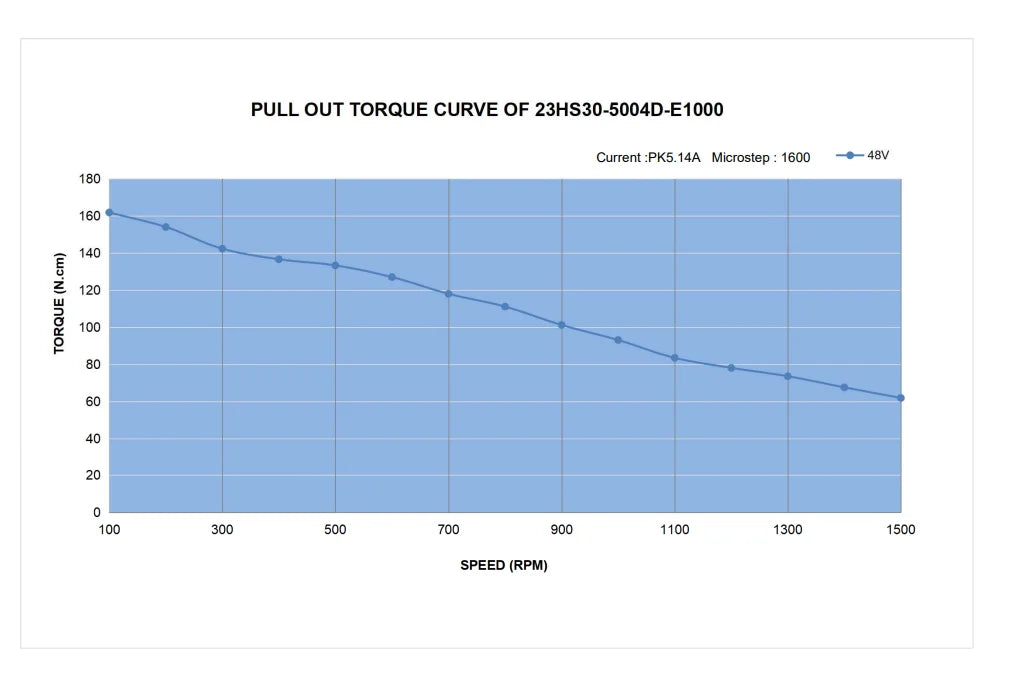

Holding Torque: 2.0Nm(283.22oz.in)

Lead Length: 300mm

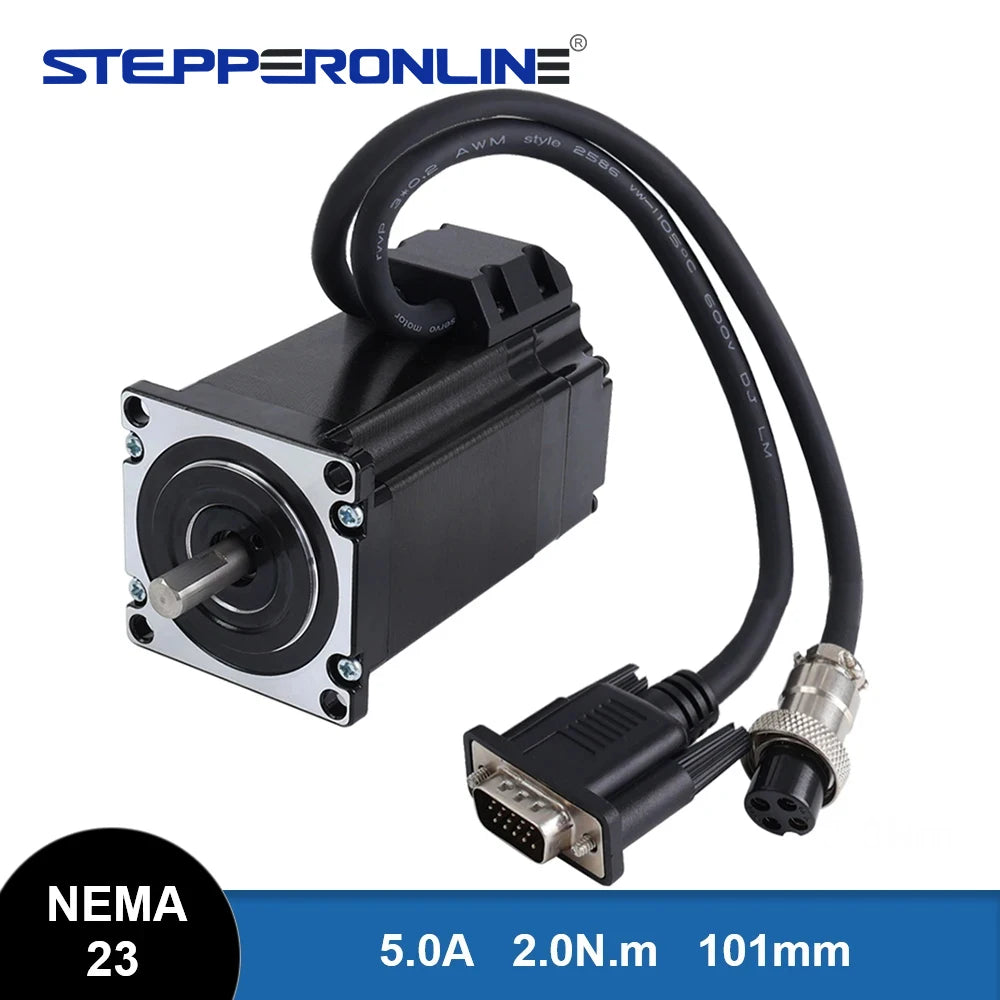

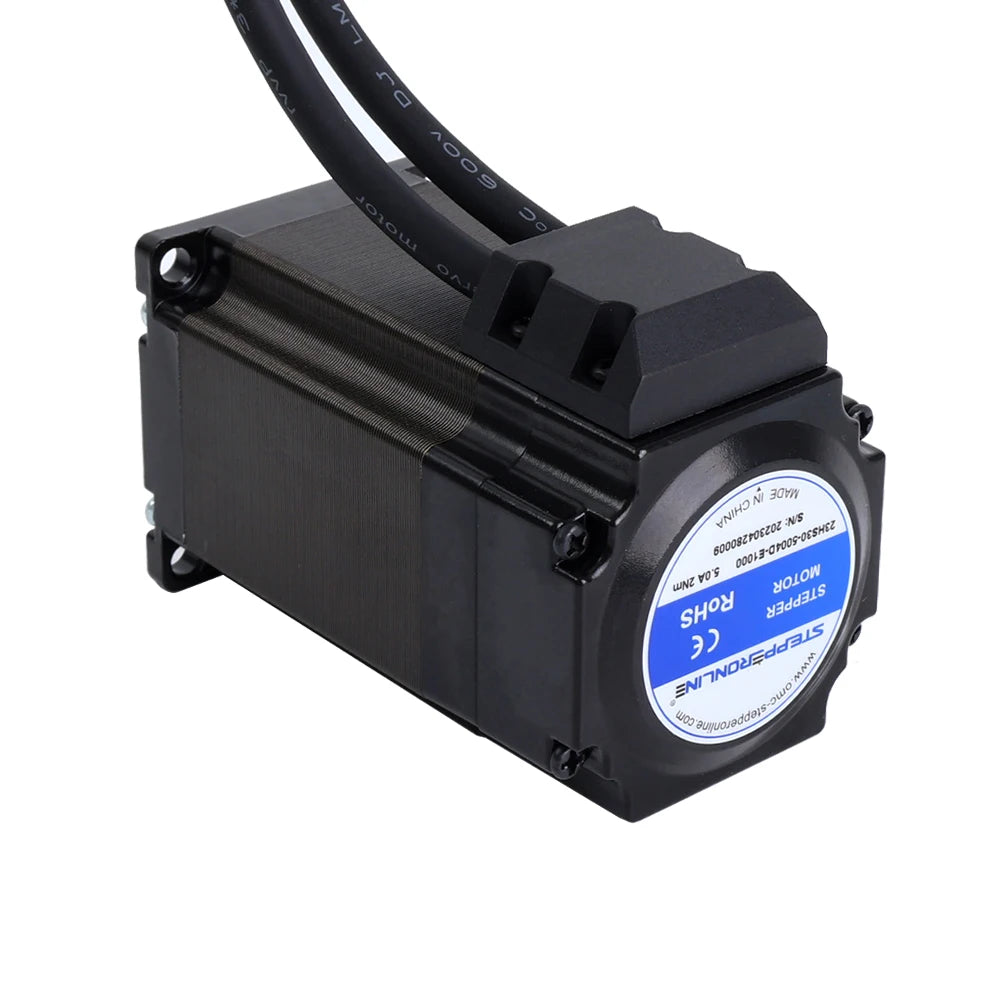

Model Number: 23HS30-5004D-E1000

Origin: Mainland China

Output Circuit Type: Differential

Output Signal Channels: 2

Phase: 2

Product Type: Closed Loop Stepper Motor

Shaft Diameter: 8mm

Shaft Length: 21mm

Step Angle(degrees): 1.8 deg

Type: HYBRID

• Manufacturer Part Number: 23HS30-5004D-E1000

• Number of phase: 2

• Step Angle: 1.8deg

• Holding Torque: 2.0Nm(283.22oz.in)

• Rated Current/phase: 5.0A

• Phase Resistance: 0.42ohms± 10%

• Inductance: 1.7mH ± 20%(1KHz)

• Frame Size: 57 x 57mm

• Body Length: 101mm

• Shaft Diameter: Φ8mm

• Shaft Length: 21mm

• D-CUT Shaft Length: 15mm

• Lead Length: 300mm

• Weight: 1.22kg

• Output Circuit Type: Differential type

• Encoder Type: Optical Incremental

• Encoder Resolution: 1000PPR(4000CPR)

• Output Signal Channels: 2 channels

• Supply Voltage Min: 4V

• Supply Voltage Max: 5V

• Output Current: 100mA

• Output High Voltage: 5V

• Output Low Voltage: 4.5V

• Output Frequency Max: 60kHZ
