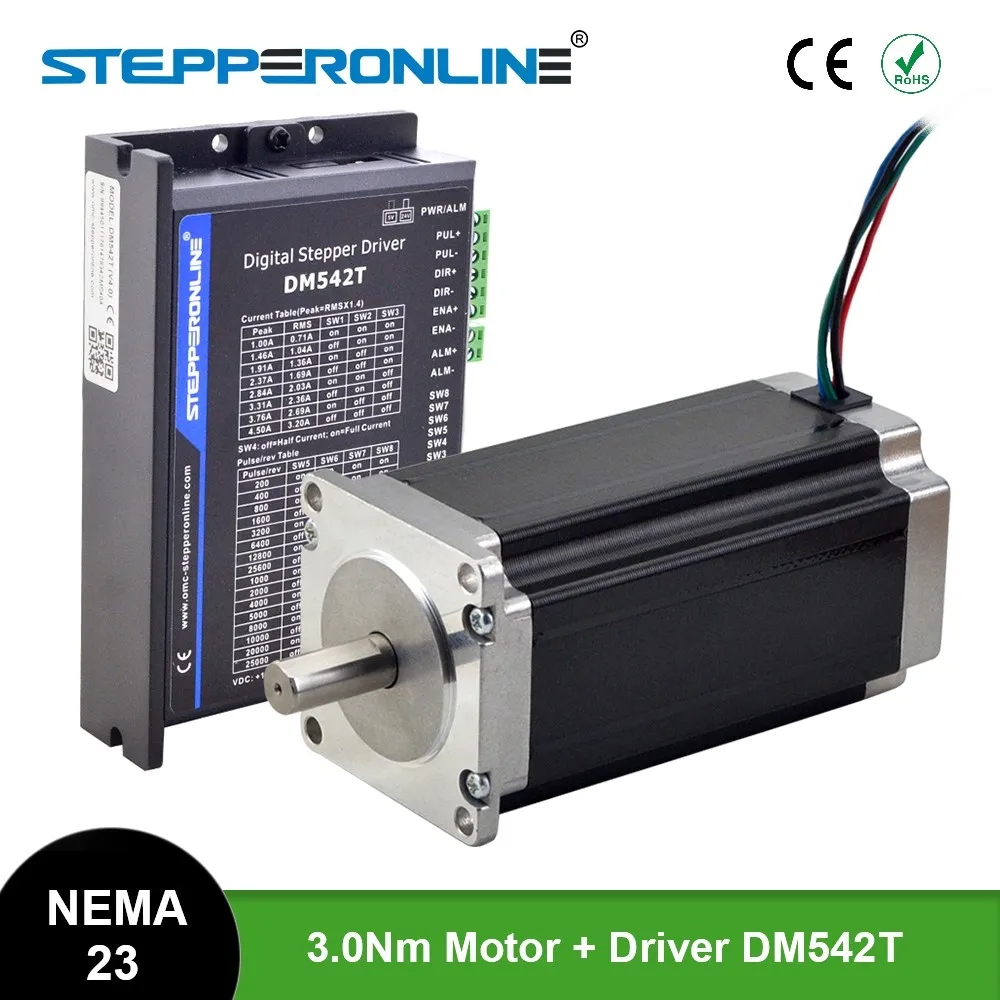

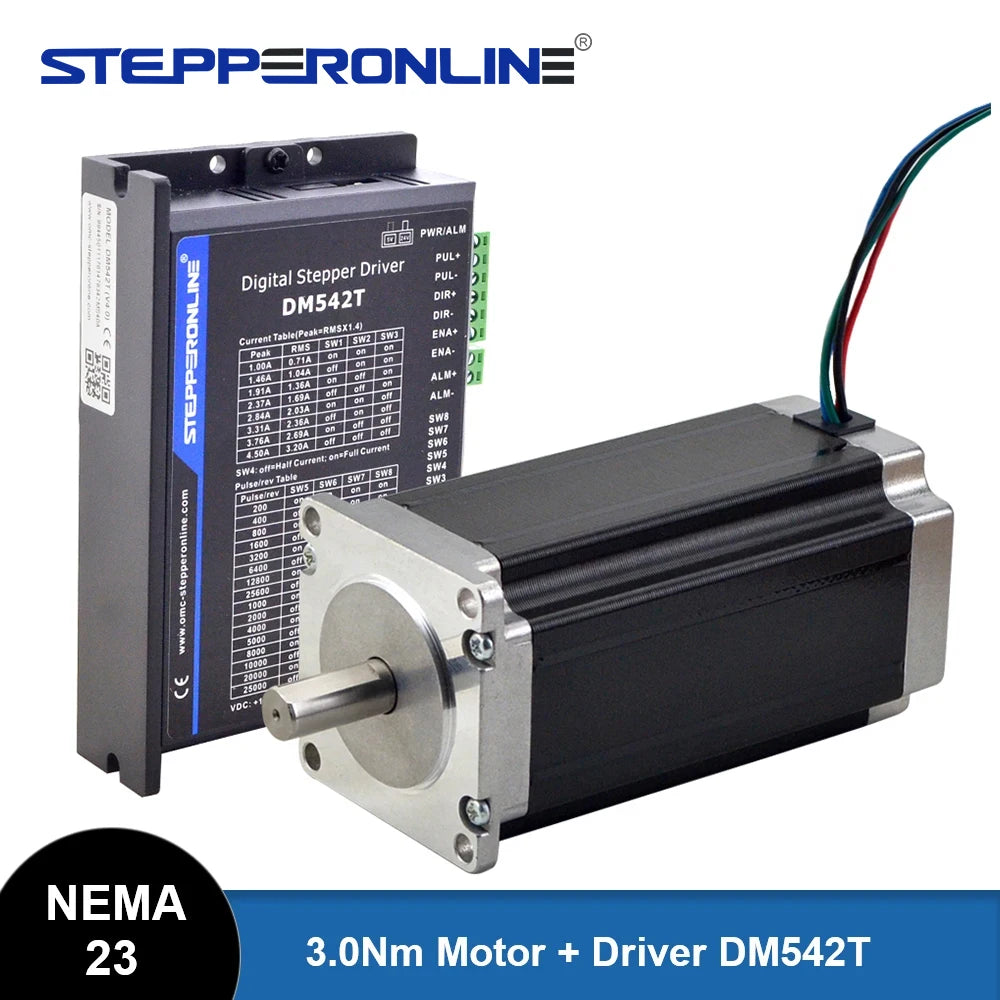

STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine
STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine

STEPPERONLINE Nema 23 Stepper Motor Open Loop Kit 3Nm 113mm and Driver DM542T for CNC Engraving Milling Machine

$275.01 $275.01

SPECIFICATIONS

Brand Name: STEPPERONLINE

Certification: ce

Current / Phase: 4.2A

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Holding Torque: 3.0 Nm(425oz.in)

Inductance: 3.8 mH ± 20%(1KHz)

Model Number: 1-DM542T-23HS45

Number of Leads: 4

Origin: Mainland China

Phase: 2

Phase Resistance: 0.9 ohms± 10%

Shaft: D-cut

Shaft Diameter: 10 mm

Shaft Length: 24 mm

Size: 57 x 57 x 113 mm

Step Angle(degrees): 1.8deg

Type: HYBRID

Warranty: 1 Year

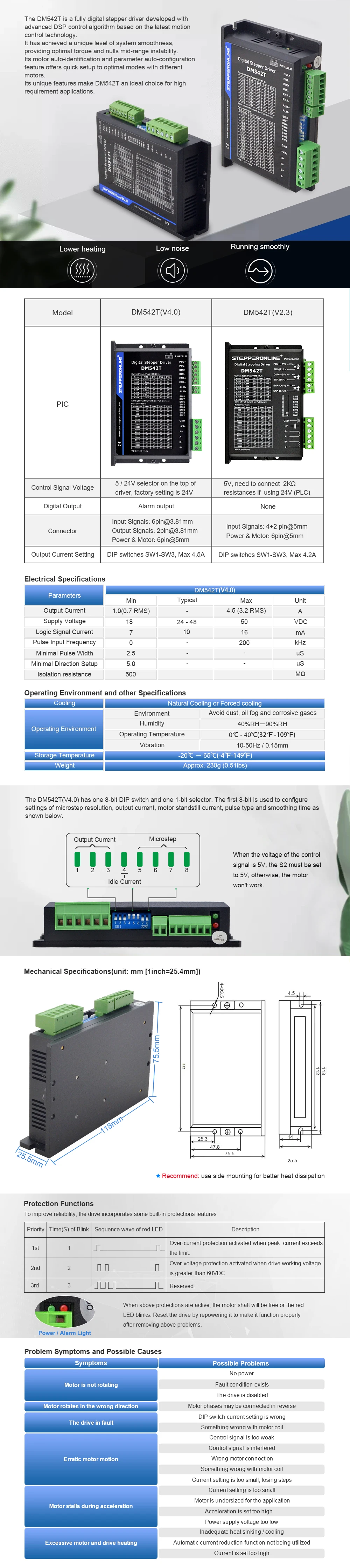

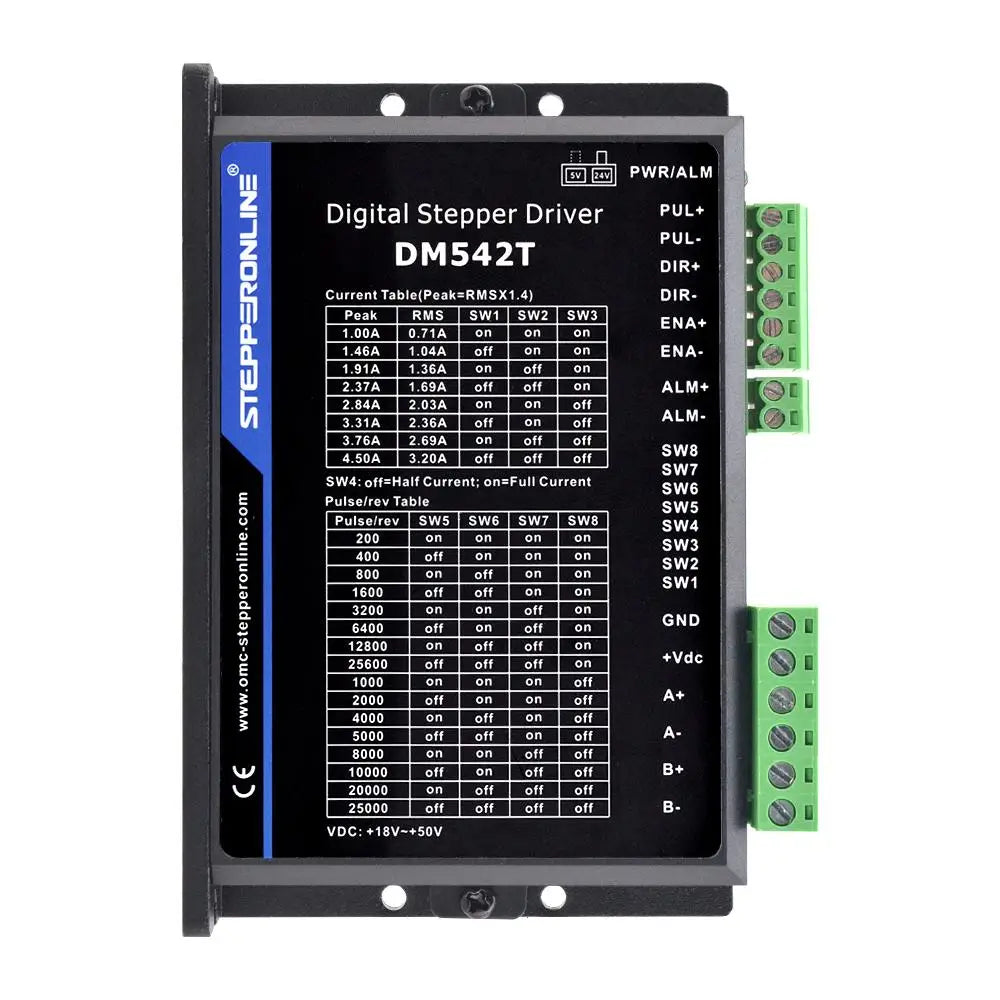

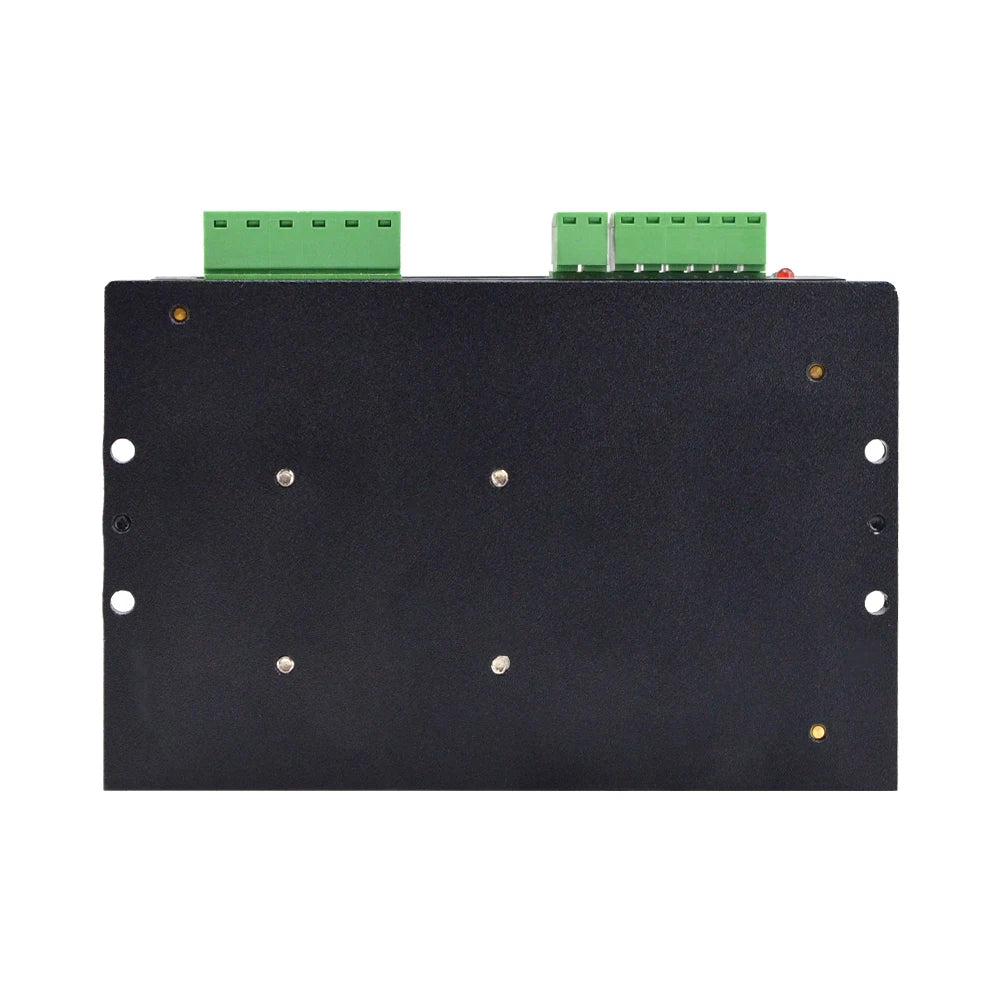

1 x  Digital Stepper Driver 1.7-5.6A DC20V~50V for Nema 23, 24, 34 Stepper Motor

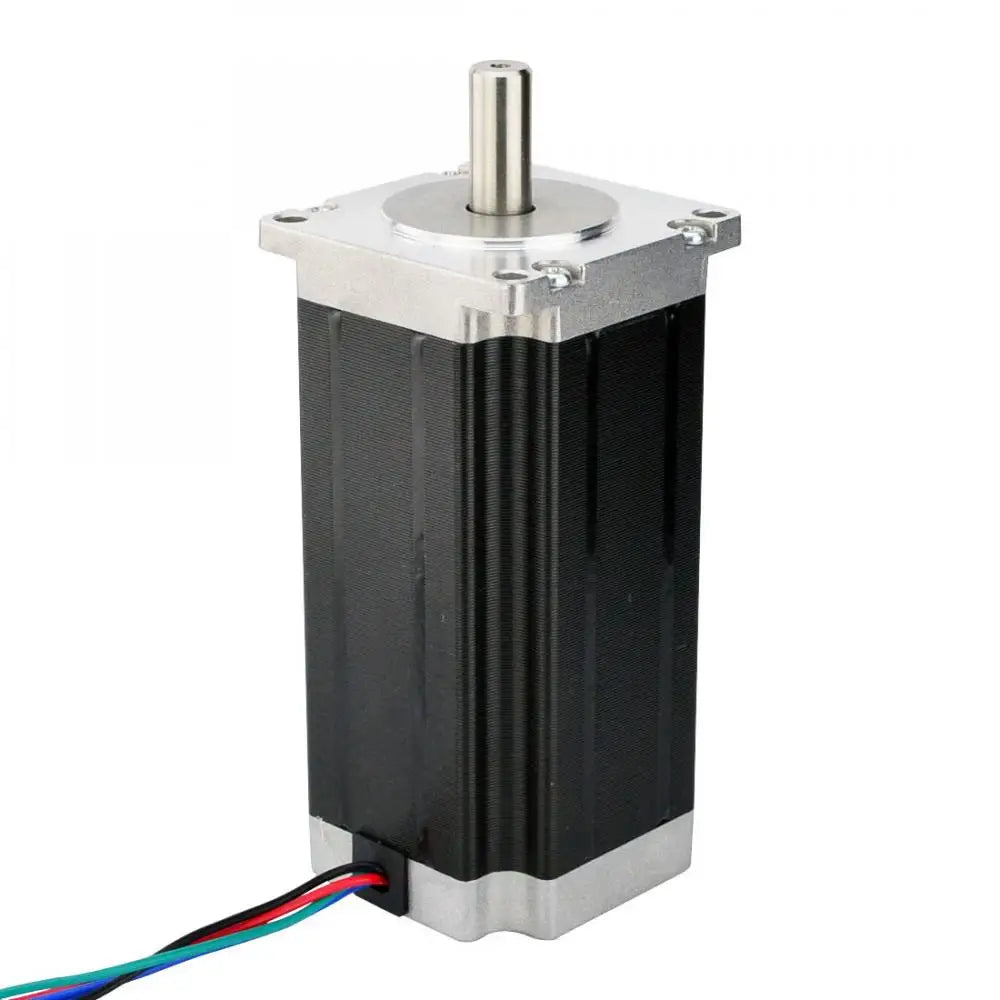

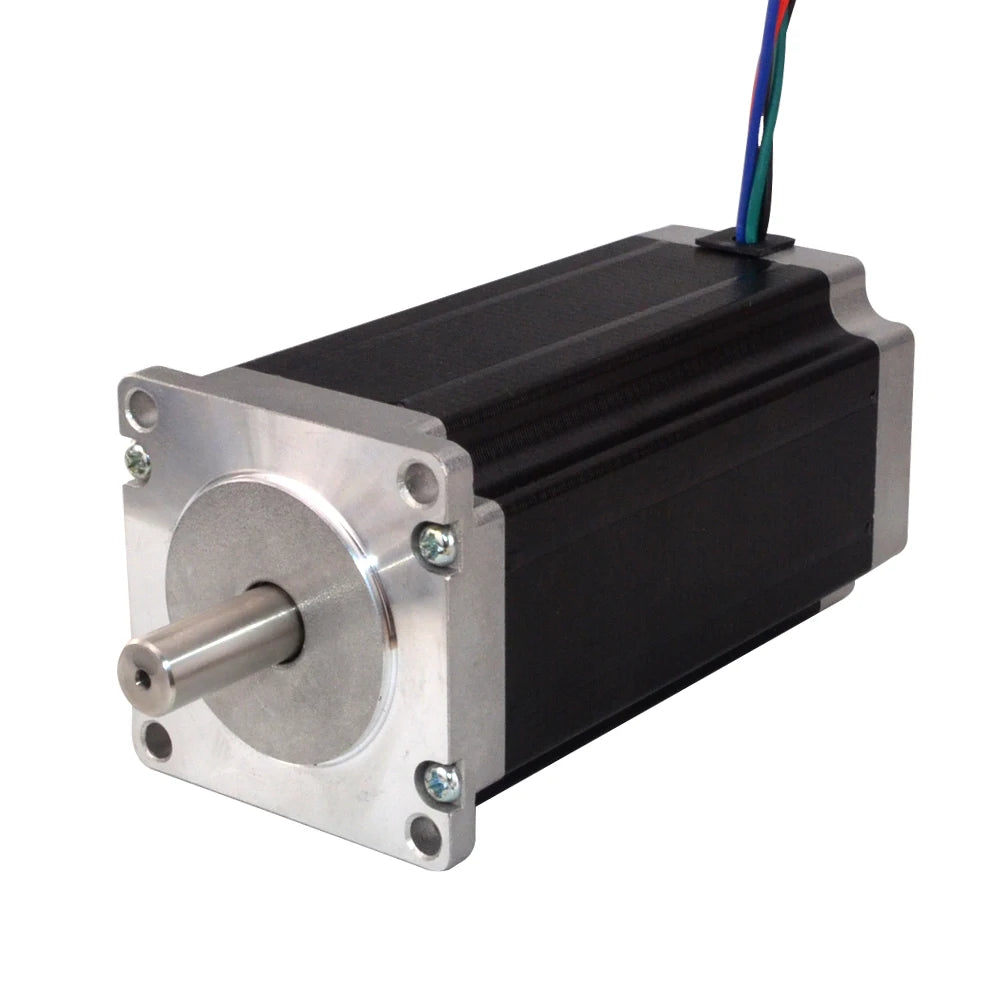

1 x Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC



Manufacturer Part Number: 23HS45-4204S

Step Angle: 1.8 deg

Holding Torque: 3.0 Nm(425oz.in)

Rated Current/phase: 4.2 A

Phase Resistance: 0.9 ohms± 10%

Inductance: 3.8 mH ± 20%(1KHz)

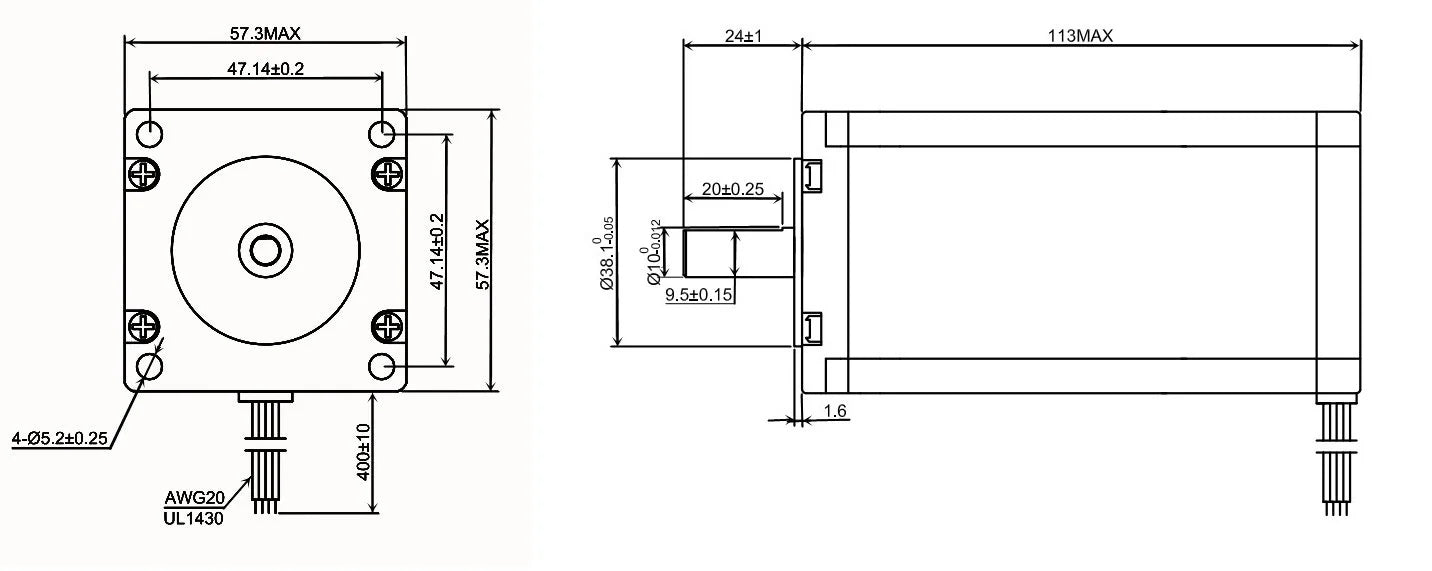

Frame Size: 57 x 57 mm

Body Length: 113 mm

Shaft Diameter: Φ10 mm

Shaft Length: 24 mm

D-cut Shaft Length: 20 mm

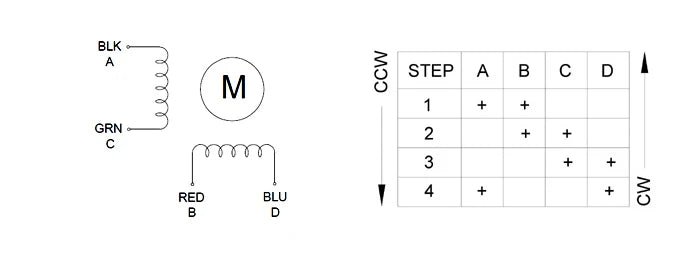

Number of Leads: 4

Lead Length: 400 mm

Weight: 1.8kg
