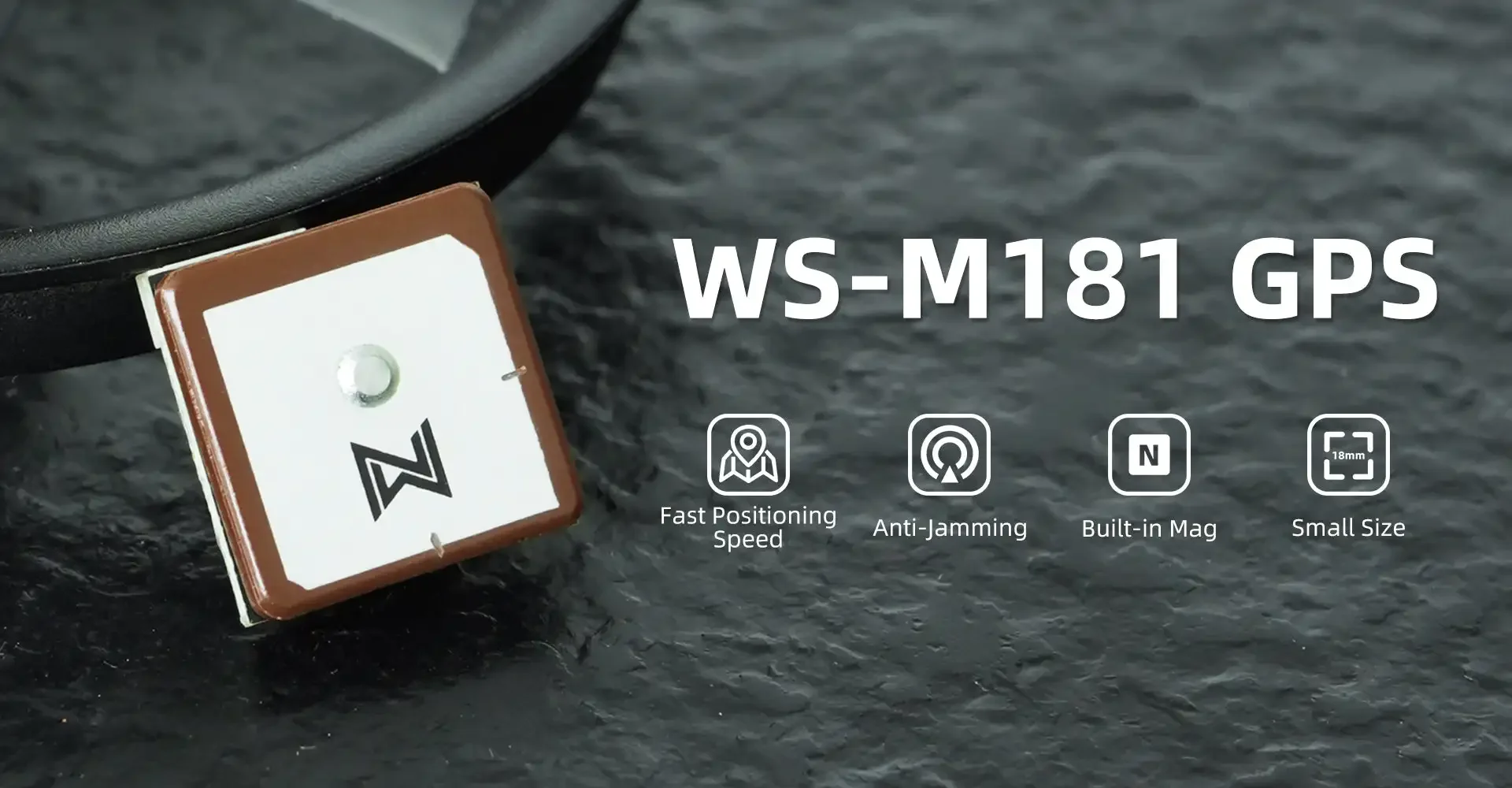

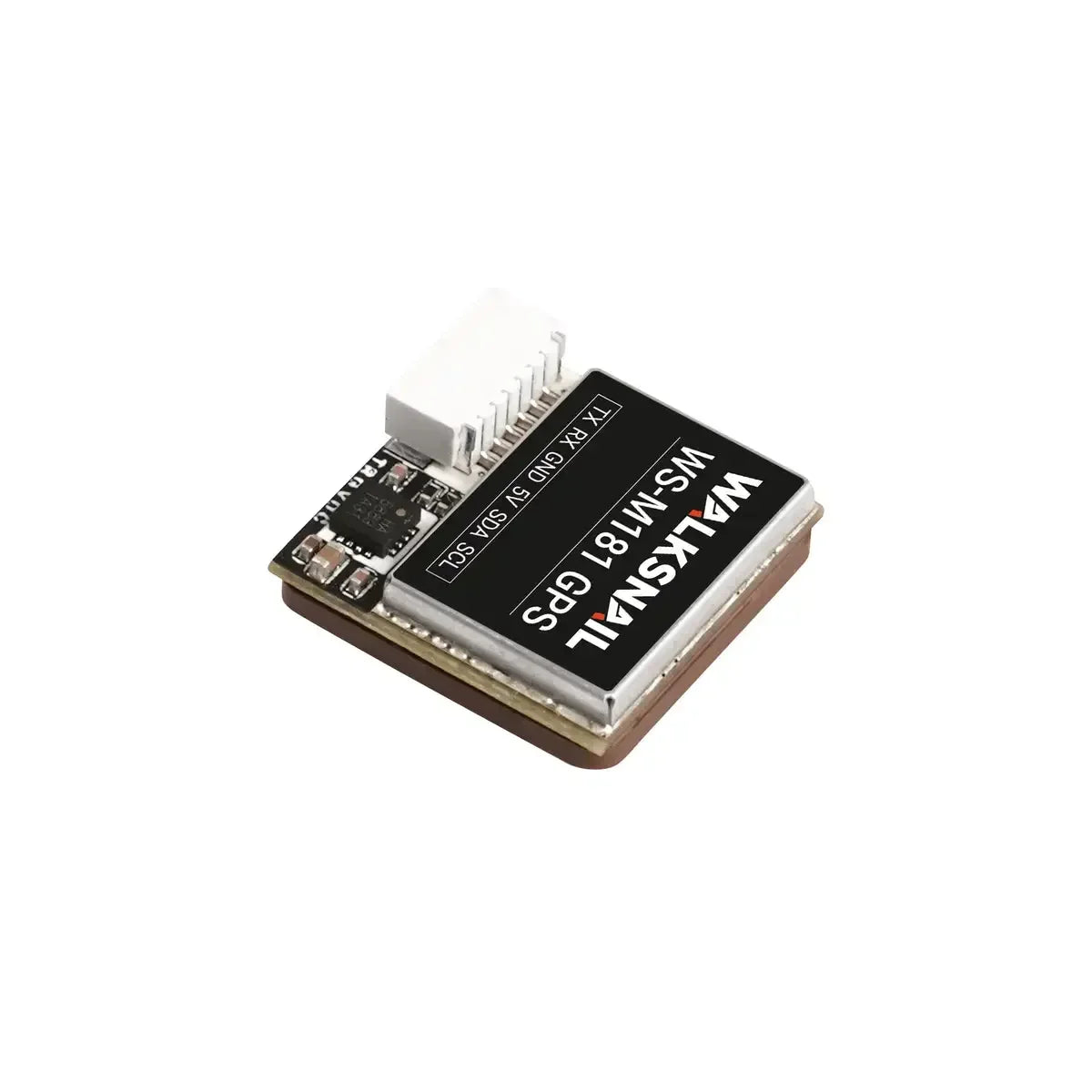

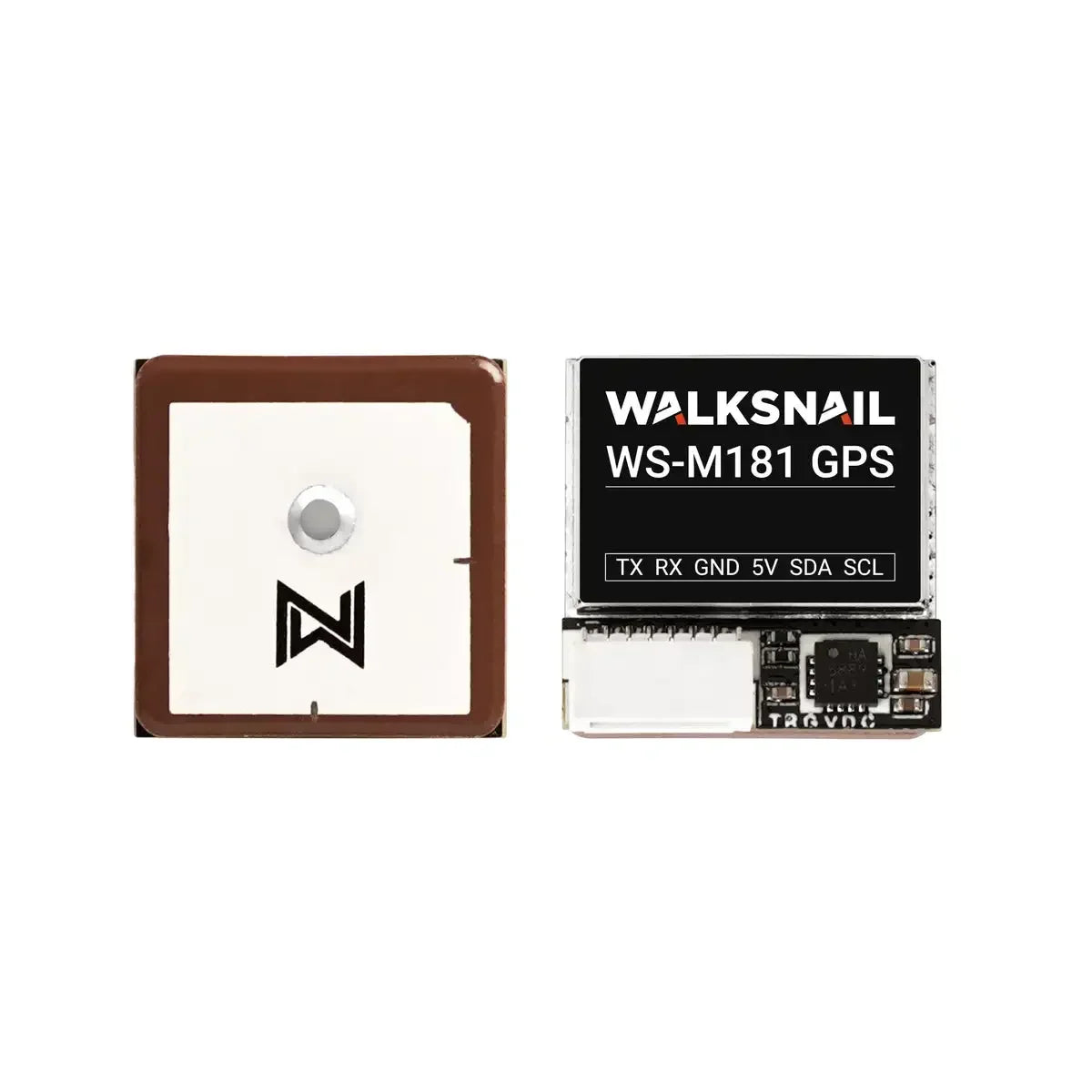

Walksnail WS-M181 GPS M10 GNSS BUILT-IN QMC5883 Compass Ceramic Antenna for RC Airplane FPV Freestyle Long Range DIY Parts
Regular price
$160.95
$160.95
SPECIFICATIONS
Brand Name: NONE
Choice: yes
For Vehicle Type: Helicopters
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: WS-M181 GPS
Origin: Mainland China
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
Specification |
|
name |
Walksnail WS-M181GPS |
Chip: |
M10 (ten generation chip) |
Frequency: |
GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1 |
Power: |
5V |
Size: |

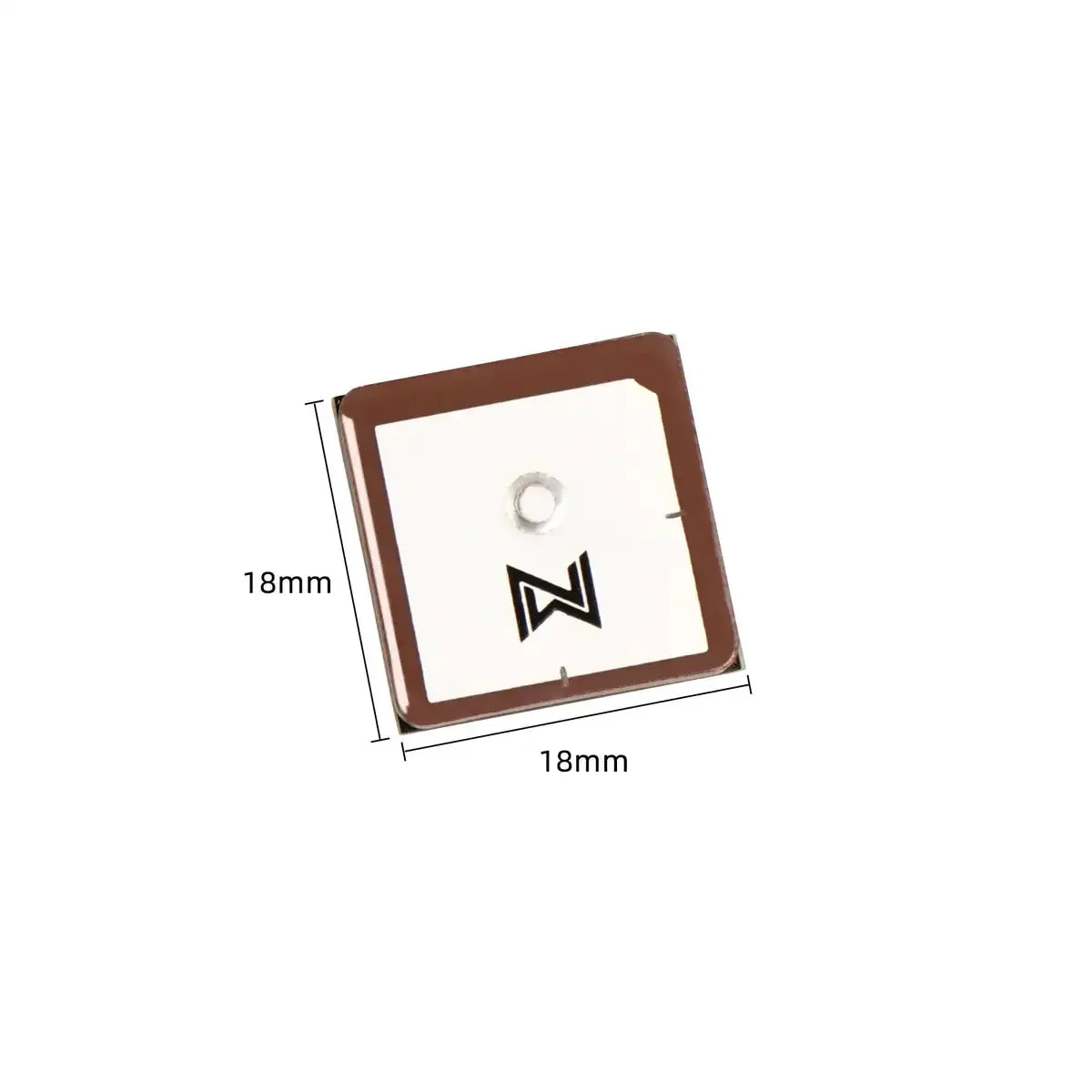

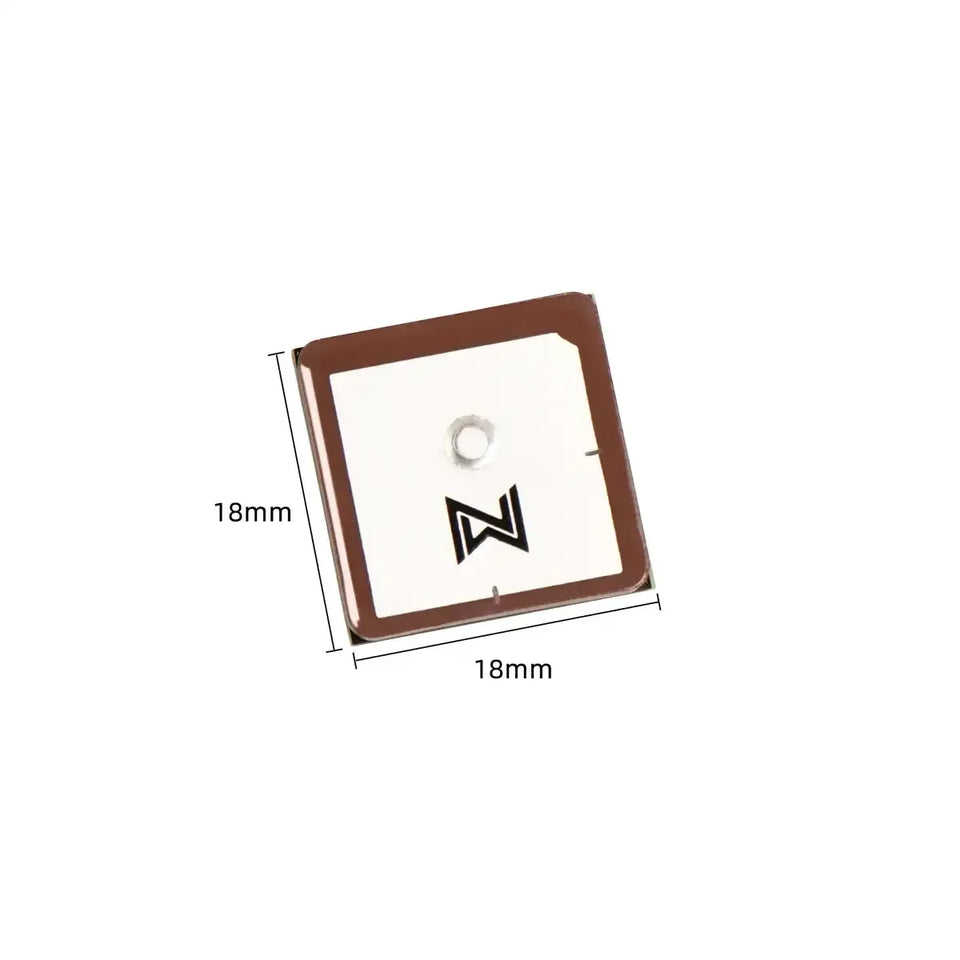

18mm*18mm*4.6mm |
Antenna: |
ceramic antenna (oil spraying process, prevent scratching and oxidation) |
Receiving channels: |
72 search channels |
Compass: |
QMC5883 |
Baud rate: |
115200dps |
Output protocol: |
NMEA UBX (dual protocol) |
Output frequency: |
1Hz-10Hz, Default 10Hz |
Speed accuracy: |
0.05m/s |
Horizontal positioning accuracy: |
2D ACC1.5m(open air) |
Receiving sensitivity: |
Trace-162dBm Capture -160dBm |
Dynamic characteristics: |
|
Altitude: |
50000m |
Speed: |
500m/s |
Acceleration: |
4G |
Operating temperature: |
-40℃-+85℃ |
Storage temperature: |
-40℃-+105℃ |
Bullet Point
With small size, light weight, fast positioning, and stable connection. It is suitable for FPV, RC airplane, quadcopter and others to enhance the flight experience.
Featuring the ubx M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.

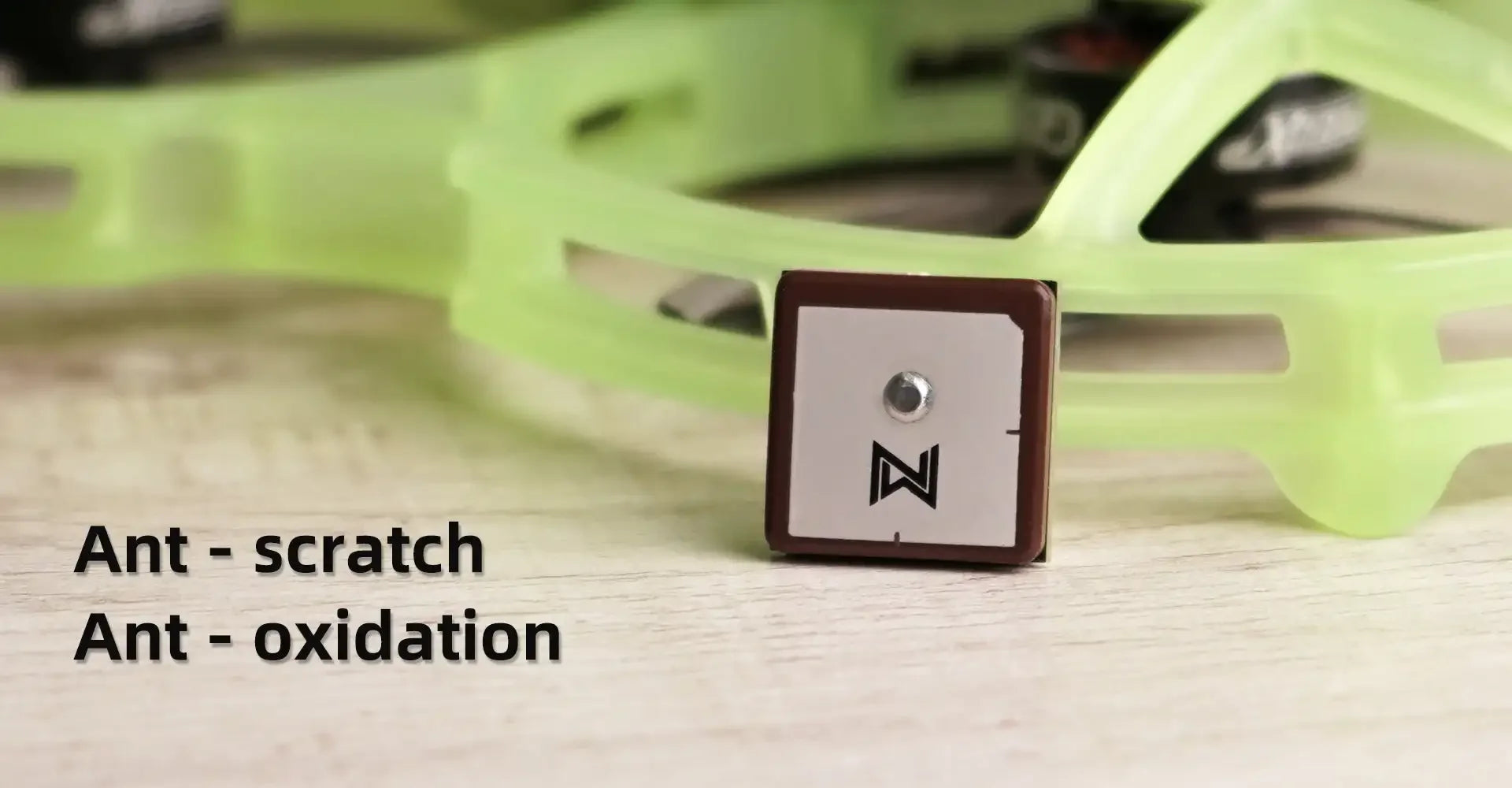

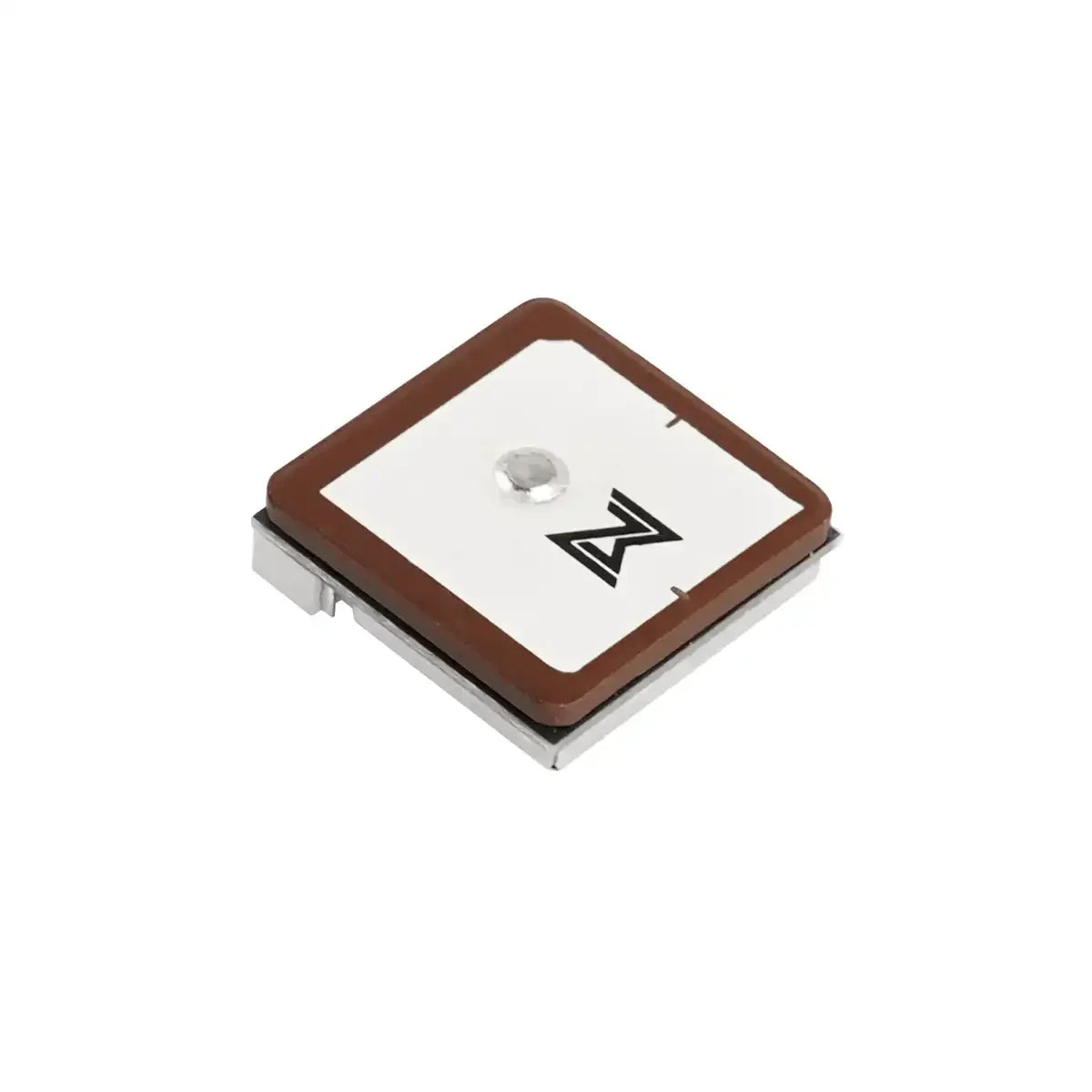

The ultra-thin ceramic antenna uses a special spray painting process to prevent oxidation and scratching, ensuring consistent positioning performance.

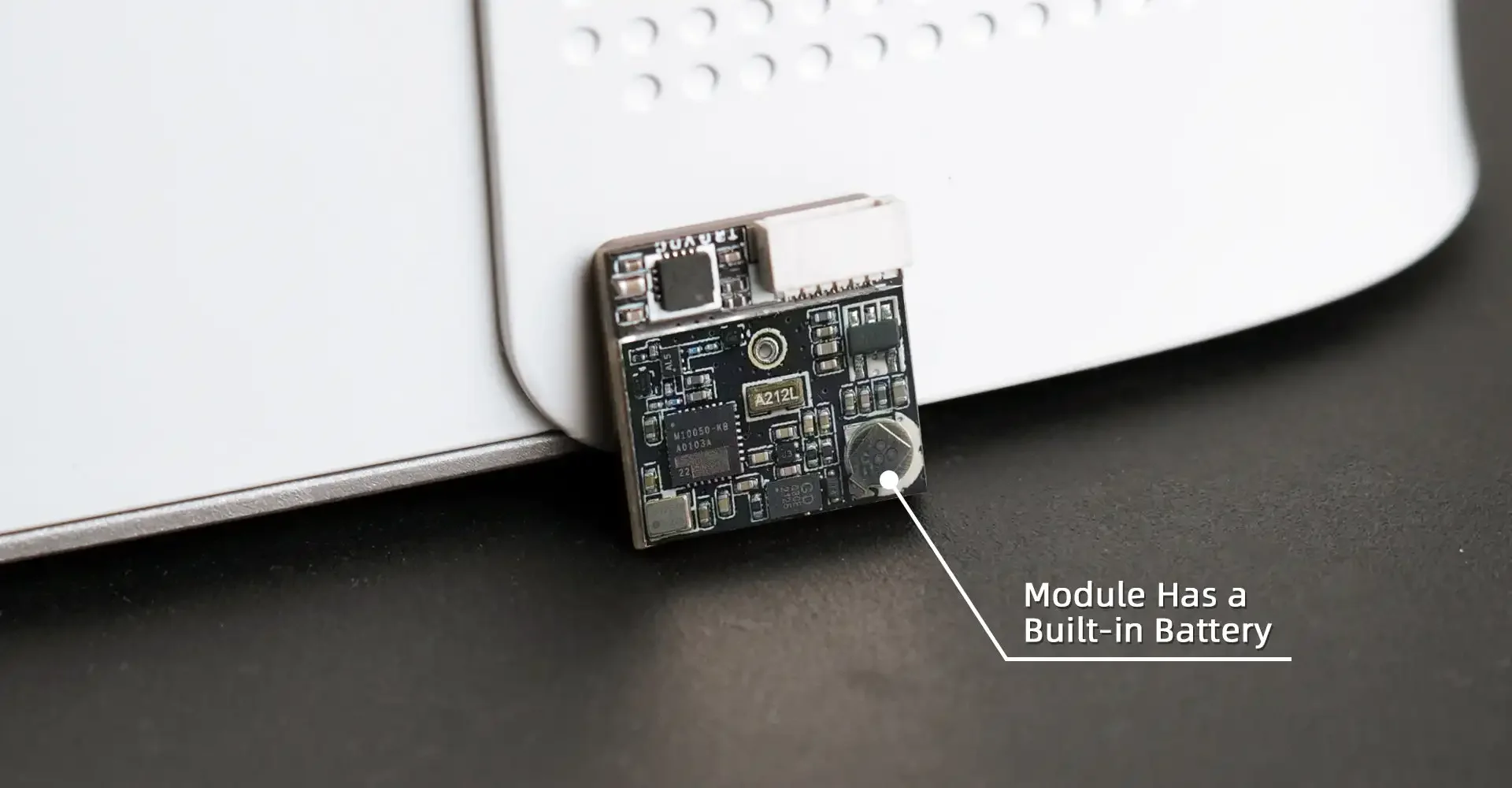

The built-in battery can realize hot start and realize positioning quickly.
It offers six positioning modes, providing more flexible combinations (default GPS + GLONASS + BDS multi-mode positioning).The measured maximum number of search stars can cover 32pcs.
Note:
Because the GPS chip is a new 10th generation chip, the flight controller needs to flash firmware 4.29 and above, and the firmware below 4.29 uses the NMEA protocol.
