Wanptek Adjustable DC Power Supply 30V 60V 5A 10A Lab Bench Power Supply USB Interface Fast Charging Preset Voltage and Current

Regular price ~~$373.29~~ $373.29

Quantity

Color

Ships From

Quantity

Product Details

SPECIFICATIONS

Brand Name: wanptek

Certification: CE

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Model Number: WPS3010H WPS3010B APS3010H

Origin: Mainland China

Output Current: 0-10A

Output Frequency: 50Hz 60Hz

Output Power: 201 - 300W

Output Type: SINGLE

Rated Capacity: 40-1000VA（include40VA）

Type: Power Supply

is_customized: No

Attention: ( Before Payment )

WPS Series (Optional)

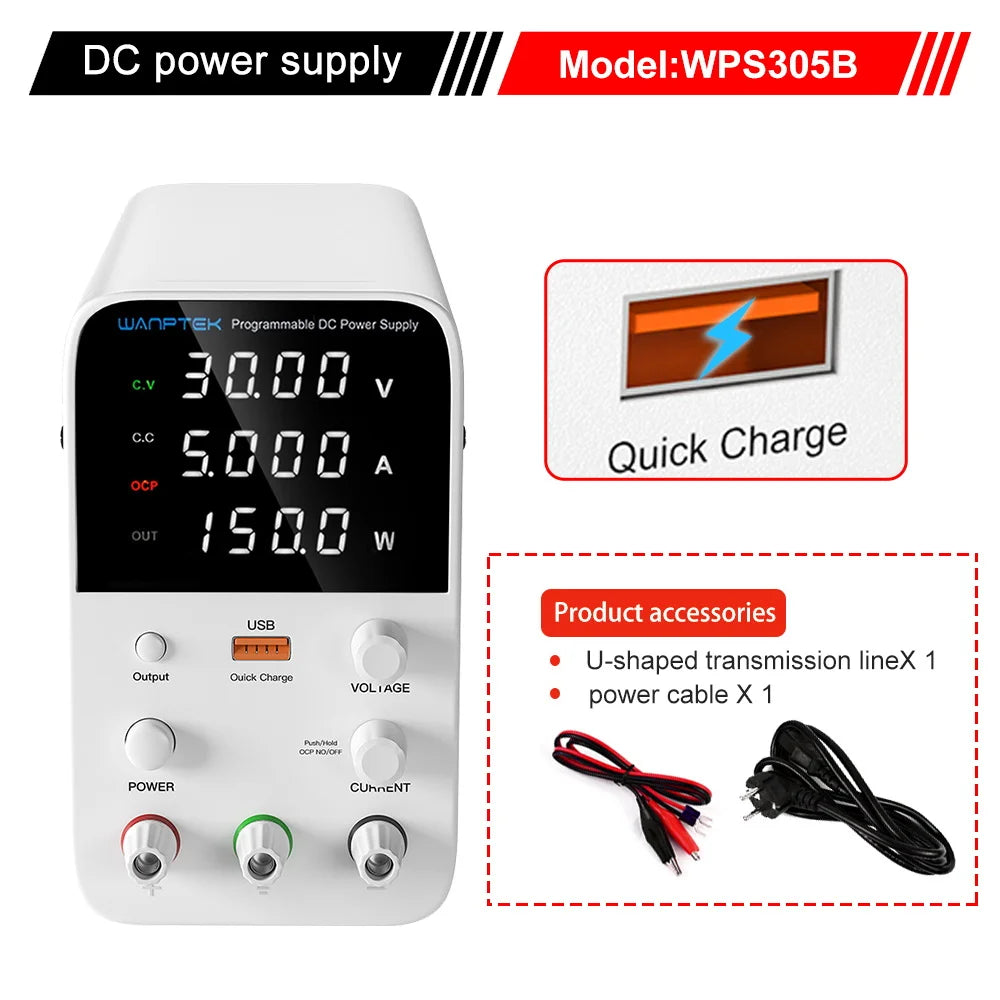

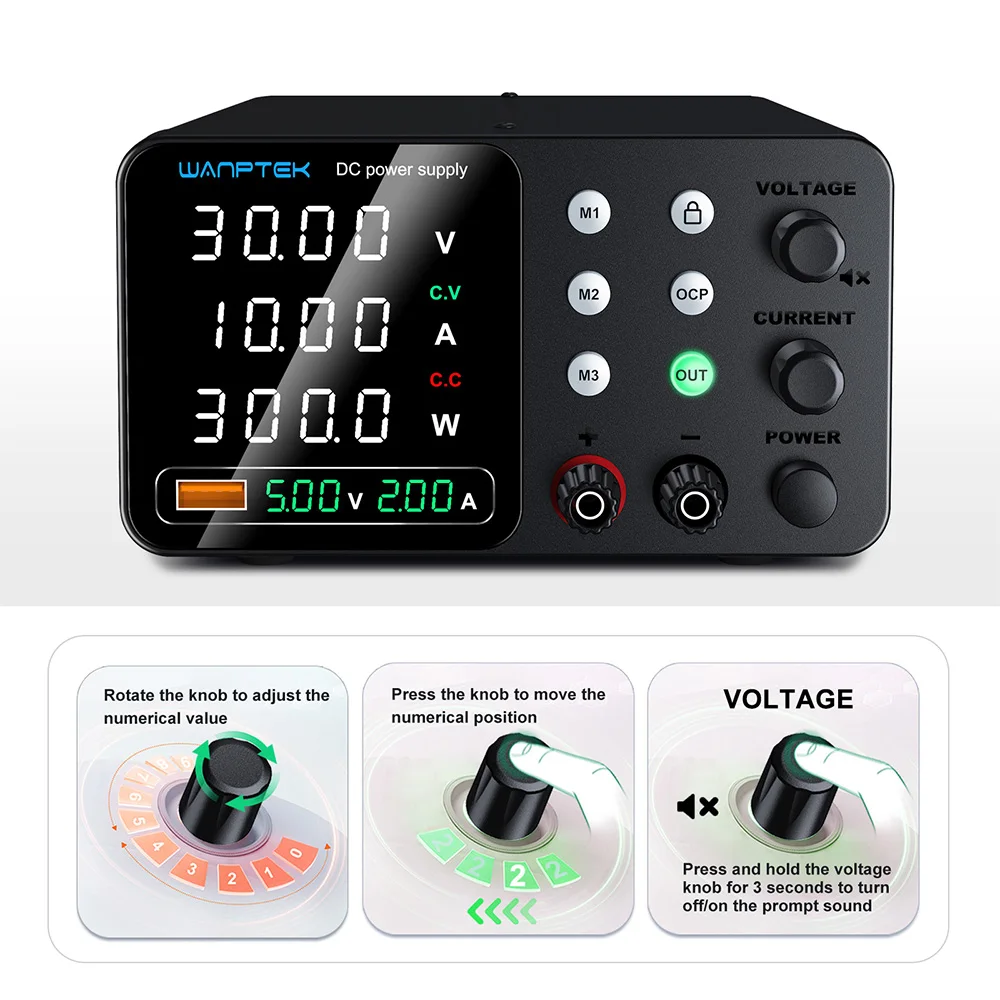

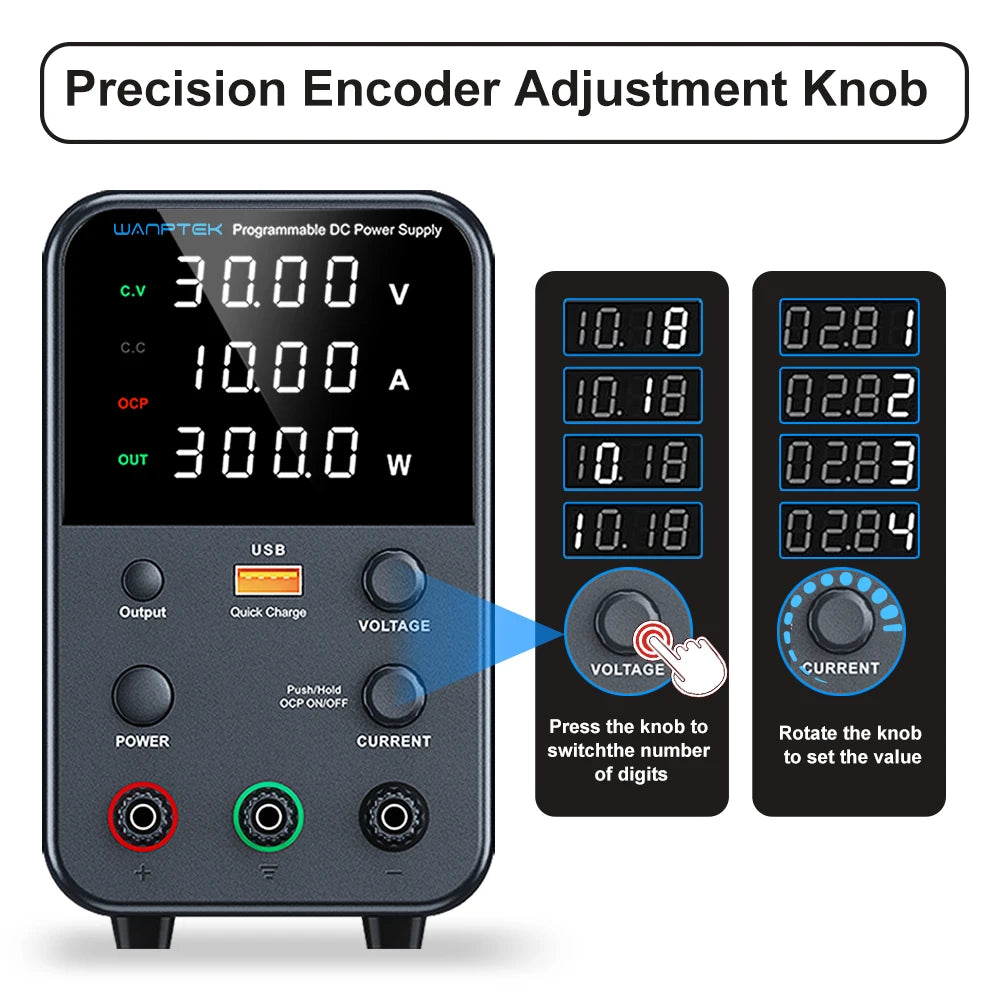

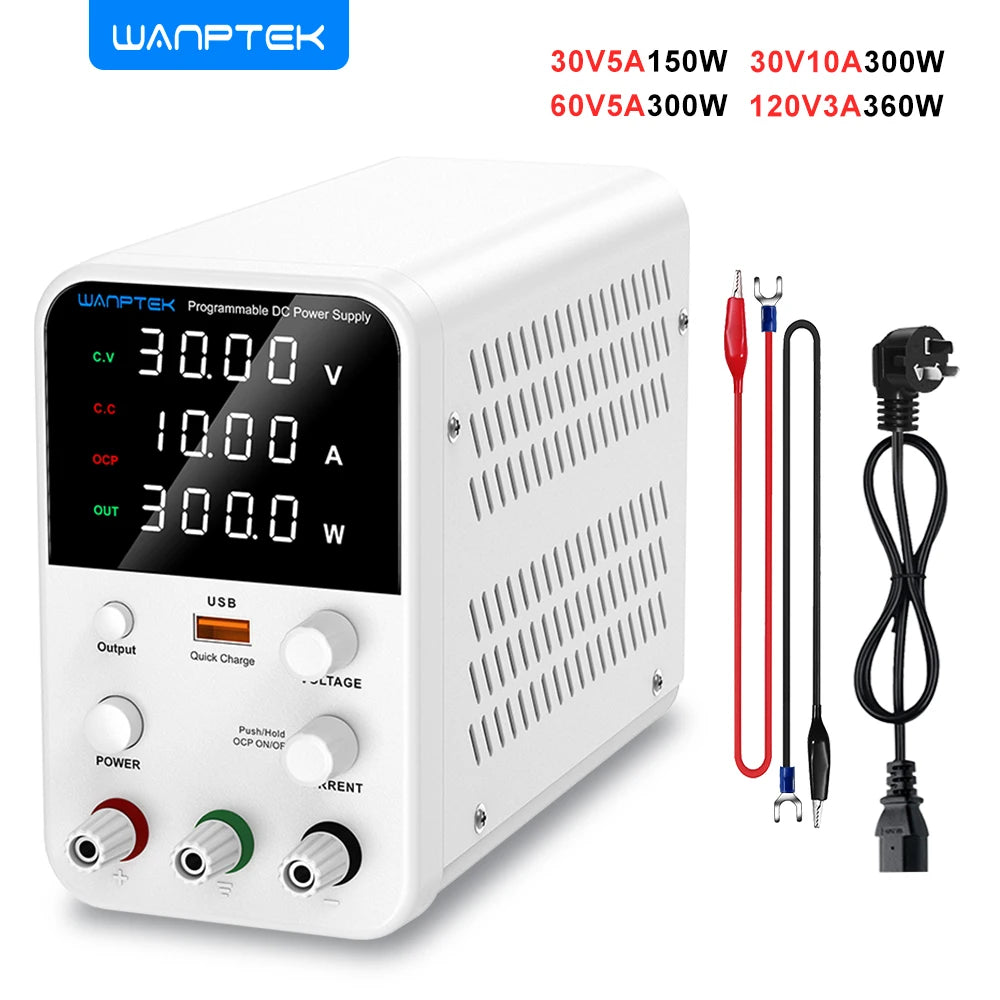

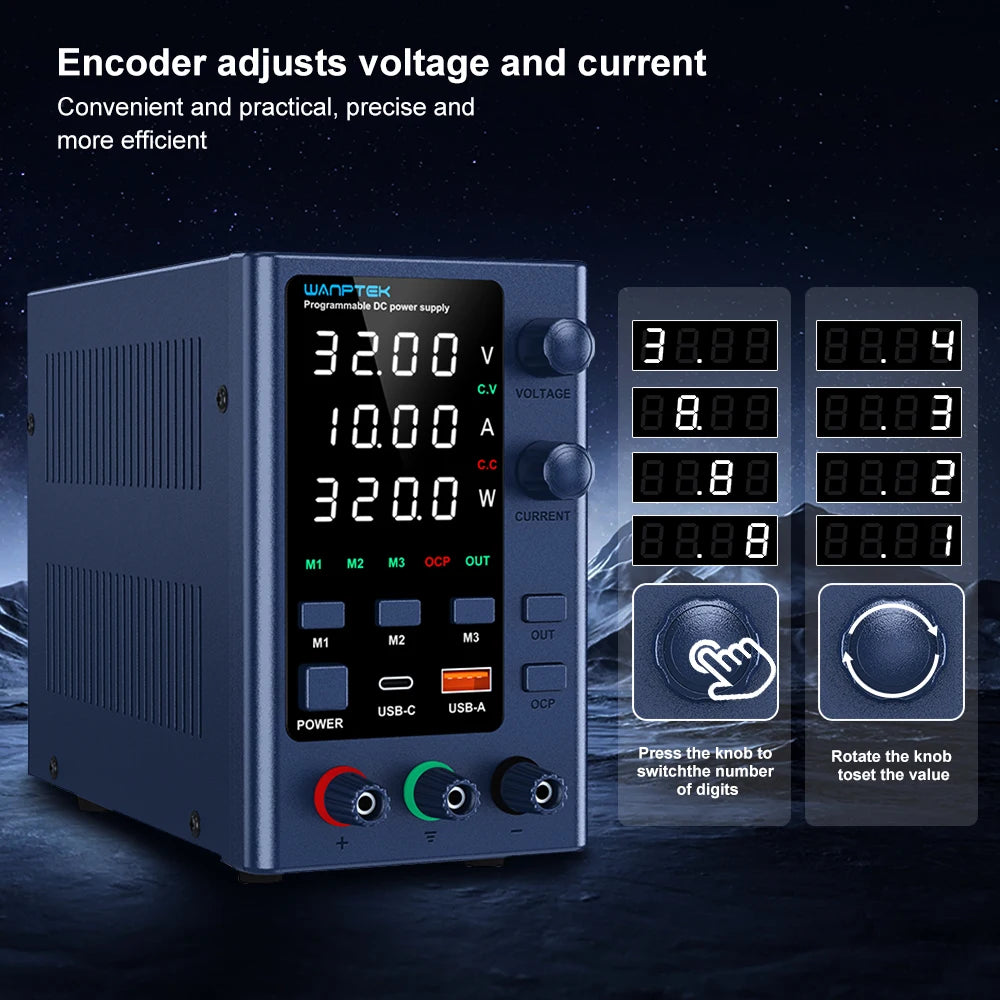

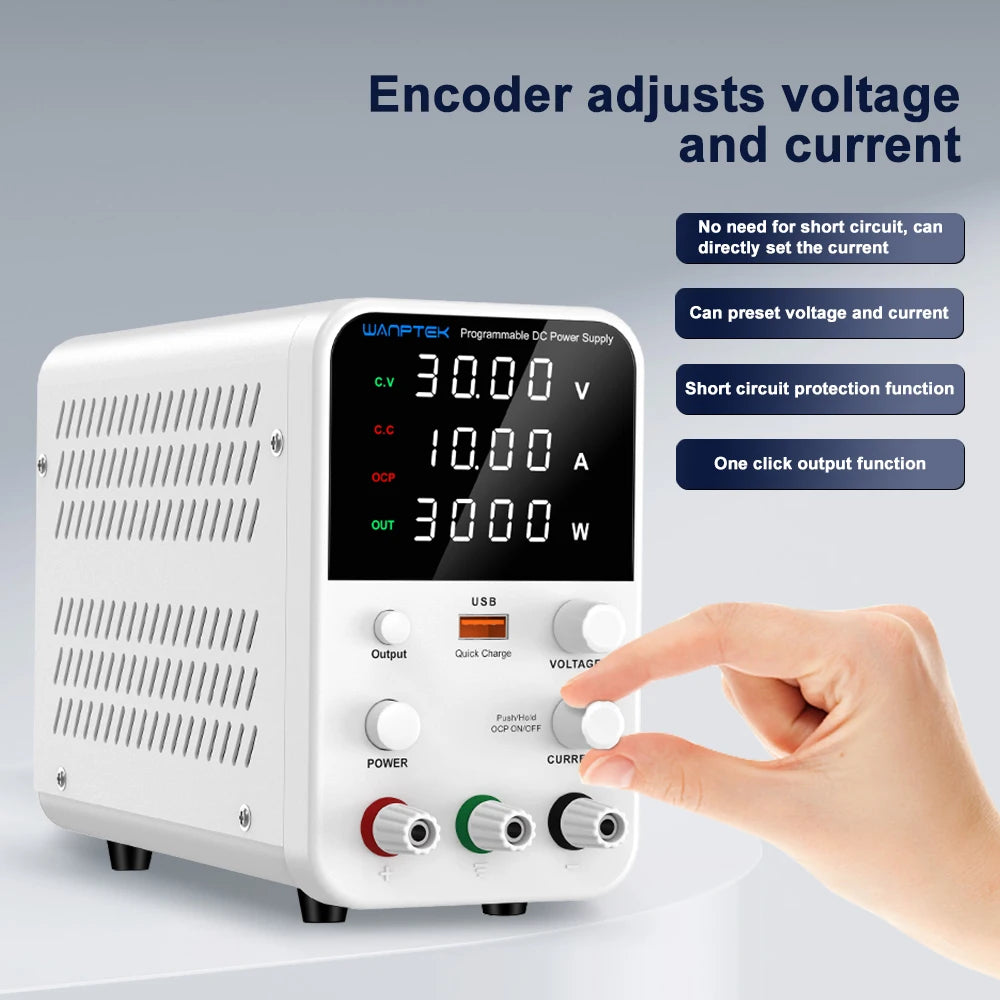

1. WPS305H/B DC Power Supply with USB Encoder Regulation 30V 5A Black White

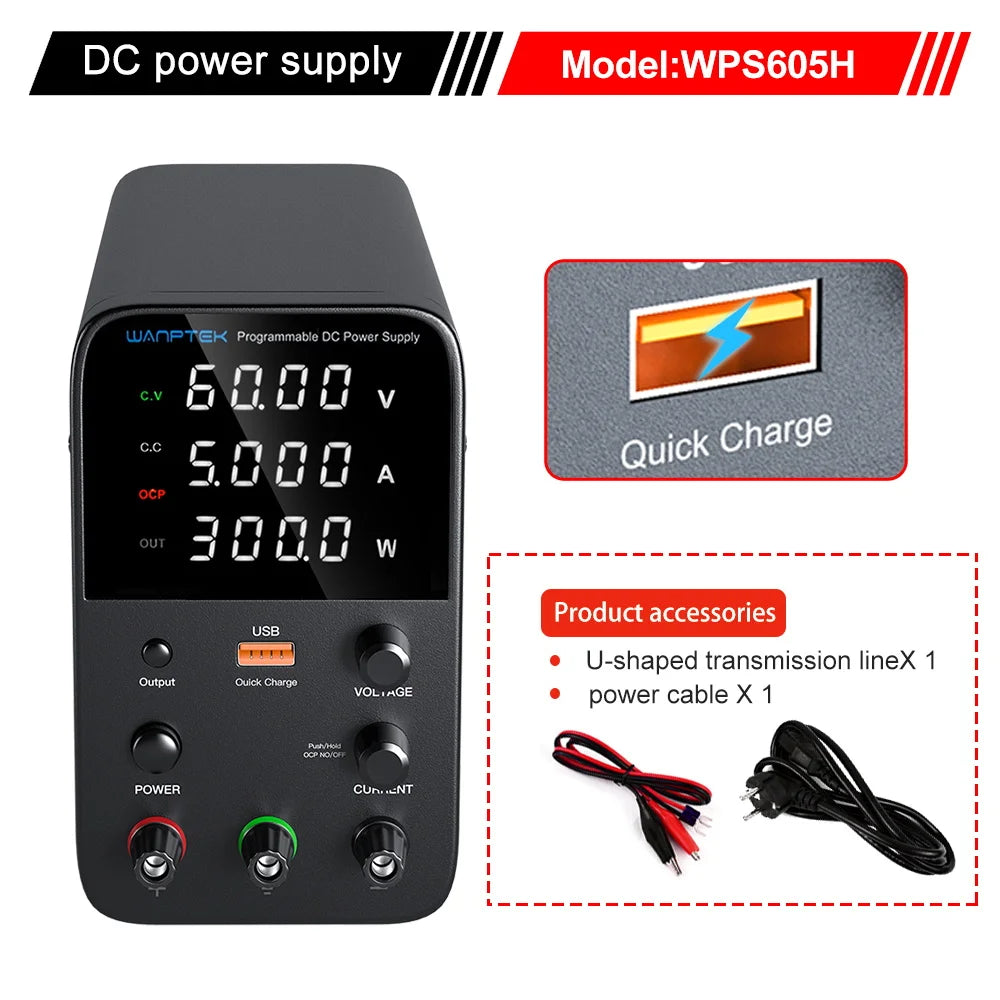

2. WPS605H/B DC power supply with USB Encoder Regulation 60V 5A Black White

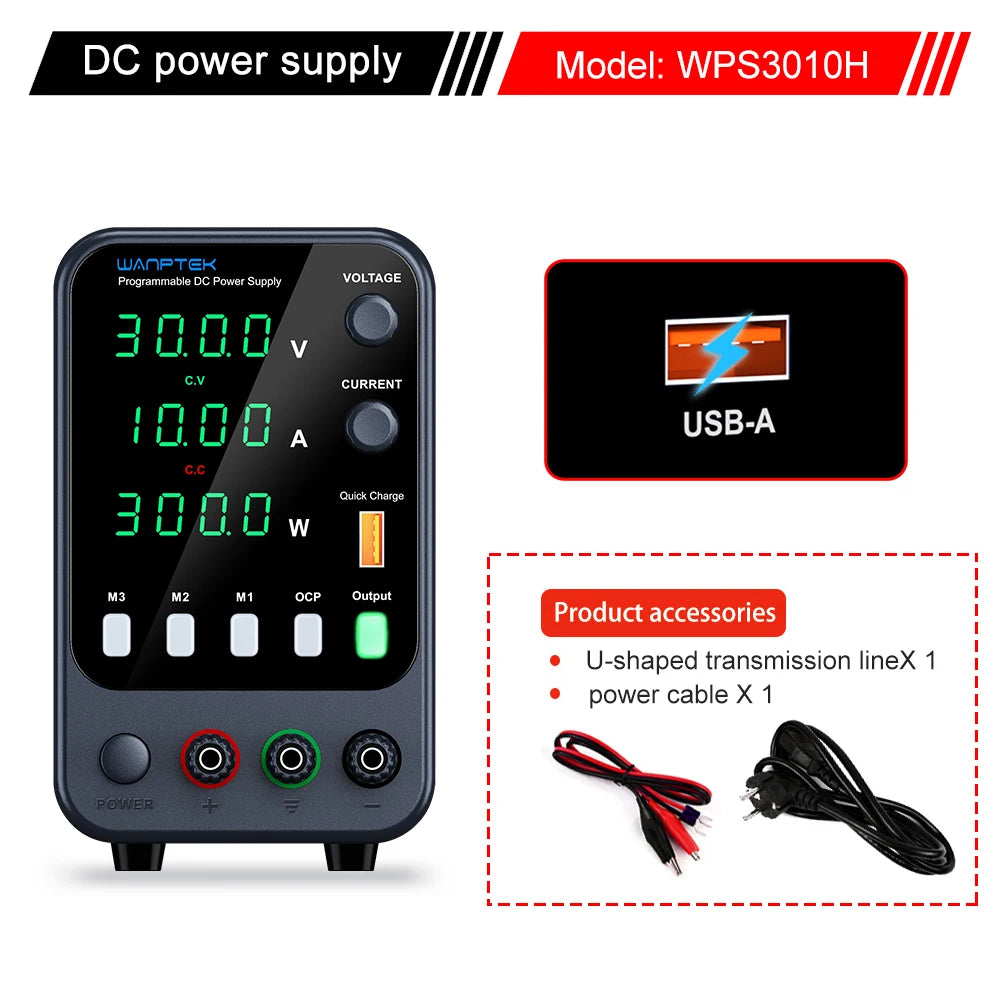

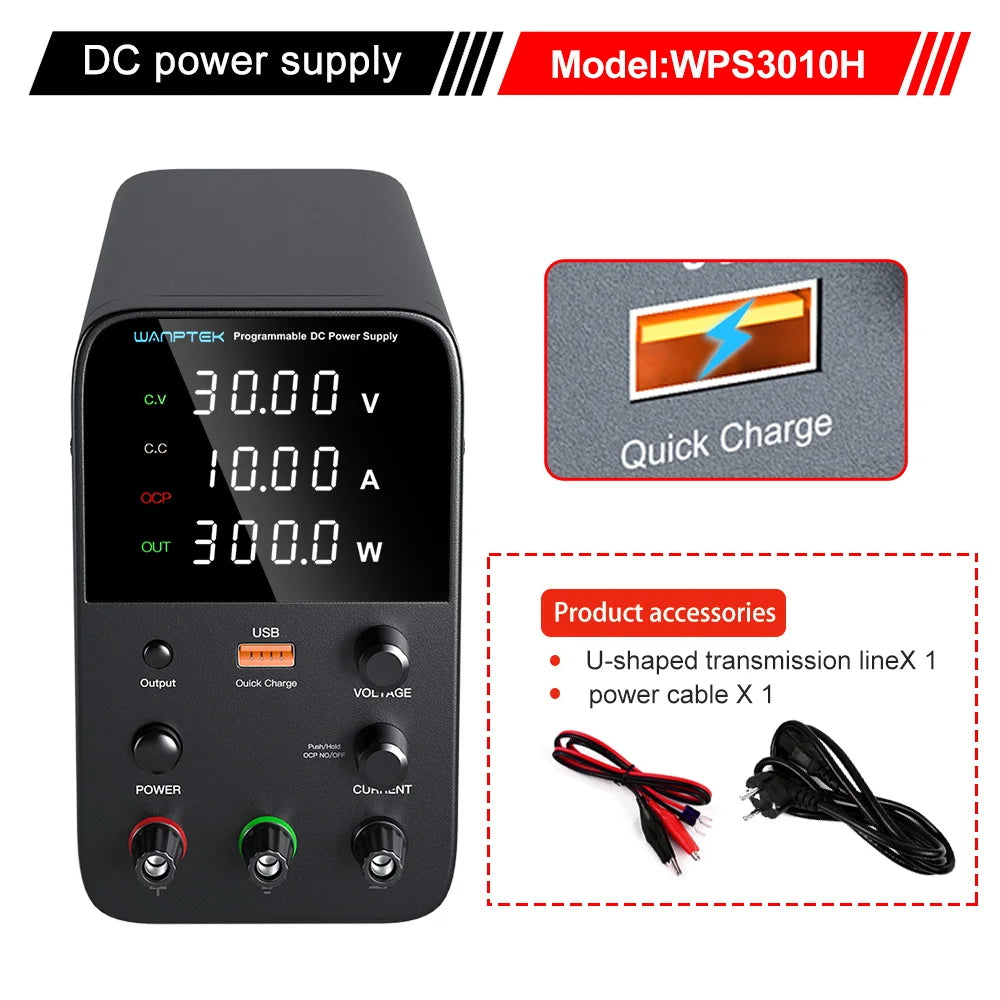

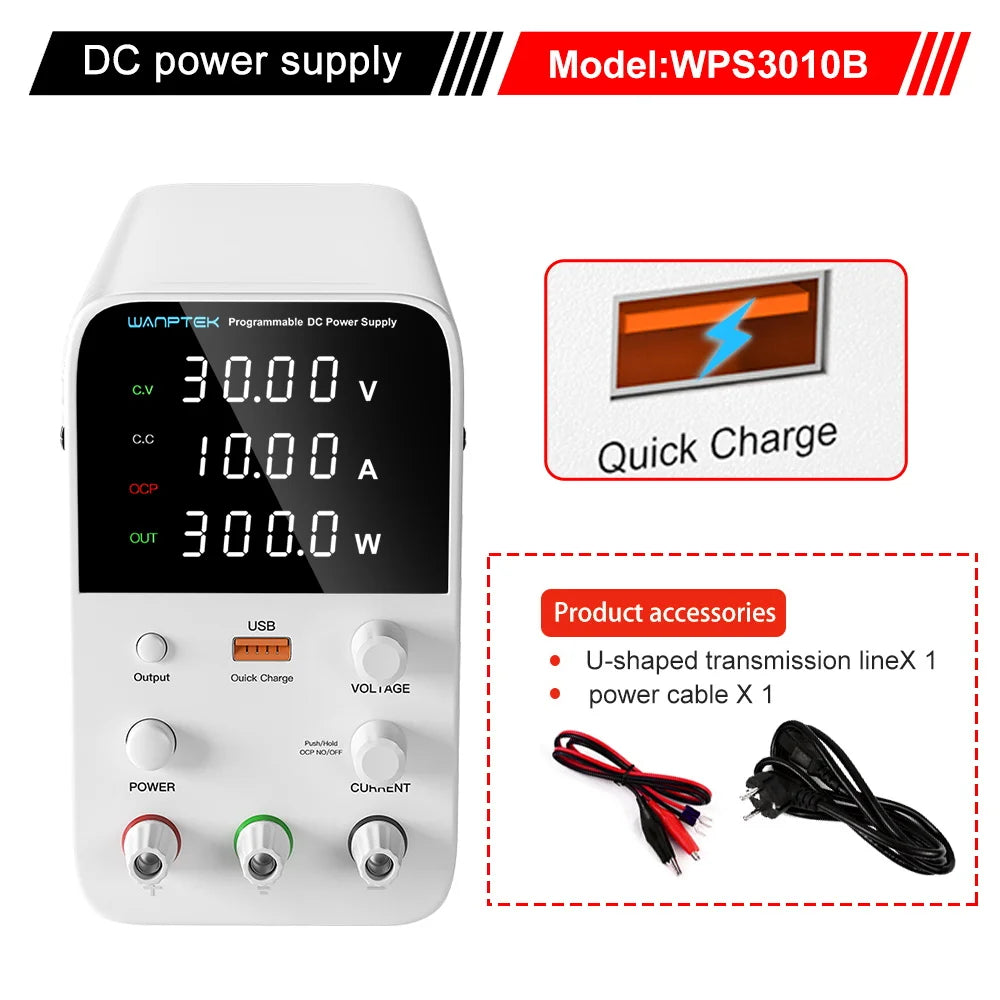

3. WPS3010H/B DC power supply with USB Encoder Regulation 30V 10A Black White

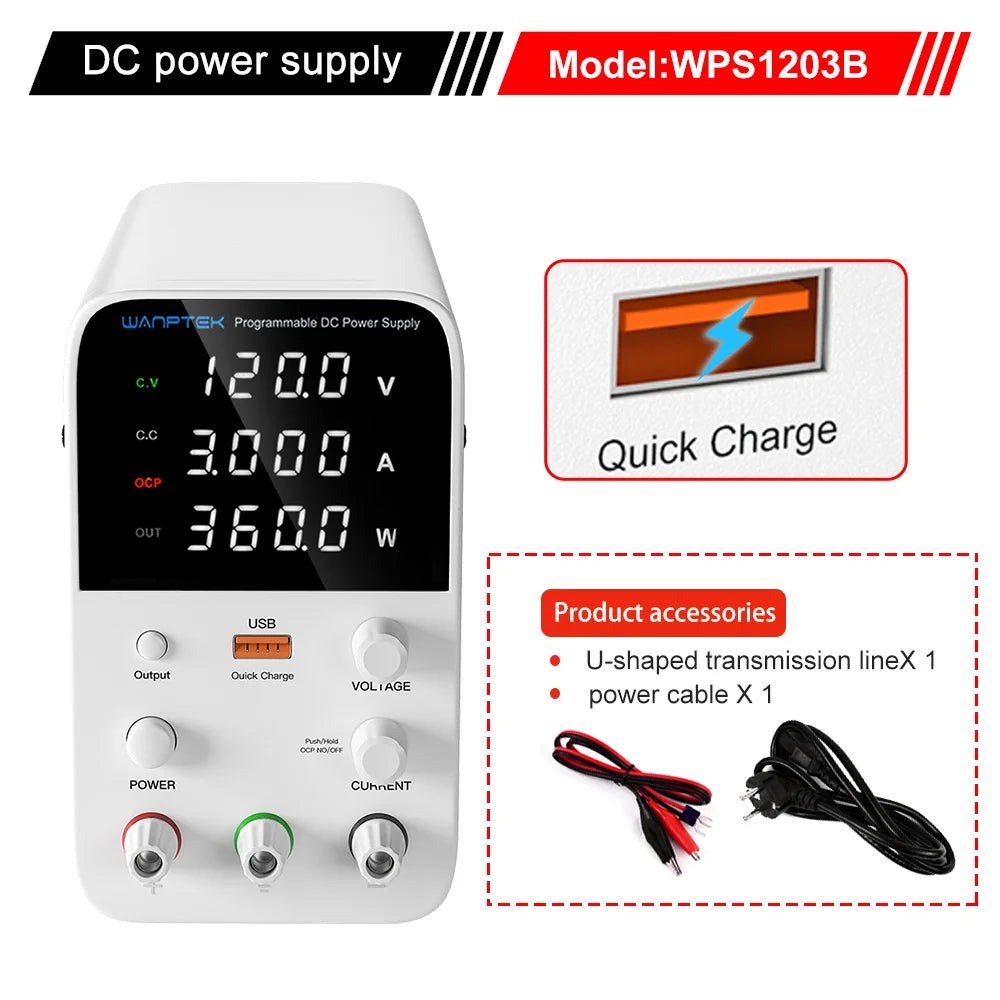

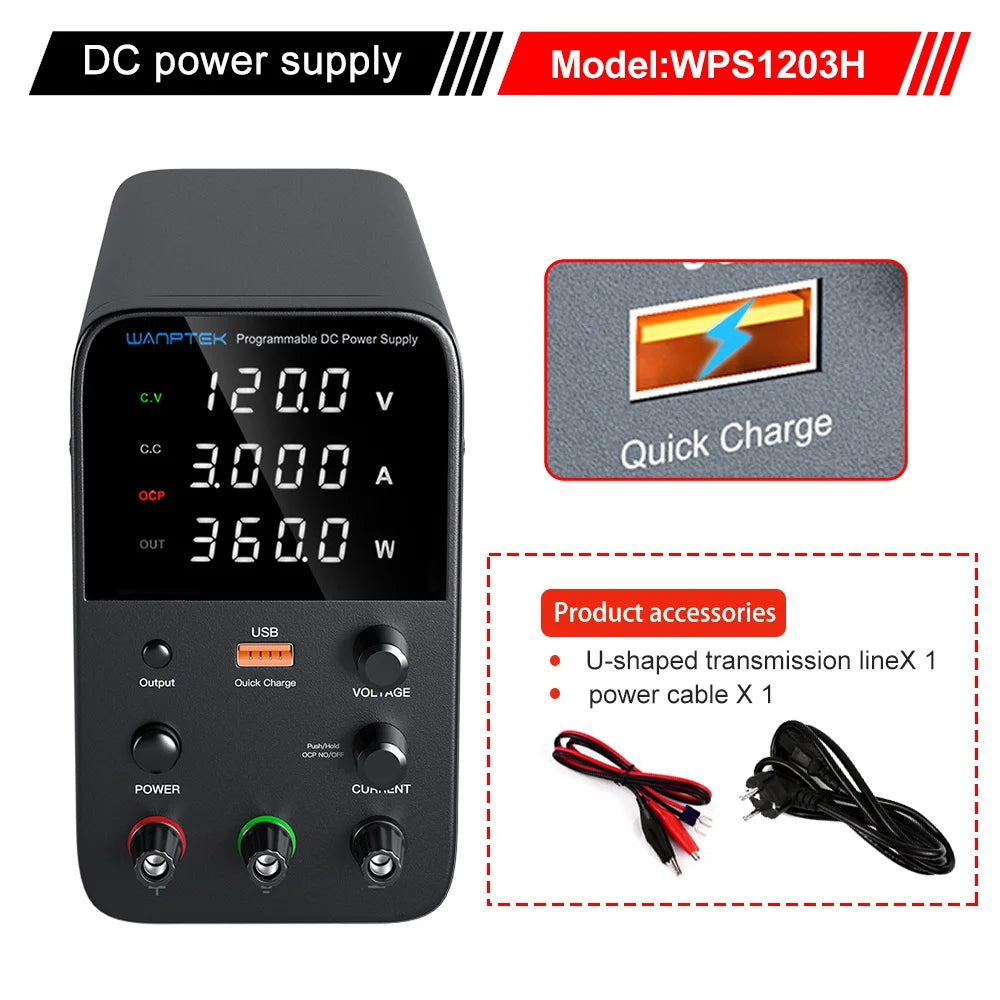

4. WPS1203H/B DC power supply with USB Encoder Regulation 120V 3A Black White

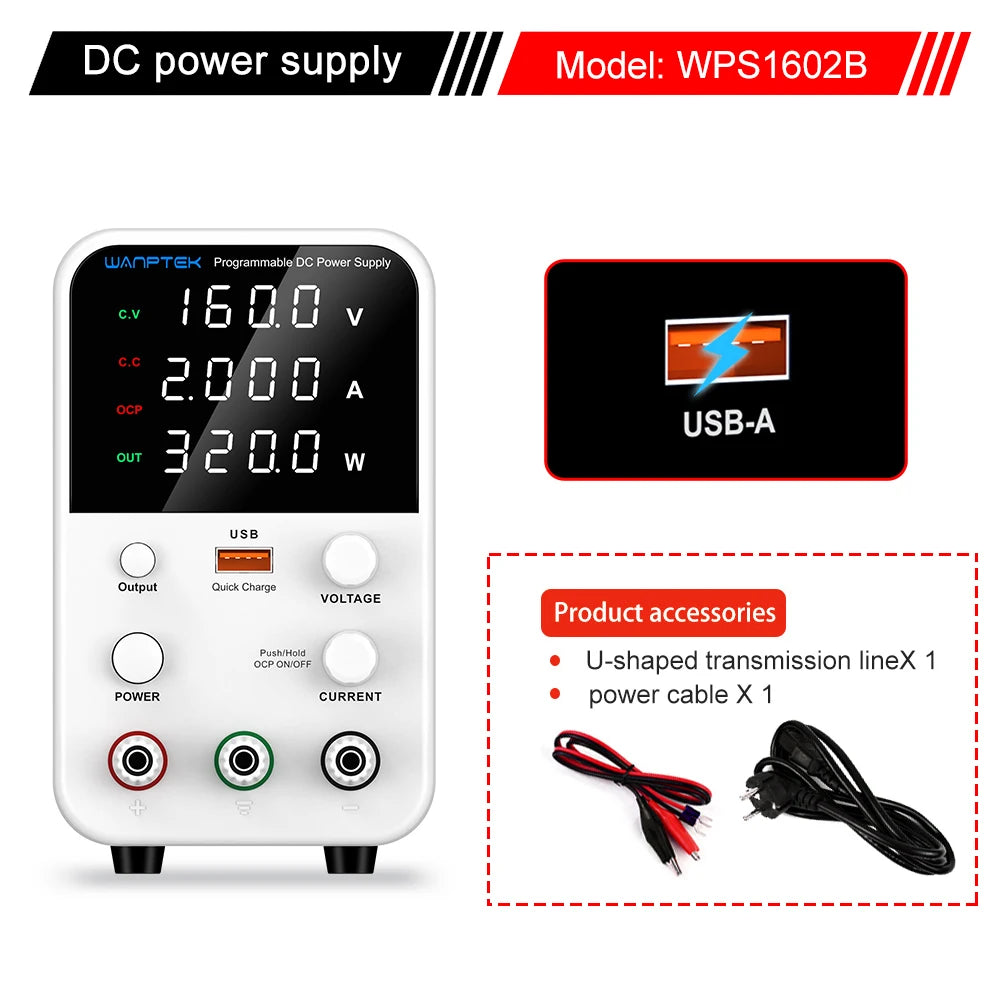

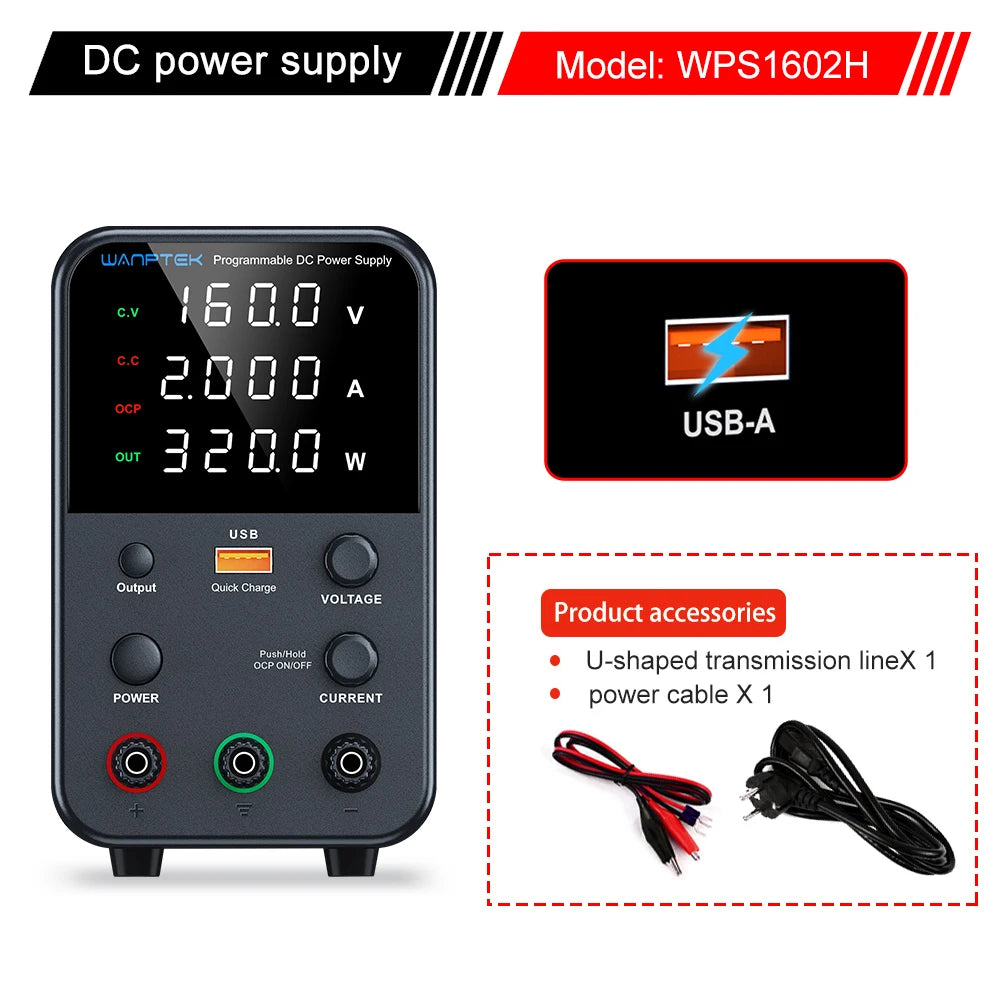

5. WPS1602H/B DC Power Supply with USB Encoder Adjustment 160V 2A Black White

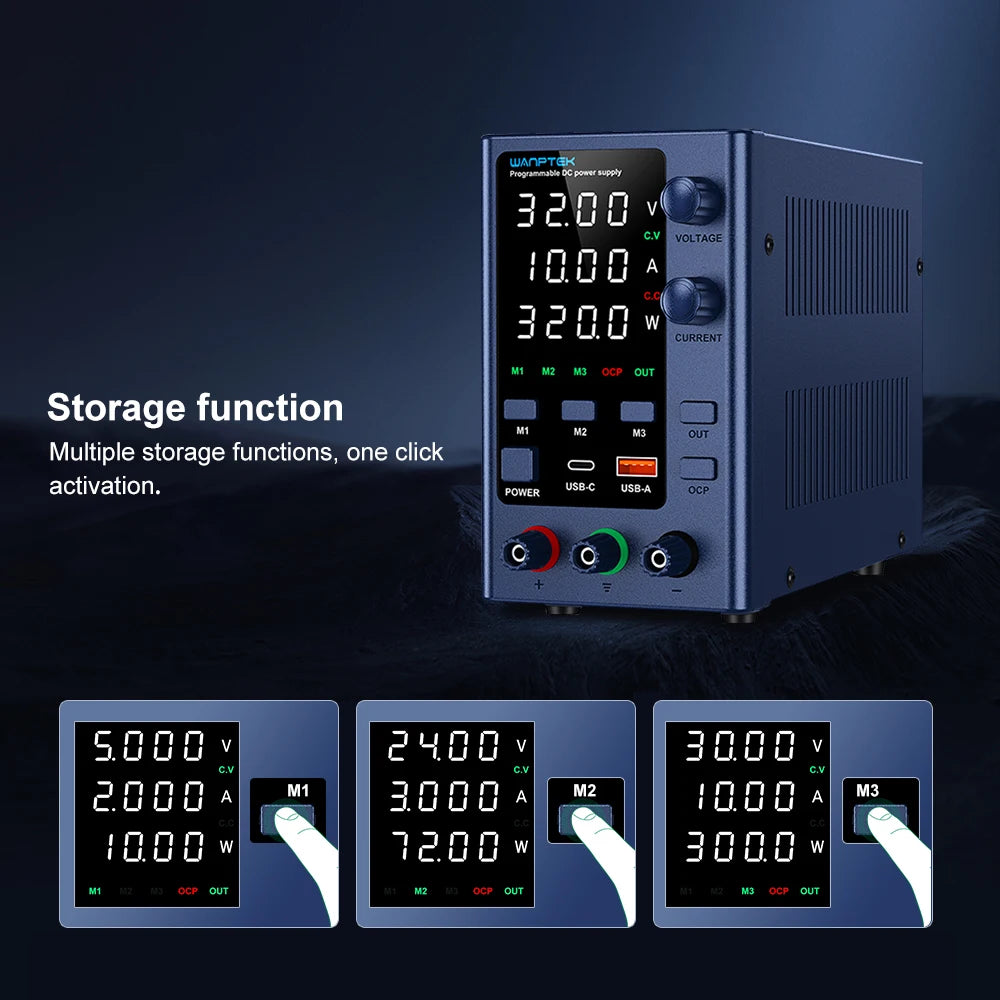

Memory power supply (optional)

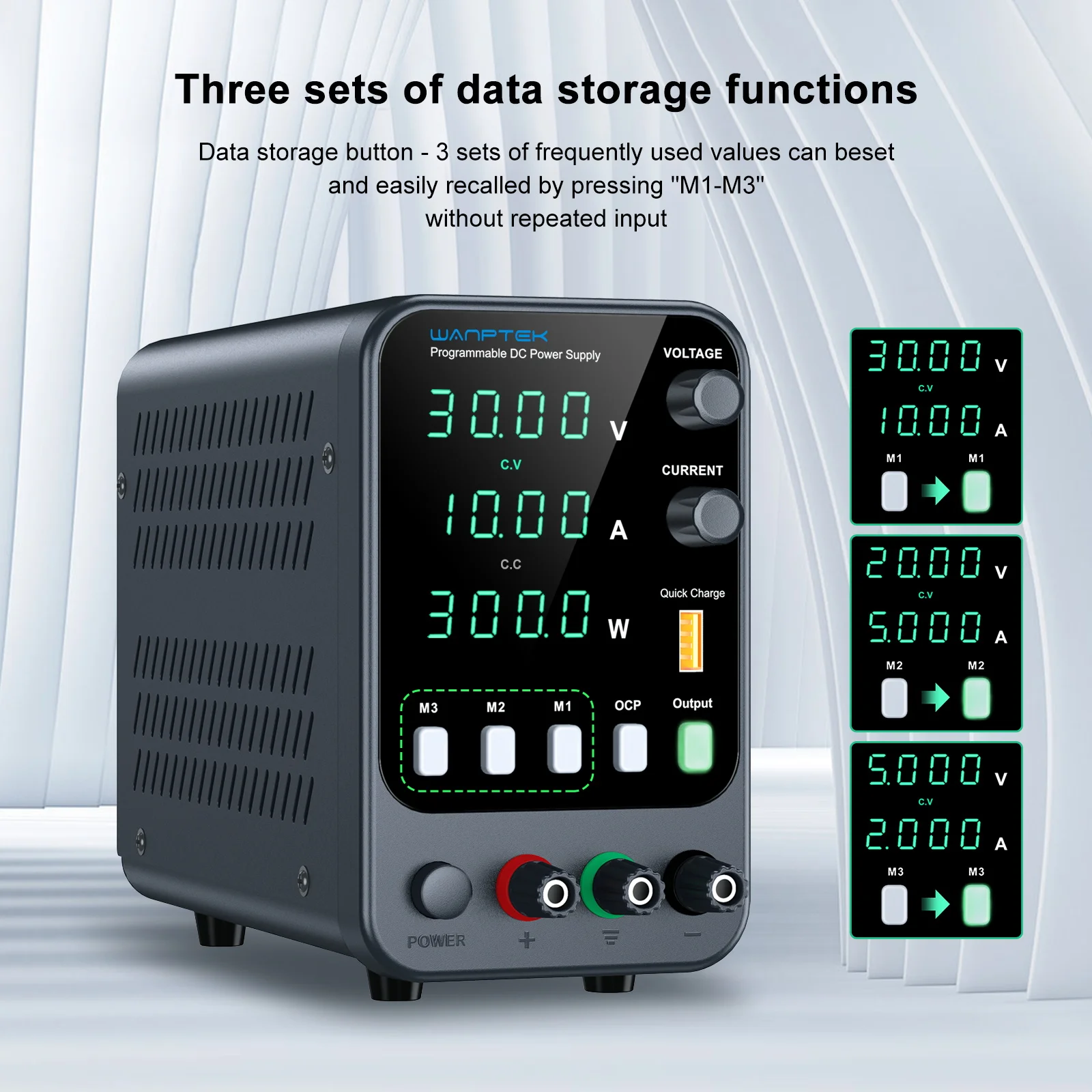

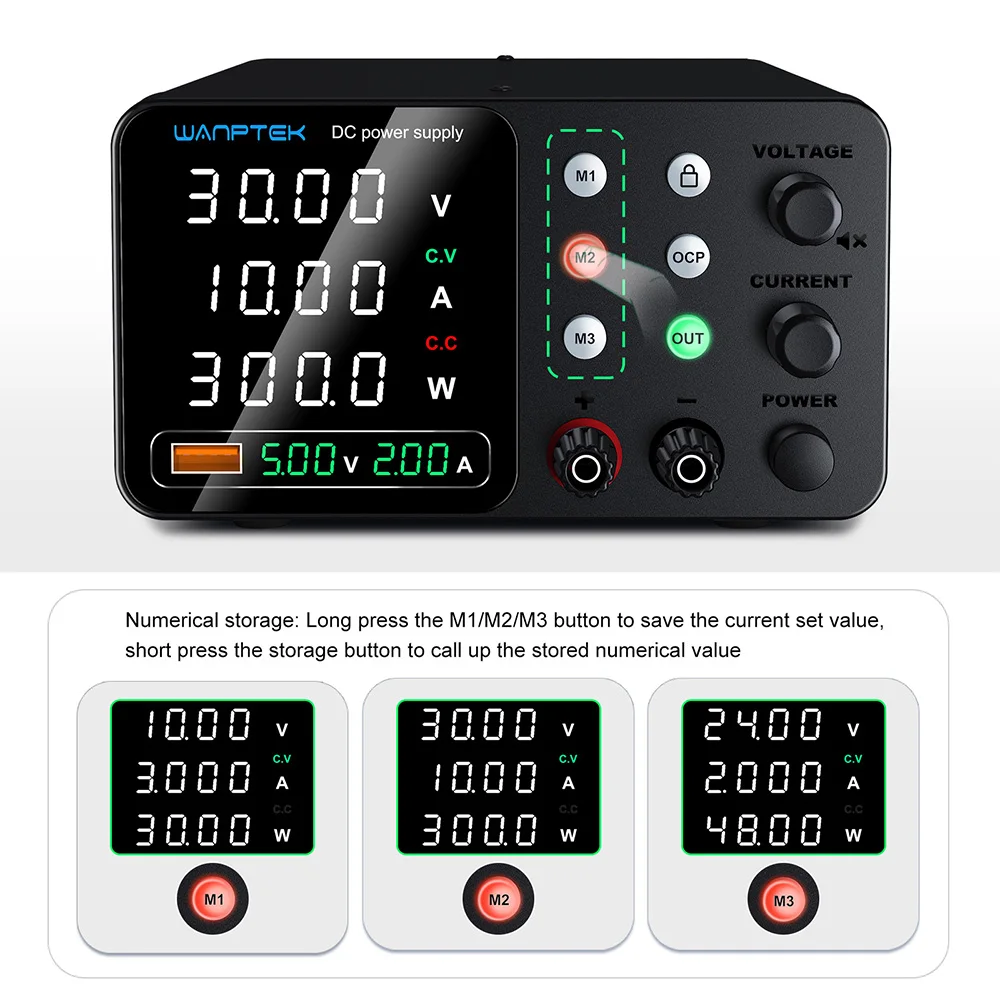

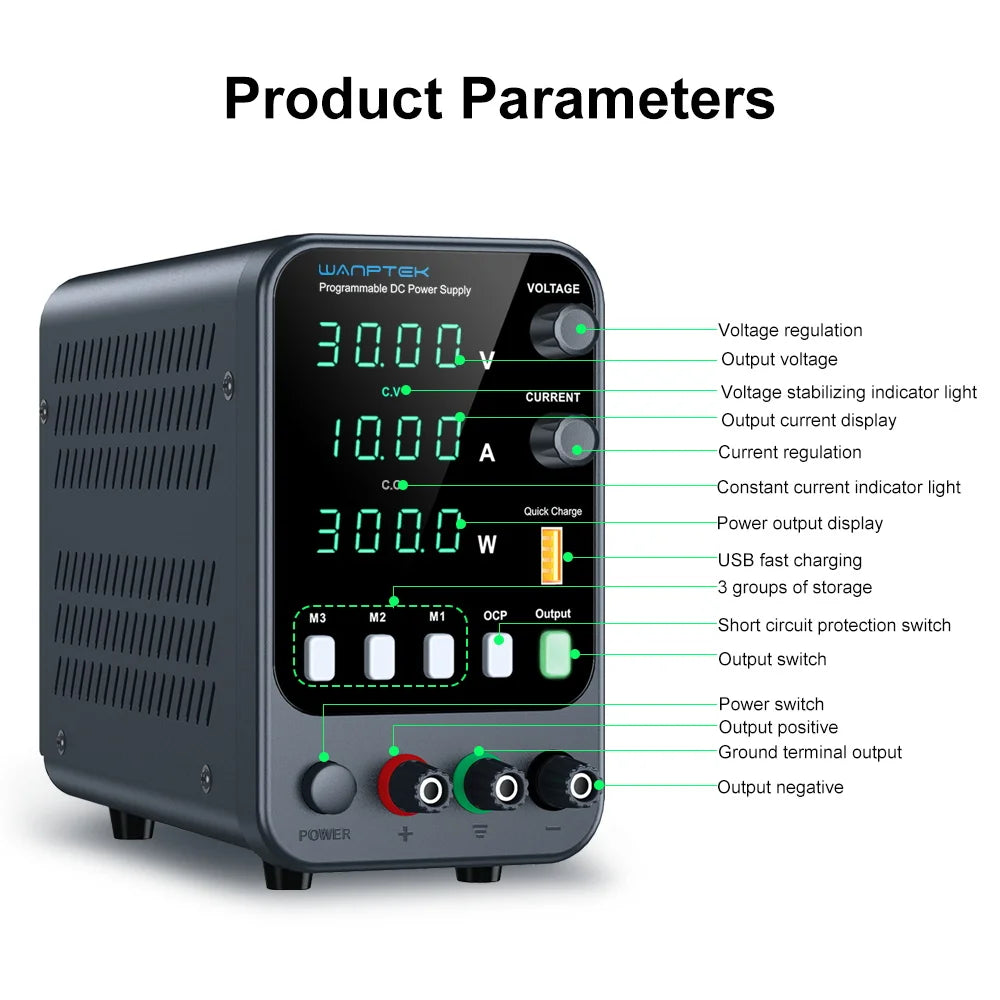

1. APS3010H with USB programmable function (with three sets of memory storage) DC power supply 30V 10A

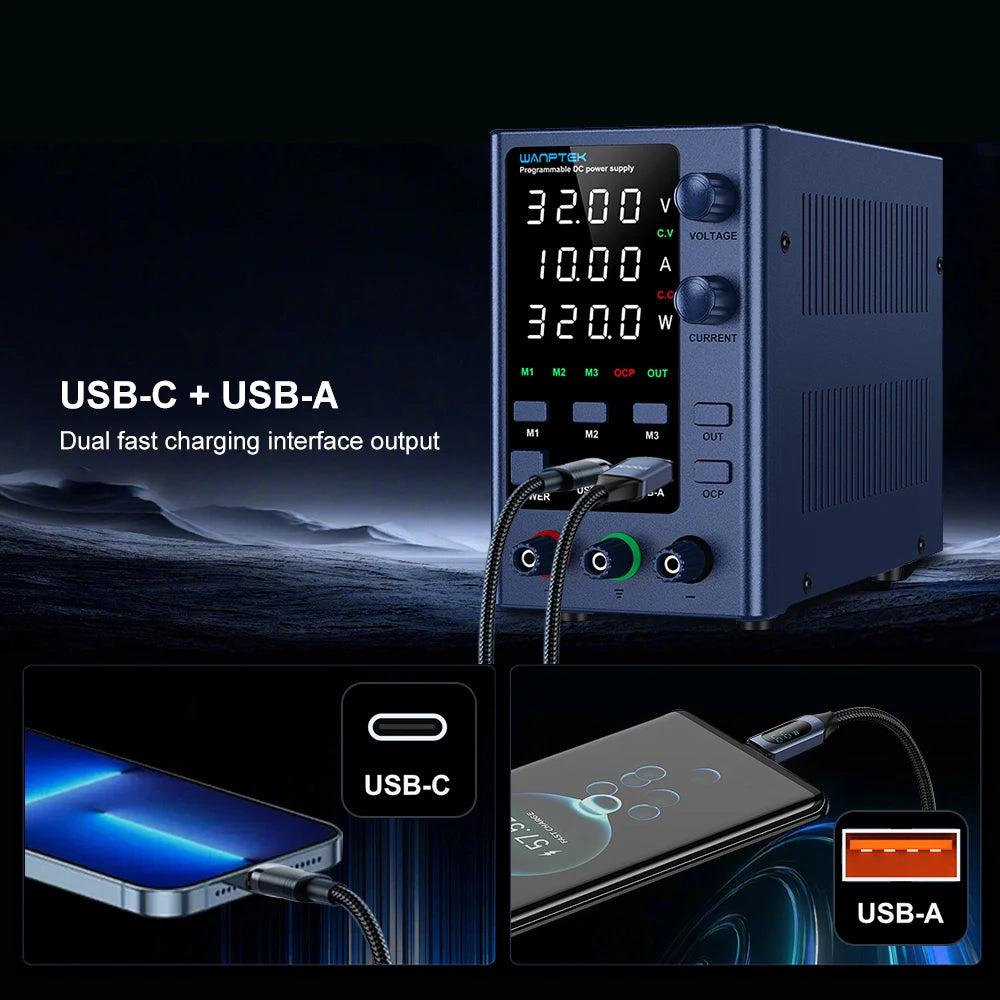

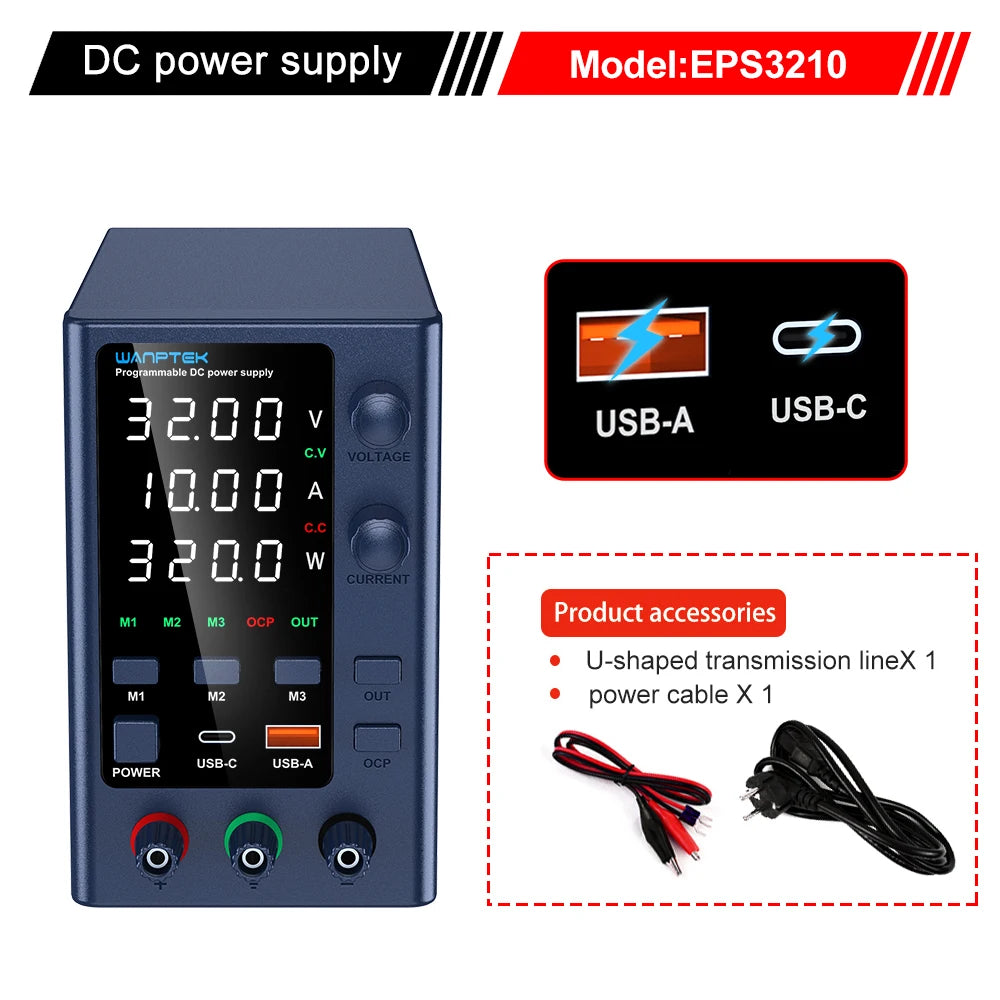

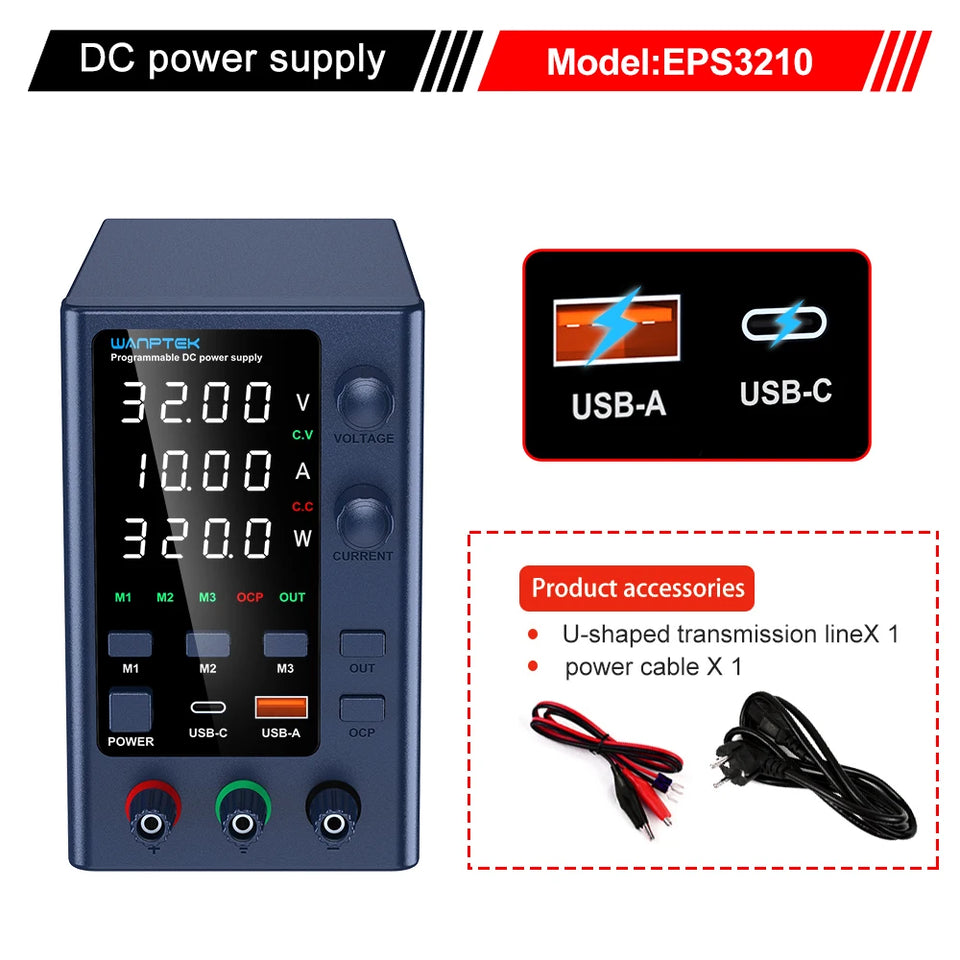

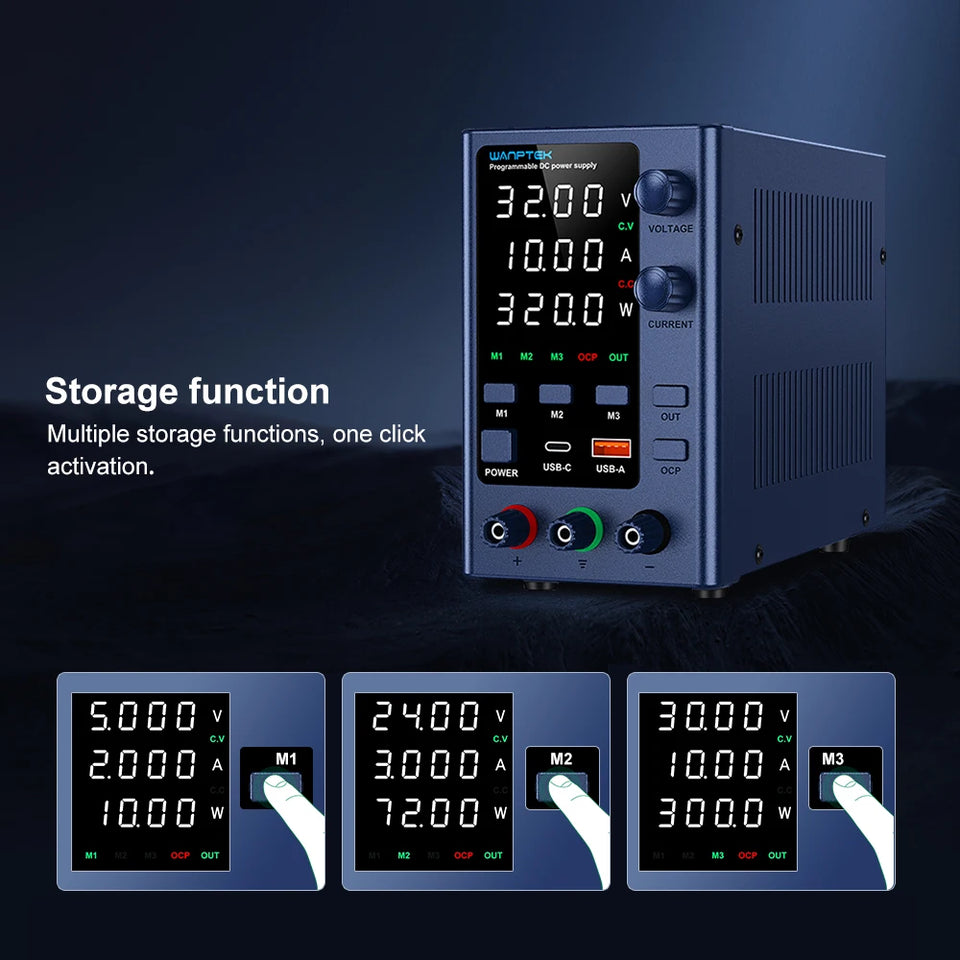

2. EPS3210 with USB/Type-C programmable (with three memory banks) DC power supply 30V 10A

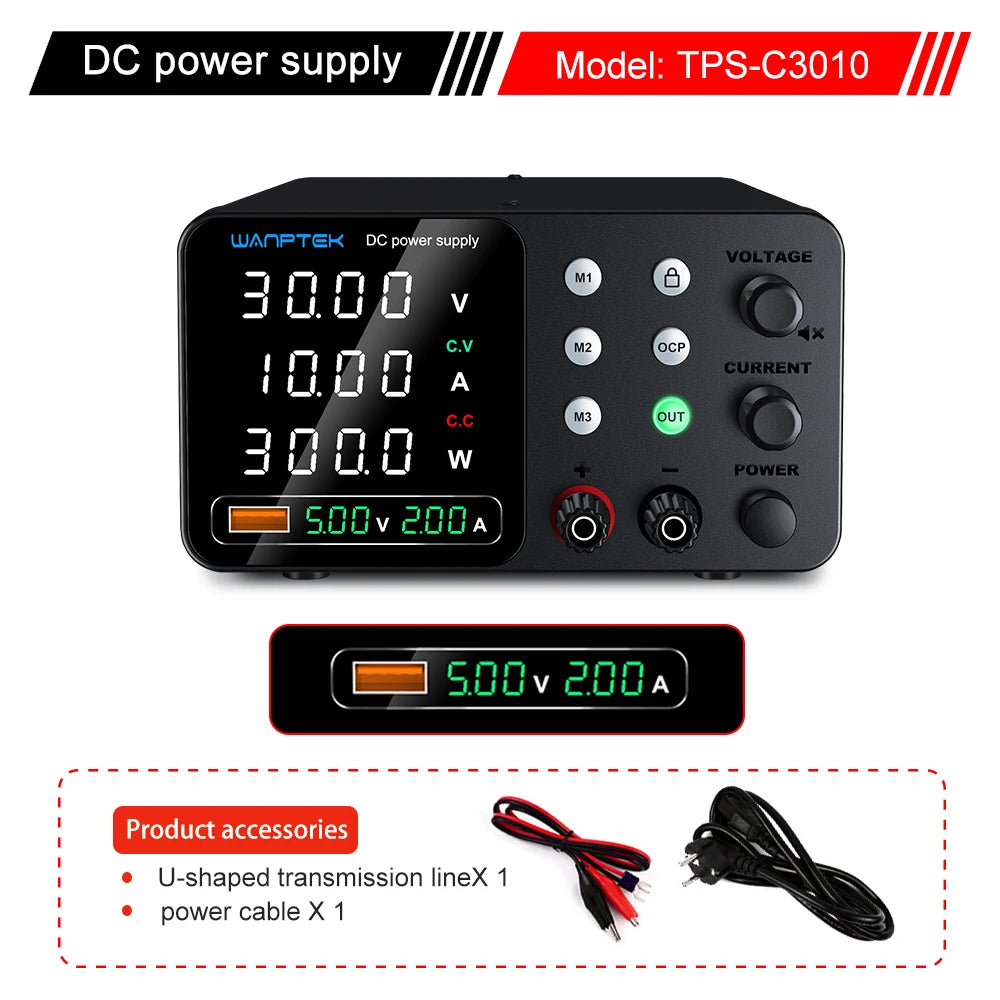

3.TPS-C3010 with USB programmable (with three memory banks) 30V 10A DC power supply

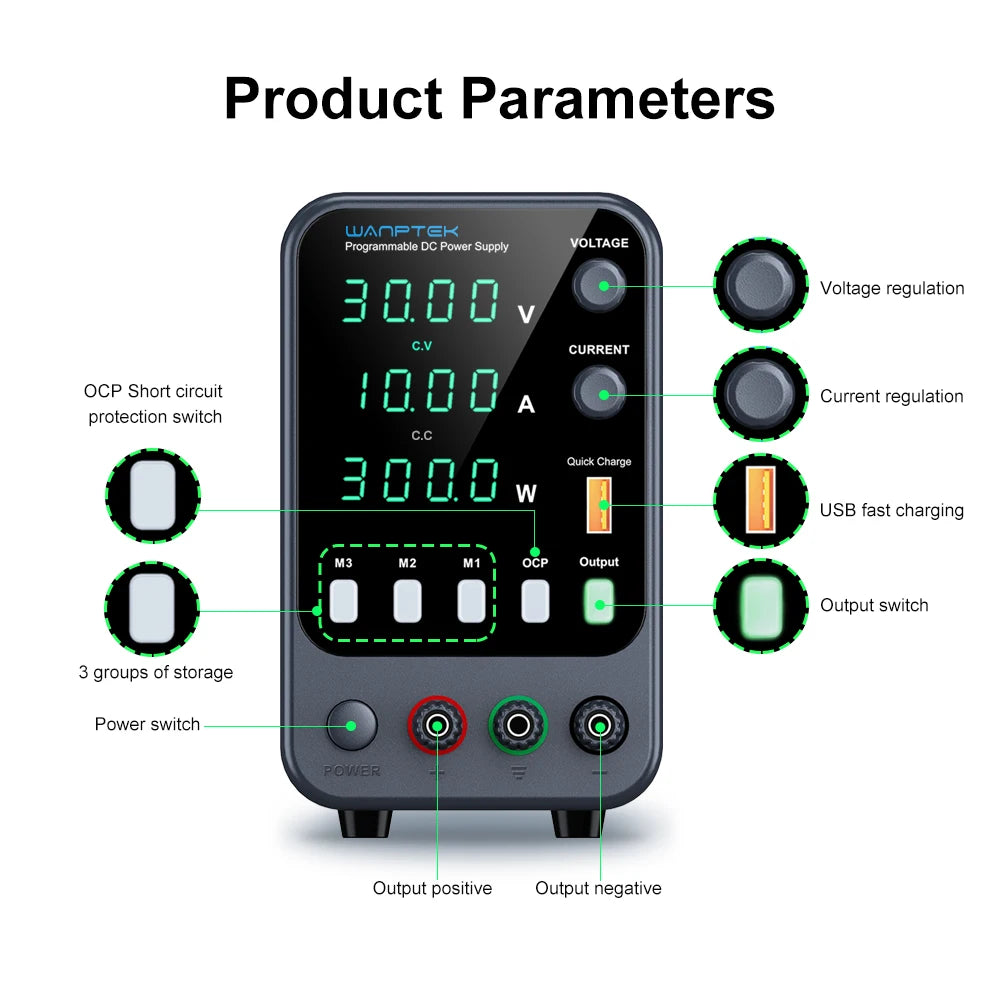

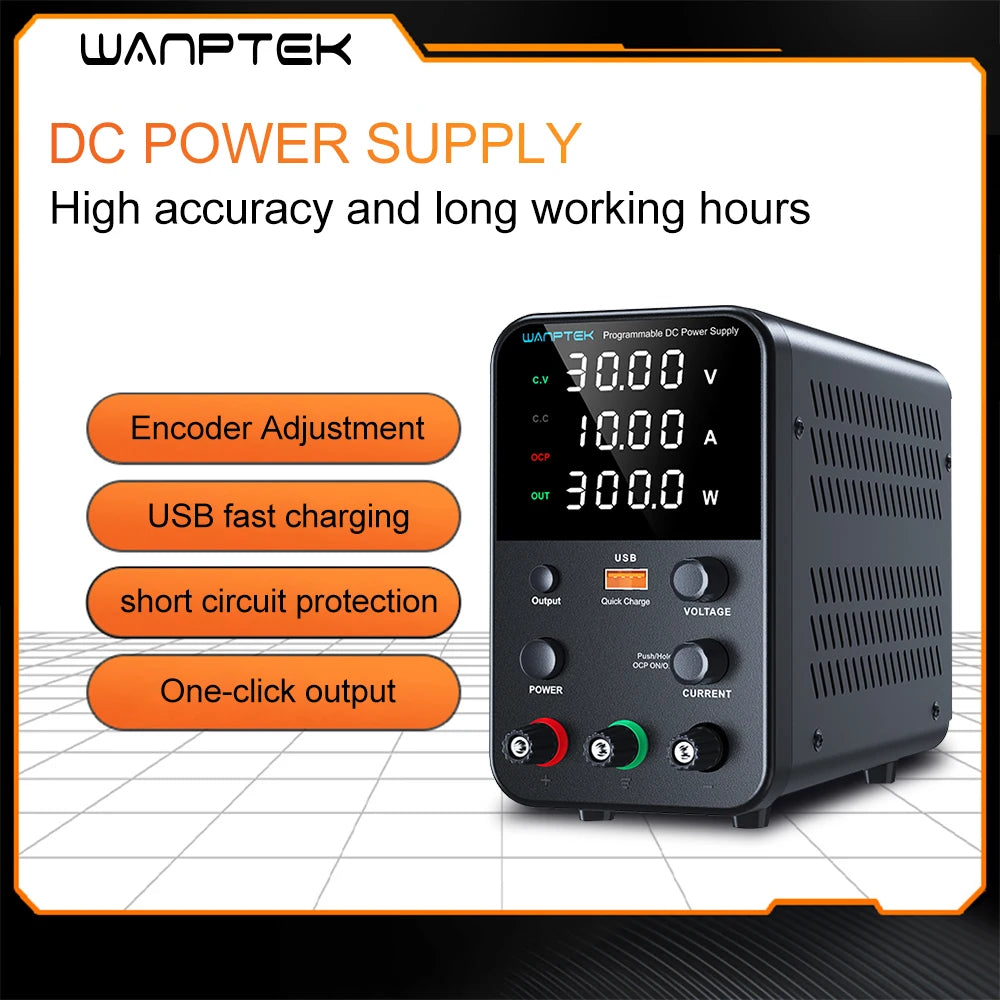

Product Features

1. All models are micro-switching DC power supplies.

2. Small size, light weight, high power density.

3. Constant voltage and constant current automatic switching.

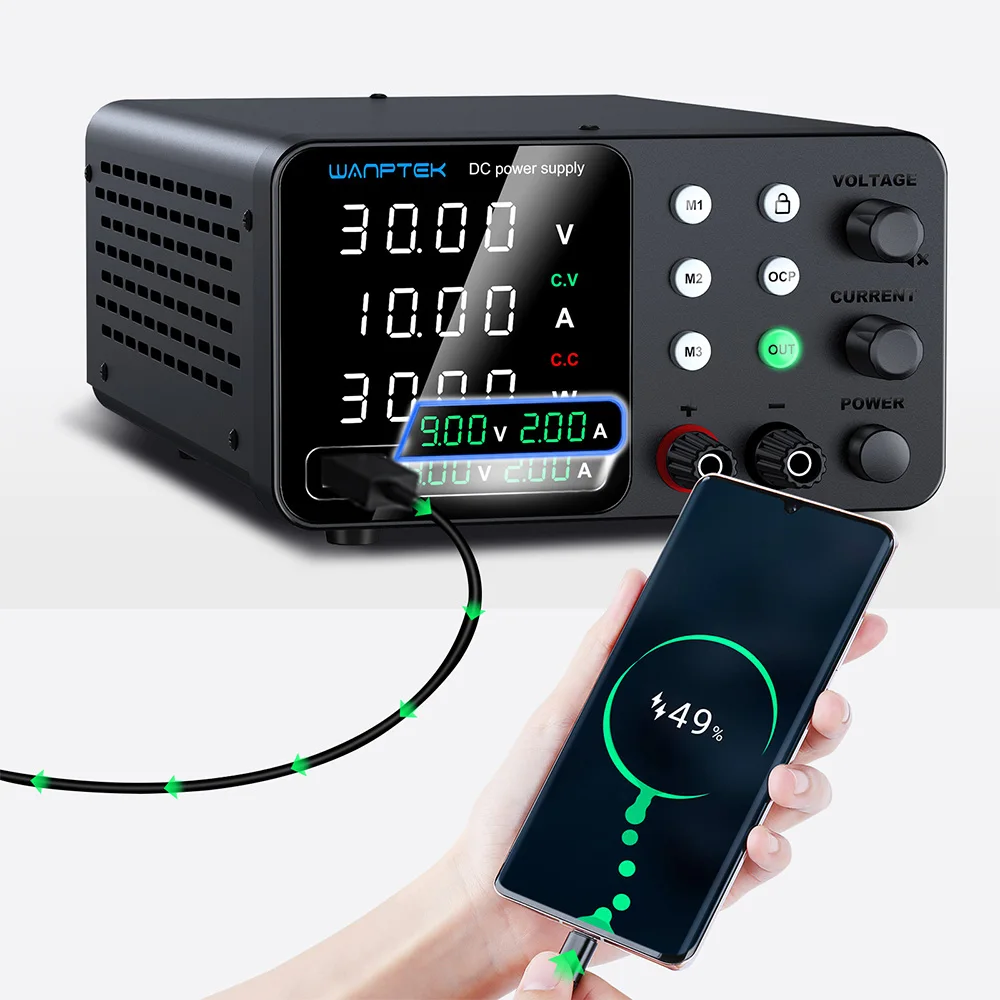

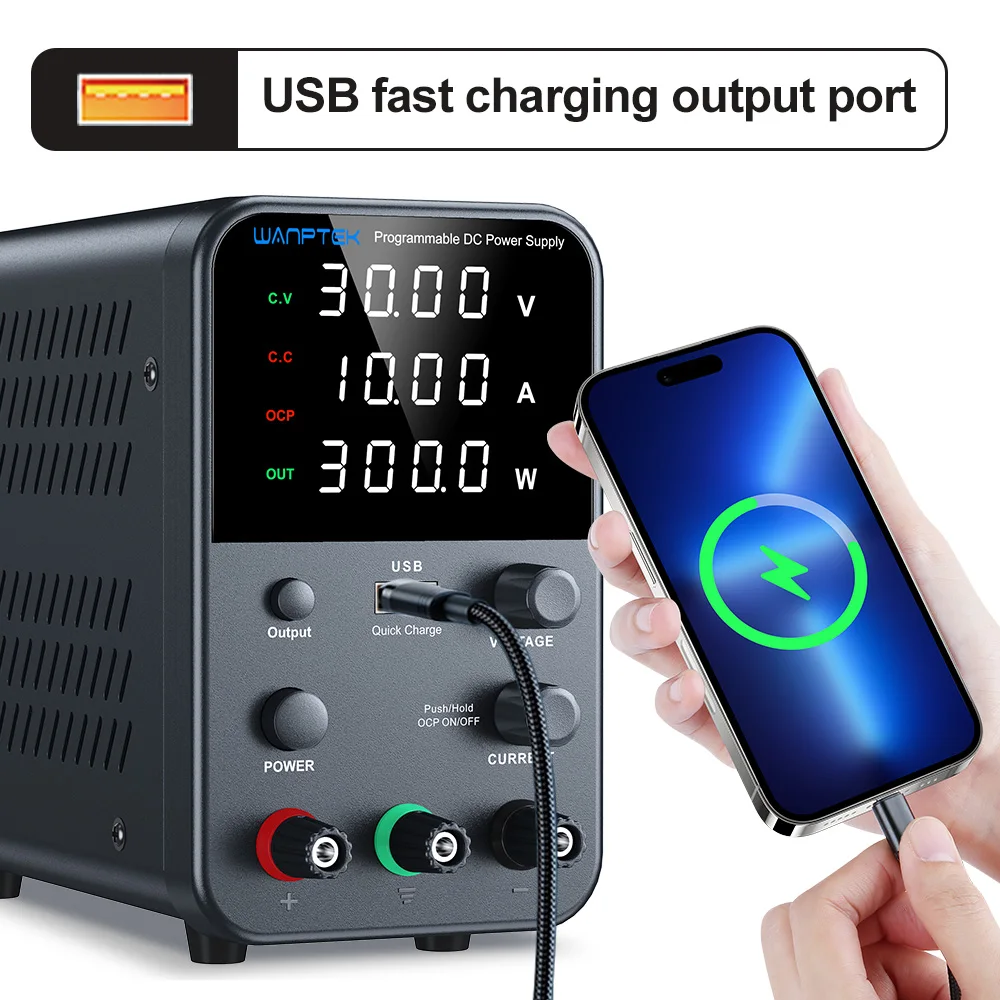

4. with USB fast charging interface.

5. Adjustable output voltage and current: output voltage and output current can be continuously adjusted between 0 and rated value.

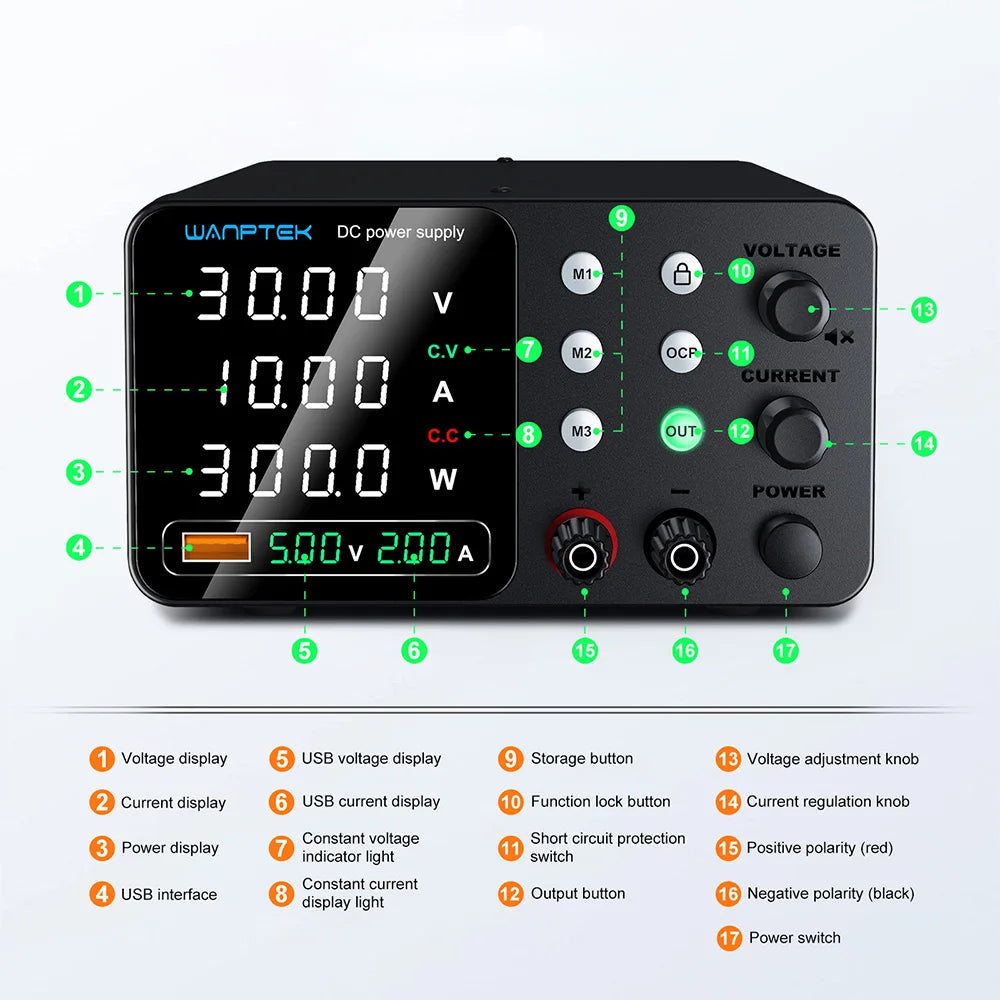

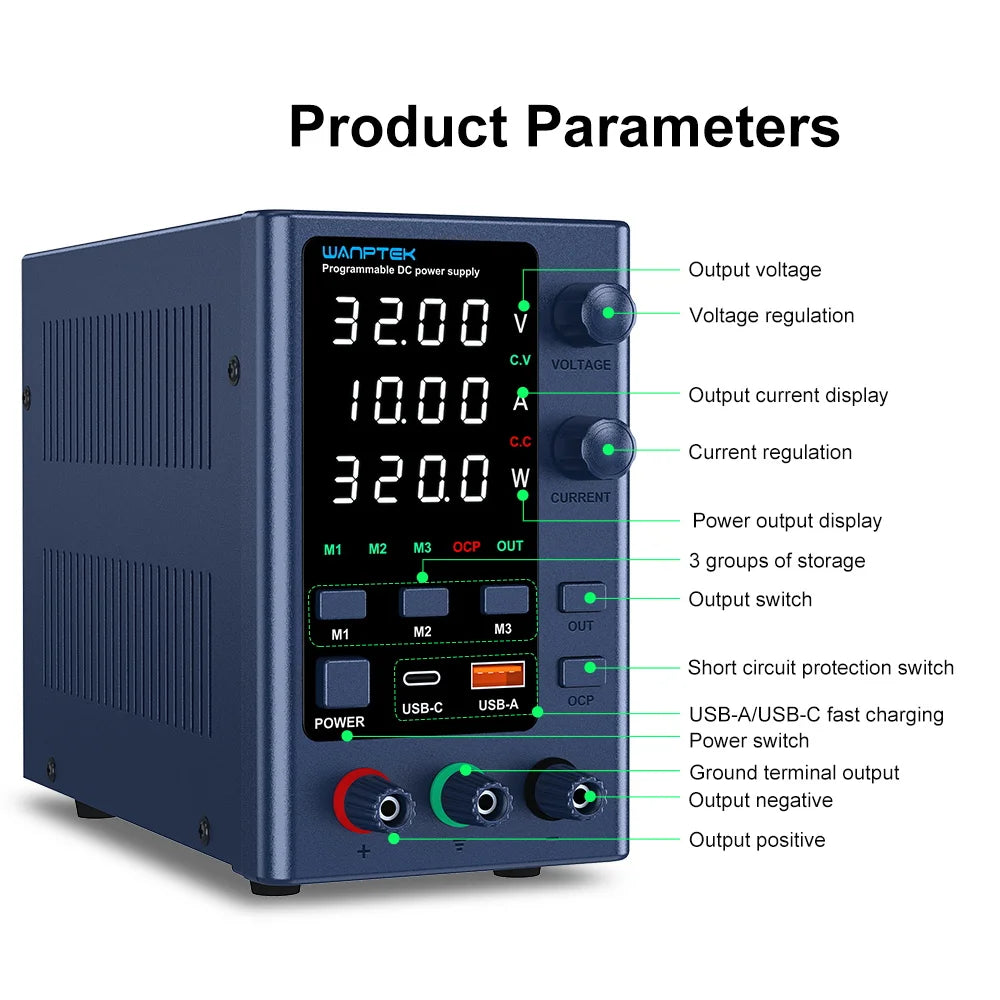

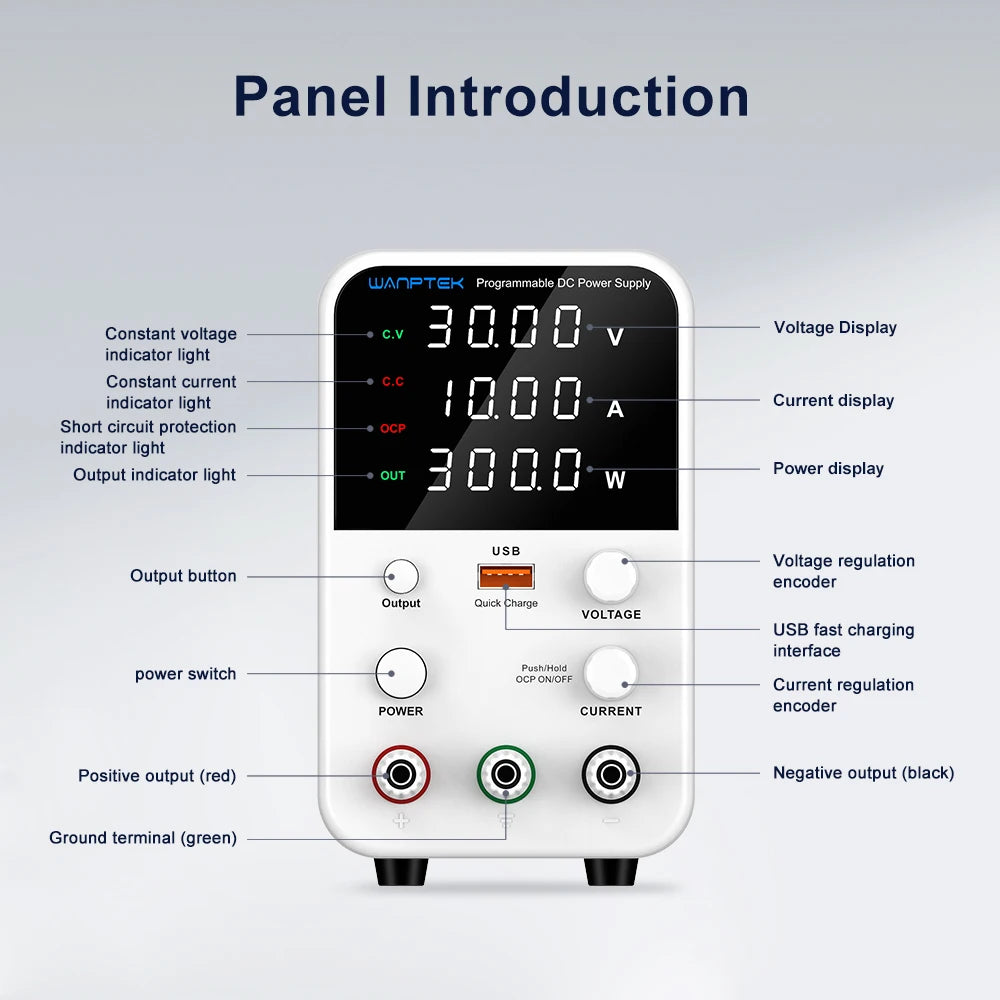

6. Voltage, current, Four-window/two-color display, high precision, with the characteristics of voltage stabilization, current limiting, and simple operation.

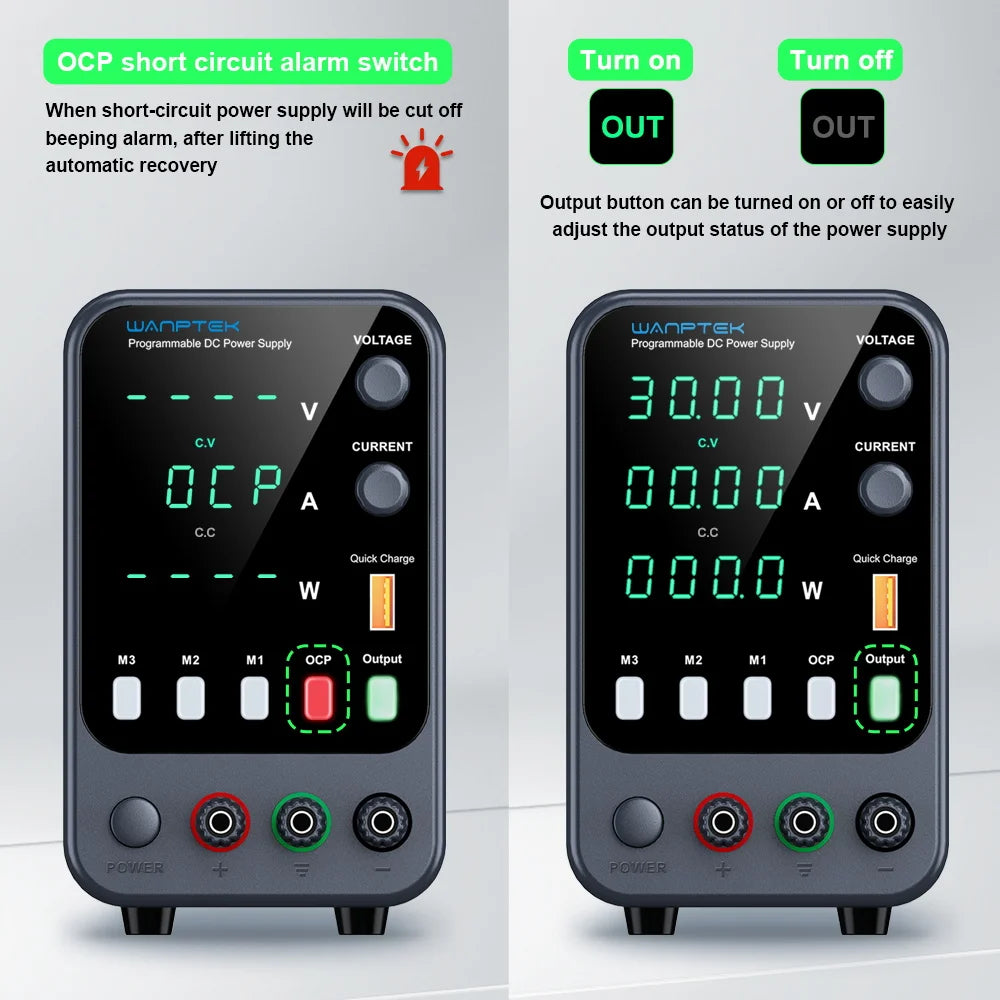

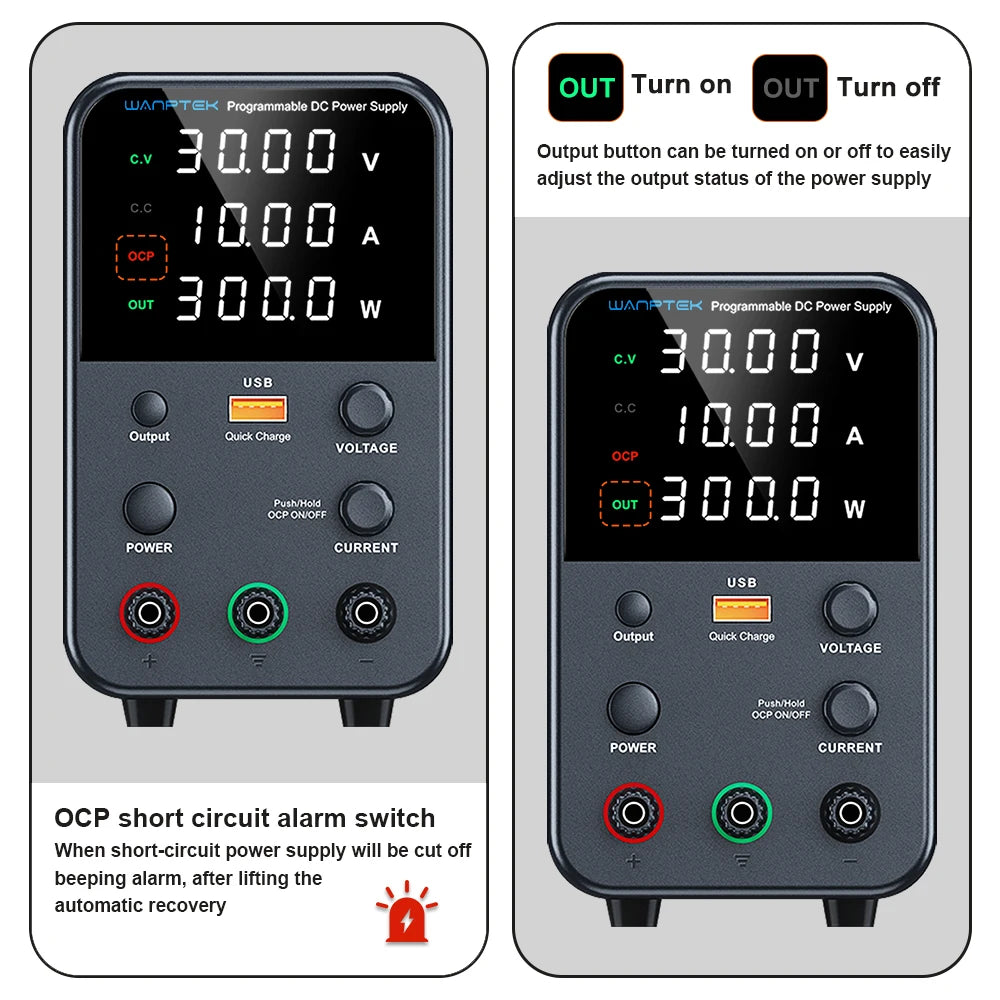

7. With over voltage protection (OVP), over current protection (OCP), over temperature protection

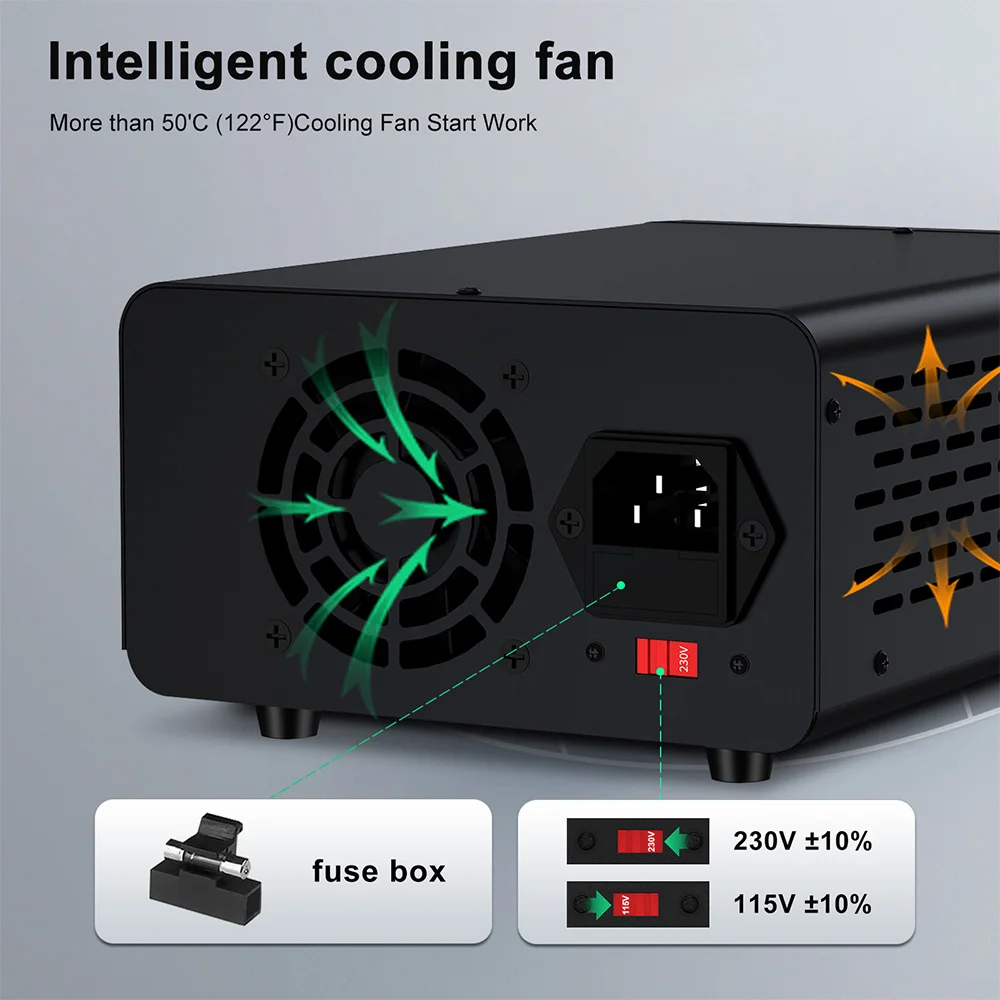

8. Temperature-controlled fan cooling, low noise, long life

9. The output voltage range is continuously adjusted from 0 to the rated voltage.

10. The output current range is continuously adjusted from 0 to the rated current

11. AC 110v and 220v can work, rest assured to choose.

Applied Scenes

1. Production line test.

2. Mobile phone repair,computer repair,monitor repair,electrical appliance maintenance,Car DVD, car audio.

3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.

5. Laboratory, scientific research teaching,school,factory,scientific research production lines,maintenance power supply.

6. All other occasions requiring DC power supply.

Working Environment

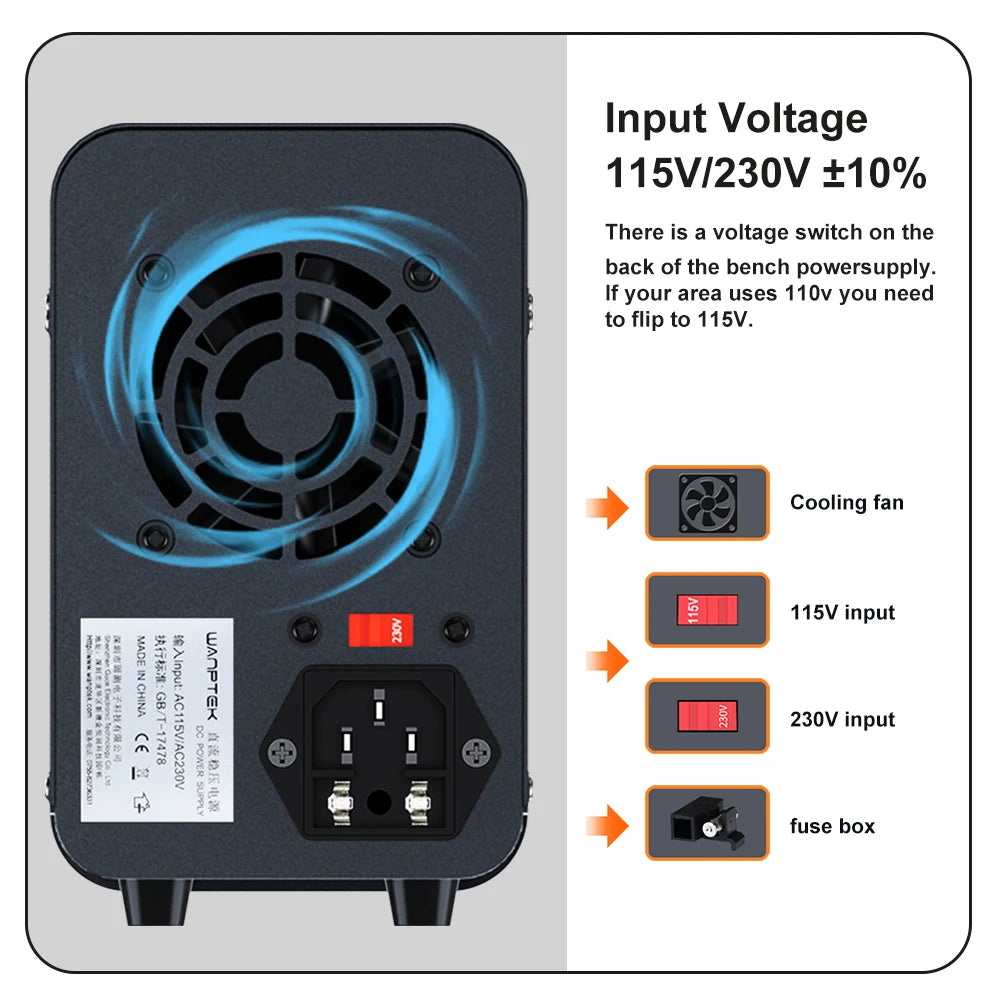

Input power supply: AC 230V/115V±10%; 50Hz/60Hz

Operating Temperature: 0℃～40℃;Relative Humidity:<80%RH

Storage temperature:-10℃～70℃;Relative humidity:<70%RH

Voltage stabilization CV

Voltage stability: 0.5%±3mV

Load stability: 0.5%±3mV

Ripple voltage: ≤0.5% Vp-p

0 to rated voltage continuously adjustable

Current stabilization CC

Current stability: 0.5%±3mA

Load stability: 0.5%±3mA

Ripple current: ≤0.5% Vp-p

Recovery time: ≤500μS

Temperature coefficient: ≤100ppm/°C

0 to rated current continuously adjustable

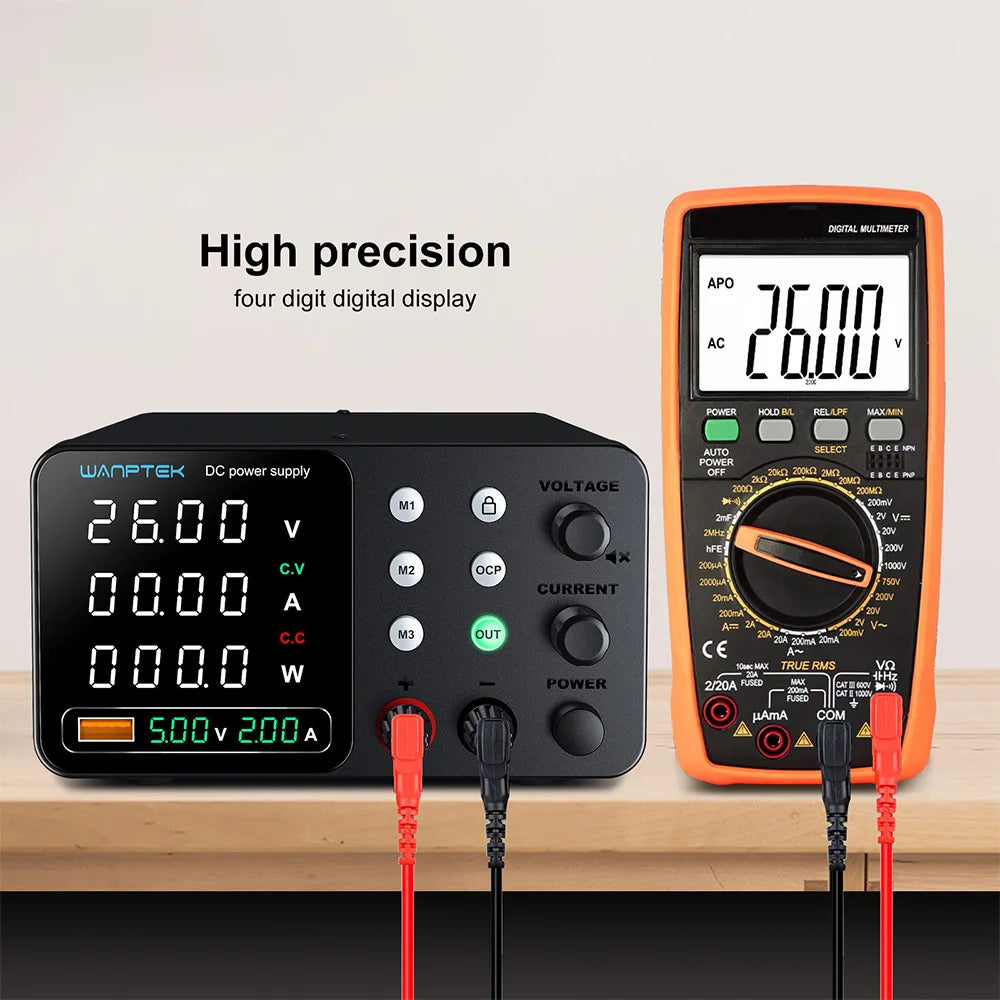

Meter display

0.4-inch white four-digit digital tube with three displays

Display accuracy: 0.5%±5 words

Display resolution: voltage 0.01V, current 0.001A

Product Characteristics

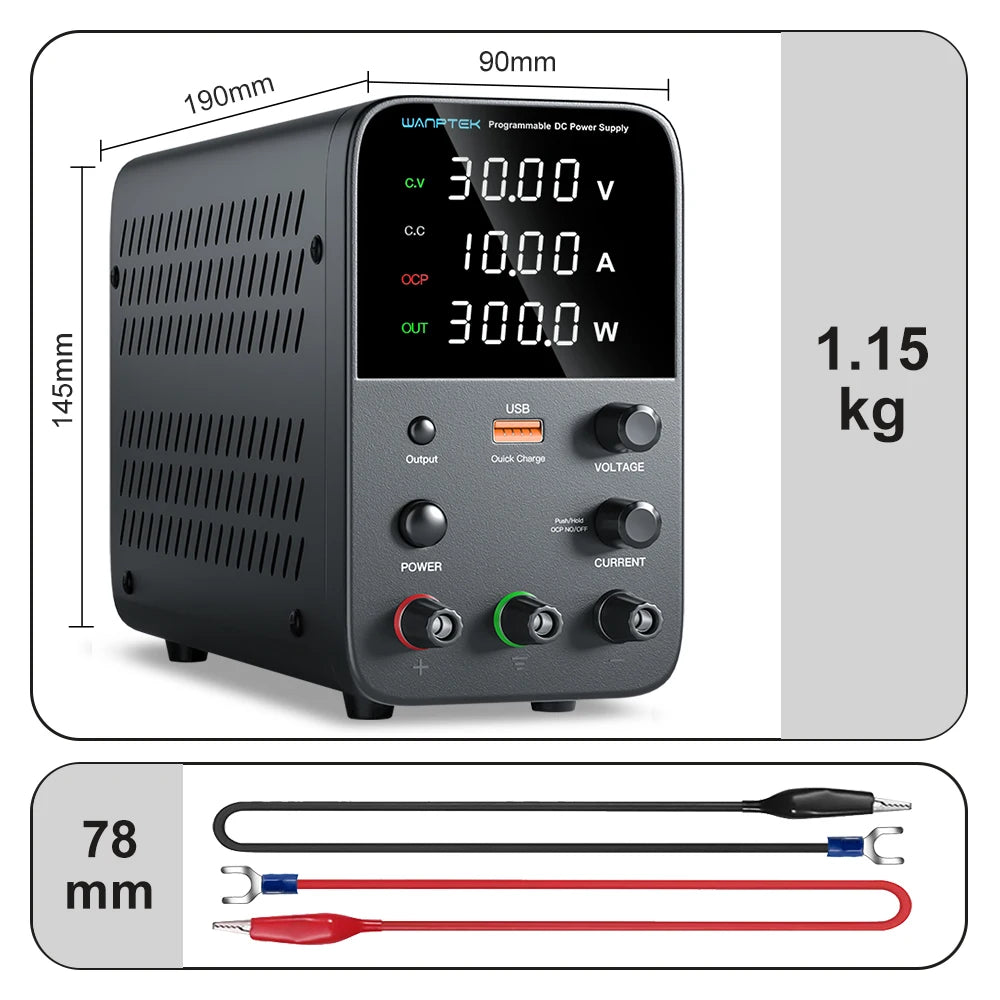

Product size: 190mm (L) X 90mm (W) X 145mm (H)

Package Size: 265(L) x 135(W) x 195(H) mm

Bare weight: 1.15Kg

Weight with packing accessories: 1.5Kg

8 sets/whole piece,Carton size: 550*275*405mm,Carton weight: 12.5Kg

Random accessories

AC power cord x 1, (optional: national standard, American standard, European standard, British standard, etc.)

Operation manual x 1, (optional: national standard, American standard, European standard, British standard, etc.)

Output test cable x 1, (optional: national standard, American standard, European standard, British standard, etc.)

Product Package

1x DC power supply

1x Power cord (EU,US,UK,AU)

1x Test line

1x User manual
