$309.69 $309.69

SPECIFICATIONS

AC1200 Outdoor Wireless WiFi Repeater: outdoor wifi repeater long range

Access Point AP Max. LAN Data Rate: 1200Mbps

Brand Name: comfast

Certification: CE,FCC

Choice: yes

Comfast outdoor router: wifi repeater outdoor

High-concerned chemical: None

Model Number: WL-AP7204

Origin: Mainland China

Outdoor Access Point AP Support: Waterproof

Outdoor Wifi AP Antenna: 2*5dbi External Antenna

Outdoor long range router: wifi router outdoor

Outdoor wifi access point: wifi extender long range

Package: Yes

Powerful Outdoor AP Power: 500mW(27dBm)

Wireless Outdoor AP Poe: 24V 0.5A

Wireless Protocol: 802.11a

ac1200 outdoor: wifi repeater outdoor,wifi repeater long range

ac1200 outdoor wifi: router wifi AC1200

long distance outdoor repeater: wifi extender Router

outdoor accespoint external wifi antenna: hotspot comfast wifi Nanostation

outdoor wifi amplifier: 1200mbps repeater

outdoor wifi antenna: Outdoor wifi repeater

outdoor wifi range extender: wifi repeater long range

outdoor wifi router roteador outdoor: outdoor ac1200 wifi out door

outdoor wireless access point: outdoor wifi antenna

semi_Choice: yes

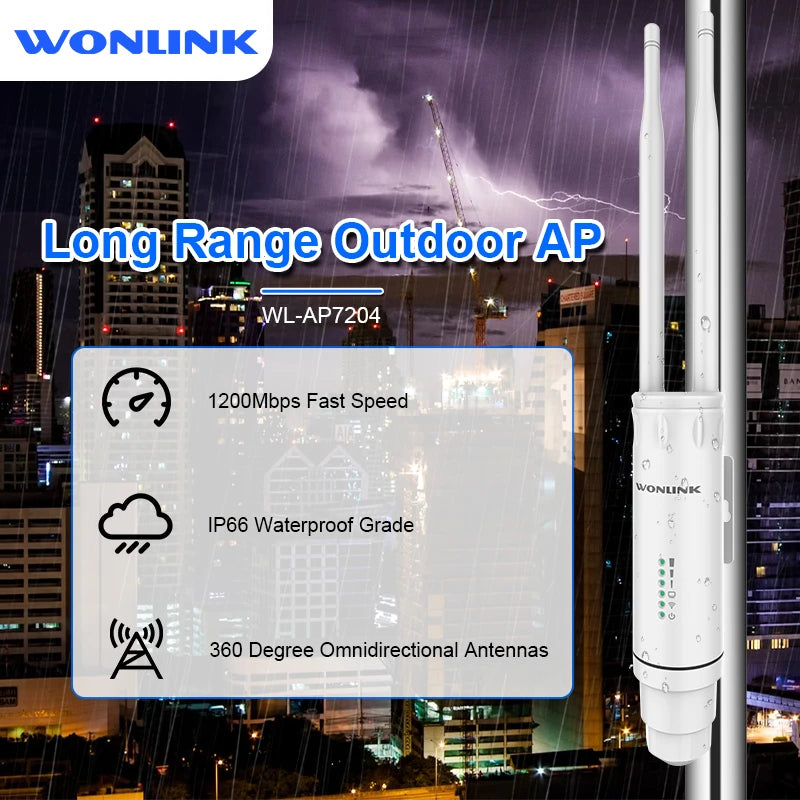

High Power AC1200 Outdoor Access Point Wifi Router /Repeater/AP 5G+2G Weatherproof Long Range Omnidirectional Wifi Antena Extend
Product Description:
WL-AP7204 is a 1200Mbps dual-band outdoor high-power AP, supporting outdoor IP66 protection and other level, 360° omni-directional WiFi coverage, high band width machine and other features, suitable for parks, factories, driving schools, schools, neighborhoods, rural areas and other outdoor scenes.


Product Performance Advantage

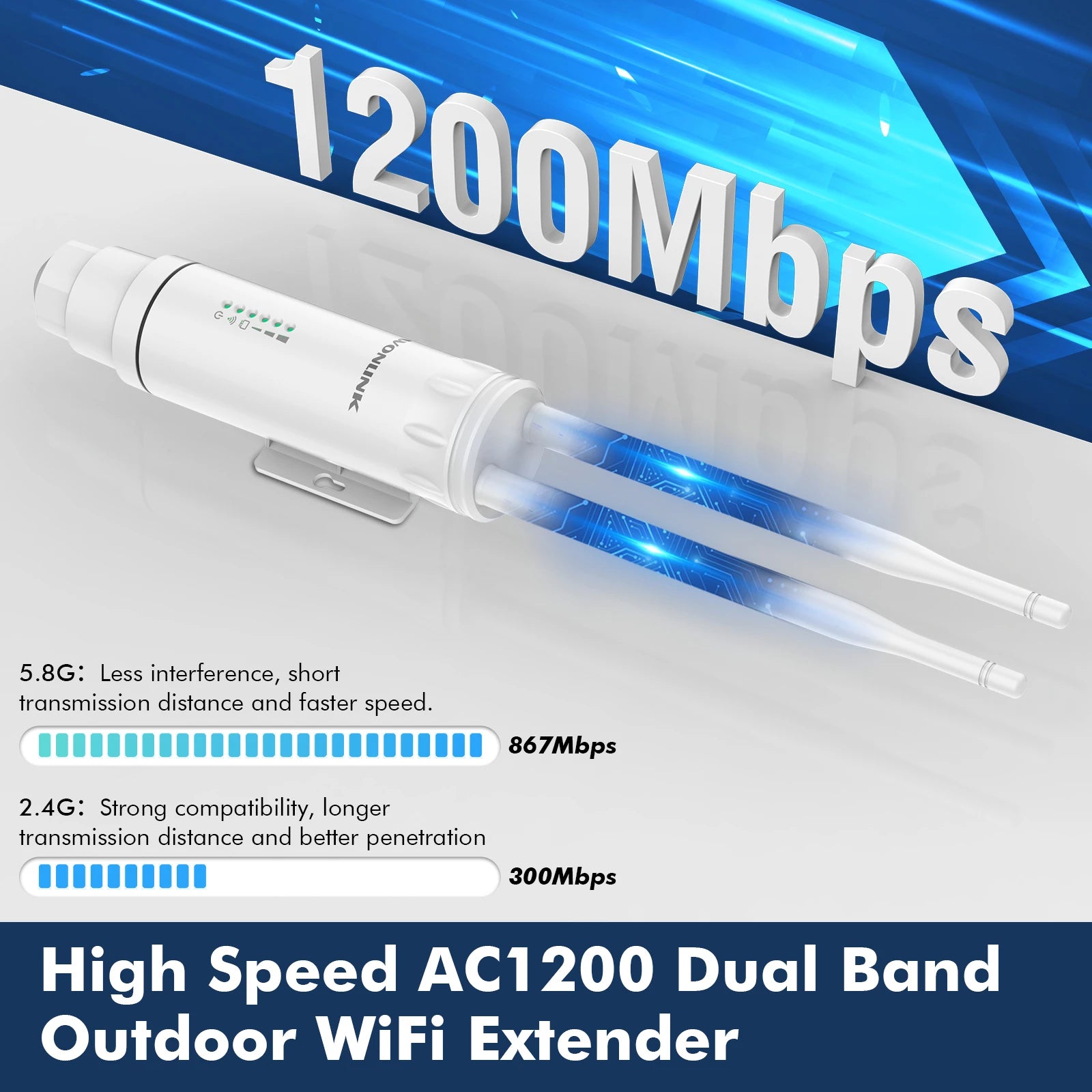

1200M dual frequency, fast and stable
WL-AP7204 supports 1200Mbps fast wireless rate, can work in 2.4GHz&5.8GHz frequency band, 2.4GHz frequency band has strong diffraction power, 5.8GHz anti-interference is strong, providing users with fast, comprehensive and stable outdoor wireless network.
Three-chip design, stable and reliable products
WL-AP7204 adopts a three-chip solution, MT7628DAN+MT7613BEN chips, and the 2.4GHz&5.8GHz frequency band is equipped with a high-performance independent power amplifier circuit (PA: Power Amplifier), which improves the wireless transceiver performance, and the signal is higher than that of ordinary APs. stronger.

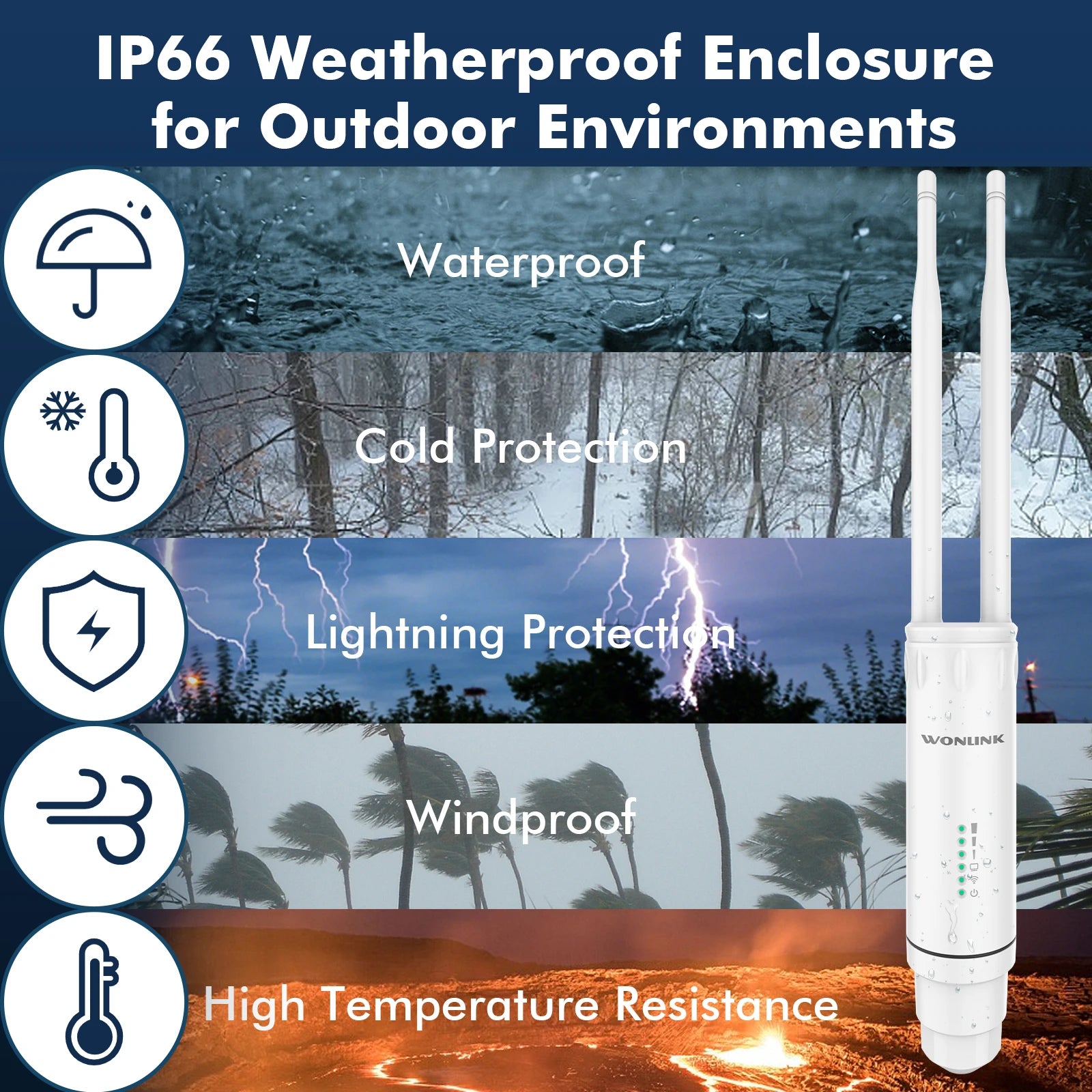

IP66 outdoor protection grade
WL-AP7204 supports IP66 protection level, which can effectively prevent the impact of bad weather such as wind, frost, rain and snow on the equipment, prevent the infiltration of dust and water droplets, and ensure that the equipment can run safely and stably in bad weather.
High gain omnidirectional antenna
WL-AP7204 is equipped with 2* 5dBi dual-band omnidirectional antenna, which supports 360° omnidirectional coverage, and fully meets the long-distance wireless coverage requirements of outdoor squares, stadiums, scenic spots, parks, playgrounds and other environments.
Product Feature:
1.Model Number: WL-AP7204
2.Chipset:MT7628DAN+MT7613BEN Chipset ,
3.RAM : 64MB ; Flash : 8MB ;
4.Support the maximum number of end users ：50+
5.RF Parameters:500mW (27dBm)Transmitting Power
6.Antenna:2*5dBi dual band Omnidirectional antenna ；
7.Wi-Fi Transmission Rate: 2.4Ghz : 300Mbps , 5.8Ghz : 867Mbps ;Maximum receiving sensitivity ：-96dBmWorking frequency ：802. 11ac/a/n: 5. 180GHz-5.825GHz , 802.11b/g/n : 2.412GHz-2.484GHz ;
8.Physical interface : 1*10/100M LAN RJ45 Ethernet port (Support POE power supply) , 1*10/100M WAN RJ45 Ethernet port (Support POE power supply)1*RESET Button ;
9.Indicator light ：Power / WAN / LAN / WiFi indicators ；Power supply ；24V 0.32A POE power adapter ;
10.Power Consumption:<13W
11.Lightning protection; IP66 Level MTBF:>250000H
12.Installation method :Pole installation, wall installation；
13.Application : Application for park / school / Driving school / Plant area / Shopping mall / Village


Package content:

With retail box

1*AP main body

1* POE power adapter

1*O type fixing loop

1*User manual

1*guarantee card

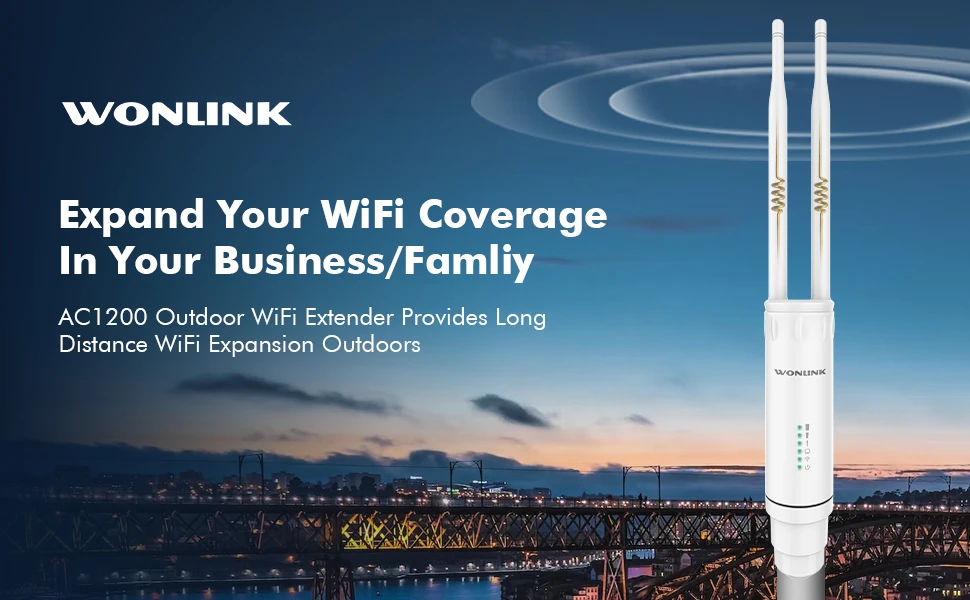

Expand your wifi coverage in your business family


AC1200 Outdoor wifi extender provides long distance wifi expansion outdoors

Ultra -fast & stable wifi connection in outdoor


Professional outdoor weatherproof design


1，Dual Band Speed 1200Mbps Speed
2 Wifi 5 802.11ac Web Quick Set up

3，Coverage Up to 100-200m
4 2 High Gain Antennas   Newest Chip

5，Wan/LAN    Reset Button
6 WPA2/WPA /WPA-PSK/AES

7DDOS Defence  system
8eamless Roaming
9Smart indicator

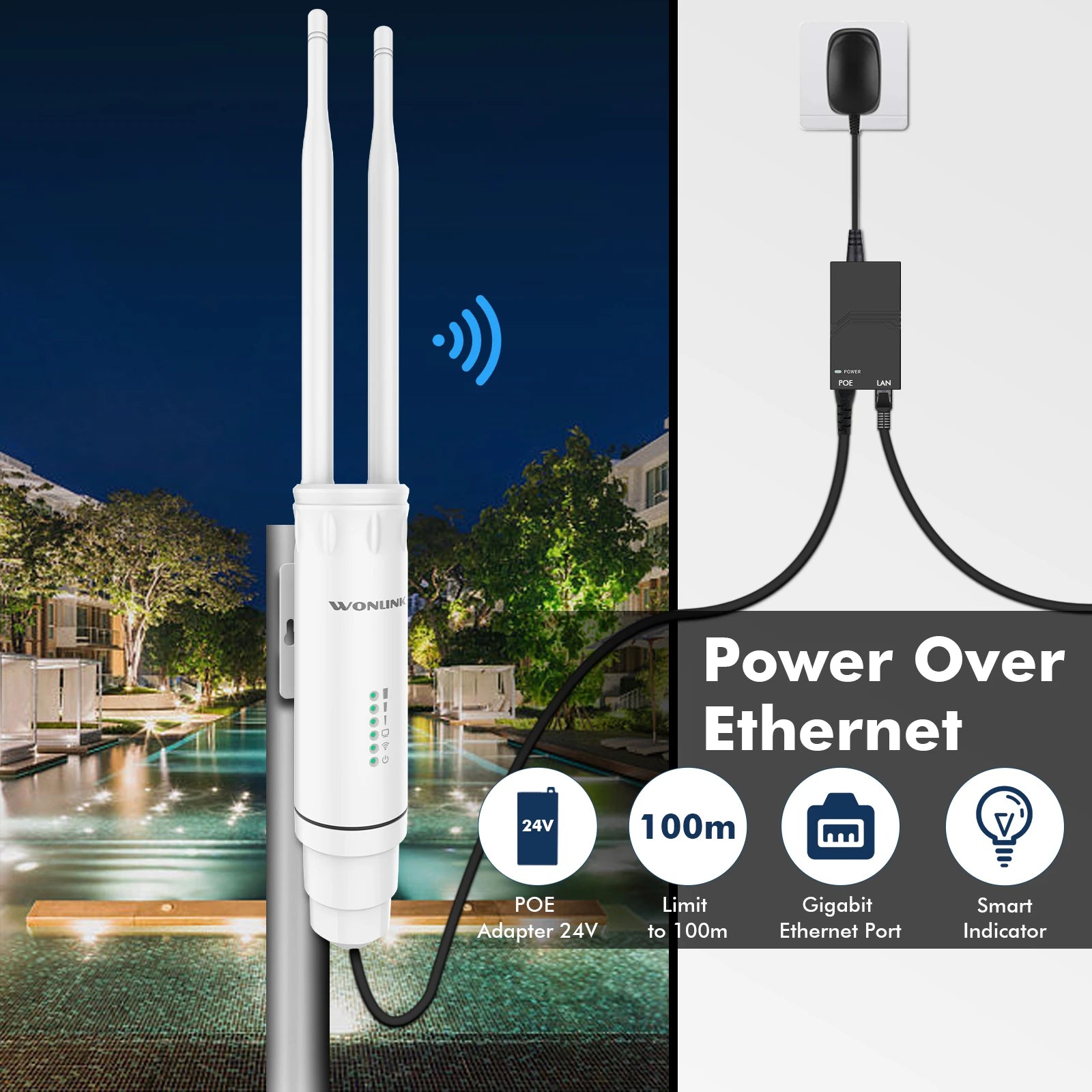

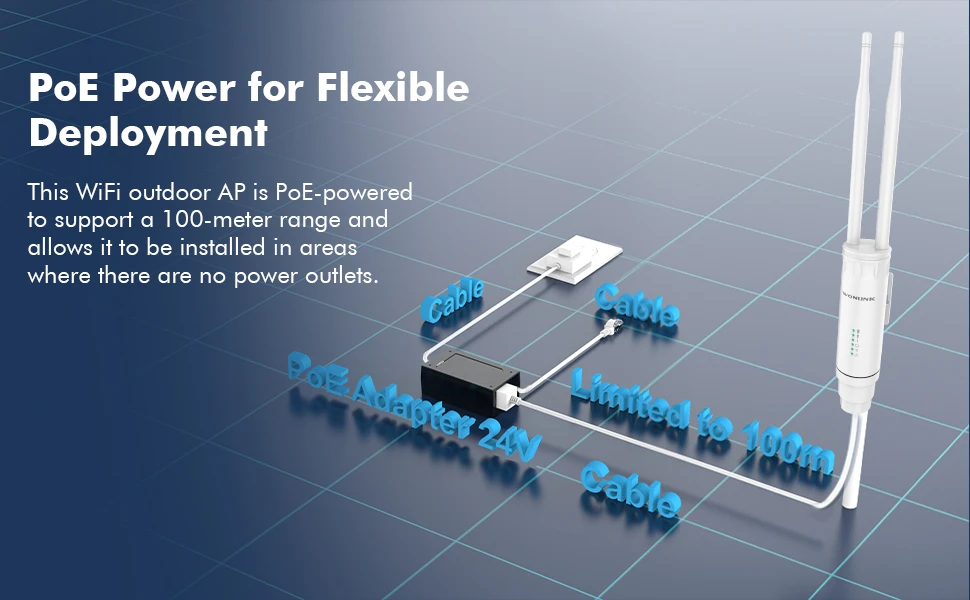

POE Power for Flexible Deployment

This Wifi Outdoor AP is poe powered to support a 100meter range and allows it to be installed in areas where there are no power outlets.

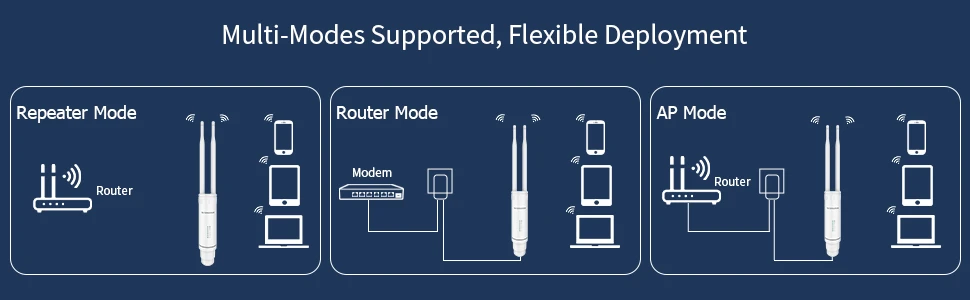

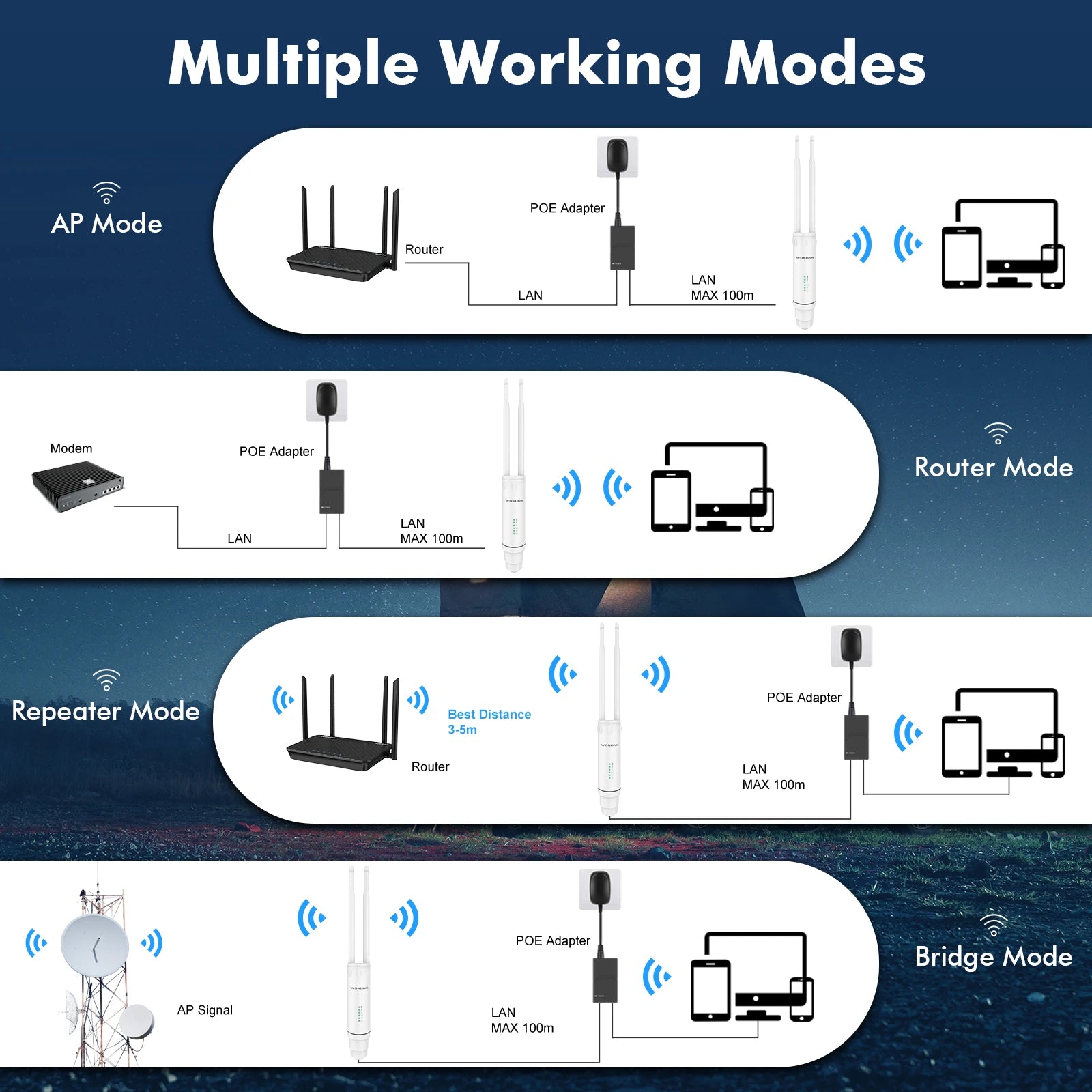

Multi-Modes Supported, Flexible delayment
Repeater Mode /Router Mode/AP Moe

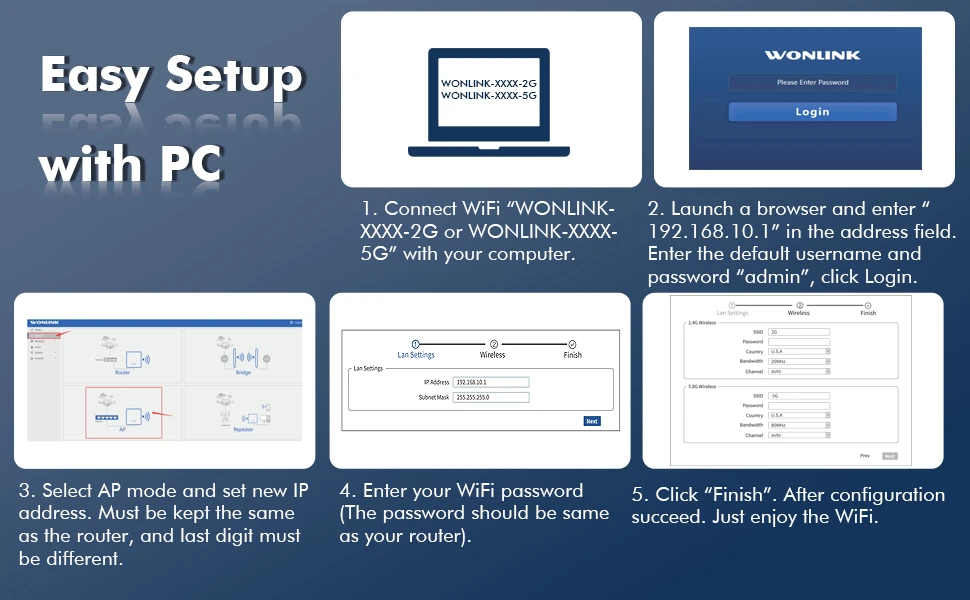

Easy Set up with PC

1.connect wifi "wonlink-xxx 2g " or wonlink-xxx-5g with your computer.

2.launch a brower and enter 192.168.10.1 in the address field, enter the default user name and password "admin",click login.

3. Select AP mode and set new IP address ,Must be kept the same as the router, and last digit must be different.

4. Enter your wifi password (The password should be same as your router)

5. Click "finish",After configuration succeed, Just enjoy the wifi.
